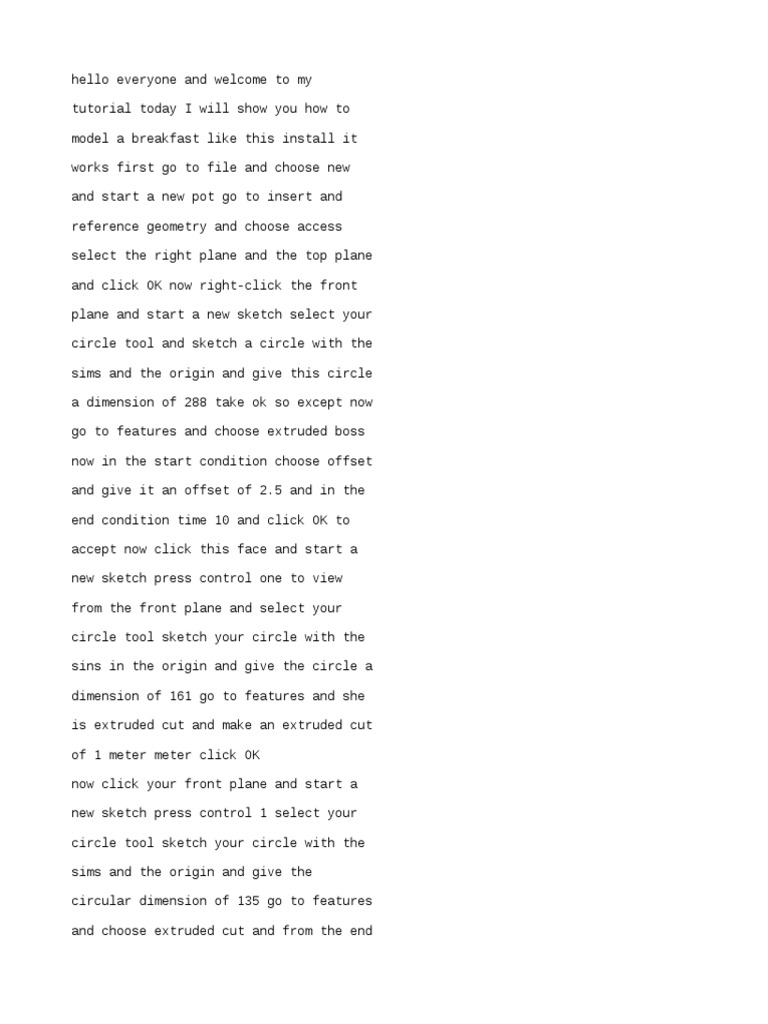

hello everyone and welcome to my

tutorial today I will show you how to

model a breakfast like this install it

works first go to file and choose new

and start a new pot go to insert and

reference geometry and choose access

select the right plane and the top plane

and click OK now right-click the front

plane and start a new sketch select your

circle tool and sketch a circle with the

sims and the origin and give this circle

a dimension of 288 take ok so except now

go to features and choose extruded boss

now in the start condition choose offset

and give it an offset of 2.5 and in the

end condition time 10 and click OK to

accept now click this face and start a

new sketch press control one to view

from the front plane and select your

circle tool sketch your circle with the

sins in the origin and give the circle a

dimension of 161 go to features and she

is extruded cut and make an extruded cut

of 1 meter meter click OK

now click your front plane and start a

new sketch press control 1 select your

circle tool sketch your circle with the

sims and the origin and give the

circular dimension of 135 go to features

and choose extruded cut and from the end

condition choose through all now reverse

the direction and click OK so we will

have something that looks like this

now type this face and start on your

sketch click this edge and click convert

entities click OK to accept an escape

now choose your circle tool and sketch a

circle with the sins in the origin and

give this circle that I mentioned of 140

8.25 go to features and choose extruded

boss now in the end condition choose

offset from surface and choose this face

click the arrow to reverse the direction

and type 4604 to 6.33

and click OK to accept

now type not like this face and start a

new sketch

click this edge and choose convert

entities go to features and choose

extruded boss

now you make an extrusion of 7.2

click the arrow to reverse the direction

and click OK to accept press control 1

to view it from the front view right

click a front plane and start a new

sketch sketch a circle with the sims and

the origin and give the circle that I

mentioned of 68

now go to features and make an extruder

cut through all like this and click OK

now click this face and start a new

sketch click this edge and click convert

entities and click OK to escape select a

circle tool and sketch a circle with the

sins in the origin and give the circle

that I mentioned of 161 go to features

and choose extruded boss and make an

extrusion of 15 millimeters click OK to

accept now press ctrl 4 to view it from

the the right plane right click your

right plane and start a new sketch now

select a sense a rectangle some a little

in like I'm doing here and sketch a

sense a rectangle press escape to exit

the tool now take your front plane and

ctrl click the center of the rectangle

and choose coincident choose smart

dimension and give this line that I

mentioned of 22

choose this point in this line and give

this one a dimension of 12 and finally

give this line a dimension of 10 now you

can zoom out and rotate a little go to

features and go to revolve cut now in

the axis of revolution choose your axis

and the Raval type choose mid plane and

choose 15 degrees so it look like this

and click OK to accept now choose your

filler tool and give these four corners

a fill it of two millimeters like I'm

doing here

like this and click OK to accept

now go to insert you go to pattern

mirror and choose the circular pattern

now in the features to pattern choose

you revolve the cut and you fill it and

in the pattern axis choose your access

you made in the start now in the number

of instances side 20 and click OK to

accept

press control faults are viewed from the

right plane right click your right lane

and start a new sketch sketch a circle

like I'm doing here and give the circle

a dimension of 12 millimeters and give

it a dimension from your access to the

center of the circle of 140 six point

five Preston a button to escape smart

dimension now click the front plane and

control click the send up the circle and

make it coincident go to features and

choose revolve but cut now India access

choose this axis and make sure you have

blind chosen and 360 degrees and click

OK to accept

so now it would look like this

now you should

you should choose your Champa

like this and click this edge and give

this edge a chamfer a four millimeters

and click OK to accept choose your

chamfer tool once more and give this

edge a chamfer of 3.2 click OK to accept

now press control one to view it from

the front fling right-click front lean

and start a new sketch sketch a circle

like I'm doing here and give the circle

at diameter of fifteen point three

millimeters control click your top plane

and the center of your circle like this

and make a coincident relation and snap

to the center and to the center of the

circle and give it a dimension of 56

now go to features and go to extruded

cut and make an extruded cut through all

like I'm doing here

now go to insert and go to pattern and

mirror and choose circular pattern and

choose your your cut you just made and

in the center you choose your your axis

like this and in number of instances you

type five and click OK to accept so we

will have some screw holes

now choose your channel once more and

give this edge hmph of two millimeters

and press ok to accept now press ctrl

once you view it from the front plane

you click this face to start a new

sketch

select your center line tool and snap to

the origin sketch a center line here and

one more here one down here and one here

and one here

now choose a three-point dock and snap

to this point and snaps at this point

cents get you'd like I'm doing here and

press the escape button now control

click your arc and this end the line and

make its ancient relation like this now

choose your ordinate dimension choose

this line and click once choose this

point this point

click okay now choose your ordinate

dimension once more and click this line

and click this point and click escape

now double-click this dimension and type

30 double-click this dimension and size

38 that looks like this dimension and

type 88 now assume a little out choose

smart dimension and choose your top lane

and choose this centerline and give this

one an angle of 4.5 five degrees and

click OK to accept

so we will have a fully defined sketch

here now exit your sketch

start a new sketch on this face choose

your circle tool and sketch a circle

with the center in this point give this

circle that I mentioned of six

millimeters go to features and choose

extruded tough and make it through all

and click OK to accept

now go to insert and go to pattern

mirror and choose curve driven pattern

now in your pattern direction choose

this sketch and in your features to

pattern you choose this hole now in

number number of instances type five and

make sure you have equal space and

checks and click OK to accept now

right-click your sketch and hide it like

this

go to insert and choose pattern and Mira

and she's the circular pattern

now in the pattern access juice this

axis then the features to pattern you

expand your feature tree and choose the

curve driven pattern and in a number of

instances you types when you and click

OK to accept

so it would stop to look something like

this

now all we'll need is to give it some

phillotson some chances you can stop

with some chances give this edge of

Champa Champa of two millimeters and

this edge also and right-click to accept

choose the fill tool and make it worth

one millimeter and choose this edge and

this face and click OK to accept

so finally we will give this one a fill

it also inside this face and this face

and okay to accept

so now we have muddled our brake discs

and I hope you enjoyed my tutorial

tutorial and you will find it useful

thank you for watching bye
