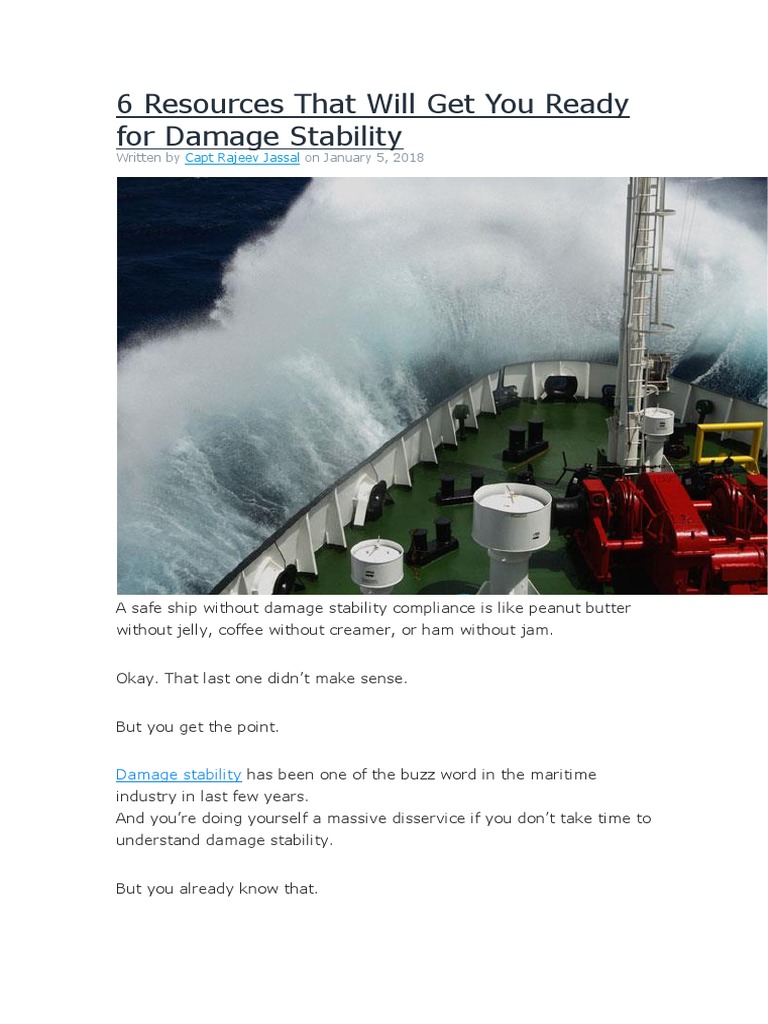

6 Resources That Will Get You Ready

for Damage Stability

Written by Capt Rajeev Jassal on January 5, 2018

A safe ship without damage stability compliance is like peanut butter

without jelly, coffee without creamer, or ham without jam.

Okay. That last one didn’t make sense.

But you get the point.

Damage stability has been one of the buzz word in the maritime
industry in last few years.
And you’re doing yourself a massive disservice if you don’t take time to
understand damage stability.

But you already know that.

 What you might not know, though,
is which resource provide what information about damage stability.
That is why I’m going to discuss about all the resources related to
damage stability.

Let us jump in.

Damage stability booklet

The information provided in damage stability booklet can be divided

into three parts

 Damage control booklet (required for all type of ships)

 Damage stability calculation (required for tankers)

 Damage control plan (required for all type of ships)

Sometime you may find all this as one booklet called “damage stability
booklet”. And on some ships, you may find three different booklets
titled as above.

Let us discuss what information each of these provides.

1) Damage control Plan

Damage control plan is required as per SOLAS chapter II-1/Regulation

19.

As per this regulation

A plan showing clearly for each deck and hold the boundaries of the
watertight compartments, the opening therein with means of closing
and position of any control thereof, and arrangement for the correction
of any list due to flooding.
 In simple words, the plan needs to show the

 layout of all the compartments such as cargo tanks, ballast tanks, fuel
tanks etc.

 means of closer such as valves, watertight bulkheads, hatches or cargo

tank domes and its position

 arrangement for correction of the list during flooding. Such

arrangement could be the use of ballast pumps, Fire & GS pumps. In
this case, location & capacities of these pumps need to be shown on
the plan.

The more detailed guidelines about the information required in the

damage control plan are provided in MSC circular MSC.1/Circ 1245.
Damage control plan is required to shows the location and other details
about resources required for damage control.

For example during flooding into a compartment, we would like to

check the air pipes if air is coming out from these. Damage control
plan gives the location and details of the air pipes of all compartments.
It gives the location and details of all watertight (and weather tights)
doors on the ship.

Similarly, damage control plan gives the details of Tanks, Hatches or

other compartments on ships.
It gives the type and location of important valves that can help in
damage control or help in restricting the flooding.
And finally, it also provides the information (like capacity) and location
of pumps (such as Fire and GS pump, ballast pump etc) that can be
used for pumping out the water during flooding.

Apart from all this information, the location of these will be displayed
on the ship’s plan.
2) Damage control booklet

The name says it all. This booklet gives the information to the master
about how to control the effect of damage.

Damage control booklet is also required as per SOLAS chapter II-

1/Regulation 19.

The information required in the damage control booklet is contained in

the MSC circular MSC.1/Circ.1245.
As per SOLAS chapter II-1/19, damage control booklet need to have
all the information as per damage control plan. To comply with this,
usually, a copy of damage control plan will be included in the damage
control booklet.

Apart from this, damage control booklet is supposed to provide

information and guidance to the master about actions to take in case
of damage to the ship.
 These specific actions may include

 Sounding of alarms to alert the crew

 the closing of all watertight doors and compartments

 Sounding of tanks to check where the water is flooding and with what
rate

 ways to reduce the effect of flooding such as by use of pumps to pump

out water.

Along with this information, some ship’s damage control booklet may
also provide a flow chart to deal with damage situations. Below is one
of such flowchart.
Rest of the damage control booklet will consist of the information and
guidance to support required actions as per this flowchart.

For example, one of the action requires the vessel to monitor tank
sounding. Damage control booklet will have one section with the ready
format for recording tank soundings.

Another action requires the vessel to report the damage situation to

the necessary organization such as ‘Emergency response service”. For
this damage control plan will also provide a ready format for such
reporting.

3) Damage stability calculations

Damage stability calculations demonstrate the compliance with the

applicable damage stability regulation.

These are the calculations made during the design stage of the ship
and verified after the construction.

For example, oil tankers need to comply with damage stability

requirements as per MARPOL Annex I, regulation 28.
Damage stability requirements for oil tankers are based on Damage
assumptions, meaning that extent of damage is assumed at locations
as mentioned in Marpol Annex I, Reg 28.

Damage cases are drawn based on these damage assumptions. For

example below are the damage cases for a ship.
These damages are then assumed for all the loaded conditions
mentioned in ship’s trim & stability book (intact stability conditions).

The damage cases are not applied to the ballast conditions because the
damage stability requirements apply to the tankers in loaded condition
only.

For this ship below are the loaded conditions in the intact stability
booklet.

Let us take damage case 101. This damage case requires assuming
damage to 6 compartments.

In each of the intact loading condition, these damages need to be

assumed.

After these assumed damages, the ship needs to comply with damage
stability requirements mentioned in MARPOL Annex I, Reg 28.
 As per Marpol Annex I, reg 28…

And for damage case 101, we will have a total of 9 damage stability
conditions, each for one loading conditions. Let us name these
conditions as

 Condition 13/ Damage 101

 Condition 14/ Damage 101

 Condition 15/ Damage 101

 Condition 16/ Damage 101

 Condition 17/ Damage 101

 Condition 18/ Damage 101

 Condition 19/ Damage 101

 Condition 20/ Damage 101

 Condition 21/ Damage 101

Each damage case will have 9 damage stability conditions. For this
ship, there are a total of 21 damage cases and total 9 intact loaded
conditions.

The damage stability calculations need to be done for total 189

conditions.

The damage stability calculations need to be done for total 189

conditions.

And the end results of these calculations are supposed to comply with
the damage stability criteria as per MARPOl Annex I, reg 28.

These calculations form the part of booklet “Damage stability

calculations”.

4) Damage Stability Information

SOLAS Chapter II-1/Reg 19.5 requires that

damage stability information shall provide the master with a simple

and easily understandable way of assessing the ship’s survivability in
all damage cases involving a compartment or group of compartments.
What does this mean?

Let me explain.

Damage stability calculations showed that ship will comply with

damage stability requirements when damage cases are applied to
the pre-defined intact loading conditions.

But in reality, our actual loading conditions during the voyages may be
totally different from that in intact stability condition.
Our actual loading may not match with any of the loading conditions in
the stability booklet.

This SOLAS regulation requires clear and easy instructions to be given

to check if our actual condition complies with the damage stability
requirements.

These instructions are usually in form of a graph (or table) of Draft

versus minimum GM (or maximum KG). There may be a different
graph for the different trim of the vessel.
This information will form the part of either “Damage stability
calculations” or “damage control booklet”.
 If the vessel has a single “Damage stability booklet”, you will find this
information in there.

5) Emergency Response service

MARPOL Annex 1/Reg 37.4 requires that

All oil tankers of 5000 T deadweight or more shall have prompt access
to computerized shore-based damage stability and residual structural
strength calculation programs.
In the real world, this program is usually named as “emergency
response service” and is provided by classification societies.

Though this is mandatory for oil tankers, ship owners prefer this
service for other types of vessels too, especially on container ships.

This service provides an emergency helpline number and email.

In case of a damage and breach of hull plating, the master can call this
number and update regarding the incident.

Master then need to send the initial reports, loading condition before
the damage and extent of damage by email.

The service provider will advise

 if the vessel will be able to sustain this damage

 what specific action vessel can take to reduce the effect of damage.

There is something else that ERS can be used for.

It can be used for showing the compliance with the damage stability
requirements. Some vessels still do not have the facility in the
loadicator to calculate damage stability.

If the vessel’s actual loading condition is not matching with any of the
pre-defined loadicator conditions in the intact stability booklet, this
loading condition can be sent to the ERS.

They will check the loading condition and advise if it complies with the
damage stability requirements.

This is considered to be one of the methods for checking the damage

stability compliance.

In fact, if the condition is approved for compliance with the damage

stability, same can be added to the list of approved damage stability
conditions.

6) Loadicator with damage stability

MARPOL Annex I regulation 28.6 requires the oil tankers to be fitted

with loadicator capable of calculating damage stability compliance.
The loadicator if fitted with damage stability can check compliance with
all the damage cases identified as per MARPOL or other regulations for
other types of ships.
To check the damage stability compliance on the Meca Loadicator, go
to calculations -> Stability -> Damage stability
It will show all the damage cases identified in the damage stability
booklet.

Click on the “Pre-determined” to check if the ship complies with the

damage stability requirements.

Conclusion
A seafarer may or may not go through any incident requiring the use
of damage stability on board.

But we need to be prepared for the worst.

Knowledge of damage stability can help to take quick decisions at

times when each minute matters.

Knowing about damage stability does not mean knowing the complex
calculations. It is to know the exact actions in case of damage and
knowing about the resources on board that would help in these
actions.

Damage stability calculations, damage control plan/booklet,

emergency response service and loadicator are the resources that we
must know about.
