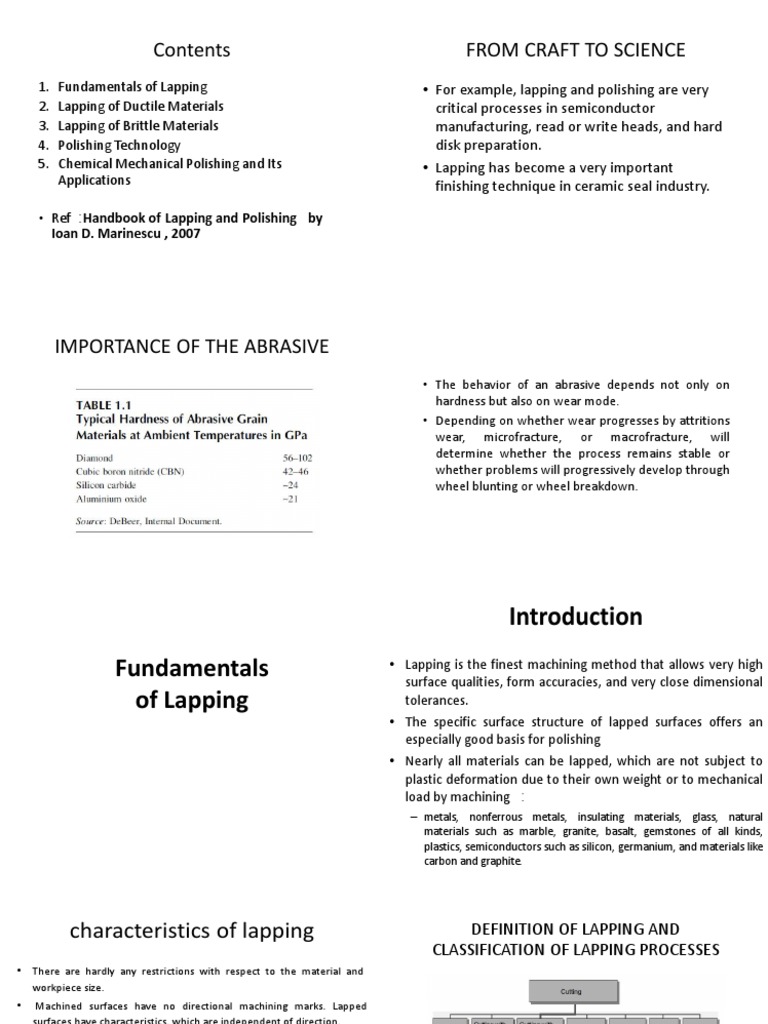

Contents FROM CRAFT TO SCIENCE

1. Fundamentals of Lapping • For example, lapping and polishing are very

2. Lapping of Ductile Materials critical processes in semiconductor
3. Lapping of Brittle Materials manufacturing, read or write heads, and hard
4. Polishing Technology disk preparation.
5. Chemical Mechanical Polishing and Its • Lapping has become a very important
Applications finishing technique in ceramic seal industry.

• Ref :Handbook of Lapping and Polishing by

Ioan D. Marinescu , 2007

IMPORTANCE OF THE ABRASIVE

• The behavior of an abrasive depends not only on
hardness but also on wear mode.
• Depending on whether wear progresses by attritions
wear, microfracture, or macrofracture, will
determine whether the process remains stable or
whether problems will progressively develop through
wheel blunting or wheel breakdown.
 Introduction
Fundamentals • Lapping is the finest machining method that allows very high
surface qualities, form accuracies, and very close dimensional
of Lapping tolerances.
• The specific surface structure of lapped surfaces offers an
especially good basis for polishing
• Nearly all materials can be lapped, which are not subject to
plastic deformation due to their own weight or to mechanical
load by machining :
– metals, nonferrous metals, insulating materials, glass, natural
materials such as marble, granite, basalt, gemstones of all kinds,
plastics, semiconductors such as silicon, germanium, and materials like
carbon and graphite.

characteristics of lapping DEFINITION OF LAPPING AND

CLASSIFICATION OF LAPPING PROCESSES
• There are hardly any restrictions with respect to the material and
workpiece size.
• Machined surfaces have no directional machining marks. Lapped
surfaces have characteristics, which are independent of direction.
• Workpieces are carried without stress. Therefore, the costs of the
devices are very low. Changeover times are very short.
• During lapping, the machining temperatures and forces are low. Thus,
there is no heat or stress distortion in the case of lapped surfaces.
• Only simple geometries can be lapped.
• There is high grain consumption during lapping.
• Removal rates during lapping are relatively small compared with those
of machining with bound grain.
• According to DIN 8589 part 15, lapping is
defined as a cutting process with loose
abrasive grains dispersed in a paste, which is
guided on the lapping tool with nondirectional
paths
• Basically, all lapping processes can be divided
into the two main groups lapping with and
lapping without shape-transferring
counterpart.
 PROCESS MECHANISMS AND
SUBSURFACE DAMAGE IN LAPPING
• different kinds of material removal can be
distinguished. Material removal by cutting,
micro-fusion processes, and material removal
by micro-deformation or by the induction of
micro-cracks are to be underlined.
 MATERIAL REMOVAL AND GRAIN ENGAGEMENT
MECHANISMS IN CASE OF DUCTILE MATERIALS
• The theory of Beilby (1920) describes material
that melts partially for a short time, flows into
the grooves on the surface and solidifies
amorphously. (small grain)
• 1940s, Bornemann postulated a rolling and a
crushing movement behavior of lapping grains.
• In contrast, it was assumed in the 1950s and
1960s that the lapping grains are temporarily
fixed in the surface of the active partners if under
load. (abrasive effect on the tool and a cutting effect
on the workpiece)
• Bodrich and Enger: the roughness of the lapping
wheel, the effective grain height, and the roughness
of the workpiece have to be set in relation with each
other for the engagement of a grain. Grain
engagement takes place if the sum of the three
values exceeds a certain quantity.
• Lichtenberger : derived from this possibility of
a permanent reengagement of the lapping
grains in altered position and orientation that
poly-directional cutting edge wear must occur.
• The lapping pressure is distributed to a higher
number of lapping grains so that the depth of
indentation of the lapping grains decreases.
This leads to improved surfaces on the
workpiece.
• Fischer: there can be a rolling motion
alongside the Beilby-layer formation and the
temporary anchoring of lapping grains in the
workpiece surface. According to this idea, the
tips of the grains indent the surface in a
wedge-shaped way and blast off micro
chippings.
• Thus, all the three removal mechanisms occur
parallel to each other.
• Due to the small indentation depth of the lapping
grains in the workpiece, a chip-forming removal • Kling : a cutting effect of the lapping grains is
mechanism is being disputed by some scientists
supported by the following factors:
• Martin: was able to experimentally prove a rolling – High loads per lapping grain
grain movement during lapping on the basis of
– Soft lapping wheel material
model lapping tests on polished metal surfaces.
Based on scanning electron microscopy (SEM) – Grain shape of small compactness
images, he proved that lapped surfaces have no – Small concentration of lapping abrasive
directional marks. This led him to the hypothesis – Low viscosity of the slurry
of a pure rolling movement of the lapping grains • Opposite boundary conditions, however, benefit
between the effective surfaces. the rolling of the lapping grains.

MATERIAL REMOVAL AND GRAIN ENGAGEMENT

MECHANISMS IN CASE OF BRITTLE-HARD MATERIALS

• Grunwald and Jaksch: transfer the
fundamentals of wear research to the lapping
process.
• they interpret the material removal process in
terms of a material abrasion provoked by
elastic and plastic deformations, cutting
processes, and cold welding in special cases.
• In the case of these materials, the removal is
based on the generation, propagation, and
networking of microcracks, which accrue due
to the stress fields induced in the material.
• The type, size, and shape of the developing
crack system depend on the induced contact
stress field.

• Buijs and Korpel-van : on lapping of glass ,the
grain engagement as follows: during the
rolling motion, the grain tips are pushed into
the material, thus forming a plastic zone
underneath the indentation. Based on this
zone, lateral cracks develop, which provoke
shell-like particle break offs. There is always a
constant number of grains engaged in the
working gap.
• In the case of monocrystal materials, further important
aspects are their anisotropy and the position of the
gliding system in relation to the surface.
• The crack types and sequence of cracks depend on the
material, the environmental conditions, the indenter,
and the height of the load.
• On the basis of short-time lapping tests on polished
glass surfaces, Phillips et al. [56] proved a conformance
of the indentation morphologies, which had been
caused by the single grains of the lapping abrasive or
by Vickers indentation tests.
• on lapping of ceramics: the lapping grains
between the lapping wheel and the work piece
do not roll permanently but indent the workpiece
due to anchoring in the lapping wheel. After
lapping, the surfaces have mainly slab-like break
offs and plastic scratches. After the break offs,
however, surface cracks much more;
• processes as quasistatistical: the grain gets caught
first in the lapping wheel, then indents the
surface of the workpiece, leads there to material
break off, and leaves the lapping gap.
 lapping monocrystal materials
• it is especially important that the temporary
anchoring of grains in the lapping wheel and
the resulting scratching grain engagement are
avoided.
4. an increase of the depth of scratch of the radial
scratches, the resistance of the material to
plastic deformation increases, leading to an
erection of the grain above its maximum grain
diameter.
5. From a certain depth of scratch on, the material
is not capable of plastic deformation any more.
With a growing normal grain force component,
there is brittle crack formation with subsequent
break off.
1. the grains are transported by flow conditions in
the lapping gap, which result from the relative
movement and the superimposed normal force.
2. the grains hit the protuberances of the lapping
wheel (and/or of the workpiece) and get caught
in them.
3. a force acting mainly tangentially to the surface
is transmitted to the grain, as a result of which
the grains scratch the surface of the workpiece
material.
INFLUENCE OF THE SPECIFICATION OF THE LAPPING
ABRASIVE ON THE GRAIN ENGAGEMENT AND ON THE
MATERIAL REMOVAL
• The lapping abrasive is basically characterized
by:
1. grain type,
2. grain shape,
3. grain size distribution
4. its wear behavior
 • The danger of scratches through scratching
grain engagement grows with the use of
harder and sharp-edged lapping abrasives.
• The number of the active grains is determined
by the average grain size and the standard
deviation of the grain size distribution of the
lapping abrasive.
• The behavior of grain breakage is significantly
influenced by the type, size, and shape of the
grains.
• The description of the wear behavior of the
graining in the lapping process merely by
material parameters like hardness or the
elasticity module is insufficient.
• During the lapping process, the lapping abrasive
is being worn due to grain splintering and grain
breakage.
• the high wear of large single grains, grain
breakage leads to a decrease of the average grain
diameter and the spread of the grain size
distribution of the lapping abrasive, and thus to
reduced single grain normal forces until there is a
stationary condition in the working gap
• the application behavior of the graining can be
determined depending on:
1. its mechanical properties and
2. the grain size distribution
3. the engagement conditions such as the
number of active grains and lapping pressure
per grain.

• The control of the lapping abrasives is
standardized especially for the requirements of
the optical industry.
• For the determination of the suitability for
lapping and of the wear behavior of the lapping
abrasive, a machining test is compulsory, which
determines the so-called lapping performance,
the class of cleanness (absence of scratches on
the surface), and the decrease of the lapping
performance through grain wear.
monocrystal
• The subsurface damage during the machining
of monocrystal materials such as silicon
deserves special attention.
• All mechanically induced deviations of the
crystalline structure of the monocrystal
subsurface from the ideal crystal structure are
considered subsurface damage. These are for
instance microcracks, dislocations, as well as
residual stresses
subsurface damage
• The locally acting high forces and temperatures occurring
during cutting processes affect the properties of the
subsurface of a workpiece.
• The subsurface can be characterized by its structure,
hardness, and state of stress.
• isotropic residual compressive stress
• The depth of the affected subsurface and the boundary
hardness value depend on the size of the lapping grains as
well as on the pressure.
• The residual compressive stresses determined at the surface
were considerably higher than those achieved by grinding
under equal conditions.
LAPPING PROCESS AS A REMOVAL SYSTEM
• the subsurface damages of the workpiece and
the tool wear are loss parameters. Material
removal is a useful parameter.
• The removal system can be completely
described through the following parameters :
1. Function (machining of the material)
2. Abrasive stress (stress collective, duration and
path)
3. Structure (matching of active partners)
4. Interaction of the active partners (contact
conditions)
5. Manifestation of material removal (surface
formation and subsurface damage)
6. Parameters of material removal (subsurface-related
work results and material removal rate)

The removal system is influenced by

the following parameters:
• Tool wear (especially the wear of the lapping
abrasive)
• Surface quality (especially surface
topography)
• Subsurface quality (especially the type and
depth distribution of the damages)

LAPPING WHEELS
• The lapping wheels are characterized by their
macrogeometry, surface topography as well as
by material, its mechanical properties, and its
structure.
• The lapping wheels usually consist of fine-
grain cast pearlite. A homogeneous structure
and uniform hardness are very important.
• The hardness of the lapping wheels influences
the kind of movement of the lapping grain.
LAPPING TOOLS
SLURRY
• It consists of the lapping abrasive (grain) and
the lapping medium (fluid or paste).
• There is always a certain volumetric
concentration, which is often called grain
concentration, of the lapping abrasive in the
slurry. Usually, volumetric mixing ratios of 1:2
to 1:6 are used
 LAPPING ABRASIVES CALCULATION OF THE PATH LENGTH DISTRIBUTION
OVER THE LAPPING WHEEL RADIUS
• The lapping abrasive is defined by its material
characteristics, the shape of the grains, and its
grain size distribution,
• Grain sizes between 0.1 and 150 mm are
used; in general, grain size ranges from 5 to 40
mm
• Silicon carbide , Corundum (aluminum
oxide) ,Boron carbide ,diamond
PROCESS MODEL

• The following are the general points that should
3. High lap speed will increase stock removal. For a
rotary lap, a speed of approximately 275 rpm is
recommended. If lap pressure is too high it will
score the part.
4. Increase of pressure of part against the lap will
increase the speed of cut.
5. Serrated or grooved laps are best for flat
surfaces with large areas, and also for flat areas
with holes in the surface.
Lapping of Ductile Materials
be followed in the lapping process to obtain the
desired finishing:
1. A lap should be softer than the part to be lapped.
2. The abrasive in a compound should be as hard as the
metal being lapped. Hard abrasives will charge or
embed in a softer metal. A nonembedding or
noncharging compound should be used for soft
metals as garnet abrasives are used for brass or
bronze. The softer the metal, the softer the abrasive.
The harder the metal, the harder the abrasive.
6. Laps with no serration or grooves are preferred
for cylindrical lapping.
7. Abrasives when mixed into an oily paste or
greasy vehicle will give better results than just a
mixture of fluid oils and abrasives.
8. Tungsten carbide is best lapped with diamond
compounds. Norbide or boron carbide abrasive will
slowly abrade the metal, but the finish is not at
all equal to that of the finish obtained by the
diamond compounds.
 9. A gray or frost-like surface may be as smooth
and accurate as a bright finish. A bright or
polished surface does not indicate that it is
smooth, but a smooth surface may be bright or
polished.
10. A polished surface is harder to produce than a
gray matte finish and will show scratches more
readily.
11. It is more difficult to lap soft metals than hard
metals.
15. Final finishes are best obtained with no loose abrasive on the 19. An abrasive particle will produce a scratch one-half of its size.
plate. Hence, the embedded abrasive granules and a very
thin lubricant are used in the surface of the plate to get the
final finish.
16. When soft metal parts such as brass or bronze running seals
are lapped, a nonembedding abrasive should be used.
17. Different kinds of abrasives or grit sizes should not be used at
the same time on the same plate. It is recommended to use
different plates for roughing and finishing operations.
18. Diamond compounds should be used for lapping tungsten
carbide or other metals when the Rockwell C hardness
exceeds 64.
12. A soft lap will cut faster than a hard lap. It will
wear longer and give a brighter surface. A hard
lap cuts slowly, wears faster, and gives a dull
finish, but its accuracy of lapping is greater.
13. Final finishing should be done only with a
charged lap lubricated with thin oil, naphtha,
gasoline, spindle, etc.
14. Thin workpieces can be lapped parallel but not
necessarily flat.
Thus, a 10 mm sized particle will produce a scratch of 5 mm.
20. Brightness does not indicate flatness. A gray or matte finish
can be just as smooth and accurate as a bright finish.
21. Fine abrasive grit sizes do not mean fine finishes. Abrasives
can be very fine. The abrasive should just be coarse enough
to abrade or remove the desired amount of stock or metal
that causes the abrasive granules to break down into inert
sized particles. These fine particles produce the desired
finish.
22. For measuring flat lapped surfaces a polish is necessary and an
optical flat is used.
23. To obtain a reading with an optical flat on a flat workpiece the
surface must have a reflective finish and be flat within 5x10-5 in.
24. Every abrasive has a different finishing quality as to brightness or
reflective ability. Silicon carbide abrasive, no matter how it is used,
will only produce a gray, frosted, or matte finish.
25. A mixture of just oil and abrasive is not a good lapping medium.
The abrasive granules should be held in a film on the plate that
resists the movement or rolling of abrasive granules. This
resistance causes the cutting edges of the abrasive to abrade or
remove the metal.
29. The corundum abrasive is well suited for softer steels.
30. Carbon seals should not be lapped with loose abrasive on a
plate. The lapping plate should be a bonded abrasive disk
using a thin oil lubricant.
31. Surface finish is a function of abrasive grit size, part material,
and part hardness. Coarse abrasives produce higher rms
finishes than finer abrasives. Harder materials exhibit lower
rms finishes from a given abrasive than softer materials.
26. The compounds having a pasty base or vehicle create an
important film. The crushed abrasive granules in this film
create a protective medium between the lap and part.
27. For lapping various grades of aluminum metal, garnet and
silicon carbide compounds are recommended. Linde
powders are used to create a high polish or mirror finish.
28. For lapping hardened steels, stainless steels, chrome plate,
etc., which have Rockwell C hardness of 55–63, aluminum
oxide abrasive compounds are recommended. Aluminum
oxide abrasives are also recommended for beryllium and
ceramics. It is available in all standard sizes.
LAP PLATE
• The most widely used types of lapping plates in
the industry are the following:
– Iron lap plate
– Copper plate
– Ceramic plate
– Tin or lead plate
– Tin plate
• Square, spiral, concentric, and radial grooved lap
plates are available and these lap plate sizes are
in the range of 12–42 in.
 ABRASIVES
• Diamond
• Cubic boron nitride, Borazon TM CBN
• Norbide abrasive : (boron carbide)
• Silicon carbide
• Aluminum oxide
• Fused alumina
• Corundum:
• Garnet
• Unfused alumina (hydrate–calcined)

Lapping of Brittle Materials

• The following are the most significant areas
the lapping optimization research was focused
on:
– Surface quality
.

– Dimensional and form accuracy of the part

.

(flatness in the case of flat parts and sphericity in

the case of round parts)
– Material-removal rate (MRR)
.

– Behavior of different types of diamond slurries

.

• In accordance with their chemical composition,
the technical ceramic materials can be classified
into several important groups:
1. Oxide ceramics
2. Silicate ceramics
3. Nonoxide ceramics
• Grain size has a major influence on the strength and
properties of ceramics. The finer the grain size, the
higher the strength and toughness of ceramic
materials.
6. The accuracy of form produced by lapping
can be very good with appropriate
techniques, especially for flat surfaces:
– Flatness to less than one light band (He)
0.0000116"/0.3 µm
– Roughness of less than 1 µin. Ra/0.025 µm Ra
– Size control to less than 0.0001"/2.5 µm
– Parallelism within 0.00005"/1.3 µm
CHARACTERISTICS OF THE LAPPING PROCESS
1. The rate of material removal is low
2. The lapping process does not generate significant
temperatures
3. An important advantage is the ease of workholding
4. Since there is no or very low stress induced, little
distortion occurs compared with conventional
machining
5. The general shape of the parts worked by lapping is
mainly limited to flat, cylindrical, and spherical
surfaces.
7. Lapping may be successfully applied to brittle
materials and fragile parts because a relative
uniform pressure is exerted on the workpiece
8. Sizes and dimensions can be held to very close
tolerances. Overall size can be maintained within
0.5 µm
9. Very good quality and excellent repeatability of
surface finish on all types of materials.
10. The lapping operation produces a gray mat finish
 NONTRADITIONAL LAPPING PROCESSES
1. VIBRATION LAPPING:
– Low-frequency vibration
– Ultrasonic Vibration
 2. ELID-LAP GRINDING

• This grinding is a constant pressure grinding

technique using rigid metallic bond
diamond/CBN wheels with the assistance of
special pulse electrolytic inprocess dressing.
