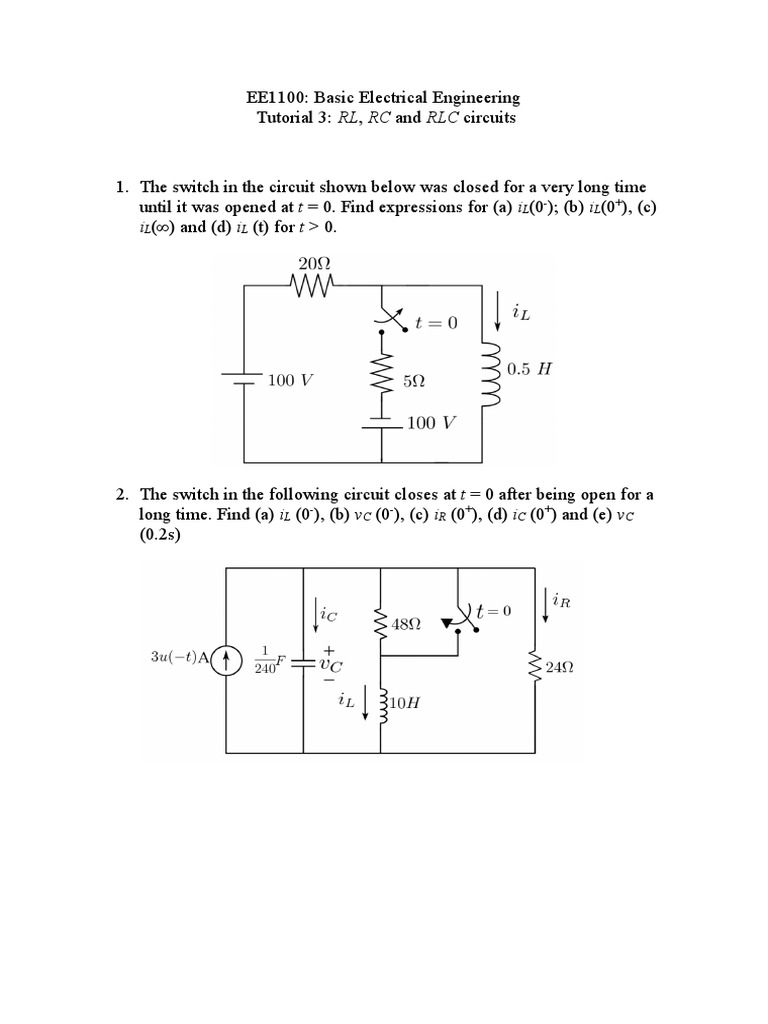

    EE1100: Basic Electrical Engineering

    Tutorial 3: RL, RC and RLC circuits

    1. The switch in the circuit shown below was closed for a very long time
    until it was opened at t = 0. Find expressions for (a) iL(0-); (b) iL(0+), (c)
    iL(∞) and (d) iL (t) for t > 0.

    2. The switch in the following circuit closes at t = 0 after being open for a
    long time. Find (a) iL (0-), (b) vC (0-), (c) iR (0+), (d) iC (0+) and (e) vC
    (0.2s)
    3. After being open for a long time, the switch closes at t = 0. Find iA at (a) t
    = 0- and (b) t > 0
