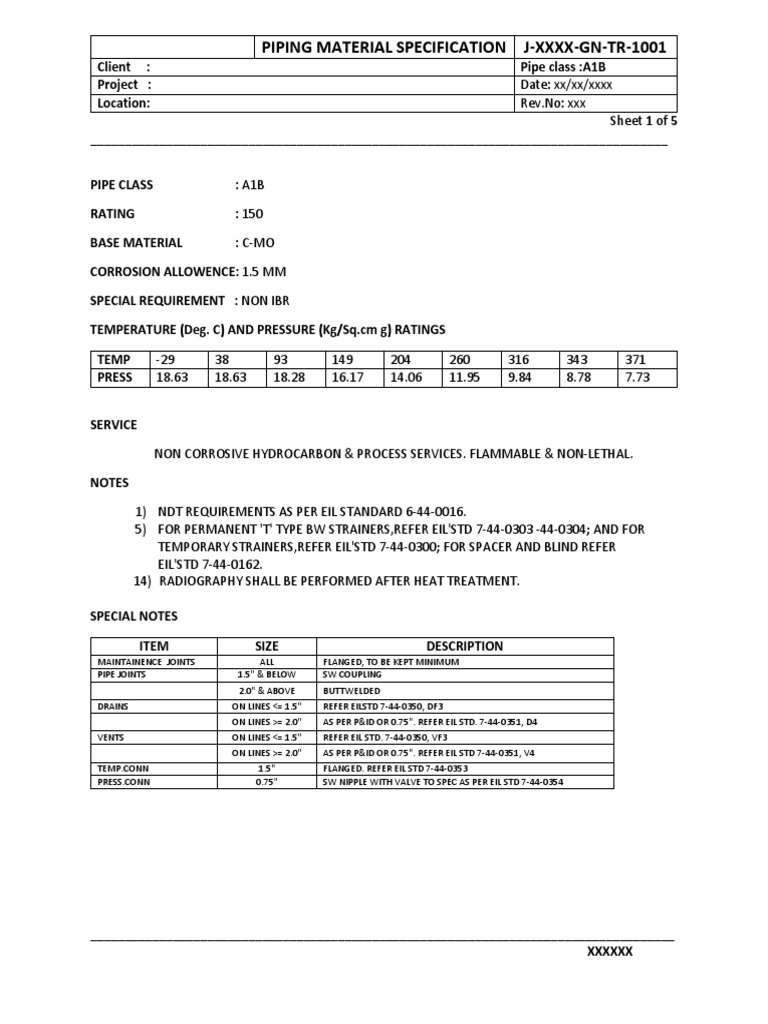

PIPING MATERIAL SPECIFICATION J-XXXX-GN-TR-1001

Client : Pipe class :A1B

Project : Date: xx/xx/xxxx
Location: Rev.No: xxx
Sheet 1 of 5
____________________________________________________________________________________

PIPE CLASS : A1B

RATING : 150

BASE MATERIAL : C-MO

CORROSION ALLOWENCE: 1.5 MM

SPECIAL REQUIREMENT : NON IBR

TEMPERATURE (Deg. C) AND PRESSURE (Kg/Sq.cm g) RATINGS

TEMP -29 38 93 149 204 260 316 343 371

PRESS 18.63 18.63 18.28 16.17 14.06 11.95 9.84 8.78 7.73

SERVICE

NON CORROSIVE HYDROCARBON & PROCESS SERVICES. FLAMMABLE & NON-LETHAL.

NOTES

1) NDT REQUIREMENTS AS PER EIL STANDARD 6-44-0016.

5) FOR PERMANENT 'T' TYPE BW STRAINERS,REFER EIL'STD 7-44-0303 -44-0304; AND FOR
TEMPORARY STRAINERS,REFER EIL'STD 7-44-0300; FOR SPACER AND BLIND REFER
EIL'STD 7-44-0162.
14) RADIOGRAPHY SHALL BE PERFORMED AFTER HEAT TREATMENT.

SPECIAL NOTES

ITEM SIZE DESCRIPTION

MAINTAINENCE JOINTS ALL FLANGED, TO BE KEPT MINIMUM
PIPE JOINTS 1.5" & BELOW SW COUPLING
2.0" & ABOVE BUTTWELDED
DRAINS ON LINES <= 1.5" REFER EILSTD 7-44-0350, DF3
ON LINES >= 2.0" AS PER P&ID OR 0.75". REFER EIL STD. 7-44-0351, D4
VENTS ON LINES <= 1.5" REFER EIL STD. 7-44-0350, VF3
ON LINES >= 2.0" AS PER P&ID OR 0.75". REFER EIL STD 7-44-0351, V4
TEMP.CONN 1.5" FLANGED. REFER EIL STD 7-44-0353
PRESS.CONN 0.75" SW NIPPLE WITH VALVE TO SPEC AS PER EIL STD 7-44-0354

_____________________________________________________________________________________
XXXXXX
 PIPING MATERIAL SPECIFICATION J-XXXX-GN-TR-1001
Client : Pipe class :A1B
Project : Date: xx/xx/xxxx
Location: Rev.No: xxx
Sheet 2 of 5
____________________________________________________________________________________

72. 72.
70. 70.
68. 68.
66. 66.
64. 64.
62. 62.
60. 60.
58. 58.
56. 56.
54. 54.
52. 52.
50. 50.
48. 48.
46. 46.
44. 44.
42. 42.
40. 40.
38. 38.
36. 36.

BRANCH PIPE (SIZE IN INCHES)

RANCH PIPE (SIZE IN INCHES)

34. 34.
32. 32.
30. 30.
28. 28.
26. 26.
24. T 24.
20. T R 20.
18. T R R 18.
16. T P P R 16.
14. T P P P R 14.
12. T P P P P R 12.
10. T P P P P P R 10.
8.0 T P P P P P P R 8.0
6.0 T P P P P P P P R 6.0
5.0 5.0
4.0 T P P P P P P P P R 4.0
3.5 3.5
3.0 T P P P P P P P P P R 3.0
2.5 2.5
2.0 T P P P P P P P P P P R 2.0
1.5 T T H H H H H H H H H H H 1.5
1.25 1.25
1.0 T T H H H H H H H H H H H H 1.0
0.75 T T T H H H H H H H H H H H H 0.75
0.5 T T T T H H H H H H H H H H H H 0.5
10.000

12.000

14.000

16.000

18.000

20.000

22.000

24.000

26.000

28.000

30.000

32.000

34.000

36.000

38.000

40.000

42.000

44.000

46.000

48.000
0.750

1.000

1.250

1.500

2.000

2.500

3.000

3.500

4.000

5.000

6.000

8.000
.500

RUN PIPE (SIZE IN INCHES)

_____________________________________________________________________________________
XXXXXX
 PIPING MATERIAL SPECIFICATION J-XXXX-GN-TR-1001
Client : Pipe class :A1B
Project : Date: xx/xx/xxxx
Location: Rev.No: xxx
Sheet 3 of 5
____________________________________________________________________________________
CODE DESCRIPTION
F SADDLE FUSED JT
H H. COUPLING
P PIPE TO PIPE
R REINFORCED
S SOCKOLETS
T TEES
W WELDOLETS
I INSTRUMENT TEE
X Refer Notes
L SWEEPOLET

ITEM TYPE LOWE UPPE SCH/TH DIM.STD MATERIAL DESCRIPTIO NOT

R SIZE R SIZE K N E
Pipe Group

_____________________________________________________________________________________
XXXXXX
 PIPING MATERIAL SPECIFICATION J-XXXX-GN-TR-1001
Client : Pipe class :A1B
Project : Date: xx/xx/xxxx
Location: Rev.No: xxx
Sheet 4 of 5
____________________________________________________________________________________
PIPE 00.500 00.750 S160 B-36.10 ASTM A 335 GR.P1 PE, SEAMLESS
PIPE 01.000 01.500 XS B-36.10 ASTM A 335 GR.P1 PE, SEAMLESS
PIPE 02.000 02.000 XS B-36.10 ASTM A 335 GR.P1 BE, SEAMLESS
PIPE 03.000 14.000 STD B-36.10 ASTM A 335 GR.P1 BE, SEAMLESS
PIPE 16.000 24.000 STD B-36.10
ASTM A 691
BE, E.FS.W
GR.CM65 CL.12
NIPPLE 00.500 00.750 M B-36.10 ASTM A 335 GR.P1 PBE, SEAMLESS
NIPPLE 01.000 01.500 M B-36.10 ASTM A 335 GR.P1 PBE,SEAMLESS
Flange Group
FLNG.WN 00.500 24.000 M B-16.5 ASTM A 182 GR.F1 150,RF/125AARH
FLNG.BLIND 00.500 24.000 B-16.5 ASTM A 182 GR.F1 150,RF/125AARH
FLNG.FIG.8 00.500 08.000 ASMEB16.48 ASTM A 182 GR.F1 150,RF/125AARH
SPCR&BLND 10.000 24.000 ASMEB16.48 ASTM A 182 GR.F1 150,RF/125AARH
Fitting Group
ELBOW.90 00.500 00.750 B-16.11 ASTM A 182 GR.F1 SW, 6000
ELBOW.90 01.000 01.500 B-16.11 ASTM A 182 GR.F1 SW, 3000
ELBOW.90 02.000 14.000 M B-16.9 ASTM A 234 GR.WP1 BW, 1.5D
ELBOW.90 16.000 24.000 M B-16.9 ASTM A 234 GR.WP1-W BW, 1.5D
ELBOW.45 00.500 00.750 B-16.11 ASTM A 182 GR.F1 SW, 6000
ELBOW.45 01.000 01.500 B-16.11 ASTM A 182 GR.F1 SW, 3000
ELBOW.45 02.000 14.000 M B-16.9 ASTM A 234 GR.WP1 BW, 1.5D
ELBOW.45 16.000 24.000 M B-16.9 ASTM A 234 GR.WP1-W BW, 1.5D
T.EQUAL 00.500 00.750 B-16.11 ASTM A 182 GR.F1 SW, 6000
T.EQUAL 01.000 01.500 B-16.11 ASTM A 182 GR.F1 SW, 3000
T.EQUAL 02.000 14.000 M B-16.9 ASTM A 234 GR.WP1 BW
T.EQUAL 16.000 24.000 M B-16.9 ASTM A 234 GR.WP1-W BW
T.RED 00.500 00.750 B-16.11 ASTM A 182 GR.F1 SW, 6000
T.RED 01.000 01.500 B-16.11 ASTM A 182 GR.F1 SW, 3000
T.RED 02.000 14.000 M, M B-16.9 ASTM A 234 GR.WP1 BW
T.RED 16.000 24.000 M, M B-16.9 ASTM A 234 GR.WP1-W BW
REDUC.CONC 02.000 14.000 M, M B-16.9 ASTM A 234 GR.WP1 BW
REDUC.CONC 16.000 24.000 M, M B-16.9 ASTM A 234GR.WP1-W BW
REDUC.ECC 02.000 14.000 M, M B-16.9 ASTM A 234GR.WP1 BW
REDUC.ECC 16.000 24.000 M, M B-16.9 ASTM A 234GR.WP1-W BW
SWAGE.COC 00.500 03.000 M, M BS-3799 ASTM A 182 GR.F1 PBE
SWAGE.ECC 00.500 03.000 M, M BS-3799 ASTM A 182 GR.F1 PBE
CAP 02.000 24.000 M B-16.9 ASTM A 234GR.WP1 BW
CPLNG.FULL 00.500 00.750 B-16.11 ASTM A 182 GR.F1 SW, 6000
CPLNG.FULL 01.000 01.500 B-16.11 ASTM A 182 GR.F1 SW, 3000
CPLNG.HALF 00.500 00.750 B-16.11 ASTM A 182 GR.F1 SW, 6000
CPLNG.HALF 01.000 01.500 B-16.11 ASTM A 182 GR.F1 SW, 3000
CPLNG.LH 00.500 00.750 B-16.11 ASTM A 182 GR.F1 SW, 6000
CPLNG.LH 01.000 01.500 B-16.11 ASTM A 182 GR.F1 SW, 3000

_____________________________________________________________________________________
XXXXXX
 PIPING MATERIAL SPECIFICATION J-XXXX-GN-TR-1001
Client : Pipe class :A1B
Project : Date: xx/xx/xxxx
Location: Rev.No: xxx
Sheet 5 of 5
____________________________________________________________________________________
CPLNG.RED 00.500 00.750 B-16.11 ASTM A 182 GR.F1 SW, 6000
CPLNG.RED 01.000 01.500 B-16.11 ASTM A 182 GR.F1 SW, 3000
Valves Group
BODY-ASTM A 182
SW, 800, 3000,
VLV.GATE 00.500 01.500 API-602 GR.F1,TRIMSTELLITED,
B-16.11.
STEM-13%CR STEEL
BODY-ASTM A 217
FLGD, 150,
GR.WC1 (NORM. &
VLV.GATE 02.000 01.500 API-600
TEMP.),TRIMSTELLITE
B-16.5,
RF/125AARH,
D,STEM-13%CR.STEEL
BODY-ASTM A 182
GR.F1,TRIMSTELLITED, SW, 800, 3000,
VLV.GLOBE 00.500 01.500 BS-5352
STEM-13%CR.STEEL B-16.11,
BODY-ASTM A
BODY-ASTM A 217
FLGD, 150,
GR.WC1 (NORM. &
VLV.GLOBE 02.000 16.000 BS-1873
TEMP.),TRIMSTELLITE
B-16.5,
RF/125AARH,
D,STEM-13% CR.STEEL
BODY-ASTM A 182
SW, 800, 3000,
VLV.CHECK 00.500 01.500 BS-5352 GR.F1,TRIMSTELLITED
B-16.11,
BODY-ASTM
BODY-ASTM A 217 FLGD, 150,
VLV.CHECK 02.000 24.000 BS-1868 GR.WC1 (NORM. & B-16.5,
TEMP.),TRIMSTELLITD RF/125AARH,
Bolt Group
BOLT:A193
BOLT.STUD 00.500 24.000 B-18.2
GR.B16, NUT:A194GR.4
Gasket Group
B-16.20-
GASKET 00.500 24.000
ANSI B16.5
SP.WND SS316+CAF SPIRAL, 150

Trap/Strainer Group
CONETYPE,
STRNR.TEMP 01.500 24.000 EIL'STD B:A204GR.B;INT:SS304
150,FF/125AARH
STRNR.PERM 00.500 01.500 MNF'STD B:A182GR.F1;INT:SS304 SW, Y-TYPE, 800
B:A234GR.WP1;
STRNR.PERM 02.000 14.000 M EIL'STD
INT:SS304
BW, T-TYPE
B:A234GR.WP1W;
STRNR.PERM 16.000 24.000 M EIL'STD
INT:SS304
BW, T-TYPE
