Distributed CCAP Solutions

R-MACPHY for DAA Networks

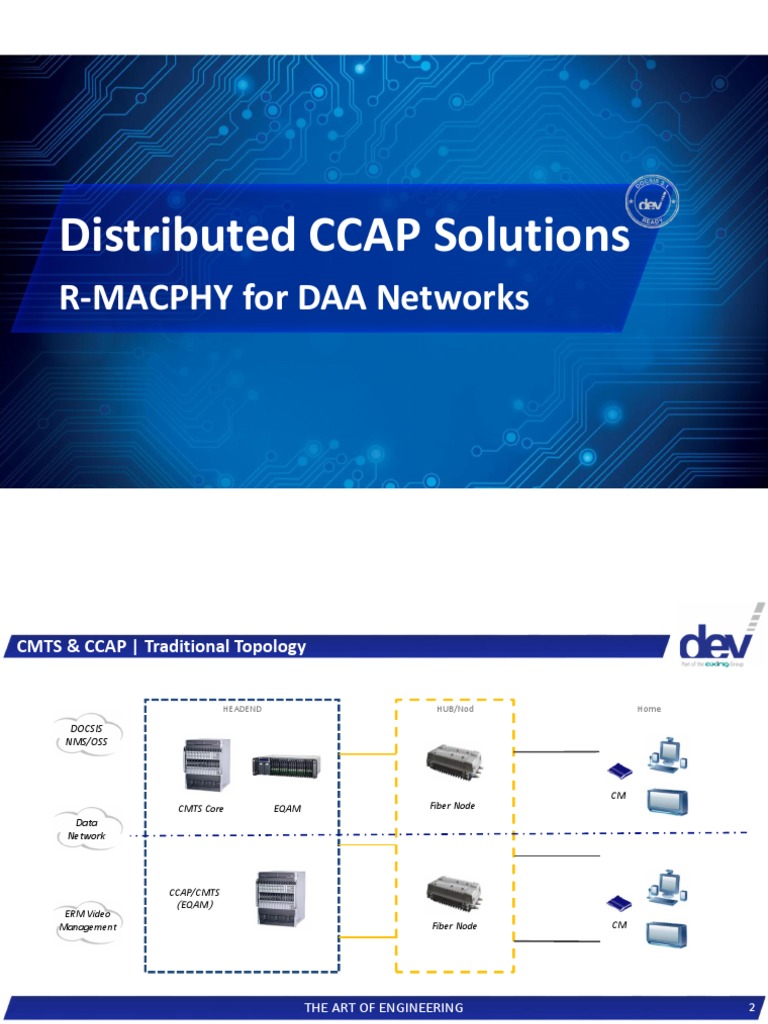

CMTS & CCAP | Traditional Topology

HEADEND HUB/Nod Home

DOCSIS
NMS/OSS

CM
CMTS Core EQAM Fiber Node
Data
Network

CCAP/CMTS
（EQAM）
ERM Video
Management Fiber Node CM

THE ART OF ENGINEERING 2

The path to a DAA network
The analog transmission of RF signals reaches its limits

For higher transmission rates, the proportion of the analog route must be minimized

Remote PHY moves the generation and reception of RF signals into the access node

Between Headend and Node a digital optical transmission becomes possible

CableLabs® New Remote PHY Specifications expand DOCSIS® Network deployment options

THE ART OF ENGINEERING 3

R-PHY & R-CCAP(R-MACPHY)

THE ART OF ENGINEERING 4

Remote MAC-PHY vs Remote PHY

Main problems when using Remote PHY

Communication between systems from different manufacturers

Timing and latency problems lead to synchronization errors

Solution: Remote MAC-PHY Architecture with Distributed CCAP Nodes

The MAC layer is also moved to the node

The CMTS is integrated in the D-CCAP Node and therefore becomes superfluous in the headend

MAC and PHY layers are no longer physically separated

Additionally, big cost, space, and energy savings occur in the headend

THE ART OF ENGINEERING 5

Remote MAC-PHY vs Remote PHY

Factors R-PHY R-MACPHY

Only OLT/Switch in headend, standard
Cost CCAP Core in headend, very expensive
products, lower cost
The communication between MAC and
MAC and PHY are in one place. There is no time
Time delay PHY is frequent. The longer the distance
delay.
is, the more serious the time delay is.
CCAP core is needed in headend. RMD and OLT/Switch are needed only. Easy to
Ease of deployment
Complicated and expensive to deploy. deploy.
Because of OLT, R-MACPHY can be mixed with
Network flexibility CCAP only
FTTH in the same network.
DEPI/UEPI/Timing between CCAP core Only management protocol between
Technique
and RPD, complex OLT/controller and RMD, no timing issue

THE ART OF ENGINEERING 6

R-PHY & R-CCAP Comparison
Digital(ethernet) link
R-CCAP (R-MACPHY)
Analog link
Other
nodes
coax
D
DS DS
CPU A
MAC PHY
L3 C
Mgmt i/f modems
Switch A
Auth, etc. US US
(Ctrl plane) FPGA D
MAC PHY
C
Node

Digital(ethernet) link
Remote PHY(R-PHY) Analog link
Other
PHYs
coax
D
DS DS
CPU A
Mgmt i/f MAC PHY
L3 C
Auth, etc. modems
Switch A
(Ctrl plane) US US
FPGA D
MAC PHY
C
Node

THE ART OF ENGINEERING 7

Comparison of DAA Infrastructures

THE ART OF ENGINEERING 8

Remote MAC-PHY vs Traditional CMTS

Category Comparison Summary

CMTS: difficulty to increase bandwidth limited to centralized headend. Only good at coverage.
R-MACPHY has better bandwidth
R-MACPHY: convenient and easy to increase bandwidth based on distributed architecture. Good
performance
at both coverage and bandwidth.

CMTS: needs lots of optical rx in sub-head/Hub, occupies more space and brings in cost.
R-MACPHY needs less equipment
R-MACPHY: no need.

R-MACPHY needs less fiber CMTS needs lots of return fiber resources.
resources R-MACPHY doesn’t need extra return fibers.

R-MACPHY has less convergence CMTS: high convergence noise because of optical nodes with a large amount of users
noise R-MACPHY: lower convergence noise

CMTS: RF test complex：CMTS<->Optical Tx/Rx<->Hub/ Bi-directional Optical Station<-

R-MACPHY has less RF complexity >Amplifier<->House/CM
R-MACPHY: RF test easier：RMD<->Amplifier<->CM

THE ART OF ENGINEERING 9

Product Overview
D-CCAP DOCSIS 3.1 Outdoor Node D-CCAP DOCSIS 3.1 Indoor Node

D-CCAP DOCSIS 3.0 Outdoor Node D-CCAP DOCSIS 3.0 Outdoor Mini Node

THE ART OF ENGINEERING 10

Benefits

For FTTC / FTTB scenarios

Supports DOCSIS & EQAM

Video / Internet / Voice Services

Higher bandwidth and lower costs

DOCSIS 3.1 and downwards compatible

Up to 10Gbps+ throughput

Up to 1000 cable modems per node

Available as field device or 1U rack type

Works with or replaces optical nodes

THE ART OF ENGINEERING

Technical Details 1/2

Size 436mm x 243mm x 185mm

AC220V/AC110V (local) or
Power Supply
AC60V/AC90V (cable)
6 OFDM, 2*2 OFDMA
Channels 64 D3.0 DS, 12*2 D3.0 US
64BC and 32NC
Ports 4 RF out, 2 Optical Rx

Max. Output Level 116dBuV

Op. Temp. Range -40…55°C

Water Proof IP67

Lightning Protection 6000V

THE ART OF ENGINEERING

Technical Details 2/2

DS Frequency 1 GHz, 1.2 GHz

US Frequency 65/87, 85/108, 204/258 MHz

Up to 1,000 (D3.0)
# of Cable Modems
Up to 300 (D3.1)
Power Consumption 115W
DOCSIS 3.1, 3.0, 2.0,
Standards
C-, Euro-DOCSIS
SNI 10GE EPON, 10GE
Up to 4096 QAM (D3.1)
Modulation
Up to 1024 QAM (D3.0)
Wavelength 1290…1600nm

Optical Connector SC/APC

THE ART OF ENGINEERING

Easy Integration in Current Networks

D-CCAP Nodes are not only suitable for new network infrastructures

They can also be integrated into existing networks

Replacing the existing HFC optical nodes

Works in conjunction with Remote PHY devices or conventional CMTS systems.

THE ART OF ENGINEERING 14

EMS
Senior Maintenance Monitoring-Center-Working Engineering and Maintenance
Personnel Personnel Personnel

Professional High-Efficiency Convenient

CLI NM3000 Mobile App

Centralized Mgmt. Support
Overall configuration and
debugging
Multiple real-time diagnostics
Entire-Network Unified Mgmt
The end-to-end link
management
Entire network unified
operational support
Support millions of users
Auxiliary Debugging Terminal
Support OLT, ONU, CMTS, CM
Support US frequency
monitoring
Base on NM3000 system

THE ART OF ENGINEERING 15

Net Management Software – Device Management

1. Device Management
One platform supports all systems in the access network chain and is
also compatible with Cisco, CASA, Nokia etc.

OLT Device Management: Software version upgrade, subordinate

device, trap config, VLAN config, IGMP config, ONU authentication,
ONU management, GPON profile management.

CMTS Device Management: software version, config file

management, channel config, real-time noise display, CMTS real-
time information display, CM real-time information display

THE ART OF ENGINEERING 16

Net Management Software – Report Management

2. Report Management
Report display and export
Device resources report
Performance report
Alarm report

Customized periodic report

Traffic statistics
Subscriber statistics
ONU offline reasons statistics

THE ART OF ENGINEERING 17

Net Management Software – More Advantages 1/2

3. Make management more organized

Topology Management: area creating/deleting, adding/
removing device to/from areas

4. Makes device performance viewable

Performance Management: history performance,
performance acquisition config

5. Makes fault management efficient

Fault Management: alarm viewing, confirming, clearing,
modifying alarm level

THE ART OF ENGINEERING 18

Net Management Software – More Advantages 2/2

6. Makes the NMS works in the way you like

Global Management: server config, personalization setting,
protocol & port config, system information inquiry

7. Make the NMS works more delicately

Management Right and Region Config: role management,
user management, region management

8. Make the NMS traceable

Log Management: recoding and enquiring important
operation

THE ART OF ENGINEERING 19
