 Car
 7845 views  July 4, 2017  September 7, 2017  8

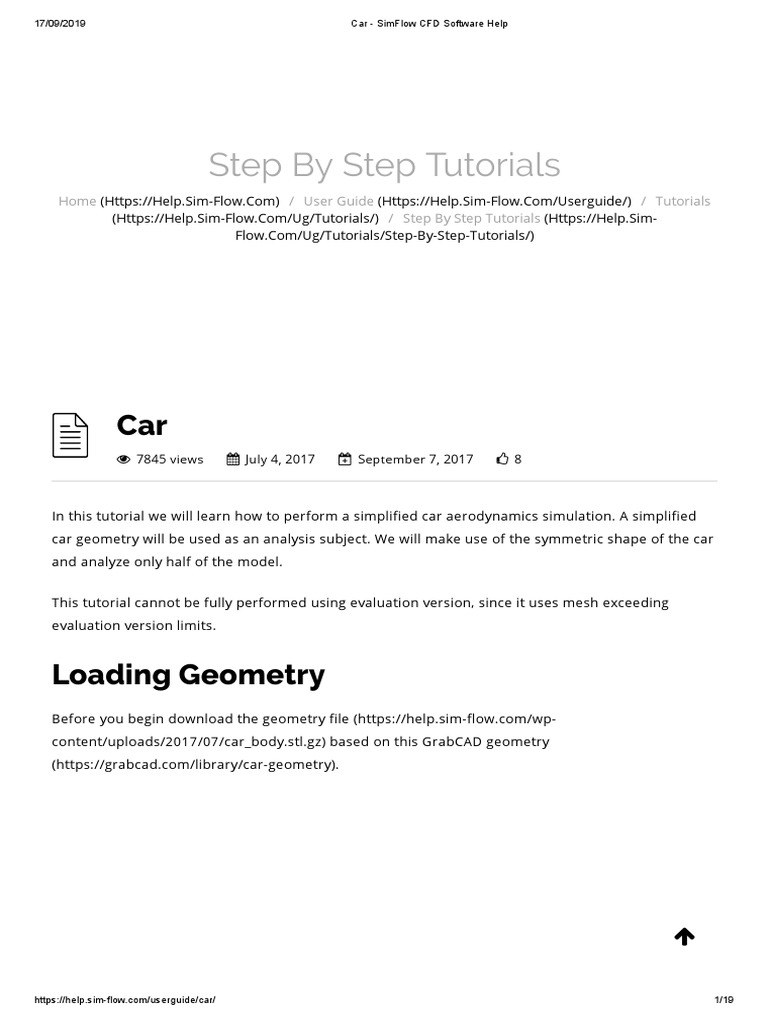

In this tutorial we will learn how to perform a simplified car aerodynamics simulation. A simplified
car geometry will be used as an analysis subject. We will make use of the symmetric shape of the car
and analyze only half of the model.

This tutorial cannot be fully performed using evaluation version, since it uses mesh exceeding
evaluation version limits.

Loading Geometry
Before you begin download the geometry file (https://help.sim-flow.com/wp-
content/uploads/2017/07/car_body.stl.gz) based on this GrabCAD geometry
(https://grabcad.com/library/car-geometry).

https://help.sim-flow.com/userguide/car/ 1/19
17/09/2019 Car - SimFlow CFD Software Help

1. Click Load Geometry button

2. Select geometry file car_body.stl or car_body.stl.gz

3. Click Open

Geometry
After loading geometry will appear in the 3D window.

https://help.sim-flow.com/userguide/car/ 2/19
17/09/2019 Car - SimFlow CFD Software Help

Geometry Meshing Parameters

We need to define geometry parameters that will be used in the meshing process. To better resolve
flow around the car body we want to refine mesh around the car geometry and add boundary layer.

1. Go to Hex Meshing panel

2. Enable meshing of the car_body geometry

3. Enable boundary layer 

4. Expand car_body meshing parameters by clicking on the name

https://help.sim-flow.com/userguide/car/ 3/19
17/09/2019 Car - SimFlow CFD Software Help

5. Set minimum refinement to 3

6. Set maximum refinement to 4

Define Initial Mesh

Initial Mesh is a base from which the final mesh will be created by carving out the geometry of the
car.

1. Go to Base tab

2. Define minimum of the base mesh bounds

3. Define maximum of the base mesh bounds

4. Set the division of the base mesh

Define Initial Mesh Boundaries

https://help.sim-flow.com/userguide/car/ 4/19
17/09/2019 Car - SimFlow CFD Software Help

We have to give names to each of the six sides of the initial mesh in order to be able to later define
individual conditions on each boundary.

1. Select name inlet for Plane X-

2. Select name outlet for Plane X+

3. Select name bottom for Plane Y-, change type to wall

4. Select name top for Plane Y+

5. Select name symmetry for Plane Z-, change type to symmetry

6. Select name right for Plane Z+

Material Point Location

Material point indicates to the meshing algorithm on which side of the geometry the mesh is to be
retained.

1. Go to Point tab

2. Specify location inside base mesh but outside car geometry

Define Mesh Size Transition 

https://help.sim-flow.com/userguide/car/ 5/19
17/09/2019 Car - SimFlow CFD Software Help

To make cell size vary slower throughout the domain increase the number of buffer cells between
each cell refinement level.

1. Go to Controls tab

2. Select Castellated Mesh tab

3. Increase Cells Between Levels to 6

Start Meshing Process

When everything is set up we can start the meshing process. We have to be patient since meshing
can take a few minutes.

1. Go to Mesh tab

2. Click Mesh button to start meshing process

Mesh
After meshing is finished the new mesh will be displayed in the graphic window.


https://help.sim-flow.com/userguide/car/ 6/19
17/09/2019 Car - SimFlow CFD Software Help

Select Solver
We want to analyze incompressible turbulent flow around the car body. For this purpose we are
going to use simpleFoam solver.

https://help.sim-flow.com/userguide/car/ 7/19
17/09/2019 Car - SimFlow CFD Software Help

1. Go to Setup panel

2. Enable steady state filter

3. Enable incompressible filter

4. Pick the simpleFoam solver

5. Submit selected solver with Select button

Enable Turbulence

https://help.sim-flow.com/userguide/car/ 8/19
17/09/2019 Car - SimFlow CFD Software Help

We are going to use standard k-ω SST model to handle turbulence. This model gives very good
agreement with experimental data and is commonly used for aerodynamics problems.

1. Go to Turbulence panel

2. Select RANS modeling

3. Expand the Model drop-down menu

4. Select k-ω SST model

Boundary Conditions – bottom

We want the bottom wall to be stationary with respect to the incoming air.

https://help.sim-flow.com/userguide/car/ 9/19
17/09/2019 Car - SimFlow CFD Software Help

1. Go to Boundary Conditions panel

2. Pick bottom boundary

3. Define moving wall velocity

Boundary Conditions – inlet

On the inlet we are going to apply constant velocity.

https://help.sim-flow.com/userguide/car/ 10/19
17/09/2019 Car - SimFlow CFD Software Help

1. Pick inlet boundary

2. Select Velocity Inlet character for the inlet boundary

Boundary Conditions – inlet II

1. Define inlet velocity

Boundary Conditions – inlet III

Specify low turbulence intensity on the inlet.

https://help.sim-flow.com/userguide/car/ 11/19
17/09/2019 Car - SimFlow CFD Software Help

1. Go to Turbulence boundary conditions

2. Reduce turbulence intensity to half percent

3. Set mixing length to 1 millimeter

Boundary Conditions – right & top

On right and top boundary we are going to force velocity to be tangent to the boundary.


https://help.sim-flow.com/userguide/car/ 12/19
17/09/2019 Car - SimFlow CFD Software Help

1. Pick right boundary

2. Go to Flow boundary conditions

3. Expand velocity Type menu

4. Select Slip type

Boundary Conditions – right & top II

1. Go to turbulence boundary conditions

2. Change turbulent kinetic energy Type to Zero Gradient

3. Change turbulent frequency Type to Zero Gradient

Repeat all the steps for the top boundary.

Enable Force Monitors

We want to monitor simulation process by observing plots of the force coefficients.

https://help.sim-flow.com/userguide/car/ 13/19
17/09/2019 Car - SimFlow CFD Software Help

1. Go to Monitors panel

2. Go to Forces tab

3. Expand Monitored Boundaries list

4. Select car_body

Run Simulation

1. Go to Run panel

2. Set number of iterations to at least 200

3. Click Run Calculation

End time in steady state simulation (such as this one) represents the number of iterations.
End time in transient simulation is expressed in seconds.

Monitor Solution
Observe whether forces on the car body stabilise.

https://help.sim-flow.com/userguide/car/ 14/19
17/09/2019 Car - SimFlow CFD Software Help

Start Postprocessing with ParaView

https://help.sim-flow.com/userguide/car/ 15/19
17/09/2019 Car - SimFlow CFD Software Help

1. Go to Postprocessing panel

2. Start ParaView

Start Postprocessing with ParaView II

https://help.sim-flow.com/userguide/car/ 16/19
17/09/2019 Car - SimFlow CFD Software Help

1. In ParaView click Apply to load results

Display Velocity

1. Select velocity (U) from the dropdown menu

2. Load latest results 

3. Rescale color map to fit result range

https://help.sim-flow.com/userguide/car/ 17/19
17/09/2019 Car - SimFlow CFD Software Help

4. Enable proper view of the results

This concludes the tutorial.
