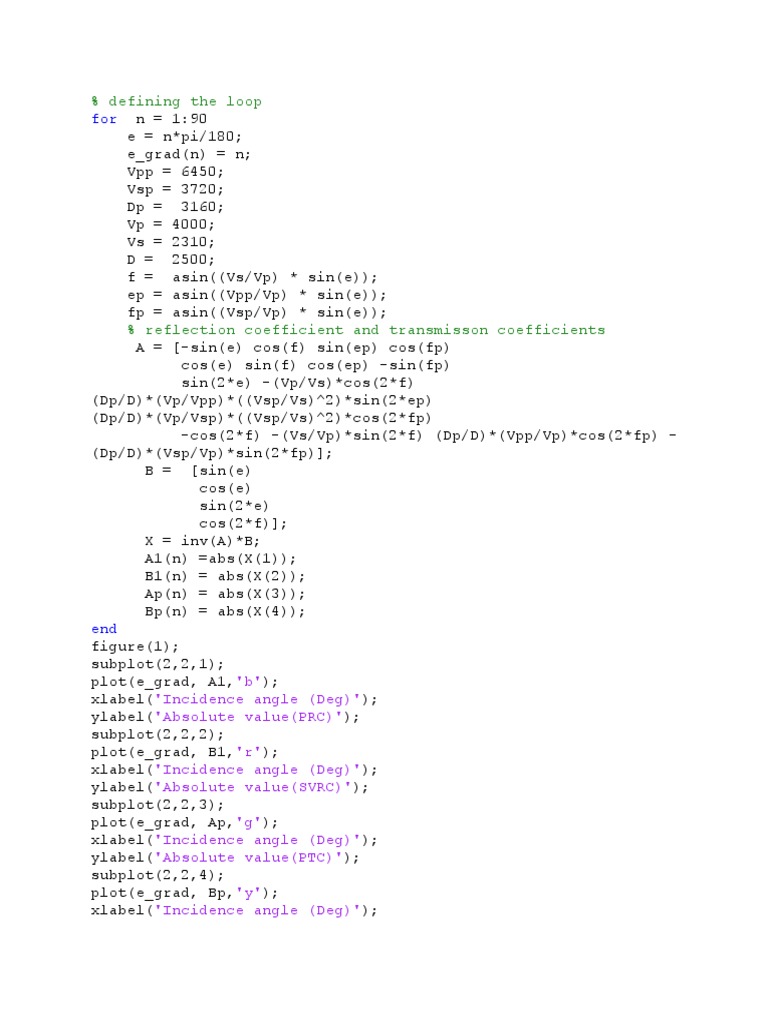

    % defining the loop

    for n = 1:90
    e = n*pi/180;
    e_grad(n) = n;
    Vpp = 6450;
    Vsp = 3720;
    Dp = 3160;
    Vp = 4000;
    Vs = 2310;
    D = 2500;
    f = asin((Vs/Vp) * sin(e));
    ep = asin((Vpp/Vp) * sin(e));
    fp = asin((Vsp/Vp) * sin(e));
    % reflection coefficient and transmisson coefficients
    A = [-sin(e) cos(f) sin(ep) cos(fp)
    cos(e) sin(f) cos(ep) -sin(fp)
    sin(2*e) -(Vp/Vs)*cos(2*f)
    (Dp/D)*(Vp/Vpp)*((Vsp/Vs)^2)*sin(2*ep)
    (Dp/D)*(Vp/Vsp)*((Vsp/Vs)^2)*cos(2*fp)
    -cos(2*f) -(Vs/Vp)*sin(2*f) (Dp/D)*(Vpp/Vp)*cos(2*fp) -
    (Dp/D)*(Vsp/Vp)*sin(2*fp)];
    B = [sin(e)
    cos(e)
    sin(2*e)
    cos(2*f)];
    X = inv(A)*B;
    A1(n) =abs(X(1));
    B1(n) = abs(X(2));
    Ap(n) = abs(X(3));
    Bp(n) = abs(X(4));
    end
    figure(1);
    subplot(2,2,1);
    plot(e_grad, A1,'b');
    xlabel('Incidence angle (Deg)');
    ylabel('Absolute value(PRC)');
    subplot(2,2,2);
    plot(e_grad, B1,'r');
    xlabel('Incidence angle (Deg)');
    ylabel('Absolute value(SVRC)');
    subplot(2,2,3);
    plot(e_grad, Ap,'g');
    xlabel('Incidence angle (Deg)');
    ylabel('Absolute value(PTC)');
    subplot(2,2,4);
    plot(e_grad, Bp,'y');
    xlabel('Incidence angle (Deg)');
    ylabel('Absolute value(SVTC)');
