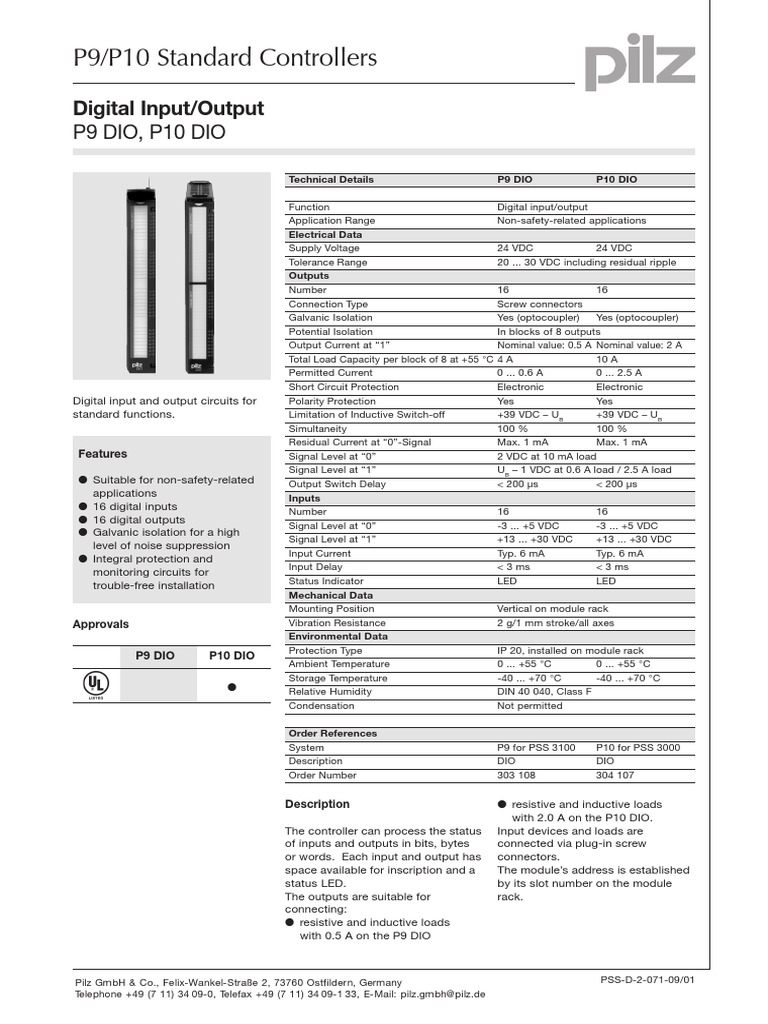

P9/P10 Standard Controllers

Digital Input/Output
P9 DIO, P10 DIO

Technical Details P9 DIO P10 DIO

Function Digital input/output

Application Range Non-safety-related applications
Electrical Data
Supply Voltage 24 VDC 24 VDC
Tolerance Range 20 ... 30 VDC including residual ripple
Outputs
Number 16 16
Connection Type Screw connectors
Galvanic Isolation Yes (optocoupler) Yes (optocoupler)
Potential Isolation In blocks of 8 outputs
Output Current at “1” Nominal value: 0.5 A Nominal value: 2 A
Total Load Capacity per block of 8 at +55 °C 4 A 10 A
Permitted Current 0 ... 0.6 A 0 ... 2.5 A
Short Circuit Protection Electronic Electronic
Digital input and output circuits for Polarity Protection Yes Yes
standard functions. Limitation of Inductive Switch-off +39 VDC – UB +39 VDC – UB
Simultaneity 100 % 100 %

Features

● Suitable for non-safety-related

Residual Current at “0”-Signal
Signal Level at “0”
Signal Level at “1”
Max. 1 mA
2 VDC at 10 mA load
Max. 1 mA

UB – 1 VDC at 0.6 A load / 2.5 A load

3
Output Switch Delay < 200 µs < 200 µs
applications Inputs
● 16 digital inputs Number 16 16
● 16 digital outputs
Signal Level at “0” -3 ... +5 VDC -3 ... +5 VDC
● Galvanic isolation for a high
Signal Level at “1” +13 ... +30 VDC +13 ... +30 VDC
level of noise suppression
Input Current Typ. 6 mA Typ. 6 mA
● Integral protection and
Input Delay < 3 ms < 3 ms
monitoring circuits for
trouble-free installation Status Indicator LED LED
Mechanical Data
Mounting Position Vertical on module rack
Approvals Vibration Resistance 2 g/1 mm stroke/all axes
Environmental Data
Protection Type IP 20, installed on module rack
P9 DIO P10 DIO
Ambient Temperature 0 ... +55 °C 0 ... +55 °C
Storage Temperature -40 ... +70 °C -40 ... +70 °C
● Relative Humidity DIN 40 040, Class F
Condensation Not permitted

Order References
System P9 for PSS 3100 P10 for PSS 3000
Description DIO DIO
Order Number 303 108 304 107

Description ● resistive and inductive loads

The controller can process the status
of inputs and outputs in bits, bytes
or words. Each input and output has
space available for inscription and a
status LED.
The outputs are suitable for
connecting:
● resistive and inductive loads
with 0.5 A on the P9 DIO
with 2.0 A on the P10 DIO.
Input devices and loads are
connected via plug-in screw
connectors.
The module’s address is established
by its slot number on the module
rack.
