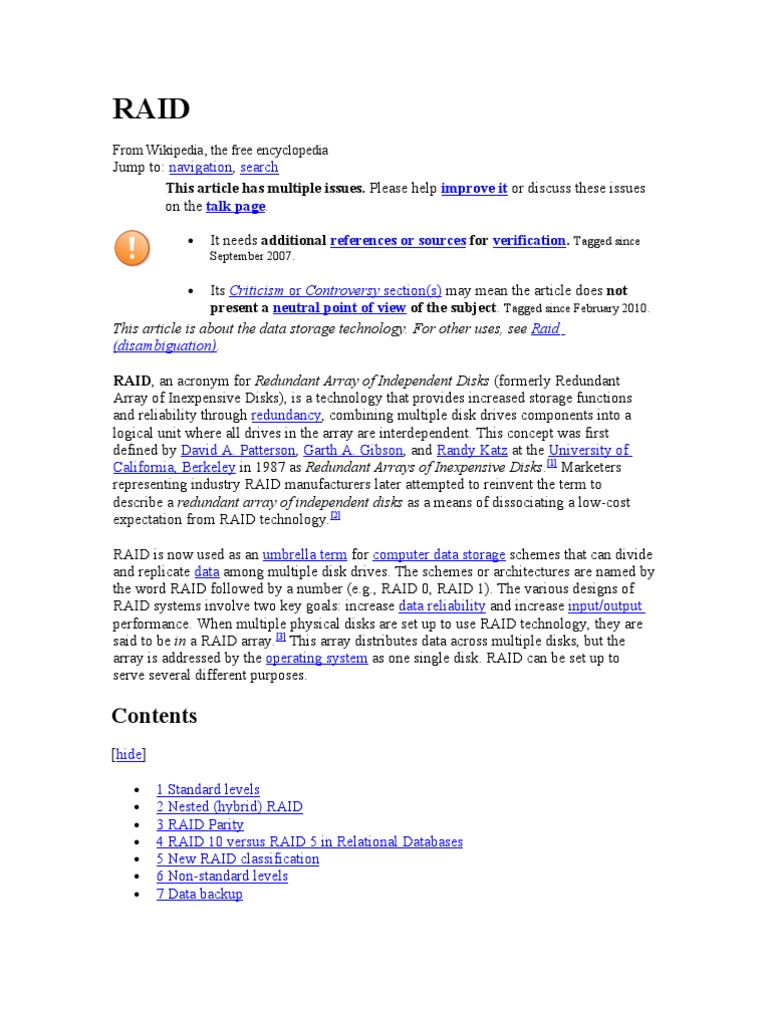

RAID

From Wikipedia, the free encyclopedia


Jump to: navigation, search
This article has multiple issues. Please help improve it or discuss these issues
on the talk page.

• It needs additional references or sources for verification. Tagged since


September 2007.

• Its Criticism or Controversy section(s) may mean the article does not
present a neutral point of view of the subject. Tagged since February 2010.
This article is about the data storage technology. For other uses, see Raid
(disambiguation).

RAID, an acronym for Redundant Array of Independent Disks (formerly Redundant


Array of Inexpensive Disks), is a technology that provides increased storage functions
and reliability through redundancy, combining multiple disk drives components into a
logical unit where all drives in the array are interdependent. This concept was first
defined by David A. Patterson, Garth A. Gibson, and Randy Katz at the University of
California, Berkeley in 1987 as Redundant Arrays of Inexpensive Disks.[1] Marketers
representing industry RAID manufacturers later attempted to reinvent the term to
describe a redundant array of independent disks as a means of dissociating a low-cost
expectation from RAID technology.[2]

RAID is now used as an umbrella term for computer data storage schemes that can divide
and replicate data among multiple disk drives. The schemes or architectures are named by
the word RAID followed by a number (e.g., RAID 0, RAID 1). The various designs of
RAID systems involve two key goals: increase data reliability and increase input/output
performance. When multiple physical disks are set up to use RAID technology, they are
said to be in a RAID array.[3] This array distributes data across multiple disks, but the
array is addressed by the operating system as one single disk. RAID can be set up to
serve several different purposes.

Contents
[hide]

• 1 Standard levels
• 2 Nested (hybrid) RAID
• 3 RAID Parity
• 4 RAID 10 versus RAID 5 in Relational Databases
• 5 New RAID classification
• 6 Non-standard levels
• 7 Data backup
• 8 Implementations
o 8.1 Software-based RAID
o 8.2 Hardware-based RAID
o 8.3 Firmware/driver-based RAID
o 8.4 Network-attached storage
o 8.5 Hot spares
• 9 Reliability terms
• 10 Problems with RAID
o 10.1 Correlated failures
o 10.2 Atomicity
o 10.3 Write cache reliability
o 10.4 Equipment compatibility
o 10.5 Data recovery in the event of a failed array
o 10.6 Drive error recovery algorithms
o 10.7 Increasing recovery time
o 10.8 Operator skills, correct operation
o 10.9 Other problems and viruses
• 11 History
• 12 Vinum
• 13 Software RAID vs. Hardware RAID
• 14 Non-RAID drive architectures
• 15 See also
• 16 References
• 17 Further reading

• 18 External links

[edit] Standard levels


Main article: Standard RAID levels

A number of standard schemes have evolved which are referred to as levels. There were
five RAID levels originally conceived, but many more variations have evolved, notably
several nested levels and many non-standard levels (mostly proprietary).

Following is a brief textual summary of the most commonly used RAID levels.[4]

• RAID 0 (block-level striping without parity or mirroring) provides improved


performance and additional storage but no redundancy or fault tolerance (making
it not true RAID, according to the acronym's definition). However, because of the
similarities to RAID (especially the need for a controller to distribute data across
multiple disks), simple stripe sets are normally referred to as RAID 0. Any disk
failure destroys the array, and the likelihood of failure increases with more disks
in the array (at a minimum, catastrophic data loss is twice as likely compared to
single drives without RAID). A single disk failure destroys the entire array
because when data is written to a RAID 0 volume, the data is broken into
fragments called blocks. The number of blocks is dictated by the stripe size,
which is a configuration parameter of the array. The blocks are written to their
respective disks simultaneously on the same sector. This allows smaller sections
of the entire chunk of data to be read off the drive in parallel, increasing
bandwidth. RAID 0 does not implement error checking, so any error is
uncorrectable. More disks in the array means higher bandwidth, but greater risk of
data loss.
• In RAID 1 (mirroring without parity or striping), data is written identically to
multiple disks (a "mirrored set"). Although many implementations create sets of 2
disks, sets may contain 3 or more disks. Array provides fault tolerance from disk
errors or failures and continues to operate as long as at least one drive in the
mirrored set is functioning. With appropriate operating system support, there can
be increase to read performance, and only a minimal write performance reduction.
Using RAID 1 with a separate controller for each disk is sometimes called
duplexing.
• In RAID 2 (bit-level striping with dedicated Hamming-code parity), all disk
spindle rotation is synchronized, and data is striped such that each sequential bit is
on a different disk. Hamming-code parity is calculated across corresponding bits
on disks and stored on one or more parity disks. Extremely high data transfer rates
are possible.
• In RAID 3 (byte-level striping with dedicated parity), all disk spindle rotation is
synchronized, and data is striped such that each sequential byte is on a different
disk. Parity is calculated across corresponding bytes on disks and stored on a
dedicated parity disk. Very high data transfer rates are possible.
• RAID 4 (block-level striping with dedicated parity) is identical to RAID 5 (see
below), but confines all parity data to a single disk, which can create a
performance bottleneck. In this setup, files can be distributed between multiple
disks. Each disk operates independently which allows I/O requests to be
performed in parallel, though data transfer speeds can suffer due to the type of
parity. The error detection is achieved through dedicated parity and is stored in a
separate, single disk unit.
• RAID 5 (block-level striping with distributed parity) distributes parity along with
the data and requires all drives but one to be present to operate; drive failure
requires replacement, but the array is not destroyed by a single drive failure. Upon
drive failure, any subsequent reads can be calculated from the distributed parity
such that the drive failure is masked from the end user. The array will have data
loss in the event of a second drive failure and is vulnerable until the data that was
on the failed drive is rebuilt onto a replacement drive. A single drive failure in the
set will result in reduced performance of the entire set until the failed drive has
been replaced and rebuilt.
• RAID 6 (block-level striping with double distributed parity) provides fault
tolerance from two drive failures; array continues to operate with up to two failed
drives. This makes larger RAID groups more practical, especially for high-
availability systems. This becomes increasingly important as large-capacity drives
lengthen the time needed to recover from the failure of a single drive. Single-
parity RAID levels are as vulnerable to data loss as a RAID 0 array until the failed
drive is replaced and its data rebuilt; the larger the drive, the longer the rebuild
will take. Double parity gives time to rebuild the array without the data being at
risk if a single additional drive fails before the rebuild is complete.

The following table provides an overview of the most important parameters of standard
RAID levels. Space efficiency is given as an equation in terms of the number of drives, n,
which results in a value between 0 and 1, representing the fraction of the sum of the
drives' capacities that is available for use. For example, if three drives are arranged in
RAID 3, this gives a space efficiency of 1−(1/3) = 0.66. If their individual capacities are
250 GB each, for a total of 750 GB over the three, the usable capacity under RAID 3 for
data storage is 500 GB.

Minimu Space Fault Read Write


Descriptio
Level m # of Efficienc Toleranc Benefi Benefi Image
n
disks y e t t

Block-
level
RAID striping
2 1 0 (none) nX nX
0 without
parity or
mirroring.

Mirroring
RAID without
2 1/n n−1 disks nX 1X
1 parity or
striping.

1 disk
Bit-level when the
striping corrupt
with disk is
RAID 1 − 1/n ⋅
dedicated 3 found by
2 log2(n-1)
Hamming- the ( )
code recover-
parity. record
code.
Byte-level
striping
RAID
with 3 1 − 1/n 1 disk
3
dedicated
parity.
Block-
level
RAID striping
3 1 − 1/n 1 disk
4 with
dedicated
parity.
Block-
level
RAID striping (n−1) variabl
3 1 − 1/n 1 disk
5 with X e
distributed
parity.
Block-
level
striping
RAID
with 4 1 − 2/n 2 disks
6
double
distributed
parity.

[edit] Nested (hybrid) RAID


Main article: Nested RAID levels

In what was originally termed hybrid RAID,[5] many storage controllers allow RAID
levels to be nested. The elements of a RAID may be either individual disks or RAIDs
themselves. Nesting more than two deep is unusual.

As there is no basic RAID level numbered larger than 9, nested RAIDs are usually
unambiguously described by attaching the numbers indicating the RAID levels,
sometimes with a "+" in between. The order of the digits in a nested RAID designation is
the order in which the nested array is built: for RAID 1+0 first pairs of drives are
combined into two or more RAID 1 arrays (mirrors), and then the resulting RAID 1
arrays are combined into a RAID 0 array (stripes). It is also possible to combine stripes
into mirrors (RAID 0+1). The final step is known as the top array. When the top array is a
RAID 0 (such as in RAID 10 and RAID 50) most vendors omit the "+", though RAID
5+0 is clearer.
• RAID 0+1: striped sets in a mirrored set ( minimum four disks; even number of
disks) provides fault tolerance and improved performance but increases
complexity.

The key difference from RAID 1+0 is that RAID 0+1 creates a second striped set
to mirror a primary striped set. The array continues to operate with one or more
drives failed in the same mirror set, but if drives fail on both sides of the mirror
the data on the RAID system is lost.

• RAID 1+0: mirrored sets in a striped set (minimum two disks but more commonly
four disks to take advantage of speed benefits; even number of disks) provides
fault tolerance and improved performance but increases complexity.

The key difference from RAID 0+1 is that RAID 1+0 creates a striped set from a
series of mirrored drives. In a failed disk situation, RAID 1+0 performs better
because all the remaining disks continue to be used. The array can sustain
multiple drive losses so long as no mirror loses all its drives.

• RAID 5+1: mirrored striped set with distributed parity (some manufacturers label
this as RAID 53).

Whether an array runs as RAID 0+1 or RAID 1+0 in practice is often determined by the
evolution of the storage system. A RAID controller might support upgrading a RAID 1
array to a RAID 1+0 array on the fly, but require a lengthy offline rebuild to upgrade
from RAID 1 to RAID 0+1. With nested arrays, sometimes the path of least disruption
prevails over achieving the preferred configuration.

[edit] RAID Parity


Many RAID levels employ an error protection scheme called "parity". Parity calculation,
in and of itself, is a widely used method in information technology to provide fault
tolerance in a given set of data. But how does it work?

It is actually very simple. In Boolean logic, there is a principle called "exclusive or", or
shorthand, "XOR", meaning "one or the other, but not neither nor both." For example:

0 XOR 0 = 0
0 XOR 1 = 1
1 XOR 0 = 1
1 XOR 1 = 0

The XOR operator is central to how parity data is created and used within an array; It is
used both for the protection of data, as well as for the recovery of missing data.

Let's suppose for the sake of simplicity that we have simple RAID made up of 6 hard
disks (4 for data, 1 for parity, and 1 for use as hot spare), where each drive is capable of
holding just a single byte worth of storage. This is how our initial RAID configuration
would look, keeping in mind no data has yet been written to it:

Drive #1: -------- (Data)


Drive #2: -------- (Data)
Drive #3: -------- (Data)
Drive #4: -------- (Data)
Drive #5 -------- (Hot Spare)
Drive #6 -------- (Parity)

Now, let's write some random bits to each of our four data drives.

Drive #1: 00101010 (Data)


Drive #2: 10001110 (Data)
Drive #3: 11110111 (Data)
Drive #4: 10110101 (Data)
Drive #5 -------- (Hot Spare)
Drive #6 -------- (Parity)

Every time we write anything on our data drives, we need to calculate parity to ensure we
can recover if we have a disk failure. To calculate the parity for this RAID, we simply
take the XOR of each drive's data. The resulting value is our parity data.

00101010 XOR (Drive 1 byte)


10001110 XOR (Drive 2 byte)
11110111 XOR (Drive 3 byte)
10110101 (Drive 4 byte)

============== (apply XOR concept bit-wise down the columns)

11100110 (This is the value of the Parity byte)

We now know that "11100110" is our parity data. We can write that data to our dedicated
parity drive:

Drive #1: 00101010 (Data)


Drive #2: 10001110 (Data)
Drive #3: 11110111 (Data)
Drive #4: 10110101 (Data)
Drive #5: -------- (Hot Spare)
Drive #6: 11100110 (Parity)

Now, lets suppose one of those drives has failed. You can pick any, but, for this example,
let's say that Drive #3 has failed. In order to know what the contents of Drive #3 were, we
perform the same XOR calculation against all the remaining drives, and substituting our
parity value (11100110) in place of the missing/dead drive:
00101010 XOR (Drive 1 byte)
10001110 XOR (Drive 2 byte)
11100110 XOR (Parity byte in place of failed Drive 3 byte)
10110101 (Drive 4 byte)

============== (apply XOR concept bit-wise down the columns)

11110111 (This is the value of the failed Drive 3 byte)

With the complete contents of Drive #3 now successfully recovered, the data is written to
the hot spare, and the RAID can continue operating as it had before.

Drive #1: 00101010 (Data)


Drive #2: 10001110 (Data)
Drive #3: --Dead-- (Data)
Drive #4: 10110101 (Data)
Drive #5: 11110111 (Hot Spare)
Drive #6: 11100110 (Parity)

Normally, someone at this point will replace the dead drive with a working one of the
same size. When this happens, the hot spare's contents are then automatically copied to it
by the array controller, allowing the hot spare to return to its original purpose as an
emergency standby drive. The resulting array is identical to its pre-failure state:

Drive #1: 00101010 (Data)


Drive #2: 10001110 (Data)
Drive #3: 11110111 (Data)
Drive #4: 10110101 (Data)
Drive #5 -------- (Hot Spare)
Drive #6 11100110 (Parity)

This same basic XOR principle applies to parity within RAID groups regardless of
capacity or number of drives. As long as there are enough drives present to allow for an
XOR calculation to take place, parity can be used to recover data from any single drive
failure. (A minimum of three drives must be present in order for parity to be used for
fault tolerance, since the XOR operator requires two operands, and a place to store the
result.)

[edit] RAID 10 versus RAID 5 in Relational Databases


A common myth (and one which serves to illustrate the mechanics of proper RAID
implementation) is that in all deployments, RAID 10 is inherently better for relational
databases than RAID 5, due to RAID 5's need to recalculate and redistribute parity data
on a per-write basis. [2]
While this may have been a hurdle in past RAID 5 implementations, the task of parity
recalculation and redistribution within modern SAN appliances is performed as a back-
end process transparent to the host, not as an in-line process which competes with
existing I/O. (i.e. the RAID controller handles this as a housekeeping task to be
performed during a particular spindle's idle timeslices, so as not to disrupt any pending
I/O from the host.) The "write penalty" inherent to RAID 5 has been effectively masked
over the past ten years by a combination of improved controller design, larger amounts of
cache, and faster hard disks. The effect of a write penalty when using RAID 5 is mostly a
concern when the workload has a high amount of random writes (such as in some
databases) while in other workloads modern RAID 5 systems can be on par with RAID
10 performance. [3]

In the vast majority of enterprise-level SAN hardware, any writes which are generated by
the host are simply acknowledged immediately, and destaged to disk on the back end
when the controller sees fit to do so. From the host's perspective, an individual write to a
RAID 10 volume is no faster than an individual write to a RAID 5 volume; A difference
between the two only becomes apparent when write cache at the SAN controller level is
overwhelmed, and the SAN appliance must reject or gate further write requests in order
to allow write buffers on the controller to destage to disk. While rare, this generally
indicates poor performance management on behalf of the SAN administrator, not a
shortcoming of RAID 5 or RAID 10. SAN appliances generally service multiple hosts
which compete both for controller cache and spindle time with one another. This
contention is largely masked, in that the controller is generally intelligent and adaptive
enough to maximize read cache hit ratios while also maximizing the process of destaging
data from write cache.

The choice of RAID 10 versus RAID 5 for the purposes of housing a relational database
will depend upon a number of factors (spindle availability, cost, business risk, etc.) but,
from a performance standpoint, it depends mostly on the type of I/O that database can
expect to see. For databases that are expected to be exclusively or strongly read-biased,
RAID 10 is often chosen in that it offers a slight speed improvement over RAID 5 on
sustained reads. If a database is expected to be strongly write-biased, RAID 5 becomes
the more attractive option, since RAID 5 doesn't suffer from the same write handicap
inherent in RAID 10; All spindles in a RAID 5 can be utilized to write simultaneously,
whereas only half the members of a RAID 10 can be used . [4] However, for reasons
similar to what has eliminated the "write penalty" in RAID 5, the reduced ability of a
RAID 10 to handle sustained writes has been largely masked by improvements in
controller cache efficiency and disk throughput.

What causes RAID 5 to be slightly slower than RAID 10 on sustained reads is the fact
that RAID 5 has parity data interleaved within normal data. For every read pass in RAID
5, there is a probability that a read head may need to traverse a region of parity data. The
cumulative effect of this is a slight performance drop compared to RAID 10, which does
not use parity, and therefore will never encounter a circumstance where data underneath a
head is of no use. For the vast majority of situations, however, most relational databases
housed on RAID 10 perform equally well in RAID 5. The strengths and weaknesses of
each type only become an issue in atypical deployments, or deployments on
overcommitted or outdated hardware.[5]

There are, however, other considerations which must be taken into account other than
simply those regarding performance. RAID 5 and other non-mirror-based arrays offer a
lower degree of resiliency than RAID 10 by virtue of RAID 10's mirroring strategy. In a
RAID 10, I/O can continue even in spite of multiple drive failures. By comparison, in a
RAID 5 array, any simultaneous failure involving greater than one drive will render the
array itself unusable by virtue of parity recalculation being impossible to perform. For
many, particularly in mission-critical environments with enough capital to spend, RAID
10 becomes the favorite as it provides the lowest level of risk.[6]

Additionally, the time required to rebuild data on a hot spare in a RAID 10 is


significantly less than RAID 5, in that all the remaining spindles in a RAID 5 rebuild
must participate in the process, whereas only half of all spindles need to participate in
RAID 10. In modern RAID 10 implementations, all drives generally participate in the
rebuilding process as well, but only half are required, allowing greater degraded-state
throughput over RAID 5 and overall faster rebuild times.[7]

Again, modern SAN design largely masks any performance hit while the RAID array is
in a degraded state, by virtue of selectively being able to perform rebuild operations both
in-band or out-of-band with respect to existing I/O traffic. Given the rare nature of drive
failures in general, and the exceedingly low probability of multiple concurrent drive
failures occurring within the same RAID array, the choice of RAID 5 over RAID 10
often comes down to the preference of the storage administrator, particularly when
weighed against other factors such as cost, throughput requirements, and physical spindle
availability. [8]

In short, the choice of RAID 5 versus RAID 10 involves a complicated mixture of


factors. There is no one-size-fits-all solution, as the choice of one over the other must be
dictated by everything from the I/O characteristics of the database, to business risk, to
worst case degraded-state throughput, to the number and type of disks present in the array
itself. Over the course of the life of a database, you may even see situations where RAID
5 is initially favored, but RAID 10 slowly becomes the better choice, and vice versa.

[edit] New RAID classification


In 1996, the RAID Advisory Board introduced an improved classification of RAID
systems[citation needed]. It divides RAID into three types: Failure-resistant disk systems (that
protect against data loss due to disk failure), failure-tolerant disk systems (that protect
against loss of data access due to failure of any single component), and disaster-tolerant
disk systems (that consist of two or more independent zones, either of which provides
access to stored data).

The original "Berkeley" RAID classifications are still kept as an important historical
reference point and also to recognize that RAID Levels 0-6 successfully define all known
data mapping and protection schemes for disk. Unfortunately, the original classification
caused some confusion due to assumption that higher RAID levels imply higher
redundancy and performance. This confusion was exploited by RAID system
manufacturers, and gave birth to the products with such names as RAID-7, RAID-10,
RAID-30, RAID-S, etc. The new system describes the data availability characteristics of
the RAID system rather than the details of its implementation.

The next list provides criteria for all three classes of RAID:

- Failure-resistant disk systems (FRDS) (meets a minimum of criteria 1–6):

1. Protection against data loss and loss of access to data due to disk drive failure
2. Reconstruction of failed drive content to a replacement drive
3. Protection against data loss due to a "write hole"
4. Protection against data loss due to host and host I/O bus failure
5. Protection against data loss due to replaceable unit failure
6. Replaceable unit monitoring and failure indication

- Failure-tolerant disk systems (FTDS) (meets a minimum of criteria 7–15 ):

7. Disk automatic swap and hot swap


8. Protection against data loss due to cache failure
9. Protection against data loss due to external power failure
10. Protection against data loss due to a temperature out of operating range
11. Replaceable unit and environmental failure warning
12. Protection against loss of access to data due to device channel failure
13. Protection against loss of access to data due to controller module failure
14. Protection against loss of access to data due to cache failure
15. Protection against loss of access to data due to power supply failure

- Disaster-tolerant disk systems (DTDS) (meets a minimum of criteria 16–21):

16. Protection against loss of access to data due to host and host I/O bus failure
17. Protection against loss of access to data due to external power failure
18. Protection against loss of access to data due to component replacement
19. Protection against loss of data and loss of access to data due to multiple disk failure
20. Protection against loss of access to data due to zone failure
21. Long-distance protection against loss of data due to zone failure

[edit] Non-standard levels


Main article: Non-standard RAID levels

Many configurations other than the basic numbered RAID levels are possible, and many
companies, organizations, and groups have created their own non-standard
configurations, in many cases designed to meet the specialised needs of a small niche
group. Most of these non-standard RAID levels are proprietary.

• Storage Computer Corporation used to call a cached version of RAID 3 and 4,


RAID 7. Storage Computer Corporation is now defunct.
• EMC Corporation used to offer RAID S as an alternative to RAID 5 on their
Symmetrix systems. Their latest generations of Symmetrix, the DMX and the V-
Max series, do not support RAID S (instead they support RAID 1, RAID 5 and
RAID 6.)
• The ZFS filesystem, available in Solaris, OpenSolaris and FreeBSD, offers RAID-
Z, which solves RAID 5's write hole problem.
• Hewlett-Packard's Advanced Data Guarding (ADG) is a form of RAID 6.
• NetApp's Data ONTAP uses RAID-DP (also referred to as "double", "dual", or
"diagonal" parity), is a form of RAID 6, but unlike many RAID 6
implementations, does not use distributed parity as in RAID 5. Instead, two
unique parity disks with separate parity calculations are used. This is a
modification of RAID 4 with an extra parity disk.
• Accusys Triple Parity (RAID TP) implements three independent parities by
extending RAID 6 algorithms on its FC-SATA and SCSI-SATA RAID controllers
to tolerate three-disk failure.
• Linux MD RAID10 (RAID 10) implements a general RAID driver that defaults to
a standard RAID 1 with 2 drives, and a standard RAID 1+0 with four drives, but
can have any number of drives, including odd numbers. MD RAID 10 can run
striped and mirrored, even with only two drives with the f2 layout (mirroring with
striped reads, giving the read performance of RAID 0; normal Linux software
RAID 1 does not stripe reads, but can read in parallel).[6][7]
• Infrant (now part of Netgear) X-RAID offers dynamic expansion of a RAID 5
volume without having to back up or restore the existing content. Just add larger
drives one at a time, let it resync, then add the next drive until all drives are
installed. The resulting volume capacity is increased without user downtime. (It
should be noted that this is also possible in Linux, when utilizing Mdadm utility.
It has also been possible in the EMC Clariion and HP MSA arrays for several
years.) The new X-RAID2 found on x86 ReadyNas, that is ReadyNas with Intel
CPUs, offers dynamic expansion of a RAID 5 or RAID 6 volume (note X-RAID2
Dual Redundancy not available on all X86 ReadyNas) without having to back up
or restore the existing content etc. A major advantage over X-RAID, is that using
X-RAID2 you do not need to replace all the disks to get extra space, you only need
to replace two disks using single redundancy or four disks using dual redundancy
to get more redundant space.
• BeyondRAID, created by Data Robotics and used in the Drobo series of products,
implements both mirroring and striping simultaneously or individually dependent
on disk and data context. It offers expandability without reconfiguration, the
ability to mix and match drive sizes and the ability to reorder disks. It supports
NTFS, HFS+, FAT32, and EXT3 file systems.[8] It also uses thin provisioning to
allow for single volumes up to 16 TB depending on the host operating system
support.
• Hewlett-Packard's EVA series arrays implement vRAID - vRAID-0, vRAID-1,
vRAID-5, and vRAID-6. The EVA allows drives to be placed in groups (called
Disk Groups) that form a pool of data blocks on top of which the RAID level is
implemented. Any Disk Group may have "virtual disks" or LUNs of any vRAID
type, including mixing vRAID types in the same Disk Group - a unique feature.
vRAID levels are more closely aligned to Nested RAID levels - vRAID-1 is
actually a RAID 1+0 (or RAID 10), vRAID-5 is actually a RAID 5+0 (or RAID
50), etc. Also, drives may be added on-the-fly to an existing Disk Group, and the
existing virtual disks data is redistributed evenly over all the drives, thereby
allowing dynamic performance and capacity growth.
• IBM (Among others) has implemented a RAID 1E (Level 1 Enhanced). With an
even number of disks it is similar to a RAID 10 array, but, unlike a RAID 10
array, it can also be implemented with an odd number of drives. In either case, the
total available disk space is n/2. It requires a minimum of three drives.
• Hadoop has a RAID system that generates a parity file by xor-ing a stripe of
blocks in a single HDFS file. More details can be found here [9]

[edit] Data backup


A RAID system used as a main system disk is not intended as a replacement for backing
up data. In parity configurations it will provide a backup-like feature to protect from
catastrophic data loss caused by physical damage or errors on a single drive. Many other
features of backup systems cannot be provided by RAID arrays alone. The most notable
is the ability to restore an earlier version of data, which is needed to protect against
software errors causing unwanted data to be written to the disk, and to recover from user
error or malicious deletion. RAID can also be overwhelmed by catastrophic failure that
exceeds its recovery capacity and, of course, the entire array is at risk of physical damage
by fire, natural disaster, or human forces. RAID is also vulnerable to controller failure
since it is not always possible to migrate a RAID to a new controller without data loss.[10]

RAID drives can serve as excellent backup drives when employed as removable backup
devices to main storage, and particularly when located offsite from the main systems.
However, the use of RAID as the only storage solution does not replace backups.

[edit] Implementations
It has been suggested that Vinum volume manager be merged into this article or
section. (Discuss)

(Specifically, the section comparing hardware / software raid)

The distribution of data across multiple drives can be managed either by dedicated
hardware or by software. When done in software the software may be part of the
operating system or it may be part of the firmware and drivers supplied with the card.
[edit] Software-based RAID

Software implementations are now provided by many operating systems. A software


layer sits above the (generally block-based) disk device drivers and provides an
abstraction layer between the logical drives (RAIDs) and physical drives. Most common
levels are RAID 0 (striping across multiple drives for increased space and performance)
and RAID 1 (mirroring two drives), followed by RAID 1+0, RAID 0+1, and RAID 5
(data striping with parity) are supported. New filesystems like btrfs may replace the
traditional software RAID by providing striping and redundancy at the filesystem object
level.

• Apple's Mac OS X Server[11] and Mac OS X[12] support RAID 0, RAID 1 and
RAID 1+0.
• FreeBSD supports RAID 0, RAID 1, RAID 3, and RAID 5 and all layerings of the
above via GEOM modules[13][14] and ccd.,[15] as well as supporting RAID 0, RAID
1, RAID-Z, and RAID-Z2 (similar to RAID 5 and RAID 6 respectively), plus
nested combinations of those via ZFS.
• Linux supports RAID 0, RAID 1, RAID 4, RAID 5, RAID 6 and all layerings of
the above, as well as "RAID10" (see above).[16][17] Certain
reshaping/resizing/expanding operations are also supported.[18]
• Microsoft's server operating systems support RAID 0, RAID 1, and RAID 5.
Some of the Microsoft desktop operating systems support RAID such as
Windows XP Professional which supports RAID level 0 in addition to spanning
multiple disks but only if using dynamic disks and volumes. Windows XP
supports RAID 0, 1, and 5 with a simple file patch.[19] RAID functionality in
Windows is slower than hardware RAID, but allows a RAID array to be moved to
another machine with no compatibility issues.
• NetBSD supports RAID 0, RAID 1, RAID 4 and RAID 5 (and any nested
combination of those like 1+0) via its software implementation, named
RAIDframe.
• OpenBSD aims to support RAID 0, RAID 1, RAID 4 and RAID 5 via its software
implementation softraid.
• Solaris ZFS supports ZFS equivalents of RAID 0, RAID 1, RAID 5 (RAID Z),
RAID 6 (RAID Z2), and a triple parity version RAID Z3, and any nested
combination of those like 1+0. Note that RAID Z/Z2/Z3 solve the RAID 5/6 write
hole problem and are therefore particularly suited to software implementation
without the need for battery backed cache (or similar) support. The boot
filesystem is limited to RAID 1.
• Solaris SVM supports RAID 1 for the boot filesystem, and adds RAID 0 and
RAID 5 support (and various nested combinations) for data drives.
• Linux and Windows FlexRAID is a snapshot RAID implementation.
• HP's OpenVMS provides a form of RAID 1 called "Volume shadowing", giving
the possibility to mirror data locally and at remote cluster systems.

Software RAID has advantages and disadvantages compared to hardware RAID. The
software must run on a host server attached to storage, and server's processor must
dedicate processing time to run the RAID software. The additional processing capacity
required for RAID 0 and RAID 1 is low, but parity-based arrays require more complex
data processing during write or integrity-checking operations. As the rate of data
processing increases with the number of disks in the array, so does the processing
requirement. Furthermore all the buses between the processor and the disk controller
must carry the extra data required by RAID which may cause congestion.

Over the history of hard disk drives, the increase in speed of commodity CPUs has been
consistently greater than the increase in speed of hard disk drive throughput.[20] Thus,
over-time for a given number of hard disk drives, the percentage of host CPU time
required to saturate a given number of hard disk drives has been dropping. e.g. The Linux
software md RAID subsystem is capable of calculating parity information at 6 GB/s
(100% usage of a single core on a 2.1 GHz Intel "Core2" CPU as of Linux v2.6.26). A
three-drive RAID 5 array using hard disks capable of sustaining a write of 100 MB/s will
require parity to be calculated at the rate of 200 MB/s. This will require the resources of
just over 3% of a single CPU core during write operations (parity does not need to be
calculated for read operations on a RAID 5 array, unless a drive has failed).

Software RAID implementations may employ more sophisticated algorithms than


hardware RAID implementations (for instance with respect to disk scheduling and
command queueing), and thus may be capable of increased performance.

Another concern with operating system-based RAID is the boot process. It can be
difficult or impossible to set up the boot process such that it can fall back to another drive
if the usual boot drive fails. Such systems can require manual intervention to make the
machine bootable again after a failure. There are exceptions to this, such as the LILO
bootloader for Linux, loader for FreeBSD,[21] and some configurations of the GRUB
bootloader natively understand RAID 1 and can load a kernel. If the BIOS recognizes a
broken first disk and refers bootstrapping to the next disk, such a system will come up
without intervention, but the BIOS might or might not do that as intended. A hardware
RAID controller typically has explicit programming to decide that a disk is broken and
fall through to the next disk.

Hardware RAID controllers can also carry battery-powered cache memory. For data
safety in modern systems the user of software RAID might need to turn the write-back
cache on the disk off (but some drives have their own battery/capacitors on the write-
back cache, a UPS, and/or implement atomicity in various ways, etc.). Turning off the
write cache has a performance penalty that can, depending on workload and how well
supported command queuing in the disk system is, be significant. The battery backed
cache on a RAID controller is one solution to have a safe write-back cache.

Finally operating system-based RAID usually uses formats specific to the operating
system in question so it cannot generally be used for partitions that are shared between
operating systems as part of a multi-boot setup. However, this allows RAID disks to be
moved from one computer to a computer with an operating system or file system of the
same type, which can be more difficult when using hardware RAID (e.g. #1: When one
computer uses a hardware RAID controller from one manufacturer and another computer
uses a controller from a different manufacturer, drives typically cannot be interchanged.
e.g. #2: If the hardware controller 'dies' before the disks do, data may become
unrecoverable unless a hardware controller of the same type is obtained, unlike with
firmware-based or software-based RAID).

Most operating system-based implementations allow RAIDs to be created from partitions


rather than entire physical drives. For instance, an administrator could divide an odd
number of disks into two partitions per disk, mirror partitions across disks and stripe a
volume across the mirrored partitions to emulate IBM's RAID 1E configuration. Using
partitions in this way also allows mixing reliability levels on the same set of disks. For
example, one could have a very robust RAID 1 partition for important files, and a less
robust RAID 5 or RAID 0 partition for less important data. (Some BIOS-based
controllers offer similar features, e.g. Intel Matrix RAID.) Using two partitions on the
same drive in the same RAID is, however, dangerous. (e.g. #1: Having all partitions of a
RAID 1 on the same drive will, obviously, make all the data inaccessible if the single
drive fails. e.g. #2: In a RAID 5 array composed of four drives 250 + 250 + 250 + 500
GB, with the 500 GB drive split into two 250 GB partitions, a failure of this drive will
remove two partitions from the array, causing all of the data held on it to be lost).

[edit] Hardware-based RAID

Hardware RAID controllers use different, proprietary disk layouts, so it is not usually
possible to span controllers from different manufacturers. They do not require processor
resources, the BIOS can boot from them, and tighter integration with the device driver
may offer better error handling.

A hardware implementation of RAID requires at least a special-purpose RAID controller.


On a desktop system this may be a PCI expansion card, PCI-e expansion card or built
into the motherboard. Controllers supporting most types of drive may be used –
IDE/ATA, SATA, SCSI, SSA, Fibre Channel, sometimes even a combination. The
controller and disks may be in a stand-alone disk enclosure, rather than inside a
computer. The enclosure may be directly attached to a computer, or connected via SAN.
The controller hardware handles the management of the drives, and performs any parity
calculations required by the chosen RAID level.

Most hardware implementations provide a read/write cache, which, depending on the I/O
workload, will improve performance. In most systems the write cache is non-volatile (i.e.
battery-protected), so pending writes are not lost on a power failure.

Hardware implementations provide guaranteed performance, add no overhead to the local


CPU complex and can support many operating systems, as the controller simply presents
a logical disk to the operating system.

Hardware implementations also typically support hot swapping, allowing failed drives to
be replaced while the system is running.
However, inexpensive hardware RAID controllers can be slower than software RAID due
to the dedicated CPU on the controller card not being as fast as the CPU in the
computer/server. More expensive RAID controllers have faster CPUs, capable of higher
throughput speeds and do not present this slowness.

[edit] Firmware/driver-based RAID

Operating system-based RAID doesn't always protect the boot process and is generally
impractical on desktop versions of Windows (as described above). Hardware RAID
controllers are expensive and proprietary. To fill this gap, cheap "RAID controllers" were
introduced that do not contain a RAID controller chip, but simply a standard disk
controller chip with special firmware and drivers. During early stage bootup the RAID is
implemented by the firmware; when a protected-mode operating system kernel such as
Linux or a modern version of Microsoft Windows is loaded the drivers take over.

These controllers are described by their manufacturers as RAID controllers, and it is


rarely made clear to purchasers that the burden of RAID processing is borne by the host
computer's central processing unit, not the RAID controller itself, thus introducing the
aforementioned CPU overhead from which hardware controllers don't suffer. Firmware
controllers often can only use certain types of hard drives in their RAID arrays (e.g.
SATA for Intel Matrix RAID), as there is neither SCSI nor PATA support in modern
Intel ICH southbridges; however, motherboard makers implement RAID controllers
outside of the southbridge on some motherboards. Before their introduction, a "RAID
controller" implied that the controller did the processing, and the new type has become
known by some as "fake RAID" even though the RAID itself is implemented correctly.
Adaptec calls them "HostRAID". Various Linux distributions will refuse to work with
"fake RAID".[9].

[edit] Network-attached storage

Main article: Network-attached storage

While not directly associated with RAID, Network-attached storage (NAS) is an


enclosure containing disk drives and the equipment necessary to make them available
over a computer network, usually Ethernet. The enclosure is basically a dedicated
computer in its own right, designed to operate over the network without screen or
keyboard. It contains one or more disk drives; multiple drives may be configured as a
RAID.

[edit] Hot spares

Both hardware and software RAIDs with redundancy may support the use of hot spare
drives, a drive physically installed in the array which is inactive until an active drive fails,
when the system automatically replaces the failed drive with the spare, rebuilding the
array with the spare drive included. This reduces the mean time to recovery (MTTR),
though it doesn't eliminate it completely. Subsequent additional failure(s) in the same
RAID redundancy group before the array is fully rebuilt can result in loss of the data;
rebuilding can take several hours, especially on busy systems.

Rapid replacement of failed drives is important as the drives of an array will all have had
the same amount of use, and may tend to fail at about the same time rather than
randomly.[citation needed] RAID 6 without a spare uses the same number of drives as RAID 5
with a hot spare and protects data against simultaneous failure of up to two drives, but
requires a more advanced RAID controller. Further, a hot spare can be shared by multiple
RAID sets.

[edit] Reliability terms


Failure rate
Two different kinds of failure rates are applicable to RAID systems. Logical
failure is defined as the loss of a single drive and its rate is equal to the sum of
individual drives' failure rates. System failure is defined as loss of data and its rate
will depend on the type of RAID. For RAID 0 this is equal to the logical failure
rate, as there is no redundancy. For other types of RAID, it will be less than the
logical failure rate, potentially approaching zero, and its exact value will depend
on the type of RAID, the number of drives employed, and the vigilance and
alacrity of its human administrators.
Mean time to data loss (MTTDL)
In this context, the average time before a loss of data in a given array.[22] Mean
time to data loss of a given RAID may be higher or lower than that of its
constituent hard drives, depending upon what type of RAID is employed. The
referenced report assumes times to data loss are exponentially distributed. This
means 63.2% of all data loss will occur between time 0 and the MTTDL.
Mean time to recovery (MTTR)
In arrays that include redundancy for reliability, this is the time following a failure
to restore an array to its normal failure-tolerant mode of operation. This includes
time to replace a failed disk mechanism as well as time to re-build the array (i.e.
to replicate data for redundancy).
Unrecoverable bit error rate (UBE)
This is the rate at which a disk drive will be unable to recover data after
application of cyclic redundancy check (CRC) codes and multiple retries.
Write cache reliability
Some RAID systems use RAM write cache to increase performance. A power
failure can result in data loss unless this sort of disk buffer is supplemented with a
battery to ensure that the buffer has enough time to write from RAM back to disk.
Atomic write failure
Also known by various terms such as torn writes, torn pages, incomplete writes,
interrupted writes, non-transactional, etc.

[edit] Problems with RAID


[edit] Correlated failures

The theory behind the error correction in RAID assumes that failures of drives are
independent. Given these assumptions it is possible to calculate how often they can fail
and to arrange the array to make data loss arbitrarily improbable.

In practice, the drives are often the same ages, with similar wear. Since many drive
failures are due to mechanical issues which are more likely on older drives, this violates
those assumptions and failures are in fact statistically correlated. In practice then, the
chances of a second failure before the first has been recovered is not nearly as unlikely as
might be supposed, and data loss can, in practice, occur at significant rates.[23]

A common misconception is that "server-grade" drives fail less frequently than


consumer-grade drives. Two independent studies, one by Carnegie Mellon University and
the other by Google, have shown that the "grade" of the drive does not relate to failure
rates.[24][25]

[edit] Atomicity

This is a little understood and rarely mentioned failure mode for redundant storage
systems that do not utilize transactional features. Database researcher Jim Gray wrote
"Update in Place is a Poison Apple"[26] during the early days of relational database
commercialization. However, this warning largely went unheeded and fell by the wayside
upon the advent of RAID, which many software engineers mistook as solving all data
storage integrity and reliability problems. Many software programs update a storage
object "in-place"; that is, they write a new version of the object on to the same disk
addresses as the old version of the object. While the software may also log some delta
information elsewhere, it expects the storage to present "atomic write semantics,"
meaning that the write of the data either occurred in its entirety or did not occur at all.

However, very few storage systems provide support for atomic writes, and even fewer
specify their rate of failure in providing this semantic. Note that during the act of writing
an object, a RAID storage device will usually be writing all redundant copies of the
object in parallel, although overlapped or staggered writes are more common when a
single RAID processor is responsible for multiple drives. Hence an error that occurs
during the process of writing may leave the redundant copies in different states, and
furthermore may leave the copies in neither the old nor the new state. The little known
failure mode is that delta logging relies on the original data being either in the old or the
new state so as to enable backing out the logical change, yet few storage systems provide
an atomic write semantic on a RAID disk.

While the battery-backed write cache may partially solve the problem, it is applicable
only to a power failure scenario.

Since transactional support is not universally present in hardware RAID, many operating
systems include transactional support to protect against data loss during an interrupted
write. Novell Netware, starting with version 3.x, included a transaction tracking system.
Microsoft introduced transaction tracking via the journaling feature in NTFS. Ext4 has
journaling with checksums; ext3 has journaling without checksums but an "append-only"
option, or ext3COW (Copy on Write). If the journal itself in a filesystem is corrupted
though, this can be problematic. The journaling in NetApp WAFL file system gives
atomicity by never updating the data in place, as does ZFS. An alternative method to
journaling is soft updates, which are used in some BSD-derived system's implementation
of UFS.

This can present as a sector read failure. Some RAID implementations protect against this
failure mode by remapping the bad sector, using the redundant data to retrieve a good
copy of the data, and rewriting that good data to the newly mapped replacement sector.
The UBE (Unrecoverable Bit Error) rate is typically specified at 1 bit in 1015 for
enterprise class disk drives (SCSI, FC, SAS) , and 1 bit in 1014 for desktop class disk
drives (IDE/ATA/PATA, SATA). Increasing disk capacities and large RAID 5
redundancy groups have led to an increasing inability to successfully rebuild a RAID
group after a disk failure because an unrecoverable sector is found on the remaining
drives. Double protection schemes such as RAID 6 are attempting to address this issue,
but suffer from a very high write penalty.

[edit] Write cache reliability

The disk system can acknowledge the write operation as soon as the data is in the cache,
not waiting for the data to be physically written. This typically occurs in old, non-
journaled systems such as FAT32, or if the Linux/Unix "writeback" option is chosen
without any protections like the "soft updates" option (to promote I/O speed whilst
trading-away data reliability). A power outage or system hang such as a BSOD can mean
a significant loss of any data queued in such a cache.

Often a battery is protecting the write cache, mostly solving the problem. If a write fails
because of power failure, the controller may complete the pending writes as soon as
restarted. This solution still has potential failure cases: the battery may have worn out, the
power may be off for too long, the disks could be moved to another controller, the
controller itself could fail. Some disk systems provide the capability of testing the battery
periodically, however this leaves the system without a fully charged battery for several
hours.

An additional concern about write cache reliability exists, specifically regarding devices
equipped with a write-back cache—a caching system which reports the data as written as
soon as it is written to cache, as opposed to the non-volatile medium.[27] The safer cache
technique is write-through, which reports transactions as written when they are written to
the non-volatile medium.

[edit] Equipment compatibility


The methods used to store data by various RAID controllers are not necessarily
compatible, so that it may not be possible to read a RAID array on different hardware,
with the exception of RAID 1, which is typically represented as plain identical copies of
the original data on each disk. Consequently a non-disk hardware failure may require the
use of identical hardware to recover the data, and furthermore an identical configuration
has to be reassembled without triggering a rebuild and overwriting the data. Software
RAID however, such as implemented in the Linux kernel, alleviates this concern, as the
setup is not hardware dependent, but runs on ordinary disk controllers, and allows the
reassembly of an array. Additionally, individual RAID1 disks (software, and most
hardware implementations) can be read like normal disks when removed from the array,
so no RAID system is required to retrieve the data. Inexperienced data recovery firms
typically have a difficult time recovering data from RAID drives, with the exception of
RAID1 drives with conventional data structure.

[edit] Data recovery in the event of a failed array

With larger disk capacities the odds of a disk failure during rebuild are not negligible. In
that event the difficulty of extracting data from a failed array must be considered. Only
RAID 1 stores all data on each disk. Although it may depend on the controller, some
RAID 1 disks can be read as a single conventional disk. This means a dropped RAID 1
disk, although damaged, can often be reasonably easily recovered using a software
recovery program. If the damage is more severe, data can often be recovered by
professional data recovery specialists. RAID 5 and other striped or distributed arrays
present much more formidable obstacles to data recovery in the event the array fails.

[edit] Drive error recovery algorithms

This section does not cite any references or sources.


Please help improve this article by adding citations to reliable sources. Unsourced material may
be challenged and removed. (November 2009)

Many modern drives have internal error recovery algorithms that can take upwards of a
minute to recover and re-map data that the drive fails to easily read. Many RAID
controllers will drop a non-responsive drive in 8 seconds or so. This can cause the array
to drop a good drive because it has not been given enough time to complete its internal
error recovery procedure, leaving the rest of the array vulnerable. So-called enterprise
class drives limit the error recovery time and prevent this problem, but desktop drives can
be quite risky for this reason. A fix specific to Western Digital drives used to be known: a
utility called WDTLER.exe could limit the error recovery time of a Western Digital
desktop drive so that it would not be dropped from the array for this reason. The utility
enabled TLER (time limited error recovery) which limits the error recovery time to 7
seconds. As of October 2009 Western Digital has locked out this feature in their desktop
drives such as the Caviar Black.[28] Western Digital enterprise class drives are shipped
from the factory with TLER enabled to prevent being dropped from RAID arrays. Similar
technologies are used by Seagate, Samsung, and Hitachi.
As of late 2010, support for ATA Error Recovery Control configuration has been added
to the Smartmontools program, so it now allows configuring many desktop class hard
drives for use on a RAID controller.[28]

[edit] Increasing recovery time

Drive capacity has grown at a much faster rate than transfer speed, and error rates have
only fallen a little in comparison. Therefore, larger capacity drives may take hours, if not
days, to rebuild. The re-build time is also limited if the entire array is still in operation at
reduced capacity.[29] Given a RAID array with only one disk of redundancy (RAIDs 3, 4,
and 5), a second failure would cause complete failure of the array. Even though
individual drives' mean time between failure (MTBF) have increased over time, this
increase has not kept pace with the increased storage capacity of the drives. The time to
rebuild the array after a single disk failure, as well as the chance of a second failure
during a rebuild, have increased over time.[30]

[edit] Operator skills, correct operation

In order to provide the desired protection against physical drive failure, a RAID array
must be properly set up and maintained by an operator with sufficient knowledge of the
chosen RAID configuration, array controller (hardware or software), failure detection and
recovery. Unskilled handling of the array at any stage may exacerbate the consequences
of a failure, and result in downtime and full or partial loss of data that might otherwise be
recoverable.

Particularly, the array must be monitored, and any failures detected and dealt with
promptly. Failure to do so will result in the array continuing to run in a degraded state,
vulnerable to further failures. Ultimately more failures may occur, until the entire array
becomes inoperable, resulting in data loss and downtime. In this case, any protection the
array may provide merely delays this.

The operator must know how to detect failures or verify healthy state of the array,
identify which drive failed, have replacement drives available, and know how to replace a
drive and initiate a rebuild of the array.

[edit] Other problems and viruses

While RAID may protect against physical drive failure, the data is still exposed to
operator, software, hardware and virus destruction. Many studies[31] cite operator fault as
the most common source of malfunction, such as a server operator replacing the incorrect
disk in a faulty RAID array, and disabling the system (even temporarily) in the process.
[32]
Most well-designed systems include separate backup systems that hold copies of the
data, but don't allow much interaction with it. Most copy the data and remove the copy
from the computer for safe storage.
[edit] History
Norman Ken Ouchi at IBM was awarded a 1978 U.S. patent 4,092,732[33] titled "System
for recovering data stored in failed memory unit." The claims for this patent describe
what would later be termed RAID 5 with full stripe writes. This 1978 patent also
mentions that disk mirroring or duplexing (what would later be termed RAID 1) and
protection with dedicated parity (that would later be termed RAID 4) were prior art at
that time.

The term RAID was first defined by David A. Patterson, Garth A. Gibson and Randy
Katz at the University of California, Berkeley, in 1987. They studied the possibility of
using two or more drives to appear as a single device to the host system and published a
paper: "A Case for Redundant Arrays of Inexpensive Disks (RAID)" in June 1988 at the
SIGMOD conference.[1]

This specification suggested a number of prototype RAID levels, or combinations of


drives. Each had theoretical advantages and disadvantages. Over the years, different
implementations of the RAID concept have appeared. Most differ substantially from the
original idealized RAID levels, but the numbered names have remained. This can be
confusing, since one implementation of RAID 5, for example, can differ substantially
from another. RAID 3 and RAID 4 are often confused and even used interchangeably.

One of the early uses of RAID 0 and 1 was the Crosfield Electronics Studio 9500 page
layout system based on the Python workstation. The Python workstation was a Crosfield
managed international development using PERQ 3B electronics, benchMark
Technology's Viper display system and Crosfield's own RAID and fibre-optic network
controllers. RAID 0 was particularly important to these workstations as it dramatically
sped up image manipulation for the pre-press markets. Volume production started in
Peterborough, England in early 1987.

[edit] Vinum
Vinum is a logical volume manager, also called Software RAID, allowing
implementations of the RAID-0, RAID-1 and RAID-5 models, both individually and in
combination. Vinum is part of the base distribution of the FreeBSD operating system.
Versions exist for NetBSD, OpenBSD and DragonFly BSD. Vinum source code is
currently maintained in the FreeBSD source tree. Vinum supports raid levels 0, 1, 5, and
JBOD. Vinum is invoked as "gvinum" on FreeBSD version 5.4 and up.

[edit] Software RAID vs. Hardware RAID


The distribution of data across multiple disks can be managed by either dedicated
hardware or by software. Additionally, there are hybrid RAIDs that are partly software-
and partly hardware-based solutions.
With a software implementation, the operating system manages the disks of the array
through the normal drive controller (ATA, SATA, SCSI, Fibre Channel, etc.). With
present CPU speeds, software RAID can be faster than hardware RAID.

A hardware implementation of RAID requires at a minimum a special-purpose RAID


controller. On a desktop system, this may be a PCI expansion card, or might be a
capability built in to the motherboard. In larger RAIDs, the controller and disks are
usually housed in an external multi-bay enclosure. This controller handles the
management of the disks, and performs parity calculations (needed for many RAID
levels). This option tends to provide better performance, and makes operating system
support easier.

Hardware implementations also typically support hot swapping, allowing failed drives to
be replaced while the system is running. In rare cases hardware controllers have become
faulty, which can result in data loss. Hybrid RAIDs have become very popular with the
introduction of inexpensive hardware RAID controllers. The hardware is a normal disk
controller that has no RAID features, but there is a boot-time application that allows users
to set up RAIDs that are controlled via the BIOS. When any modern operating system is
used, it will need specialized RAID drivers that will make the array look like a single
block device. Since these controllers actually do all calculations in software, not
hardware, they are often called "fakeraids". Unlike software RAID, these "fakeraids"
typically cannot span multiple controllers.

Example configuration. A simple example to mirror drive enterprise to drive excelsior


(RAID1)

drive enterprise device /dev/da1s1d


drive excelsior device /dev/da2s1d
volume mirror
plex org concat
sd length 512m drive enterprise
plex org concat
sd length 512m drive excelsior

[edit] Non-RAID drive architectures


Main article: Non-RAID drive architectures

Non-RAID drive architectures also exist, and are often referred to, similarly to RAID, by
standard acronyms, several tongue-in-cheek. A single drive is referred to as a SLED
(Single Large Expensive Drive), by contrast with RAID, while an array of drives without
any additional control (accessed simply as independent drives) is referred to as a JBOD
(Just a Bunch Of Disks). Simple concatenation is referred to a SPAN, or sometimes as
JBOD, though this latter is proscribed in careful use, due to the alternative meaning just
cited.

You might also like
