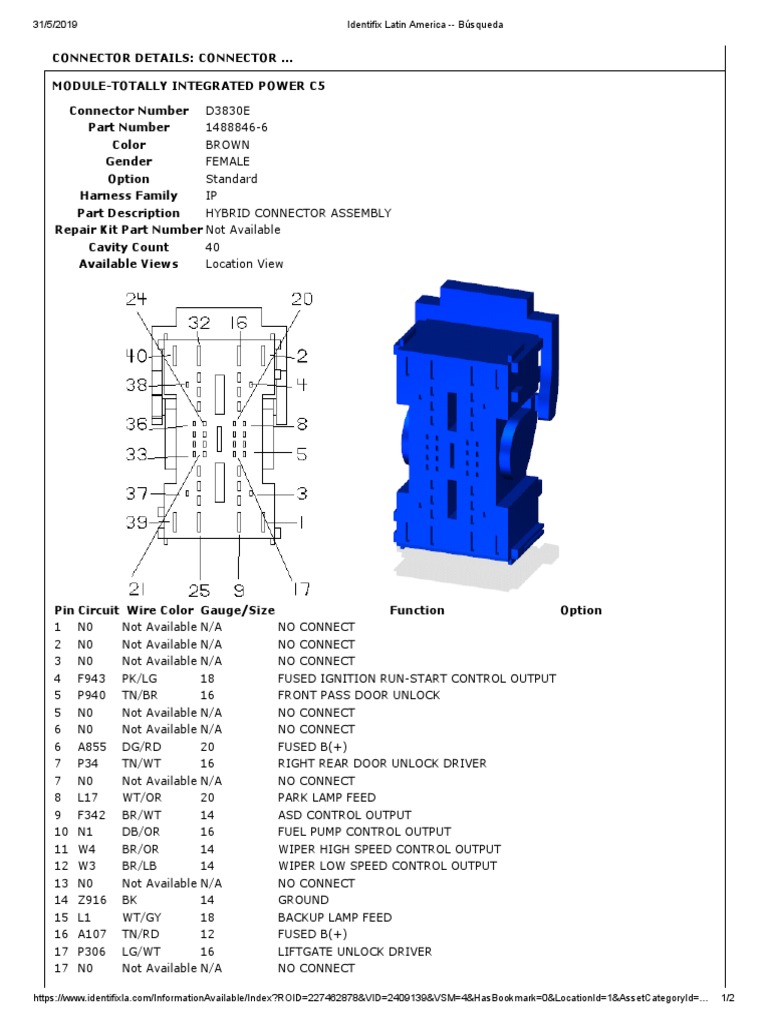

CONNECTOR DETAILS: CONNECTOR ...

MODULE-TOTALLY INTEGRATED POWER C5

Connector Number D3830E

Part Number 1488846-6
Color BROWN
Gender FEMALE
Option Standard
Harness Family IP
Part Description HYBRID CONNECTOR ASSEMBLY
Repair Kit Part Number Not Available
Cavity Count 40
Available Views Location View

Pin Circuit Wire Color Gauge/Size Function Option

1 N0 Not Available N/A NO CONNECT
2 N0 Not Available N/A NO CONNECT
3 N0 Not Available N/A NO CONNECT
4 F943 PK/LG 18 FUSED IGNITION RUN-START CONTROL OUTPUT
5 P940 TN/BR 16 FRONT PASS DOOR UNLOCK
5 N0 Not Available N/A NO CONNECT
6 N0 Not Available N/A NO CONNECT
6 A855 DG/RD 20 FUSED B(+)
7 P34 TN/WT 16 RIGHT REAR DOOR UNLOCK DRIVER
7 N0 Not Available N/A NO CONNECT
8 L17 WT/OR 20 PARK LAMP FEED
9 F342 BR/WT 14 ASD CONTROL OUTPUT
10 N1 DB/OR 16 FUEL PUMP CONTROL OUTPUT
11 W4 BR/OR 14 WIPER HIGH SPEED CONTROL OUTPUT
12 W3 BR/LB 14 WIPER LOW SPEED CONTROL OUTPUT
13 N0 Not Available N/A NO CONNECT
14 Z916 BK 14 GROUND
15 L1 WT/GY 18 BACKUP LAMP FEED
16 A107 TN/RD 12 FUSED B(+)
17 P306 LG/WT 16 LIFTGATE UNLOCK DRIVER
17 N0 Not Available N/A NO CONNECT

https://www.identifixla.com/InformationAvailable/Index?ROID=227462878&VID=2409139&VSM=4&HasBookmark=0&LocationId=1&AssetCategoryId=… 1/2
31/5/2019 Identifix Latin America -- Búsqueda

Pin Circuit Wire Color Gauge/Size Function Option

18 N0 Not Available N/A NO CONNECT
18 P5 TN/OR 16 LEFT REAR DOOR UNLOCK DRIVER
19 C110 DB/LB 20 MIRROR HEATER DRIVER
19 N0 Not Available N/A NO CONNECT
20 N0 Not Available N/A NO CONNECT
21 N0 Not Available N/A NO CONNECT
22 A408 RD 20 FUSED B(+)
23 N0 Not Available N/A NO CONNECT
24 N0 Not Available N/A NO CONNECT
25 N0 Not Available N/A NO CONNECT
26 N0 Not Available N/A NO CONNECT
27 W13 BR/DB 16 REAR WIPER MOTOR CONTROL
28 Z916 BK 14 GROUND
29 A116 YL/RD 12 FUSED B(+)
29 A116 YL/RD 14 FUSED B(+)
30 N0 Not Available N/A NO CONNECT
30 A417 RD 20 FUSED B(+)
31 A111 DG/RD 14 FUSED B(+)
32 C15 DB/WT 12 REAR WINDOW DEFOGGER CONTROL OUTPUT
33 N0 Not Available N/A NO CONNECT
34 N0 Not Available N/A NO CONNECT
35 N0 Not Available N/A NO CONNECT
35 A416 RD 18 FUSED B(+)
36 L217 WT/VT 20 PARK LAMP FEED
37 N0 Not Available N/A NO CONNECT
38 F941 PK/GY 20 IGNITION RUN/START CONTROL OUTPUT
39 N0 Not Available N/A NO CONNECT
40 A959 RD 14 FUSED B(+)
