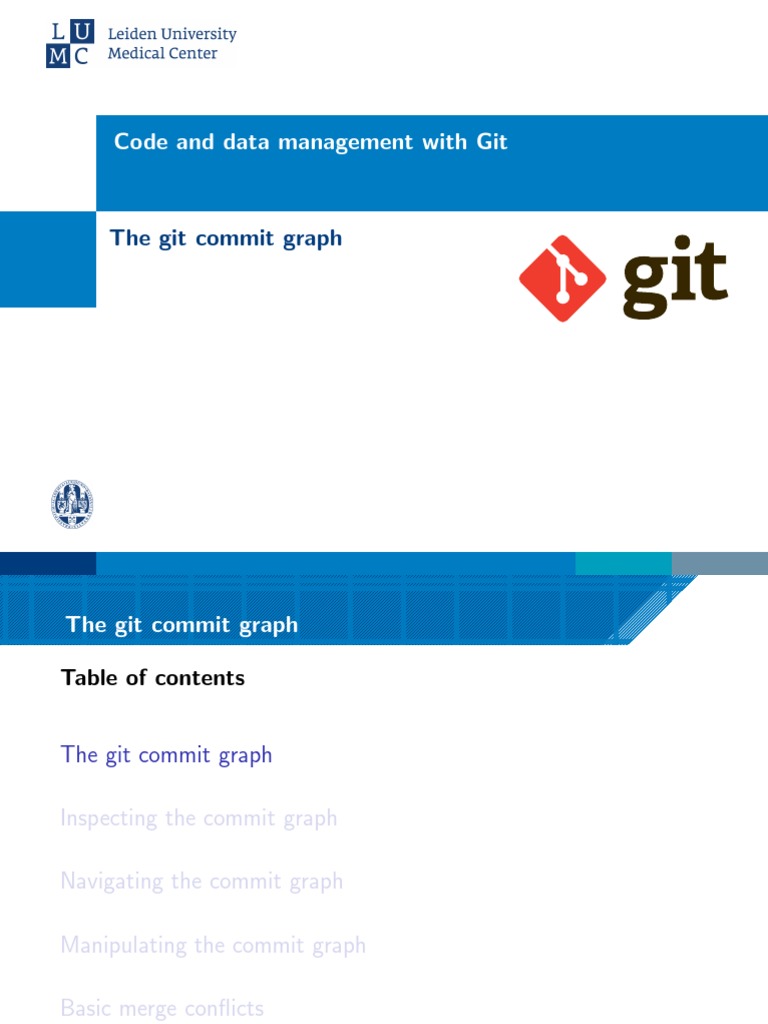

Code and Data Management With Git: The Git Commit Graph

Code and data management with Git
The git commit graph

Table of contents
Inspecting the commit graph
Navigating the commit graph
Manipulating the commit graph
Basic merge conflicts
1/54 Code and data management with Git 14-06-2019

A linear history
12f82a1 H
Committing creates a new

2f5458a
commit on top of current one.
Parent of Every commit has a parent.

Time
1d438b8

A linear history
2f5458a H
2f5458a
1d438b8

The default master branch
A branch is a pointer to a commit.
master The default branch.
2f5458a H
2f5458a
1d438b8

The HEAD pointer
master HEAD Points to the current branch / commit.
2f5458a
The working directory reects
the les state from the commit
to which the HEAD points to.
2f5458a
1d438b8

Committing
Committing moves the current
master HEAD
branch to the new commit.
12f82a1
H
it.
master HEAD
2f5458a
2f5458a
1d438b8

Committing
Committing moves the current
master HEAD
branch to the new commit.
12f82a1
it.
2f5458a
2f5458a
1d438b8

A non-linear history
master HEAD some feature

12f82a1 33215af
2f5458a 441aa8c
S"#$
parent
2f5458a
The commit graph can become no !.
1d438b8

Use branches to keep track of different code paths

another feature Branch names:
4564aaf - are easier to remember than commits ids.
- make it clear what commits are all about.
master HEAD some feature

11a5645 12f82a1 33215af
2f5458a 441aa8c
2f5458a
1d438b8

Merging
another feature master HEAD Bringing together commits
4564aaf a12a223 from di%erent branches.
some feature
11a5645 12f82a1 33215af
2f5458a 441aa8c
2f5458a
1d438b8

Table of contents

An example repository
master HEAD
c7f3bd9
Add .gitignore file interface
8fc25c1
Trivial Python interface
4a44c4e
Merge Branch 'license'
64af1ee
Add course teachers license
to README
0fbe3e3
Add MIT license
d1c7fd7
Initial commit with README

Showing the current branch
$ git status
On branch master
nothing to commit, working directory clean.
Remember: you cannot type git status enough!

Listing branches
$ git branch
interface
license
* master
Three branches, current branch is master.

Listing branches
$ git branch
interface
license
* master
Three branches, current branch is master.
$ git branch -v
interface 8fc25c1 Trivial Python interface
license 0fbe3e3 Add MIT license
* master c7f3bd9 Add .gitignore file
-v: Shows the commit each branch points to.

The commit log
$ git log --oneline --decorate

c7f3bd9 (HEAD -> master) Add .gitignore file
4a44c4e Merge branch ’license’
64af1ee Add course teachers to README
0fbe3e3 (license) Add MIT license
d1c7fd7 Initial commit with README
--oneline: Shows commit summary on one line.

--decorate: Adds branch information.

The commit log as a graph
$ git log --oneline --decorate --graph --all

* 8fc25c1 (interface) Trivial Python interface
| * c7f3bd9 (HEAD -> master) Add .gitignore file
|/
* 4a44c4e Merge branch ’license’
|\
| * 0fbe3e3 (license) Add MIT license
* | 64af1ee Add course teachers to README
|/
* d1c7fd7 Initial commit with README
--graph: Shows the commit graph.

--all: Includes all branches instead of just the current one.
Table of contents

Switching to another branch
$ git checkout interface

Switched to branch ’interface’
• Points HEAD to the named branch.

• Updates your working directory.

$ git checkout interface

Switched to branch ’interface’
• Points HEAD to the named branch.

• Updates your working directory.
$ git status
On branch interface

master HEAD
c7f3bd9
8fc25c1
4a44c4e
64af1ee
to README
0fbe3e3
Add MIT license
d1c7fd7

master
c7f3bd9
8fc25c1
4a44c4e
64af1ee
to README
0fbe3e3
Add MIT license
d1c7fd7

Detached HEAD state
$ git checkout 4a44c4e

Note: checking out ’4a44c4e’.
You are in ’detached HEAD’ state. You can look ...
If you want to create a new branch to retain

commits you create, you may do so (now or later) by
using -b with the checkout command again. Example:
git checkout -b <new-branch-name>
HEAD is now at 4a44c4e... Merge Branch ’license’

Detached HEAD state
$ git status
HEAD detached at 4a44c4e

Detached HEAD state
master
c7f3bd9
8fc25c1
4a44c4e
64af1ee
to README
0fbe3e3
Add MIT license
d1c7fd7

Detached HEAD state
master
c7f3bd9
8fc25c1
4a44c4e
64af1ee
to README
0fbe3e3
Add MIT license
d1c7fd7

Detached HEAD state
master
c7f3bd9
8fc25c1
4a44c4e
64af1ee
to README
0fbe3e3
Add MIT license
d1c7fd7

Table of contents

Creating a new branch
$ git branch lib
Creates branch lib at HEAD.

$ git branch lib

How can I see that it worked?

$ git branch lib

$ git branch
interface
lib
license
* master

$ git branch lib

$ git branch
interface
lib
license
* master
How can I switch to the new lib branch?

$ git checkout lib

Switched to branch ’lib’


For Git pro’s, in one command:
$ git checkout -b lib

Switched to a new branch ’lib’
At this point, lib is just a label to the same commit as master.

master lib HEAD
c7f3bd9
8fc25c1
4a44c4e
64af1ee
to README
0fbe3e3
Add MIT license
d1c7fd7

Working on a branch
We can extend the lib branch by adding commits.
$ echo ’VERSION=1’ > testlib.py

$ git add testlib.py
$ git commit -m ’Add empty testlib’

Working on a branch
We can extend the lib branch by adding commits.
$ echo ’VERSION=1’ > testlib.py

$ git add testlib.py
$ git commit -m ’Add empty testlib’

* 251a51b (HEAD -> lib) Add empty testlib
* c7f3bd9 (master ) Add .gitignore file
| * 8fc25c1 (interface) Trivial Python interface
|/
* 4a44c4e Merge branch ’license’
...

Extended lib branch

lib HEAD
251a51b
Add empty testlib
master interface
c7f3bd9 8fc25c1
Add .gitignore file Trivial Python interface
4a44c4e
license
64af1ee 0fbe3e3
Add course teachers Add MIT license
to README
d1c7fd7

Fast forward merging

Let’s merge our work on lib back into master.
$ git checkout master

Switched to branch ’master’
$ git merge lib
Updating c7f3bd9..251a51b
Fast-forward
testlib.py | 1 +
1 file changed, 1 insertion(+)
create mode 100644 testlib.py

Merged branch lib into master (fast forward).

lib master HEAD
251a51b
Add empty testlib
master HEAD interface

c7f3bd9 8fc25c1
4a44c4e
license
64af1ee 0fbe3e3
to README
d1c7fd7

Three-way merging
Let’s merge our work on interface back into master.
$ git merge interface

Merge made by the ’recursive’ strategy.
interface.py | 3 +++
1 file changed, 3 insertions(+)
create mode 100755 interface.py
This merge was harder:

• interface and master had diverged.
• Git determines changes in interface and master since their
most recent common ancestor.
• A new commit is created.
Merged branch interface into master

master HEAD
fc054a6
Merge branch 'interface'
into characters
lib master HEAD
251a51b
Add empty testlib
interface
c7f3bd9 8fc25c1
4a44c4e
license
64af1ee 0fbe3e3
to README

Merged branch interface into master

master HEAD
fc054a6
into characters
lib
251a51b
Add empty testlib
interface
c7f3bd9 8fc25c1
4a44c4e
license
64af1ee 0fbe3e3
to README

Note
Make sure that the working directory is clean before merging.
Otherwise:
$ git merge lib

error: Your local changes to the following files
would be overwritten by merge:
testlib.py
Please, commit your changes or stash them before
you can merge.
Aborting

Deleting branches
Old branches that have been merged can be deleted.
$ git branch -d interface

Deleted branch interface (was 8fc25c1).
$ git branch -d lib license

Deleted branch lib (was 251a51b).
Deleted branch license (was 0fbe3e3).
No history is lost, just labels removed.

Deleting branches
master HEAD
fc054a6
into characters
251a51b
Add empty testlib
c7f3bd9 8fc25c1
4a44c4e
64af1ee 0fbe3e3
to README
d1c7fd7
Basic merge conflicts
Table of contents

Merge conflicts
Git is pretty good at merging:
• The changes might have been in different files.
• Or in different parts of the same file.
• Git tries to figure out a sensible result.

Merge conflicts
Git is pretty good at merging:
• The changes might have been in different files.
• Or in different parts of the same file.
• Git tries to figure out a sensible result.
Sometimes this is not possible:

• The changes might be incompatible.
• When we try git merge, Git gives up.
• This situation is called a merge conflict.

Setting the stage (1/3)

* 5edaf08 (hue) State character ...
| * f1ef19c (HEAD, master) State character ...
|/
* 1f6d2ab Initial commit
We’d like to merge branch hue into master.


The last commit on master:
$ git show
f1ef19c State character preference
diff --git a/FACTS.md b/FACTS.md
index de15194..ef40359 100644
--- a/FACTS.md
+++ b/FACTS.md
@@ -1,2 +1,4 @@
Facts about television series
=============================
+
+My favorite character is Eric Cartman.


The last commit on hue:
$ git show --oneline hue

5edaf08 State character preference
diff --git a/FACTS.md b/FACTS.md
index de15194..5e69508 100644
--- a/FACTS.md
+++ b/FACTS.md
@@ -1,2 +1,4 @@
=============================
+
+My favorite character is Milhouse.

Creating a merge conflict
$ git merge hue

Auto-merging FACTS.md
CONFLICT (content): Merge conflict in FACTS.md
Automatic merge failed; fix conflicts and then
commit the result.

Creating a merge conflict
$ git merge hue

commit the result.
$ git status
# On branch master
# Unmerged paths:
# (use "git add/rm <file>.." as appropriate)
# to mark resolution)
# both modified: FACTS.md
# no changes added to commit (use "git add" and/or
# "git commit -a")

Resolving a merge conflict (1/3)
$ cat FACTS.md
=============================
S
<<<<<<< HEAD
My favorite character is Eric Cartman.
=======
My favorite character is Milhouse.
>>>>>>> hue
What we had is under HEAD, what hue had is above hue.


We resolve the conflict by hand.
$ nano FACTS.md
$ cat FACTS.md
=============================
S
My favorite characters are Eric Cartman
and Milhouse.


And can now finish the merge commit.
$ git add FACTS.md

$ git commit
[master 1e496cb] Merge branch ’hue’

Aborting a merge
If you don’t feel like resolving the merge conflict, you can go back
with git merge --abort.
$ git merge hue

commit the result.
$ git merge --abort
$ git status
# On branch master
# nothing to commit (working directory clean)

Resolving conflicts with git mergetool

We can also use graphical merge tools such as Meld.
$ git mergetool
merge tool candidates: meld opendiff kdiff3 ...
Merging:
FACTS.md
S
Normal merge conflict for ’FACTS.md’:
sslocal: modified file
ssremote: modified file
Hit return to start merge resolution tool (meld):

Meld example
Tools like Meld provide an editable three-way diff.

Acknowledgements
Martijn Vermaat
Wibowo Arindrarto
Szymon Kielbasa
Jeroen Laros
http://git-scm.com/book
https://www.atlassian.com/git

Code and Data Management With Git: The Git Commit Graph

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Code and Data Management With Git: The Git Commit Graph

Uploaded by

Copyright:

Available Formats

Code and data management with Git

The git commit graph

The git commit graph

Inspecting the commit graph

Navigating the commit graph

Manipulating the commit graph

Basic merge conﬂicts

1/54 Code and data management with Git 14-06-2019

Committing creates a new

Parent of Every commit has a parent.

2/54 Code and data management with Git 14-06-2019

3/54 Code and data management with Git 14-06-2019

The default master branch

A branch is a pointer to a commit.

master The default branch.

4/54 Code and data management with Git 14-06-2019

The HEAD pointer

master HEAD Points to the current branch / commit.

5/54 Code and data management with Git 14-06-2019

6/54 Code and data management with Git 14-06-2019

   it.

7/54 Code and data management with Git 14-06-2019

master HEAD some feature

The commit graph can become no !.

8/54 Code and data management with Git 14-06-2019

Use branches to keep track of different code paths

master HEAD some feature

9/54 Code and data management with Git 14-06-2019

10/54 Code and data management with Git 14-06-2019

The git commit graph

Inspecting the commit graph

Navigating the commit graph

Manipulating the commit graph

Basic merge conﬂicts

11/54 Code and data management with Git 14-06-2019

12/54 Code and data management with Git 14-06-2019

Showing the current branch

Remember: you cannot type git status enough!

13/54 Code and data management with Git 14-06-2019

Three branches, current branch is master.

14/54 Code and data management with Git 14-06-2019

Three branches, current branch is master.

-v: Shows the commit each branch points to.

14/54 Code and data management with Git 14-06-2019

The commit log

$ git log --oneline --decorate

--oneline: Shows commit summary on one line.

15/54 Code and data management with Git 14-06-2019

The commit log as a graph

$ git log --oneline --decorate --graph --all

--graph: Shows the commit graph.

The git commit graph

Inspecting the commit graph

Navigating the commit graph

Manipulating the commit graph

Basic merge conﬂicts

17/54 Code and data management with Git 14-06-2019

Switching to another branch

$ git checkout interface

• Points HEAD to the named branch.

18/54 Code and data management with Git 14-06-2019

Switching to another branch

it.

The commit graph can become no !.
