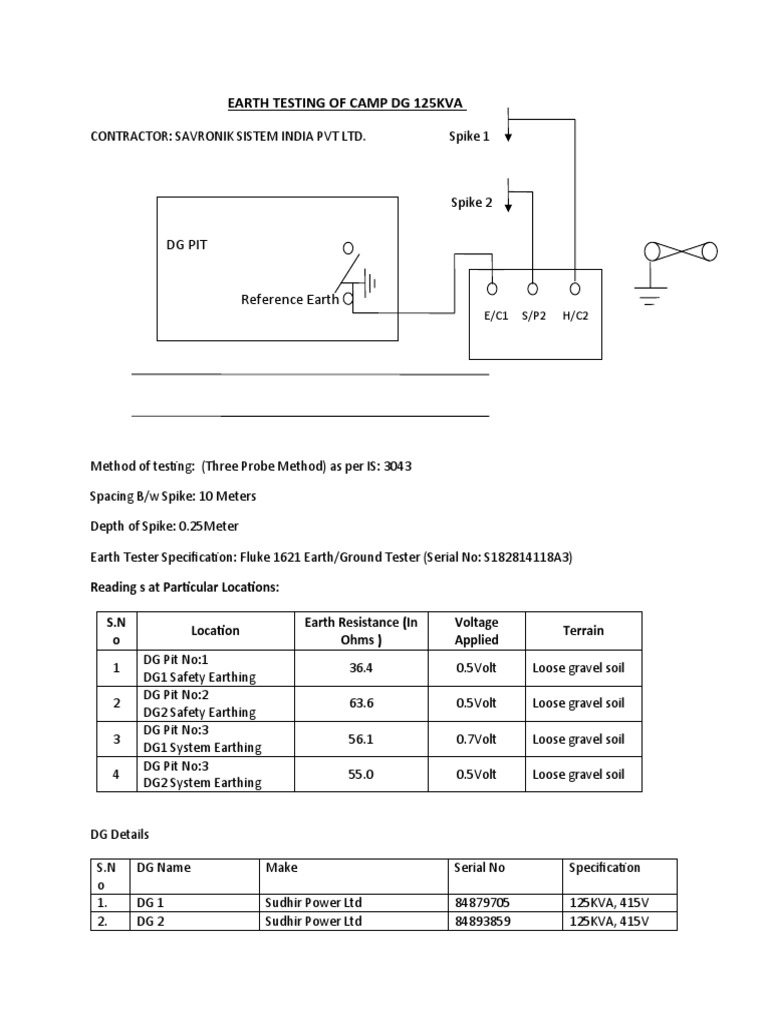

    EARTH TESTING OF CAMP DG 125KVA

    CONTRACTOR: SAVRONIK SISTEM INDIA PVT LTD. Spike 1

    Spike 2

    DG PIT
    33kV Pole

    Reference Earth
    E/C1 S/P2 H/C2

    Method of testing: (Three Probe Method) as per IS: 3043

    Spacing B/w Spike: 10 Meters

    Depth of Spike: 0.25Meter

    Earth Tester Specification: Fluke 1621 Earth/Ground Tester (Serial No: S182814118A3)

    Reading s at Particular Locations:

    S.N Earth Resistance (In Voltage


    Location Terrain
    o Ohms ) Applied
    DG Pit No:1
    1 36.4 0.5Volt Loose gravel soil
    DG1 Safety Earthing
    DG Pit No:2
    2 63.6 0.5Volt Loose gravel soil
    DG2 Safety Earthing
    DG Pit No:3
    3 56.1 0.7Volt Loose gravel soil
    DG1 System Earthing
    DG Pit No:3
    4 55.0 0.5Volt Loose gravel soil
    DG2 System Earthing

    DG Details

    S.N DG Name Make Serial No Specification


    o
    1. DG 1 Sudhir Power Ltd 84879705 125KVA, 415V
    2. DG 2 Sudhir Power Ltd 84893859 125KVA, 415V
