Design Calculation - Column Formwork - R1 PDF

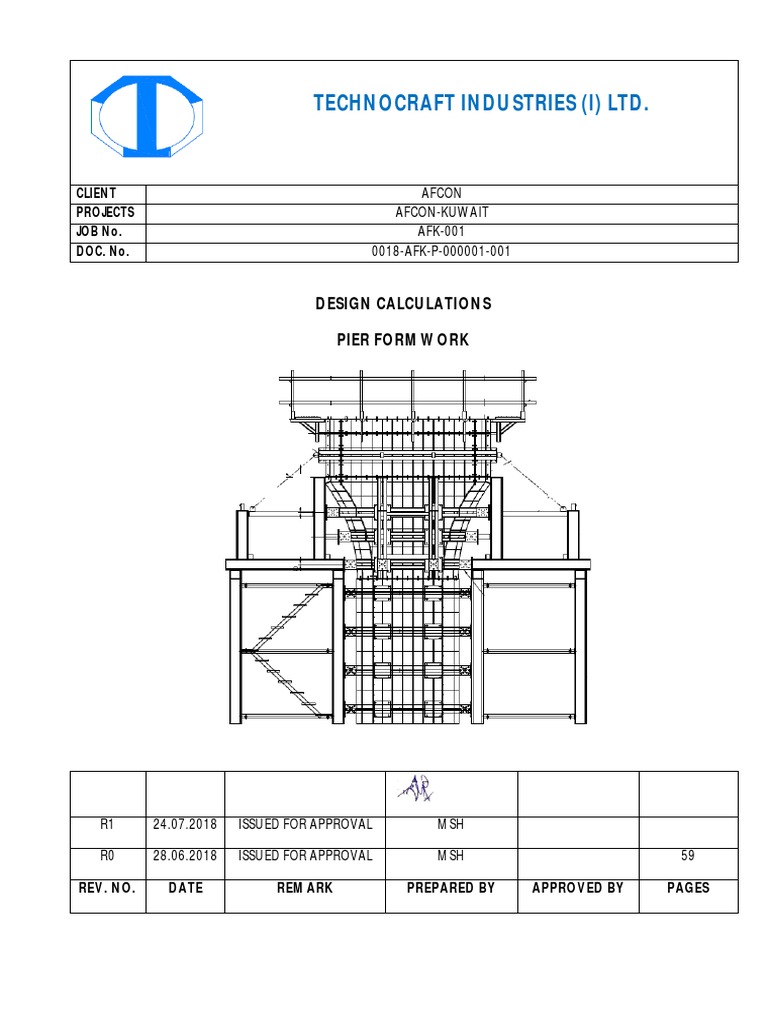

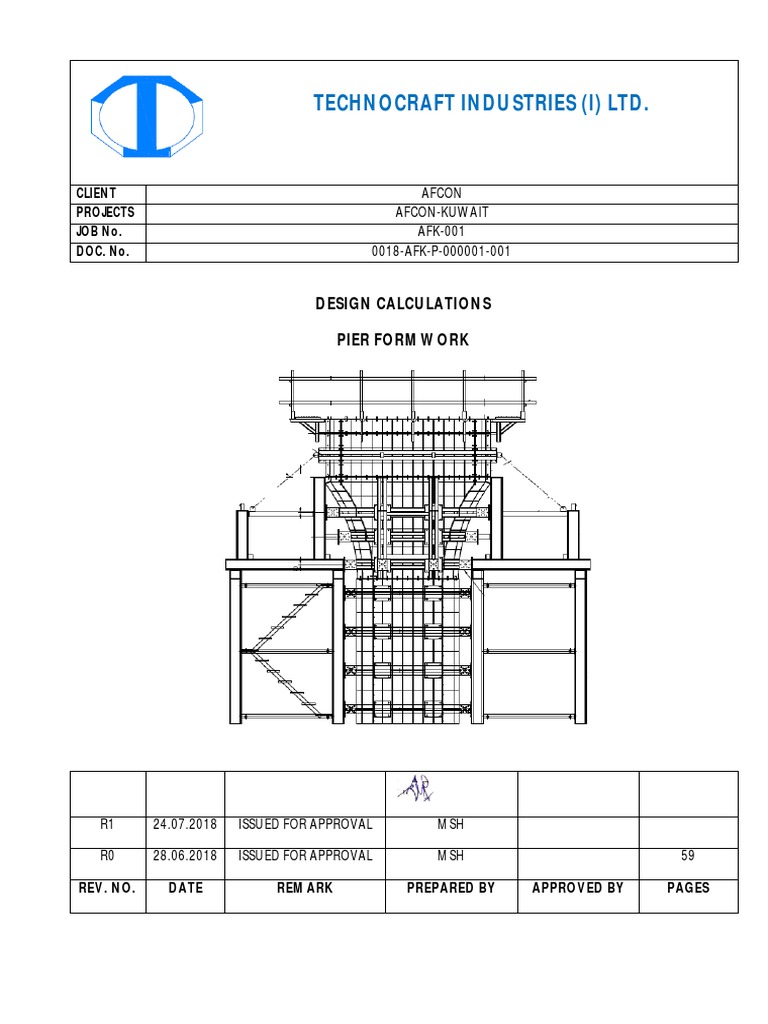

TECHNOCRAFT INDUSTRIES (I) LTD.
CLIENT AFCON
PROJECTS AFCON-KUWAIT
JOB No. AFK-001
DOC. No. 0018-AFK-P-000001-001
DESIGN CALCULATIONS
PIER FORMWORK
R1 24.07.2018 ISSUED FOR APPROVAL MSH
R0 28.06.2018 ISSUED FOR APPROVAL MSH 59
REV. NO. DATE REMARK PREPARED BY APPROVED BY PAGES

DATE REV PAGE
TECHNOCRAFT INDUSTRIES (I) LTD 28.06.2018 R1 Page 2 of 59
PROJECT : AFCON-KUWAIT
JOB : DESIGN OF FORMWORK FOR PIER
DOC. : 0018-AFK-P-000001-001
TABLE OF CONTENTS
1.0 INDRODUCTION 3
1.1 GENERAL 3
1.2 DESCRIPTION OF THE STEEL STRUCTURE 3
1.3 REFERENCE DOCCUMENTS 6
2.0 MATERIALS 6
2.1 STRUSTURAL STEEL 6
3.0 ANALYSIS AND DESIGN METHODOLOGY 6
4.0 LOADING 7
5.0 PRILIMINARY LOAD CASES AND COMBINATIONS 12
5.1 PRILIMINARY LOAD CASES 12

5.2 LOAD COMBINATIOS 13
6.0 BEAM STANDARD 18
7.0 DESIGN OF SKIN PLATE AND STIFFENERS 20
8.0 DESIGN OF HORIZONTAL WALER 24
9.0 DESIGN OF CONNECTIONS 26
10.0 STAAD DESIGN 29
10.1 GEOMETRY AND LOADING 29

10.2 DESIGN CHECK 37
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
1.0 INDRODUCTION
1.1 GENERAL
This calculation report covers the design of steel structure for formwork of RCC pier
Structure mainly consists of inner formwork, external formwork, staircase and deck.
This document set out the design philosophy and all appropriate design criteria. Only the relevant
calculation is reported. The report is set with the minimum requirement of the section, however
higher configuration is accepted.
1.2 DESCRIPTION OF THE STEEL STRUCTURE
The structure is composed by two different part, main formwork, supporting column frames and
staircase. Formwork is provided with horizontal and vertical stiffeners supported by main beams and
columns of built-up section i.e. Techno Waler. Main structural supporting framings are provided with
Techno Waler & pipe sections etc. Staircase has been provided in one of column scaffolding, also
the deck platform is provided on top for maintenance.
Support conditions are considered as pin support.

DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
ISOMETRIC VIEW
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
ISOMETRIC RENDER VIEW
ASSUMPTIONS IN STAAD MODELLING –

1. Techno Waler beam is modeled with inters connecting vertical corner angle to get the effect of vertical
stiffeners as diaphragm.
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
1.3 REFERENCE DOCCUMENTS
Drawing - IF220-01-001 & 003
Design Standard – IS800:2007 & CIRIA Report
2.0 MATERIALS
2.1 STRUSTURAL STEEL
STEEL –
Structural Steel, Es = 2 x105 N/ mm2
Density – 7850kg/m3
IS 2062 Grade A (Fy 250) for Rolled section and plates upto 20mm thk.,
IS2062 Grade B for plates higher than 20mm thk.
3.0 ANALYSIS AND DESIGN METHODOLOGY
For analysis whole structure/frame is modeled in STAAD with pinned support. Structural steel
designed in STAAD. However formwork plate is not modeled which is designed separately.
The structural framing member design check has been done in limit state method in STAAD and plate
has been checked for working stress method. The Techno Waler has been checked in manual
calculation also all stiffeners & skin plates are check manually by working stress method.
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
4.0 LOADING
Dead of the sections calculated based on self weight command in STAAD.
A) Concrete pressure
(Refer CIRIA code)
Rate of concrete pouring Vb :(Rise of concrete) = 2 M/hr
Height of pier, h = 9.45 m
Cross section of pier = 2.522 x 1.772 m
Vertical spacing of Waler = 0.8 m c/c
Wet density of concrete, D = 26 kN/m3
Temperature, T = 35 degree
Coeff. C1 = 1.5
(For walls , for edges >2m
Coeff. C2 = 0.45
Lateral concrete pressure calculation as per CIRIA report
Pmax. = D x [C1 X (Vb) + C2 X KT  (h - C1 X (Vb)]
2
KT = (36) = 0.50
2
(T + 16)
Pmax. = 26 [1.5 x sqrt(2) +0.45x0.5x sqrt(9.45-1.5x sqrt(2)]

= 69.8 kN/m2
Where Pmax. = max. concrete pressure in kN/m2

KT = Temperature coeff.
C1 = Coeff. Depend on size and shape of formwork
C2 = Coeff. Depend on constituent of concrete
Vb = Vertical pour rate M/hr.
Value of C1 is 1.5 for column
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Pressure on Waller
Pmax. = 69.8 kN/m2
Height of pressure Pmax. = h1 = Pmax / D = 69.8 = 2.69 m

26
Height of no pressure = h2 = h - h1 = 9.45 -2.69= 6.76 m
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
5.0 PRILIMINARY LOAD CASES AND COMBINATIONS
5.1 PRILIMINARY LOAD CASES

Sr. No. Description
1 LOAD 1 SEISMIC LOAD IN +X DIRECTION. ( SLX )

NOT APPLIED
2 LOAD 2 SEISMIC LOAD IN +Z DIRECTION. ( SLZ )

NOT APPLIED
3 LOAD 3 SEISMIC LOAD IN +Y DIRECTION. ( SLY )

NOT APPLIED
4 LOAD 11 EMPTY DEAD LOAD ( DL )
5
LOAD 13 FIRE PROOFING LOAD (FP) – NOT APPLIED
6 LOAD 13 LIVE LOAD ( LL )
7 LOAD 14 FILLED DEAD LOAD ( DL )
8 LOAD 61 WIND LOAD IN (+X) DIRECTION : ON STRUCTURE
9 LOAD 62 WIND LOAD IN (-X) DIRECTION : ON STRUCTURE
10 LOAD 63 WIND LOAD IN (+Z) DIRECTION : ON STRUCTURE
11 LOAD 64 WIND LOAD IN (-Z) DIRECTION : ON STRUCTURE

DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
5.2 LOAD COMBINATIOS
*****************************************************************************
*I] LOAD COMBINATION FOR SERVICEABILITY.
*****************************************
**EMPTY CASE WITH WIND LOAD
LOAD COMB 101 +DL+LL
11 1.0 13 1.0
LOAD COMB 102 +DL+FF+LL
11 1.0 12 1.0 13 1.0
LOAD COMB 103 +DL+FP+WL
11 1.0 12 1.0 61 1.0
11 1.0 12 1.0 62 1.0
11 1.0 12 1.0 63 1.0
11 1.0 12 1.0 64 1.0
****
LOAD COMB 107 +DL+FP+LL+WL
11 1.0 12 1.0 13 0.5 61 1.0
11 1.0 12 1.0 13 0.5 62 1.0
11 1.0 12 1.0 13 0.5 63 1.0
11 1.0 12 1.0 13 0.5 64 1.0
11 1.0 12 1.0 13 0.5 61 -1.0
11 1.0 12 1.0 13 0.5 62 -1.0
11 1.0 12 1.0 13 0.5 63 -1.0
11 1.0 12 1.0 13 0.5 64 -1.0
**
LOAD COMB 115 +DL+LL+TL
11 1.0 13 1.0 65 1.0
11 1.0 13 1.0 66 1.0
**
**
**FILLED CASE WITH WIND LOAD
LOAD COMB 117 +DL+LL
11 1.0 13 1.0 14 1.0
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
LOAD COMB 118 +DL+FF+LL

11 1.0 12 1.0 13 1.0 14 1.0
11 1.0 12 1.0 14 1.0 61 1.0
11 1.0 12 1.0 14 1.0 62 1.0
11 1.0 12 1.0 14 1.0 63 1.0
11 1.0 12 1.0 14 1.0 64 1.0
**
11 1.0 12 1.0 13 0.5 14 1.0 61 1.0
11 1.0 12 1.0 13 0.5 14 1.0 62 1.0
11 1.0 12 1.0 13 0.5 14 1.0 63 1.0
11 1.0 12 1.0 13 0.5 14 1.0 64 1.0
11 1.0 12 1.0 13 0.5 14 1.0 61 -1.0
11 1.0 12 1.0 13 0.5 14 1.0 62 -1.0
11 1.0 12 1.0 13 0.5 14 1.0 63 -1.0
11 1.0 12 1.0 13 0.5 14 1.0 64 -1.0
**
11 1.0 13 1.0 14 1.0 65 1.0
11 1.0 13 1.0 14 1.0 66 1.0
*******
**COMBINATION WITH EARTHQUAKE
LOAD COMB 133 +DL+FP+LL+EQX+EQZ+EQY
11 1.0 12 1.0 13 0.5 14 1.0 1 1.0 2 0.3 3 0.3
LOAD COMB 134 +DL+FP+LL+EQX-EQZ+EQY
11 1.0 12 1.0 13 0.5 14 1.0 1 1.0 2 -0.3 3 0.3
LOAD COMB 135 +DL+FP+LL+EQX+EQZ-EQY
11 1.0 12 1.0 13 0.5 14 1.0 1 1.0 2 0.3 3 -0.3
LOAD COMB 136 +DL+FP+LL-EQX+EQZ+EQY
11 1.0 12 1.0 13 0.5 14 1.0 1 -1.0 2 0.3 3 0.3
LOAD COMB 137 +DL+FP+LL-EQX-EQZ+EQY
11 1.0 12 1.0 13 0.5 14 1.0 1 -1.0 2 -0.3 3 0.3
LOAD COMB 138 +DL+FP+LL-EQX-EQZ-EQY
11 1.0 12 1.0 13 0.5 14 1.0 1 -1.0 2 -0.3 3 -0.3
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
******************
11 1.0 12 1.0 13 0.5 14 1.0 1 0.3 2 1.0 3 0.3
11 1.0 12 1.0 13 0.5 14 1.0 1 0.3 2 -1.0 3 0.3
11 1.0 12 1.0 13 0.5 14 1.0 1 0.3 2 1.0 3 -0.3
11 1.0 12 1.0 13 0.5 14 1.0 1 -0.3 2 1.0 3 0.3
11 1.0 12 1.0 13 0.5 14 1.0 1 -0.3 2 -1.0 3 0.3
11 1.0 12 1.0 13 0.5 14 1.0 1 -0.3 2 -1.0 3 -0.3
******************************************************************************
**II] LOAD COMBINATION FOR STRENGTH
******************************************************************************
**EMPTY LOAD CASE WITH WIND LOAD
LOAD COMB 1101 +DL+FP
11 1.5 12 1.5
LOAD COMB 1102 +DL+FP+LL
11 1.5 12 1.5 13 1.5
11 1.5 12 1.5 61 1.5
11 1.5 12 1.5 62 1.5
11 1.5 12 1.5 63 1.5
11 1.5 12 1.5 64 1.5
**
11 1.2 12 1.2 13 0.6 61 1.5
11 1.2 12 1.2 13 0.6 62 1.5
11 1.2 12 1.2 13 0.6 63 1.5
11 1.2 12 1.2 13 0.6 64 1.5
**
11 0.9 12 0.9 61 1.5
11 0.9 12 0.9 62 1.5
11 0.9 12 0.9 63 1.5
11 0.9 12 0.9 64 1.5
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
****
**FILLED LOAD CASE WITH WIND LOAD
LOAD COMB 1115 +DL+FP
11 1.5 12 1.5 14 1.5
LOAD COMB 1116 +DL+FP+LL
11 1.5 12 1.5 13 1.5 14 1.5
11 1.5 12 1.5 14 1.5 61 1.5
11 1.5 12 1.5 14 1.5 62 1.5
11 1.5 12 1.5 14 1.5 63 1.5
11 1.5 12 1.5 14 1.5 64 1.5
**
11 1.2 12 1.2 13 0.6 14 1.2 61 1.5
11 1.2 12 1.2 13 0.6 14 1.2 62 1.5
11 1.2 12 1.2 13 0.6 14 1.2 63 1.5
11 1.2 12 1.2 13 0.6 14 1.2 64 1.5
**
11 0.9 12 0.9 14 0.9 61 1.5
11 0.9 12 0.9 14 0.9 62 1.5
11 0.9 12 0.9 14 0.9 63 1.5
11 0.9 12 0.9 14 0.9 64 1.5
****************************************
11 1.5 12 1.5 13 0.5 14 1.5 1 1.2 2 0.3 3 0.3
11 1.5 12 1.5 13 0.5 14 1.5 1 1.2 2 -0.3 3 0.3
11 1.5 12 1.5 13 0.5 14 1.5 1 1.2 2 0.3 3 -0.3
11 1.5 12 1.5 13 1.5 14 1.5 1 -1.2 2 0.3 3 0.3
11 1.5 12 1.5 13 1.5 14 1.5 1 -1.2 2 -0.3 3 0.3
11 1.5 12 1.5 13 1.5 14 1.5 1 -1.2 2 -0.3 3 -0.3
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
******************
11 1.5 12 1.5 13 1.5 14 1.5 1 0.3 2 1.2 3 0.3
11 1.5 12 1.5 13 1.5 14 1.5 1 0.3 2 -1.2 3 0.3
11 1.5 12 1.5 13 1.5 14 1.5 1 0.3 2 1.2 3 -0.3
11 1.5 12 1.5 13 1.5 14 1.5 1 -0.3 2 1.2 3 0.3
11 1.5 12 1.5 13 1.5 14 1.5 1 -0.3 2 -1.2 3 0.3
11 1.5 12 1.5 13 1.5 14 1.5 1 -0.3 2 -1.2 3 -0.3
LOAD COMB 1141 +DL+FP+TL
11 1.5 12 1.5 14 1.5 65 1.5
LOAD COMB 1142 +DL+FP+TL
11 1.5 12 1.5 14 1.5 66 1.5
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
6.0 BEAM STANDARD
All structural beam are rolled section as per Indian standard practice.
Techno standard section – Techno Waler
1) Techno Waler – 4mm Thk.
Properties mtr mm
Zx = 215 cm3 0.000215 215000
Ixx = 2471 cm4 0.00002471 2.5E+07
t = 4 mm 0.004 4
D = 230 mm 0.23 230
rx = 96.9 mm 0.0969 96.9
ry = 56.2 mm 0.0562 56.2
A = 26.24 cm2 0.002624 2624
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
2) Techno Waler – 3mm Thk.
Properties mtr mm
Zx = 164.5 cm3 0.0001645 164500
Ixx = 1892 cm4 0.00001892 1.9E+07
t = 3 mm 0.003 3
D = 230 mm 0.23 230
rx = 96.9 mm 0.0969 96.9
ry = 56.2 mm 0.0562 56.2
A = 19.92 cm2 0.001992 1992
Section in STAAD - Section has been prepared in section wizard for STAAD modeling.
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
7.0 DESIGN OF SKIN PLATE AND STIFFENERS

DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
8.0 DESIGN OF HORIZONTAL WALER

DESIGN OF HORIZONTAL WALLER
Lateral Concrete pressure = 69.8 kN/m2 ^4
Hence UDL on horizontal waler = 0.8 x 69.8 = 55.84 kN/m
Span for horizontal = Column spacing = 1.5 m
2
Moment = WL /8 = 55.8 x 1.5 = 16 kN.m
8
Shear = WL /2 = 55.8 x 1.5 = 41.89 kN
2
Properties of Techno Waler
D= 230 mm t= 4 mm
A= 26.2 cm2 Ixx = 2471 cm4 Zxx = 215 cm3
rxx = 96.9 mm ryy = 56.2 mm
Effective length = 1.5 m l= L/r= 1500/96.9= 15.48
Therefore scbc = 160 N/mm2 (As per IS800:1984-Table 6.1A)

DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
9.0 DESIGN OF CONNECTIONS

Capacity of bolt & connecting plate
Yield stress of plate Fy 250 kN/m2
Allowable bearing stress sb 165 kN/m2
Grade of bolt 8.8

Yield stress = 640 N/mm2
Allowable shear stress ss 185 kN/m2 (On gross area)
^2
Allowable tensile stress st 280 kN/m2 (On net area)
Dia. of bolt = 16 mm
Shear capacity of bolt = Agr. x ss = 3.14 x 16 x 185 = 37.18 kN

(Single shear) 4
Bearing capacity of plate = sb x t x Dia. of bolt = 10.56 kN

Where,
Min. thickness of connecting plate t = 4 mm
Therefore bolt value for shear / bearing = 10.56 kN
Tension capacity of bolt = Anet. x st = 3.14 x 16 x 0.7 x 280 = 39 kN

4
Combine effect of tension & shear (From IS800, clause 8.9.4.5)

Tac + Vac = 27.9 + 4.653 = 1.1495 < 1.4
Tcap. Vcap. 39.4 10.56 ……..Hence Safe
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
CONNECTION FOR WALL PANEL
Concrete Pressure = Pmax. = 69.8 N/mm2

Bolt spacing = 0.2 m c/c
Therefore number of bolts for 1 m length
No. of bolts for splice = 5 say. 5 nos.
Effective length for tension = 1 m
Effective length for shear = 1 m
Eff. Width of plate = 1 m
Tension on each bolt = Pmax. x Length of section x Spacing of Waller

nos.
= 69.8 x 1 x 1= 13.96 kN
5
Pmax. x Length of section x Spacing of Waller

Shear in each bolt = 2 x nos. ^4
= 69.8 x 1 x 1= 6.98 kN
2x 5
Capacity of bolt & connecting plate
Yield stress of plate Fy 250 kN/m2
Allowable bearing stress sb 165 kN/m2
Grade of bolt 4.6
Yield stress = 240 N/mm2
Allowable shear stress ss 80 kN/m2 (On gross area)
Allowable tensile stress st 120 kN/m2 (On net area)
Dia. of bolt = 16 mm
Shear capacity of bolt = Agr. x ss = 3.14 x 16 x 80 = 16.08 kN

(Single shear) 4
Bearing capacity of plate = sb x t x Dia. of bolt = 21.12 kN

Where,
Min. thickness of connecting plate t = 8 mm
Therefore bolt value for shear / bearing = 16.08 kN
Tension capacity of bolt = Anet. x st = 3.14 x 16 x 0.7 x 120 = 17 kN

4
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Combine effect of tension & shear (From IS800, clause 8.9.4.5)

Tac + Vac = 14 + 6.98 = 1.2612 < 1.4
Tcap. Vcap. 16.9 16.08 ……..Hence Safe
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
10.0 STAAD DESIGN
10.1 GEOMETRY AND LOADING
Refer attached STAAD file for beam and node numbers.
Self weight of structure

DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Empty Dead Load

DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Live Load
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Filled Dead Load

DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Wind Load +X
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Wind Load –X
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Wind Load +Z
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Wind Load -Z
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
10.2 DESIGN CHECK
Strength Utilization
Analysis
Beam Property Actual Ratio Clause L/C
1158 TUB91913.6 0.024 Sec. 8.2.1.2 17
1157 TECH3MM 0.061 Sec. 8.4 19
1156 TUB91913.6 0.024 Sec. 8.2.1.2 17
1155 TECH3MM 0.061 Sec. 8.4 20
1154 TUBE 0.008 Sec. 8.2.1.2 1
1153 TUB91913.6 0.184 Sec. 8.2.1.2 17
1152 TUB91913.6 0.184 Sec. 8.2.1.2 17
1151 TUBE 0.348 Sec. 8.2.1.2 2
1150 TUB91913.6 0.184 Sec. 8.2.1.2 17
1149 TUB91913.6 0.184 Sec. 8.2.1.2 17
1147 TUB91913.6 0.042 Sec. 9.3.2.2 17
1146 TECH3MM 0.116 Sec. 7.1.2 18
1145 TUB91913.6 0.042 Sec. 9.3.2.2 17
1144 TECH3MM 0.116 Sec. 7.1.2 18
1143 TUBE 0.014 Sec. 6.2 18
1142 TUB91913.6 0.149 Sec. 8.2.1.2 4
1141 TUB91913.6 0.149 Sec. 8.2.1.2 4
1140 TUBE 0.348 Sec. 8.2.1.2 2
1139 TUB91913.6 0.189 Sec. 8.2.1.2 8
1138 TUB91913.6 0.189 Sec. 8.2.1.2 8
1136 TUB91913.6 0.043 Sec. 8.2.1.2 18
1135 TECH3MM 0.209 Sec. 7.1.2 18
1134 TUB91913.6 0.043 Sec. 8.2.1.2 18
1133 TECH3MM 0.209 Sec. 7.1.2 18
1132 TUBE 0.015 Sec. 6.2 18
1131 TUB91913.6 0.168 Sec. 8.2.1.2 4
1130 TUB91913.6 0.168 Sec. 8.2.1.2 4
1129 TUBE 0.348 Sec. 8.2.1.2 2
1128 TUB91913.6 0.21 Sec. 8.2.1.2 8
1127 TUB91913.6 0.21 Sec. 8.2.1.2 8
1126 TECH3MM 0.06 Sec. 7.1.2 4
1125 TECH3MM 0.06 Sec. 7.1.2 4
1124 TECH3MM 0.071 Sec. 7.1.2 4
1123 TECH3MM 0.071 Sec. 7.1.2 4
1122 TECH3MM 0.083 Sec. 7.1.2 4
1121 TECH3MM 0.083 Sec. 7.1.2 4
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Analysis
1120 ISMC75 0.05 Sec. 9.3.2.2 16
1119 ISMC75 0.068 Sec. 8.2.2 2
1118 ISMC75 0.126 Sec. 9.3.2.2 16
1117 ISMC75 0.126 Sec. 9.3.2.2 16
1116 ISMC75 0.05 Sec. 9.3.2.2 16
1115 ISMC75 0.155 Sec. 9.3.2.2 16
1114 ISMC75 0.089 Sec. 9.3.1.1 16
1113 ISMC75 0.083 Sec. 9.3.1.1 16
1112 ISMC75 0.05 Sec. 9.3.1.1 16
1111 ISMC75 0.147 Sec. 9.3.2.2 16
1110 ISMC75 0.046 Sec. 9.3.1.1 23
1109 ISMC75 0.085 Sec. 9.3.1.1 2
1108 ISMC75 0.054 Sec. 9.3.1.1 22
1107 ISMC75 0.129 Sec. 9.3.1.1 16
1106 ISMC75 0.129 Sec. 9.3.1.1 16
1105 ISMC75 0.085 Sec. 9.3.1.1 2
1104 ISMC75 0.156 Sec. 9.3.1.1 2
1103 ISMC75 0.169 Sec. 9.3.1.1 2
1102 ISMC75 0.156 Sec. 9.3.1.1 2
1101 ISMC75 0.155 Sec. 9.3.1.1 2
1100 ISMC75 0.114 Sec. 9.3.1.1 2
1099 ISMC75 0.114 Sec. 9.3.1.1 2
1098 ISMC75 0.14 Sec. 8.2.2 2
1097 ISMC75 0.033 Sec. 9.3.1.1 10
1096 ISMC75 0.14 Sec. 8.2.2 2
1095 ISMC75 0.041 Sec. 9.3.1.1 9
1094 ISMC75 0.121 Sec. 9.3.1.1 2
1093 ISMC75 0.121 Sec. 9.3.1.1 2
1092 ISMC75 0.156 Sec. 9.3.1.1 2
1091 ISMC75 0.169 Sec. 9.3.1.1 2
1090 ISMC75 0.156 Sec. 9.3.1.1 2
1089 ISMC75 0.155 Sec. 9.3.1.1 2
1088 ISMC75 0.069 Sec. 9.3.1.1 2
1087 ISMC75 0.065 Sec. 9.3.1.1 21
1086 ISMC75 0.117 Sec. 9.3.1.1 21
1085 ISMC75 0.117 Sec. 9.3.1.1 21
1084 ISMC75 0.069 Sec. 9.3.1.1 2
1083 ISMC75 0.155 Sec. 9.3.2.2 16
1082 ISMC75 0.089 Sec. 9.3.1.1 16
1081 ISMC75 0.082 Sec. 9.3.1.1 16
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Analysis
1080 ISMC75 0.05 Sec. 9.3.1.1 16
1079 ISMC75 0.146 Sec. 9.3.2.2 16
1078 ISMC75 0.046 Sec. 9.3.1.1 23
1077 ISMC75 0.043 Sec. 9.3.2.2 16
1076 ISMC75 0.069 Sec. 8.2.2 2
1075 ISMC75 0.124 Sec. 9.3.2.2 16
1074 ISMC75 0.123 Sec. 9.3.2.2 16
1073 ISMC75 0.043 Sec. 9.3.2.2 16
1072 ISMC75 0.046 Sec. 9.3.2.2 16
1071 ISMC75 0.046 Sec. 9.3.2.2 16
1070 ISMC75 0.028 Sec. 9.3.2.2 2
1069 ISMC75 0.028 Sec. 9.3.2.2 2
1068 ISMC75 0.049 Sec. 9.3.2.2 16
1067 ISMC75 0.318 Sec. 9.3.2.2 16
1066 ISMC75 0.318 Sec. 9.3.2.2 16
1064 ISMC75 0.049 Sec. 9.3.2.2 16
1062 ISMC75 0.027 Sec. 9.3.2.2 2
1061 ISMC75 0.43 Sec. 9.3.1.1 16
1060 ISMC75 0.027 Sec. 9.3.2.2 2
1059 ISMC75 0.352 Sec. 9.3.1.1 16
1058 ISMC75 0.027 Sec. 9.3.2.2 2
1057 ISMC75 0.431 Sec. 9.3.1.1 16
1056 ISMC75 0.027 Sec. 9.3.2.2 2
1055 ISMC75 0.352 Sec. 9.3.1.1 16
1054 ISMC75 0.049 Sec. 9.3.2.2 16
1052 ISMC75 0.318 Sec. 9.3.2.2 16
1051 ISMC75 0.318 Sec. 9.3.2.2 16
1050 ISMC75 0.049 Sec. 9.3.2.2 16
1048 ISMC75 0.028 Sec. 9.3.2.2 2
1047 ISMC75 0.046 Sec. 9.3.2.2 16
1046 ISMC75 0.046 Sec. 9.3.2.2 16
1045 ISMC75 0.028 Sec. 9.3.2.2 2
1044 ISMC75 0.333 Sec. 9.3.2.2 16
1043 ISMC75 0.332 Sec. 9.3.2.2 16
1040 ISMC75 0.43 Sec. 9.3.1.1 16
1039 ISMC75 0.352 Sec. 9.3.1.1 16
1038 ISMC75 0.431 Sec. 9.3.1.1 16
1037 ISMC75 0.352 Sec. 9.3.1.1 16
1035 ISMC75 0.333 Sec. 9.3.2.2 16
1034 ISMC75 0.333 Sec. 9.3.2.2 16
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Analysis
1032 ISMC125 DD 0.105 Sec. 9.3.2.2 3
1031 ISMC125 DD 0.096 Sec. 9.3.2.2 3
1030 ISMC125 DD 0.105 Sec. 9.3.2.2 3
1029 ISMC125 DD 0.1 Sec. 9.3.1.1 18
1028 ISMC125 DD 0.1 Sec. 9.3.1.1 18
1027 ISMC125 DD 0.07 Sec. 9.3.2.2 5
1026 ISMC125 DD 0.064 Sec. 9.3.2.2 6
1025 ISMC125 DD 0.098 Sec. 9.3.1.1 17
1024 ISMC125 DD 0.098 Sec. 9.3.1.1 17
1023 ISMC125 DD 0.103 Sec. 9.3.2.2 4
1022 ISMC125 DD 0.094 Sec. 9.3.2.2 4
1021 ISMC125 DD 0.103 Sec. 9.3.2.2 4
1019 ISMC75 0.404 Sec. 9.3.2.2 17
1018 ISMC75 0.401 Sec. 9.3.2.2 16
1016 ISMC75 0.255 Sec. 9.3.2.2 19
1015 ISMC75 0.233 Sec. 9.3.2.2 20
1014 ISMC75 0.245 Sec. 9.3.2.2 19
1013 ISMC75 0.244 Sec. 9.3.2.2 20
1011 ISMC75 0.4 Sec. 9.3.2.2 16
1010 ISMC75 0.403 Sec. 9.3.2.2 18
996 PIPE 0.198 Sec. 9.3.2.2 3
995 PIPE 0.198 Sec. 9.3.2.2 3
994 PIPE 0.182 Sec. 9.3.2.2 3
993 PIPE 0.182 Sec. 9.3.2.2 3
992 PIPE 0.197 Sec. 9.3.2.2 4
991 PIPE 0.197 Sec. 9.3.2.2 4
990 PIPE 0.195 Sec. 9.3.2.2 4
989 PIPE 0.195 Sec. 9.3.2.2 4
987 ISMC75 0.367 Sec. 9.3.2.2 17
986 ISMC75 0.375 Sec. 9.3.2.2 17
984 ISMC75 0.29 Sec. 9.3.2.2 18
983 ISMC75 0.278 Sec. 9.3.2.2 18
982 ISMC75 0.278 Sec. 9.3.2.2 17
981 ISMC75 0.291 Sec. 9.3.2.2 17
979 ISMC75 0.374 Sec. 9.3.2.2 18
978 ISMC75 0.365 Sec. 9.3.2.2 18
964 TECH3MM 0.09 Sec. 8.4 17
963 TECH3MM 0.09 Sec. 8.4 17
962 TECH3MM 0.084 Sec. 8.4 17
961 TECH3MM 0.084 Sec. 8.4 17
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Analysis
960 TECH3MM 0.084 Sec. 8.4 18
959 TECH3MM 0.084 Sec. 8.4 18
958 TECH3MM 0.09 Sec. 8.4 18
957 TECH3MM 0.09 Sec. 8.4 18
956 PIPE 0.021 Sec. 8.2.1.2 4
955 ISMC125 DD 0.108 Sec. 9.3.2.2 17
954 ISMC125 DD 0.108 Sec. 9.3.2.2 17
953 ISMC125 DD 0.09 Sec. 9.3.2.2 17
952 ISMC125 DD 0.09 Sec. 9.3.2.2 17
951 ISMC125 DD 0.073 Sec. 9.3.2.2 17
950 ISMC125 DD 0.089 Sec. 9.3.2.2 17
949 ISMC125 DD 0.089 Sec. 9.3.2.2 17
948 ISMC125 DD 0.073 Sec. 9.3.2.2 17
947 TUBE 0.132 Sec. 8.2.1.2 3
946 TUBE 0.132 Sec. 8.2.1.2 3
945 ISMC125 DD 0.073 Sec. 9.3.2.2 18
944 ISMC125 DD 0.088 Sec. 9.3.2.2 18
943 ISMC125 DD 0.088 Sec. 9.3.2.2 18
942 ISMC125 DD 0.073 Sec. 9.3.2.2 18
941 ISMC125 DD 0.09 Sec. 9.3.2.2 18
940 ISMC125 DD 0.09 Sec. 9.3.2.2 18
939 ISMC125 DD 0.107 Sec. 9.3.2.2 18
938 ISMC125 DD 0.107 Sec. 9.3.2.2 18
937 PIPE 0.021 Sec. 8.2.1.2 3
932 TECH3MM 0.044 Sec. 8.4 17
931 TECH3MM 0.044 Sec. 8.4 17
930 TECH3MM 0.037 Sec. 8.4 17
929 TECH3MM 0.037 Sec. 8.4 17
928 TECH3MM 0.037 Sec. 8.4 18
927 TECH3MM 0.037 Sec. 8.4 18
926 TECH3MM 0.044 Sec. 8.4 18
925 TECH3MM 0.044 Sec. 8.4 18
924 PIPE 0.624 Sec. 8.2.1.2 17
923 PIPE 0.626 Sec. 8.2.1.2 17
917 PIPE 0.512 Sec. 8.2.1.2 5
916 PIPE 0.495 Sec. 8.2.1.2 6
913 PIPE 0.515 Sec. 8.2.1.2 5
912 PIPE 0.498 Sec. 8.2.1.2 6
906 PIPE 0.624 Sec. 8.2.1.2 18
905 PIPE 0.624 Sec. 8.2.1.2 18
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Analysis
904 TECH3MM 0.084 Sec. 8.4 17
903 TECH3MM 0.084 Sec. 8.4 17
902 TECH3MM 0.062 Sec. 8.4 17
901 TECH3MM 0.062 Sec. 8.4 17
900 TECH3MM 0.062 Sec. 8.4 18
899 TECH3MM 0.062 Sec. 8.4 18
898 TECH3MM 0.082 Sec. 8.4 18
897 TECH3MM 0.082 Sec. 8.4 18
896 TECH3MM 0.064 Sec. 8.4 17
895 TECH3MM 0.063 Sec. 8.4 17
892 TECH3MM 0.057 Sec. 8.4 17
891 TECH3MM 0.057 Sec. 8.4 17
890 TECH3MM 0.057 Sec. 8.4 18
889 TECH3MM 0.057 Sec. 8.4 18
886 TECH3MM 0.065 Sec. 8.4 18
885 TECH3MM 0.065 Sec. 8.4 18
884 TECH3MM 0.168 Sec. 8.4 3
883 TECH3MM 0.168 Sec. 8.4 3
882 TUBE 0.013 Sec. 9.3.2.2 4
881 TECH3MM 0.076 Sec. 8.4 3
880 TECH3MM 0.076 Sec. 8.4 3
879 TECH3MM 0.144 Sec. 8.4 18
878 TECH3MM 0.144 Sec. 8.4 18
877 TUBE 0.128 Sec. 6.2 19
876 TECH3MM 0.145 Sec. 8.4 18
875 TECH3MM 0.145 Sec. 8.4 18
869 TECH3MM 0.077 Sec. 8.4 19
868 TECH3MM 0.169 Sec. 8.4 19
867 TECH3MM 0.097 Sec. 8.4 4
866 TECH3MM 0.098 Sec. 8.4 4
865 TECH3MM 0.097 Sec. 8.4 4
864 TECH3MM 0.098 Sec. 8.4 4
863 TECH3MM 0.073 Sec. 8.4 20
862 TECH3MM 0.166 Sec. 8.4 17
860 TUBE 0.03 Sec. 6.2 18
859 TUBE 0.006 Sec. 9.3.2.2 20
857 TUBE 0.006 Sec. 9.3.2.2 19
856 TUBE 0.03 Sec. 6.2 18
855 TECH3MM 0.077 Sec. 8.4 19
854 TECH3MM 0.17 Sec. 8.4 19
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Analysis
853 TECH3MM 0.097 Sec. 8.4 3
852 TECH3MM 0.098 Sec. 8.4 3
851 TECH3MM 0.097 Sec. 8.4 3
850 TECH3MM 0.098 Sec. 8.4 3
849 TECH3MM 0.074 Sec. 8.4 20
848 TECH3MM 0.166 Sec. 8.4 18
842 TECH3MM 0.142 Sec. 8.4 17
841 TECH3MM 0.142 Sec. 8.4 17
840 TUBE 0.127 Sec. 6.2 19
839 TECH3MM 0.141 Sec. 8.4 17
838 TECH3MM 0.141 Sec. 8.4 17
837 TECH3MM 0.075 Sec. 8.4 4
836 TECH3MM 0.075 Sec. 8.4 4
835 TUBE 0.013 Sec. 9.3.2.2 3
834 TECH3MM 0.167 Sec. 8.4 4
833 TECH3MM 0.167 Sec. 8.4 4
832 TECH3MM 0.082 Sec. 8.4 17
831 TECH3MM 0.082 Sec. 8.4 17
830 TECH3MM 0.048 Sec. 7.1.2 18
829 TECH3MM 0.048 Sec. 7.1.2 18
828 TECH3MM 0.058 Sec. 8.4 19
827 TECH3MM 0.045 Sec. 7.1.2 4
826 TECH3MM 0.045 Sec. 7.1.2 4
825 TECH3MM 0.056 Sec. 8.4 20
824 TECH3MM 0.059 Sec. 8.4 19
823 TECH3MM 0.045 Sec. 7.1.2 3
822 TECH3MM 0.045 Sec. 7.1.2 3
821 TECH3MM 0.057 Sec. 8.4 20
820 TECH3MM 0.047 Sec. 7.1.2 17
819 TECH3MM 0.047 Sec. 7.1.2 17
818 TECH3MM 0.071 Sec. 8.4 18
817 TECH3MM 0.071 Sec. 8.4 18
812 TECH3MM 0.082 Sec. 8.4 17
811 TECH3MM 0.082 Sec. 8.4 17
810 TECH3MM 0.048 Sec. 7.1.2 18
809 TECH3MM 0.048 Sec. 7.1.2 18
808 TECH3MM 0.058 Sec. 8.4 19
807 TECH3MM 0.045 Sec. 7.1.2 4
806 TECH3MM 0.045 Sec. 7.1.2 4
805 TECH3MM 0.056 Sec. 8.4 20
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Analysis
804 TECH3MM 0.059 Sec. 8.4 19
803 TECH3MM 0.045 Sec. 7.1.2 3
802 TECH3MM 0.045 Sec. 7.1.2 3
801 TECH3MM 0.057 Sec. 8.4 20
800 TECH3MM 0.047 Sec. 7.1.2 17
799 TECH3MM 0.047 Sec. 7.1.2 17
798 TECH3MM 0.071 Sec. 8.4 18
797 TECH3MM 0.071 Sec. 8.4 18
796 TUB91913.6 0.091 Sec. 8.2.1.2 18
795 TUB91913.6 0.091 Sec. 8.2.1.2 18
794 TUBE 0.014 Sec. 9.3.2.2 18
793 TUB91913.6 0.086 Sec. 8.2.1.2 18
792 TUB91913.6 0.086 Sec. 8.2.1.2 18
791 TUBE 0.008 Sec. 8.2.1.2 1
790 TUB91913.6 0.045 Sec. 6.2 17
789 TUB91913.6 0.045 Sec. 6.2 17
788 TUB91913.6 0.116 Sec. 8.2.1.2 19
787 TUB91913.6 0.088 Sec. 8.2.1.2 19
786 TUB91913.6 0.116 Sec. 8.2.1.2 19
785 TUB91913.6 0.109 Sec. 8.2.1.2 20
784 TUB91913.6 0.083 Sec. 8.2.1.2 20
783 TUB91913.6 0.109 Sec. 8.2.1.2 20
782 TUBE 0.004 Sec. 8.2.1.2 1
781 TUBE 0.006 Sec. 9.3.2.2 20
780 TUBE 0.006 Sec. 9.3.2.2 19
779 TUBE 0.004 Sec. 8.2.1.2 1
778 TUB91913.6 0.117 Sec. 8.2.1.2 19
777 TUB91913.6 0.089 Sec. 8.2.1.2 19
776 TUB91913.6 0.117 Sec. 8.2.1.2 19
775 TUB91913.6 0.11 Sec. 8.2.1.2 20
774 TUB91913.6 0.083 Sec. 8.2.1.2 20
773 TUB91913.6 0.11 Sec. 8.2.1.2 20
772 TUB91913.6 0.031 Sec. 6.2 18
771 TUB91913.6 0.032 Sec. 8.2.1.2 16
770 TUBE 0.178 Sec. 8.2.1.2 2
769 TUB91913.6 0.081 Sec. 8.2.1.2 17
768 TUB91913.6 0.083 Sec. 8.2.1.2 4
767 TUBE 0.015 Sec. 9.3.2.2 17
766 TUB91913.6 0.094 Sec. 8.2.1.2 4
765 TUB91913.6 0.098 Sec. 8.2.1.2 4
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Analysis
764 TECH3MM 0.106 Sec. 8.4 17
763 TECH3MM 0.106 Sec. 8.4 17
762 TECH3MM 0.078 Sec. 8.4 17
761 TECH3MM 0.078 Sec. 8.4 17
760 TECH3MM 0.078 Sec. 8.4 18
759 TECH3MM 0.078 Sec. 8.4 18
758 TECH3MM 0.091 Sec. 8.4 18
757 TECH3MM 0.091 Sec. 8.4 18
743 TECH3MM 0.048 Sec. 7.1.2 18
742 TECH3MM 0.048 Sec. 7.1.2 18
740 TECH3MM 0.056 Sec. 7.1.2 4
739 TECH3MM 0.056 Sec. 7.1.2 4
738 TECH3MM 0.057 Sec. 7.1.2 3
737 TECH3MM 0.057 Sec. 7.1.2 3
735 TECH3MM 0.048 Sec. 7.1.2 17
734 TECH3MM 0.048 Sec. 7.1.2 17
720 TECH3MM 0.069 Sec. 7.1.2 3
719 TECH3MM 0.069 Sec. 7.1.2 3
718 TECH3MM 0.072 Sec. 7.1.2 19
717 TECH3MM 0.069 Sec. 7.1.2 17
716 TECH3MM 0.072 Sec. 7.1.2 19
715 TECH3MM 0.069 Sec. 7.1.2 18
714 TECH3MM 0.065 Sec. 7.1.2 4
713 TECH3MM 0.065 Sec. 7.1.2 4
711 TECH3MM 0.053 Sec. 7.1.2 17
710 TECH3MM 0.053 Sec. 7.1.2 17
708 TECH3MM 0.063 Sec. 7.1.2 4
707 TECH3MM 0.063 Sec. 7.1.2 4
706 TECH3MM 0.064 Sec. 7.1.2 3
705 TECH3MM 0.064 Sec. 7.1.2 3
703 TECH3MM 0.054 Sec. 7.1.2 16
702 TECH3MM 0.055 Sec. 7.1.2 16
687 TECH3MM 0.073 Sec. 7.1.2 17
686 TECH3MM 0.073 Sec. 7.1.2 17
684 TECH3MM 0.067 Sec. 7.1.2 4
683 TECH3MM 0.067 Sec. 7.1.2 4
682 TECH3MM 0.067 Sec. 7.1.2 3
681 TECH3MM 0.067 Sec. 7.1.2 3
679 TECH3MM 0.074 Sec. 7.1.2 18
678 TECH3MM 0.074 Sec. 7.1.2 18
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Analysis
664 TECH3MM 0.093 Sec. 7.1.2 17
663 TECH3MM 0.093 Sec. 7.1.2 17
662 TECH3MM 0.071 Sec. 7.1.2 5
661 TECH3MM 0.07 Sec. 7.1.2 6
660 TECH3MM 0.071 Sec. 7.1.2 5
659 TECH3MM 0.07 Sec. 7.1.2 6
658 TECH3MM 0.093 Sec. 7.1.2 18
657 TECH3MM 0.094 Sec. 7.1.2 18
656 TUB91913.6 0.189 Sec. 8.2.1.2 18
655 TUB91913.6 0.189 Sec. 8.2.1.2 18
654 TUBE 0.014 Sec. 9.3.2.2 18
653 TUB91913.6 0.174 Sec. 8.2.1.2 18
652 TUB91913.6 0.174 Sec. 8.2.1.2 18
651 TUBE 0.012 Sec. 6.2 18
650 TUB91913.6 0.044 Sec. 9.3.2.2 18
649 TUB91913.6 0.044 Sec. 9.3.2.2 18
648 TUB91913.6 0.197 Sec. 8.2.1.2 5
647 TUB91913.6 0.143 Sec. 8.2.1.2 5
646 TUB91913.6 0.188 Sec. 8.2.1.2 5
645 TUB91913.6 0.176 Sec. 8.2.1.2 6
644 TUB91913.6 0.134 Sec. 8.2.1.2 6
643 TUB91913.6 0.185 Sec. 8.2.1.2 6
642 TUBE 0.014 Sec. 6.2 20
641 TUBE 0.008 Sec. 9.3.2.2 20
640 TUBE 0.008 Sec. 9.3.2.2 19
639 TUBE 0.014 Sec. 6.2 19
638 TUB91913.6 0.197 Sec. 8.2.1.2 5
637 TUB91913.6 0.143 Sec. 8.2.1.2 5
636 TUB91913.6 0.188 Sec. 8.2.1.2 5
635 TUB91913.6 0.177 Sec. 8.2.1.2 6
634 TUB91913.6 0.134 Sec. 9.3.2.2 20
633 TUB91913.6 0.185 Sec. 8.2.1.2 6
632 TUB91913.6 0.062 Sec. 9.3.2.2 16
631 TUB91913.6 0.055 Sec. 9.3.2.2 17
630 TUBE 0.178 Sec. 8.2.1.2 2
629 TUB91913.6 0.176 Sec. 8.2.1.2 17
628 TUB91913.6 0.179 Sec. 8.2.1.2 17
627 TUBE 0.014 Sec. 9.3.2.2 17
626 TUB91913.6 0.189 Sec. 8.2.1.2 17
625 TUB91913.6 0.193 Sec. 8.2.1.2 17
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Analysis
624 TECH3MM 0.06 Sec. 7.1.2 3
623 TECH3MM 0.06 Sec. 7.1.2 3
622 TECH3MM 0.093 Sec. 7.1.2 17
621 TECH3MM 0.093 Sec. 7.1.2 17
620 TECH3MM 0.066 Sec. 7.1.2 19
619 TECH3MM 0.068 Sec. 7.1.2 4
618 TECH3MM 0.068 Sec. 7.1.2 4
617 TECH3MM 0.062 Sec. 7.1.2 20
616 TECH3MM 0.066 Sec. 7.1.2 19
615 TECH3MM 0.069 Sec. 7.1.2 3
614 TECH3MM 0.069 Sec. 7.1.2 3
613 TECH3MM 0.063 Sec. 7.1.2 20
612 TECH3MM 0.094 Sec. 7.1.2 18
611 TECH3MM 0.094 Sec. 7.1.2 18
610 TECH3MM 0.064 Sec. 7.1.2 4
609 TECH3MM 0.064 Sec. 7.1.2 4
608 TUB91913.6 0.184 Sec. 9.3.2.2 18
607 TUB91913.6 0.184 Sec. 9.3.2.2 18
606 TUBE 0.014 Sec. 9.3.2.2 18
605 TUB91913.6 0.175 Sec. 9.3.2.2 18
604 TUB91913.6 0.175 Sec. 9.3.2.2 18
603 TUBE 0.012 Sec. 6.2 18
602 TUB91913.6 0.06 Sec. 9.3.2.2 18
601 TUB91913.6 0.06 Sec. 9.3.2.2 18
600 TUB91913.6 0.201 Sec. 8.2.1.2 19
599 TUB91913.6 0.149 Sec. 9.3.2.2 19
598 TUB91913.6 0.192 Sec. 8.2.1.2 19
597 TUB91913.6 0.18 Sec. 8.2.1.2 20
596 TUB91913.6 0.141 Sec. 9.3.2.2 20
595 TUB91913.6 0.189 Sec. 8.2.1.2 20
594 TUBE 0.013 Sec. 6.2 20
593 TUBE 0.008 Sec. 9.3.2.2 20
592 TUBE 0.008 Sec. 9.3.2.2 19
591 TUBE 0.014 Sec. 6.2 19
590 TUB91913.6 0.201 Sec. 8.2.1.2 19
589 TUB91913.6 0.149 Sec. 9.3.2.2 19
588 TUB91913.6 0.193 Sec. 8.2.1.2 19
587 TUB91913.6 0.181 Sec. 8.2.1.2 20
586 TUB91913.6 0.142 Sec. 9.3.2.2 20
585 TUB91913.6 0.19 Sec. 8.2.1.2 20
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Analysis
584 TUB91913.6 0.058 Sec. 9.3.2.2 17
583 TUB91913.6 0.064 Sec. 9.3.2.2 17
582 TUBE 0.178 Sec. 8.2.1.2 2
581 TUB91913.6 0.172 Sec. 8.2.1.2 17
580 TUB91913.6 0.17 Sec. 8.2.1.2 17
579 TUBE 0.014 Sec. 9.3.2.2 17
578 TUB91913.6 0.186 Sec. 8.2.1.2 17
577 TUB91913.6 0.183 Sec. 8.2.1.2 17
572 TECH3MM 0.093 Sec. 7.1.2 17
571 TECH3MM 0.093 Sec. 7.1.2 17
570 TECH3MM 0.069 Sec. 7.1.2 4
569 TECH3MM 0.069 Sec. 7.1.2 4
568 TECH3MM 0.07 Sec. 7.1.2 3
567 TECH3MM 0.07 Sec. 7.1.2 3
566 TECH3MM 0.095 Sec. 7.1.2 18
565 TECH3MM 0.095 Sec. 7.1.2 18
551 TECH3MM 0.114 Sec. 7.1.2 17
550 TECH3MM 0.114 Sec. 7.1.2 17
548 TECH3MM 0.077 Sec. 7.1.2 5
547 TECH3MM 0.077 Sec. 7.1.2 6
546 TECH3MM 0.077 Sec. 7.1.2 5
545 TECH3MM 0.077 Sec. 7.1.2 6
543 TECH3MM 0.115 Sec. 7.1.2 18
542 TECH3MM 0.115 Sec. 7.1.2 18
540 TECH3MM 0.076 Sec. 7.1.2 3
539 TECH3MM 0.076 Sec. 7.1.2 3
538 TECH3MM 0.088 Sec. 7.1.2 19
537 TECH3MM 0.083 Sec. 7.1.2 20
536 TECH3MM 0.088 Sec. 7.1.2 19
535 TECH3MM 0.084 Sec. 7.1.2 20
534 TECH3MM 0.076 Sec. 7.1.2 4
533 TECH3MM 0.077 Sec. 7.1.2 4
519 TECH3MM 0.136 Sec. 7.1.2 17
518 TECH3MM 0.136 Sec. 7.1.2 17
516 TECH3MM 0.095 Sec. 7.1.2 5
515 TECH3MM 0.094 Sec. 7.1.2 6
514 TECH3MM 0.095 Sec. 7.1.2 5
513 TECH3MM 0.094 Sec. 7.1.2 6
511 TECH3MM 0.137 Sec. 7.1.2 18
510 TECH3MM 0.137 Sec. 7.1.2 18
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Analysis
496 TECH3MM 0.159 Sec. 7.1.2 17
495 TECH3MM 0.159 Sec. 7.1.2 17
494 TECH3MM 0.113 Sec. 7.1.2 5
493 TECH3MM 0.111 Sec. 7.1.2 6
492 TECH3MM 0.113 Sec. 7.1.2 5
491 TECH3MM 0.111 Sec. 7.1.2 6
490 TECH3MM 0.16 Sec. 7.1.2 18
489 TECH3MM 0.16 Sec. 7.1.2 18
484 TUB91913.6 0.18 Sec. 8.2.1.2 3
483 TUB91913.6 0.18 Sec. 8.2.1.2 3
482 TUBE 0.013 Sec. 9.3.2.2 18
481 TUB91913.6 0.158 Sec. 8.2.1.2 3
480 TUB91913.6 0.158 Sec. 8.2.1.2 3
479 TUBE 0.014 Sec. 6.2 17
478 TUB91913.6 0.042 Sec. 9.3.2.2 17
477 TUB91913.6 0.042 Sec. 9.3.2.2 17
476 TUB91913.6 0.25 Sec. 8.2.1.2 19
475 TUB91913.6 0.187 Sec. 9.3.2.2 19
474 TUB91913.6 0.243 Sec. 8.2.1.2 19
473 TUB91913.6 0.23 Sec. 8.2.1.2 20
472 TUB91913.6 0.178 Sec. 9.3.2.2 20
471 TUB91913.6 0.236 Sec. 8.2.1.2 20
470 TUBE 0.016 Sec. 6.2 19
469 TUBE 0.009 Sec. 9.3.2.2 20
468 TUBE 0.009 Sec. 9.3.2.2 19
467 TUBE 0.016 Sec. 6.2 20
466 TUB91913.6 0.25 Sec. 8.2.1.2 19
465 TUB91913.6 0.188 Sec. 9.3.2.2 19
464 TUB91913.6 0.244 Sec. 8.2.1.2 19
463 TUB91913.6 0.232 Sec. 8.2.1.2 20
462 TUB91913.6 0.18 Sec. 9.3.2.2 20
461 TUB91913.6 0.239 Sec. 8.2.1.2 20
460 TUB91913.6 0.04 Sec. 8.2.1.2 18
459 TUB91913.6 0.04 Sec. 8.2.1.2 18
458 TUBE 0.178 Sec. 8.2.1.2 2
457 TUB91913.6 0.162 Sec. 8.2.1.2 4
456 TUB91913.6 0.16 Sec. 8.2.1.2 4
455 TUBE 0.013 Sec. 9.3.2.2 17
454 TUB91913.6 0.186 Sec. 8.2.1.2 4
453 TUB91913.6 0.182 Sec. 8.2.1.2 4
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Analysis
452 TECH3MM 0.066 Sec. 7.1.2 3
451 TECH3MM 0.066 Sec. 7.1.2 3
450 TECH3MM 0.157 Sec. 7.1.2 17
449 TECH3MM 0.157 Sec. 7.1.2 17
448 TECH3MM 0.081 Sec. 7.1.2 19
447 TECH3MM 0.106 Sec. 7.1.2 5
446 TECH3MM 0.105 Sec. 7.1.2 6
445 TECH3MM 0.077 Sec. 7.1.2 20
444 TECH3MM 0.082 Sec. 7.1.2 19
443 TECH3MM 0.106 Sec. 7.1.2 5
442 TECH3MM 0.105 Sec. 7.1.2 6
441 TECH3MM 0.077 Sec. 7.1.2 20
440 TECH3MM 0.159 Sec. 7.1.2 18
439 TECH3MM 0.159 Sec. 7.1.2 18
438 TECH3MM 0.075 Sec. 7.1.2 4
437 TECH3MM 0.075 Sec. 7.1.2 4
436 TECH3MM 0.066 Sec. 7.1.2 3
435 TECH3MM 0.066 Sec. 7.1.2 3
434 TECH3MM 0.157 Sec. 7.1.2 17
433 TECH3MM 0.157 Sec. 7.1.2 17
432 TECH3MM 0.081 Sec. 7.1.2 19
431 TECH3MM 0.106 Sec. 7.1.2 5
430 TECH3MM 0.105 Sec. 7.1.2 6
429 TECH3MM 0.077 Sec. 7.1.2 20
428 TECH3MM 0.082 Sec. 7.1.2 19
427 TECH3MM 0.107 Sec. 7.1.2 5
426 TECH3MM 0.105 Sec. 7.1.2 6
425 TECH3MM 0.078 Sec. 7.1.2 20
424 TECH3MM 0.16 Sec. 7.1.2 18
423 TECH3MM 0.159 Sec. 7.1.2 18
422 TECH3MM 0.075 Sec. 7.1.2 4
421 TECH3MM 0.075 Sec. 7.1.2 4
420 TUB91913.6 0.183 Sec. 8.2.1.2 3
419 TUB91913.6 0.183 Sec. 8.2.1.2 3
418 TUBE 0.014 Sec. 9.3.2.2 18
417 TUB91913.6 0.16 Sec. 8.2.1.2 3
416 TUB91913.6 0.16 Sec. 8.2.1.2 3
415 TUBE 0.014 Sec. 6.2 18
414 TUB91913.6 0.042 Sec. 8.2.1.2 20
413 TUB91913.6 0.042 Sec. 8.2.1.2 19
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Analysis
407 TUB91913.6 0.25 Sec. 8.2.1.2 19
406 TUB91913.6 0.327 Sec. 8.2.1.2 17
405 TUB91913.6 0.563 Sec. 8.2.1.2 18
404 TUB91913.6 0.565 Sec. 8.2.1.2 18
403 TUB91913.6 0.325 Sec. 8.2.1.2 17
402 TUB91913.6 0.236 Sec. 8.2.1.2 20
401 TUBE 0.076 Sec. 6.2 17
400 TUBE 0.006 Sec. 9.3.2.2 20
398 TUBE 0.006 Sec. 9.3.2.2 19
397 TUBE 0.076 Sec. 6.2 17
395 TUB91913.6 0.25 Sec. 8.2.1.2 19
394 TUB91913.6 0.326 Sec. 8.2.1.2 18
393 TUB91913.6 0.565 Sec. 8.2.1.2 17
392 TUB91913.6 0.562 Sec. 8.2.1.2 17
391 TUB91913.6 0.328 Sec. 8.2.1.2 18
390 TUB91913.6 0.239 Sec. 8.2.1.2 20
384 TUB91913.6 0.041 Sec. 8.2.1.2 20
383 TUB91913.6 0.047 Sec. 9.3.2.2 21
382 TUBE 0.178 Sec. 8.2.1.2 2
381 TUB91913.6 0.162 Sec. 8.2.1.2 4
380 TUB91913.6 0.164 Sec. 8.2.1.2 4
379 TUBE 0.014 Sec. 9.3.2.2 17
378 TUB91913.6 0.185 Sec. 8.2.1.2 4
377 TUB91913.6 0.188 Sec. 8.2.1.2 4
375 TECH3MM 0.181 Sec. 7.1.2 17
374 TECH3MM 0.181 Sec. 7.1.2 17
372 TECH3MM 0.119 Sec. 7.1.2 5
371 TECH3MM 0.118 Sec. 7.1.2 3
370 TECH3MM 0.119 Sec. 7.1.2 5
369 TECH3MM 0.118 Sec. 7.1.2 4
367 TECH3MM 0.183 Sec. 7.1.2 18
366 TECH3MM 0.184 Sec. 7.1.2 18
351 TECH3MM 0.207 Sec. 7.1.2 17
350 TECH3MM 0.207 Sec. 7.1.2 17
348 TECH3MM 0.15 Sec. 7.1.2 3
347 TECH3MM 0.15 Sec. 7.1.2 3
346 TECH3MM 0.149 Sec. 7.1.2 4
345 TECH3MM 0.149 Sec. 7.1.2 4
343 TECH3MM 0.208 Sec. 7.1.2 18
342 TECH3MM 0.208 Sec. 7.1.2 18
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Analysis
340 TECH3MM 0.084 Sec. 7.1.2 3
339 TECH3MM 0.084 Sec. 7.1.2 3
338 TECH3MM 0.108 Sec. 7.1.2 19
337 TECH3MM 0.103 Sec. 7.1.2 20
336 TECH3MM 0.109 Sec. 7.1.2 19
335 TECH3MM 0.103 Sec. 7.1.2 20
334 TECH3MM 0.089 Sec. 7.1.2 4
333 TECH3MM 0.089 Sec. 7.1.2 4
319 TECH3MM 0.235 Sec. 7.1.2 17
318 TECH3MM 0.235 Sec. 7.1.2 17
316 TECH3MM 0.186 Sec. 7.1.2 3
315 TECH3MM 0.186 Sec. 7.1.2 3
314 TECH3MM 0.186 Sec. 7.1.2 4
313 TECH3MM 0.186 Sec. 7.1.2 4
311 TECH3MM 0.236 Sec. 7.1.2 18
310 TECH3MM 0.236 Sec. 7.1.2 18
296 TECH3MM 0.264 Sec. 7.1.2 17
295 TECH3MM 0.265 Sec. 7.1.2 17
294 TECH3MM 0.23 Sec. 7.1.2 3
293 TECH3MM 0.23 Sec. 7.1.2 3
292 TECH3MM 0.229 Sec. 7.1.2 4
291 TECH3MM 0.23 Sec. 7.1.2 4
290 TECH3MM 0.265 Sec. 7.1.2 18
289 TECH3MM 0.265 Sec. 7.1.2 18
288 TUB91913.6 0.238 Sec. 8.2.1.2 17
287 TUB91913.6 0.24 Sec. 8.2.1.2 17
286 TUBE 0.014 Sec. 9.3.2.2 18
285 TUB91913.6 0.21 Sec. 8.2.1.2 17
284 TUB91913.6 0.212 Sec. 8.2.1.2 17
283 TUBE 0.014 Sec. 6.2 18
282 TUB91913.6 0.04 Sec. 8.2.1.2 18
281 TUB91913.6 0.04 Sec. 8.2.1.2 18
280 TUB91913.6 0.271 Sec. 8.2.1.2 5
279 TUB91913.6 0.2 Sec. 8.2.1.2 20
278 TUB91913.6 0.274 Sec. 8.2.1.2 20
277 TUB91913.6 0.289 Sec. 8.2.1.2 19
276 TUB91913.6 0.21 Sec. 8.2.1.2 19
275 TUB91913.6 0.278 Sec. 8.2.1.2 19
274 TUBE 0.016 Sec. 6.2 20
273 TUBE 0.008 Sec. 9.3.2.2 20
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Analysis
272 TUBE 0.008 Sec. 9.3.2.2 19
271 TUBE 0.016 Sec. 6.2 19
270 TUB91913.6 0.272 Sec. 8.2.1.2 5
269 TUB91913.6 0.202 Sec. 8.2.1.2 20
268 TUB91913.6 0.278 Sec. 8.2.1.2 20
267 TUB91913.6 0.288 Sec. 8.2.1.2 19
266 TUB91913.6 0.21 Sec. 8.2.1.2 19
265 TUB91913.6 0.277 Sec. 8.2.1.2 19
264 TUB91913.6 0.04 Sec. 8.2.1.2 17
263 TUB91913.6 0.04 Sec. 8.2.1.2 17
262 TUBE 0.178 Sec. 8.2.1.2 2
261 TUB91913.6 0.211 Sec. 8.2.1.2 18
260 TUB91913.6 0.208 Sec. 8.2.1.2 18
259 TUBE 0.014 Sec. 9.3.2.2 17
258 TUB91913.6 0.241 Sec. 8.2.1.2 18
257 TUB91913.6 0.236 Sec. 8.2.1.2 18
256 TECH3MM 0.073 Sec. 7.1.2 3
255 TECH3MM 0.073 Sec. 7.1.2 3
254 TECH3MM 0.262 Sec. 7.1.2 17
253 TECH3MM 0.263 Sec. 7.1.2 17
252 TECH3MM 0.097 Sec. 7.1.2 19
251 TECH3MM 0.229 Sec. 7.1.2 3
250 TECH3MM 0.229 Sec. 7.1.2 3
249 TECH3MM 0.092 Sec. 7.1.2 20
248 TECH3MM 0.098 Sec. 7.1.2 19
247 TECH3MM 0.228 Sec. 7.1.2 4
246 TECH3MM 0.228 Sec. 7.1.2 4
245 TECH3MM 0.093 Sec. 7.1.2 20
244 TECH3MM 0.265 Sec. 7.1.2 18
243 TECH3MM 0.264 Sec. 7.1.2 18
242 TECH3MM 0.086 Sec. 7.1.2 4
241 TECH3MM 0.086 Sec. 7.1.2 4
236 TECH3MM 0.073 Sec. 7.1.2 3
235 TECH3MM 0.073 Sec. 7.1.2 3
234 TECH3MM 0.262 Sec. 7.1.2 17
233 TECH3MM 0.263 Sec. 7.1.2 17
232 TECH3MM 0.098 Sec. 7.1.2 19
231 TECH3MM 0.229 Sec. 7.1.2 3
230 TECH3MM 0.229 Sec. 7.1.2 3
229 TECH3MM 0.092 Sec. 7.1.2 20
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Analysis
228 TECH3MM 0.098 Sec. 7.1.2 19
227 TECH3MM 0.228 Sec. 7.1.2 4
226 TECH3MM 0.228 Sec. 7.1.2 4
225 TECH3MM 0.093 Sec. 7.1.2 20
224 TECH3MM 0.265 Sec. 7.1.2 18
223 TECH3MM 0.264 Sec. 7.1.2 18
222 TECH3MM 0.086 Sec. 7.1.2 4
221 TECH3MM 0.086 Sec. 7.1.2 4
220 TUB91913.6 0.26 Sec. 8.2.1.2 17
219 TUB91913.6 0.262 Sec. 8.2.1.2 17
218 TUBE 0.013 Sec. 9.3.2.2 18
217 TUB91913.6 0.23 Sec. 8.2.1.2 17
216 TUB91913.6 0.231 Sec. 8.2.1.2 17
215 TUBE 0.016 Sec. 6.2 17
214 TUB91913.6 0.054 Sec. 9.3.2.2 17
213 TUB91913.6 0.054 Sec. 9.3.2.2 17
212 TUB91913.6 0.272 Sec. 8.2.1.2 20
211 TUB91913.6 0.205 Sec. 8.2.1.2 20
210 TUB91913.6 0.282 Sec. 8.2.1.2 20
209 TUB91913.6 0.296 Sec. 8.2.1.2 19
208 TUB91913.6 0.216 Sec. 8.2.1.2 19
207 TUB91913.6 0.287 Sec. 8.2.1.2 19
206 TUBE 0.018 Sec. 6.2 19
205 TUBE 0.007 Sec. 9.3.2.2 20
204 TUBE 0.007 Sec. 9.3.2.2 19
203 TUBE 0.018 Sec. 6.2 20
202 TUB91913.6 0.276 Sec. 8.2.1.2 20
201 TUB91913.6 0.208 Sec. 8.2.1.2 20
200 TUB91913.6 0.285 Sec. 8.2.1.2 20
199 TUB91913.6 0.295 Sec. 8.2.1.2 19
198 TUB91913.6 0.215 Sec. 8.2.1.2 19
197 TUB91913.6 0.286 Sec. 8.2.1.2 19
196 TUB91913.6 0.049 Sec. 9.3.2.2 17
195 TUB91913.6 0.054 Sec. 9.3.2.2 17
194 TUBE 0.178 Sec. 8.2.1.2 2
193 TUB91913.6 0.231 Sec. 8.2.1.2 18
192 TUB91913.6 0.231 Sec. 8.2.1.2 18
191 TUBE 0.013 Sec. 9.3.2.2 17
190 TUB91913.6 0.261 Sec. 8.2.1.2 18
189 TUB91913.6 0.263 Sec. 8.2.1.2 18
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Analysis
188 TECH3MM 0.26 Sec. 7.1.2 17
187 TECH3MM 0.26 Sec. 7.1.2 17
186 TECH3MM 0.228 Sec. 7.1.2 3
185 TECH3MM 0.228 Sec. 7.1.2 3
184 TECH3MM 0.228 Sec. 7.1.2 18
183 TECH3MM 0.227 Sec. 7.1.2 4
182 TECH3MM 0.263 Sec. 7.1.2 18
181 TECH3MM 0.263 Sec. 7.1.2 18
168 TECH3MM 0.08 Sec. 7.1.2 3
167 TECH3MM 0.08 Sec. 7.1.2 3
165 TECH3MM 0.292 Sec. 7.1.2 17
164 TECH3MM 0.293 Sec. 7.1.2 17
162 TECH3MM 0.282 Sec. 7.1.2 3
161 TECH3MM 0.111 Sec. 7.1.2 19
160 TECH3MM 0.282 Sec. 7.1.2 17
159 TECH3MM 0.105 Sec. 7.1.2 20
158 TECH3MM 0.283 Sec. 7.1.2 18
157 TECH3MM 0.111 Sec. 7.1.2 19
156 TECH3MM 0.282 Sec. 7.1.2 4
155 TECH3MM 0.106 Sec. 7.1.2 20
153 TECH3MM 0.295 Sec. 7.1.2 18
152 TECH3MM 0.295 Sec. 7.1.2 18
150 TECH3MM 0.095 Sec. 7.1.2 4
149 TECH3MM 0.095 Sec. 7.1.2 4
136 TECH3MM 0.325 Sec. 7.1.2 17
135 TECH3MM 0.327 Sec. 7.1.2 17
134 TECH3MM 0.35 Sec. 7.1.2 3
133 TECH3MM 0.35 Sec. 7.1.2 3
132 TECH3MM 0.35 Sec. 7.1.2 18
131 TECH3MM 0.349 Sec. 7.1.2 4
130 TECH3MM 0.329 Sec. 7.1.2 18
129 TECH3MM 0.328 Sec. 7.1.2 18
128 TUB91913.6 0.403 Sec. 9.3.2.2 17
127 TUB91913.6 0.405 Sec. 9.3.2.2 17
126 TUBE 0.015 Sec. 9.3.2.2 18
125 TUB91913.6 0.377 Sec. 9.3.2.2 17
124 TUB91913.6 0.379 Sec. 9.3.2.2 17
123 TUBE 0.013 Sec. 6.2 18
122 TUB91913.6 0.094 Sec. 9.3.2.2 17
121 TUB91913.6 0.094 Sec. 9.3.2.2 17
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Analysis
120 TUB91913.6 0.284 Sec. 8.2.1.2 5
119 TUB91913.6 0.218 Sec. 9.3.2.2 19
118 TUB91913.6 0.277 Sec. 8.2.1.2 5
117 TUB91913.6 0.276 Sec. 8.2.1.2 27
116 TUB91913.6 0.214 Sec. 9.3.2.2 19
115 TUB91913.6 0.273 Sec. 8.2.1.2 27
114 TUBE 0.013 Sec. 6.2 20
113 TUBE 0.009 Sec. 9.3.2.2 20
112 TUBE 0.009 Sec. 9.3.2.2 19
111 TUBE 0.013 Sec. 6.2 19
110 TUB91913.6 0.286 Sec. 8.2.1.2 5
109 TUB91913.6 0.217 Sec. 9.3.2.2 19
108 TUB91913.6 0.279 Sec. 8.2.1.2 5
107 TUB91913.6 0.276 Sec. 8.2.1.2 13
106 TUB91913.6 0.213 Sec. 9.3.2.2 19
105 TUB91913.6 0.273 Sec. 8.2.1.2 6
104 TUB91913.6 0.092 Sec. 9.3.2.2 18
103 TUB91913.6 0.092 Sec. 9.3.2.2 18
102 TUBE 0.013 Sec. 6.2 17
101 TUB91913.6 0.377 Sec. 9.3.2.2 18
100 TUB91913.6 0.374 Sec. 9.3.2.2 18
99 TUBE 0.178 Sec. 8.2.1.2 2
98 TUB91913.6 0.408 Sec. 9.3.2.2 18
97 TUB91913.6 0.412 Sec. 9.3.2.2 18
96 TECH3MM 0.102 Sec. 8.4 17
95 TECH3MM 0.102 Sec. 8.4 17
94 TECH3MM 0.323 Sec. 7.1.2 3
93 TECH3MM 0.323 Sec. 7.1.2 3
92 TECH3MM 0.114 Sec. 7.1.2 19
91 TECH3MM 0.349 Sec. 7.1.2 3
90 TECH3MM 0.349 Sec. 7.1.2 17
89 TECH3MM 0.108 Sec. 7.1.2 20
88 TECH3MM 0.114 Sec. 7.1.2 19
87 TECH3MM 0.349 Sec. 7.1.2 18
86 TECH3MM 0.348 Sec. 7.1.2 4
85 TECH3MM 0.109 Sec. 7.1.2 20
84 TECH3MM 0.325 Sec. 7.1.2 18
83 TECH3MM 0.324 Sec. 7.1.2 18
82 TECH3MM 0.102 Sec. 8.4 18
81 TECH3MM 0.102 Sec. 8.4 18
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Analysis
76 TECH3MM 0.102 Sec. 8.4 17
75 TECH3MM 0.102 Sec. 8.4 17
74 TECH3MM 0.323 Sec. 7.1.2 3
73 TECH3MM 0.323 Sec. 7.1.2 3
72 TECH3MM 0.115 Sec. 7.1.2 19
71 TECH3MM 0.35 Sec. 7.1.2 3
70 TECH3MM 0.35 Sec. 7.1.2 17
69 TECH3MM 0.109 Sec. 7.1.2 20
68 TECH3MM 0.115 Sec. 7.1.2 19
67 TECH3MM 0.35 Sec. 7.1.2 18
66 TECH3MM 0.349 Sec. 7.1.2 4
65 TECH3MM 0.11 Sec. 7.1.2 20
64 TECH3MM 0.325 Sec. 7.1.2 18
63 TECH3MM 0.324 Sec. 7.1.2 18
62 TECH3MM 0.102 Sec. 8.4 18
61 TECH3MM 0.102 Sec. 8.4 18
60 TUB91913.6 0.465 Sec. 8.2.1.2 17
59 TUB91913.6 0.467 Sec. 8.2.1.2 17
58 TUBE 0.013 Sec. 9.3.2.2 18
57 TUB91913.6 0.415 Sec. 8.2.1.2 17
56 TUB91913.6 0.416 Sec. 8.2.1.2 17
55 TUBE 0.008 Sec. 9.3.2.2 3
54 TUB91913.6 0.07 Sec. 9.3.2.2 17
53 TUB91913.6 0.071 Sec. 9.3.2.2 17
47 TUB91913.6 0.33 Sec. 8.2.1.2 19
46 TUB91913.6 0.24 Sec. 8.2.1.2 19
45 TUB91913.6 0.373 Sec. 9.3.2.2 19
44 TUB91913.6 0.228 Sec. 8.2.1.2 20
43 TUB91913.6 0.359 Sec. 9.3.2.2 20
42 TUB91913.6 0.314 Sec. 8.2.1.2 20
41 TUBE 0.049 Sec. 6.2 20
40 TUBE 0.004 Sec. 8.2.1.2 6
38 TUBE 0.004 Sec. 8.2.1.2 5
37 TUBE 0.049 Sec. 6.2 19
35 TUB91913.6 0.329 Sec. 8.2.1.2 19
34 TUB91913.6 0.239 Sec. 8.2.1.2 19
33 TUB91913.6 0.372 Sec. 9.3.2.2 19
32 TUB91913.6 0.363 Sec. 9.3.2.2 20
31 TUB91913.6 0.232 Sec. 8.2.1.2 20
30 TUB91913.6 0.32 Sec. 8.2.1.2 20
DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Analysis
24 TUB91913.6 0.071 Sec. 9.3.2.2 18
23 TUB91913.6 0.07 Sec. 9.3.2.2 18
22 TUBE 0.008 Sec. 9.3.2.2 4
21 TUB91913.6 0.417 Sec. 8.2.1.2 18
20 TUB91913.6 0.415 Sec. 8.2.1.2 18
19 TUBE 0.013 Sec. 9.3.2.2 17
18 TUB91913.6 0.468 Sec. 8.2.1.2 18
17 TUB91913.6 0.465 Sec. 8.2.1.2 18
16 TECH3MM 0.155 Sec. 8.4 17
15 TECH3MM 0.155 Sec. 8.4 17
14 TECH3MM 0.354 Sec. 7.1.2 3
13 TECH3MM 0.354 Sec. 7.1.2 3
12 TECH3MM 0.125 Sec. 7.1.2 19
11 TECH3MM 0.439 Sec. 7.1.2 3
10 TECH3MM 0.439 Sec. 7.1.2 3
9 TECH3MM 0.119 Sec. 7.1.2 20
8 TECH3MM 0.125 Sec. 7.1.2 19
7 TECH3MM 0.438 Sec. 7.1.2 18
6 TECH3MM 0.438 Sec. 7.1.2 4
5 TECH3MM 0.12 Sec. 7.1.2 20
4 TECH3MM 0.354 Sec. 7.1.2 4
3 TECH3MM 0.354 Sec. 7.1.2 4
2 TECH3MM 0.155 Sec. 8.4 18
1 TECH3MM 0.155 Sec. 8.4 18
Actual design ratio is less than < 1……Hence OK

DATE REV PAGE
DOC. : 0018-AFK-P-000001-001
Deflection Utilization
Horizontal Vertical Horizontal Resultant Rotational

Node L/C X mm Y mm Z mm mm rX rad rY rad rZ rad
Max X 687 128 +DL+FP+LL+WL
24.056 -3.758 0.281 24.349 0 0 -0.003
Min X 660 127 +DL+FP+LL+WL
-24.271 -3.822 -0.283 24.571 0 0 0.004
Max Y 688 111 +DL+FP+LL+WL
-21.989 1.823 0.003 22.065 -0.002 0 0.003
Min Y 670 113 +DL+FP+LL+WL0.3 -6.719 -16.547 17.862 -0.008 0.001 -0.001
Max Z 691 105 +DL+FP+WL-0.066 -0.16 37.661 37.661 -0.001 0.014 0
Min Z 691 129 +DL+FP+LL+WL
-5.526 -0.24 -37.905 38.307 0 -0.015 0
Max rX 1 105 +DL+FP+WL 0 0 0 0 0.009 0.002 0
Min rX 1 129 +DL+FP+LL+WL 0 0 0 0 -0.009 -0.002 0.004
Max rY 297 130 +DL+FP+LL+WL
-5.817 -0.348 9.828 11.426 0.001 0.015 0
Min rY 298 129 +DL+FP+LL+WL
-5.928 -0.357 -10.417 11.99 -0.001 -0.015 0
Max rZ 4 127 +DL+FP+LL+WL 0 0 0 0 0 0.002 0.006
Min rZ 13 128 +DL+FP+LL+WL 0 0 0 0 0 0.002 -0.006
Max Rst 691 129 +DL+FP+LL+WL
-5.526 -0.24 -37.905 38.307 0 -0.015 0
Max lateral displacement at top = 37.905mm
Mentioned displacement at Height = 6.90m
Allowable deflection = L/150 = 6900/150 = 46mm < Actual……………….Hence OK

Design Calculation - Column Formwork - R1 PDF

Uploaded by

Copyright:

Available Formats

You might also like

Design Calculation - Column Formwork - R1 PDF

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Design Calculation - Column Formwork - R1 PDF

Uploaded by

Copyright:

Available Formats

TECHNOCRAFT INDUSTRIES (I) LTD.

R1 24.07.2018 ISSUED FOR APPROVAL MSH

R0 28.06.2018 ISSUED FOR APPROVAL MSH 59

REV. NO. DATE REMARK PREPARED BY APPROVED BY PAGES

TECHNOCRAFT INDUSTRIES (I) LTD 28.06.2018 R1 Page 2 of 59

2.1 STRUSTURAL STEEL 6

3.0 ANALYSIS AND DESIGN METHODOLOGY 6

5.0 PRILIMINARY LOAD CASES AND COMBINATIONS 12

5.1 PRILIMINARY LOAD CASES 12

6.0 BEAM STANDARD 18

7.0 DESIGN OF SKIN PLATE AND STIFFENERS 20

8.0 DESIGN OF HORIZONTAL WALER 24

9.0 DESIGN OF CONNECTIONS 26

10.0 STAAD DESIGN 29

10.1 GEOMETRY AND LOADING 29

TECHNOCRAFT INDUSTRIES (I) LTD 28.06.2018 R1 Page 3 of 59

1.2 DESCRIPTION OF THE STEEL STRUCTURE

Support conditions are considered as pin support.

TECHNOCRAFT INDUSTRIES (I) LTD 28.06.2018 R1 Page 4 of 59

TECHNOCRAFT INDUSTRIES (I) LTD 28.06.2018 R1 Page 5 of 59

ISOMETRIC RENDER VIEW

ASSUMPTIONS IN STAAD MODELLING –

TECHNOCRAFT INDUSTRIES (I) LTD 28.06.2018 R1 Page 6 of 59

1.3 REFERENCE DOCCUMENTS

Drawing - IF220-01-001 & 003

Design Standard – IS800:2007 & CIRIA Report

2.1 STRUSTURAL STEEL

3.0 ANALYSIS AND DESIGN METHODOLOGY

TECHNOCRAFT INDUSTRIES (I) LTD 28.06.2018 R1 Page 7 of 59

Dead of the sections calculated based on self weight command in STAAD.

Height of pier, h = 9.45 m

Cross section of pier = 2.522 x 1.772 m

Vertical spacing of Waler = 0.8 m c/c

Wet density of concrete, D = 26 kN/m3

Lateral concrete pressure calculation as per CIRIA report

Pmax. = D x [C1 X (Vb) + C2 X KT  (h - C1 X (Vb)]

Pmax. = 26 [1.5 x sqrt(2) +0.45x0.5x sqrt(9.45-1.5x sqrt(2)]

Where Pmax. = max. concrete pressure in kN/m2

TECHNOCRAFT INDUSTRIES (I) LTD 28.06.2018 R1 Page 8 of 59

Pmax. = 69.8 kN/m2

Height of pressure Pmax. = h1 = Pmax / D = 69.8 = 2.69 m

TECHNOCRAFT INDUSTRIES (I) LTD 28.06.2018 R1 Page 9 of 59

TECHNOCRAFT INDUSTRIES (I) LTD 28.06.2018 R1 Page 10 of 59

TECHNOCRAFT INDUSTRIES (I) LTD 28.06.2018 R1 Page 11 of 59

TECHNOCRAFT INDUSTRIES (I) LTD 28.06.2018 R1 Page 12 of 59

5.0 PRILIMINARY LOAD CASES AND COMBINATIONS

5.1 PRILIMINARY LOAD CASES

1 LOAD 1 SEISMIC LOAD IN +X DIRECTION. ( SLX )

2 LOAD 2 SEISMIC LOAD IN +Z DIRECTION. ( SLZ )

3 LOAD 3 SEISMIC LOAD IN +Y DIRECTION. ( SLY )

4 LOAD 11 EMPTY DEAD LOAD ( DL )

6 LOAD 13 LIVE LOAD ( LL )

7 LOAD 14 FILLED DEAD LOAD ( DL )

8 LOAD 61 WIND LOAD IN (+X) DIRECTION : ON STRUCTURE

9 LOAD 62 WIND LOAD IN (-X) DIRECTION : ON STRUCTURE

10 LOAD 63 WIND LOAD IN (+Z) DIRECTION : ON STRUCTURE

11 LOAD 64 WIND LOAD IN (-Z) DIRECTION : ON STRUCTURE
