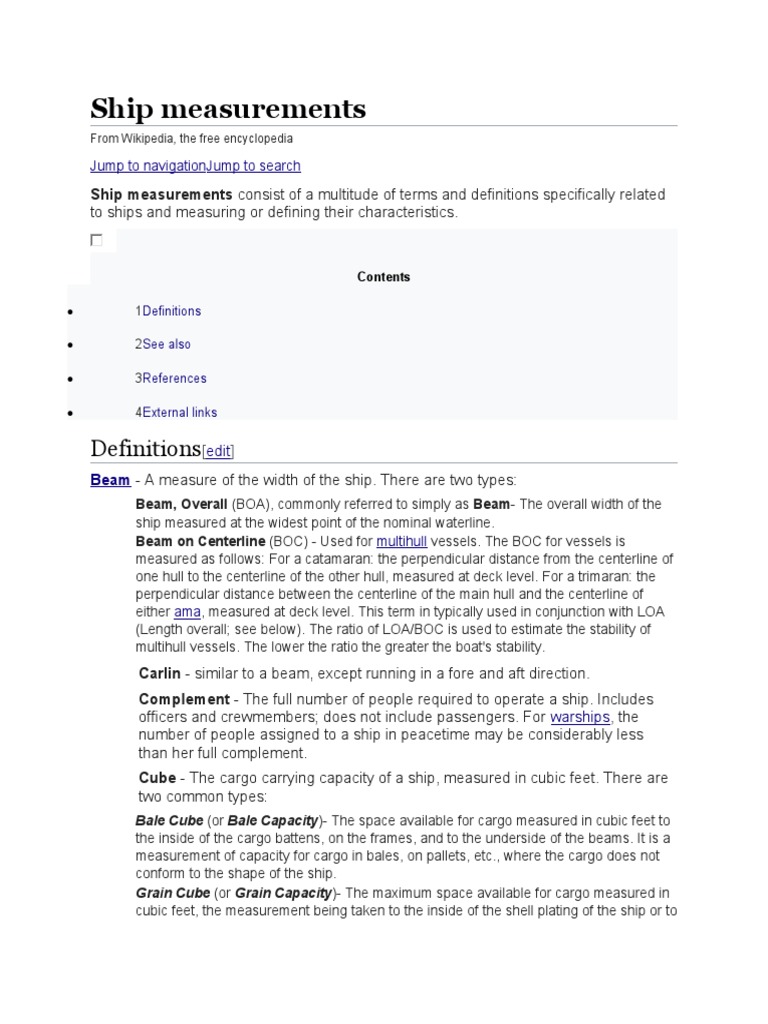

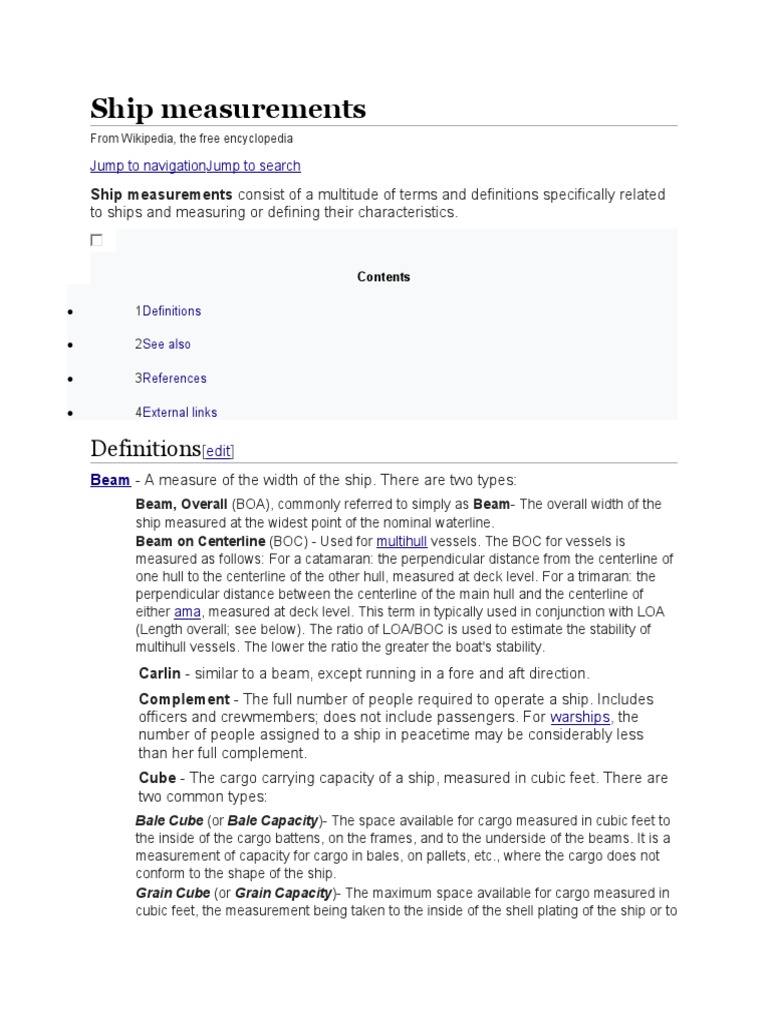

Ship measurements

From Wikipedia, the free encyclopedia

Jump to navigationJump to search

Ship measurements consist of a multitude of terms and definitions specifically related

to ships and measuring or defining their characteristics.

Contents

 1Definitions

 2See also

 3References

 4External links

Definitions[edit]
Beam - A measure of the width of the ship. There are two types:
Beam, Overall (BOA), commonly referred to simply as Beam- The overall width of the
ship measured at the widest point of the nominal waterline.
Beam on Centerline (BOC) - Used for multihull vessels. The BOC for vessels is
measured as follows: For a catamaran: the perpendicular distance from the centerline of
one hull to the centerline of the other hull, measured at deck level. For a trimaran: the
perpendicular distance between the centerline of the main hull and the centerline of
either ama, measured at deck level. This term in typically used in conjunction with LOA
(Length overall; see below). The ratio of LOA/BOC is used to estimate the stability of
multihull vessels. The lower the ratio the greater the boat's stability.
Carlin - similar to a beam, except running in a fore and aft direction.
Complement - The full number of people required to operate a ship. Includes
officers and crewmembers; does not include passengers. For warships, the
number of people assigned to a ship in peacetime may be considerably less
than her full complement.
Cube - The cargo carrying capacity of a ship, measured in cubic feet. There are
two common types:
Bale Cube (or Bale Capacity)- The space available for cargo measured in cubic feet to
the inside of the cargo battens, on the frames, and to the underside of the beams. It is a
measurement of capacity for cargo in bales, on pallets, etc., where the cargo does not
conform to the shape of the ship.
Grain Cube (or Grain Capacity)- The maximum space available for cargo measured in
cubic feet, the measurement being taken to the inside of the shell plating of the ship or to
the outside of the frames and to the top of the beam or underside of the deck plating. It
is a measurement of capacity for cargo like grain, where the cargo flows to conform to
the shape of the ship.
Displacement - A measurement of the weight of the vessel, usually used
for warships. (Merchant ships are usually measured based on the volume
of cargo space; see tonnage). Displacement is expressed either in long
tons of 2,240 pounds or metric tonnes of 1,000 kg. Since the two units
are very close in size (2,240 pounds = 1,016 kg and 1,000 kg = 2,205
pounds), it is common not to distinguish between them. To preserve
secrecy, nations sometimes misstate a warship's displacement.
Displacement, Light - The weight of the ship excluding cargo, fuel, ballast, stores,
passengers, and crew, but with water in the boilers to steaming level.
Displacement, Loaded - The weight of the ship including cargo, passengers, fuel,
water, stores, dunnage and such other items necessary for use on a voyage, which
brings the vessel down to her load draft.
Deadweight Tons (DWT) - The difference between displacement,
light and displacement, loaded. A measure of the ship's total carrying capacity.
Cargo Deadweight Tons - The weight remaining after deducting fuel, water, stores,
dunnage and such other items necessary for use on a voyage from the deadweight of
the vessel.
Draft (d) or (T) - The vertical distance from the bottom of
the keel to the waterline. Used mainly to determine the
minimum water depth for safe passage of a vessel.
Draft, Air - Air Draft is the distance from the water line to
the highest point on a ship (including antennas) while it is
loaded. Technically, standard draft is the distance a ship
can pass over, air draft is the distance a ship can pass
under.
Length - The distance between the forwardmost and
aftermost parts of the ship.
Length Overall (LOA) - The maximum length of the ship
Length at Waterline (LWL) - The ship's length measured at the waterline
Shaft Horsepower (SHP) - The amount of
mechanical power delivered by the engine to a
propeller shaft. One horsepower is equivalent to
746 watts in the SI system of units.
Summer Water Line - The waterline when ship has
standard load. Sometimes called Design Waterline.
Ton - The unit of measure often used in specifying
the size of a ship. There are three completely
unrelated definitions for the word. One of them
refers to weight, while the others refer to volume.
Measurement Ton (M/T) or Ship Ton Calculated as 40 cubic feet of cargo space. See
Bale Cubic - example, a vessel having capacity of 10,000 M/T has a bale cubic of
400,000 cubic ft.
Register Ton - A measurement of cargo carrying capacity in cubic feet. One register ton
is equivalent to 100 cubic feet of cargo space.
Weight Ton (W/T) - Calculated as a long ton (2,240 pounds)
Tonnage - A measurement of the cargo-
carrying capacity of merchant vessels. It
depends not on weight, but on the
volume available for carrying cargo. The
basic units of measure are the Register
Ton, equivalent to 100 cubic feet, and
the Measurement Ton, equivalent to 40
cubic feet. The calculation of tonnage is
complicated by many technical factors.
Gross Tons - The entire internal cubic capacity of the ship expressed in tons of 100
cubic feet to the ton, except certain spaces which are exempted such as: peak and other
tanks for water ballast, open forecastle bridge and poop, access of hatchways, certain
light and air spaces, domes of skylights, condenser, anchor gear, steering gear, wheel
house, galley and cabin for passengers.
Net Tons - Obtained from the gross tonnage by deducting crew and navigating spaces
and allowances for propulsion machinery.
