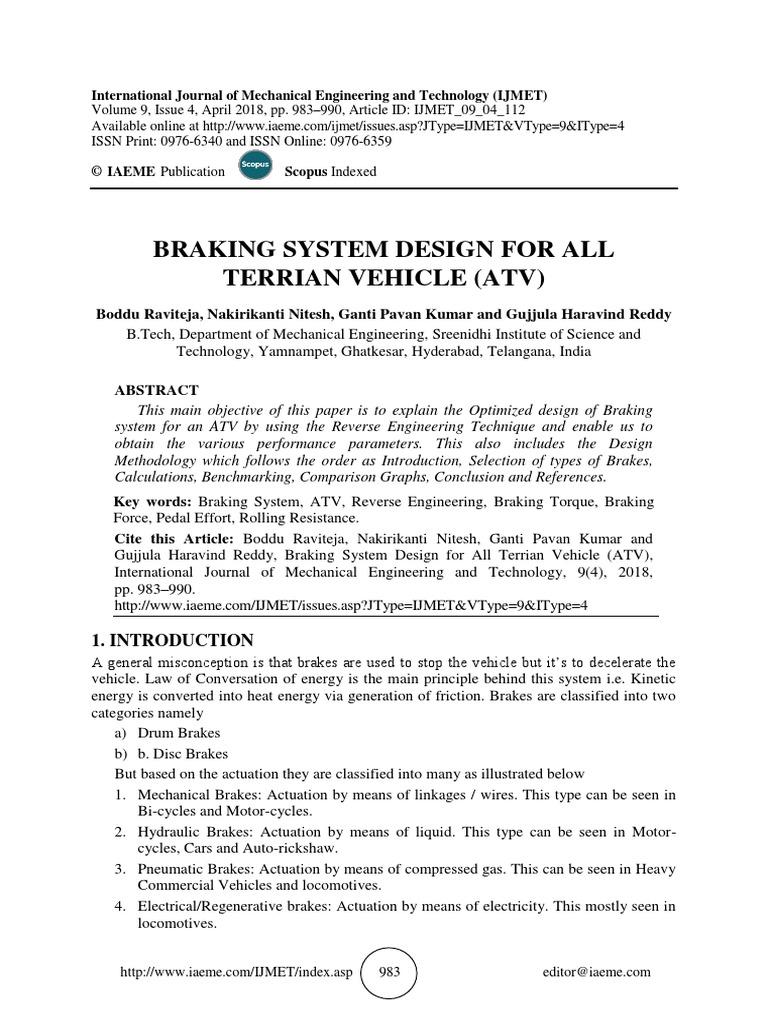

BRAKING SYSTEM DESIGN FOR ALL

TERRIAN VEHICLE (ATV)
Boddu Raviteja, Nakirikanti Nitesh, Ganti Pavan Kumar and Gujjula Haravind Reddy
B.Tech, Department of Mechanical Engineering, Sreenidhi Institute of Science and
Technology, Yamnampet, Ghatkesar, Hyderabad, Telangana, India

ABSTRACT
This main objective of this paper is to explain the Optimized design of Braking
system for an ATV by using the Reverse Engineering Technique and enable us to
obtain the various performance parameters. This also includes the Design
Methodology which follows the order as Introduction, Selection of types of Brakes,
Calculations, Benchmarking, Comparison Graphs, Conclusion and References.
Key words: Braking System, ATV, Reverse Engineering, Braking Torque, Braking
Force, Pedal Effort, Rolling Resistance.
Cite this Article: Boddu Raviteja, Nakirikanti Nitesh, Ganti Pavan Kumar and
Gujjula Haravind Reddy, Braking System Design for All Terrian Vehicle (ATV),
International Journal of Mechanical Engineering and Technology, 9(4), 2018,
pp. 983–990.
http://www.iaeme.com/IJMET/issues.asp?JType=IJMET&VType=9&IType=4

1. INTRODUCTION
A general misconception is that brakes are used to stop the vehicle but it’s to decelerate the
vehicle. Law of Conversation of energy is the main principle behind this system i.e. Kinetic
energy is converted into heat energy via generation of friction. Brakes are classified into two
categories namely
a) Drum Brakes
b) b. Disc Brakes
But based on the actuation they are classified into many as illustrated below
1. Mechanical Brakes: Actuation by means of linkages / wires. This type can be seen in
Bi-cycles and Motor-cycles.
2. Hydraulic Brakes: Actuation by means of liquid. This type can be seen in Motor-
cycles, Cars and Auto-rickshaw.
3. Pneumatic Brakes: Actuation by means of compressed gas. This can be seen in Heavy
Commercial Vehicles and locomotives.
4. Electrical/Regenerative brakes: Actuation by means of electricity. This mostly seen in
locomotives.

http://www.iaeme.com/IJMET/index.asp 983 editor@iaeme.com

 Braking System Design for All Terrian Vehicle (ATV)

5. Magnetic Brakes: Actuation by means of Magnetism power.

2. SELECTION OF TYPE OF BRAKES

All the above mentioned types have their uniqueness but mostly Hydraulic brakes suits the
most as they are easy to install, effective and less cost. Mechanical brakes are exceptional for
ATV.
Coming to Hydraulic brakes disc type is more efficient because less weight, easy to
install, water drain capability and effective heat dissipation which cannot be find in drum
brakes.
Also most of ATV’s are rear driven so inboard brakes are sufficient for rear side of
vehicle and out board brakes for front side. Doing this improves the performance of the
vehicle and also reduces the unsprung mass of vehicle.

3. CALCULATIONS
3.1. Pre-requisites (Assume)
 Track width- 50’’ and Wheel base- 54’’
 Stopping Distance- 3mts
 Speed of vehicle- 60Kmph
 Centre of gravity location along 3-D axes- 29.68’’ longitudinally from the front
wheels, 26’’ laterally from the left wheels and 14.5’’ vertically from ground.
 Weight of vehicle including driver- 145+75Kg = 220Kg

3.2. Let’s calculate the following step by step

 Total Kinetic Energy
 Angular displacement of wheel
 Total Braking force followed by its distribution to the front and rear side of the vehicle
 Parts dimensions abstraction and finally plotting performance graphs.

3.2.1. Total Kinetic Energy

As it is previously assumed that weight of vehicle including driver is 220Kg.
Total Kinetic Energy =Translational KE+ Rotational KE
= 0.5xmxv2 + 0.5xIxω2
= 32,031.116J (Approx.)
Where
m- Mass of vehicle
v- Max. Velocity of vehicle
I-Mass moment of Inertia
ω- Angular velocity of rotating parts

3.2.2. Angular displacement of wheel

We have this from law of conservation of energy
KE=BTx θ

http://www.iaeme.com/IJMET/index.asp 984 editor@iaeme.com

 Boddu Raviteja, Nakirikanti Nitesh, Ganti Pavan Kumar and Gujjula Haravind Reddy

Where
BT- Braking Torque
θ- Angular displacement
= (BTf+ BTr) xθ
= (r1*x BFf+r2*x BFr) xθ
= (r1* x kbf x BFt+r2*x kbr x BFt) xθ
Here r1*=r2*=r* (Disc effective radius)
= r*x BFt x θ x (kbf+kbr)
= r*x BFt x θ x 1
KE= r*x BFt x θ (1)
Where
BTf & BTr – Braking toque for front wheels and rear wheels
We have
a = dv/dt
= dvxds/dsxdt
= dv x (ds/dt) /ds
a x ds = v x dv
Integrating on both sides we get
a x s = v2/2
(BFt/m) x s = v2/2
BFt = m x v2/2 x s (2)
Where
a – Deceleration
s – Dtopping distance
= 220 x 16.662/2 x 3
BFt = 10,177.03 N
θ = 50.35c from (1)

3.2.3. Brake force distribution

If this is not distributed properly there are two situations can occur
a) Only front wheels gets locked and it leads to loose direction control
b) Only rear wheels gets locked and it leads to loose directional stability
For avoiding these all the four wheels has to lock simultaneously and this is achieved by
the following distribution
Ideal brake force distribution
Kbf/kbr= (b + h x (µ + fr))/(a - h x (µ + fr )) (3)
Where
a ,b ,h are the locations of C.O.G longitudinally, laterally and vertically
µ - Coefficient of friction
fr – Coefficient of rolling resistance
Substituting all these we get
kbf= 0.737 & kbr= 0.262

http://www.iaeme.com/IJMET/index.asp 985 editor@iaeme.com

 Braking System Design for All Terrian Vehicle (ATV)

Now
BFf=kbf x BFt = 7500.47 N
BFr=kbr x BFt = 2,676.56 N

3.2.4. Parts Dimensions abstraction

Let’s convert these values at wheels to rotor side as follows
BFf = µ x BFfd (4)
Where
µ - Coefficient of friction between tyre and ground
BFfd – Braking force at rotor at front side of vehicle
Similarly for rear side
BFfd = BFf/ µ
= 7500.47/0.6
= 12,500.78 N
Similarly for rear side
BFrd = BFr/ µ
= 4,460.93 N

a. First let’s find out the front side parts dimensions

BFfd1 = 6,250.39 N
BFfd1 = 2 x µ x CF
Where
CF – Clamping force
= 2 x 0.4 x CF
CF = 7,812.98 N
Let’s consider dual piston caliper for the front side
Then we have
CFp = CF/2 = Clamping force per piston = 3,906.49 N
Fpr/Amcp = CFp/Acp (5)
Fpr/d12 = CFp/d22
d22/d12 = CFp/Fpr (6)
Where
Fpr – Master cylinder push rod force
d1 – Diameter of mc piston
d2 – Diameter of caliper piston
= 7812.98/2,646.9
= 2.95
d2 /d12 = 2.95
2

d2/d1 = 1.71 (7)

b. Rear side parts dimensions

BFrd = 4,460.93 N

http://www.iaeme.com/IJMET/index.asp 986 editor@iaeme.com

 Boddu Raviteja, Nakirikanti Nitesh, Ganti Pavan Kumar and Gujjula Haravind Reddy

Let’s have single acting caliper for rear

CFp = 5,576.16 N
d2/d1 = 1.45 (8)

4. BENCHMARKING
In this various parts are compared with others based on availability, cost & specification.

Table 1 Rotor
S.No. Diameter(mm) DER(m) Type Availability Cost(INR)
1 150 0.0625 Drilled Medium 450
2 160 0.0675 Drilled Medium 570
3 180 0.075 Drilled Medium 750
4 190 0.082 Drilled High 900
5 200 0.087 Drilled High 1200
Note: We have selected 150mm for front side and 160mm for rear side

Table 2 Brake Fluid

S.No. Type Dry Boiling point Availability Wet Boiling point
1 DOT 3 205 High 140
2 DOT 4 230 Medium 155
3 DOT 5.1 200 Low 180
4 DOT 5 200 Low 180
Note: DOT 3 suits our requirement

Table 3 Master Cylinder

S.No. Bore Diameter (cm) Type Availability Cost(INR)
1 1.4 SP High 650
2 1.6 SP High 1070
3 1.9 DP High 900
4 2.5 DP Medium 850-1050
5 3-4.5 DP Low 1800-5000
Note: SP – Single piston
DP – Double piston
Third one suits our requirement

Table 4 Caliper
S.No. Bore Diameter (cm) Type Availability Cost(INR)
1 2 SA, TA Low 1200-4000
2 2.8 DA High 1500-1700
3 3.2 SA, DA High 1800- 6000
Note: SA – Single acting
DA – Double acting
TA – Triple Acting
Second and third one suits our requirement

http://www.iaeme.com/IJMET/index.asp 987 editor@iaeme.com

 Braking System Design for All Terrian Vehicle (ATV)

Here the various combinations of parts are selected and assessed for its finalization and
finally installed in the vehicle.

5. STOPPING DISTANCE VS SPEED

Stopping distance is the distance travelled by the vehicle from the moment of deceleration to
its final stop and it’s the combination braking distance and reaction distance.
Braking distance is the distance travelled by the vehicle from the moment of application
of brake to its final stop.
Note: Aerodynamic Effect is ignored in this calculation because it has no significant
effect.
And the values are obtained by assuming that the driver always applies constant pedal
effort irrespective of speed i.e.
3.5
3
2.5
2
1.5
1
0.5
0
0 20 40 60 80

Figure 1 Stopping Distance (m) VS Speed (Kmph)

2
BFt = m x v /2 x s from (2)
2
s = m x v /2 x BFt
Where
m= 220Kgs
v= Varies from 60 Kmph to 0 Kmph
BFt= remains same always since the applied effort is constant.

6. DECELERATION VS SPEED
It’s very important factor for determining the load transfer and according to which parameters
can be adjusted.
During braking condition the following forces comes into picture i.e. Inertia force,
Braking force and rolling resistance.

Figure 2 Component of forces during braking condition

http://www.iaeme.com/IJMET/index.asp 988 editor@iaeme.com

 Boddu Raviteja, Nakirikanti Nitesh, Ganti Pavan Kumar and Gujjula Haravind Reddy

Balancing horizontal forces we get,

md = BFf+BFr+RRf+RRr = BFt+RRt (Total Braking force + Total Rolling Resistance)
d = BFt+RRt /m (9)
From the above equation we can plot the following graph
50
40
30
20
10
0
0 20 40 60 80

Figure 3 Deceleration (m/sec2) VS Speed (Kmph)

7. WEIGHT TRANSFER VS SPEED

It is the amount of load transferred to the front axle during braking condition(deceleration
process) and we can also reduce this by implementing the Anti-Dive geometry in the vehicle
and it reduces the chances of toppling(if any).

Figure 4 Component of forces at the moment of deceleration

Considering the moment equation w.r.t to any point can able to find out the Load
transferred to the front and similarly we can also find the amount of load transferred to rear
during acceleration case just by reversing the forces at C.O.G.
200

150

100

50

0
0 10 20 30 40 50

Figure 5 Weight Transfer (Kg) VS Speed (Kmph)

http://www.iaeme.com/IJMET/index.asp 989 editor@iaeme.com

 Braking System Design for All Terrian Vehicle (ATV)

Table 5 Overall Technical Specifications

Parameter Value
Stopping Distance 3 mts
Pedal Ratio 6:1
Pedal Effort 441.45 N
32” (longitudinal from front wheels)
COG Location 26” (laterally from the right wheel)
14.5” (height)
Mass of vehicle 268Kgs
Master Cylinder Bore 19 mm
Push Rod Force 2648.7 N
Front-11504.602 N/disc
Clamping Force
Rear-7513.209 N/disc
Front-9203.68 N/disc
Braking Force
Rear-6010.56 N/disc
Front-150 mm
Rotor Diameter
Rear-160 mm
Front-287.5 N-m/wheel
Braking Torque Required per Wheel
Rear-202.5 N-m/Wheel
Deceleration 4g
Stopping time 0.42Sec
Pedal Travel 70 mm
Front-317.851 K/Single stop
Max. Temperature raise in rotor
Rear-306.429 K/Single stop
Brake Fluid DOT 3
Braking Circuit F/R Split
Braking Circuit Balancing Simultaneous locking

REFERENCES
[1] https://me-mechanicalengineering.com/brake-system-classification/
[2] William F Milliken and Doglus L Milliken 1995. Wheel loads. Racecar vehicle dynamics,
Society of Automotive engineers, Inc. 665-708.
[3] https://www.researchgate.net/publication/221332646_Modeling_and_control_of_automoti
ve_antilock_brake_systems_through_PI_and_neural_network_arithmetic.
[4] Carroll Smith 1978. The Brakes. Tune To Win. Aero publishers, Inc.107-117.
[5] Dattatraya K Chavan, Anish S Gorantiwar, Kunal R Nalamwar and Ritesh G Deokar, A
Comparative Study and Analysis of the Performance of Various Regenerative Braking
Systems. International Journal of Mechanical Engineering and Technology, 8(3), 2017,
pp. 66-67
[6] Aditya Patankar, Rohit Kulkarni, Sanket Kothawade and Sameer Ingale, Design and
Development of a Transmission System for an All - Terrain Vehicle. International Journal
of Mechanical Engineering and Technology, 7(3), 2016, pp. 351–359.
[7] Dattatraya K Chavan, Anish S Gorantiwar, Kunal R Nalamwar and Ritesh G Deokar, A
Comparative Study and Analysis of the Performance of Various Regenerative Braking
Systems. International Journal of Mechanical Engineering and Technology, 8(3), 2017,
pp. 66–76.
[8] Gaurav A. Chandak and A. A. Bhole. An Electric Braking System Controller for
Brushless DC Motor in Electric Vehicle Application. International Journal of Electrical
Engineering & Technology, 8(4), 2017, pp. 48–56.

http://www.iaeme.com/IJMET/index.asp 990 editor@iaeme.com
