Hardware PDF

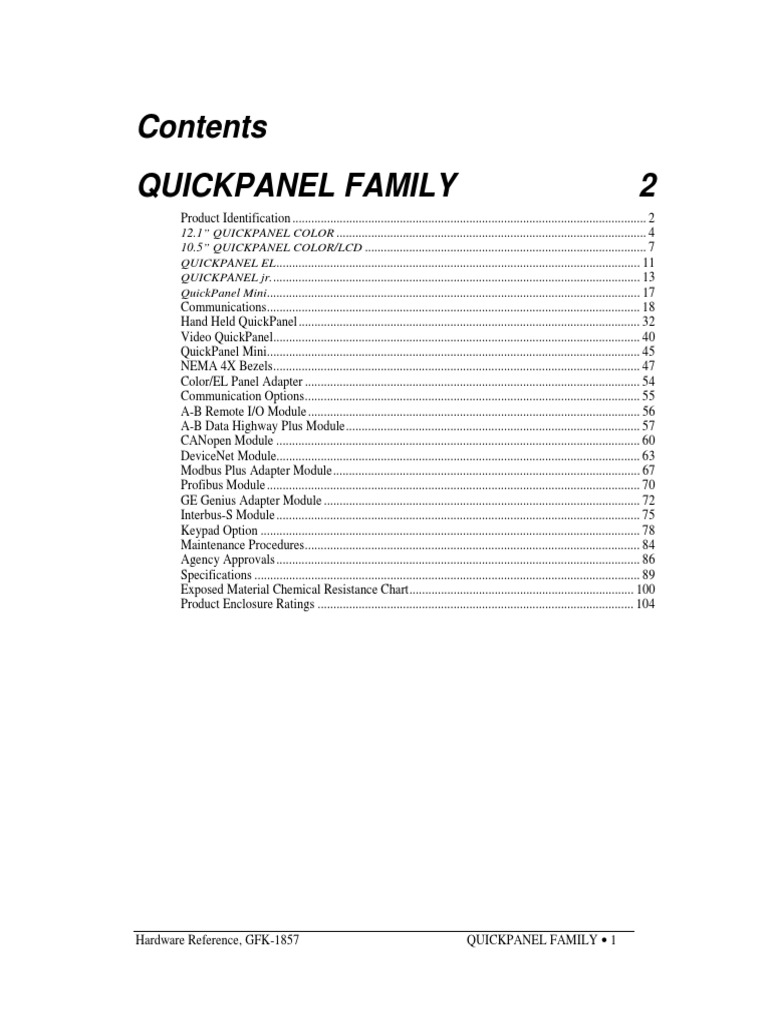

Contents
QUICKPANEL FAMILY 2
Product Identification ................................................................................................................ 2
12.1” QUICKPANEL COLOR .................................................................................................. 4
10.5” QUICKPANEL COLOR/LCD ......................................................................................... 7
QUICKPANEL EL................................................................................................................... 11
QUICKPANEL jr..................................................................................................................... 13
QuickPanel Mini...................................................................................................................... 17
Communications...................................................................................................................... 18
Hand Held QuickPanel ............................................................................................................ 32
Video QuickPanel.................................................................................................................... 40
QuickPanel Mini...................................................................................................................... 45
NEMA 4X Bezels.................................................................................................................... 47
Color/EL Panel Adapter .......................................................................................................... 54
Communication Options.......................................................................................................... 55
A-B Remote I/O Module ......................................................................................................... 56
A-B Data Highway Plus Module............................................................................................. 57
CANopen Module ................................................................................................................... 60
DeviceNet Module................................................................................................................... 63
Modbus Plus Adapter Module................................................................................................. 67
Profibus Module ...................................................................................................................... 70
GE Genius Adapter Module .................................................................................................... 72
Interbus-S Module ................................................................................................................... 75
Keypad Option ........................................................................................................................ 78
Maintenance Procedures.......................................................................................................... 84
Agency Approvals ................................................................................................................... 86
Specifications .......................................................................................................................... 89
Exposed Material Chemical Resistance Chart....................................................................... 100
Product Enclosure Ratings .................................................................................................... 104
Hardware Reference, GFK-1857 QUICKPANEL FAMILY • 1

QUICKPANEL FAMILY
Product Identification
Below is a list of currently available QUICKPANEL family models and option modules.
QUICKPANEL jr. Display Type
QPJ-2D100-L2P 5" Monochrome LCD
QPJ-2D100-S2P 5" STN Color LCD
QPK-2D100-L2P 6" Monochrome LCD
QPK-3D200-S2P 6" STN Color LCD
QPK-3D200-C2P 6" TFT Color LCD
QPM-2D100-L2P 6" Monochrome LCD (Mini)
QPK-3D200-L2P 6" Monochrome LCD, 24VDC
QPM-3D200-B2P 6" Monochrome Blue-LCD Mini, 24VDC
QUICKPANEL Display Type

QPI-21100-E2P 9" Monochrome EL,120VAC
QPI-31200-E2P(1) (Replaces QPI-21100-E2P)
QPI-21100-S2P 10.5" STN Color LCD,120VAC
QPI-31200-S2P(1) (Replaces QPI-21100-S2P)
QPI-21100-C2P 10.5" TFT Color,120VAC
QPI-31200-C2P(1) (Replaces QPI-21100-C2P)
QPI-2D100-L2P 10.5" Monochrome LCD, 24VDC
QPI-2D100-E2P 9" Monochrome EL, 24VDC
QPI-3D200-E2P (1) (Replaces QPI-2D100-E2P)
QPI-2D100-S2P 10.5" Color STN, 24VDC
QPI-2D100-C2P 10.5" TFT Color, 24VDC
QPI-3D200-C2P(1) (Replaces QPI-2D100-C2P)
QPL-21100-C2P 12.1 TFT Color, 120VAC
QPL-2D200-C2P 12.1 TFT Color, 24VDC
Note 1: QPI-3xxxx Series supports 64 Colors, 2Mbyte application memory, twice the
brightness of QPI-2xxxx series, and 100MHz processor.
Option Module Protocol Selection
QPI-ABR-201 QUICKPANEL A-B 1771Remote I/O
QPI-ABD-201 QUICKPANEL A-B Data Highway Plus
QPI-COS-201 QUICKPANEL CANopen
QPI-DVN-202 QUICKPANEL Device Net Slave
QPI-GEG-201 QUICKPANEL General Electric Genius I/O
QPI-IBS-201 QUICKPANEL Interbus S Slave
QPI-MBP-201 QUICKPANEL Modicon Modbus Plus
QPI-PBS-202 QUICKPANEL Profibus DP Slave
2 • QUICKPANEL FAMILY Hardware Reference, GFK-1857

QPJ-ABR-201 QUICKPANEL jr. A-B 1771Remote I/O
QPJ-ABD-201 QUICKPANEL jr. A-B Data Highway Plus
QPJ-GEG-201 QUICKPANEL jr. General Electric Genius I/O
QPJ-MBP-201 QUICKPANEL jr. Modicon Modbus Plus
QPJ-PBS-201 QUICKPANEL jr. Profibus Module
QPJ-IBS-201 QUICKPANEL jr. Interbus-S Module
QPJ-COS-201 QUICKPANEL jr. CANopen Module
QPJ-DVN-202 QUICKPANEL jr. DeviceNet Module
The product label contains the model number and serial number. Option modules
NOTE for the QUICKPANEL will have a separate product label.
Installation Hints
Mounting brackets are packed inside the carton.

NOTE
In order to protect the unit, to provide accessibility in operation, and to improve
CAUTION ventilation, please ensure that there is adequate space around the unit. The
recommended clearance is 4" from other structures.
Ensure that this unit is located as far away as possible from electromagnetic
circuits, circuit breakers, and other equipment that causes arcing.
This unit is held in place by metal clamps. The panel thickness should be .062"
(1.6mm) to .3937" (10mm).
Forced air cooling is required if this unit is to be used in a surrounding
temperature which is greater than 50°C.
Route all signal lines in a separate duct, away from power circuits. Use shielded
cable and tie the shield to the Frame Ground contact point.
This unit must be installed vertically for natural air cooling. Please ensure that
heat from other equipment does not add heat to this unit.
Do not hit the touch panel with a hard or heavy object, or press the touch panel
with too much force.
Do not use paint thinner or organic solvents to clean the unit or display.

12.1” QUICKPANEL COLOR
Dimensions for 12.1”QUICKPANEL Color Display

The dimensions shown below are for the following displays:
QPL-21100-C2P
The following drawing illustrates the overall dimensions of the 12.1” QUICKPANEL
Color display.
CUTOUT 13.07 in. (332 +1mm)
C
UT
O
QUICKPANEL UT
10
.1
10 6 O
.7 in. PT
0 (2 IO
in. 58 N
(2 +1 M
72 m O 10
m m) D .1
m) UL 2
in.
(2
57
m
m)
2.90" (73.5 mm)

13.62 in. (346mm)
.3" (7.5 mm) 1.25" (32 mm)
Panel Installation for 12.1”QUICKPANEL Color Units

To install the color unit, cut a hole in your panel as shown in the dimension drawing.
Install the gasket to the edge of the display. Insert the display in the panel and install the
four clamps in the display body. Tighten the clamps to compress the gasket and secure
the unit to the panel.
The panel cutout for the 12.1” QUICKPANEL Color display is shown below. Panel
thickness is 1.6mm ~ 10mm.
CUTOUT 13.07 in. (332 +1mm)
CUTOUT 10.16 in. (258 +1mm)
The O-ring gasket is secured to the display body by pressing it into the slot provided. The
following drawing shows how the gasket is secured to the display. The replacement
gasket part number is HMI-ORG-205.

O-RING
FRONT
Insert the display through the panel opening and install the panel clamps. The panel
clamps are inserted into the openings in the top and bottom of the panel body. The clamp
screw is turned clockwise to tighten the display to the panel.
PANEL
Torque = 0.5~0.6Nm
Insert the display through the panel

opening. Insert the panel clamps into
the slots in the display body. Turn
screw clockwise to tighten.

Rear View of the 12.1” Color Unit
The download port is used to download files from your computer to the target display.
The port is also used for printing only alarm messages.
OPTION MODULE
SERIAL PORT
POWER PARALLEL PORT DOWNLOAD PORT
TERMINALS
Installing AC Power to the 12.1” Color Display

This section describes installing power to the following displays:
QPL-21100-C2P
Remove the protective cover on the AC terminal strip. Remove approximately 1/4" of
insulation from the supply wires and insert them under the terminal clamps. Tighten the
clamp screws to secure the wires. Replace the protective cover on the AC terminal strip.
AC100V
50VA 50/60Hz
FG
L N
Powerup Sequence for the 12.1” Color Display

The powerup sequence is a series of operations initiated by the internal electronic circuits
when power becomes stable. Stable power is indicated by an LED on the front panel.
The information displayed after power becomes stable depends on several variables.
Factory units display a message indicating a device executable must be downloaded.
Units that may have been setup by a distributor might indicate a PLC protocol has been
loaded. Follow the procedures in the QUICKDESIGNER user manual for downloading
application and device executable files.

10.5” QUICKPANEL COLOR/LCD
Dimensions for 10.5”QUICKPANEL Color/LCD Displays
QPI-2xxxx-Sxx, QPI-2xxxx-Cxx, QPI-2xxxx-Lxx
QPI-3xxxx-Sxx, QPI-3xxxx-Cxx
The following drawing illustrates the overall dimensions of the QUICKPANEL 10.5”
Color/LCD display.
CUTOUT 8.98 in. (228 +/- 0.5mm)

CUTOUT 11.89 in. (302 +/- 0.5mm)
QUICKPANEL
9.570 in. (243mm)
3.05"
12.480 in. (317mm) (77.5 mm)
.3" (7.5 mm)

Panel Installation for 10.5”QUICKPANEL Color/LCD Units
To install the color/LCD unit, cut a hole in your panel as shown in the dimension
drawing. Install the gasket to the edge of the display. Insert the display in the panel and
install the four clamps in the display body. Tighten the clamps to compress the gasket and
secure the unit to the panel.
The panel cutout for the QUICKPANEL Color/LCD display is shown below. Panel
thickness is 1.6mm ~ 10mm.
11.88"
302 +/- 0.5 mm
8.97"
228 +/- 0.5 mm
CUTOUT FOR COLOR
following drawing shows how the gasket is secured to the display.
O-RING
FRONT
Insert the display through the panel opening and install the panel clamps. The panel
clamps are inserted into the openings in the top and bottom of the panel body. The clamp
screw is turned clockwise to tighten the display to the panel.
PANEL
Torque = 0.5~0.6Nm


Rear View of the 10.5” Color/LCD Unit
OPTION MODULE
SERIAL PORT
POWER PARALLEL PORT DOWNLOAD PORT
TERMINALS
Installing AC Power to the 10.5” Color Display

QPI-21100-S2P and QPI-21100-C2P; QPI-31200-S2P and QPI-31200-C2P
AC100V
50VA 50/60Hz
FG
L N
Installing DC Power to the 10.5” LCD Display

QPI-2D100-L2P, QP1-2D100-S2P, QPI-2D100-C2P and QPI-3D200-C2P
Remove the protective cover on the DC terminal strip. Remove approximately 1/4" of
clamp screws to secure the wires. Replace the protective cover on the DC terminal strip.
DC24V
50W
_ FG
+
Powerup Sequence for the 10.5” Color/LCD Display



QUICKPANEL EL
Dimensions for the 9” EL Display
QPI-21100-E2P, QPI-2D100-E2P, QPI-31200-E2P, QPI-3D200-E2P
The following drawing illustrates the overall dimensions of the 9” QUICKPANEL
Electroluminescent (EL) display.
CUTOUT 10.20in (259 +/- 1mm)
CUTOUT 7.92 in (201 +/- 1mm)

QUICKPANEL
OPTION MODULE
8.50" (216 mm)
1.93" (49 mm)
10.79" (274 mm)
.3" (7.5 mm) 1.25" (32 mm)
Panel Installation for 9” EL Units

To install the EL unit, cut a hole in your panel as shown in the dimension drawing. Install
the O-ring gasket in the slot around the edge of the display. Insert the display in the panel
and install four clamps to the display body. Tighten the clamps to compress the gasket
and secure the unit to the panel.
The panel cutout for the QUICKPANEL EL display is shown below.
10.196"
259 +/- 1 mm
7.91"
201 +/- 1 mm
CUTOUT FOR EL

O-RING
FRONT
Insert the display through the panel opening and install the panel clamps. The clamp
screws are turned clockwise to tighten the display to the panel. The fastening torque
necessary for waterproofing is 0.5 ~ 0.6Nm.
PANEL
Torque = 0.5~0.6Nm


Rear View of the 9” EL Unit
OPTION MODULE
AC100V
50VA 50/60Hz
FG
L N AUX SIO PRINTER TOOL
AC TERMINALS SERIAL PORT DOWNLOAD PORT
Installing AC Power for the 9” EL Display

AC100V
50VA 50/60Hz
FG
L N
Powerup Sequence for the 9” EL Display

QUICKPANEL jr.
Dimensions
The following drawings show the overall dimensions of the 5" and 6" QUICKPANEL jr.
displays.

QuickPanel jr. 5" Display (QPJ-2xxxx-Lxx, QPJ-2xxxx-Sxx)
CUTOUT 6.22" (158 +/- .5mm)
CUTOUT 4.45" (113 +/- .5mm)

DC POWER ONLY
QUICKPANEL
OPTION MODULE
5.00" (127mm)
6.75" (172mm) 2.125" (54mm)
.197" (5mm) 1" (25mm)
QuickPanel jr. 6" Display (QPK-xxxxx-Lxx, QPK-xxxxx-Sxx, QPK-xxxxx-

Cxx)
CUTOUT 6.10" (155mm) CUTOUT 4.86" (123.5mm) DC POWER ONLY
QUICKPANEL
OPTION MODULE
5.43" (138mm)
2.24" (57mm)
6.71" (170.5mm)
.197" (5mm) 1" (25mm)

Panel Installation
The QUICKPANEL jr. display is secured to the panel with pressure clamps on the top
and bottom of the display.
Make the panel cutout as shown in the drawing.
O-RING
FRONT
Insert the display through the panel opening and install the panel clamps. The clamp
screws are turned clockwise to tighten the display to the panel. The fastening torque
necessary for waterproofing is 0.5 ~ 0.6Nm.
PANEL
Install the gasket in the
slot in the faceplate.
Torque = 0.5~0.6Nm
O-RING Insert the display through the panel
or opening. Insert the panel clamps into
FLAT the slots in the display body. Turn
FRONT

Rear View
The following drawing shows a rear view of the QUICKPANEL jr. Please note the model
and serial number printed on the product label.
• The terminal strip provides quick power and ground connections to the unit.
Observe the polarity for the +24VDC supply lines.
• The serial interface port connects the QUICKPANEL jr. to your PLC.
• The download port connects the QUICKPANEL jr. to your computer for
downloading application files.
• The product label contains the model number and serial number of the unit.
OPTION MODULE SERIAL

CONNECTOR INTERFACE
DOWNLOAD
POWER PORT
TERMINALS

Installing 24VDC Power
Remove approximately 1/4" of insulation from the supply wire and insert it under the
terminal clamp. Tighten the terminal clamp screw to secure the wire. Add a frame ground
wire to the terminal marked FG. Replace the cover.
24VDC
FG
Power source must be able to deliver 12 Watts (500 ma @ 24V) for Monochrome units and
NOTE 15 Watts (625 ma @ 24V) for Color units.
Powerup Sequence
When the power is applied, the internal circuit waits for power to stabilize then start a
powerup sequence. New units do not have any projects loaded into them and may display
a startup message.
To operate the unit, you must download a PLC protocol and one or more panels
contained in a project file. To download a file, see the QUICKCOURIER section of the
user manual.
If you received a demo unit from a dealer or distributor, it may already have a project
installed. If the protocol does not match your PLC protocol, you MUST download a new
display device executable file containing the correct PLC protocol. To download a new
protocol, see the QUICKCOURIER section of the user manual.
The 6" TFT has an LED that turns green when power is applied. When the backlight
CCFL tube eventually fails, the power indicator on the front of the unit turns orange and
the touch screen is disabled.
QuickPanel Mini
DC Power (QPM-xDxxx-xxx)
DC24V MAKE SURE THE POWER IS OFF
20W
Remove the protective cover on the DC terminal strip. Remove 1/4"
of insulation from the supply wires and insert them under the terminal
clamps. Tighten the clamp screws to secure the wires. Replace the
protective cover.
Stable power is indicated by an LED on the front panel.

QUICKPANEL mini Dimensions
QUICKPANEL mini DC24V

20W
OPTION MODULE
E
CONNECTOR
B
A SERIAL TOOL D C
INTERFACE PORT
Model Dim A Dim B Dim C Dim D Dim E Dim F

QPM-2xxxx-L2P 8.267" 6.299" 2.28" .197" 5.59" 7.56"
(210mm) (160mm) (58mm) (5mm) (142mm) (192mm)
QPM-3xxxx-B2P 8.15” 6.18” 2.28” 0.24” (6mm) 5.57” 7.54”
(207mm) (1.57mm) (58mm) (141.5mm) (191.5mm)
Communications
Serial Interface Port
The serial interface port connects the QUICKPANEL to your PLC. Refer to the cable
section to determine the correct cable to use with your PLC. Factory cables are cut to
approximately 12', which is suitable for most applications. Some cables are available in
longer lengths on special order from Total Control Products, Inc. or you can fabricate
your own. Use the cable diagrams found in the cable section for correct wiring.
Remember that RS232 cables are reliable up to approximately 50'. The serial interface
pin assignments are shown in the following drawing.
*NOTE: Some cables, such as the HMI-CAB-C84, are designed for use on proprietary
networks. These cable assemblies contain active network interface circuits. Because these
cables are licensed from other manufacturers, there are no cable diagrams or circuit
drawings.

1 FG - Frame Ground
14 Reserved(VCC;max 0.25A)
2 TXD - Transmit Data
15 TXB-Sending Data -
3 RXD - Receive Data
16 RXB-Receiving Data -
4 RTS - Request to Send
17 No Connection
5 CTS -Clear to Send
18 CTSB Clear to Send -
6 Reserved
19 DTRB Request to Send -
7 GND - Signal Ground
20 DTR-Data Terminal Ready
8 CD - Carrier Detect
21 CTSA Clear to Send +
9 TRMX - Terminator for RXA
22 DTRA Request to Send +
10 RXA - Receiving Data +
23 Reserved (BUZZGND)
11 TXA - Sending Data +
24 Reserved
12 No Connection
25 Reserved (BUZZOC)
13 No Connection
Serial Interface Port Specs

Transmission: Asynchronous RS232C/RS422
Data Length: 7 or 8 data bits
Stop Bit: 1 or 2
Parity: None, Odd or Even
Data Transmission Speed: 300 to 38.4Kbps. (Depends on the Protocol)
Parallel Printer Port

Conforms to Centronix standards, HP LaserJet PCL4 compatible, NEC PR201 series,
EPSON ESC/P 24-Pin (High Quality) or equivalent can be connected. See the HMI-
CAB-C99 cable diagram.
Download Port
This port has several names, depending on how it is used. To simplify the reference, the
port is generally called the download port. This port is used to download application files
from a computer to the QUICKPANEL or print alarm messages to a printer. For
download applications, use the HMI-CAB-C49 cable. For serial printer functions, use the
HMI-CAB-C150 cable.
The download files are created by QUICKDESIGNER software running in Windows on
your computer. The download port uses TTL signal levels and requires conversion to
RS232, RS485 or other communication standard. The HMI-CAB-C49 cable is used to
convert the TTL signals to RS232. The download port connector is an 8-pin mini-DIN
style. The port pin configuration and pin assignments are shown in the following
drawing.
Data Transmission Speed: 2400 to 38.4Kbps. (QPI-3 to 115.2Kbps)
3 - RDY (OUT)
6 - CTS (IN)
1 - TX/RST (OUT)
4 - RX (IN)
7 - DSR (IN)
2 - GND
8 - VCC
5 - RTY (OUT)
Download Cable, HMI-CAB-C49

The primary use of the HMI-CAB-C49 cable is to download QUICKDESIGNER files
from your computer to a QUICKPANEL display. This cable contains a TTL to RS232
converter and should not be modified.
8-PIN CIRCULAR DIN

HMI-CAB-C49 9-PIN FEMALE D-SUB
TO IBM AT 9-PIN
TO TCP DEVICE
HMI-CAB-C49
TXD 1 TTL 3 TXD

TO 2 RXD PROPRIETARY INFORMATION
RXD 4
RS232 5 GND THIS INFORMATION IS PROVIDED AS A CONVENIENCE
GND 2 CONVERTER TO OUR CUSTOMERS. YOU ARE NOT AUTHORIZED TO
6 DSR
CTS 6 590-1000-134/0 CONSTRUCT THIS CABLE. UNAUTHORIZED CABLES ARE
DSR 7 8 CTS NOT SUPPORTED BY TOTAL CONTROL.
5 7 RTS
1 DCD
+5 8 TO PC
TO 8-PIN DIN 9-PIN FEMALE D
Printer Cable, HMI-CAB-C105

The primary use of the HMI-CAB-C105 cable is to print alarm messages from your
QUICKPANEL display. This cable contains a TTL to RS232 converter and should not be
modified.
Do NOT attempt to connect a serial printer directly to the download port because the
download port signals are TTL. Most serial printers require RS232. Use the HMI-CAB-
105 cable to connect a serial printer to the download port.
HMI-CAB-C105
8-PIN CIRCULAR DIN TO PRINTER 9-PIN FEMALE D-SUB
TO TCP DEVICE
HMI-CAB-C105
TXD 1 TTL 3 TXD

TO 2 RXD PROPRIETARY INFORMATION
RXD 4
RS232 5 GND THIS INFORMATION IS PROVIDED AS A CONVENIENCE
GND 2 CONVERTER TO OUR CUSTOMERS. YOU ARE NOT AUTHORIZED TO
6 DSR
CTS 6 590-1000-134/0 CONSTRUCT THIS CABLE. UNAUTHORIZED CABLES ARE
8 CTS
DSR 7 NOT SUPPORTED BY TOTAL CONTROL.
DTR 5 7 RTS
1 DCD
+5 8 HMI-CAB-C105
TO PC
TO 8-PIN DIN 9-PIN FEMALE D

Cables
A typical cable assembly is shown in the following drawing. A label is placed on each
end of the cable to indicate which device should be connected to that end. One of the
labels will also indicate the cable part number so you can quickly verify you are using the
right cable for your application.
Not all cables are shown in the cable drawings section. Cables that contain circuit boards
NOTE are not shown because they cannot be fabricated in the field. The cable drawings are
provided for those users that wish to fabricate their own cable assemblies

Cable Drawings
This section includes a drawing of the cable and the wiring diagram. Not all cables are
included in this section. Some cable assemblies have a circuit board in the connector
housing to provide for specific voltage levels and protocols. Those cable assemblies that
have a circuit board are NOT included.
The following cable assemblies contain a circuit board and are NOT included in the cable
drawings:
HMI-CAB-C49
HMI-CAB-C76
HMI-CAB-C104 (SIEMENS 3964R)
2 3
25 PIN FEMALE
3 2
25 PIN MALE
4 4
5 5
7 7
1 SHIELD 6
TO TCP DEVICE TO PLC PORT
TO TCP DEVICE 8
HMI-CAB-C51 20
TO PLC PORT
2 2
3 3
9 PIN FEMALE
25 PIN MALE
4 4
5 6
7 5
1 SHIELD 7
TO TCP DEVICE TO PLC PORT 8
TO TCP DEVICE
HMI-CAB-C52 1
TO PLC PORT
2 3
3 2
25 PIN MALE
25 PIN MALE
4 4
5 5
7 7
1 SHIELD 6
TO TCP DEVICE TO PLC PORT TO TCP DEVICE 8
HMI-CAB-C53/A 20
TO PLC PORT
2 3
25 PIN MALE
15 PIN MALE
3 2
7 7
4 13
5 4
TO TCP DEVICE TO A-B KE
DATA HIGHWAY 1 SHIELD
5
TO TCP DEVICE 6
HMI-CAB-C55 8
11
TO PLC PORT

2 2
25 PIN MALE
9 PIN MALE
TO PLC PORT 3 3
4 4
5 6
7 5
TO TCP DEVICE 1 SHIELD 7
TO TCP DEVICE 8
HMI-CAB-C58 TO PLC PORT
3 2
2 3
25 PIN MALE
9 PIN MALE
4 4
5 5
7 7
1 SHIELD 9
TO TCP DEVICE
HMI-CAB-C67 TO PLC PORT
16 12
10 13
25 PIN MALE
15 PIN MALE
4 6
RESISTOR
120 OHM
5 15
RESISTOR
7 7
120 OHM
18 14
TO TCP DEVICE TO GE SERIES SNP 19 8
PROGRAM PORT 15 10
HMI-CAB-C82 11 11
TO TCP DEVICE 21 1 SHIELD
22 TO PLC PORT
NOTE: The HMI-CAB-C83/A Cable drawing is proprietary information and is provided

for reference ONLY. You are not authorized to construct this cable.
8-PIN MODULAR 4 GND 7
25-PIN MALE
TO TCP DEVICE PHONE RJ-45 orange

5 SHIELD 1 green RJ-45
shield
18 (--) 15 blue TOP
white
19 16 brown
TO SLC 500 (+) 10 black
21 red
PROGRAM PORT
22 11
HMI-CAB-C83/A
NOTE: The HMI-CAB-C84/A Cable drawing is proprietary information and is provided
for reference ONLY. The RS232 to RS422 circuit board is contained in the 25-pin D-
shell. The circuit also provides network control. The cable is licensed from Allen-Bradley
and cannot be modified.
orange -8 CABLE LENGTH = 6'
8-PIN MODULAR PHONE(MALE)
25-PIN MALE
green -7
shield -6 TOP
blue -5 RJ-45
white -4
RS232 brown -3 8-PIN MODULAR
25-pin male D
TO black -2 PHONE PLUG

red -1
8-PIN MODULAR PHONE(FEMALE) RS422
CIRCUIT orange -8
BOARD green -7 (G)
shield -6
blue -5 (E)
white -4
brown -3 8-PIN MODULAR
HMI-CAB-C84/A black -2 ( - ) PHONE JACK
red -1 (+) CABLE LENGTH = 1'

SHIELD 1 6
6-PIN MODULAR 5
25-PIN MALE
TO TCP DEVICE PHONE 3 orange 4 Modular Phone
red 3
2 2
TOP
black 1
4
TO KOYO DL240 5
PROGRAM PORT
7
25-PIN MALE
HMI-CAB-C86/B
TO TCP DEVICE
2 2
3 3
25 PIN MALE
9 PIN MALE
7 5
TO PLC PORT
4 7
5 8
1
6
HMI-CAB-C88
15 2
11 1
25 PIN MALE
15 PIN MALE
RESISTOR
1K OHM
16 6
10 5
18 3
19 8
TO TCP DEVICE
TO TCP DEVICE TO A-B PLC2
PROGRAM PORT 21 4
22 7
HMI-CAB-C90 4 TO PLC PORT
5
8
GND
7 7
RXA+
10 3 TX+
TX+ 2
11 RX+
25 PIN MALE
25 PIN MALE
TO TCP DEVICE
TO PLC PORT
TX-
15 15 RX-
RX-
TO PLC PORT
16 16 TX-
CTSB
18 18
TO TCP DEVICE DTRB
19 17
CTSA
21 5
DTRA
HMI-CAB-C91/B 22 4
1 SHIELD 20
21
10 1
11 5
25 PIN MALE
15 8
9 PIN MALE
16 7
TO TCP DEVICE
18
19
21 TO PLC PORT
22
HMI-CAB-C92 4
5

RESISTOR
7 7
120 OHM
16 9
25 PIN MALE
25 PIN MALE
10 21
RESISTOR
15 13
TO PLC PORT
120 OHM
TO TCP DEVICE
11 25
4 10
TO TCP DEVICE TO PLC PORT 5 11
18 22
HMI-CAB-C93 19 23
21 1 SHIELD
22
15 3
11 4
25 PIN MALE
9 PIN MALE
16 1
TO TCP DEVICE
10 2
TO PLC PORT
18 5
19 6
TO TCP DEVICE TO PLC PORT 21 7
22 8
HMI-CAB-C94 4
5
16 TXB
25 PIN MALE
10 TXA
120 OHM-.5W
4
RESISTOR
5
TO PLC PORT
TO TCP DEVICE
7 SG
18
TO TCP DEVICE TO TOSHIBA 19
EX100, M20/40 15 RXB
11 RXA
HMI-CAB-C96 Jumper RXA to TRM
21 for EX100 PLC.
22 For MX 20/40, jumper
RXA & RXB with 120 ohm,
SHIELD 1 .5W resistor.
16 11
10 3
25 PIN MALE
15 PIN MALE
4 4
120 OHM-.5W
5
120 OHM-.5W
RESISTOR
5
TO TCP DEVICE
RESISTOR
TO PLC PORT
7 7
18 15
19 8
TO TCP DEVICE TO TOSHIBA T2
15 10
11 2
HMI-CAB-C97
21 12
22 13
SHIELD 1
11 TXA (send data)

25 PIN MALE
10 RXA (rec data +) 0

TXB (send data -) ---1
15 TXB (send data -) 1
TO PLC PORT
TO TCP DEVICE
16 RXB (rec data) 2

120 OHM-.25W
RXA (rec data +) ---0

4 3
120 OHM-.25W
5
RESISTOR
TO TCP DEVICE TO B&R 18

0
19 1
21 2
HMI-CAB-C98 3
22

1 1
2 2
14 PIN MALE
36PIN MALE
3 3
4 4
5 5
6 6
TO TCP DEVICE TO PRINTER 7 7
8 8
HMI-CAB-C99 9 9
TO PRINTER PORT 11 11
14 24
TO PRINTER
TO PLC PORT
10 3
TO TCP DEVICE
11 9
25 PIN MALE
9 PIN FEMALE
15 2
16 8
4
5
19
21
HMI-CAB-C100
22
1 SHIELD
1
9 PIN FEMALE
3 3
25 PIN MALE
TO TCP DEVICE
TO PLC PORT
2 2
4 4
5 6
7 5
TO TCP DEVICE TO PLC PORT 1 SHIELD 7
8
HMI-CAB-C101
8-PIN MODULAR
1
25-PIN MALE
TO TCP DEVICE SHIELD SHIELD 8

PHONE RJ-45
7 BRN 7 RJ-45
BLK 6
2 BLU 5 TOP
ORG 4
TO MODICON 3 GRN 3
WHT 2
MICRO PLC 20 RED 1
4
HMI-CAB-C102/A 5
25-PIN MALE
4-PIN MODULAR SHIELD 1

25-PIN MALE
TO TCP DEVICE PHONE CONNECTOR 7

3 green 4
TOP
black 3
2 white 2
TO PLC DIRECT 5 red 1
DL 305
4
25-PIN MALE
HMI-CAB-C103/A

25 PIN MALE
2 4 PIN 7
PIN 6
3 7 PIN 8
PIN 4
7 2 PIN 5
PIN 3
4
TO TCP DEVICE TO PLC PORT 5 PIN 1 PIN 2
HMI-CAB-C106 TO TCP DEVICE TO PLC PORT
NOTE: The 8-pin DIN connector requires precise pin alignment before pressing the
connector into the housing on the MicroLogix 1000. This is a TIGHT fit and requires
some force.
4 1 SHIELD
25 PIN MALE
25 PIN MALE
5 15 3 RXD IN -
18 16 2 TXD OUT -
19 7 7 GND
21 10 14 TXD OUT+
22 11 16 RXD IN +
HMI-CAB-C107/A TO TCP DEVICE TO PLC PORT
11 1
120 OHM
10 5
25 PIN MALE
9 PIN MALE
16 9
15 6
TO TCP DEVICE 18
TO PLC PORT
19
22
HMI-CAB-C108 4
5
10
11 3
TO TCP DEVICE
TO PLC PORT
25 PIN MALE
9 PIN MALE
7 5
15 8
16
4
18
HMI-CAB-C110 19
21
22

TO TCP DEVICE
TO PLC PORT
2 3
25 PIN MALE
9 PIN MALE
3 2
7 5
4
1
Shield
HMI-CAB-C111
BLK
TO TCP DEVICE
6-PIN MODULAR 2
25-PIN MALE
TO TCP DEVICE RED
TO PLC PORT
PHONE RJ-11 7 6
ORG 5
3 4
TOP
3
5 2
1
4
25-PIN MALE
HMI-CAB-C112
16 TXB (L1) -
25 PIN MALE
15 RXB
10 TXA
11 RXA (L1) +
7 GND 0V
TO TCP DEVICE
18
TO PLC PORT
TO TCP DEVICE TO TOYOPUC 19
4
5
HMI-CAB-C113
21
22
SHIELD 1
7 LO 0V
25 PIN MALE
9 LO + (BLACK)
10
TO PLC PORT
11
TO TCP DEVICE
15 LO -(WHITE)
16
TO TCP DEVICE TO TOYOPUC2 19
18 LO G(PE)
SHIELD
21
HMI-CAB-C114
22
9
25 PIN MALE
10 TXH
11 RXH (1/2W, 100 Ohm)
15 RXL
TO TCP DEVICE
16 TXL
TO PLC PORT
4
TO TCP DEVICE TO HITACHI S10 5
18
19
HMI-CAB-C115
21
22
SHIELD 1

25 PIN MALE
7 7 PIN 7
PIN 6
10 1 PIN 8
PIN 4
11 PIN 5
PIN 3
15 2
TO TCP DEVICE TO PLC PORT 16 PIN 1 PIN 2
HMI-CAB-C116 4 TSX TER/AUX PORT
5 8-PIN MALE MINI-DIN
25 PIN MALE
4 11
RED To Terminal B
5 10
18 15
19 16 BLK To Terminal A
TO TCP DEVICE TO AIC+ 7 GRN To Terminal COM
21
SHL To Terminal SHIELD
22 1
HMI-CAB-C117 TO TCP DEVICE TO AIC+ PORT 3

Cable Chart
PLC Catalog
Manufacturer. PLC Type Description Number
Allen-Bradley DH-485 Program port, one SLC to HMI-CAB-C83
one QuickPanel, no simultaneous
program port.
SLC500, SLC5/01, SLC5/02, DH-485 program port, one SLC to HMI-CAB-C84
SLC5/03 one QuickPanel, with simultaneous
program port, 6 foot max.
DH-485 link via 1447 AIC module, HMI-CAB-C84
multiple QuickPanels to multiple
SLC’s, 6 foot max.
SLC5/03, SLC5/04 Channel 0, 9 pin RS-232 HMI-CAB-C52
PLC5 Channel 0, 25 pin RS-232 HMI-CAB-C53
DF1 RS-422 HMI-CAB-C107
KF2 module, 25 pin RS-232 HMI-CAB-C51
KE module HMI-CAB-C55
PLC2 Program Port, 15 pin RS-422 HMI-CAB-C90
MicroLogix DF1 Protocol HIM-CAB-C106
AIC+ Advanced Interface Cnvtr DH485 Port 3 HMI-CAB-C117
Aromat Aromat FP1 (MEWNET) 9 pin Male RS-232 HMI-CAB-C111
B&R Mininet 2-plated wires RS-422 HMI-CAB-C98
General Electric 90/30, 90/70 Program Port, 15 pin RS422 HMI-CAB-C82
SNP protocol CMM Module 25 pin RS-232 HMI-CAB-C53
25 pin RS-422 HMI-CAB-C93
Hitachi Hitachi S Serial Protocol 4 plated wires RS-422 HMI-CAB-C115
IDEC Micro-1, FA via link adapter 25 pin RS-232 HMI-CAB-C53
Micro-3 8-Pin Mini DIN HMI-CAB-C109
Keyence Keyence KV-L2, KV-10R RJ11 RS-232 Program Port HMI-CAB-112
Keyence KV-L2 25 pin RS-232, Port 1 HMI-CAB-C53
Koyo see PLC Direct see PLC Direct
Micrologix 8 pin DIN HMI-CAB-C106
Mitsubishi Series A1S 9 pin RS-232, for A1SJ71C24-R2 HMI-CAB-C88
Series A 25 pin RS-232 HMI-CAB-C53
FX 25 pin RS-422 HMI-CAB-C91
FX0 25 pin RS-422 via an adapter HMI-CAB-C91
Modicon 984 A, B, X 25 pin RS-232 HMI-CAB-C53
984 Slot and compact 9 pin RS-232 HMI-CAB-C58
984 micro RJ45 headset connector RS-232 HMI-CAB-C102
Omron C200H 25 pin RS-232 HMI-CAB-C53
C200H 9 pin RS-422 HMI-CAB-C108
C20H, CQM1, 9 pin RS-232 HMI-CAB-C67

PLC Direct DL430, 440 Port 2, D4-DCM 25 pin RS-232 HMI-CAB-C53
DL330, 330P with use of D3-232- 25 pin RS-232 HMI-CAB-C53
DCU, DL350 Port 2, DL450 Port
A
DL340 4-pin Modular Phone RS-232 HMI-CAB-C103
DL250 Port 1 6-pin Modular Phone RS-232 HMI-CAB-C86
DL350 Port 1, DL240 Port 2 6-pin Modular Phone RS-232 HMI-CAB-C86
Reliance Automate program port, R-net 25 pin RS-232 HMI-CAB-C53
gateway
Siemens S5 family program port 15 pin current loop HMI-CAB-C76
3964R 928B TTY Sub Module 25 pin Male Current Loop HMI-CAB-C104
3964R 928B RS232 Sub Module 25 pin RS-232 HMI-CAB-C53
S7-200 9 pin male HMI-CAB-C110
305 with use a RS-232 DCU 25 pin RS-232 HMI-CAB-C53
405 25 pin RS-232 HMI-CAB-C53
500 series, 25 pin prog. port 25 pin RS-232 HMI-CAB-C53
Simatic TI 500 series, 9 pin prog. port 9 pin female RS-232 HMI-CAB-C101
500 series, 9 pin RS-422 9 pin male RS-422 HMI-CAB-C92
TI545-1102, prog. port 9 pin female RS-422 HMI-CAB-C100
Square D Symax model 100 and greater 9 pin male RS-422 HMI-CAB-C94
Symax model 50 via link adptr 25 pin RS-232 HMI-CAB-C53
Toshiba T2 15 pin male RS422 HMI-CAB-C97
MX, EX 4 plated wires RS-422 HMI-CAB-C96
Toyopuc Toyopuc PC1 3 plated wires RS-422 Half Duplex HMI-CAB-C113
Toyopuc PC2F 4 spade lug RS-422 Half Duplex HMI-CAB-C114
Uni-Telway TSX37 Series 8 pin male mini-DIN HMI-CAB-116

Hand Held QuickPanel
The Hand Held QuickPanel combines a 6" Passive STN LCD Color or Monochrome
LCD flat panel display with a resistive touch panel, 11 programmable function keys, and
a Push Lock switch into a compact package. The unit is housed in an ultra thin body with
a wrist strap for a firm grip and hold. An operator keypad on the front (OP) or a switch
under the hand grip will enable the touch screen and keypads. The unit is compatible with
Quick Designer Advanced Software, providing support for over 25 PLC drivers.
The Hand Held QuickPanel connects to a Junction Box through the HMI-CAB-A02
Interface Cable. The Junction Box, HMI-JBX-201, has terminal blocks for 24VDC, Push
Lock switch contacts, a buzzer, and other control signals. Standard PLC cables connect to
the Junction Box 25 pin female connector for easy connection to your PLC.
INTERFACE
24VDC
TERMINALS
PLC Cable
OP. F1
F7 F2
F8 F3
F9 F4
HMI-CAB-A02 Standard TCP
F10 F5 HMI-JBX-201 Communications Cable
F11 INTERFACE
F6
JUNCTION HMI-CAB-Cxxx
CABLE
BOX
Installation
Before starting the installation process, make sure you have the following parts.
QPH-2D100-L2P 6”Monochrome LCD Hand Held QuickPanel
or
QPH-2D100-S2P 6”Color STN LCD Hand Held QuickPanel
HMI-CAB-A02 Cable
HMI-JBX-201 Junction Box
510-1000-004 24VDC 1.3A Power Supply (or equivalent)
Interface Cable
The Interface Cable connects the Hand Held QuickPanel to the Junction Box. All of the
interface signals, power, and control signals are contained in the interface cable.
Remove the access cover from the back of the display.
OPERATOR
ACCESS COVER SWITCH
Locate the connector marked CN1. The connector marked CN2 is the download port.

CN2 CN1
Connect one end of the HMI-CAB-A02 cable to the CN1connector. Route the cable
under the gasket and along the molded cable channel. Replace the access cover. The other
end of the cable will be connected to the 36 pin connector on the HMI-JBX-201 Junction
Box.
*You can leave the cover off temporarily if you intend to use the CN2 download port for
loading an application. Keep the access cover in place to provide cable strain relief.
Junction Box
The junction box provides a signal connection system between the Hand Held
QuickPanel and the PLC. It provides mating connectors for the cable from the Hand Held
QuickPanel and a 25 pin female connector for all standard Total Control PLC cables. The
Junction Box also has terminal connections for control signals and power input for the
Hand Held QuickPanel. Connect the HMI-CAB-A02 Cable to the 36 pin connector on the
HMI-JBX-201 Junction Box.
The Junction Box is mounted to a panel using 0.5” standoff fasteners. The Junction Box
dimensions and terminal locations are shown in the following drawing.
5.200
4.700
TO PLC
TO QUICKPANEL PC BOARD
FASTENER
0.5 LONG
36 PIN MALE
25 PIN FEMALE
0.143 THRU
HOLE
3.200 2.700
1 1 1
+ _ G
OPG
OPC
BZG
DG0
DG1
DC0
DC1
ESA
ESB
BZ
24VDC

24 VDC Power
Use the 510-1000-004 24VDC 1.3A Power Supply or equivalent. Connect the leads to
the screw terminals on the Junction Box. Power is supplied to the Hand Held QuickPanel
through the HMI-CAB-A02 Interface Cable.
PLC Cable
Connect a standard Total Control PLC interface cable to the 25 pin female connector on
the Junction Box. These cables can be identified by their HMI-CAB-xxxx part number
printed on the cable. The cable ends are marked to indicate which end goes to the PLC
and which goes to the QuickPanel.
Beeper Connection
The screen beeper can be tied to an external beeper or other sound device. Remember that
the beeper is enabled or disabled by the setting in the Touch Screen dialog box. When the
beeper is enabled, touching the screen will activate the external signal. This is an open
collector output. See the sample beeper connection in the next drawing.
1
BZG
DG0
DG1
DC0
DC1
BZ
5-24V
0.1~0.3A
Operator Button Connection

Pressing the OP button on the front of the display or pressing the operator switch under
the hand grip will activate the Operator signal. This is an open collector output. See the
sample operator button connection in the next drawing.
1
OPG
OPC
ESA
ESB
5-24V
0.1~0.3A

Emergency Button
The emergency button is a normally closed contact switch located on the front of the unit.
Pressing the button will lock it in the open contact position. Rotate the switch knob to
reset it to the normal position. The contact terminals and sample wiring are shown below.
1
OPG
OPC
ESA
ESB
DC30V
0.3A
Custom Cables
The following drawing shows the cable connector and pin assignments for the Hand Held
Quick Panel. Use this cable drawing when you need to create custom cable sets.
1 RS RS232C
2 CS RS232C
18 3 CD RS232C
36 4 VCC 5V 0.1A
5 TRMX RS422
6 RDA RS422
7 SDA RS422
8 CSA RS422
9 ERA RS422
10 DOUT1C DOUT1
11 DOUT0C DOUT0
12 OP.C OP. (Operator Switch)
13 BUZZ OUT
14 EMG A A (E-Stop)
15 NC
16 +24v
17 +24V
18 +24V
19 SD RS232C
20 RD RS232C
21 ER RS232C
22 SG
23 NC
24 RDB RS422
25 SDB RS422
26 CSB RS422
27 ERB RS422
28 DOUT1GND DOUT1
29 DOUT0GND DOUT0
30 OP.GND OP. (Operator Switch)
31 BUZZ GND
19 32 EMG B B (E-Stop)
1 33 NC
34 0V 0V
35 0V 0V
36 0V 0V
Connector: HONDA PCR-E36FS 36 PIN

Shell:HONDA PCS-E36LA
Cable: MHOTRONICS FURUKAWA OAW(C)-SB-18P
Project Setup
Setup begins with selecting the QuickPanel HandHeld in the Project Setup menu under
Display Device. The new selections will be shown as:
QUICKPANEL 6” HandHeld Color
QUICKPANEL 6” HandHeld Monochrome
Selecting a Hand Held unit will cause some changes in various dialog boxes. Below is the
Touch Screen Configuration dialog box. Note the Keyboard attached selection is
permanently checked and grayed out.
Note the addition of a new checkbox labeled Operation Switch Off. The Hand Held is
equipped with an OP (operation) keypad on the front of the unit, and a finger switch
(sometimes known as dead man switch) located on the back under the left hand grip.
Pressing either switch will enable the touch screen. Checking the Operation Switch Off
will disable the switch function and the touch screen will always be enabled.
Function Keypads
A 6” QuickPanel can be used with the optional keypad assembly to enhance the operation
of the QuickPanel. You must check the Keyboard attached checkbox in the Touch Screen
Configuration dialog box to enable the Advanced button in several operator dialog boxes.
The Advanced button allows simulating operators and assigning keypads to screen
operators. The Hand Held unit also has keypads (called Function keys) around the
display, but when you select it as the display device, the Keyboard attached checkbox is
permanently checked.
The Function keys are used in place of the touch screen or along with the touch screen.
For example, instead of touching the QuickPanel screen to activate a Push Button, you
can press a Function key. You can also assign a Function key to simulate a push button,
selector switch, goto panel button, numeric data entry, print screen button or word button.
Simulating operators saves screen space.
The following panel operators (ones with a bezel) can be assigned to Function keys:
Push Button
Illuminated Push Button
Numeric Data Entry (with external numeric keypad)
Selector Switch
Word Button
Goto Panel Button
Print Screen
Alarms
The addition of Function keys to the standard touch screen allows several options. For
example, a Push Button can:
- work normally without using a Function key.
- be assigned to a Function key.

- work normally and with a Function key.
- be simulated by a Function key but not appear on the touch screen.
Keypad Layout
The diagram below shows the physical layout of the keypads. The keypads are marked
F1 through F11. The keypad marked OP is the Operator keypad, which works the same
as the switch under the hand grip.
Error! Objects cannot be created from editing field codes.
Assigning Keypads
You can assign a keypad to a button by clicking the Advanced button in the settings
dialog. Clicking the Advanced button displays the Advanced Settings dialog box.
In the following example, a button was assigned to Function key F1. Once a button is
given a Key Assignment, the Touch disabled checkbox becomes active. A button object
can be connected to the touch screen and a Function key simultaneously. If you click the
Touch disabled checkbox, the touch screen will be disabled for the button and the button
will only work with the assigned Function key. A list of all Function key assignments can
be displayed by going to the Tools menu and selecting Keypad Assignments.
The Illuminated Push Button, Selector Switch, Goto Panel Button and the Word Button
work the same way.
Function Keys and Alarms

When an alarm is triggered, the alarm message appears on the panel in an alarm window.
The operator touches the window area to activate the alarm management page. If you
assign a Function key to an Alarm window, the alarm management page will have an
additional row showing Function key assignments.
The alarm management page function keys (Up, Down, Ack, etc.) will now have
permanent Function key assignments. Up is F1, Del is F3 and so on. The touch screen
and the Function keys work in parallel. If the touch screen is disabled, only the Function
keys will operate the alarm page functions.

ACTIVE ALARMS
09/19 13:28 ALARM TEXT MESSAGE #1
09/19 13:40 ALARM TEXT MESSAGE #2
Up Down Ack Del Ack Del MODE DONE

All All
F0 F1 F2 F3 F4 F5 F6 F7
Simulating Panel Objects with Function Keys

You can assign a Function key to simulate a panel object, even though there is no panel
object visible on the screen. You can assign one of the Function keys to simulate the
following panel operators:
Push Button
Goto Panel Button
Print Screen Button
Word Button
Selector Switch
Numeric Data Entry
To create a simulated panel object, go to the TOOLS menu and select Keypad
Assignments.
The keypad key assignment dialog box appears.
The first operation is to select which Function key will be assigned to the simulated panel
operator. Click the down arrow in the Key list box then click an unassigned Function key.
Next, select one of the operators to simulate by clicking a button in the Key Assignment
area. When you click one of the simulate keys, the rest of the buttons will be grayed out.
In the following example, Function key F3 has been assigned to a Simulated Push Button.

Click the Attributes button to open the settings dialog for the selected item. In this
example, clicking the Attributes button will open the Push Button settings dialog. Enter
the tag information and click the OK button.
Now when you press the F3 Function key, a Push Button operation is simulated.
Viewing Keypad Assignments

To view the keypad assignments, go to the View menu and click the Object Key Display.
The keypad tag display is similar to the object tag display.
The keypad tag is displayed in the bottom left corner of the operator and provides a quick
visual check to see which panel operators have Function keys assigned.

Video QuickPanel
The Video display QuickPanel is a special member of the QuickPanel family. Real time
video display can be added to control panels for another view into your control process.
The Video QuickPanel is a standard 10.5” TFT Active Color display with a resistive
touch screen.
The video display can be selected to cover all panel objects, to display in objects of
selected color, or have selected colors appear through the video.
Installation
The installation of the 10.5” display is the same as other 10.5” Color displays, except for
the addition of the video input signals. In the Setup dialog box, select the QuickPanel
10.5" Color Video. This selection automatically adds the video icon to the tools menu.
Video Inputs
The Video QuickPanel has the standard serial, printer and tool ports. It also has three
NTSC BNC video inputs. The following drawing shows the location of the ports and
input connectors.
SERIAL PRINTER TOOL
PORT PORT PORT
CH0 CH1 CH2

VIDEO VIDEO VIDEO
The video source must be NTSC. The video output from a camcorder or VCR is usually
an RCA phono plug type connector. An easy way to connect these video sources is by
adding an RF adapter to the Video QuickPanel. A typical phono plug to BNC connector
can be found at a local Radio Shack under the part number 278-254. Also, many
computer stores sell BNC cables for use in networks. These cables can be used to connect
video signals that require BNC style connectors.

Video Display
To add a video operator to a panel, select the video icon from the floating tools
menu. Move the cursor to the panel area where the video will appear and click the mouse.
The video will be displayed in a 300W x 200H area, along with operator buttons and
legend data. A sample video display with two buttons is shown below.
VIDEO DISPLAY (0)
BUTTON(0) BUTTON(1)
The following Video Display Settings dialog is displayed.
Transparency Modes
Three modes are available for displaying the video. The options allow for a wide range
of display options and panel design functionality.
In the Video covers all objects mode, the video appears over all objects. You can hide a
button behind the display.
When you select Objects of this color appear through video or Video shows only in
objects of this color mode, the Video Display Settings dialog changes to show a color
selection option.
In the Video shows only in objects of this color mode, the video will be seen only when
an object of the selected color is in front of the video display (the object must be placed
in the foreground). For example, if you create a push button with a red legend plate and
the selected color is red, then the video will only be shown on the legend plate. The
video will not appear on parts of the push button that have a different color.

In the Objects of this color appear through video mode, any object of the selected color
will appear on the video display. For example, if you create a push button with a green
bezel, and the selected color is green, then the bezel part of the button will be seen on the
video display.
NOTE: In order for objects to work with transparency, they must be placed in the
foreground, or in front of the video display.
Number of Buttons
Select the number of buttons that will appear in the video display legend. The buttons are
located below the video display and will size as the legend plate is sized. The video
display will always remain 300x200 pixels. The buttons select different video sources.
Each button has its own legend plate with title.
No Title
Click on the No Title checkbox to remove the title from the legend plate.
Touch Input Off

Click on Touch Input Off to turn off the touch screen in front of the video display. This
does not effect objects around the video display window.
Legend Plate Settings

You can change the background and outline colors of the video display legend. Click the
Legend button to display the following dialog box.
The background and outline sections are shown in the next drawing.
VIDEO DISPLAY (0)
OUTLINE COLOR
BACKGROUND COLOR
BUTTON(0) BUTTON(1)

Titles
Click the Titles button to display the Title Settings dialog box. The number of buttons
selected will determine the number of legend plates. In the next drawing, two buttons
have been selected. Pressing button 0 will display legend plate 0, and button 1 will
display legend plate 1. You can customize the title for each legend plate.
VIDEO DISPLAY (0)
OUTLINE COLOR
BACKGROUND COLOR
TITLE
BUTTON(0) BUTTON(1)
Buttons
Click Buttons to display the Control Button Settings dialog. This dialog is used to setup
the buttons that appear below the video display. The buttons select which video source
channel is being displayed. You can customize the buttons for your application.
The Buttons No. information box displays the assigned button number. The Channel No.
list box selects the video source for the assigned button. Each button can select from
CH0, CH1, or CH2. Although the spin controls allow selection of CH3, it is not used in
this product.
Color Adjustments
Adjust the contrast, brightness, and color balance by going into setup mode. Setup mode
can be entered in the power up condition or during the RUN condition.
Power up the unit and press and hold the upper corners of the display. The unit will enter
the setup mode with the MAIN MENU displayed. Press button 1, INITIALIZE, then
button 1, SYSTEM ENVIRONMENT SETUP. Select button 6, VIDEO DISPLAY
ADJUSTMENT. Select the INPUT CHANNEL at the bottom of the screen by pressing
one of the channel numbers. The video will appear on the left side of the screen. Set the
brightness, contrast, and color or simply press the default button. When done, press the
SET button to exit the adjustment setup. Press MAIN MENU, then press RUN. The unit
will now go into normal RUN mode.

While the unit is in RUN mode, press the bottom corners and the upper right corner at the
same time. This is often called the three finger reset. Press the OFFLINE button on the
bottom of the screen. The unit will enter the setup mode with the MAIN MENU
displayed. Press button 1, INITIALIZE, then button 1, SYSTEM ENVIRONMENT
SETUP. Select button 6, VIDEO DISPLAY ADJUSTMENT. Select the INPUT
CHANNEL at the bottom of the screen by pressing one of the channel numbers. The
video will appear on the left side of the screen. Set the brightness, contrast, and color or
simply press the default button. When done, press the SET button to exit the adjustment
setup. Press MAIN MENU, then press RUN. The unit will now go into normal RUN
mode.
DO NOT CHANGE ANY OTHER SETTINGS IN THE SETUP MODE.

QuickPanel Mini
The QuickPanel Mini is a 6” LCD monochrome touchscreen product. The QuickPanel
Mini provides limited panel functionality with full PLC communications capabilities.
To select the QuickPanel Mini as the target display device, choose Setup and select
QuickPanel Mini 6” Monochrome as the Model.
Panel Operators
The QuickPanel Mini has a limited set of tools in the Toolbox. The operators that are
available for this product are the Pushbutton, Illuminated Pushbutton, Pilot Light, Local
Message Display, Selector Switch, Bitmap, Legend Plate, Text, Numeric Entry, Numeric
Display, and GoTo Panel.
Pointer Text Bitmap

Legend Push Illuminated
Plate Button Push Button
Pilot Message Selector
Light Display Switch
Goto Numeric Numeric
Panel Display Entry
Application Memory
The QuickPanel Mini provides a total of 5 panels to be used for an application. Objects
can be placed anywhere on a panel (including overlaying objects). Each panel does have
a limit to the number of objects that can be placed on each panel. Only 128 object
“functions” can be placed on a panel at one time. To check the number of functions
currently on the panel, click the check (doctor bag) icon. This feature is not
supported when panel objects are grouped.
The following dialog box appears, indicating the number of resource objects on the panel.

If the object function limitation is exceeded, a message will appear during the compile
stage of the download. The compiler will stop on the panel that has exceeded the
maximum panel count. The download will be aborted until the panel in error is
corrected.
The object function count for each object is listed below:
Pushbutton—3
Illuminated PB—4
Pilot Pilot—1
Numeric Display—1
Numeric Entry—3
Legend plate—0
Static Text—0
Message Display—2
GoTo button—3
Bitmap—0
Selector switch--4

NEMA 4X Bezels
Bezel Assembly Overview
The following diagram shows the basic elements of a bezel assembly. The basic assembly
is the same for all displays. The display is clamped to the stainless steel bezel by means
of a clamp bracket. A full size gasket seals the display to the bezel. The bezel is secured
to the panel by 10-32 x .50 threaded studs and nuts. The gasket also seals the bezel
assembly to the panel.
PANEL GASKET
NEMA 4X
BEZEL
BEZEL CLAMP
BRACKET
PANEL CUTOUT DIMENSION
CN1
CN2
QUICKPANEL jr.
Panel Cutout
Use the following dimension drawings to layout and cut the opening in your panel. The
dashed line in the drawing is the panel cutout. Mark and drill the 7/32" holes for securing
the bezel to the panel. Note that the hold down bracket fits inside the cutout.
HMI-BEZ-201: Bezel for 5" Displays

Use the following bezel drawing ONLY for the following displays:
QPJ-2xxxx-xxx

7.40"
7.125
6.625
6.3875
DRILL 7/32" HOLE FOR #10-32

THREADED STUD-6 PLACES
BRACKET CLAMP STUDS
#6-32 X .75
(NUTS ARE INCLUDED)
5.65"
HMI-BEZ-201
FACEPLATE
CUTOUT
HOLD DOWN
BRACKET GASKET HOLE FOR LED
.7375
.500
.000
4.375
.000
.500
.675
8.075
8.250
8.750

HMI-BEZ-202: Bezel for 9" Monochrome EL
Use the following bezel drawing ONLY for the following display:
QPI-xxxxx-Exx
11.527"
10.735
10.235
9.985

BRACKET CLAMP STUDS

#6-32 X .75
(NUTS ARE INCLUDED)
5.367 9.235
HMI-BEZ-202
FACEPLATE
CUTOUT
HOLD DOWN
.750
.500
.000
4.508
8.516
12.276
12.525
13.025
.000
.500
.750

HMI-BEZ-203: Bezel for 10.5" Color Displays
QPI-xxxxx-Sxx
QPI-xxxxx-Cxx
13.225"
11.790
11.290
9.423

BRACKET CLAMP STUDS

#6-32 X .75
(NUTS ARE INCLUDED)
5.895 10.295
HMI-BEZ-203
FACEPLATE CUTOUT
HOLD DOWN
.748
.500
.000
5.073
9.646
13.973
14.220
14.720
.000
.500
.748

HMI-BEZ-204: Bezel for 6" Displays
QPK-xxxxx-xxx
7.265"
7.562
7.062

BRACKET CLAMP STUDS
#6-32 X .75
(NUTS ARE INCLUDED)
5.975"
3.781 HMI-BEZ-204
FACEPLATE
CUTOUT
HOLD DOWN
.500
.000
4.437
.000
.500
8.375
8.875

HMI-BEZ-205: Bezel for 12.1” Displays
QPL-21100-C2P
14.750"
13.250
12.750
12.550

8.750
BRACKET CLAMP STUDS
#6-32 X .75
(NUTS ARE INCLUDED)
11.850
HMI-BEZ-205
FACEPLATE CUTOUT
4.500
HOLD DOWN
300-1000-076
.700
.500 300-1000-075
.000
10.750
5.500
15.500
15.750
16.250
.000
.500
.750

Assembly Procedure
Place the bezel face down on a non-abrasive surface. Place the display against the gasket
and make sure the LED on the faceplate aligns with the hole in the gasket and bezel.
Make sure the LED on the display aligns with the hole in the bezel.
Place the clamp bracket over the display and install the nuts on the studs. Finger tighten
the nuts. Check the alignment of the LED hole then tighten the nuts.
Make sure the clamp bracket is positioned as shown in the drawing.

Insert the bezel assembly into the panel cutout and install the 10-32 nuts.

Color/EL Panel Adapter
The HMI-ADP-001 Panel Adapter allows using an EL Unit in the Color Unit panel
cutout. The front adapter plate slips into the panel cutout made for a color unit. The rear
adapter plate is then bolted to the front adapter plate. The hole in the adapter plates will
exactly fit the EL unit.
CUSTOMER PANEL GASKET CUSTOMER PANEL
REAR PANEL
FRONT PANEL
LOCK NUTS
PANEL CUTOUT

Communication Options
Installing an Option Module on a QUICKPANEL jr.
Modules are installed by aligning the option module connector on the option module to
the connector on the display and pressing the two units together firmly. The option
module is secured by four screws.
Make sure you connect the ground wire from the module to the ground connection on
NOTE the power terminal.
Installing an Option Module on a QUICKPANEL

Remove the option module cover plate. Insert the option module tabs into the mating
slots in the display chassis. Align the option module connector with the mating connector
on the display. Press the module firmly into the display chassis and tighten the screws.

A-B Remote I/O Module
A-B Remote I/O Module for the QUICKPANEL jr.
The Remote I/O interface module for the QUICKPANEL jr. is shown below.
6.00" 1.44"
QUICKPANEL
Model: QPJ-ABR-201 Serial No: XXXXXX

Elec. Rating: 145 mA @ 5 VDC Mfg Date: XX/XX
to be nonhazardous. Port is for system set-up and diagnostics.

DO NOT connect/disconnect equipment unless area is known
Class I Groups A, B, C, and D, Division 2
UL LISTED 58JL UL IND. CONT. EQ. for HAZ. LOC.
C
WARNING EXPLOSION HAZARD

Transmit Indicator (TX) Blinking/On Transmitting to data link
Receive Indicator (RX) Blinking/On Activity on the data link
Fault Indicator (FLT) Red On solid No connection to data link

Transmit and Check wiring), PLC RIO not
4.20" Receive Off configured, or hardware failure
TX
Red On Solid No connection to data link RX
Receive blinking Check wiring, configuration,
baud rate FLT
Red Blinking Bad messages on the data link

Stations powered off, Incorrect
2
Transmit or
Recive station addresses, network not
terminated
blinking/On
1
A-B Remote I/O Module for the QUICKPANEL

The Remote I/O interface module is shown below.
Fault Indicator (FLT)
Receive Indicator (RX)

Transmit Indicator (TX)
QUICKPANEL
Elec. Rating: 145 mA @ 5 VDC
Model: QPI-ABR-201
UL LISTED 58JL
Receive Off
Transmit and
Red On solid
Blinking/On
Receive blinking
Red On Solid
Blinking/On
blinking/On
Recive
Transmit or
Red Blinking
C L
U IND. CONT. EQ. for HAZ. LOC.
Mfg Date: XX/XX

Serial No: XXXXXX
6.52"
terminated
station addresses, network not
Bad messages on the data link
configured, or hardware failure

Check wiring), PLC RIO not
No connection to data link
Activity on the data link

Transmitting to data link
baud rate
Check wiring, configuration,

1
2
FLT
RX
TX
4.61"
.939"
A-B Remote I/O Operation

The Remote I/O module is supplied with a screw-terminal connector block. The terminal
block is a standard Remote I/O wiring connector.
The RIO network must be connected in daisy chain fashion. This is done by connecting
devices in a serial manner from one device to the next. This method requires that you

never attach more than two cables to any one device. Special connectors are required to
connect each device.
There are no restrictions governing the spacing between each device, as long as the
maximum cable distance is not exceeded. The maximum cable distance is dependent on
the Baud Rate of the network.
57.6KBaud 3050 meters (10,000 ft.) 150 ohm
115.2KBaud 1525 meters (5000 ft.) 150 ohm
230.4KBaud 750 meters (2500 ft.) 82 ohm
Remote I/O wiring requires termination at each end of the cable between the BLUE Line
1 and CLEAR Line 2 wires. The shield wire must be connected to chassis ground only at
the scanner end of the RIO network. Refer to Allen-Bradley documentation for details.
A-B Data Highway Plus Module

A-B Data Highway Plus Module for the QUICKPANEL jr.
The A-B Data Highway Plus Module is shown below.
6.00" 1.44"
QUICKPANEL
Model: QPJ-ABD-201 Serial No: XXXXXX


UL LISTED 58JL U IND. CONT. EQ. for HAZ. LOC.
C L
Transmit Indicator (TX) Blinking/On Transmitting to data link
Receive Indicator (RX) Blinking/On Activity on the data link
Fault Indicator (FLT) Red On Solid No connection to data link
4.20" Check wiring or hardware failure
TX
Red On Solid Incorrect network connection RX
Transmit or Check wiring, configuration,
Receive blinking baud rate FLT
Red Blinking Bad messages on the data link 2

Transmit and Stations powered off, Incorrect
Recive station addresses, network not
blinking/On terminated
1

A-B Data Highway Plus Module for the QUICKPANEL
The A-B Data Highway Plus Module is shown below.
Fault Indicator (FLT)
Receive Indicator (RX)

Transmit Indicator (TX)
QUICKPANEL
Elec. Rating: 145 mA @ 5 VDC
Model: QPI-ABD-201
UL LISTED 58JL
Red On Solid
Blinking/On
Receive blinking
Transmit or
Red On Solid
Blinking/On
blinking/On
Recive
Transmit and
Red Blinking
C L
U IND. CONT. EQ. for HAZ. LOC.
Mfg Date: XX/XX

Serial No: XXXXXX
6.52"
terminated
station addresses, network not
Bad messages on the data link
Check wiring or hardware failure

Activity on the data link
Transmitting to data link

baud rate
Check wiring, configuration,
Incorrect network connection

1
2
FLT
RX
TX
4.61"
.939"
A-B Data Highway Plus Module Operation

The QUICKPANEL can communicate on the Data Highway Plus Local Area Network
(LAN) through a serial port connection to an external Data Highway Plus Module or
through a Data Highway Plus Module attached to the QUICKPANEL.
The following drawing illustrates a Data Highway Plus connection between a
QUICKPANEL equipped with an optional Data Highway Plus Module and a PLC-5.
QUICKPANEL
A-B
DATA PLC-5
HIGHWAY FAMILY
PLUS
MODULE
PCL
PORT
CN1

The following drawing illustrates a Data Highway Plus connection between a
QUICKPANEL, a 1770-KF2/B and a PLC-5. The QUICKPANEL utilizes a serial
connection to an A-B 1770-KF2 Interface Module. Some models of the PLC-5, such as
the PLC-5/30, have a DF1 port that can be used for direct connection to the
QUICKPANEL. Use an HMI-CAB-C51 cable to connect the QUICKPANEL to the
1770-KF2 Module.
QUICKPANEL HMI-CAB-C51
A-B
PLC-5
FAMILY
A-B 1770-KF2 (B) PCL

PORT
CN1
The following drawing illustrates a connection between a QUICKPANEL, a 1785-KE

Module and a Data Highway Plus link. Use an HMI-CAB-C55 cable to connect the
QUICKPANEL to the 1785-KE Module.
QUICKPANEL HMI-CAB-C55
DATA
HIGHWAY
PLUS
A-B
MODULE
PLC-5
1785-KE
FAMILY
DATA
HIGHWAY
PLUS PCL
CN1
PORT

CANopen Module
CANopen Module on a QUICKPANEL jr.
Attach the power wires to the terminal block on the display. Align the option module
connector with the mating connector on the display. Press the module firmly into the
display chassis and tighten the screws. The option module is shown below.
SLAVE
6.00 1.44
TOTAL CONTROL PRODUCTS, INC.

2001 N. JANICE AVE. MELROSE PARK, IL. 60160
MODEL: XXXXXXXXXXXXXXXXXXXXXX
SERIAL NO.: XXXXXX
MFG. DATE: XX/XX/XX VERSION: XXXX
23
456
SLAV E ADDR LO
901
78
23
456
SLAV E ADDR HI
901
78
4.20 23 BAUD RATE
901
456
78
PWR
STA
BUS
CAN OPEN
24 VDC
+ -
RED
GRN
BLK
CANopen Module on a QUICKPANEL

The CANopen Module is shown below. The address and baud rate switches are located
on the edge of the module. The legends for the connector and the switches are printed on
the top of the module.

2001 N. JANICE AVE., MELROSE PARK, IL 60160
Model: QPI-COS-201 Serial No: XXXXXX
SLAVE ADDR LO 23
01
456
9
78
4.61"
23
01
SLAVE ADDR HI
456
9
78
23
01
45 6
BAUD RATE
9
78
PWR
BUS
STA
CAN OPEN
6.52" 1.672"

Module Configuration
The module can be configured by selecting the address and baudrate in the Protocol setup
for Quick Designer. When the project is downloaded to the QuickPanel the module and
the QuickPanel both become configured.
The module also supports Node Address and Baudrate setting via the rotary switches on
the module.
901 901 901
23
23
23
78
78
78
456 456 456
SLAV E ADDR LO
SLAV E ADDR HI
CAN OPEN
BAUD RATE
STA
BUS
PWR
Address
The address setting is selected by two rotary switches marked Address High and Address
Low
Node Address Address High Address Low
0 0 0
1 0 1
2 0 2
….
61 6 1
62 6 2
63 6 3
Baud Rate
The Baud rate is selectable from 10 Kbps to 1 Mbps by the rotary switch marked Baud
Rate.
Baud Rate Rotary Switch

N/A 0
10K 1
20K 2
50K 3
125K 4
250K 5
500K 6
800K 7
1M 8
N/A 9
LEDs
There are three LEDs on the module to indicate module status. See the drawing below for
the location of the LEDs. The three LEDs are:
STATUS Red/Green Red flashing: Recoverable fault
Red solid: Critical module fault
Green flashing: On-line but not connected
Green solid: On-line, link okay, connected
BUS Red OFF: Address DIP switch is valid
ON: DIP switch not valid
POWER Green ON = Power On
OFF = Power OFF

Connector Diagram
9-pin D-sub Signal Description
1 -- reserved
2 CAN_L CAN_L bus line (low)
3 CAN_GND CAN ground
4 -- reserved
5 CAN_SHLD CAN shield (optional)
6 GND Optional ground
7 CAN_H CAN_H bus line (high)
8 -- reserved
9 CAN_V+ Optional CAN external power supply.
If this is the last unit on the network, the network must be terminated with a 124 Ohm
resistor between Pins 2 and 7.

DeviceNet Module
DeviceNet Module for the QUICKPANEL jr.
Attach the power wires to the terminal block on the display. Align the option module
connector with the mating connector on the display. Press the module firmly into the
display chassis and tighten the screws. The option module is shown below.
SLAVE
6.00 1.44

1 2 3 4 5 6 7 8
ADDRESS
SERIAL NO.: XXXXXX
STATUS RATE
ADDRESS BAUD
4.20
ON
POWER
WARNING EXPLOSION HAZARD V+
DO NOT connect/disconnect equipment unless area is known CAN H
SHIELD
CAN L
V-
24 VDC
+ -
RED
GRN
BLK
DeviceNet Module Configuration

the QuickPanel are both configured. To use this feature, set all the DIP switches to the
ON position.
The module also supports node address and Baudrate setting via the DIP switch on the
module. The address setting on the DIP switch is binary coded with LSB to the right. See
the DIP switch drawing in this section.
Address Set DIP 3-8
0 000000
1 000001
2 000010
61 111101
62 111110
63 111111

There are three different baudrates for DeviceNet; 125k, 250k, 500kbits/s. Choose one of
them by setting the DIP switch before configuring. When the DIP switch is in the ON
position it is a logical "1". See the DIP switch drawing in this section. Set the switches to
the ON position for software configuration.
Baudrate bit/s Set DIP 1-2
125k 00
250k 01
500k 10
Reserved 11
ADDRESS Red OFF: Address DIP switch is valid
ON: DIP swtich not valid
OFF = Power OFF
1 2 3 4 5 6 7 8
ON
ADDRESS BAUD ADDRESS

STATUS RATE
POWER
DeviceNet Module for the QUICKPANEL

DeviceNet Module Options

The DeviceNet Module is shown below. The address and baud rate DIP switches are
located on the edge of the module. The legends for the connector and the DIP switches
are printed on the top of the module.

4.61"
BAUD
POWER
V+
CAN H
TOTAL CONTROL PRODUCTS, INC. SHIELD

2001 N. JANICE AVE., MELROSE PARK, IL 60160 CAN L
Model: QPI-DEV-202 Serial No: XXXXXX
V-

C L
6.52" 1.672"
the QuickPanel are both configured. To use this feature, set all the DIP switches to the
ON position.
The module also supports node address and Baudrate setting via the DIP switch on the
module. The address setting on the DIP switch is binary coded with LSB to the right. See
the DIP switch drawing in this section.
Address Set DIP 3-8
0 000000
1 000001
2 000010
61 111101
62 111110
63 111111
There are three different baudrates for DeviceNet; 125k, 250k, 500kbits/s. Choose one of
them by setting the DIP switch before configuring. When the DIP switch is in the ON
position it is a logical "1". See the DIP switch drawing in this section. Set the switches to
the ON position for software configuration.
Baudrate bit/s Set DIP 1-2
125k 00
250k 01
500k 10
Reserved 11
ADDRESS Red OFF: Address DIP switch is valid
ON: DIP swtich not valid
OFF = Power OFF

1 2 3 4 5 6 7 8
ON
ADDRESS BAUD ADDRESS

STATUS RATE
POWER
Fieldbus Connector
The CAN connector is a standard 5-Pin removable connector that conforms to the
standard DeviceNet pinout. The connector and wire connections are shown below.
1 2 34 5
V+ RED
CANH WHITE
SHIELD BARE
CANL BLUE
V- BLACK
EDS File
The DeviceNet specification defines an Electronic Data Sheet (EDS) which is a simple
file format that allows product-specific information to be made available by vendors for
all other vendors. This makes possible user-friendly configuration tools that can be easily
updated without having to constantly revise the configuration software tool. The EDS
file is sent on diskette with each DeviceNet module. The diskette part number is 510-
1000-054.

Modbus Plus Adapter Module
Modbus Plus Adapter Module (QUICKPANEL jr.)
The following drawing illustrates the Modbus Plus Adapter for a QUICKPANEL jr.
display.
6.00" 1.44"
QUICKPANEL
Model: QPJ-MBP-201 Serial No: XXXXXX


C L
LED

NODE
ADDRESS
4.20" SWITCH
MODBUS
PLUS
Modbus Plus Adapter Module (QUICKPANEL)

The following drawing illustrates the Modbus Plus Adapter for a QUICKPANEL display.
MODBUS PLUS INDICATOR
Operation Indicator Pattern Status

Normal Link 6 Flashes/sec Normal operating state

Monitor Link 1 Flash/sec Building active node table
attempting normal operation
Never Getting Token 2 Flashes/sec then off 2 sec Open circuit or defective
termination
Sole Station 3 Flashes/sec then off 1.7 sec Open circuit or defective
termination
4.61"
Duplicate Station 4 Flashes/sec then off 1.4 sec Change device address
NODE ADDRESS SETTINGS
Address Switch Position

123456
Notes:
1 000000 MODBUS PLUS
Examples of switch setting
2 100000 CONNECTOR
for node addresses. "0"
.. ............... AS-MBKT-085
position is toward printed InLine Connector
circuit card. Add one to the 26 100110
.. .............. AS-MBKT-185
binary value switch for the Terminating Connector
desired address. 64 111111
QUICKPANEL
Model: QPI-MBP-201 Serial No: XXXXXX


C L
6.52" 1.672"
Modbus Plus Operation

Modbus Plus is a local area network system designed for industrial control applications.
A network is a group of nodes on a signal path that is accessed by the passing of a token.
A token is a group of bits that is passed in sequence from one device to another on a
single network, to grant access for sending messages. While holding the token, a node
initiates message transactions with other nodes. Each message contains routing fields that
define its source and destination. A node is any device that is physically connected to the
Modbus Plus cable. Up to 32 devices can connect directly to the network cable over a
length of 1500 feet. Each node is identified by a unique address assigned by the user.

The network bus consists of twisted-pair shielded cable run in a direct path between
successive nodes. The minimum cable length between any pair of nodes must be at least
10 feet. The maximum cable length between two nodes is the same as the maximum
section length of 1500 feet. The node at each end of a section uses a terminating
connector, which provides resistive termination to prevent signal reflections on the
network bus. Terminating connectors have a molded shell that is light gray in color. The
other nodes use an inline connector which is dark gray.
Network cables are NOT supplied by Total Control Products, Inc. Order the following
cables from your Modbus Plus distributor.
Inline Connector, AS-MBKT-085
Terminating Connector, AS-MBKT-185.
Modbus Plus Network

Each node has an LED indicator that flashes patterns to show its status on the network. A
simple network consists of two or more nodes connected to a single section.
10 feet min. 10 feet min. 10 feet min.
NODE 10 NODE 5 NODE 30 NODE 2
984-385...785 QUICKPANEL 984-385...785 984-385...785

PROGRAMMABLE OPERATOR PROGRAMMABLE PROGRAMMABLE
CONTROLLER INTERFACE CONTROLLER CONTROLLER
= TERMINATING CONNECTOR = INLINE CONNECTOR
Diagnostic LED
The LED is controlled by the on-board processor and displays node status by flashing
repetitive patterns.
Six flashes per This node is working normally. Receiving and passing the token. All
second. nodes should be flashing this pattern.
Flash every 1 sec. Monitor Link Operation. This node is in the MONITOR_OFFLINE
state, where it must monitor the link for 5 seconds, and it is not allowed
to transmit any packets out onto the link.
2 flashes, off 2 secs. Never Getting Token. This node is permanently in the MAC_IDLE. This
node hears other nodes on the link pass the token to themselves, but the
token is never passed to this node. This node may have a bad transmitter.
3 flashes, off 1.7 Sole Station. This node is not hearing any other nodes so it is
secs. periodically claiming and winning the token, and then finds there is no
other node to pass it to. This node may have a bad receiver.
4 flashes, off 1.4 Duplicate Station. This node has heard a valid packet that was duplicate-
secs. node-address sent from another node on the link that is using the same
link address as this node. This node is now in the

DUPLICATE_OFFLINE state where it will remain passively monitoring
the link, until the duplicate node is not heard from for 5 seconds.
Station Address Switches

Station Address Switch Position
1 2 3 4 5 6
1 0 0 0 0 0 0
2 1 0 0 0 0 0
26 1 0 0 1 1 0
32 1 1 1 1 1 0
64 1 1 1 1 1 1
Note: add one to switch setting for desired address. Switch down = ON = 0.

Profibus Module
Profibus Module for the QUICKPANEL jr.
Align the option module connector with the mating connector on the display. Attach the
power wires to the terminal block on the display. Press the module firmly into the display
chassis and tighten the screws. Plug the power connector into the module. The option
module is shown below.
SLAVE
6.00 1.44

SERIAL NO.: XXXXXX
23
TERM ERR NODE ID

45
1
90
6
78
23
45
1
90
4.20
6
78
PWR
DIA
ON
ProfiBus
24 VDC
+ -
RED
GRN
BLK

Profibus Module for the QUICKPANEL
The Profibus module is shown below. The module contains a terminator switch marked
TERM. Move the switch to the ON position to enable the terminator resistors. Use the
two rotary switches to set the NODE ID address.

Model: QPI-PBS-202 Serial No: XXXXXX
23
01
456
TERM ERR NODE ID
4.61"
9
78
23
01
4 56
9
78
PWR
DIA
1
ON
ProfiBus
6.52" 1.672"
The three LEDs indicate power status (PWR), diagnostics (DIA), and error condition
(ERR).
ERR OFF= Normal Operation
ON=Bus is OFF or has an error
DIA Not used
POWER ON=Power On
OFF=Power OFF
NODE ID The rotary switch on the left is the x10 digit and the switch on the
right is the x1 digit. Therefore, is the left switch is set to 5 and the
right switch is set to 3, then the address is 53.

GE Genius Adapter Module
GE Genius Adapter Module (QUICKPANEL jr.)
The following drawing illustrates the GE Genius Adapter for a QUICKPANEL jr.
display.
QPJ-GEG-201
be earth grounded
O terminal must
grounding strap
Do not remove
WARNING
XXXXX XXXXX
WARNING EXPLOSION HAZARD COM OK

to be nonhazardous. Port is for system set-up and diagnostics. GENI OK
SHIELD OUT -4 4
SHIELD IN -3 3
SERIAL 2 -2 2
SERIAL 1 -1 1
GENIUS
GE Genius Adapter Module (QUICKPANEL)

The following drawing illustrates the GE Genius Adapter for a QUICKPANEL display.
SERIAL 1
SERIAL 2
SHIELD IN
SHIELD OUT
-1
-2
-3
-4
GENI
COM
2
3
4
1
GENIUS
OK
OK

GE Genius Module Dimensions
For QUICKPANEL jr.
5.350
1.200
.000
.000
.000 .000
COM OK
GENI OK
4
3
2
1
GENIUS
4.200 4.200
For QUICKPANEL
1.164
6.865
GENI
COM
3
2
4
1
GENIUS
OK
OK
.000
.500
4.610
.000

Cable Connection
Connect the devices as described below.
QPJ-GEG-201
XXXXX XXXXX
SHIELD OUT -4
SHIELD IN -3
SERIAL 2 -2
SERIAL 1 -1
QUICKPANEL
GE Fanuc
QUICKPANEL jr. GE Fanuc Series 90-30
CAUTION
The bus shield wires are not insulated; do not permit them to touch other wires or
terminals. Spaghetti tubing should be used to cover these wires.
Connect Serial 1 terminals of adjacent devices and the Serial 2 terminals of adjacent
devices.
Connect Shield In to the Shield Out terminal of the previous device. (For the first device
on the bus, Shield In is not connected.)
Connect Shield Out to the Shield In terminal of the next device. (For the last device on
the bus, Shield Out is not connected.)
FIRST LAST
DEVICE DEVICE
SERIAL SERIAL SERIAL SERIAL
1 1 1 1
SERIAL SERIAL SERIAL SERIAL

R R
2 2 2 2
SHIELD SHIELD SHIELD SHIELD

IN IN IN IN
SHIELD SHIELD SHIELD SHIELD

OUT OUT OUT OUT
For more information about the operation of the GE GENIUS module, see the
Communications User manual.

Interbus-S Module
I/O Network Operations
Network for I/O devices on an INTERBUS-S network are automatically determined by
their physical position in the network. This eliminates the need for manually setting
device addresses. The INTERBUS-S controller board performs an identification cycle
(ID) to determine the addresses. After the ID cycle is completed, the host control verifies
the network configuration. Once verified, the network is ready for operation.
The INTERBUS-S controller board connects to many types of PLC or computer-based
host controllers. The controller board performs all network functions independent of the
host controller. Advanced features of the INTERBUS-S controller board include peer-to-
peer communications, event processing, and logical addressing.
Connectors
Cable assemblies, cable and connectors can be obtained from several manufacturers. To
avoid intermittent communications on the network, always connect DO and /DO via the
same twisted pair. Likewise, always connect DI and /DI via the same twisted pair. In
addition, always connect both ends of the cable shielding to their prespective connector
housings or shield connection. A connection of 24 volts to data lines will permanently
damage the module.
Remote Out
Pair
Yellow
PIN 5 PIN 1 DO 1
Green
/DO 6 Pair
Gray
DI 2
Pink
/DI 7
COM 3 Brown
5
PIN 9 PIN 6 9
Male D-Sub Connector
Solder Side Housing
REMOTE OUT
Remote In
Pair
Yellow
Green
1 DO PIN 1 PIN 5
Pair 6 /DO
Gray
2 DI
Pink
7 /DI
Brown 3 COM
PIN 6 PIN 9
Connector Female D-Sub
Housing Solder Side
REMOTE IN
PLC Comm Errors

In the event of a communication problem, error messages are displayed on a status line
at the bottom of the display.
Error Displayed Definition
PLC COMM ERROR (02:FF:A0) Error initializing Anybus module
PLC COMM ERROR (02:FF:01) Incorrect Anybus module ID

PLC COMM ERROR (02:FF:02) Anybus module watchdog time-out (module lockup)
PLC COMM ERROR (02:FF:03) Network Error - Network not connected
Installing a Interbus-S Module on a QUICKPANEL

Interbus-S Module Options

The Interbus-S module is shown below.

4.61"
OUTGOING BUS
RC
INCOMING BUS

Model: QPI-DEV-202 Serial No: XXXXXX
C L
6.52" 1.672"
Installing a Interbus-S Module on a QUICKPANEL jr.

Align the option module connector with the mating connector on the display. Press the
module firmly into the display chassis and tighten the screws. Attach the power wires to
the terminal block on the display. The option module is shown below.

SLAVE
6.00 1.44

OUTGOING BUS
SERIAL NO.: XXXXXX
4.20
ERR
RC
BA
INCOMING BUS
24 VDC
+ -
RED
GRN
BLK

Keypad Option
This section covers the installation steps for the HMI-KPN-201. The installation steps are
essentially the same for the HMI-KPN-301 and HMI-KPN-302.
The keypad option adds 41 external keypads to extend the functionality of the
QuickPanel. There are programmable keypads around the touchscreen and a data entry
panel. Instead of touching the QuickPanel screen to activate a Push Button, you can
press an external keypad. You can also assign an external keypad to simulate a push
button, selector switch, goto panel button, numeric data entry, print button or word
button. Simulating operators saves screen space. The following picture shows the HMI-
KPN-201 keypad for use with 5" and 6" displays.
QUICKPANEL jr.
L3 R3
1 2 3
BK
L2 R2 4 5 6 SP
ENTER
7 8 9
L1 R1
+/- 0 . DONE
T0 T1 T2 T3 T4 T5 A0 A1 A2 A3
B0 B1 B2 B3 B4 B5 A4 A5 A6 A7
The optional keypad for QuickPanel displays is available in several versions:

HMI-KPN-201 5" and 6" Displays (except QuickPanel Mini)
HMI-KPN-301 9" displays
HMI-KPN-302 10.5" displays
Features:
26 Programmable Keypads
Numeric Keypad (Reserved Keys)
Removable Legends
Keypads can simulate panel operators
Keypads can be assigned to screen operators
The following panel operators can be assigned to external keypads:

Push Button
Illuminated Push Button
Numeric Data Entry (with external numeric keypad)
Selector Switch
Word Button
Goto Panel Button
Print Button
Alarms
When you add the external keypad to the standard touch screen, the panel operators can
be made to operate in several modes. For example, a Push Button can:

• work normally without using an external keypad.
• be assigned to an external keypad.
• work normally and with an external keypad.
• be simulated by a keypad but not appear on the touch screen.
The keypad designations are PERMANENTLY assigned, but the physical legends can be
changed to suit your application. That is, L3 will always be in the same physical location,
but the legend for L3 can be changed.
The keypads are divided into Reserved keys and Programmable keys. All of the keypads
around the display area are designated Programmable keys. The keypads A0 thru A7 are
programmable but are primarily used with Alarms. The numeric keypads, including the
blank keys above the numeric keypads cannot be assigned and are designated as
Reserved.
Keypad models HMI-KPN-301 (for 9” QuickPanels) and HMI-KPN-302 (for 10.5”
QuickPanels) must be configured with QuickDesigner version 3.4 and higher.
When using the HMI-KPN-301 or HMI-KPN-302 keypad with any ‘Series 2’ QuickPanel
(i.e. QPI-2xxxx-xxx), QuickDesigner version 3.4 requires a software update. This update
can be downloaded from the Total Control Products web site at www.total-control.com.
This update will not be required for QuickDesigner versions higher than version 3.4.
Keypad Installation
A rear view of the keypad assembly is shown below. The keypad encoder cover is shown
removed. JU2 jumper is used to enable/disable the keypad beeper. The factory installs the
jumper to enable the beeper.
The mask is designed to allow for differences in screen sizes between the 5” display and
the 6” display. The mask is left in place for 5” displays and removed for 6” displays. To
remove the mask, simply lift an edge and break the mask off at the perforation line.
Remove the two mounting bars and screws.
14 1
MOUNTING BAR
JU2 MASK FOR 5" DISPLAY

BEEP=ON
NO BEEP=OFF
JU2
J2
J1 MOUNTING BAR
Use the panel clamps supplied with the QuickPanel to attach the mounting bars to the top
and bottom of the QuickPanel. Make sure the mounting bars fit snug against the
QuickPanel case. Finger tighten the panel clamps.

The overlay on the keypad assembly will cover the touch screen so the touch screen and
the back of the overlay must be cleaned before assembly.
If you are installing a 6” display, make sure the mask is removed so that the entire screen
is visible.
Insert the QuickPanel with mounting bars onto the back of the keypad assembly. Make
sure the top of the display is located at the top of the keypad assembly. Install the
mounting bar screws. Finger tighten the screws.
Verify the QuickPanel is centered in the keypad assembly. Tighten the panel clamp
screws first, then tighten the mounting bar screws.
CONNECT TO
QP TOOL PORT
UNIT ACTIVE
(FLASH)
AUX TOOL
PORT
You MUST use the panel clamps to secure the QuickPanel to the mounting bars.
CAUTION Failure to use the clamps will cause premature failure of the overlay and the
keypads.

Keypad Cutout Dimensions
Use the cutout pattern to layout and cut the panel opening and screw holes. Install the
keypad assembly into the cutout.
9.55 (242.57)
8.53 (216.7)
4.35 (110.5)
0.13 .188
1.02 (4.8)
(3.3) (25.9)
R 0.13
(3.3)
CUTOUT DIMENSIONS FOR HMI-KPN-201

5.91 (150.1)
5.66 (143.8)
CUTOUT DIMENSIONS IN INCHES (MILLIMETERS)
5.21 (132.3)
PANEL CUTOUT FOR HMI-KPN-201 (5" and 6" displays)
15.75 (400.05)
10.5 (266.7)
5.25 (133.35)
0.250 .218
(6.35) (5.53)
5.375 (136.53)
CUTOUT DIMENSIONS FOR HMI-KPN-301/302

10.25 (260.35)
10.75 (273.05)
CUTOUT DIMENSIONS IN INCHES (MILLIMETERS)

STUDS ARE #10-32 X .625
5.375 (136.53)
15.251 (387.37) 0.250

(6.35)

PANEL CUTOUT FOR HMI-KPN-301 and HMI-KPN-302 (9" and 10.5" displays)
Keypad Cable Connections

A short cable is used to connect the keypad encoder to the QuickPanel. One end of the
cable is 9-pin and the other is 8-pin. The 9-pin connector is inserted into the down-facing
jack labeled (CONNECT TO QP TOOL PORT), while the 8-pin connector is inserted
into the QuickPanel tool port. The 8-pin connector on the keypad encoder labeled (AUX
TOOL PORT) is used to connect a download cable or printer.
Install the short cable between the keypad encoder and the QuickPanel tool port as shown
below.
CONNECT TO
CONNECT TO QP TOOL PORT
QP TOOL PORT
UNIT ACTIVE
(FLASH)
UNIT ACTIVE
AUX TOOL
(FLASH)
AUX TOOL PORT
PORT
Attach the +24VDC leads to the display. Apply power and verify the LED (UNIT
ACTIVE) on the keyboard encoder is blinking.
To download a file to the QuickPanel, connect the download cable to the AUX TOOL
PORT on the keypad encoder. Do not press any keypads while downloading files. You
can also disconnect the short cable from the QuickPanel tool port and connect the
download cable to the tool port. This method ensures no interruptions to the download
operation.
See the Quick Designer Panel Editor user manual, part number 800-1000-081, for
instructions on assigning keypads to touch screen operators.

Dimensions
QUICKPANEL DISPLAY
ENCODER
.75"
QUICKPANEL jr.
ENCODER
L3 R3
1 2 3
7.20"
BK
L2 R2 4 5 6 SP
ENTER
7 8 9
L1 R1
+/- 0 . DONE
T0 T1 T2 T3 T4 T5 A0 A1 A2 A3
B0 B1 B2 B3 B4 B5 A4 A5 A6 A7
.125"
11.30"
DIMENSIONS FOR HMI-KPN-201 (5" and 6" displays)
16.625
L3 R3
1 2 3
L2 R2 BK
4 5 6 SP
L1 R1 7 8 9
ENTER
11.625
+/- 0 . DONE
T0 T5
A0 A1 A2 A3
B0 B5 A4 A5 A6 A7
T1 T2 T3 T4 B1 B2 B3 B4
DIMENSIONS FOR HMI-KPN-301/302 (9" and 10.5" displays)

Maintenance Procedures
Mean Time Between Failures (MTBF)
The Mean Time Between Failures (MTBF) for the QuickPanel family of operator
interfaces is calculated to be in excess of 75,000 hours, and the experienced-based MTBF
is over 100,000 hours.
Model Numbers:
QPM-xxxxx-xxx
QPJ-xD100-x2P
QPK-xxxxx-xxx
QPH-2D100-x2P
QPI-xxxxx-xxx
QPL-2xx00-C2P
Replacing the Backlight Lamp

The backlight is a small florescent tube mounted near the top of the display screen. The
part numbers for the backlight tubes are:
10.5" Color STN (QPI-2xxxx-Sxx or TFT QPI-2xxxx-Cxx) HMI-CCT-201
5" Color or Monochrome (QPJ-2xxxx-xxx) HMI-CCT-202
6" Color or Monochrome (QPK-2xxxx-xxx) HMI-CCT-203
12.1” Color (QPL-21100-C2P) HMI-CCT-205
10.5” Color STN (QPI-3xxxx-Sxx) HMI-CCT-301
10.5” Color TFT (QPI-3xxxx-Cxx) HMI-CCT-302
6” Color or Monochrome (QPK-3xxxx-xxx) HMI-CCT-303
The 6" TFT backlight is not field replaceable, however, it is rated at more than 50,000
hours. When the CCFL tube eventually fails, the power indicator on the front of the unit
turns orange and the touch screen is disabled. The field replaceable backlight on the other
5" and 6" models is rated for 20,000 hours.
Use caution when opening this unit. Make sure the power has been turned OFF.
CAUTION
Allow the unit to cool before removing the backlight lamp.
High voltages are present when the power is ON.
1. Place the unit face down on a surface that will not scratch the front face. Use a small
screwdriver to unfasten the two screws at the upper rear sides of the unit.
2. Slowly pivot the rear panel open. It will support itself in the nearly vertical position.
3. Disconnect the lamp connector. Remove the clamp screw from the left side of the
lamp and remove the lamp. The lamp is press fit and may require some small force to
remove it.
4. Insert the new lamp and reconnect the connector.
5. Replace the rear cover and tighten the screws. Be careful not to get any wiring caught
between the front of the unit and the back cover.

Replacing the Touch Screen Overlay
The touch screen is made of a tough, flexible material that can withstand many chemicals
and hard use. After repeated use, the overlay may get scratched or damaged. It can be
replaced by simply peeling off the old overlay and carefully installing a new one. Contact
the factory for part numbers and prices.
1. Locate the starter hole in the lower left corner.
2. Peel up the corner of the overlay using a small pick.
3. Carefully peel the overlay from the unit.
4. Remove the backing material from the new overlay.
5. Align the overlay, making sure the LED hole is placed over the LED.
6. Press the overlay in place.
Touch Screen Covers

The touch screen is made of a tough, flexible material that can withstand many chemicals
and hard use. After repeated use, the overlay may get scratched or damaged. You can
protect the touch screen from abnormal use by adding a thin film over the touch screen.
When the film is worn out, simply peel it off and add a new one. The part number for
screen covers for the 12.1” display is HMI-COV-205.

Agency Approvals
The chart below shows the family of QUICKPANEL product types, agency approvals
and enclosure description.
Style Model # Catalog Number Agency Approval Enclosure
5” Mono 0680028-03 QPJ-2D100-L2P UL, cUL (UL File # E177256) UL 4X/12
QPJ-2D100-L2P CE IP65
0680028-03 GP270-LG31-24VP UL, cUL (UL File # E177256) UL 4X/12
GP270-LG21-24VP CE IP65
5” STN Color 0680028-04 QPJ-2D100-S2P UL, cUL (UL File # E177256) UL 4X/12
QPJ-2D101-S2P CE IP65
0680028-04 GP270-SC31-24VP UL, cUL (UL File # E177256) UL 4X/12
GP270-SC21-24VP CE IP65
6” 0880014-01 QPK-2D100-L2P UL (File # E177256) UL 4X/12
Monochrome QPK-2D100-L2P CE IP65
0880014-01 GP370-LG31-24V UL (File # E177256) UL 4X/12
GP370-LG21-24V CE IP65
2880011-02 QPK-3D200-L2P UL, cUL, CE (UL File # 182139) UL 4X/12, IP65
2880011-02 GP377-LG41-24V UL, cUL, CE (UL File # 182139) UL 4X/12, IP65
6” STN Color 0880014-02 QPK-2D100-S2P UL (File # E177256) UL 4X/12
QPK-2D101-L2P CE IP65
0880014-02 GP370-SC31-24V UL (File # E177256) UL 4X/12
GP370-SC21-24V CE IP65
2880011-01 QPK-3D200-S2P UL, cUL, CE (UL File #182139) UL 4X/12, IP65
2880011-01 GP377-SC41-24V UL, cUL, CE (UL File #182139) UL 4X/12, IP65
6” 0880042-01 QPM-2D100-L2P UL, cUL, CE (UL File # 171486) UL 4X/12, IP65
Monochrome 0880042-01 GP37W-LG11-24V UL, cUL, CE (UL File # 171486) UL 4X/12, IP65
6” 2880052-01 QPM-3D200-B2P UL, cUL, CE (UL File # 177793) UL 4X/12, IP65
Monochrome 2880052-01 GP37W2-BG41-24V UL, cUL, CE (UL File # 177793) UL 4X/12, IP65
Blue LCD
(Mini)
6” TFT 2880037 QPK-3D200-C2P UL, cUL, CE (UL File # 182139) UL 4X/12, IP65
2880037 GP377R-TC41-24V UL, cUL, CE (UL File # 182139) UL 4X/12, IP65
9“ EL QP1-31200-E2P 4X/12, IP65
GP477-EG11 4X/12, IP65
2780027-01 QP1-3D200-E2P UL, cUL, CE (UL File # 182139) UL 4X/12, IP65
2780027-01 GP477R-EG41-24V UL, cUL, CE (UL File # 182139) UL 4X/12, IP65
10.4” 088001-01 QP1-2D100-L2P UL, cUL, CE (UL File # 177256) UL 4X/12, IP65
Monochrome GP570-LG21-24VP UL, cUL, CE (UL File # 177256) UL 4X/12, IP65
10.4” STN 0680035-04 QP1-2D100-S2P UL, cUL, CE (UL File # 177256) UL 4X/12
Color 0680035-04 GP570-SC31-24V UL, cUL, CE (UL File # 177256) UL 4X/12
QP1-31200-S2P
GP577R-SC11
QP1-2D101-S2P CE IP65
GP570-SC21-24VP CE IP65
10.4” TFT QP1-31200-C2P
Color GP577R-TC11
2780027-02 QP1-3D200-C2P UL, cUL, CE (UL File # 182139) UL 4X/12, IP65
2780027-02 GP577R-TC41-24V UL, cUL, CE (UL File # 182139) UL 4X/12, IP65
12” TFT QPL-21100-C2P 4X/12 Self
Color Certified

GP675-TC11
2780025-01 QPL-2D200-C2P CE & UL/CUL (UL File# E171486) UL 4X/12, IP65
2780025-01 GP675-TC41-24VP CE & UL/CUL (UL File# E171486) UL 4X/12, IP65
Hand-held 0980011-01 QPH-2D100-L2P UL/CUL 1
Mono
GPH70-LG41-24VP UL/CUL
Hand-held 0980011-02 QPH-2D100-S2P UL/CUL 1
STN Color
GPH70-SC41-24VP UL/CUL
AB DH+ QPx-ABD-201 CE & UL/CUL (UL File# 177256) 1
Modules
AB RIO QPx-ABR-201 CE & UL/CUL (UL File# 177256) 1
Modules
GE Genius QPx-GEG-201 UL/CUL (UL File# 177256) 1
Modules
Modicon QPx-MBP-201 UL/CUL (UL File# 177256) 1
Modbus+
Profibus QPx-PBS-201/202 Investigating approvals 1
CANopen QPx-COS-201 Investigating approvals
DeviceNet QPx-DVN-202 Investigating approvals 1
Interbus-S QPx-IBS-201 Investigating approvals 1
UL/CUL 1604 CL 1, DV 2 (File #E177256 and File # E182139)

UL/CUL 1950 Listing - refers to Electrical Safety of information equipment
UL/CUL 1604 Listing - refers to Electrical Equipment that meets the Underwriter
Laboratory’s 1604 requirements for Class 1, Group A, B, C, and D, Division II
installations and are clearly marked with a label stating “Listed Industrial Control
Equipment For Hazardous Locations”. UL 1604 supersedes UL1950.
QUICKPANELs will have both UL and CUL listing. CUL listed products have been
tested with standards that meet the Standard Council of Canada requirements. Both
Underwriters Laboratories (UL) and CSA have been accredited by the Standard Council
of Canada. Therefore CUL listing is equivalent to the CSA marking.
Class 1 Division II Group A, B, C, D environment refers to a location in which
flammable gas may be present. During normal operation these gases are not present. If an
accident occurs allowing gas leakage, products listed for Class 1 Division 2 operation can
continue to operate without danger of igniting the flammable gas while the situation that
created the leak is repaired. These products are clearly marked for operation in this type
of environment. The table below shows the Group letter and defines the type of gas that
is in each group.
Group Material
A Acetylene
B Hydrogen
C Ethylene, Methyl Ether, Acetaldehyde
D Acetone, Gasoline, Methanol, Propane
CE - The European Union has created standards for key product sectors to eliminate
differing national requirements. The CE mark ( an abbreviation for the “Conformite
European” allows products to flow freely across those countries of the European Union.
These Quick Panels meet EN50082-2:1995, EN55022 Class A (1994), EN55011/A2
(1996) and EN55011 Class A (1998) requirements CE mark is needed on goods
including, control equipment entering a majority of the European Countries. As of
January 1, 1996 all control equipment needed to conform to the EMC directive
89/336/EEC and amended 92/31/EEC, 93/68/EEC that included EN 50082-2:1995 and

EN55022 Class A (1994), EN 55011/A2 (1996) and EN55011 Class A (1998)
requirements.

Specifications
6" STN Color

QPK-3D200-S2P
Voltage 24 VDC 50/60Hz
Power consumption 20W or less (TYP 13W)
Power failure immunity 20 ms max.
Withstand Voltage 1500 VAC (10ma max., 1 min)
Insulation Above 20Mohm at DC500V
(between charging and FG terminals)
Noise immunity Noise voltage: 1000Vp-p; Pulse length: 1µs; Arise Time: 1ns
Ratings Equivalent to IP65f (Limited to front face of QP installed in
panel)
Operating temperature 0 to 40°C
Storage temperature -20°C to 60°C
Operating humidity 20 to 85%RH (non-condensing)
Vibration 10 to 25 Hz (X, Y, Z directions 30 minutes each 19.6m/s2)
Dimensions 171mm(W)×138mm(H)×57mm(D)
Weight Less than 0.95kg (GP unit only)
Cooling Natural Air circulation
Installation Front Mount
Display type Passive STN COLOR
Pixel resolution 640 W x480 H
Colors 64 (RGB – 4 Levels)
Viewing area 8.48" W x 6.32" H, 10.5" diag.
(212mm x 158mm)
Touch panel type Resistive
Touch panel resolution 32 W x 24 H
Printer port No
Memory 1 Mb
Alarms Supported 768 (3 256-alarm files)
6" LCD Monochrome

QPK-3D200-L2P
Voltage DC 20.4V to DC 27.6V 50/60Hz
Power consumption 20W or less (TYP 13W)
Withstand Voltage AC 1000V-10mA 1 minute (between charging and FG
terminals)
Insulation Above 20Mohm at DC500V
(between charging and FG terminals)
panel

Dimensions 171mm(W)×138mm(H)×57mm(D)
Weight Less than 0.95kg (GP unit only)
Display type Monochrome LCD
Colors Black and White
(212mm x 158mm)
Printer port No
Memory 1 Mb
6" Mini Blue LCD

QPM-3D200-B2P
Voltage DC 20.4V to DC 27.6V 50/60Hz
Power consumption Under 20W (TYP 10W)
Withstand Voltage 1000VAC at 10 mA for 1 minute (between live wire and
grounding terminals)
Insulation Above 100M ohm at 500VDC (between live wire and grounding
terminals)
panel)
Operating temperature 0 °C to 50 °C
Dimensions W207mm[8.15in] x H157mm[6.18in]x D58mm[2.28in]
Weight Under 1.1kg [2.4 lb] (GP unit only)
Display type Monochrome – Blue LCD
Colors Blue and White
(212mm x 158mm)
Printer port No
Memory 1 Mb

12.1" Color TFT
QPL-21100-C2P
Voltage 85 to 132 VAC 50/60Hz
Power consumption 50 VA max.
Insulation 10 MΩ @ 500 VDC
Noise immunity 1200 V(p-p) 1 µs pulse
Ratings Suitable for IP65F, NEMA #250,

Type 4X/12 (Self Certified)
Storage temperature -10 to 60°C
Operating humidity 30 to 85% RH non-condensing
Vibration 10 to 25 Hz 2G on each of
X, Y, Z 30 min.
Dimensions 10.70"H x 13.62"W x 3.19"D
272mmH, 346mmW, 81mmD
Weight 8.4 lbs. (3.8 kg)
(+ option module)
Cooling Natural convection
Display type QPL-21100-C2P TFT COLOR
Pixel resolution 800 W x 600 H
Colors 64 (RGB – 4 Levels)
Viewing area 9.69" W x 7.26" H
(246mm x 184.5mm)
Printer port Yes (Serial/Parallel)
Memory 2 Mb
QPL-2D200-C2P
Voltage 20.4-27.6 VDC GP675-TC41-24VP

9" EL 10.5" Color STN/TFT
QPI-21100-E2P QPI-21100-S2P/C2P
QPI-31200-E2P QPI-31200-S2P/C2P
Voltage 85 to 132 VAC 50/60Hz 85 to 132 VAC 50/60Hz
Power consumption 50 VA max. 50 VA max.
Power failure immunity 20 ms max. 20 ms max.
Withstand Voltage 1500 VAC (20ma max., 1 min) 1500 VAC (20ma max., 1
min)
Insulation 10 MΩ @ 500 VDC 10 MΩ @ 500 VDC
Noise immunity 1200 V(p-p) 1 µs pulse 1200 V(p-p) 1 µs pulse
Ratings Suitable for IP65F, NEMA #250, Suitable for IP65F, NEMA
#250,
Type 4X/12 (Self Certified) Type 4X/12 (Self Certified)
Operating temperature 0 to 50°C 0 to 45°C
Storage temperature -10 to 60°C -10 to 60°C
Operating humidity 20 to 85% RH non-condensing 30 to 85% RH non-
condensing
Storage humidity 5 to 85% RH non-condensing 5 to 85% RH non-condensing
Vibration 10 to 25 Hz 2G on each of 10 to 25 Hz 2G on each of
X, Y, Z 30 min. X, Y, Z 30 min.
Dimensions 8.50"H x 10.79"W x 1.93"D 9.57"H x 12.48"W x 3.05"D
216mmH, 274mmW, 56.5mmD 243mmH, 317mmW,
85mmD
Weight 4.4 lbs. (2 kg) 6.6 lbs. (3 kg)
(+ option module) (+ option module)
Cooling Natural convection Natural convection
Installation Front Mount Front Mount
Display type Electroluminescent QPIXXXXXS2P = STN
QPIXXXXXC2P = TFT
Pixel resolution 640 W x 400 H 640 W x 480 H
Colors Amber + flash (amber) 8 solid + 8 flash
Viewing area 7.68" W x 4.8" H, 9" diag. 8.48" W x 6.32" H, 10.5"
diag.
(192mm x 120mm) (212mm x 158mm)
Touch panel type Resistive Resistive
Touch panel resolution 32 W x 20 H 32 W x 24 H
Printer port Yes (Serial/Parallel) Yes (Serial/Parallel)
Memory 1Mb (QPI-2), 2Mb (QPI-3) 1Mb (QPI-2), 2Mb (QPI-3)
Alarms Supported 768 (3 256-alarm files) 768 (3 256-alarm files)
QPI-2D100-E2P QPI-2D100-S2P/C2P
QPI-3D200-E2P QPI-3D200-S2P/C2P
Voltage 20.4-27.6 VDC 20.4-27.6 VDC
Power Consumption 50 Watts max. 50 Watts max.
Ratings NEMA Type 4X/12, IP65 NEMA Type 4X/12, IP65
GP470-EG21-24VP GP570-SC21-24VP
GP570-TC21-24VP
Voltage 20.4-27.6 VDC 20.4-27.6 VDC
Approvals CE Marked. EN50082-2:1995 CE Marked. EN50082-
2:1995
EN55022 Class A (94) EN55022 Class A (94)
10.5" Monochrome LCD

QPI-2D100-L2P, QPI-2D200-L2P

Voltage 20.4-27.6 VDC
Power consumption 50 Watts max.

Type 4X/12
Storage humidity 5 to 85% RH non-condensing
X, Y, Z 30 min.
Weight 6.6 lbs. (3 kg)
(+ option module)
Display type LCD Monochrome

Colors White/Black + Flash
(212mm x 158mm)
Memory 1 Mb

6" Color TFT
QPK-3D200-C2P
Power consumption 20 Watts or less (Typ: 13W)
Power failure immunity 2 ms or less
Ratings Suitable for IP65F

Operating Atmosphere Must be free of corrosive gasses
Grounding 100 Ohm or lees grounding resistance
Dust Under 0.1 mg/m3 (Non-conductive levels)
Dimensions 6.71" (W) x 5.43" (H) x 2.24" (D)
170. 5mm (W) x 138mm (H) x 57mm (D)
Weight 2.08 lbs. (950g or less) (Main unit only)
Display type TFT Color LCD
Pixel resolution 320 x 240 pixels

Colors 64 colors (RGB-4 levels)
Brightness 4 levels (via touch panel)
Backlight CCFL (lifespan = more thant 50,000 hours, when continuously lit)
Viewing area 4.53" (W) x 3.40" (H)
115.2mm (W) x 86.4mm (H)
Printer port Yes (Serial)
Memory 2 Mb

6" LCD Monochrome 6" STN Color
QPK-2D100-L2P QPK-2D100-S2P
Voltage 20.4-27.6 VDC 20.4-27.6 VDC
Power consumption 12 Watts max. 15 Watts max.
min)
NEMA rating 4X/12 4X/12

condensing
Storage humidity 5 to 85% RH non-condensing 5 to 85% RH non-
condensing
X, Y, Z 30 min. X, Y, Z 30 min.
Dimensions 5.43"H x 6.71"W x 2.24"D 5.43"H x 6.71"W x
2.24”D)
138mmH, 170.5mmW, 57mmD 138mmH, 170.5mmW,
57mmD
Weight 1.54 lbs. (<700g) 1.54 lbs. (<700g)
Display type LCD Passive STN LCD
Pixel resolution 240 H x 320 W 240 H x 320 W
Colors White/Black + flash 8 solid + 8 flash
Viewing area 4.53" (W) x 3.40" (H) 4.53" (W) x 3.40" (H)
115.2mm (W) x 86.4mm (H) 115.2mm (W) x 86.4mm (H)
Printer Port Yes (Serial) Yes (Serial)
Memory 1 Mb 1 Mb

6" Mini Monochrome
QPM-2D100-L2P
Ratings NEMA 12/4 self-certified, CE and UL 1950 Approved

Weight 1.65 lbs. (<700g)
Display type LCD
Pixel resolution 240 H x 320 W
Colors White/Black + flash
Viewing area 5" W x 4" H, 6" diagonal
Printer Port Yes (Serial)
Memory 5 Panels
Alarms Supported None

5" LCD Monochrome 5" STN Color
QPJ-2D100-L2P QPJ-2D100-S2P
Voltage 20.4-27.6 VDC 20.4-27.6 VDC
Power consumption 12 Watts max. 15 Watts max.
min)
NEMA rating 4X/12 4X/12

condensing
Storage humidity 5 to 85% RH non-condensing 5 to 85% RH non-
condensing
X, Y, Z 30 min. X, Y, Z 30 min.
Dimensions 5.00"H x 6.75"W x 2.125"D 5.00"H x 6.75"W x
2.125"D
127mmH, 172mmW, 54mmD 127mmH, 172mmW,
54mmD
Weight 1.54 lbs. (<700g) 1.54 lbs. (<700g)
Display type LCD Passive STN LCD
Pixel resolution 240 H x 320 W 240 H x 320 W
Colors White/Black + flash 8 solid + 8 flash
Viewing area 4" W x 3" H, 5" diagonal 4" W x 3" H, 5" diagonal
Printer Port Yes (Serial) Yes (Serial)
Memory 256K 256K
GP270-LG21-24VP GP270-SC21-24VP
Voltage 20.4-27.6 VDC 20.4-27.6 VDC
Approvals CE Marked. EN50082-2:1995 CE Marked. EN50082-
2:1995
EN55022 Class A (94) EN55022 Class A (94)

QPH Specifications
QPH-xxxxx-xxx
Voltage 20.4-27.6 VDC, 12W max (typ 10W)
NEMA rating 4X/12

X, Y, Z 30 min.
Weight 1.9 lbs. (870g)
Rating IP63, NEMA1
Display type Passive STN LCD Color
Pixel resolution 240 H x 320 W
Colors 8 solid + 8 flash
Viewing area 5" W x 4" H, 6.4" diagonal
Touch panel type Analog Resistive
Printer Port Yes (Serial)

QPV Specifications
QPV-2100-C2P
Voltage 85 to 132 VAC 50/60Hz
Power consumption 50 VA max.

Type 4X/12 (Self Certified)
X, Y, Z 30 min.
Weight 6.6 lbs. (3 kg)
(+ option module)
Display type 10.5" Color TFT
Colors 8 solid + 8 flash
(212mm x 158mm)
Touch panel type Analog Resistive
Memory 1Mb
Video Inputs 3 NTSC BNC

Exposed Material Chemical Resistance Chart
The following charts list the materials used in the construction of TCP products and rates
their resistance or susceptibility to chemicals commonly encountered in industry. The
information contained in the charts is based upon data supplied by the manufacturers of
the various materials and is believed to be accurate. The temperature, concentration or
combination with other chemicals can affect the way a particular chemical reacts with a
given material. Thus, the charts contained herein should only be used as a general guide
and not as an unqualified authority. All of the material resistance’s or susceptibilities
listed assume normal equipment operating temperatures. Additionally, one must be aware
that if a protective coating on a particular material is damaged, the substrate may be
adversely affected by an otherwise non-reactive chemical.
An Acceptable Resistance rating means that the chemical may remain in contact with the
exposed material indefinitely with no appreciable degradation of the exposed material.
A Marginal Resistance rating means that the chemical will not cause any appreciable
degradation of the exposed material on an intermittent basis or that only minor
degradation will occur that will not impair the performance of the material.
An Unacceptable Resistance rating means that the chemical will degrade the performance
of the exposed material to such a degree that the material no longer performs as designed.
A Not Tested rating simply means that the exposed material has not been tested for
resistance to a particular chemical.
QUICK PANEL, QUICK PANEL JR.
304 STAINLESS STEEL - 4X only GASKET B41NES

GASKET QPJ GASKET HMI
POLYESTER OVERLAY QP 4X MEMBRANE - 4X only
QP PLASTIC HOUSING QP TOUCH SCREEN
RTV SEALING COMPOUND

POLYESTER COATED PARTS
QP, ST PLASTIC HOUSING

POLYESTER OVERLAYS
QP, ST TOUCH SCREEN

304 STAINLESS STEEL
QP, ST 4X MEMBRANE
KEY:
SILICONE RUBBER
A = Acceptable Resistance
GASKET B41NES
M = Moderate Resistance
POLANE PAINT
U = Unacceptable Resistance
GASKET QPJ
LEXAN LENS
GASKET HMI
T = Not Tested
KEYPADS
O-RINGS
1,1,1 trichlorethane A U T U U T T T T T T T U T T
acetaldehyde A M T U M A T M T T A T U U T
acid, 10% acetic T T A U T M A U T A M T T M M
acid, 10% hydrochloric U T A U A A A U T A A T A A M
acid, 10% nitric A T A U M M A U T A M T A M M
acid, 10% sulfuric U T A U U T A U T A T T A M M
acid, concentrated acetic T T A U M U M U T A U T T T U
acid, concentrated hydrochloric U T A U T U M U T A U T A T U
acid, concentrated sulfuric U T A U U U M U T A U T A T U
acid, potassium T T A U T T T T T A T T T T T
alcohol, benzyl A T T M M T A U T A T T T T T
aliphatic hydrocarbons T T A T T A A T T A A T A T T
amines A M T M M T U U T T T T M T T
ammonia, 10% T A T A T U T U T M U T M T M
ammonia, concentrated M T T A T U T U T M U T M T U
ammonium hydroxide A M A A A T T M T T T T A M T
aromatic hydrocarbons T T M U U T U T T T T T U T T
benzene A T M U U A T U A A A T A U A
brake fluid A M T T T T T A A T T A T U T
carbon tetrachloride M U T U T T T M A M T T T U T
chloroform A T T U U T T U T T T T U U M
diethyl ether T M T T T A T T T T A T T T T
esters T T T T T T U T T U T T U T T
ethylene chloride A U T U U T T U T M T T U U T
gasoline A U A U U T U A A A T T U U T
halogenated hydrocarbons T T T T T T U T T A T T T T T
jet fuel A U A U U T U A A A T T M T T
kerosene A U A U A T U A A A T T A T T
lacquer thinner T T T U A T U U A T T T T T U
methanol A T T A A A A M A A A T T U T


POLYESTER OVERLAYS
QP, ST TOUCH SCREEN

304 STAINLESS STEEL
QP, ST 4X MEMBRANE
KEY:
SILICONE RUBBER
GASKET B41NES
POLANE PAINT
GASKET QPJ
LEXAN LENS
GASKET HMI
T = Not Tested
KEYPADS
O-RINGS
nitric acid ethyl T T A T T T T T T A T T T T M
ozone T A A T T T T T T T T T T T T
perchlorethylene T U T U U T T T T T T T T T T
petrol A T A T T A T A A A A T U T T
phenol A T T U U T T U T T T T A U T
toluene A U T U U A U U T T A T U U A
trichlorethylene A U T U U A U U T T A T U T T
turpentine A A M U U A U U A T A T U U T
xylol T T T T T T T T A T T T T T T
acetone A M T U A A U U A A A T U U A
alcohol, ethyl A M T A M A A A T A A T A U T
alcohol, isopropyl A M T M A A A U T A A T T U T
alkalis T U A T T M M T T U M T T M U
butyl cellosolve T T T T T T U T T T T T T T T
caustic soda, 10% A M A M A U A A T U U T T A U
caustic soda, 40% A U A T T U M U T U U T T T U
chlorinated solvents T T U T T T T T T M T T U T T
coolants A A A A T A A A A A A A A T T
cyclohexane T U T U U A T A T T A T U U T
detergents A A A M A A A A A A A A M M A
ethanol A M T A A A A A A A A T A U A
ethyl acetate A M T U M A T U T T A T U U T
fruit juices A A A A T A A A A A A T A A A
greases A T A U T A M A A A A A M M A
gylcol antifreeze A A A T A A T A A A A A A T T
hexane A M T M U T T A T T T T T A T
methyl chloride M U T U U T T U T M T T M U T
methyl ethyl ketone A M T U A A U U A M A T U U T
methylene chloride A T T U U T T U T M T T U T T
oil, animal A A A U A A A A A A A A A M A


POLYESTER OVERLAYS
QP, ST TOUCH SCREEN

304 STAINLESS STEEL
QP, ST 4X MEMBRANE
KEY:
SILICONE RUBBER
GASKET B41NES
POLANE PAINT
GASKET QPJ
LEXAN LENS
GASKET HMI
T = Not Tested
KEYPADS
O-RINGS
oil, cutting A A A U T A A A A A A A A U A
oil, diesel A T A U U A A A A A A A A T A
oil, hydraulic A T A T T A A A A A A A A T A
oil, lube A M A T T A A A A A A A A M A
oil, motor A M A T T A A A A A A A A M A
oil, petroleum A M A T T A A A A A A A A M A
oil, silicone A A A A T A A A A A A A A M A
oil, vegetable A A A U U A A A A A A A A M A
salt spray , 5% A A A A A A A A A A A T A A A
soap solution A A A A A A A A A A A T A M A
water A A A A A A A A A A A A A A A
xylene A U T U U A T U T T A T U U T

Product Enclosure Ratings
The following table lists the various TCP operator interface products and their associated
enclosure type ratings. Please note that a product listed as ‘DESIGNED to enclosure type
rating’ means that the enclosure was designed to meet the requirements of a specified
enclosure rating but never was formally tested by an independent party to certify its
rating. A product listed as ‘TESTED to enclosure type rating’ means that an independent
party has certified the enclosure rating. The enclosure ratings for any given product are
only valid when correctly mounted in an appropriate control panel.
TYPE 1:
For indoor use primarily to provide a degree of protection against limited amounts of
falling dirt.
TYPE 4:
For indoor or outdoor use primarily to provide a degree of protection against windblown
dust and rain, splashing water, hose-directed water, and damage from external ice
formation.
TYPE 4X:
For indoor or outdoor use primarily to provide a degree of protection against corrosion,
windblown dust and rain, splashing water, hose-directed water, and damage from external
ice formation. Indoor use only may be stipulated.
TYPE 12:
For indoor use primarily to provide a degree of protection against circulating dust, falling
debris, and dripping noncorrosive liquids.
TYPE 13:
For indoor use primarily to provide a degree of protection against dust, spraying of water,
oil and noncorrosive liquids.
KEY:
D = DESIGNED to enclosure type rating
T = TESTED to enclosure type rating
TYP TYP TYPE 4X TYPE TYPE

E1 E4 INDOOR 12 13
ONLY
QUICK PANEL D D D note 1 D D
QUICK PANEL JR. D D D note 1 D D
Note 1: only when equipped with optional stainless steel bezel and 4X membrane

Hardware PDF

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Hardware PDF

Uploaded by

Copyright:

Available Formats

Contents

Hardware Reference, GFK-1857 QUICKPANEL FAMILY • 1

QUICKPANEL Display Type

2 • QUICKPANEL FAMILY Hardware Reference, GFK-1857

Mounting brackets are packed inside the carton.

Hardware Reference, GFK-1857 QUICKPANEL FAMILY • 3

Dimensions for 12.1”QUICKPANEL Color Display

2.90" (73.5 mm)

.3" (7.5 mm) 1.25" (32 mm)

Panel Installation for 12.1”QUICKPANEL Color Units

4 • QUICKPANEL FAMILY Hardware Reference, GFK-1857

Insert the display through the panel

Hardware Reference, GFK-1857 QUICKPANEL FAMILY • 5

Installing AC Power to the 12.1” Color Display

Powerup Sequence for the 12.1” Color Display

6 • QUICKPANEL FAMILY Hardware Reference, GFK-1857

CUTOUT 8.98 in. (228 +/- 0.5mm)

9.570 in. (243mm)

.3" (7.5 mm)

Hardware Reference, GFK-1857 QUICKPANEL FAMILY • 7

CUTOUT FOR COLOR

Insert the display through the panel

8 • QUICKPANEL FAMILY Hardware Reference, GFK-1857

Installing AC Power to the 10.5” Color Display

Installing DC Power to the 10.5” LCD Display

Powerup Sequence for the 10.5” Color/LCD Display

Hardware Reference, GFK-1857 QUICKPANEL FAMILY • 9

10 • QUICKPANEL FAMILY Hardware Reference, GFK-1857

CUTOUT 7.92 in (201 +/- 1mm)

.3" (7.5 mm) 1.25" (32 mm)

Panel Installation for 9” EL Units

Hardware Reference, GFK-1857 QUICKPANEL FAMILY • 11

Insert the display through the panel

12 • QUICKPANEL FAMILY Hardware Reference, GFK-1857

AC TERMINALS SERIAL PORT DOWNLOAD PORT

Installing AC Power for the 9” EL Display

Powerup Sequence for the 9” EL Display

Hardware Reference, GFK-1857 QUICKPANEL FAMILY • 13

CUTOUT 4.45" (113 +/- .5mm)

.197" (5mm) 1" (25mm)

QuickPanel jr. 6" Display (QPK-xxxxx-Lxx, QPK-xxxxx-Sxx, QPK-xxxxx-

14 • QUICKPANEL FAMILY Hardware Reference, GFK-1857

Hardware Reference, GFK-1857 QUICKPANEL FAMILY • 15

OPTION MODULE SERIAL

16 • QUICKPANEL FAMILY Hardware Reference, GFK-1857

Hardware Reference, GFK-1857 QUICKPANEL FAMILY • 17

QUICKPANEL mini DC24V

Model Dim A Dim B Dim C Dim D Dim E Dim F

18 • QUICKPANEL FAMILY Hardware Reference, GFK-1857

Serial Interface Port Specs

Parallel Printer Port

Download Cable, HMI-CAB-C49

Hardware Reference, GFK-1857 QUICKPANEL FAMILY • 19

8-PIN CIRCULAR DIN

TXD 1 TTL 3 TXD

Printer Cable, HMI-CAB-C105

TXD 1 TTL 3 TXD

20 • QUICKPANEL FAMILY Hardware Reference, GFK-1857

Hardware Reference, GFK-1857 QUICKPANEL FAMILY • 21

22 • QUICKPANEL FAMILY Hardware Reference, GFK-1857

NOTE: The HMI-CAB-C83/A Cable drawing is proprietary information and is provided

TO TCP DEVICE PHONE RJ-45 orange
