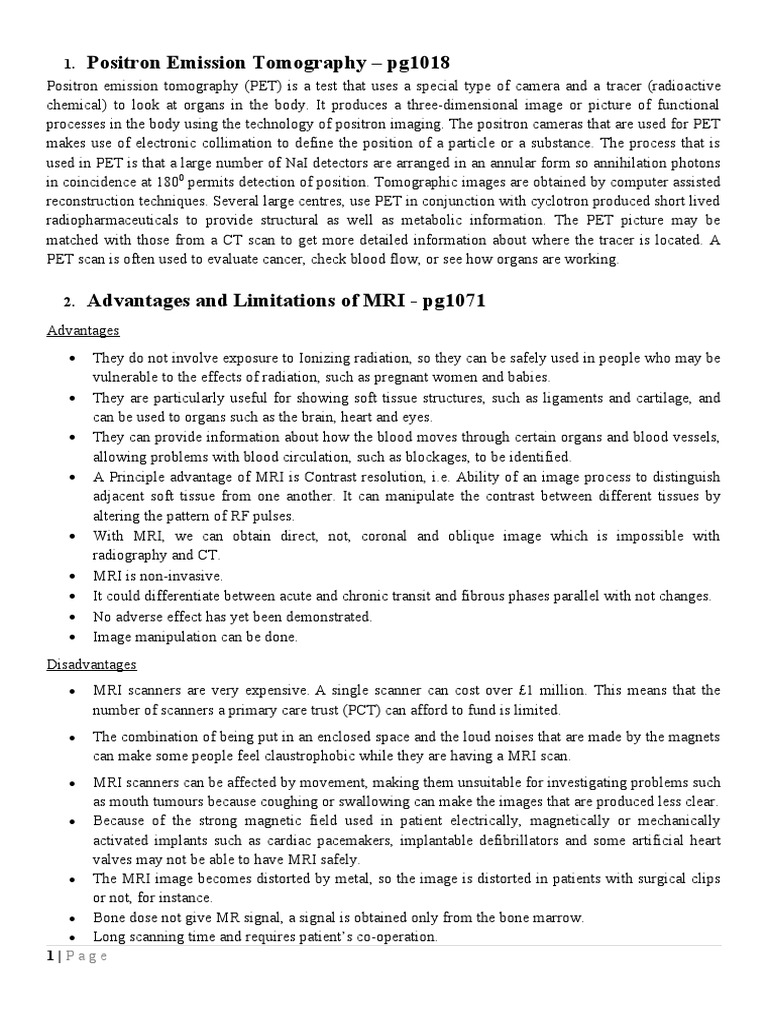

Positron Emission Tomography - pg1018
Positron Emission Tomography - pg1018
Positron Emission Tomography - pg1018
3. Working of Lithotripsy:
Lithotripsy uses shock waves to pulverize urinary calculi (kidney stones) non-invasively. A shock wave is
characterized by a very rapid pressure increase in the transmission medium and is quite different from
Ultrasound. The shock waves are transmitted through the patient's skin and pass harmlessly through the
patient's soft tissue. The shock wave passes through the kidney and strikes the stone. At the stone boundary,
energy is lost, and this causes small cracks to form on the edge of the stone. The same effect occurs when
the shock wave exits the stone. With successive shocks, the cracks open up, and in turn, smaller cracks form
within the large cracks. Eventually, the stone is reduced to small particles, which are then flushed out of the
kidneys or ureter naturally during urination. The process generally takes about 1 hour during which up to
8,000 shocks are administered. The patient will experience some discomfort during the treatment depending
on the patient's pain tolerance. Analgesics may be administered to make the patient more comfortable.
2|Page
that the alumina ceramics have a linear wear value of less than 5 micrometer per year, which means alumina
ceramics is strongly wear resistant. Alumina ceramics are widely used as a biomaterial because of this
reason. Porous alumina is used as a ‘bone spacer’ and for teeth implants.
{ Applications of ceramics
• Hip implants (Al oxides, Zirconia)
• Bone graft substitutes (Ca phosphate, Ca sulphate, glass)
• Dental implants (Al oxide)
• Heart valve coatings (Carbon)
• Coatings on joint replacements (Ca phosphate)
• Cochlear replacement (Al oxide)
• Orthopaedic implants (Carbon)
3|Page
give rise to a new era of "lab on a chip" diagnostics, enabling routine and sensitive analysis of thousands of
molecules simultaneously from a single sample.
{ In the coming years a vast and interesting array of new career prospects will be available for engineers
with these skills both nationally and internationally. Some career areas include:
Pharmaceutical and biotechnology engineering
Medical diagnostics and development
Medical device design and development
Medical imaging, image processing
Medical IT, computer systems and telecommunications
Genetic and proteomic engineering in disease understanding and prevention
Biomaterials and tissue regeneration and research
Bio-processing and production of food and medicines
Human biomechanics and prosthetic research
Public health engineering as in water supply and reuse of solid and waste disposal systems
4|Page
difficult to access the target object and allow the instrument to read the temperature of the target temperature
within the range, thus effectively avoiding the measurement of staff the work of the risks. }
Disadvantages of the traditional contact-type thermometer:
1. Exposure to temperature influence on the measured object temperature.
2. Not suitable for measuring transient temperature.
3. Not easy to measure the movement of objects.
4. Measuring range is not wide enough, and supplies.
5. Not suitable for measuring toxic, high pressure, and dangerous occasions.
10. Micro-Electrode
An electrode, with tip dimensions small enough (less than 1m) to allow non-destructive puncturing of the
plasma membrane. This allows the intracellular recording of resting and action potentials, the measurement
of intracellular ion and pH levels (using ion selective microelectrodes) or microinjection. Microelectrodes
are generally pulled from glass capillaries and filled with conducting solutions of potassium chloride or
potassium acetate to maximise conductivity near the tip. Electrical contact, if required, is usually made with
a silver chloride coated silver wire.
{A microelectrode can further be defined as an extremely small electrode with a tip which is capable of
being inserted into the wall of a single cell without causing damage.} Microelectrodes have a number of
uses and potential applications, and several variations have been designed in laboratory environments all
over the world. Numerous tests of microelectrodes on various subjects have also been conducted,
demonstrating some of their potential applications.
5|Page
Lesser wavelength range (0.1Å – 4Å) More wavelength range (4Å – 100Å)
Higher voltages are applied to produce Lower voltages are applied to produce
Produces higher “quality” X-rays Produces very low “quality” X-rays
Since soft X-rays are absorbed easily, not a lot of X-rays get through so a very poor image is formed. Also
because it is absorbed more, it is also very dangerous to the body as it can cause genetic mutations and
cancers. This is why X-ray machines have an aluminium filter to try to reduce exposure to these soft X-rays
that are dangerous and don’t have much use. So for diagnostic purposes if we are looking for a rubber ball
in the abdomen of a dog, you would use a softer x-ray (lower kV on the tube setting) than if you wanted to
see a bone lesion in the skull.
13. Are Cochlear Implants suitable for all patients with hearing problems? Explain your
answer.
The cochlear implant system works in the following manner:
• Sounds are picked up by the small, directional microphone located in the ear level processor.
• The speech processor filters, analyzes and digitizes the sound into coded signals.
• The coded signals are sent from the speech processor to the transmitting coil.
• The transmitting coil sends the coded signals as FM radio signals to the cochlear implant
under the skin.
• The cochlear implant delivers the appropriate electrical energy to the array of electrodes
which has been inserted into the cochlea.
• The electrodes along the array stimulate the remaining auditory nerve fibers in the cochlea.
6|Page
• The resulting electrical sound information is sent through the auditory system to the brain for
interpretation.
Many people have cochlear implants in both ears (bilateral). Listening with two ears can improve your
ability to identify the direction of sound and separate the sounds you want to hear from those you don’t.
Hear better with a cochlear implant than with a hearing aid: A previous study has shown that
people with cochlear implant achieve an average of 80% sentence understanding, compared with 10%
sentence understanding for hearing aids1.
Can focus better when in noisy environments: This allows them to have conversations with people
across meeting tables, in restaurants and other crowded places.
Reconnect with missed sounds that they could not hear before their cochlear implant.
Feel safer in the world as they can hear alarms, people calling out and approaching vehicles.
Talk and hear on the phone
Enjoy music
The benefit of cochlear implants is often different for different individuals. This difference is often due to:
how long they have had hearing loss before receiving a cochlear implant
how severe their hearing loss is!
condition of their cochlea (inner ear)
other medical conditions
how much practice they include in everyday life when using their cochlear implant system. }
14. the advantages and disadvantages of Artificial Heart Valves compared to Biological
Heart Valves?
Advantages Disadvantages
Biological Do not damage red Prone to becoming hardened over the course of
valves blood cells as they pass through several years
the open valves
For patients with long life expectancy, there is a
higher chance of further operations to replace the valves
7|Page
(any operation carries risks)
Mechanical
Very strong and durable Damage red blood cells as they pass through the
valves - able to last a lifetime open valves
Require the patient to take anti-blood clotting
drugs for the rest of their life
Some people say they can hear the valves
opening and closing
16. People have tried to Design and Construct Artificial Hearts for more than half a
century but their success has been limited. the reasons for this Lack of Success
The artificial heart is not without risk, and those risks include wearing out or failure of the electrical motor,
infection, and the need to take blood thinners to prevent clotting. Stroke and bleeding are also possible
complications with the artificial heart. Another disadvantage of the artificial heart is that not all patients
have a body size that allows the device to be implanted into the chest cavity, making small persons unable to
receive the device.
8|Page
Blood Clots
When your blood comes in contact with something that isn't a natural part of your body, such as a TAH, it
tends to clot more than normal. Blood clots can disrupt blood flow and may block blood vessels leading to
important organs in the body.
Bleeding
The surgery to implant a TAH is very complex. Bleeding can occur in your chest during and after the
surgery.
Infection
One of the two available TAHs, the CardioWest, attaches to a power source outside your body through holes
in your abdomen. These holes increase the risk of bacteria getting in and causing an infection.
Device Malfunctions
They are so complex, they can malfunction (not work properly) in different ways. A TAH's:
17. the function of the Seating Ring Of An Artificial Heart Valve? Would polyester be a
good material for a seating ring Explain
Seating ring is one of the four main parts of an artificial heart valve. Common parts of valves are an occlude,
seating ring, a cage and sewing ring. The function of the seating ring is to hold the occluder when the valve
is closed. Or in other words the occluder bounces back and forth from the seating ring in order to open and
close the valves.
No, polyester is not a good material for ring. Seating ring require strength and stiffness to maintain their
shape. Usually metals are used as rings due to their improved strength.
18. the function of the occluder of an artificial heart valve? Would polyester be a good
material for an occluder
A catheter-delivered device that blocks a hole in the wall of a heart. Often the occluder is designed with an
umbrella-type design and is folded up until the catheter arrives at the area of the defect in the heart. Once in
place the occluder is unfolded on both sides of the defect so that pressure from both sides keeps it in place.
How does it work?
A doctor makes a small incision in the groin and threads the delivery system and implant through blood
vessels to the heart. Inside the heart, the device is advanced to the site of the defect. When the doctor is
certain the device is placed properly, the implant is released from the delivery system and opened so that the
defect is blocked (or sandwiched) by the mesh discs. The implant remains in the heart and the delivery
system is removed.
Once the device is in place, tissue will grow over it closing the defect. The device then becomes part of the
wall of the heart.
9|Page
When is it used?
The AMPLATZER Septal Occluder is intended to close openings between the atria (the two upper
chambers of the heart). It can be used to treat patients with certain types of atrial septal defects. The device
can also be used to close a passageway intentionally made during a surgical operation called a fenestrated
Fontan procedure if the surgeon determines the passageway is no longer necessary. (The fenestrated Fontan
procedure is an open-heart surgery in which a surgeon makes a new passageway for blood to travel through
the heart. It is used to treat a variety of congenital heart defects.)
Abnormal heart murmurs: Although most heart murmurs aren't serious, some may result from a heart
problem. The most common cause of abnormal murmurs in children is when babies are born with structural
problems of the heart (congenital heart defect). Common congenital defects that cause heart murmurs
include:
Holes in the heart or cardiac shunts. Many heart murmurs in children are the result of holes in the
walls between heart chambers, known as septal defects. These may or may not be serious, depending
10 | P a g e
on the size of the hole and its location. Shunts occur when there's an abnormal blood flow between
the heart chambers or blood vessels, which may lead to a heart murmur.
Heart valve abnormalities. Congenital heart valve abnormalities are present at birth, but sometimes
aren't discovered until much later in life. Examples include valves that don't allow enough blood
through them (stenosis) or those that don't close properly and leak (regurgitation).
Other causes of abnormal heart murmurs include infections and conditions that damage the structures of the
heart and are more common in older children or adults. For example:
Rheumatic fever
Endocarditis
Valve calcification
Mitral valve prolapse
Rheumatic fever
Endocarditis
Valve calcification
{Through its receptors, the nervous system keeps us in touch with our environment, both external and
internal. Like other systems in the body, the nervous system is composed of organs, principally the brain,
spinal cord, nerves, and ganglia. These, in turn, consist of various tissues, including nerve, blood, and
11 | P a g e
connective tissue. Together these carry out the complex activities of the nervous system. } The various
activities of the nervous system can be grouped together as three general, overlapping functions:
Sensory
Integrative
Motor
22. the differences between Blood Flow in A Vessel and The Flow Of Water in a
Pipe?
A fluid whose viscosity is , flowing through a pipe of radius r and length L, has a volume flow rate Q
given by;
or
where:
23. How do Calcium Ions Interact with the Myofibrillar Elements to cause muscle
contraction?
Calcium ions creates active sites on actin filaments which forms a cross bridge between actin and
myosin and the muscle contract.
Muscle fibres contains sarcolemma and sarcoplasm. The myofibrils are attached to this sarcolemma
at each end of the cell which creates muscle fibre contraction.
So when the nerve is simulated, vesicles in the axons terminals ejects a neurotransmitter,
acetylcholine, into the synapse between the neuron and the muscle.
12 | P a g e
This acetylcholine diffuses across the synapse ad binds to receptors in a special area, the motor end
plate, of the sarcolemma.
This causes the Na channels in the sarcolemma to open up, which produces action potential in the
muscle fibre.
This action potential spreads over the entire sarcolemmal surface and travels down all the T tubules
where it triggers a sudden massive release of calcium by the cisternae.
This calcium triggered helps in the production of the thin filaments in active sites so that cross
bridges with myosin can form and muscle contraction occurs.
24. Why should somebody who has Just Fainted Lie Down?
When someone faints, it's usually because changes in the nervous system and circulatory system cause a
temporary drop in the amount of blood reaching the brain. When the blood supply to the brain is decreased,
a person loses consciousness and falls over. After lying down, a person's head is at the same level as the
heart, which helps restore blood flow to the brain. So the person usually recovers after a minute or two.
25. Why is it necessary for the Ventricular Action Potential to have a relatively long
absolute refractory period?
The long absolute refractory period protects the cardiac pump, as it is not possible to bring ventricles into
smooth tetanus.
The ventricular action potential has a long refractory period so that the mechanical response of the ventricle
will be discrete; one coordinated mechanical response per electrical activation sequence. Otherwise, with
additional electrical stimuli, the mechanical responses would summate producing a prolonged contraction.
26. the difference between Invasive and Non-Invasive Measurements? Give some
examples of each.
An invasive procedure is one which penetrates or breaks the skin or enters a body cavity. Examples of
invasive procedures include those that involve perforation, an incision, a catheterization, or other entry into
the body. Examples are Surgery, rectal examination, blood test etc.
A medical procedure is strictly defined as non-invasive when no break in the skin is created and there is no
contact with the mucosa, or skin break, or internal body cavity beyond a natural or artificial body orifice.
Examples includes pulse-taking, the auscultation of heart sounds and lung sounds (using the stethoscope),
temperature examination (using thermometers), respiratory examination, peripheral vascular examination,
oral examination, abdominal examination, audiometry, eye examination, measure blood pressure with
sphygmomanometer, electrocardiography, X-rays, EMG etc.
Resolution can also be defined electrically, and expressed in volts. The minimum change in voltage required
to guarantee a change in the output code level is called the least significant bit (LSB) voltage. The resolution
Q of the ADC is equal to the LSB voltage. The voltage resolution of an ADC is equal to its overall voltage
measurement range divided by the number of discrete values:
where M is the ADC's resolution in bits and EFSR is the full scale voltage range (also called 'span'). EFSR is
given by
where VRefHi and VRefLow are the upper and lower extremes, respectively, of the voltages that can be coded.
That is, one voltage interval is assigned in between two consecutive code levels.
Analog to digital converters are used to transform biological signals from continuous analog waveforms to
digital sequences so that the microprocessor will be able to read, understand and manipulate the data.
The questions that I would ask in order to select the right AD converter are as follows;
What is the Maximum Sample Rate?
30. In your opinion what is the Most Important Medical Development After 1950?
Motivate your answer.
Paul Lauterbur and Sir Peter Mansfield were awarded the 2003 Nobel Prize in Physiology or Medicine for
their "discoveries concerning magnetic resonance imaging". For decades’ magnetic resonance was used
mainly for studying the chemical structure of substances. It wasn't until the 1970s with Lauterbur's and
Mansfield's developments that nuclear magnetic resonance (NMR) could be used to produce images of the
body. They introduced the idea of applying gradients in the magnetic field which allows for determining the
origin of the radio waves emitted from the nuclei of the object of study. This spatial information allows two-
dimensional pictures to be produced. MRI scans to help diagnose multiple sclerosis, brain tumours, torn
ligaments, tendonitis, cancer, strokes etc. An MRI scan is the best way to see inside the human body without
cutting it open. High-resolution images of organs or any area of the body can be made without the need for
using x-rays because MRIs use radio frequency (RF) light. Since they use RF light, MRIs do not present any
known health risks to the patients; however, anyone with metal implants could not receive a MRI. If a
person's nervous system needed to be studied, an MRI image would be the best imaging method to use,
especially if the brain or spinal cord needed to be investigated.
31. three Categories of Biosignals. Give at least one example for each category.
Biosignals is a summarizing term for all kinds of signals that can be continually measured and monitored
from biological beings. The term biosignals is often used to mean bio-electrical signal. However, biosignals
refers to both electrical and non-electrical signals. Electrical biosignals or bio-electrical signals are usually
taken to be changes in electric currents produced by the sum of electrical potential differences across a
specialized tissue, organ or cell system like the nervous system.
15 | P a g e
Can be classified according to:
• to their source or physical nature
• to biomedical application.
• to signal characteristics.
• according to the origin
There are two broad classes of signals:
- continuous signals and
- discrete signals.
Signals are again divided into two main groups:
- deterministic and
- stochastic signals.
Types of biosignals according to the origin:
a) Bioelectric signals. They are generated by nerve cells and muscle cells. Its source is the membrane
potential, which under certain conditions may be excited to generate an action potential. The bioelectric
signal requires a relatively simple transducer for its acquisition. E.g.: ECG, EEG, EMG and others.
b) Bioimpedence signals. The impedance of the tissue contains important information concerning its
composition, blood volume, blood distribution, endocrine activity, automatic nervous system activity, and
more. The bioimpedence signal is usually generated by injecting (or superficially) into the tissue under test
sinusoidal currents (frequency range of 50 kHz to 1 MHz, with low current densities of the order of 20 _A to
2 mA). E.g.: impedance plethysmography or rheography.
c) Biomagnetic signals. Various organs, such as the brain, heart, and lungs, produce extremely weak
magnetic fields (10−9 T to 10−6 T). The measurements of these fields provide information not included in
other biosignals (such as bioelectric signals). Due to the low level of the magnetic fields to be measured,
biomagnetic signals are usually of very low signal-to-noise ratio. Eg: Magneto encephalography (MEG),
Magnetocardiography (MCG), MMG, MOG, Superconducting quantum interference devices (SQUID)
d) Bioacoustic signals (eg: microphones, accelerometers, phonetic and non-phonetic utterances, breathing)
e) Biochemical signals e.g. pH, oxygenation
f) Biomechanical signals e.g. the mechanomyogram or MMG
g) Bio-optical signals e.g. movements
h) Thermal biosignals
i) Radiological biosignals
j) Ultrasonic biosignals
The circulatory system is made up of two circulations (pulmonary and systemic) situated in series between
the right ventricle (RV) and left ventricle (LV) as depicted in the figure to the right. Balance is achieved, in
large part, by the Frank-Starling mechanism. For example, if systemic venous return is suddenly increased
(e.g., changing from upright to supine position), right ventricular preload increases leading to an increase in
stroke volume and pulmonary blood flow. Increased pulmonary venous return to the left atrium leads to
increased filling (preload) of the left ventricle, which in turn increases left ventricular stroke volume by the
Frank-Starling mechanism. In this way, an increase in venous return can lead to a matched increase in
cardiac output.
34. In a pathological condition known as Coarctation of The Aorta, the lumen (internal
space) of the aorta becomes narrowed due to an external compression of its walls (a squeezing
action). If such aortic coarctation reduced the internal diameter by one third, what is the effect
on the mean velocity of the blood through the constricted area?
17 | P a g e
Mean velocity of the blood is inversely proportional to the cross sectional area. That means as the cross
sectional area decreases, mean velocity increases.
Cross sectional area: pi*D2/4 = pi* (1/3)2/4 = 0.08722
Mean velocity = cardiac output / cross sectional area
Mean velocity = cardiac output / 0.08722 = 11.47*cardiac output
OR
Flow = cross section * velocity
Velocity = flow/Cross section = flow/0.08722 = 11.47*flow
Here, it can be clearly seen that the mean velocity of the blood increase by 11 times if the internal diameter
is reduced by one third.
18 | P a g e
37. How can Blood Flow and Blood Pressure Be Measured? What are the limitations
of these measurement techniques?
First number is systolic blood pressure which will measure the pressure in the blood vessels when hart beats.
Second number is diastolic blood pressure which measures the pressure in your blood vessels when your
heart beats.
The blood flow and blood pressure can be measured by invasive and non-invasive methods.
Electric-Impedance Plethysmography
Photoelectric Plethysmography
Ultrasound Doppler
Laser Doppler Flowmetry
Strain Gage Plethysmography
Thermal Convection Probes
Electromagnetic flow transducer
Palpatory Method
19 | P a g e
The disadvantage of using Palpatory Method is that
• The technique does not give accurate results for infants and hypotensive patients.
Auscultatory Method
• A mechanical error might be introduced into the system e.g. mercury leakage, air leakage,
obstruction in the cuff etc.
• The technique does not give accurate results for infants and hypotensive patients.
Ultrasonic Method
Oscillometric Method
• Many devices use fixed algorithms leading to large variance in blood pressures
Tonometry
Sphygmomanometer
(Riva-Rocci Method)
Extravascular Sensor
Intravascular Sensor
20 | P a g e
•In human bio-potential recordings, it is common practice to apply a 50/60 Hz notch filter to eliminates
power-line interference from the ECG signal. In such cases, there is no considerable distortion observed on
the recorded signal.
•These interference components are stored and further subtracted from the signal wherever non-linear
segments are encountered.
39. What is the purpose of notch filter?
The notch filter allows signals in the frequency band less than w1 (omega 1) and greater than w2 (omega 2)
to pass through the filter and eliminates any signals or noise outside this interval. – Refer Previous Question
Continuous signal is a varying quantity whose domain which if in time, is a continuum the domain of a
continuous-time (CT) signal is the set of real numbers. In discrete signals, the domain of a discrete-time
(DT) signal is the set of integers (or some interval).
Most of biomedical signal presents a continuous form of signal. A biosignal is any signal in living beings
that can be continually measured and monitored. Biosignals may also refer to any non-electrical signal that
is capable of being monitored from biological beings, such as mechanical signals (e.g. the
mechanomyogram or MMG), acoustic signals (e.g. phonetic and non-phonetic utterances, breathing),
chemical signals (e.g. pH, oxygenation) and optical signals (e.g. movements).
Implantable pumps use a concentrated form of the drug. Eg: morphine around the spinal cord.
Topical drug delivery systems involve the introduction of a drug to the surface of the body, in a
formulation which can be absorbed. Skin patches are an example of topical drug delivery systems.
Targeted drug delivery, sometimes called smart drug delivery, is a method of delivering medication
to a patient in a manner that increases the concentration of the medication in some parts of the body
relative to others.
42. Draw the Stress Strain Curves for a brittle and a ductile material.
21 | P a g e
The diagram below shows stress strain graph for a brittle and a ductile material.
•The brittle materials reach failure with only a small amount of deformation strain.
•Brittle materials do not have a yield point, and do not strain-harden. Therefore, the ultimate strength and
breaking strength are the same.
•One of the characteristics of a brittle failure is that the two broken parts can be reassembled to produce the
same shape as the original component as there will not be a neck formation .
•Ductile materials are characterized by their ability to yield at normal temperatures. A neck forms where the
local cross-sectional area becomes significantly smaller than the original.
43. What is the relevance of a Stress Strain Curve for a Biomaterial that is Used to
Fix Broken Bones?
Stress strain curve shows the elastic properties of the bone that vary depending on whether the load
is being applied or removed, displaying hysteresis.
Stress strain curve for biomaterial in order to fix broken bones is shown below:
22 | P a g e
Stress strain curve shows the plastic region of deformation.
Stress strain curve shows the elastic properties of the bone differ depending on the whether the
sample is cut longitudinal or transverse direction.
Bone is uch weaker and less stiff in tranverse compared to longitudinal direction as is illustratred by
the large difference in the yield and ultimate stresses and slopes of stress-strain curves.
44. What is a Hardness Test? Give an example of an application of a biomaterial for which this
is a relevant test.
Hardness is the measure of how resistant solid matter is to various kinds of permanent shape change when a
force is applied.
•Hardness test is a method to achieve a hardness value is to measure the depth or area of an indentation left
by an indenter of a specific shape, with a specific force applied for a specific time.
•There are three principal standard test methods for expressing the relationship between hardness and the
size of the impression, these being Brinell, Vickers, and Rockwell.
Example- Hardness Evaluation of Biological Tissue Using Nanoindentation- is used to study the hardness
and elastic modulus of 3 separate areas of prosciutto (fat, light meat and dark meat).
45. What is a Total Hip Replacement? What material characteristics are required for
materials used in a total hip replacement?
23 | P a g e
Total Hip Joint replacement or Total Hip Replacement involves surgical removal of the disabled ball and
socket and replacing with a metal ball and stem inserted into the femur bone and an artificial plastic cup
socket.
In total hip replacements, the bulk properties of materials, such as proper elasticity and hardness, are
important. However, the material interacts with the control of surface properties using different kinds of
treatments or coatings may improve total hip replacements considerably. The most studied surface
treatments include ion implantation and methods to control surface topography, such as grit or sand blasting
or plasma treatments. Among the large variety of coatings, hydroxyapatite, titanium oxide and nitride,
zirconium oxide, pyrolytic carbon, and diamond like carbon coatings have shown the most promising
results.
Histology
Angiogram
24 | P a g e
X – Rays,
Latest Techniques;
Nuclear magnetic resonance spectroscopy,
48. In some diseases the Myelin Sheath of Nerves is damaged resulting in a longer
conduction time. Describe a method to Measure the Conduction Time and
Conduction Speed of a Nerve.
1. Intracellular Recording:
Two electrodes are placed on either side of the membrane of the neuron, one inside the cell
and one outside.
As the ions move into and out of the cell a change in potential difference is recorded between
the electrodes.
This technique is performed on large, isolated neurons.
2. Extracellular Recording:
A pair of electrodes is placed on the outside of the neuron.
As the action potential passes along the neuron, a change in potential between the electrodes
may be measured and recorded as a biphasic AP.
This method does not measure ion flow but the net difference in potential as the action
potential passes first one electrode and then the other electrode.
Its advantage is, it can be used to record the passage of an action from the surface of the body
and is also used to record action potentials from whole nerves.
1. Measurement of distance is relatively straightforward. It can be done using a ruler or a tape measure.
25 | P a g e
2. The measurement of time is more complicated. Action potentials travel very quickly; therefore, the
times to be measured are very small and require more sophisticated instrumentation. The computer
with PowerLab, like the oscilloscope, is ideally suited to measure events that happen in a very short
amount of time.
49. A person is Not Hearing Well. Give at least three possible causes and explain what can be
done about them.
1. Infections - find he infection arts and try to fix the infected areas by drugs.
2. Ototoxic drug intake – stop the drug intake.
3. Structural problem of the ear such as stenosis, absence or malformation of the outer ear, ear canal,
ear drum, ear bones & inner ear malformations – surgery or implantation on faulty parts.
4. Genetics – Syndromic Vs Non-syndromic hearing loss.
Therapeutic Assistive
They are the devices used to treat Devices used to increase or improve the
diseases. It is more like a brace that helps functional capabilities of individuals with
the ankle heal by immobilizing it. disabilities.
Used to treat a condition They don’t treat, they simply help ease he
issue
Example: ventilators, hemodialysers, Example: manual wheelchair
pacemakers, infusion pumps
26 | P a g e
Energy is released after "exciting" the molecules, which in turn emits energy signals that are picked
up by the coil.
This information is then sent to a computer which processes all the signals and generates it into an
image.
The final product is a 3-D image representation of the area being examined.
53. Mention Two Vitamins, Which Affect the Strength Of Bone And Indicate
whether they affect the strength of bone in compression or in tension.
Vitamin D affects bone strength by promoting the absorption of calcium from your small intestine.
Without Vitamin C, the bone matrix forms abnormally, leading to weak bones
The influence of vitamin A on new cell formation and specialization proves essential for the normal
growth and development of your bones.
It affects the compression
Movement Of Ions
54. What are the main factors involved in the across the Cell
Membrane In The Steady State Solution?
The flow of ions through the cell membrane depends mainly on three factors:
the ratio of ion concentrations on both sides of the membrane
the voltage across the membrane, and
the membrane permeability.
57. What is the most common source of noise in ECG signals? Does this type of noise also
affect other biological signals? Explain your answers.
Noise produced during movement of muscles and eyes.
Power line interference
Electrode contact noise, baseline drift and Electrode contact noise, baseline drift and
motion artifacts
EMG from the chest wall EMG from the chest wall
Instrumentation noise Instrumentation noise
Electrosurgical noise
27 | P a g e
Biological signals are very small and typically contain unwanted interference or noise. Such interference has
the detrimental effect of obscuring relevant information that will be available in the measured signal.
58. What is the purpose of a heater in an Airflow Transducer? In what way would the
measurements change if it would not work?
When a small heater is placed in the air flow transducer, the heater heats the screen so water vapour does not
condense on it over time and produce an artificial high pressure drop
If there is no heater, it will create a high pressure drop which will be the opposing work of an airflow
transducer. Air velocity if proportional to the slight pressure drop produced in the air flow transducer. Hence
pressure drop is an important factor. Without heater this will be changed which will adversely affect the
actual working of air flow transducer.
59. What is the difference between Invasive and Non-Invasive Measurements? Give some
examples of each.
An invasive procedure is one which penetrates or breaks the skin or enters a body cavity. Examples of
invasive procedures include those that involve perforation, an incision, a catheterization, or other entry into
the body. Examples are Surgery, rectal examination, blood test etc.
A medical procedure is strictly defined as non-invasive when no break in the skin is created and there is no
contact with the mucosa, or skin break, or internal body cavity beyond a natural or artificial body orifice.
Examples includes pulse-taking, the auscultation of heart sounds and lung sounds (using the stethoscope),
temperature examination (using thermometers), respiratory examination, peripheral vascular examination,
oral examination, abdominal examination, audiometry, eye examination, measure blood pressure with
sphygmomanometer, electrocardiography, X-rays, EMG etc.
60. Compare an artificial leg with a real leg and explain the limitations of the artificial leg?
Advantages Disadvantages
Artificial Replaceable Not a real leg
Leg Never get tired which means a longer and faster travel Can feel nothing
distance.
No strains in such as standing on a sharp surface or
applieng in any sports
28 | P a g e
Not replaceable Real leg with the
Real Leg
Get tired after travelling a certain distance.eh speed of sense of feeling
travelling is much slower than a power supported artificial
legs
Can’t stand on sharp edges
61. Explain the relevance of Evoked Potentials for the testing of Hearing.
An evoked potential or evoked response is an electrical potential recorded from the nervous system of a
human or other animal following presentation of a stimulus, as distinct from spontaneous potentials as
detected by electroencephalography (EEG), electromyography (EMG), or other electrophysiologic recording
method. Such potentials are useful for electrodiagnosis and monitoring.
EVOKED POTENTIAL FOR AUDITORY PURPOSE
Auditory evoked potential can be used to trace the signal generated by a sound through the ascending
auditory pathway. The evoked potential is generated in the cochlea, goes through the cochlear nerve,
through the cochlear nucleus, superior olivary complex, lateral lemniscus, to the inferior colliculus in the
midbrain, on to the medial geniculate body, and finally to the cortex.
Auditory evoked potentials (AEPs) are a subclass of event-related potentials (ERP)s. ERPs are brain
responses that are time-locked to some "event", such as a sensory stimulus, a mental event (such as
recognition of a target stimulus), or the omission of a stimulus. For AEPs, the "event" is a sound. AEPs (and
ERPs) are very small electrical voltage potentials originating from the brain recorded from the scalp in
response to an auditory stimulus, such as different tones, speech sounds, etc.
Brainstem auditory evoked potentials are small AEPs that are recorded in response to an auditory stimulus
from electrodes placed on the scalp.
Advantages of hearing aid selection by brainstem audiometry include the following applications:
Disadvantages of hearing aid selection by brainstem audiometry include the following applications:
62. Is the Blood Pressure the same everywhere in the body? If not, where does the highest
blood pressure occur and where does the lowest blood pressure occur? Explain your answer.
No, it is not same throughout the body.
29 | P a g e
Simplified diagram of circulatory systems - systemic and pulmonary
During a single cardiac cycle (one heartbeat), the blood pressure varies between a systolic (maximum) and
diastolic (minimum) value. This is what the waveform looks like:
Physiologically, we convert the varying pressures to a single value called Mean Arterial Pressure (MAP),
calculated as
MAP = (CO × SVR) + CVP
Where CO - Cardiac Output, SVR - Systemic Vascular Resistance, and CVP - Central Venous Pressure
(approx 0 mmHg).
A ventilator helps make sure that you continue breathing during surgery.
A ventilator doesn't treat a disease or condition. It's used only for life support.
65. You are asked to design a portable fitness tracking system for the people who want to get in
better shape. Describe briefly how you would approach this task.
for the fitness minded or those that need that extra push in motivation, there are numerous portable
fitness tracking devices to help track and improve workout routine:
Fitbit– featured in the 2008 Tech Crunch 50, FitBit - it acts as a pedometer, measures calories burned
and distance travel and even measures sleep quality. Fitbit has a 3D motion sensor like a Wii and is one
of the smaller devices on the market that can be worn in a variety of places, and all fitness information is
uploaded to your Fitbit.com page to track online from anywhere. Fitbit is only $99 USD.
66. What is inflammation? Could implanted biomaterials trigger a chronic inflammation response?
Explain your answer.
If we have inflammation in part of our body, then extra protein is often released from the site of
imflamation and circulates in the blood stream.
Biomaterial degradation may lead to chronic nonhealingwounds that are arrested at one of the normal
phases ofwound healing.
This may happen if a biomaterial degrades too quickly and release particulate matter that extends the
inflamation stage.
Persistent inflammation leads to the formation of gaint multinucleated cells that continue to attempt
to remove the offending material through secretion of acids and enzymes that destroys healthy tissue.
67. Consider a bone to be a perfect cylinder with an outer diameter of 2cm and a thickness of 2mm.
During a compression test it is shown that the bone can withstand 14kN before it fractures.
What is the maximum stress the bone can withstand?
31 | P a g e
Stress= force/area
Force= 14000 N
Area= (Pi/4)*(0.02^2-0.016^2)
Stress = 123.784 MN/m^2
68. What are the challenges in using dialysis machines in remote communities?
69. Dosimetry is the measurement of the dose of radiation received by tissue. When would it be
useful to measure this? Does it matter what tissue might be affected and is it relevant which
type of radiation is received? Explain your answer.
Dosimetry is useful in measuring the amount of radiation given to the cancer patients. These ionizing
radiations are completely undetectable by human senses, hence dosimetry is used.
Some tissues are radioactive because their nuclei are unstable. The ionizing radiations carries energy and
these energy can be absorbed by the tissues, which can cause the damage to the tissues. If the energy is
concentrated on a small mass of tissue, the absorbed dose is greater.
70. What is the difference between the Nernst equation and the Goldmann equation? Under what
circumstances can the Goldmann equation be approximated by the Nernst equation?
The Nernst equation is used to calculate the electrical potential (Pd) across a membrane when this membrane
is permeable to a single ion either K+, Na+ or Cl-. The Nernst equation does not give a very good estimate
of membrane potential.
The Goldman equation takes other ionic conductances into account and it may be used to calculate
membrane potential using the relative permeability (Pion) and the concentration gradient of all three ions
(K+, Na+ and Cl-).
32 | P a g e
When the permeability to one ion is exceptionally high, as compared with the other ions, then membrane
potential predicted by goldman equation can be approximated by Nernst equation for that ion.
71. Two people have the same cardiac output at rest but one of them has a much higher heart rate
than the other. What could be a potential explanation for this difference?
The cardiac output is simply the amount of blood pumped by the heart per minute. Necessarily, the cardiac
output is the product of the heart rate, (which is the number of beats per minute), and the stroke volume,
(which is amount pumped per beat).
Ie. CO = HR X SV
The person with higher heart rate has less stroke volume than the other person.
72. What is Doppler effect? What is the medical relevance of the Doppler effect?
Using an automated external defibrillator (AED) on a person who is having sudden cardiac arrest (SCA)
may save the person's life. The most common cause of SCA is an arrhythmia called ventricular fibrillation
(v-fib). In v-fib, the ventricles (the heart's lower chambers) don't beat normally. Instead, they quiver very
rapidly and irregularly. Another arrhythmia that can lead to SCA is ventricular tachycardia. This is a fast,
regular beating of the ventricles that may last for a few seconds or much longer.In people who have either of
these arrhythmias, an electric shock from an AED can restore the heart's normal rhythm (if done within
minutes of the onset of SCA).
If someone is having SCA, you may see him or her suddenly collapse and lose consciousness. Or, you may
find the person unconscious and unable to respond when you call or shake him or her. The person may not
be breathing, or he or she may have an abnormal breathing pattern. If you check, you usually can't find a
pulse. The person's skin also may become dark or blue from lack of oxygen. Also, the person may not move,
or his or her movements may look like a seizure (spasms). An AED can check the person's heart rhythm and
determine whether an electric shock is needed to try to restore a normal rhythm.
Working
Automated external defibrillators (AEDs) are lightweight, battery-operated, portable devices that are easy
to use. Sticky pads with sensors (called electrodes) are attached to the chest of the person who is having
sudden cardiac arrest (SCA).The electrodes send information about the person's heart rhythm to a computer
in the AED. The computer analyzes the heart rhythm to find out whether an electric shock is needed. If a
33 | P a g e
shock is needed, the AED uses voice prompts to tell you when to give the shock, and the electrodes deliver
it.Using an AED to shock the heart within minutes of the start of SCA may restore a normal heart rhythm.
Every minute counts. Each minute of SCA leads to a 10 percent reduction in survival.
74. What is a composite material? How can the properties of a composite material be determined?
A composite material (also called a composition material or shortened to composite which is the common
name) is a material made from two or more constituent materials with significantly different physical or
chemical properties that, when combined, produce a material with characteristics different from the
individual components. The individual components remain separate and distinct within the finished
structure. (Also refer page number 234 text book for the answer). The advantages of composites are that the
properties can be tailored to fit nearly any application, however it is difficult to make a composite with an
ideal structure. the performance of composite mateials is much better than the single componenets so it is
widely used in biomedical applications.
75. The picture below shows a recorded ECG signal. Give possible explanation for the fact that it
doesnot look like a standard ECG signal. Would it be possible to determine whether the heart is
healthy or not based on the recording below? Explain your answer.
Considerable signal averaging or comb filtering and spectral or spatial filtering are required to
remove non ECG signals and noise from the ECG signal.
These noise signals include movement of muscles and eyes, causing baseline potential shifts. The
pattern of the time, location and amplitude of the ECG will response to the auditory, visual or
emotional imagery.
In the first figure, the noise makes it difficult to extract the actual wave pattern. Thus, surface
recorded potentials are embedded in considerable noise, resulting in a low signal to noise ratio.
In the second figure, enhancing the signal to noise ratio is performed by filtering the activity from the
electrode to the frequency band of the signal of interest, rejecting frequencies dominated by noise.
Low pass FIR filter for enhancement signal-to noise ratio. The filters parameters are following pass
band: 40Hz, stop band: 50Hz, sampling frequency: 250Hz. The method is able to remove noise and
achieve high compression ratios because of the “concetrating” ability of the wavelet transform.
The experiment lead to the discovery of animal electricity which was the pioneer
of bioelectromagnetics.
Galvani discovered that the muscles of dead frogs' legs twitched when struck by an electrical
spark
34 | P a g e
This was one of the first forays into the study of bioelectricity, a field that still studies the
electrical patterns and signals from tissues such as the nerves and muscles.
Galvani found that frog legs contracted when the nerves were stimulated with the help of an
electrostatic machine. Frog legs also contracted when the nerves were in contact with aerial wires
during lightning.
He found that animal electricity is real and the stimulus consists of an action potential
The neuron (nerve cell) has a potential difference between the inside and the outside of the cell.
When a certain potential difference is reached an action potential is generated.
This lead to the idea of electric potential and hence the invention of the battery, launching the
field of electrical engineering
77. A new material has been implanted into a rabbit to test for biocompatibility. The site of
implantation is examined at 5 days. The site is slightly red and swollen. What concerns does this
raise about its biocompatibility?
Bio-compactibility-
the rabbit pyrogenicity test is required during the initial evaluation of the product.
This test is done for evaluating redness and swelling. the redness and swelling are also indicators
of irritation. Since the site is red and swollen it indicates that the material used can cause
irritation to the body.
It assesses whether or not a test article has the ability to cause a feverlike response.
(pyrogenicity)
It may be a toxin component for human body.
“Refer page number 260 for the answer. For any additional adding”
What is biocompatibility. How can a new material be tested for biocompatibility?
Bicompacability is the tissue-biomateril interactions which investigates the implantationof biommaterial
in a body and analyse how the body affects the bio materials and biomaterial affect the body.
Biocompacability of a newmaterial is tested using invitro assays, in vivo models and human clinical
traits.
35 | P a g e
80. Can sound or ultrasound be used to diagnose diseases? If no, why not? If yes, explain how it can
be used.
Ultrasound is not limited to diagonosis but ca also be used in screeing for disease and to aid in treatment of
disease or conditions.
Cardiology- evaluates the heart, the heart valve's motion, and blood flow through them. It also evaluates
the heart wall motion and the amount of blood the heart pumps with each stroke.
blood vessels- Ultrasound can detect blood clots in veins (superficial or deep venous thrombosis) or artery
blockage (stenosis) and dilatation (aneurysms)
neck- The thyroid gland can be imaged using ultrasound looking for nodules, growths, or tumors.
abdominal structures- Aside from its use in obstetrics, ultrasound can evaluate most of the solid structures
in the abdominal cavity. This includes the liver, gallbladder, pancreas, kidneys, bladder, prostate, testicles,
uterus, and ovaries.
knee joint- Ultrasound can be used to detect bulging of fluid from a swollen knee joint into the back of the
knee, called a Baker's cyst
81. Can sound or ultrasound be used to treat diseases? If no, why not? If yes, explain how it can be
used.
Ultrasound is not limited to diagonosis but ca also be used in screeing for disease and to aid in treatment
of disease or conditions.
Ultrasound is routinely used for assessing the progression of a pregenancy. Pelvic ultrasound can be
obtained trans-abdominally where the probe is placed on the abdominal wall or trnas vaginally, where
the probe is placed in the vagina. For example ultrasound in obstetrics is used to diagnose growth or
tumours of the ovary, uterus or fallopian tubes.
82. A person is exposed to a certain potential difference. What factors determine the physiological
effects on his body?
decrease in the potential difference over cell membrane results in increased permeability for sodium ions
which would further cause depolarization and even reversal of the membrane potential
1. growth hormones and growth factors in the blood, under the control of the endocrine system.
2. blood levels of calcium and the regulation (including diet and excretion)
3. the presence of epiphysial plates to allow for an increase in bone size, because bone must begin as type 1
36 | P a g e
collagen, which is similar to hyaline cartilage.
84. Design a portable system for indirectly measuring blood pressure every 5 minutes of
ambulatory subjects. It should operate without attention from the subject for 24 hours. Show a
block diagram and describe the systems operation.
There are two techniques for measuring ambulatory blood pressure: the commonly used method of
intermittent measurement over 24 hours and the developing method of continuous waveform analysis.
Intermittent measurement— Many of these devices have been validated for use in specific groups, such as
elderly people and pregnant women, and in differing circumstances, such as during exercise and in different
postures. Validating devices for use in ambulatory conditions presents many methodological difficulties, and
some evidence suggests that inaccuracies found during static conditions may be amplified in ambulatory
conditions.
Devices for continuous non-invasive blood pressure monitoring of a finger—The Portapres, a portable
recorder for 24 hour ambulatory monitoring, can provide beat to beat monitoring which gives waveform
measurements similar to intra-arterial recordings. However, the technique is subject to various inaccuracies,
which the use of correction factors and digital filters in the latest model may remove; this model is awaiting
formal validation.
86. What is meant by the turnover rate of a tissue? Why is this relevant?
Turnover rate is defined as the rate at which a substance is replaced in the tissue cells.this is essentially
the concentration of the substance in the tissue divided by the turnover time. It is also defined as the
biological average life. (refer pg 302 text)
87. Explain briefly the main challenges in modeling blood flow in the body.
Blood is not a Newtonian fluid. It is very complicated fluid made of RBC,WBC, plasma and
oxygen. However it can be assumed to behave as newtonian fluids at high shear rates( greater
than 100/s).Blood looses material when travelling through the vessel this breaks the
concentration of momentum energy and mass.
Any modeling errors greatly affect simulation results. For capillaries and vessels such as
arterioles and venules, which connect capillaries to arteries and veins, the difficulty is how to
scale up the molecular-based modeling. So we have developed a multiscale approach to capture
the effects of both the flow and the particle dynamics and to quantify their interactions. The
geometric complexity of the human arterial tree is another big challenge.
37 | P a g e
