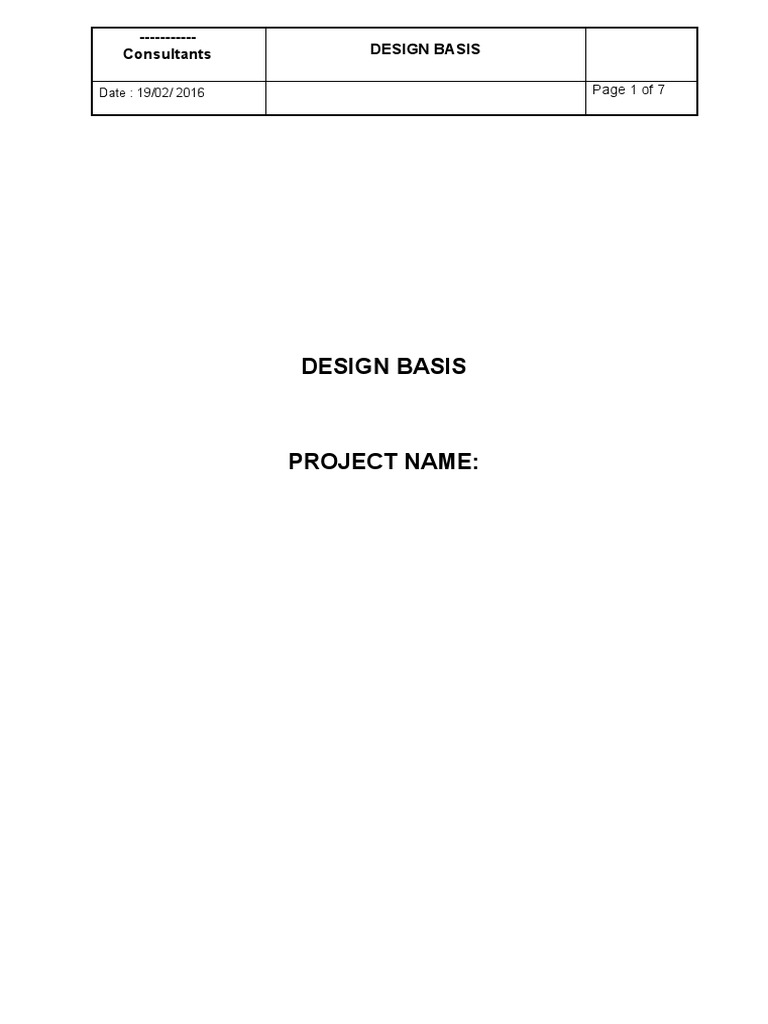

Consultants DESIGN BASIS

Date : 19/02/ 2016 Page 1 of 7

DESIGN BASIS

PROJECT NAME:
 -----------
Consultants DESIGN BASIS

Date : 19/02/ 2016 Page 2 of 7

DESIGN BASIS

A. LOCATION
The project is located at Matunga(W), Mumbai.

B. GENERAL
The followings are the proposed Residential buildings.
1. Ground +6 Storey RCC building of 16.25 m x16.89 m.

C. CODES
The structural design document is in general accordance with the minimum requirements
of the Indian codes and standards.

In the analysis, design and detailing of the building, the latest editions of following Indian
Standards will be referred.

1. Minimum Design Loads for Buildings other than seismic Loads:

IS Code
IS 875 (Part 1) : 1987
IS 875 (Part 2): 1987
IS 875 (Part 3): 1987
IS 875 (Part 5): 1987
Description
Dead Loads – Unit Weight of Building
Material and Stored Material
Imposed Loads
Wind Loads
Special loads and load combinations

2. Seismic Provisions for Buildings:

IS Code Description
IS 1893 : 2002 Criteria for earthquake resistance design of
structures.
IS 13920: 1993 Ductile Detailing of Reinforced Concrete
Structures subjected to Seismic Forces – Code
of Practice.

3. Building Code Requirements for Structural Concrete:

IS Code Description
IS 456: 2000 Plain and Reinforced Concrete – Code of
practice
SP 16 Design aids for Reinforced concrete to IS:
456-1978.
SP 34 Handbook on Concrete Reinforcement and
Detailing
IS 3370 Code of practice for Concrete structures for
the storage of liquids
 -----------
Consultants DESIGN BASIS

Date : 19/02/ 2016 Page 3 of 7

D. REFERENCE DOCUMENTS

The soil investigation report prepared by perfect Geotechnics private ltd.

E. MATERIALS
1. Cast – in – Situ Concrete: Normal Weight, 24000 N/m3 (25000 N/m3 for loading
calculations).
a. Type of concrete and corresponding compressive strengths and Modulus of
Elasticity, Ec are as follows:

Concrete Cube Strength fck Short term Ec (Mpa)

Grade (Mpa)
M30 25 25000

b. Poisson’s ratio = 0.2

c. Coefficient of thermal expansion = 9.9 x 10-0.6 per oC.

2. Reinforcement:

a. Reinforcing bars: IS 1786 Fe 500 (Fy = 415Mpa)

E. GRAVITY LOADS

Normal weight Reinforced Concrete is taken at a unit weight of 2.50 T/m 3. Floor Finishes
/ Plasters is taken at 2.00 T/m 3. Weight of brick work is taken at 2.00 T/m 3. The following
are superimposed dead and live loads taken for each occupancy category:

1. FIRST FLOOR kg/m2

Superimposed Dead Load

 Floor Finish 150

 Partition Load 150
-------
 Total Superimposed Dead Load 300

 The wall loads of 230mm/150mm thick walls as shown in architectural plans are
applied on beams. The walls which are directly resting on slabs are considered as
light weight material walls such as siporex etc. with a density of 0.8 T/m3 and
applied as equivalent UDL.

Live Load 1000

2. STAIRS kg/m2
 -----------
Consultants DESIGN BASIS

Date : 19/02/ 2016 Page 4 of 7

Superimposed Dead Load

 Floor Finish 150

-------
 Total Superimposed Dead Load 150

Live Load 500

3. TOILET ROOMS kg/m2

Superimposed Dead Load

 Filling Load (200mm) 400

 Floor Finish 150
-------
 Total Superimposed Dead Load 550

Live Load 200

5. ROOF TERRACE
kg/m2

Superimposed Dead Load

 Sheeting 25
-------
 Total Superimposed Dead Load 25

Live Load 75

6. OVERHEAD TANK As per actuals.

F. WIND LOADS

1. Wind Load Parameter

Gust wind loads are determined from IS: 875 (Part 3) – 1987, using the following
parameters:

Basic Wind Speed: Vb = 44 m/s

Probability factor (50 years design life): K1 = 1.0
Terrain category: III,
Building Class: B ( Building dimension >20m)
Topography factor: K3 = 1
Terrain, Height factor: K2 = 1,From Table 33

G. SEISMIC LOADS
 -----------
Consultants DESIGN BASIS

Date : 19/02/ 2016 Page 5 of 7

1. Seismic loads are determined from IS: 1893:2002, based on the following parameters:
Seismic Zone : III
Seismic Zone Factor: Z = 0.16
Importance Factor: I = 1.0
Type of Lateral System: OMRF
Response reduction factor: R=3
Soil Class: I
Height of building (H): 21.6 m (Above ground upto terrace slab)
Base dimension @ plinth level (d): 16.25m x 16.89m
Fundamental Natural Period (Ta): 0.075(h)0.75
Average response acceleration Coefficient: Sa/g = Varies with Ta

The seismic dead load, W, includes:

- construction dead load;
- superimposed dead load, including partition allowance;
- 50% of imposed load.

2. The seismic base shear is determined according to IS: 1893

Vb = Z/2 x I/R x Sa/g x W.

H. DEFLECTIONS

1. Immediate deflections of concrete beams due to live load are limited to Span/350.
2. The deflection of beams (e.g. parapet, cantilever beams) occurring after attachment of
nonstructural elements(sum of the long-term deflection due to all dead and
superimposed dead loads and the immediate deflection due to live load) is limited to
Span/250.
3. The deflection of beams (supporting curtain and partition walls) occurring after
attachment of nonstructural elements (sum of the long-term deflection due to all dead
and superimposed dead loads and the immediate deflection due to live load) is limited
to Span/480.
4. The total building sway deflection is limited to the following:
a. For wind loading: (total building height) / 500

5. Interstory shear deformation is limited to the following:

a. For wind loading: (story height) / 500
b. For seismic loading: (story height) / 250

I. LOAD COMBINATIONS

a. Definitions:
D. L. = Dead Load
L. L. = Live Load (net reduced live load after coefficient is applied), including
Roof live load
WLx = Wind Load in X direction
Wly = Wind Load in Y direction
EQx = Seismic Load in X direction
PEQx = Seismic Load in X direction + 5% Eccentricity in Y direction
 -----------
Consultants DESIGN BASIS

Date : 19/02/ 2016 Page 6 of 7

MEQx = Seismic Load in X direction – 5% Eccentricity in Y direction

EQy = Seismic Load in Y direction
PEQy = Seismic Load in Y direction + 5% Eccentricity in X direction
MEQy = Seismic Load in Y direction – 5% Eccentricity in X direction

b. Load Combinations for Foundations :

1.0 (D.L + L.L.)
1.0 (D.L.) + 1.0 (EQx)
1.0 (D.L.) - 1.0 (EQx)
1.0 (D.L.) + 1.0 (PEQx)
1.0 (D.L.) - 1.0 (PEQx)
1.0 (D.L.) + 1.0 M(EQx)
1.0 (D.L.) - 1.0 (MEQx)
1.0 (D.L.) + 1.0 (EQy)
1.0 (D.L.) - 1.0 (EQy)
1.0 (D.L.) + 1.0 (PEQy)
1.0 (D.L.) - 1.0 (PEQy)
1.0 (D.L.) + 1.0 (MEQy)
1.0 (D.L.) - 1.0 (MEQy)
1.0 (D.L.) + 1.0 (WLx)
1.0 (D.L.) - 1.0 (WLx)
1.0 (D.L.) + 1.0 (WLy)
1.0 (D.L.) - 1.0 (WLy)
1.0 (D.L.) + 0.8 (L. L.) + 0.8 (EQx)
1.0 (D.L.) + 0.8 (L. L.) - 0.8 (EQx)
1.0 (D.L.) + 0.8 (L. L.) + 0.8 (PEQx)
1.0 (D.L.) + 0.8 (L. L.) - 0.8 (PEQx)
1.0 (D.L.) + 0.8 (L. L.) + 0.8 (MEQx)
1.0 (D.L.) + 0.8 (L. L.) - 0.8 (MEQx)
1.0 (D.L.) + 0.8 (L. L.) + 0.8 (EQy)
1.0 (D.L.) + 0.8 (L. L.) - 0.8 (EQy)
1.0 (D.L.) + 0.8 (L. L.) + 0.8 (PEQy)
1.0 (D.L.) + 0.8 (L. L.) - 0.8 (PEQy)
1.0 (D.L.) + 0.8 (L. L.) + 0.8 (MEQy)
1.0 (D.L.) + 0.8 (L. L.) - 0.8 (MEQy)
1.0 (D.L.) + 0.8 (L. L.) + 0.8 (WLx)
1.0 (D.L.) + 0.8 (L. L.) - 0.8 (WLx)
1.0 (D.L.) + 0.8 (L. L.) + 0.8 (WLy)
1.0 (D.L.) + 0.8 (L. L.) - 0.8 (WLy)

c. Load Combinations for Columns

1.5 (D.L)
1.5 (D.L. + L.L.)
1.5 (D.L.) + 1.5 (EQx)
1.5 (D.L.) - 1.5 (EQx)
1.5 (D.L.) + 1.5 (PEQx)
1.5 (D.L.) - 1.5 (PEQx)
1.5 (D.L.) + 1.5 (MEQx)
1.5 (D.L.) - 1.5 (MEQx)
 -----------
Consultants DESIGN BASIS

Date : 19/02/ 2016 Page 7 of 7

1.5 (D.L.) + 1.5 (EQy)

1.5 (D.L.) – 1.5 (EQy)
1.5 (D.L.) + 1.5 (PEQy)
1.5 (D.L.) – 1.5 (PEQy)
1.5 (D.L.) + 1.5 (MEQy)
1.5 (D.L.) – 1.5 (MEQy)
1.5 (D.L.) + 1.5 (WLx)
1.5 (D.L.) - 1.5 (WLx)
1.5 (D.L.) + 1.5 (WLy)
1.5 (D.L.) - 1.5 (WLy)
1.2 (D.L. + L. L.) + 1.2 (EQx)
1.2 (D.L. + L. L.) - 1.2 (EQx)
1.2 (D.L. + L. L.) + 1.2 (PEQx)
1.2 (D.L. + L. L.) - 1.2 (PEQx)
1.2 (D.L. + L. L.) + 1.2 (MEQx)
1.2 (D.L. + L. L.) - 1.2 (MEQx)
1.2 (D.L. + L. L.) + 1.2 (EQy)
1.2 (D.L. + L. L.) - 1.2 (EQy)
1.2 (D.L. + L. L.) + 1.2 (PEQy)
1.2 (D.L. + L. L.) - 1.2 (PEQy)
1.2 (D.L. + L. L.) + 1.2 (MEQy)
1.2 (D.L. + L. L.) - 1.2 (MEQy)
1.2 (D.L. + L. L.) + 1.2 (WLx)
1.2 (D.L. + L. L.) - 1.2 (WLx)
1.2 (D.L. + L. L.) + 1.2 (WLy)
1.2 (D.L. + L. L.) - 1.2 (WLy)
0.9 (D.L.) + 1.5 (EQx)
0.9 (D.L.) - 1.5 (EQx)
0.9 (D.L.) + 1.5 (PEQx)
0.9 (D.L.) - 1.5 (PEQx)
0.9 (D.L.) + 1.5 (MEQx)
0.9 (D.L.) - 1.5 (MEQx)
0.9 (D.L.) + 1.5 (EQy)
0.9 (D.L.) - 1.5 (EQy)
0.9 (D.L.) + 1.5 (PEQy)
0.9 (D.L.) - 1.5 (PEQy)
0.9 (D.L.) + 1.5 (MEQy)
0.9 (D.L.) - 1.5 (MEQy)
0.9 (D.L.) + 1.5 (WLx)
0.9 (D.L.) - 1.5 (WLx)
0.9 (D.L.) + 1.5 (WLy)
0.9 (D.L.) - 1.5 (WLy)
