    1.

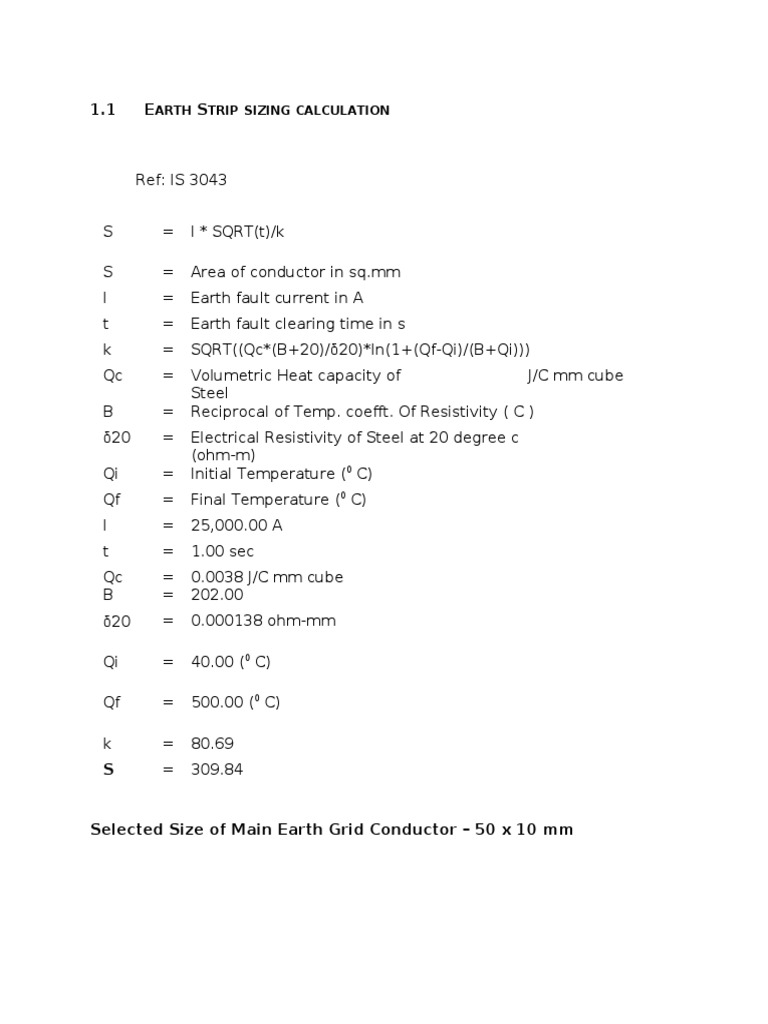

    1 EARTH STRIP SIZING CALCULATION

    Ref: IS 3043

    S = I * SQRT(t)/k

    S = Area of conductor in sq.mm
    I = Earth fault current in A
    t = Earth fault clearing time in s
    k = SQRT((Qc*(B+20)/δ20)*ln(1+(Qf-Qi)/(B+Qi)))
    Qc = Volumetric Heat capacity of J/C mm cube
    Steel
    B = Reciprocal of Temp. coefft. Of Resistivity ( C )
    δ20 = Electrical Resistivity of Steel at 20 degree c
    (ohm-m)
    Qi = Initial Temperature (0 C)
    Qf = Final Temperature (0 C)
    I = 25,000.00 A
    t = 1.00 sec
    Qc = 0.0038 J/C mm cube
    B = 202.00
    δ20 = 0.000138 ohm-mm

    Qi = 40.00 (0 C)

    Qf = 500.00 (0 C)

    k = 80.69
    S = 309.84

    Selected Size of Main Earth Grid Conductor – 50 x 10 mm
