Measurement Method and Main Unit Posture SH330

New Machine Performance Section

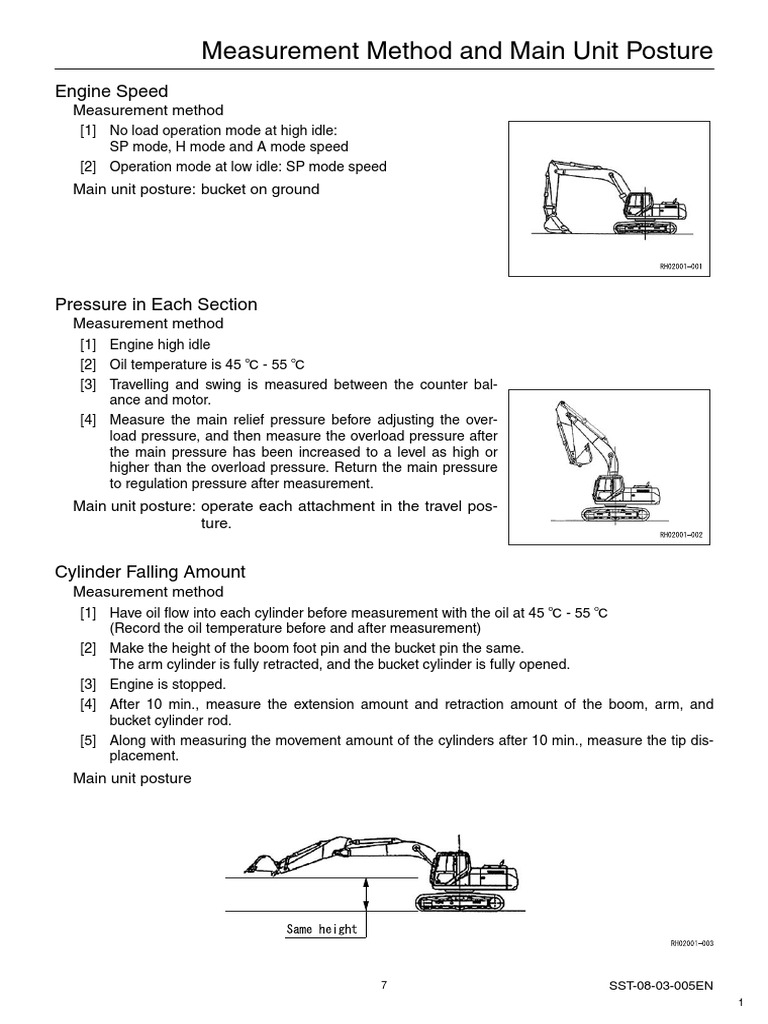

Measurement Method and Main Unit Posture


Engine Speed
Measurement method
[1] No load operation mode at high idle:
SP mode, H mode and A mode speed
[2] Operation mode at low idle: SP mode speed
Main unit posture: bucket on ground

Pressure in Each Section


Measurement method
[1] Engine high idle
[2] Oil temperature is 45 ℃ - 55 ℃
[3] Travelling and swing is measured between the counter bal-
ance and motor.
[4] Measure the main relief pressure before adjusting the over-
load pressure, and then measure the overload pressure after
the main pressure has been increased to a level as high or
higher than the overload pressure. Return the main pressure
to regulation pressure after measurement.
Main unit posture: operate each attachment in the travel pos-
ture.

Cylinder Falling Amount


Measurement method
[1] Have oil flow into each cylinder before measurement with the oil at 45 ℃ - 55 ℃
(Record the oil temperature before and after measurement)
[2] Make the height of the boom foot pin and the bucket pin the same.
The arm cylinder is fully retracted, and the bucket cylinder is fully opened.
[3] Engine is stopped.
[4] After 10 min., measure the extension amount and retraction amount of the boom, arm, and
bucket cylinder rod.
[5] Along with measuring the movement amount of the cylinders after 10 min., measure the tip dis-
placement.
Main unit posture

7 SST-08-03-005EN
1
Measurement Method and Main Unit Posture
Attachment Speed
Measurement method
[1] Engine high idle
[2] Oil temperature is 45 ℃ - 55 ℃ .
[3] No load
Main unit posture
Boom cylinder
With the arm fully out and the bucket fully opened,
measure the operation time it takes the boom
cyclinder to go from fully upwards to the ground and
also from the ground to fully upwards
[Note]When the boom is lowered, make sure not to
directly hit the concrete (place tires on the ground).

Arm cylinder
With the arm cylinder fully out and the arm horizon-
tal to the ground, measure the operation time it
takes the arm cylinder to do a full stroke with bucket
cylinder fully out

Bucket cylinder
Measure the operation time for a full stroke at the
maximum radius.

SST-08-03-005EN 8
2
Measurement Method and Main Unit Posture
Swing Speed
Measurement method
[1] Engine high idle
[2] Oil temperature is 45 ℃ - 55 ℃ .
[3] No load
[4] The time required for the next rotation after one rotation
Main unit posture

Swing (180°) Brake Angle


Measurement method
[1] Engine high idle
[2] Oil temperature is 45 ℃ - 55 ℃ .
[3] No load
[4] Swing 180°and measure the flow angle after neutral braking
Main unit posture: same as the above
Travel Speed
Measurement method
[1] Engine high idle and oil temperature is 45 ℃ - 55 ℃ with no load.
[2] Measure the required time to travel 6 m after a 4 - 5 m running start. If the off travel distance is
1 m or more, however, use the off travel distance as a reference value to correct the off travel,
then measure the travel speed again.
[3] Travelling should be done on concrete.
[4] Conduct both high-speed and low-speed travelling.

9 SST-08-03-005EN
3
Measurement Method and Main Unit Posture
Off Travel Amount
Measurement method
[1] Engine high idle and oil temperature is 45 ℃ - 55 ℃ with no load.
[2] Measure the required time to travel 20 m after a 4 - 5 m running start.
[3] Shoe tension amount should be standard.
[4] Measure for both forward and backward traveling.
[5] Measure for both high-speed and low-speed traveling.
Main unit posture: same as with travel speed measurement.

Travel Sprocket Speed


Measurement method
[1] Engine high idle
[2] Oil temperature is 45 ℃ - 55 ℃ .
[3] Raise a shoe, and after achieving a constant speed, measure the
time required for the sprocket to rotate 10 times both forwards
and backwards.
[4] Measure for both high-speed and low-speed traveling.
Main unit posture: 90°swing, shoe raised.
Shoe Tension Amount
Measurement method
[1] Raise the shoe and, at the central position of the track, measure the gap between the underside
of lower side frame and the topside of the shoe plate.
[2] Measure for both the left and right sides.

SST-08-03-005EN 10
4
Measurement Method and Main Unit Posture
Swing Ball Race Bearing Movement Amount and Bucket Tip Movement Amount
Measurement method
A) Up and down direction measurement
[1] Measure the up and down movement amount at two locations in front of and behind the ball
race.
[2] Move the arm cylinder out and close the bucket cylinder, and move the bottom surface of the
bucket 30 cm above the ground. Attach a dial gauge to the lowering section as shown in the
figure below and do zero point adjustment.
[3] Jack up the main unit and measure the amount of movement with the dial gauge.
* Jack up the main body until the swinging of the dial gauge becomes constant.
Main unit posture

B) Left and right direction measurement


[1] Measure the left to right movement amount at the front side of the ball race and the left to right
movement amount of the bucket tip.
[2] The arm cylinder and bucket cylinder are in the open position, apply 294.2 - 392.3 N of force
to one side, and zero point adjustment is done for these conditions.
[3] 294.2 - 392.3 N of force is applied to the opposite side and the left to right movement is mea-
sured.
Main unit posture

11 SST-08-03-005EN
5
Measurement Method and Main Unit Posture

SST-08-03-005EN 12
