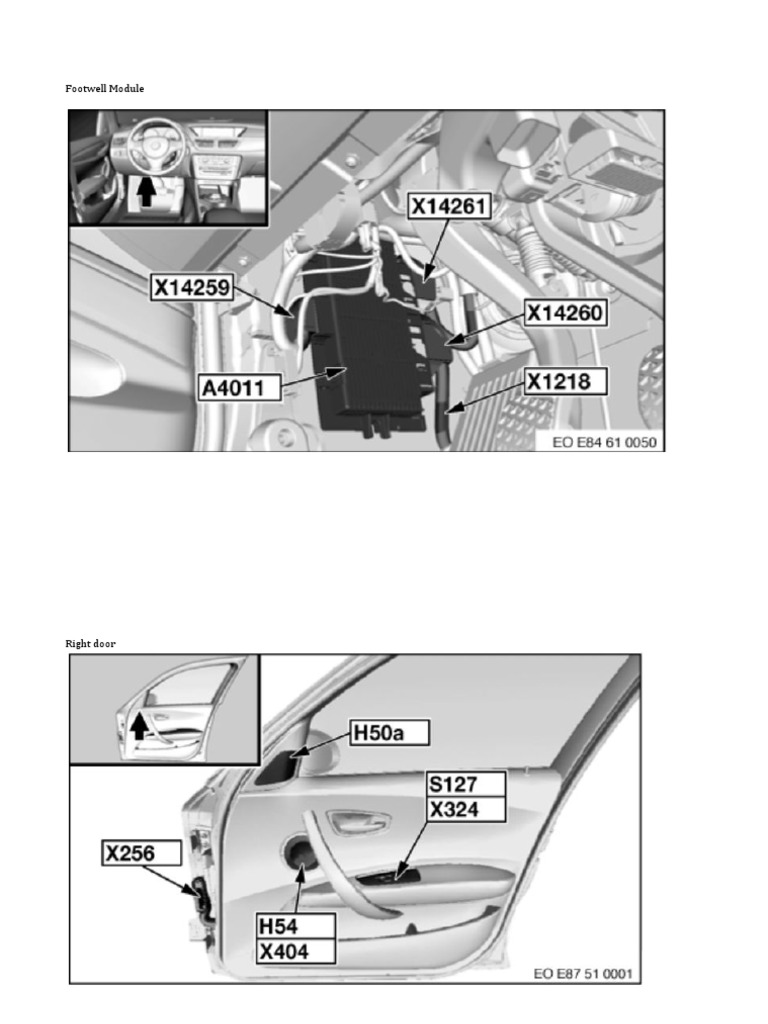

    Footwell Module



    Right door


    Passenger door, wiring

    ­ From FRM plug 14260 pin 22 to pin 6 in X256 in door connector. And from X256 pin 6 to pin 5 in mirror plug x624
    ­ From fusebox x11002 pin 6 to pin 8 in x256. And from x256 pin 8 to pin 6 in x624



    Left front door


    Drivers door
    From X14260 pin 23 to pin 6 in door 6 in door plug X257 pin 6.



    Fusebox – mirror
