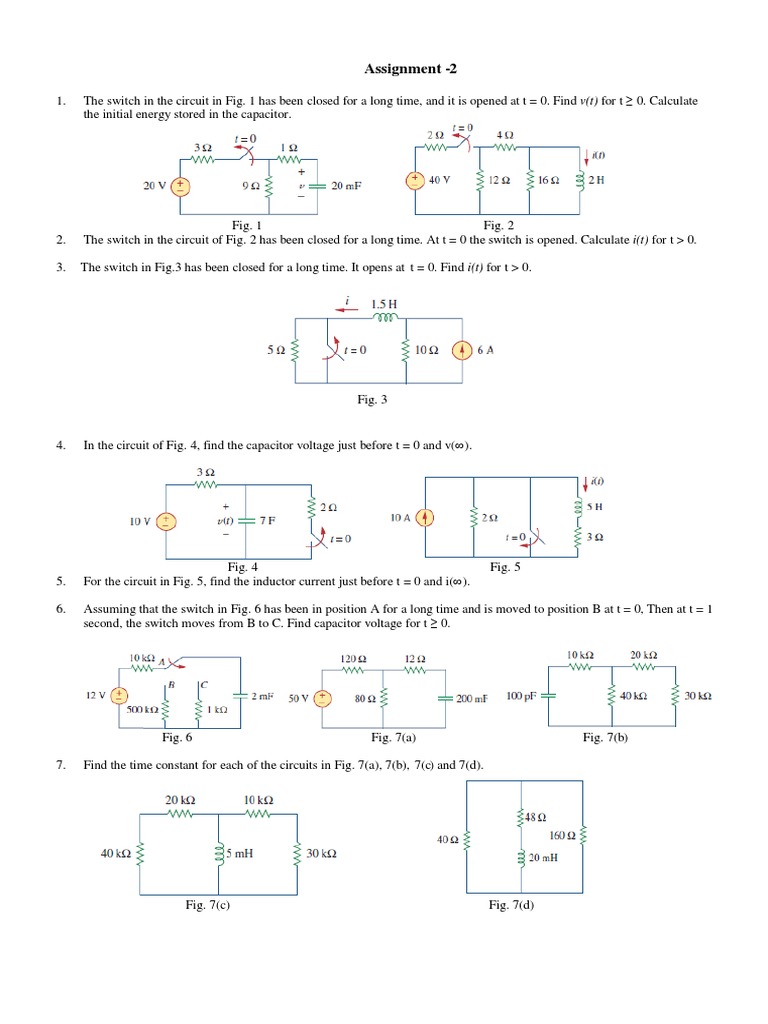

Assignment

ssignment - 2

1. The switch in the circuit in Fig. 1 has been closed for a long time, and it is opened at t = 0. Find v(t) for t ≥ 0. Calculate
the initial energy stored in the capacitor.

Fig. 1 Fig. 2
2. The switch in the circuit of Fig. 2 has been closed for a long time. At t = 0 the switch is opened. Calculate i(t) for t > 0.

3. The switch in Fig.3 has been closed for a long time. It opens at t = 0. Find i(t) for t > 0.

Fig. 3

4. In the circuit of Fig. 4, find the capacitor voltage just before t = 0 and v(∞).

Fig. 4 Fig. 5
5. For the circuit in Fig. 5, find the inductor current just before t = 0 and i(∞).

6. Assuming that the switch in Fig. 6 has been in position A for a long time and is moved to position B at t = 0, Then at t = 1
second, the switch moves from B to C. Find capacitor voltage for t ≥ 0.

Fig. 6 Fig. 7(a) Fig. 7(b)

7. Find the time constant for each of the circuits in Fig. 7(a), 7(b), 7(c) and 7(d).

Fig. 7(c) Fig. 7(d)

8. Calculate the capacitor voltage for t < 0 and t > 0 for each of the circuits in Fig. 8(a) and Fig. 8(b).

Fig. 8(a) Fig. 8(b)

Fig. 10

10.
11. In Fig. 10, the switch has been closed for a long time and is opened at t = 0. Find i and v for all time.
