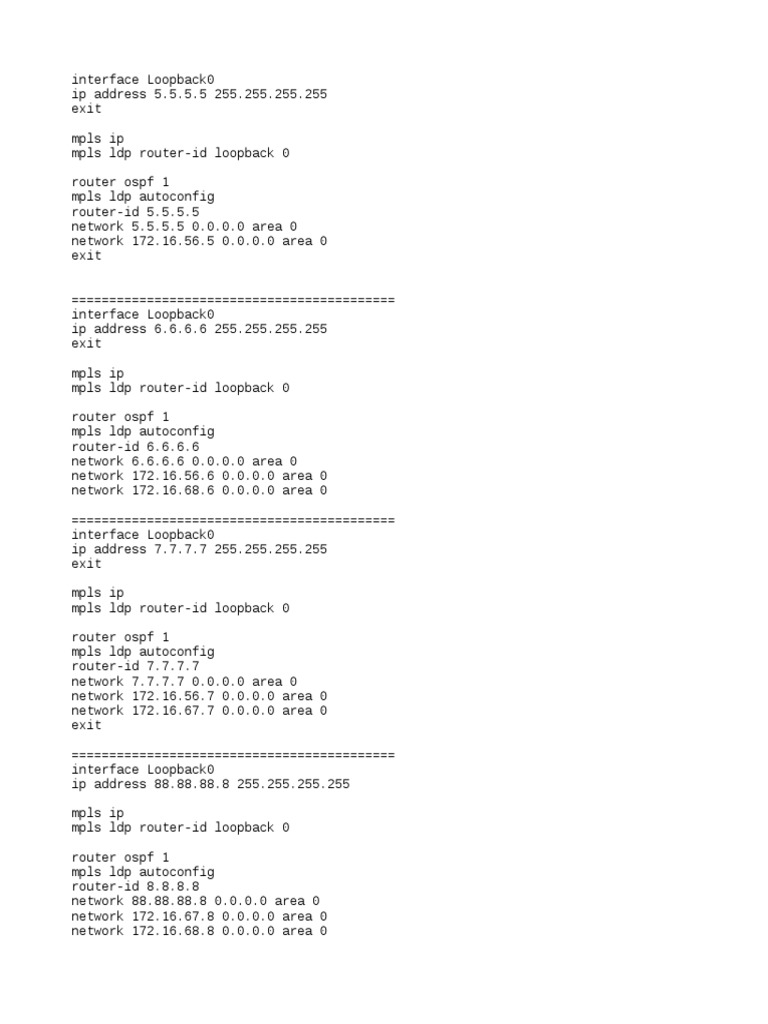

    interface Loopback0

    ip address 5.5.5.5 255.255.255.255


    exit

    mpls ip
    mpls ldp router-id loopback 0

    router ospf 1
    mpls ldp autoconfig
    router-id 5.5.5.5
    network 5.5.5.5 0.0.0.0 area 0
    network 172.16.56.5 0.0.0.0 area 0
    exit

    ===========================================
    interface Loopback0
    ip address 6.6.6.6 255.255.255.255
    exit

    mpls ip
    mpls ldp router-id loopback 0

    router ospf 1
    mpls ldp autoconfig
    router-id 6.6.6.6
    network 6.6.6.6 0.0.0.0 area 0
    network 172.16.56.6 0.0.0.0 area 0
    network 172.16.68.6 0.0.0.0 area 0

    ===========================================
    interface Loopback0
    ip address 7.7.7.7 255.255.255.255
    exit

    mpls ip
    mpls ldp router-id loopback 0

    router ospf 1
    mpls ldp autoconfig
    router-id 7.7.7.7
    network 7.7.7.7 0.0.0.0 area 0
    network 172.16.56.7 0.0.0.0 area 0
    network 172.16.67.7 0.0.0.0 area 0
    exit

    ===========================================
    interface Loopback0
    ip address 88.88.88.8 255.255.255.255

    mpls ip
    mpls ldp router-id loopback 0

    router ospf 1
    mpls ldp autoconfig
    router-id 8.8.8.8
    network 88.88.88.8 0.0.0.0 area 0
    network 172.16.67.8 0.0.0.0 area 0
    network 172.16.68.8 0.0.0.0 area 0
    network 172.16.89.8 0.0.0.0 area 0
    exit

    ===========================================
    interface Loopback0
    ip address 9.9.9.9 255.255.255.255
    exit

    mpls ip
    mpls ldp router-id loopback 0

    router ospf 1
    mpls ldp autoconfig
    router-id 9.9.9.9
    network 9.9.9.9 0.0.0.0 area 0
    network 172.16.89.9 0.0.0.0 area 0
    network 172.16.100.9 0.0.0.0 area 0
    network 172.16.101.9 0.0.0.0 area 0
    exit

    ===========================================
    interface Loopback0
    ip address 10.10.10.10 255.255.255.255
    exit

    mpls ip
    mpls ldp router-id loopback 0

    router ospf 1
    mpls ldp autoconfig
    router-id 10.10.10.10
    network 10.10.10.10 0.0.0.0 area 0
    network 172.16.100.10 0.0.0.0 area 0
    network 172.16.102.10 0.0.0.0 area 123
    exit

    ===========================================
    interface Loopback0
    ip address 11.11.11.11 255.255.255.255
    exit

    mpls ip
    mpls ldp router-id loopback 0

    router ospf 1
    mpls ldp autoconfig
    router-id 11.11.11.11
    network 11.11.11.11 0.0.0.0 area 0
    network 172.16.101.11 0.0.0.0 area 0
    network 172.16.103.11 0.0.0.0 area 123
    exit
    ===================================================================================
    ===
    ===================================================================================
    ===

    COMPROBACIONES

    R5#traceroute 10.10.10.10 source loopback 0 numeric


    Type escape sequence to abort.
    Tracing the route to 10.10.10.10
    VRF info: (vrf in name/id, vrf out name/id)
    1 172.16.56.6 [MPLS: Label 19 Exp 0] 8 msec
    172.16.56.7 [MPLS: Label 19 Exp 0] 5 msec
    172.16.56.6 [MPLS: Label 19 Exp 0] 32 msec
    2 172.16.67.8 [MPLS: Label 19 Exp 0] 6 msec
    172.16.68.8 [MPLS: Label 19 Exp 0] 8 msec
    172.16.67.8 [MPLS: Label 19 Exp 0] 3 msec
    3 172.16.89.9 [MPLS: Label 21 Exp 0] 1 msec 1 msec 1 msec
    4 172.16.100.10 1 msec * 4 msec
    R5#
    ###################################################################
    R5#traceroute 11.11.11.11 source loopback 0 numeric
    Type escape sequence to abort.
    Tracing the route to 11.11.11.11
    VRF info: (vrf in name/id, vrf out name/id)
    1 172.16.56.6 [MPLS: Label 35 Exp 0] 1 msec
    172.16.56.7 [MPLS: Label 35 Exp 0] 1 msec
    172.16.56.6 [MPLS: Label 35 Exp 0] 1 msec
    2 172.16.67.8 [MPLS: Label 34 Exp 0] 1 msec
    172.16.68.8 [MPLS: Label 34 Exp 0] 5 msec
    172.16.67.8 [MPLS: Label 34 Exp 0] 6 msec
    3 172.16.89.9 [MPLS: Label 34 Exp 0] 1 msec 1 msec 1 msec
    4 172.16.101.11 1 msec * 1 msec
    R5#
