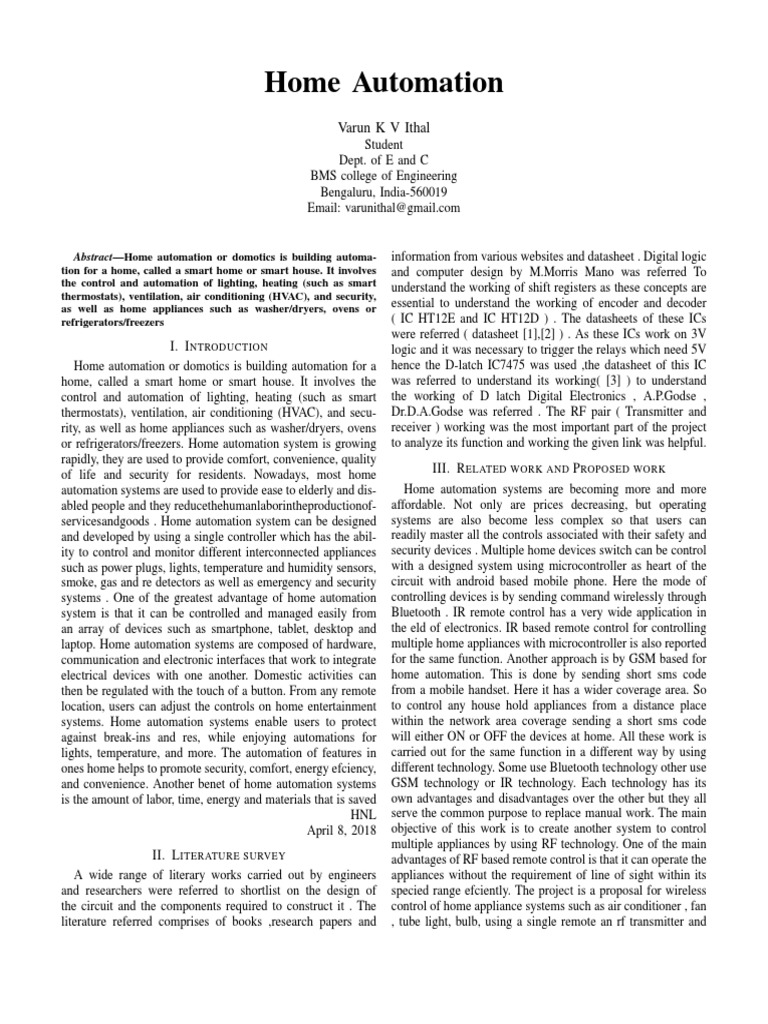

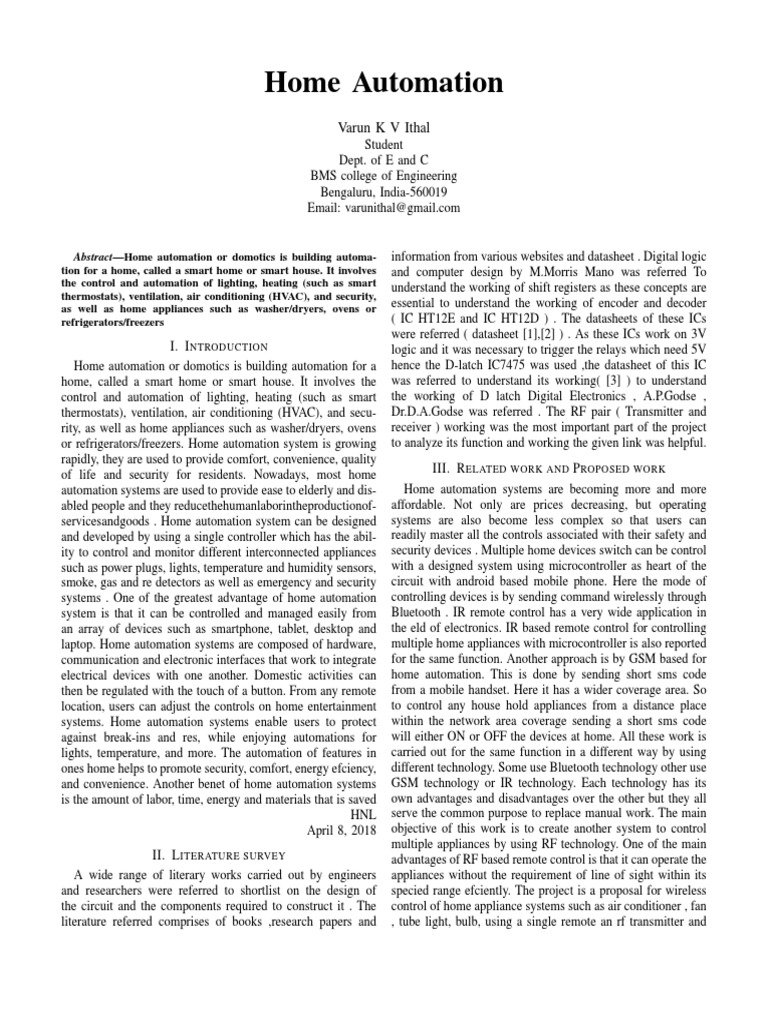

Home Automation
Varun K V Ithal
Student
Dept. of E and C
BMS college of Engineering
Bengaluru, India-560019
Email: varunithal@gmail.com
Abstract—Home automation or domotics is building automa-
tion for a home, called a smart home or smart house. It involves
the control and automation of lighting, heating (such as smart
thermostats), ventilation, air conditioning (HVAC), and security,
as well as home appliances such as washer/dryers, ovens or
refrigerators/freezers
I. I NTRODUCTION
Home automation or domotics is building automation for a
home, called a smart home or smart house. It involves the
control and automation of lighting, heating (such as smart
thermostats), ventilation, air conditioning (HVAC), and secu-
rity, as well as home appliances such as washer/dryers, ovens
or refrigerators/freezers. Home automation system is growing
rapidly, they are used to provide comfort, convenience, quality
of life and security for residents. Nowadays, most home
automation systems are used to provide ease to elderly and dis-
abled people and they reducethehumanlaborintheproductionof-
servicesandgoods . Home automation system can be designed
and developed by using a single controller which has the abil-
ity to control and monitor different interconnected appliances
such as power plugs, lights, temperature and humidity sensors,
smoke, gas and re detectors as well as emergency and security
systems . One of the greatest advantage of home automation
system is that it can be controlled and managed easily from
an array of devices such as smartphone, tablet, desktop and
laptop. Home automation systems are composed of hardware,
communication and electronic interfaces that work to integrate
electrical devices with one another. Domestic activities can
then be regulated with the touch of a button. From any remote
location, users can adjust the controls on home entertainment
systems. Home automation systems enable users to protect
against break-ins and res, while enjoying automations for
lights, temperature, and more. The automation of features in
ones home helps to promote security, comfort, energy efciency,
and convenience. Another benet of home automation systems
is the amount of labor, time, energy and materials that is saved
HNL
April 8, 2018
II. L ITERATURE SURVEY
A wide range of literary works carried out by engineers
and researchers were referred to shortlist on the design of
the circuit and the components required to construct it . The
literature referred comprises of books ,research papers and
information from various websites and datasheet . Digital logic
and computer design by M.Morris Mano was referred To
understand the working of shift registers as these concepts are
essential to understand the working of encoder and decoder
( IC HT12E and IC HT12D ) . The datasheets of these ICs
were referred ( datasheet [1],[2] ) . As these ICs work on 3V
logic and it was necessary to trigger the relays which need 5V
hence the D-latch IC7475 was used ,the datasheet of this IC
was referred to understand its working( [3] ) to understand
the working of D latch Digital Electronics , A.P.Godse ,
Dr.D.A.Godse was referred . The RF pair ( Transmitter and
receiver ) working was the most important part of the project
to analyze its function and working the given link was helpful.
III. R ELATED WORK AND P ROPOSED WORK
Home automation systems are becoming more and more
affordable. Not only are prices decreasing, but operating
systems are also become less complex so that users can
readily master all the controls associated with their safety and
security devices . Multiple home devices switch can be control
with a designed system using microcontroller as heart of the
circuit with android based mobile phone. Here the mode of
controlling devices is by sending command wirelessly through
Bluetooth . IR remote control has a very wide application in
the eld of electronics. IR based remote control for controlling
multiple home appliances with microcontroller is also reported
for the same function. Another approach is by GSM based for
home automation. This is done by sending short sms code
from a mobile handset. Here it has a wider coverage area. So
to control any house hold appliances from a distance place
within the network area coverage sending a short sms code
will either ON or OFF the devices at home. All these work is
carried out for the same function in a different way by using
different technology. Some use Bluetooth technology other use
GSM technology or IR technology. Each technology has its
own advantages and disadvantages over the other but they all
serve the common purpose to replace manual work. The main
objective of this work is to create another system to control
multiple appliances by using RF technology. One of the main
advantages of RF based remote control is that it can operate the
appliances without the requirement of line of sight within its
specied range efciently. The project is a proposal for wireless
control of home appliance systems such as air conditioner , fan
, tube light, bulb, using a single remote an rf transmitter and
 Pin no. Function Name Pin no. Function Name
1-8 Address A0-A7 1-8 Address A0-A7
Pins Pins
9 Ground Ground 9 Ground Ground
10-13 Data AD0-3 10-13 Data AD0-3
Pins Pins
14 TransmissionTE 14 Serial Input
Enable Data
15-16 Oscillator Osc2-1 Input
17 Serial Output 15-16 Oscillator Osc2-1
Data 17 Valid VT
Output Trans-
18 Supply Vcc mission
Voltage 18 Supply Vcc
TABLE I Voltage
HT12E P IN D ESCRIPTION TABLE II
HT12D P IN D ESCRIPTION

receiver ( rf pair) is used to control a maximum of 8 devices

within a distance of 100m . VI. CONCLUSION AND FUTURE SCOPE
The gift of technology to mankind is to make life simpler.
IV. P ROBLEM FORMULATION AND MATHEMATICAL In this work, a remote control for multiple home appliances
MODELING is designed, presented and implemented as shown in Figure
13 and Figure 14 . The design is durable, robust and sturdy
Theimportantgoalofthisprojectistobuildahomeautomation which is built with an available compact ICs and RF module.
system using a RF controlled remote. Now technology is From any place around the house any eight appliances can be
accelerating so homes are also getting smarter. Modern homes control at will without the requirement of line of sight. The
are deliberately relocating from current single switches to relay action which is connected to the load to be controlled
centralized control system, containing RF controlled switches. is operated with radio frequency which transmits only when
Today traditional wall switches situated in various parts of a switchispressed.Thetransmittercircuitispowerwith9Vwith cir-
the home makes it laborious for the end user to go near cuit current of 9.6mA and power consumption of 86.4mW.
them to control and operate. Even further it turns into more
problematic for the old persons or physically handicapped Rank 1 2 3 4 5
Company Samsung HomeSeer Nest Savant Footprint
people to do so. Home Automation using remote implements Price 150 200 250 500 99
an easier solution with RF technology. In order to accomplish Connectivity Wi-Fi,Z- Wi- Wi- Wi- Z-wave
this, a RF remote that sends ON/OFF signals to the receiver wave Fi,UPB Fi,ZigBee Fi,ZigBee,Z-
wave
where devices are connected. By operating the stated remote Mobile iOS,Android iOS,Android iOS,Android iOS,Android iOS,Android
switch on the transmitter, the loads can be turned ON/OFF App
using wireless technology .This project is a proposal to TABLE III
H OME AUTOMATION BY DIFFERENT COMPANIES
solve this problem by designing a remote (transmitter) and
a receiver which is user friendly to control home electrical
appliances .
R EFERENCES
V. E XPERIMENTAL R ESULTS [1] N K Kaphungkui , RF based Remote Control for Home Electrical Appli-
ances , INTERNATIONAL JOURNAL OF INNOVATIVE RESEARCH
Write Experimental Results here After obtaining successful IN ELECTRICAL, ELECTRONICS, INSTRUMENTATION AND CON-
TROL ENGINEERING Vol. 3, Issue 7, July 2015.
results in the simulation we started to build the actual circuit . [2] Pearson , Digital logic and computer design M.Morris Mano.
The circuit was built on PCB and bread board . The steps [3] Technical publication , Digital Electronics , A.P.Godse , Dr.D.A.Godse.
involved in the hardware implementation of the project is
as follows Testing and Assembling of components :The RF
transmitter, encoder IC HT12E and RF receiver and decoder
IC HT12D were tested for their working using IC trainer kit
and placed on their respective bread boards on the transmitter
and receiver side respectively . Soldering:The D-latch IC 7475
was soldered , it is used in the receiver end . This was done to
minimize the area occupied by the circuit . Finishing :Plastic
boxes were built , whose dimensions suit the requirement of
the project .Each component was given a particular slot in the
box . This makes the circuit compact and portable, it prevents
possible damage to the circuit during transportation .
