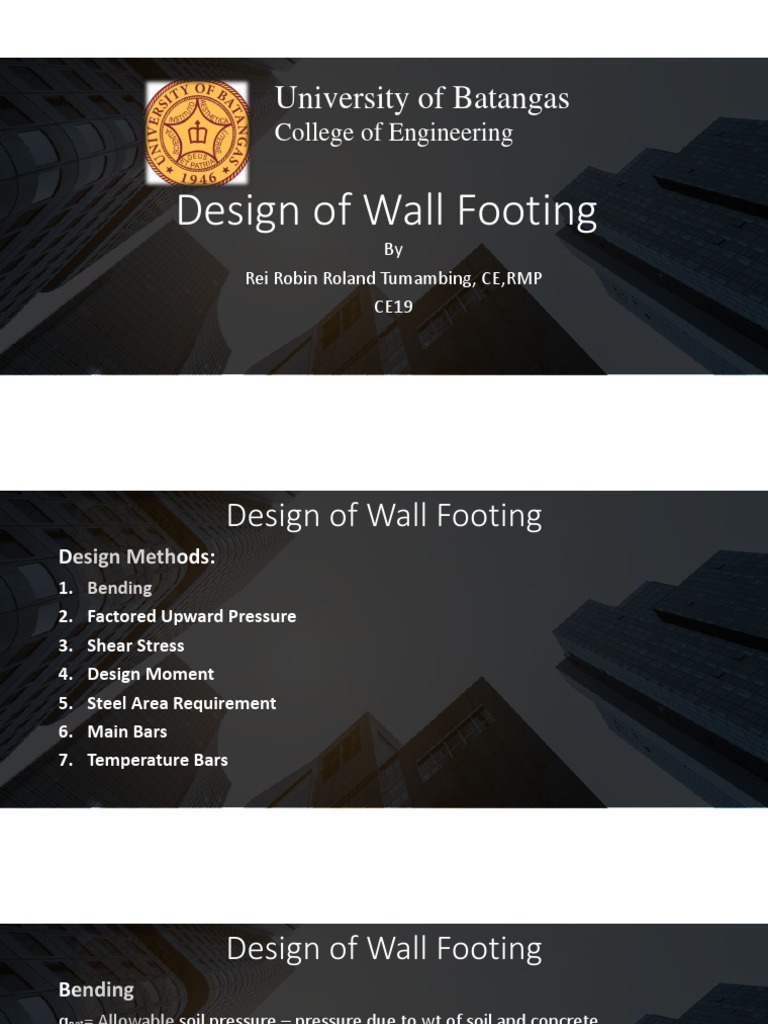

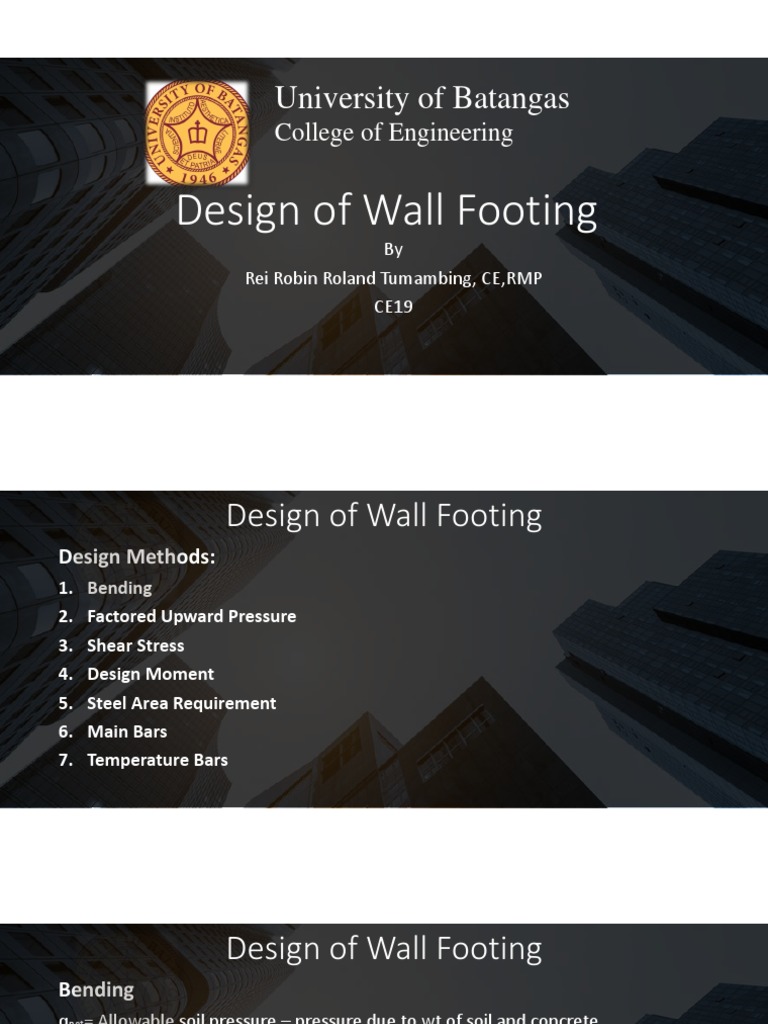

By Rei Robin Roland Tumambing, CE,RMP CE19 Design of Wall Footing Design Methods: 1. Bending 2. Factored Upward Pressure 3. Shear Stress 4. Design Moment 5. Steel Area Requirement 6. Main Bars 7. Temperature Bars Design of Wall Footing Bending qnet= Allowable soil pressure – pressure due to wt of soil and concrete 𝑃 Area= 𝑞 𝑛𝑒𝑡
Factored Upward Pressure
1.2𝑃𝐷𝐿 + 1.6𝑃𝐿𝐿 𝑞𝑢 = 𝐿 Design of Wall Footing Factored Upward Pressure 𝑉𝑢 = 𝑞𝑢 (1)(𝑥); let x be distance from edge of footing to d distance from wall 𝑉𝑢 υ= ; 𝑙𝑒𝑡 Ø 𝑏𝑒 0.75 Ø𝑏𝑑 υ = 0.17ƛ 𝑓𝑐 ′ Design Moment 𝑥 𝑀𝑢 = 𝑞𝑢 (𝑥)(1)( ); let x be distance from halfway between the middle and the 2 end of the wall to the edge of the footing if it supports masonry wall ELSE face of wall to edge of footing Design of Wall Footing Steel Area Requirement 𝑀𝑢 = Ø𝑓𝑐′ 𝑏𝑑 2 ω 1 − 0.59ω ; 𝑙𝑒𝑡 Ø 𝑏𝑒 0.9 ω𝑓𝑐′ 1.4 𝜌= ; value not less than 𝑓𝑦 𝑓𝑦 𝐴𝑠 = 𝜌𝑏𝑑
Spacing Main Bar
𝜋 2 1000 𝑑 = 𝐴𝑠 4 𝑠 Design of Wall Footing Temperature Bars 𝐴𝑠 = 0.002 𝑏𝑡; 𝑖𝑓 𝑑𝑒𝑓𝑜𝑟𝑚𝑒𝑑 𝑏𝑎𝑟𝑠 𝑎𝑟𝑒 280 𝑀𝑃𝑎 𝑜𝑟 530MPa 𝐴𝑠 = 0.0018 𝑏𝑡; 𝑖𝑓 𝑑𝑒𝑓𝑜𝑟𝑚𝑒𝑑 𝑏𝑎𝑟𝑠 𝑎𝑟𝑒 415𝑀𝑃𝑎 Max spacing of temp bars 𝑆𝑚𝑎𝑥 = 5𝑡 𝑜𝑟 450𝑚𝑚 Design of Wall Footing Design of Wall Footing Example Design a reinforced wall concrete footing to support a 500mm-wide concrete wall carrying a dead load of 380kN/m and live load of 292.5kN/m. The bottom of the footing is 1.80m below the final grade and the allowable soil pressure is 240 kPa. Use f’c=30MPa, and ϒsoil=15.735kN/m3. Use initial thickness of footing of 400m (in event of failure, use increment of 100), 25mm-dia reinforcing bars for main bars and 20mm-dia for temp bars. Use grade 60 reinforcing bars. Do the all checks necessary. Design of Wall Footing Design of Wall Footing Example A wall footing is supporting a 300mm concrete wall which carries axial loads and moments. Axial load: 𝑃𝑑 = 200𝑘𝑁/𝑚; 𝑃𝐿 = 180𝑘𝑁/𝑚 Moment: 𝑀𝐷 = 30𝑘𝑁. 𝑚/𝑚; 𝑀𝐿 = 50𝑘𝑁. 𝑚/𝑚; 𝑀𝐸 = 60𝑘𝑁. 𝑚/𝑚 Allowable soil pressure is 200 kPA. The bottom of the wall is 1.2m from the grade. Thickness is 500mm with effective depth of 430 mm. fc’=20.7MPa & fy=414.6MPa. Unit weight of soil is 15kN/m. Determine the width of footing, nominal shear stress at critical section, and design moment. Use load factors: (1) 1.4D+1.7L; (2) 1.3D+1.1L+1.1E University of Batangas College of Engineering
