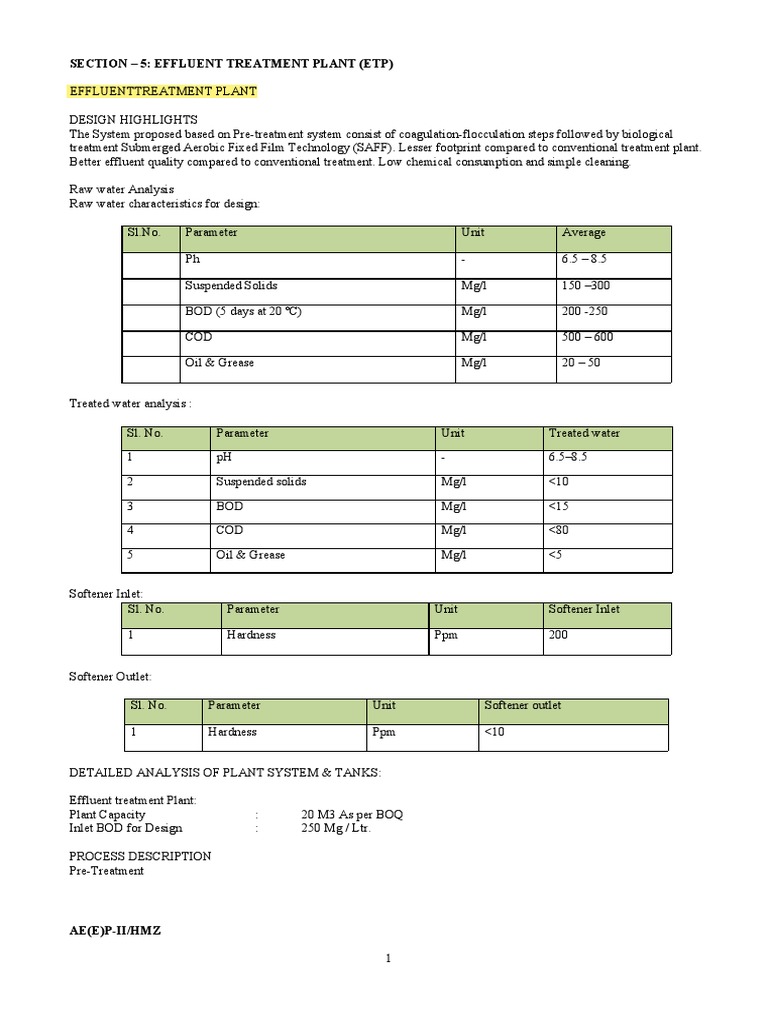

SECTION – 5: EFFLUENT TREATMENT PLANT (ETP)

EFFLUENTTREATMENT PLANT

DESIGN HIGHLIGHTS
The System proposed based on Pre-treatment system consist of coagulation-flocculation steps followed by biological
treatment Submerged Aerobic Fixed Film Technology (SAFF). Lesser footprint compared to conventional treatment plant.
Better effluent quality compared to conventional treatment. Low chemical consumption and simple cleaning.

Raw water Analysis


Raw water characteristics for design:

Sl.No. Parameter Unit Average

Ph - 6.5 – 8.5

Suspended Solids Mg/l 150 –300

BOD (5 days at 20 ºC) Mg/l 200 -250

COD Mg/l 500 – 600

Oil & Grease Mg/l 20 – 50

Treated water analysis :

Sl. No. Parameter Unit Treated water

1 pH - 6.5–8.5

2 Suspended solids Mg/l <10

3 BOD Mg/l <15

4 COD Mg/l <80

5 Oil & Grease Mg/l <5

Softener Inlet:
Sl. No. Parameter Unit Softener Inlet

1 Hardness Ppm 200

Softener Outlet:

Sl. No. Parameter Unit Softener outlet

1 Hardness Ppm <10

DETAILED ANALYSIS OF PLANT SYSTEM & TANKS:

Effluent treatment Plant:


Plant Capacity : 20 M3 As per BOQ
Inlet BOD for Design : 250 Mg / Ltr.

PROCESS DESCRIPTION
Pre-Treatment

AE(E)P-II/HMZ

1
The out fall sewer main from the last manholes, (upto110 M3 per day) will be let into a screening chamber by
gravity flow. Large solids particles shall be intercepted by a bar screen, preceded by a grease trap. The primary clarified
wastewater is then further pre-treated by fine screening before entering the coagulation-flocculation tank for pre-treatment
steps.
During Coagulation ,alum and lime will be dosed of required amount and then followed by flocculation process in
which poly will be dosed and then water overflows to primary tube settler where waste bulky particles will settle down
under the gravitational force and the clarified water is taken out for biological treatment that is SAFF.

Bio-Logical Treatment
The clarified water from primary tube settler will be collected in collection cum Equalization Tank (EQT). Air shall be
provided in this tank to keep the suspended solids in suspension & to avoid any potential odor problem.
From this tank Effluent will pumped to SAFF Tank. The SAFF tank consists of PVC fill media, which shall facilitate the
attached fixed film growth of microorganisms. The aerobic environment in the aeration tank shall be achieved by the use of
fine bubble diffused aeration, which also serves to maintain the liquor in a completely mixed regime. The mixed liquor from
the SAFF tank overflows into a hopper bottom secondary clarifier (SST) where the sludge settles down and clear water
overflows into Chlorine contact tank (CCT).
The treated water from the secondary clarifier (SST) shall be collected in the Chlorine contact tank. In this, Hypochlorite
solution is dozed for the disinfection of clarified water. This tank will also act as storing tank for filter feed pumps.
Treated Water from CCT will be pumped to Multi grade filters (MGF) for removal of suspended solids and turbidity. This
filter shall be provided with Sand & Crushed gravels, pebbles as filtering media. After MGF, treated water goes to Activated
carbon filter (ACF) for further polishing and removal of excess chlorine. After ACF the treated water shall be stored in
treated water tank (TWT). This treated water is fit for reuse in Irrigation/ Horticulture purpose. The sludge settled in
secondary clarifier shall be disposed off after dewatering through filter press. This sludge will be fully stabilized and can be
used as manure.
Following are the units proposed for above treatment scheme,
Following are the units proposed for above treatment scheme,
- Bar screen chamber
- Oil and Grease separator
- Collection tank for collection of effluent
- Coagulation & Flocculation tanks
- Primary tube settler
- Coarse bubble diffuser.
- Equalization tank
- Pump Room
- SAFF tank
- Multigrade Filter
- Active Carbon Filter
- Softener
- Final tank
- UV
- Filter press with screw pump
- Sludge holding tank
- Piping and cabling

Isolation Gates:
There shall be manually operated isolation channel gates on both sides of channel, to isolate the streams during maintenance.
The gates shall be sized such that the velocity through the gates does not exceed 2.4m/sec at Peak flow.

SYSTEM AUTOMATION:
Automation of the ETP Panel shall be using the following:

PLC (Programmable Logic Controller) –

Capable of up to 256 Digital & Analog Input / Outputs with expansion cards.
Program can be saved & backup may be taken directly without connecting a Laptop.
Data communication ports available are RS – 232, RS – 485 for high speed data transfer
PLC has detachable digital key pad for directly programming without Laptop.
PLC keypad may be mounted on the panel visible from outside.
BMS Compatibility with use of any additional software like SCADA or existing BMS platforms.
Compatible with HMI (Human Machine Interface) – Touch Screen

Level Switches for controlling pumps for all the tanks.


Touch Screen HMI based panel for controlling all the equipments & having a centralized display for all instrumentations with
a USB port for direct data transfer.

Parallel manual operation facility for the entire panel except automation in case of a PLC-HMI failure or emergency.

Selector switches for Auto / Manual operations.

Instrumentations:
PH (Online or offline)
TDS / Conductivity (Online)
Turbidity (Offline with min. calibration requirements)
DO (Dissolved Oxygen)
Water Flow – Treated

Note: This panel shall be enabled with features as required to start, however there should be capability to do many more
modifications & any future change in equipment or system can easily be upgraded without any change in hardware except for
relays & contactors.

CIVIL WORKS
The following are the list of civil works to be carried out by the Client. ETP contractor will furnish all relevant general
arrangement drawings and hydraulic level diagram during detailed engineering stage.
Screen Chamber
Collection tank for collection of effluent water
Equalization Tank
Aeration (SAFF)Tank
Treated water Tank
Working platform, staircase etc. as per drawing
Works such as pipe/cable trenches, chambers, equipments foundations, staircase headroom at entry of STP etc.
Plant room
Sludge Holding Tank

4.0: WATER SUPPLY (PIPING AND FITTING MATERIAL)

4.1 PIPING SCHEDULE

1.1 Water Supply System


S. Description Type of Material
No.
Water tank drains, overflows and warning S.S. puddle flanges, UPVC / HDPE
1. pipes. pipes
2. Flushing & soft water supply distribution pipe GI heavy class pipe

3. Irrigation water supply HDPE / UPVC heavy class pipe

4. ETP equipment piping distribution system UPVC/HDPE/MS (Air) heavy class


pipe

4.1.2. Notes on Pipe work

All fittings for pipe work shall conform to the relevant IS Specification.

4.1.3. All pipe work shall be free from dust, rust and scale and shall be thoroughly cleaned before erection. Open ends
during the progress of work shall be blanked-off with purpose-made of metal caps. Plastic caps or use of wooden plugs is
forbidden. Should any stoppage in the circulation occur after the various systems have been put into operation, owing to non-
compliance with this requirement, the Contractor shall rectify the matter at no extra cost to the Contract.

4.1.4 Pipes shall be installed with correct falls for venting and draining and attention shall be paid to neatness of
installation, i.e. groups of pipes shall be accurately spaced and valves, joints, etc., symmetrically arranged. Where two or
more pipes are visible and change direction together, bends shall be struck from a common radius point. Adequate clearances
shall be maintained in all cases, to allow for the application of the insulation materials and finishing.

4.1.5 The Contractor shall note the restricted space available in certain service ducts, it is absolutely necessary to ensure
that all pipe work is installed in the correct sequence, manner and position to ensure that operation of all valves and
maintenance is possible.

4.1.6 All reductions in pipe sizes shall be made using approved standard reducing fittings. Reducing bushes shall not be
used without approval. Connections between lengths of pipes shall be made using standard fittings. Long threads must not be
used.

4.1.7 All pipe work in pump rooms, plant rooms, and on roof level shall be installed with flanges or unions at intervals not
exceeding 6m for ease of dismantling.

4.1.8 Changes in direction of pipes shall be made with long radius bends or elbows, as far as practicable. Under no
circumstances shall pipes be bent without the use of fittings.

4.1.9 All pipe runs when not installed underground or in duct shall be concealed as far as possible by careful positioning
or shall be chased into walls, laid in screed etc, or as directed by the Engineer.

4.1.10 All pipe work within the fire protected areas must be enclosed to satisfy the local municipal/fire authority
requirements and such enclosures shall be supplied and installed by the Contractor.
SECTION – 6: SEWERAGE TREATMENT PLANT (STP)

These special conditions of contract shall be read in conjunction with the Schedule of Quantities, Technical Specifications,
Drawings and other documents relating to the work

1.0 GENERAL

1.01. All Work related to STP shall be carried out in compliance with Drawings, Specifications and Schedule of
Quantities. The contractor shall carryout and completes the work in every respect in conformity with the current
rules and regulations of the local authority, stipulations of the Bureau of Indian Standards and with the direction of
and to the satisfaction of the Architects/Consultants. The contractor shall co-operate and co-ordinate with all trades
and agencies working on site. He shall make provision for hangers, sleeves, structural openings and other
requirements well in advance to prevent hold up of progress of the construction schedule. The contractor shall
furnish all labour supply and install all materials, appliances and equipment necessary for the complete provision and
testing of the whole STP Installation at his cost as specified herein and shown on drawings. This also includes all
materials, appliances, equipment and accessories not specifically mentioned herein or noted on the
drawings/documents as being furnished or installed, but which are necessary and customary to make complete
installation as described herein properly connected and in efficient working order.

1.2 Work shall be executed through contractor approved by Owner/Architect.

1.3 Contractor shall mobilize and employ sufficient resources to achieve the detailed schedule within the broad frame
work of the accepted methods of working and safety. The contractor shall provide everything necessary for the
proper carrying out of the work, including tools, plants and other materials.

1.4 No additional payment will be made to the contractor for any multiple shift work or other incentive methods
contemplated by him in his work schedules even though the time schedule is approved by the Architect/Engineer-in-
charge.

1.5 The work shall be executed as per the programme drawn or approved by the Architect and it shall be so arranged as
to have full coordination with any other agency employed at site. No claim for idle labour shall be entertained nor
shall any claim on account of the delay in the completion of the building work to be tenable except extension of time
secured by the contractor as stated elsewhere.

1.6 The contractor shall permit free access and afford normal facilities and usual conveniences to other agencies or
departmental workmen to carry out connected work or other work services under separate arrangements. The
contractor will not be allowed any extra payment on this account.

1.7 All soil, filth or other matter of any offensive nature taken out of any trench, sewer drain, cesspool or other place
shall not be deposited on the surface, but shall at once be carted away by the contractor free of charge to a suitable
pit or place to be provided by him.

1.8 The contractor shall provide all equipment, instruments, labour and such other assistance required by the Engineer-
in-Charge for measurement of the work, materials etc.

2.0 SCOPE OF WORK

The scope of work under this specification shall include design, manufacture, testing, supply, storage, erection,
testing & commissioning of complete package type sewage treatment plant including labour, tools, tackles and
plants etc. as required.

3.0 SITE CONDITIONS

The contractor shall make himself aquatinted with all conditions and situations obtaining at the site. The rate quoted
by the contractor shall take into account all such factors and no aware of any particular situation or conditions.

4.0 BYE-LAWS AND REGULATIONS

The installation shall be in conformity with the Bye-laws and Regulations of the local authority concerned in so far
as these become applicable to the installation but if these specifications and drawings call for higher standard of
materials and or workmanship than those required by any of the above regulations and standards, then these

AE(E)P-II/HMZ

390
specifications and drawings shall take precedence over the said regulations and standards. However if the drawings
or specifications require something which violates the bye laws and regulations, then said bye-laws and regulations
shall govern the requirements of this installation.

5.0 SHOP DRAWINGS

The contractor shall submit, as work proceeds, regular shop drawings for approval by the Architects/Consultants.
These drawings shall be drawn to approved scale and include detail about fittings, routings, fastening and fixing.

Shop drawings shall be submitted to the Architects/Consultants well ahead at-least 2 weeks before the relevant work
is to be taken up. All work at site shall be carried out strictly in conformity with approved shop drawings only.

Architect‘s/Consultant‘s approval of shop drawings will not relieve the contractor of his responsibility for correct
setting out, providing correct materials and plants and of meeting the performance guarantee of these specifications.

6.0 DRAWINGS

The drawings, specifications and bill of quantities shall be considered as a part of this contract. Any work or
materials shown on the drawings but not included in the schedule of quantities or vice versa, shall be executed as if
specifically called for drawings indicate the extent and general arrangement of various equipments and their piping
etc. and are essentially diagrammatic. The work shall be installed if found essential to coordinate the installation of
this work with other trades shall be made without any additional cost to the Owner. The data given herein and on the
drawings is as could be secured, but its complete accuracy is not for the assistance and guidance of the contractor,
the exact locations, distances and levels will be governed by the space conditions. The contractor shall be
responsible to check exact location of all outlets, the routes and lengths of pipes etc.

7.0 CLARIFICATIONS OF DISCREPANCIES


In case of any discrepancy between specifications and drawings etc. furnished by the Architect/Consultant or
disputes in respect thereof, the interpretation of Architect/Consultant and Engineer-in-Charge shall be final and
binding.

8.0 WORK AND WORKMANSHIP

8.1 The work shall be of the highest standard, and confirm to the technical specifications both as regard its design and
workmanship. Modern tools and first class, latest techniques shall be employed for its execution.

8.2 Any damage done to the building during the execution of work shall be responsibility of the contractor and it shall
be made good by him, at his cost, to the entire satisfaction of the Architect/Consultant.

9.0 PERFORMANCE GUARANTEE

The Contractor shall guarantee the performance of equipment, materials and system as described in specifications
for STP installation. It is clearly understood that the specifications, drawings, schedule of quantities for STP
installation are for tenderers guidance only the tenderer shall carryout necessary calculations and provide alternative
equipment required to achieve the specified level. Architects/ consultant‘s office and reference may be made to these
drawings as required for calculations or for other details. The contractor shall also guarantee that the performance of
various equipments, individually, shall not be less than, the quoted ratings.

10.0 TECHNICAL DATA

The tenderer shall submit a comprehensive schedule of technical data for all pieces of equipment and materials. This
must include but not necessarily be restricted to, the schedule of technical data listed in Appendix.

11.0 QUIET OPERATION AND VIBRATION

All work shall operate under all conditions of load without any sound or vibration which is objectionable in the
opinion of the Architect/Engineer-in-charge. In case of moving machinery sound or vibration noticeable outside the
room in which it is installed, or annoyingly noticeable inside its own room shall be considered objectionable. Such
conditions shall be corrected by the contractor at his own expenses.

12.0 WATER AND POWER FOR CONSTRUCTION

AE(E)P-II/HMZ

391
These shall be arranged by the owner at the convenient point. Necessary extension of these supplies will have to be
got executed by the contractor at his own cost. The contractor shall include in his rates to provide, install and
maintain at his cost necessary temporary service lines, meters etc, dismantle and cart away same on completion of
the work. The Owner will not be liable to make any payment in this regard.

13.0 ELECTRICAL INSTALLATION

The electrical work related to STP shall be carried out in full knowledge and with the complete coordination of the
contractor with the other trade. The Installation shall be in total conformity with the control wiring drawings
prepared by the STP contractor and approved by the Architect/ consultant. It is understood that the final
responsibility for the sufficiency, adequacy and conformity to the contract requirements of the electrical installation
work for STP Installation lies solely with the contractor.
14.0 TESTING AND COMMISSIONING

The entire installation shall be tested at the cost of the contractor as per standard norms and as per Indian Standard
Specifications. The contractor shall arrange for all necessary testing equipment instructions materials and
accessories and the requisite labour. Each test shall be carried out in the presence of the Architects/Consultants and
the reading shall be recorded in an approved form. The completed installation shall be commissioned by the
contractor after satisfactory testing and approval of the installation by the Architects/Consultants.

Any defects (in material and /or workmanship) detected in the course of testing shall be rectified to the satisfaction
of the Architects/Consultants by the contractor at his own cost, the installation shall be tested again after removal of
defects to ascertain that the installation conforms to the requirements called for. The Architects/ Consultants shall
have full power to get the materials or work tested by an independent agency at the contractor‘s expenses in order to
ascertain their soundness and adequacy.

15.0 COMPLETION DRAWINGS

On completion of work and before the issue of certificate of virtual completion the contractor shall submit to the
Architects/Consultants Six sets of layout drawings on cloth mounted paper and one tracing of each drawing drawn in
approved scale indicating the complete system as installed.

The Contractor shall have to submit to the Architects/Consultants 6 sets of the above said drawings within 15days
from the date of completion of the above work as decided by the Architects.

16.0. OPERATING INSTRUCTIONS

a. Upon completion of all work and all tests the contractor shall furnish the necessary skilled labour and helpers for
operating this entire installation for stipulated period. During this period the contractor shall instruct and train the
Owner‘s representative in the operation adjustments and maintenance of all equipments installed.

b. The contractor shall submit to the Architect/Engineer-in-charge a draft copy of comprehensive operating instructions
and maintenance schedule for all systems and equipment included in this contract. This shall be supplemented but
for substituted by manufacturers operating and maintenance manuals. Upon approval of the draft the contractor shall
submit to the Architects/ Engineer-in-charge three (3)complete sets of operating and maintenance schedule along
with manufacturers printed literature.

17.0 MECHANICAL MAINTENANCE

The contractor shall provide necessary skills and labour to assure the proper operation of the complete installation by
the Owner‘s staff and to provide all required current and preventive maintenance for all equipment and controls
under this contract, for the defects liability period of 12months from the date of acceptance of commissioning of
plant.

The contractor shall receive calls for any and all problems experienced in the operation of the equipment under this
contract and shall take steps to immediately correct any deficiencies that may exists.

18.0 MISCELLANEOUS

18.1 A site order book will be maintained at site which will be in the custody of the Architect/Owner or his representative
and all instructions given to the contractor will be recorded in the site order book and the same has to be signed by
the contractor to comply with the instructions given therein.
18.2 The work will not be considered as complete and taken over by the employer till all the components of the work
after being completed at site in all respects have been inspected/tested by the Architect/Owner to his entire
satisfaction and a completion certificate issued by the Architect to this effect.

18.3 The contractor will submit within 15days of the award of work, a detailed schedule of programme of work.

18.4 The contractor shall provide, within one month after completion of the work or along with the final bill three sets of
manuals properly bound which shall contain the following information:

a) Description of installation items using main items of equipments.


b) Description of all equipments and system operation with trouble shooting manuals.
c) Line diagram of each system including main feature of equipments and showing method of setting controls.
d) Method of fault finding, routine, adjustment and piping diagram.
e) Description of routine maintenance, oil and greasing points and recommended lubricants.
f) Manufacturer service manuals for all equipments.
g) Spares reference manuals.
SCHEDULE OF TECHNICAL DATA

1. SUMP PUMP- (STP PLANT ROOM)

a. Make

b. Model

c. Capacity CuM/Hr.

d. Total head - meter

e. Pump effeciency at duty point - %

f. Power input to pump at duty point - KW

g. Rated speed - rpm

2. SEWAGE LIFT PUMPS

a. Make

b. Model

c. Capacity CuM/Hr.

d. Total head - meter

e. Pump effeciency at duty point - %

f. Power input to pump at duty point - KW

g. Rated speed - rpm

3. TREATED WATER DISTRIBUTION PUMPS

a. Make

b. Model

c. Capacity CuM/Hr.

d. Total head - meter

e. Pump efficiency at duty point - %

f. Power input to pump at duty point - KW

g. Rated speed - rpm


3a. MOTORS

a. Make/Type

b. Motor Rating (KW)

c. Method of starting

4. IRRIGATION WATER DISTRIBUTION PUMPS


a. Make

b. Model

c. Capacity CuM/Hr.

d. Total head - meter

e. Pump efficiency at duty point - %

f. Power input to pump at duty point - KW

g. Rated speed - rpm

4a. MOTORS

a. Make/Type

b. Motor Rating (KW)

c. Method of starting

5. AIR BLOWER FOR MBR AIR SCOURING

i. No

ii. Capacity

iii. Type

iv. Motor HP

v. Make

vi. Controlling

6. AIR BLOWER FOR AERATION


i. No

ii. Capacity
iii. Type

vii. Motor HP

viii. Make

ix. Controlling

7. MBR MODULE
i. No of Module

ii. capacity

iii. Type

x. Flux Rate Considered

xi. Surface Area

xii. MOC Skid

xiii. No. of cassettes


xiv. Porosity

xv. Controlling

8. SUBMERSIBLE MIXER
i. No

ii. capacity

iii. Type & MOC

9. PERMEATE PUMP
a. Make

b. Model

c. Capacity CuM/Hr.

d. Total head - meter

e. Pump efficiency at duty point - %

f. Power input to pump at duty point - KW

g. Rated speed - rpm


4a. MOTORS

a. Make/Type

b. Motor Rating (KW)

c. Method of starting

10. SOFTNER
i. Make

ii. Type

iii. Size

iv. Thickness of Shell

v. Thickness of dish ends

vi. Manhole size

vii. Outlet connection size

viii. Inlet connection size

ix. Drain Connection size

x. Type

xi. Capacity

xii. Dimension

xiii. Piping/Valves

xiv. OBR Capacity


NOTES :- DATA BY THE TENDERS TO BE FILLED IN AND SUBMITTED ALONG WITH THE TENDER.

SAFETY CODE

1. Suitable scaffolds shall be provided for workmen for all work that cannot safely be done from the ground, or from
solid construction except such short period work as can be done safely from ladders. When a ladder is used, an extra
mazdoor shall be engaged for holding the ladder and if the ladder is used for carrying materials as well, suitable
footholds and handholds shall be provided on the ladder and the ladder shall be given an inclination not sleeper than
1/4 to 1 (1/4 horizontal and 1 vertical).

2. Scaffolding or staging more than 3.25 meters above the ground or floor, swung or suspended from an overhead
support or erected with stationary support, shall have a guard rail properly attached, bolted, braced and otherwise
secured at least 1 meter high above the floor or platform of such scaffolding or staging and extending along the
entire length of the outside and ends thereof with only such openings as may be necessary for the delivery of
materials. Such scaffolding or staging shall be so fastened as to prevent it form swaying from the building or
structure.

3. Working platform, gangways, and stairways shall be so constructed that they do not sag unduly or unequally,and if
height of a platform or gangway or stairways is more than 3.25meters above ground level or floor level, it shall be
closely boarded, have adequate width and be suitably fenced, as described in 2 above.

4. Every opening in floor of a building or in a working platform shall be provided with suitable means to prevent fall of
persons or materials by providing suitable fencing or railing with a minimum height of 1 meter.

5. Safe means of access shall be provided to all working platforms and other working places. Every ladder shall be
securely fixed. No portable single ladder shall be over 9 meters in length. Width between side rails in a rung ladder
shall in no case be less than 30 cm. for ladders upto and including 3 meters in length. For longer ladders this width
shall be increased at least 6mm. for each additional 30 cm. of length. Uniform step spacing shall not exceed 30 cm.

Adequate precautions shall be taken to prevent danger from electrical equipment. No materials on any of the Sites
shall so stacked or placed as to cause danger or inconvenience to any person or the public. The contractor shall
provide all necessary fencing and lights to protect public from accidents and shall be bound to bear expenses of
defence of every suit, action or other proceedings at law that may be brought by any person for injury sustained
owing to neglect of the above precautions and to pay any damages and costs which may be awarded in any such suit,
action or proceedings to any such person or which may with the consent of the Contractor be paid to compromise
any claim by any such person.

6. Excavation and Trenching: All trenches, 1.5meters or more in depth, shall at all times be supplied with at least one
ladder for each 30 meters in length or fraction thereof. Ladder shall be extended from bottom of trench to at least
1meter above surface of the ground. Sides of a trench which is 1.5 meters or more in depth shall be stepped back to
give suitable slope, or securely held by timber bracing, so as to avoid the danger of sides collapsing. Excavated
material shall not be placed within 1.5 meters of edge of trench or half of depth of trench, whichever is more.
Cutting shall be done from top to bottom. Under no circumstances shall undermining or undercutting be done.

7. All necessary personal safety equipment as considered adequate by the Engineer-in-Charge shall be available for use
of persons employed on the Site and maintained in a condition suitable for immediate use; and the Contractor shall
take adequate steps to ensure proper use of equipment by those concerned.

a) Those engaged in welding works shall be provided with welder‘s protective eye- shields.

b) Stone workers are employed in sewers and manholes, which are in use, the Contractor shall ensure that
manhole covers are opened and manholes are ventilated at least for an hour before workers are allowed to
get into them. Manholes so opened shall be cordoned off with suitable railing and provided with warning
signals or boards to prevent accident to public.

c) When workers are employed in sewers and manholes, which are in active use the contractor shall ensure
that the following safety measure are adhered to :

i) Entry for workers into the line snail not be allowed except under supervision of the Contractor‘s
Engineer.
ii) At least 5 to 6 manhole upstream and downstream should be kept open for at least 2 to 3hours before
any man is allowed to enter into the manhole for working inside.

iii) Before entry, presence of Toxic gases should be tested by inserting wet lead acetate paper which
changes colour in the presence of such gases and gives indication of their presence.

iv) Presence of Oxygen should be verified by lowering a detector lamp into the manhole. In case, no
oxygen is found inside the sewer line workers should be sent only with Oxygen kit.

v) Safety belt with rope should be provided to the workers. While working inside the manholes such rope
should be handled by two men standing outside to enable him to be pulled out during emergency.

vi) The area should be barricaded or cordoned of by suitable means to avoid mishaps of any kind proper
warning signs should be displayed for the safety of the public whenever cleaning works undertaken
during night or day.

8. All scaffolds, ladders and other safety devices mentioned or described herein shall be maintained in a safe condition
and not scaffold, ladder or equipment shall be altered or removed while it is in use. Adequate washing facilities shall
be provided at or near places of work.

9. These safety provisions shall be brought to the notice of all concerned by display on a notice board at a prominent
place at the work spot. Persons responsible for ensuring compliance with the Safety Code shall be named therein by
the Contractor.

10. To ensure effective enforcement of the rules and regulations relating to safety precautions, arrangements made by
the Contractor shall be open to inspection by the Engineer-in-Charge or his representatives and the Inspecting
Officers.

11. First Aid and Industrial Injuries:

i. Contractor shall maintain first aid facilities for his employees and those of his contractors.

ii. Contractor shall make outside arrangements for ambulance service and for treatment of industrial injuries. Names of
those providing these services shall be furnished to Owner prior to start of constructions and their telephone numbers
shall be prominently posted in Contractor‘s field office.

iii. All critical industrial injuries shall be reported promptly to Owner, and a copy of Contractor‘s report covering each
personal injury requiring the attention of a physician shall be furnished to the Owner.

12. Contractor’s Barricades:

i. Contractor shall erect and maintain barricades required in connection with his operation to guard or protect:

a. Excavations
b. Hoisting Areas
c. Areas adjudged hazardous by Contractor‘s or Owner‘s Inspectors.
d. Owner‘s existing property subject to damage by Contractor‘s operations.

ii. Contractor‘s employees and those of his sub-contractors shall become acquainted with Owner‘s barricading practice
and shall respect the provisions thereof.

13. Notwithstanding the above conditions, the Contractor is not exempted from the operation of any other Act or Rule I
n force.
SPECIFICATIONS
FOR DOMESTIC SEWAGE TREATMENT PLANT AND RECYCLED WASTE WATER
1.1 GENERAL REQUIREMENTS
The sewage treatment plant (STP) system outlined in this section specifies the system design, manufacture, supply and
installation Testing & Commissioning of a standard MBR based system.

The Contractor may propose alternatives to this type of system, but these must be to a standard acceptable to Water and
Sanitation Authority Requirement, Local Pollution Control Board Norms, World Health Organization Guidelines, the local
Environmental and Pollution Control Authorities and subject to the approval of the Project Manager.

The work shall be carried out in a manner consistent with good practice in the local market. The Contractor shall take into
account all site conditions in designing the system and selecting the equipment.

The Contractor shall be responsible for engaging a STP specialist to perform the system design and obtain approval from
relevant Authorities. A qualified and experienced Engineer shall be engaged for the system design, preparation of system
proposal submission, obtaining approval and site supervision.

The Contractor shall perform the system design based on the criteria/data and component technical requirements specified in
this section/drawings and the local Authorities‘ regulation/requirement.

The Contractor shall furnish system which comprises products of manufacturers who have designed and made these
associated products for a period of at least five years.

The Contractor shall submit complete catalogue information, design calculation and samples complete with full technical data
and shop drawings for the entire system, test certificates, etc. for acceptance prior to commencement of installation.

The Contractor shall submit analytical test reports of effluent water samples after the commissioning or after the system is put
into operation or as required by the Project Manager :

(a) First 3 months – 15 days

The report shall contain analysis of all data related to those requirements laid down by the local Authorities.

As a minimum the following items shall be measured and analysed as indicated under clause 2.1 following.

1.2 BASIC DATA ON RAW WASTE WATER (SEWAGE)

Total Suspended solids (TSS) : 250-450 mg/lit


BOD (5 Days) : 300-400 mg/lit
COD : 500-800 mg/lit
pH : 6.5-8
Peak Factor : 2.5
Inflow Time : 18 Hrs

1.3 TREATED WASTE WATER QUALITY

As stipulated by State Pollution Control Board (PCB), the treated effluent quality shall be within the following values for
various parameters, for both present and future.

pH : 6.0-8.5
TSS : - <=1 mg/lit
BOD (5 Days) : <5 mg/lit
COD : <20mg/lit
Turbidity : <2mg/lit
E-Coli : Absent
Color : <05 Hazen
Odor : Unobjectionable

1.4 THE TREATMENT PLANT (STP)

The hydraulic, biological and membrane design is based on the feed characteristics described above.
Domestic sewage effluent from the units will flow through Bar Screen, Grit Removal , Oil Skimmer and collected in
equalization tank.

The homogenized and mixed wastewater in the equalization tank shall be pumped through fine screening before entering the
MBR.

An internally-fed screen with punched-hole openings less than or equal to 2 mm in diameter with no possibility of bypass or
carryover is absolutely required to maintain both membrane warranty, and optimal MBR operation.

Effluent from the Equalization tank and Return Activated Sludge (RAS) being pumped from the membrane tank must be
mixed and fed into the bioreactor tank.

Biological trains shall be equally divided into single/multiple trains on hydraulic loading and shall be operated in parallel .
Each train shall comprise of an aerobic tank. For Nitrogen removal, bioreactor shall additionally consist of Anoxic zone of
suitable size

Influent wastewater and re-circulated sludge shall be divided between all the biological trains as it enters each aerobic tank.
Biological process blowers and fine bubble diffusers in the aerobic tanks shall provide the oxygen required for the biological
process as well as the mixing energy required to keep the mixed liquor in suspension. Dissolved oxygen shall be monitored in
each aerobic tank to achieve a desired set point of 2 mg/L.

The mixed liquor shall overflow by gravity from the biological tanks to the membrane tanks where the solid/liquid separation
takes place by means of the vacuum created by the process pumps. The permeate shall be stored in the permeate storage tank.

The mixed liquor from the end of the bioreactor aerobic zone shall proceed by gravity to the membrane filtration basins. At
the outlet of each aerobic tank and inlet of each filtration basin there shall be an isolation valve. Flow shall proceed by
gravity through the valve. The sluice gate valve/isolation valve can be used to either isolate of the membrane tank (i.e. during
cleans). Plant demand shall be controlled by the feed flow into the system and can be trimmed by the level in the
bioreactor/membrane tank.

One permeate pump per membrane trainshall be employed to draw water through the membranes. Treated water shall flow
from the permeate pump to the final disposal point.

Under normal operation and average day flow conditions, permeation is stopped for a specific period of time at regular
intervals. This membrane relaxation period, combined with air scouring, effectively removes solids that have accumulated on
the membrane surface or within the fibers and reduces electrical costs.

Same permeate pump with valving arrangement shall be provided for backpulsing the membranes.

From membrane tanks, Permeate pump shall draw treated effluent through the pores of the membrane fibers and into the
backpulse tank. Once full, the treated effluent is automatically diverted away from the backpulse tank to a final disposal
point. Clean water (permeate) is suctioned through ZW500D membranes by centrifugal permeate pumps.

The membranes shall be air scoured with required capacity of membrane aeration blowers fitted with Mechanical Variable
speed drive or with pulley arrangement.

Waste activated sludge (WAS), shall be removed to the sludge handling facilities via a side stream on the discharge from the
membrane tank by pumping in a controlled manner.

Further details of the system design are provided below in the following sections.

Major Process Components for MBR system


The plant shall comprise of the following major components (not limited to):

Coarse and fine Bar screens, Grit removal system, Oil Removal system
Equalization tank , Mixing system

During recovery clean, no permeate water shall be generated from the membrane train so GE is assuming an equalization tank
of suitable capacity to take care of the variable flow rates.

Bioreactor feed pump


Mechanical Fine Screen -2 mm ( Punched Hole configuration)
GE W&PT requires that the following screening requirements are met:
Screen raw wastewater with 2 mm punch hole internally fed rotary drum screen or centre flow travelling band screen or fine
brush screen.
Design notes:
1. All screen openings are punch hole (dimensions in two directions). Bar or wedge wire fine screens are not
acceptable.
2. Alternative screens and/or pre-treatment methods must be approved by GE W&PT in writing; otherwise membrane
warranty may be void.
Bioreactor tank
o Anoxic Mixer in anoxic zone
o Fine bubble diffusers for aerobic tanks
o Instruments such as DO meter

Biological process blowers


Biological process chemical feed system
Membrane tank with accessories for installing UF membrane

A ―membrane train‖ is a treatment unit consisting of multiple ―cassettes‖ that are manifolded together, installed in a concrete
or steel tank (i.e. membrane tank) and connected to a common permeate pump.
Within each membrane tank, the cassettes are connected to permeate header and air supply header(s). The permeate header
conveys permeate from the cassettes to the permeate pump suction and also delivers cleaning solutions to the membranes.
The air headers deliver air to cassette aerators for air scouring to prevent solids accumulation on the membrane surface

Design notes:
1.Puddle pipes inside membrane tank to be SS304 or FRP. MS is not acceptable.
2. Membrane tank accessories required to install membranes like beams, brackets, hangers, hold pins to be minimum SS304L
grade.
3. Permeate header should be SS304L (minimum) inside membrane tank and FRP, PVC, HDPE on permeate /backpulse
pumps suction and discharge.

UF membrane
We have offered ZW500D membrane modules and cassettes and the technical data of the same is highlighted in section 1
above. In the ZeeWeed ® MBR process, the membrane cassettes are immersed directly in the mixed liquor in the membrane
tanks.

The 3D drawing below (example) shows the main components of an MBR system

1.Biological reactor 2.Membranes 3.Permeate pump &


air blower
5 Control panel
Permeate & air piping
1

4
3
Permeate pumps/back pulse pumps (process pumps) with VFD
The membrane cassettes in each tank shall be connected to a permeate header, which in turn shall be connected to the suction
of a Permeate/Backpulse Pump. This set of cassettes, the piping, and the pump is referred to as a membrane train. The
vacuum generated by the Permeate Pump draws permeate from the outside in through the membrane fibres. All
Permeate/Backpulse pumps discharge into a common permeate collection header.
All the trains in the plant are operated with a repeating filtration cycle. It consists of two phases: permeation (drawing) of
water through the membranes followed by a short period of reverse flow (backpulsing) or relaxation (no flow). For the
proposed membrane filtration system the same pump will be used for permeate and backpulse with necessary valving
arrangement

Pump parts and MOC:


Casing : CI
Impeller : SS316

Permeate pump priming system -Ejector system


After extended standby periods or when a train is first placed into automatic control, an automated valve which connects the
top of the membrane train permeate header to an ejector (shown below) and an automated valve which connects the ejector to
the Air Compressor opens. The compressed air drives the ejector to create a vacuum that draws air out of the train, pulling
water through the membranes until water in the header hits a level switch. This indicates that both valves can be closed to
ensure the system is primed and can be placed in operation. To simplify system control the ejector configuration consists of
one unit per train and is controlled by PLC. Make of ejector should be VACCON/ PIAB only.

Air Scour Blowers for Membrane Aeration


Whenever a membrane train is in production, membrane aeration blowers will produce the air scour required to remove solids
from the membrane surface and maintain membrane permeability. A specially designed and highly efficient aeration system
shall be used to scour the outside surface of the membrane and move mixed liquor solids away from the membrane fibres.
This shall be accomplished by a GE patented aeration system that uses a factory installed aeration grid, which is integrated
into the base of each ZeeWeed 500d cassette. The integration of diffusers within the cassette simplifies the installation of
diffusers and enhances the operation of the membrane unit.
The blowers discharge into the membrane aeration manifolds. This manifold delivers air to the membrane distribution air
headers installed above each membrane tank (train). These Manifolds are by Customer.
Conventional Cyclic aeration :For optimal balance between the energy requirements of the membrane aeration blowers and
the amount of air scouring provided at the membranes, the system can be designed to cycle air within each membrane
cassette (10:10 mode or 10:30 mode). Each cassette is equipped with two air connections; one air connection from each
cassette is connected to one of two air headers at each membrane tank, using a flexible hose. Airflow is cycled from one train
header to the other (using pneumatic valves) so that half of each cassette is aerated at a time

Recirculation Pump (RAS pumps)


Membrane tank Drain pump

The membrane tanks need to be drained for recovery chemical cleaning or other maintenance procedures. This can be
achieved by using the above mentioned mixed liquor recirculation pumps( RAS Pumps) or separate drain pumps may be
used.

Compressor
Sludge dewatering system
Common membrane chemical cleaning system
Control equipment (PLC)

Instrumentation - Pressure Transmitters, Temperature Transmitters, Level Transmitters, Turbidity meter and Magflow
Meter

Membrane system operation modes & Cleaning processes


Operation modes
The sections below highlight the main operational, control aspects and cleaning processes of the membrane system for PUMP
– FROM (MEMBRANE TANK) configuration.

Off, Permeation and Stand-by Modes


Off Mode
In OFF mode, devices are off. However, for membrane protection, to ensure the membranes are submerged the feed valves
are opened. When the water level is above the membranes the feed valves are closed.
Filtration/Production/Permeation Mode
Filtration, or permeation, consists of drawing clean water from the mixed liquor through the membrane fibers via the
permeate pump.

Water is produced from each train during the filtration period for a duration of 11 minutes, followed by a 30 second
relaxation. The filtration duration cycle is based on GE‘s extensive experience with the numerous GE‘s MBRs in operation
throughout the world.

Dedicated permeate/process pump shall be provided per train for filtration/backpulse purposes with a common standby for
multiple trains. The vacuum generated by the permeate pump draws permeate from the outside-in through the membranes and
discharges it to the Permeate Storage Tank. The variable speed pumps are controlled by PLC to maintain the permeate-flow
demand. The PLC continuously runs a PID loop for Trans Membrane Pressure (TMP) while in production. The PLC uses the
lower of the control outputs from the flow loop and TMP loop.

All the permeate pumps shall be controlled at the same flow set points and complete with premium efficiency VFD rated
motors and discharge flow meter.
Maximum pump capacity for permeation is achieved at the highest design level in the process tanks. All pump speeds will
gradually decrease as the liquid level in the process tanks decreases. If during low flow conditions this level drops below the
design minimum, and the pumps cannot be slowed down any further, one or more trains will automatically go into standby
mode.
During or below average day flow conditions, all trains shall be in operation provided any one trains is not required to go into
stand-by mode. All permeate pumps and Mixed Liquor RAS pumps shall be operating.
All permeate pumps shall discharge into a common permeate collection header. The Permeate Storage Tank and the
Backpulse Tank are both fed from the common permeate header.
Cleaning and Maintenance Procedures
As the feed is drawn through the membranes during filtration, solids are removed which accumulate on the membrane
surface. As the solids accumulate, they restrict the flow through the membranes and eventually membrane cleaning is
required in order to maintain the filtered water flow rate.
Membrane cleaning is absolutely critical to ensure sustainable operation over the life of the plant regardless of membrane
type. GE‘s MBR system is designed with the most comprehensive cleaning toolbox, which represents the culmination of
years of experience in long-term MBR operation for uncompromised performance over the life of the membranes. Features
include the following:
Membrane Air Scouring: used as a mechanical cleaning action, Seller has developed and patented the most energy efficient
membrane air scouring method in the industry.
Relax mode
Backpulse Ability: The ability to ensure an even distribution of chemicals across the fibers through backpulsing under
pressure. This reduces the potential for preferential flow of cleaning chemicals.
Cleaning: The ability to clean not only the inside of the membrane surface with maintenance cleaning, but also the outside of
the surface with recovery cleaning.
Ability to clean quickly and easily through fully automated processes such as relaxation, backpulsing, maintenance and
recovery cleaning; and
Membrane Scouring by Aeration
Whenever a membrane train is in production, membrane scour aeration is required to maintain consistent permeability of the
membrane.
Specially designed highly efficient coarse bubble aeration shall be used to scour the outside surface of the membrane and
move mixed liquor solids away from the membrane fibers. This is accomplished by a Seller‘s patented cyclic aeration system
that uses a factory installed coarse bubble aeration grid which is integrated into the base of each MBR cassette.
Figure 7: Schematic Representation of Aeration and Permeation in a MBR Cassette
The membrane cassette is aerated to provide a mechanical cleaning action. This air scour removes foulants that may deposit
on the outside of the fiber, maintaining membrane permeability. The aeration also minimizes the effect of concentration
polarization which is recognized as a significant membrane fouling mechanism.

Outside Face of ZeeWeed is kept free of solids buildup by the action of a rising solids/air/liquid
stream around the face of the membrane fibers. This rising stream produces a Cleaning Shear at the
face of the membrane due to Membrane Oscillation and airlift effect of the rising stream.

Sideways component of cleaning shear


at face of Zeeweed due to oscillation
of membrane within airlift stream

Upward component of cleaning shear


at face of ZeeWeed due to rising
stream of air and solids from ZeeWeed
base

ZeeWeed Base Diffuser

Figure 8: MBR Air Scour

The system has been designed to supply Air to each air header of a membrane train at 10 seconds ON and 10 seconds OFF
(10:10) aeration mode. Based on GE‘s experience in various MBR systems, a 10-30 aeration mode will be operated during
normal operation of the plant resulting in overall decreased aeration energy consumption. The process is PLC-automated and
provide among the lowest MBR energy consumption in the industry without sacrificing any performance.
Relaxation
Relaxation mode combined with air scouring is the routine cleaning mode during normal production. The combined stoppage
of permeation and air scouring effectively removes solids that have accumulated on the membrane surface or within the fibers
and reduces electrical costs.

Figure 9: Process Flow Schematic – Relaxation Mode


While operating in relaxation mode, permeation for each train is stopped sequentially for a short period of time (30-60 sec)
every 10-12 minutes to allow air scouring of the membranes without permeation. No chemical or permeate is used during
relaxation mode. This is the normal operating mode of MBR systems. The relaxation function is fully automated by the PLC
with no operator intervention.

Backpulse or Backwash
Backpulsing is a cleaning tool which allows for reliable system performance during unexpected influent or process operating
scenarios. Backpulsing involves reversing the flow through the membranes to dislodge any particles that may have adhered to
the membrane surface. As with relaxation, the backpulse functionality is fully automated by the PLC with no need for
operator intervention.
ZeeWeed uses clean filtrate to backwash itself. A reverse flow from the CIP tank is fed to the inside of the membrane fibers cleaning from the inside out Cleaning chemicals are optional and not always necessary.
Process Tank Water

Backwash Cleaning
(Reverse Flow with Filtrate)
Clean-In-PlaceTank
(Filtrate from membrane)

X-section
ZeeWeed Base Diffuser

Figure 10: MBR Backpulse

The backpulse system has also been incorporated into the automated membrane cleaning systems included in the proposed
design. Backpulsing is particularly critical for efficient membrane cleanings. Without backpulse, deep chemical cleaning of
membrane pores is impossible for any type of membrane, and can run the risk of membranes becoming deeply and
irreversibly fouled with organic matter.
The backpulse tank is automatically filled with permeate which is used for the backpulse process. If required, hypochlorite
may be added to the backpulse tank to maintain a concentration of < 5.0 mg/L to prevent bacterial growth.

Maintenance Clean
Over time, the membranes can experience fouling caused by accumulation of organic matter or crystallized salts within the
membrane fiber pores. Cleaning of the membranes in this circumstance to restore the permeability requires use of a Clean-In-
Place system.
Clean-In-Place (CIP) membrane cleaning is a standard operational procedure for most membrane systems .
A maintenance clean is a regularly scheduled, fully automated cleaning that involves an extended backpulse combined with
low concentration of chemical addition. Maintenance cleans are intended to maintain membrane permeability and extend the
time between recovery cleans.
The maintenance cleaning procedure is entirely automated and will be scheduled to occur during off-peak hours of the day.
The membrane filtration system includes the capability to perform maintenance cleans using sodium hypochlorite (NaOCl)
and citric acid to target organic and inorganic foulants respectively.
The maintenance cleaning procedure incorporates the following features:
Fully automated;
Performed without draining the membrane tank;
Low chemical concentration.
A maintenance clean consists of a series of short backpulses with chemical solution, followed by a backpulse with only
permeate to flush the headers and membranes.

Maintenance cleaning
procedure is entirely
automated and scheduled to
occur during off-peak hours of
the day, so that the plant is
ready when needed without
operator’s attention.

Figure 11: Process Flow Schematic – Typical Maintenance Clean Sequence (fig shown for description purposes only)
Recovery Clean
Recovery cleaning is required to restore the permeability of the membrane once the membrane becomes fouled. The recovery
cleaning procedure consists of a chemical backpulse sequence, followed by a chemical soak period.
Key features of the recovery cleaning procedure for MBR are:
Fully automated once initiated by the operator;
Cleans all membrane cassettes in a train at the same time;
Requires moderate chemical concentration
Thoroughly cleans the surface of the membrane
Recovery cleaning restores
permeability after membranes
have been fouled. A train is
taken off-line for 6 to 12 hours.
Figure 12: Process Flow Schematic – Typical Recovery Clean Sequence (fig shown for description purposes

only) System write-up

The raw sewage will be received at the inlet of the bar screen to trap any floating particles and debris. A belt type oil skimmer
and grease trap will be provided to remove the floating oil and grease. The oil free effluent overflows to the collection cum
equalization tank. Equalization tank will be fitted with coarse bubble aeration system for homogenizing the sewage and also
to keep it fresh during storage. This Sewage is then transferred to a downstream Aeration Tank by sewage transfer pump. The
aeration system works on an extended aeration activated sludge process. The biological reaction is sustained by maintaining a
required level of MLSS in the aeration tank. The generation of biomass reduces the incoming BOD and COD to greater than
95%. Oxygen transfer is achieved by means of fine bubble diffusers placed at the bottom of the tank to transfer atmospheric
oxygen from air. Suitable air blowers are provided to maintain an adequate flow of air through the aeration tank. The mixed
liquor containing the biomass overflows from the aeration tank to the MBR membrane compartment. A fine screen is placed
in between to trap any sharp objects or particles from entering the MBR chamber.

The MBR is basically hybrid waste water treatment approach involving biological treatment by Activated sludge process in
combination with physical absolute membrane filtration. We have offered GE Hollow fiber Membrane Bio Reactor to operate
in the biological Aeration system. The basic biological aeration system considered utilizes diffused aeration to provide the
required oxygen that will maintain the healthy biomass. A higher MLSS of 7,000 ppm and up to max of 15,000 ppm is
envisaged in the Aeration tank to sustain the microorganism and to effect efficient reduction of BOD and COD.

The membranes are made up of PVDF material. The membrane fiber consists of two outer layers with an inner support layer.
This unique construction gives the membrane the high resistance towards physical damage and high chlorine resistance. The
hydrophobic properties of the membrane help in fouling resistance. The individual membrane fibers are uniformly potted
using a patented resin mixture at both the ends. Permeate withdrawal is from both the ends of the membranes. This feature
ensures that the uniform flux is maintained throughout the membrane fiber length. The ZEWEED does not require
backwashing. The service cycle consists of filtrate withdrawal followed by soaking only. In addition to the above a
continuous stream of fine air bubbles is dispersed from the bottom header to ensure that the membranes are free from any
biomass sticking on to it. Cleaning requirements are minimum and are typically done once in a month with alkaline and acidic
cleaners.

The membranes come in stacks called as cassettes. The cassettes are mounted on to a
simple skid with an easy removal mechanism. The compact skids occupy very less space and can be lifted out of the tank
easily for any maintenance work. The skid with the cassette construction ensures that the replacement costs for the membrane
are kept to the minimum.

The filtrate from the MBR will be removed by means of MBR filtrate pumps. The suction
of the pump is connected to the MBR filtrate headers in the skid. Return activated sludge pumps are provided in the MBR
chamber to maintain the continuous circulation of the mixed liquor between the aeration tank and the MBR chamber.

The excess Sludge from the aeration tank will be taken out at regular intervals from the Recirculation line. The sludge will be
stored in a sludge holding tank where the same will be pumped through sludge transfer pump to Filter press for Dewatering
and the dry cake is disposed.

MAJOR STP UNITS

Following are the units proposed for above treatment scheme,

- Bar screen chamber


- Oil and Grease separator
- Fine Screen (Automatic)
- Coarse bubble diffuser.
- Equalisation tank
- Pump Room
- Anoxic tank/Aeration tank/MBR tank.
- Chemical cleaning of membranes
- Chlorinator
- Final tank
- Filter Press with screw pump/Centrifuge system
- Sludge holding tank
- Piping and cabling
- Units designed and proposed for LT panel

1.5 DESIGN CRITERIA

The STP shall be designed on the basis of wastewater flow and quality parameters as in Para 1.2 & 1.3. Vendor to submit an
offer for STP with complete design and detail drawing. These values shall form the design criteria for design

a) Equalisation Tank (Balancing Tank)

Retention time : Min 2.0-4.0 hrs based on

Peak hourly flow of raw Sewage.

b) Aeration/Membrance Bio-Reactor Tank

Influent BOD (5 Days) : 300 mg/lit


MLSS : 8000-12000 mg/lit
Oxygen requirement : 2.0 kgs per kg of BOD

c) Membrances

Type : Hollow Fiber


Pore Diameter : 0.04 micron
MOC : PVDF
Flow Direction : outside to in
Casing material : ABS
Operating : Suction 2-Way
Housing : SS

AUTOMATION OF SYSTEM

It is required to automate the system completely as specified below with scada based support,

 Level transmitter at equalization tank connecting to PLC and scada controlling the equalization pump and permeate
pump. (Link between inlet and out let)

 Ultrasonic based Flow meter to monitor the flow to fine screen.

 Electrically actuated valve at fine screen entry to control flow to fine screen with link between level transmitter at
screen and valve.

 Level transmitter at anoxic /aeration tank to control / monitor level and

 TMPT display and monitor/control between membrance out flow and permeate pumps.

 Flow meter at outlet of permeate pump with monitor/control permeate pump in comparison to raw sewage pump.

1.6 SCOPE OF CONTRACT & DESCRIPTION OF

WORK SCOPE OF CONTRACT


The tender is invited on turnkey basis for Design, Engg, Supply, Coordinating with construction works, Erection and
Commissioning of Sewage Treatment Plant (STP) for MBR technology, to give treated effluent quality as specified.

The schematic drawings attached herewith are preliminary. However, the successful contractor will be required to submit the
Detailed Process & Structural drawings (shop drawings) incorporating the thickness of various structural members.

These detailed drawings shall be submitted to Consultants for their comments & approval. Vendor has to submit all the
technical details for equipments used for operation of plant to the consultant and should get approval. All the works shall be
carried out as per final "valid for construction drawings" only.

 Testing of all equipments at his workshop shall be certified from Consultant.


 Inspection visit to certify all the equipments before supply shall be arranged for Consultant/PMC.
 Complete interconnecting piping between various units as per piping details including supply of all materials like GI
pipes, fittings, all valves, gaskets, flanges, nuts and bolts including all materials required for necessary pipe supports,
etc., complete.
 Supply, erection and commissioning of all the equipments required for the sewage treatment plant as per the
individual equipment specification.

 All electrical works including all electrical motors for the various equipment Confirming to IS 5600-1970, cabling,
L.T.Panel, starter, etc.

 The scope of work includes coordinating all necessary civil works like construction of panel foundations, cable
trenches, cable supports, lighting of entire plant as per drawing etc. complete.

 Commissioning of all the equipment after ther electricity is supplied will be within the scope of contract.

 All temporary sheds, office, go downs, etc. required for storage of materials and for contractors supervisory
personnel at site.

 Vendor to submit detail cost sheet for operation and maintenance, including of all consumables, man power and ele
power charges for one year with tender.

 Vendor to submit the pay back calculation sheet for above technology with Civil, M & E costs including O & M
charges.

1.7 DETAIL OF CIVIL WORKS

Civil works (By Civil Contractor) carried out in the treatment plant are as below which should be coordinated by
STP vendor and vendor should furnish required levels and details.

a) Coarse Bar Screen Chamber


b) Fine Screen
c) Equalization Tank
d) Anoxic/Aeration/MBR Tank
e) Final Tank
f) Working platform, staircase etc. as per drawing
g) Works such as pipe/cable trenches, chambers, equipments foundations, staircase headroom at entry of STP etc.
h) Plant room
i) Sludge Holding Tank

1.8 DETAIL OF PIPING WORK

Piping works including excavation, back filling, masonry / structural pipe supports, puddle flanges, concrete
bedding, pipe specials and GM B/F Valves (Approved or Recommended make only) are all included in the scope of
contract.

The quantity and sizes of the pipes shall be vendor design and piping drawing shall be submitted for consultant approval
before execution or procurement.

All pipes laid in the plant shall be treated with two coat of anti corrosive paint and one coat of approved IS recommended
color based on feeding scope of pipe.
1.9 GENERAL

The scope of STP vendor regarding Civil Works is coordinating necessary hydraulic testing for water tightness/seepage as per
relevant IS CODES FOR ALL WATER RETAINING STRUCTURES and hydraulic levels of the units done by civil
contractor.

Scope of contract for piping includes construction of necessary masonry valve chambers min 900 x 900 wherever necessary,
removable type MS painted covers and extension spindles for valves.

Make of all piping/Equipments/Motors/Cables and Pumps shall be clearly stated in the offer and shall be approved by
Consultant before Supply & Installation. The decision of Consultant in this regard shall be final and binding on the successful
contractor.

All equipment GA drawings shall be submitted to Consultant for approval prior to fabrication/ ordering. The fabricated and
brought-out equipments shall be inspected at Contractor Works by Consultant and shall be dispatched to site only after
obtaining clear dispatch instructions in writing from Consultant.

It is obligatory on the part of the intending bidder to visit the site of work prior to submitting the offer and familiarize himself
with local/site /soil conditions, availability of men, Materials and Machinery for successful and timely execution of the works.
No extra shall be paid in case Contractor fails to ascertain correct site conditions before submitting the offer.

All MS hand railing/ladders shall be given two coats of corrosive resistant paint over a coat of red-oxide primer or approved
make and shade, which shall be scope of civil contractor.

Any other item not specifically mentioned in this tender but is essential for proper and successful completion, commissioning
and running of the DSTP for its commercial utilization is also to be included in the scope of contract.

Fresh water line shall be provided to STP area but should be coordinated with plumbing vendor.

―STP vendor has to coordinate with Main contractor, Plumbing vendor, Electrical contractor, Project
management/builder/Client, Architect and consultant to establish the plant and to run the plant successfully‖.

Battery Limits :

1. Sewage Inlet upto STP screen chamber.


2. Treated water upto final sump in the STP.
3. Exhaust fan capacity and ducting upto terrace.
4. Electrical feeder upto LT panel.
5. Fresh water line upto
STP. 6.

1.10 EQUIPMENT SPECIFICATION

a) Bar Screen

Type-1 : Manually cleaned with Handrake

Construction : In MS flats of size 20x6 not more than 20mm c/c with necessary
MS Flat 25x6 stiffeners.

The whole unit shall be given 2 coats Of epoxy based paint over a coat
of epoxy based primer.

1 no. MS hand rake shall also be Provided with GI pipe rod.

Type-2 : Mechanically cleaned automatic System.

Construction : In SS flats with opening not more Than 3mm with automatic
cleaning System based on head loss.
b) Raw Effluent Pumps
Quantity : Refer BOQ

Duty : To transfer Raw Effluent from Equalisation Tank to Aeration Tank


/MBR tank

Type : Vertical submersible type pumps With Crusher

Motor : Built in vortex pump

Material of Construction : Body and Impeller in CI

c) Diffusers

Quantity : Refer BOQ

Fine pore diffusers : Long Membranes of Silicon Supported on PVC pipe secured at the ends
by SS clams and construction with necessary accessories etc. complete.

Coarse bubble diffusers : Pressed PVC pipe with holes on the surface for air ejection with
necessary accessories etc. complete (for equalization tank andfinal
tank)

d) Air Blowers

Quantity : Refer BOQ

Type : Twin lobe compressor

e) Sludge Pumps

Quantity : Refer BOQ

Duty : To transfer secondary sludge from Clarifier to Aeration tanks &


sludge Thickener.

Type : Horizontal centrifugal non-clog Self-priming, open Impeller, pumps

Motor : TEFC motor, with IP-5 protection and Suitable for 400/440 V, 50 HZ
a/c

Material of Construction : Body and Impeller in CI

Accessories : Air cock with priming funnel, Flexible Coupling with guard, Base
frame, Foundation botls etc.

f) Chlorinator

g) Chemical Cleaning Pumps

h) Back Wash Pumps

Pumps are applied to clean the membrance surface from organic and inorganic Loading. Preferred chemicals are
NAOCL and citric acid.

i) Suction Pumps

Suction shall be applied to the header on top of MBR modules and it shall be bank Type. Pressure shall be as per
design calculation.

Details justifying the duty condition of pumps shall be submitted.

j) Filter Press/Centrifuge System

AE(E)P-II/HMZ

410
Type : Automatic Hydraulic closing Mechanism and as per BOQ

AE(E)P-II/HMZ

411

You might also like
