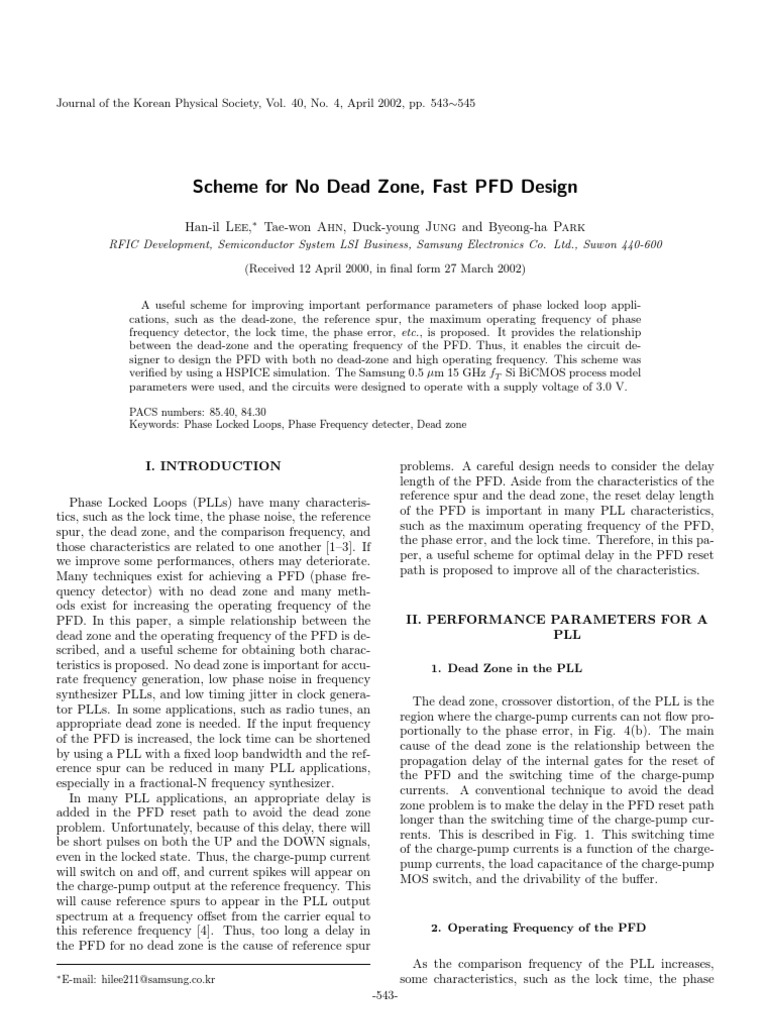

Journal of the Korean Physical Society, Vol. 40, No. 4, April 2002, pp.

543∼545

Scheme for No Dead Zone, Fast PFD Design

Han-il Lee,∗ Tae-won Ahn, Duck-young Jung and Byeong-ha Park

RFIC Development, Semiconductor System LSI Business, Samsung Electronics Co. Ltd., Suwon 440-600

(Received 12 April 2000, in final form 27 March 2002)

A useful scheme for improving important performance parameters of phase locked loop appli-
cations, such as the dead-zone, the reference spur, the maximum operating frequency of phase
frequency detector, the lock time, the phase error, etc., is proposed. It provides the relationship
between the dead-zone and the operating frequency of the PFD. Thus, it enables the circuit de-
signer to design the PFD with both no dead-zone and high operating frequency. This scheme was
verified by using a HSPICE simulation. The Samsung 0.5 µm 15 GHz fT Si BiCMOS process model
parameters were used, and the circuits were designed to operate with a supply voltage of 3.0 V.

PACS numbers: 85.40, 84.30

Keywords: Phase Locked Loops, Phase Frequency detecter, Dead zone

I. INTRODUCTION problems. A careful design needs to consider the delay

length of the PFD. Aside from the characteristics of the
reference spur and the dead zone, the reset delay length
Phase Locked Loops (PLLs) have many characteris-
of the PFD is important in many PLL characteristics,
tics, such as the lock time, the phase noise, the reference
such as the maximum operating frequency of the PFD,
spur, the dead zone, and the comparison frequency, and
the phase error, and the lock time. Therefore, in this pa-
those characteristics are related to one another [1–3]. If
per, a useful scheme for optimal delay in the PFD reset
we improve some performances, others may deteriorate.
path is proposed to improve all of the characteristics.
Many techniques exist for achieving a PFD (phase fre-
quency detector) with no dead zone and many meth-
ods exist for increasing the operating frequency of the
PFD. In this paper, a simple relationship between the II. PERFORMANCE PARAMETERS FOR A
dead zone and the operating frequency of the PFD is de- PLL
scribed, and a useful scheme for obtaining both charac-
teristics is proposed. No dead zone is important for accu- 1. Dead Zone in the PLL
rate frequency generation, low phase noise in frequency
synthesizer PLLs, and low timing jitter in clock genera-
The dead zone, crossover distortion, of the PLL is the
tor PLLs. In some applications, such as radio tunes, an
region where the charge-pump currents can not flow pro-
appropriate dead zone is needed. If the input frequency
portionally to the phase error, in Fig. 4(b). The main
of the PFD is increased, the lock time can be shortened
cause of the dead zone is the relationship between the
by using a PLL with a fixed loop bandwidth and the ref-
propagation delay of the internal gates for the reset of
erence spur can be reduced in many PLL applications,
the PFD and the switching time of the charge-pump
especially in a fractional-N frequency synthesizer.
currents. A conventional technique to avoid the dead
In many PLL applications, an appropriate delay is
zone problem is to make the delay in the PFD reset path
added in the PFD reset path to avoid the dead zone
longer than the switching time of the charge-pump cur-
problem. Unfortunately, because of this delay, there will
rents. This is described in Fig. 1. This switching time
be short pulses on both the UP and the DOWN signals,
of the charge-pump currents is a function of the charge-
even in the locked state. Thus, the charge-pump current
pump currents, the load capacitance of the charge-pump
will switch on and off, and current spikes will appear on
MOS switch, and the drivability of the buffer.
the charge-pump output at the reference frequency. This
will cause reference spurs to appear in the PLL output
spectrum at a frequency offset from the carrier equal to
this reference frequency [4]. Thus, too long a delay in 2. Operating Frequency of the PFD
the PFD for no dead zone is the cause of reference spur
As the comparison frequency of the PLL increases,
∗ E-mail: hilee211@samsung.co.kr some characteristics, such as the lock time, the phase
-543-
-544-
Fig. 1. Circuits of PFD and charge pump.
noise, and the reference spur, can be improved. The
maximum operating frequency of the PFD is derived in
Soyuer’s paper [5]:
fP F Dmax = 1/(2 × ∆TR ) (1)
As the reset delay of the PFD, ∆TR , decreases, the max-
imum operating frequency of the PFD increases.
3. Reference Spur in the PLL
The reference spur is due to periodic charge-pump cur-
rent spikes at the reference frequency, even in the lock
state.
III. PROPOSED SCHEME FOR OPTIMAL
∆TR IN DESIGN OF THE PFD
As seen from the above, the amount of delay in the
PFD reset path is the key parameter common to the
dead zone, the operating frequency of the PFD, and the
reference spur. Therefore, if these three characteristics
are to be improved the delay of the PFD reset path must
be determined carefully in many PLL applications. Fig-
ure 1 presents the PFD circuit with D flip-flops. A timing
diagram of the signals for the PFD in Fig. 1 is shown in
Fig. 2, where ∆TR is the delay in the PFD reset path,
Te is a given phase error, Vth is the threshold voltage of
the charge-pump current switch, and Tth is the time for
the input voltage of the charge-pump switch from zero to
Vth . Tth is also the switching time of the charge-pump
currents. Vth and Tth are determined for a given PLL
application.
The difference between Fig. 2(a) and Fig. 2(b) is
the size of ∆TR . If ∆TR < Tth , as in Fig. 2(a), the
charge-pump switch can not be closed, Iout can not flow
during the time Te , and there is a dead zone. How-
ever, if ∆TR > Tth , as shown in Fig. 2(b), charge-pump
switch can be closed, Iout can flow during the time Te ,
and there is no dead zone. Therefore, to avoid the dead
Journal of the Korean Physical Society, Vol. 40, No. 4, April 2002
Fig. 2. Timing diagrams of PFD and charge-pump: (a)
∆TR < Tth and (b) ∆TR > Tth .
zone problem, we must design the delay of PFD reset
path (∆TR ) to be longer than the charge-pump current
switching time (Tth ). The minimum delay in the PFD
reset path (∆TRmin ) in order to avoid a dead zone is
related to Tth as
∆TRmin = Tth (2)
The maximum delay in the PFD reset path (∆TRmax )
is the maximum operating frequency of the PFD
(fP F Dmax ), which is derived in Ref. 5:
∆TRmax = 1/(2 × fP F Dmax ) (3)
In addition, to reduce the reference spur, we made the
delay in the PFD reset path (∆TR ) as short as possible.
Therefore, from the above relations, a useful scheme for
optimal ∆TR in PFD design is as follows: First, for a
particular application, Tth is calculated, and ∆TRmin is
determined. Second, fP F Dmax and ∆TRmax are deter-
mined for the application. Last, ∆TR is made to be a
little longer than ∆TRmin in order to reduce the reference
spur.
∆TRmin < ∆TR < ∆TRmax (4)
IV. SWITHCING TIME CALCULATION AND
SIMULATION RESULTS
1. Switching Time Calculation
The switching time of the charge-pump currents (Tth )
is a function of the charge-pump current, the load capaci-
tance of the charge-pump MOS switch, and the drivabil-
ity of the buffer. For the calculation of Tth , the last
inverter of the charge-pump buffer and the charge-pump
Scheme for No Dead Zone, Fast PFD Design – Han-il Lee et al.
Fig. 3. Modeling of inverter and MOS switch.
Fig. 4. Simulation results comparing two cases: (a) ∆TR >
Tth (=2 ns) and (b) ∆TR < Tth (=2 ns).
switch of the MOS transistor in Fig. 1 are modeled as
the inverter and a load capacitor (CL ) in Fig. 3. The
charge-pump switching time (Tth ) can be approximated
by the average of the rise time and the fall time of the
UU (DD) signal of Fig. 2. The rise time (Tr ) and the fall
time (Tf ) can be calculated as in Ref. 6. A useful equa-
tion for the minimum reset delay of the PFD (∆TRmin )
in order to avoid dead-zone is given by
Tr + Tf CL kf kf
∆TRmin = Tth = = +
2 2V DD βp βn
Cox · (W · L · M )L kf kf
= + (5)
2V DD βp βn
For certain applicationa of a 500 µA charge-pump cur-
rent, the appropriate sizes of the MOS switch (as a load)
and the last inverter of the charge-pump buffer (as a
driver) are (W × L × M)L = 10 µm × 0.5 µm × 50,
-545-
(W/L)DP M OS = 5.2 µm/0.5 µm, (W/L)DP M OS = 1.8
µm/0.5 µm. If Samsung 0.5 µm BiCMOS model pa-
rameters are used, the parameters of Eq. (5) are Cox =
2.5 fF/µm2 , VDD = 3 V, kr = 4.19, kf = 3.93, βp =
432 µA/V2 , βn = 414 µA/V2 . Therefore, from Eq. (5),
∆TRmin is simply calculated 2.0 ns.
2. Simulation Results
The simulation results of the above case are shown in
Fig. 4. Figure 4 shows that if we design ∆TR to be
longer than ∆TRmin (Tth = 2.0 ns) the dead zone does
not appear.
V. CONCLUSIONS
A useful scheme for improving important characteris-
tics, such as the dead zone, the reference spur, and the
operating frequency of the PFD, in PLLs is proposed
and is verified by using the HSPICE simulation with the
Samsung 0.5 µm 15 GHz fT Si BiCMOS process model
parameters. This scheme provides a common key param-
eter, the reset delay of the PFD ∆TR , for the relation-
ship between the dead zone and the operating frequency
of the PFD. Thus, a circuit designer can design the PFD
with no dead zone and with a fast operating frequency
by control of this key parameter.
REFERENCES
[1] Junghyun Lee, Sangoh Lee, Minjong Yoh, Inhyo Ryu and
Byung-Ha Park, J. Korean Phys. Soc. 35, S914 (1999).
[2] Tae-won Ahn and Byung-ha Park, J. Korean Phys. Soc.
40, 1 (2002).
[3] Kyung-suc Nah, Duck-young Jung and Byung-Ha Park,
J. Korean Phys. Soc. 37, 808 (2000).
[4] J. Cranincks and M. Steyaert, Wireless CMOS Fre-
quency Synthesizer Design. (Kluwer Academic Publishers,
Boston, 1998), Ch. 7.
[5] Mehmet Soyuer and Robert G. Meyer, IEEE J. Solid-
State Circ. 29, 1019 (1990).
[6] Neil Weste and Kamran Eshragian, Principles of CMOS
VLSI: A System Perspective, 2nd ed. (Addison-Wesley,
New York, 1992), Ch. 4.
