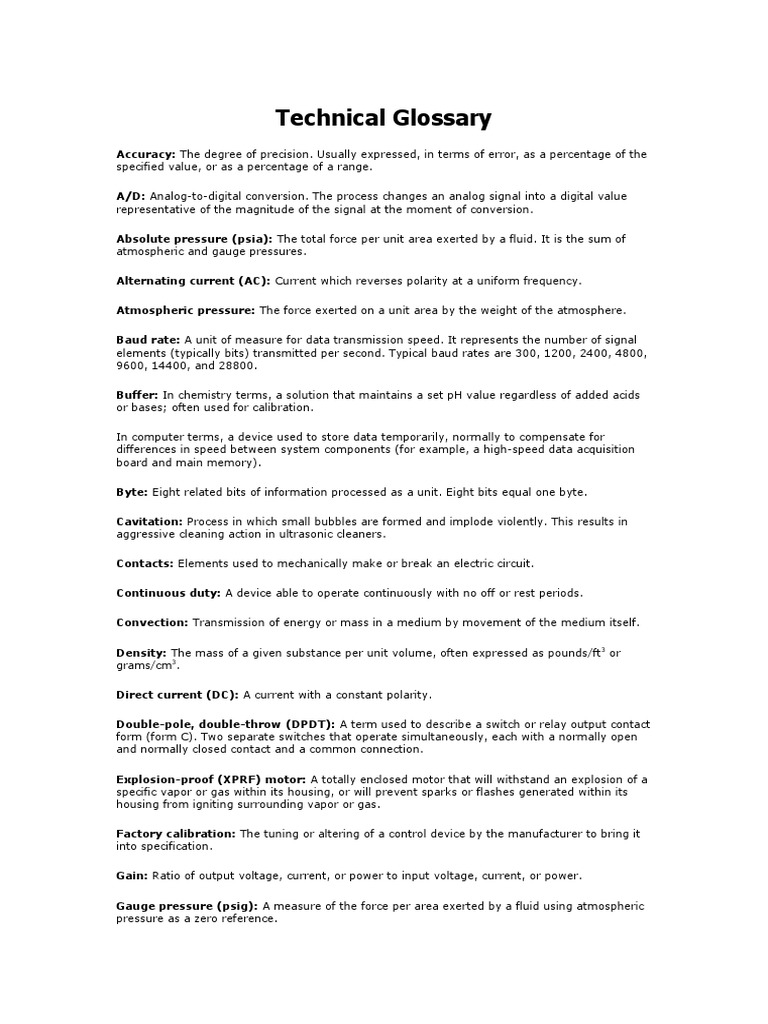

Technical Glossary

Accuracy: The degree of precision. Usually expressed, in terms of error, as a percentage of the
specified value, or as a percentage of a range.

A/D: Analog-to-digital conversion. The process changes an analog signal into a digital value
representative of the magnitude of the signal at the moment of conversion.

Absolute pressure (psia): The total force per unit area exerted by a fluid. It is the sum of
atmospheric and gauge pressures.

Alternating current (AC): Current which reverses polarity at a uniform frequency.

Atmospheric pressure: The force exerted on a unit area by the weight of the atmosphere.

Baud rate: A unit of measure for data transmission speed. It represents the number of signal
elements (typically bits) transmitted per second. Typical baud rates are 300, 1200, 2400, 4800,
9600, 14400, and 28800.

Buffer: In chemistry terms, a solution that maintains a set pH value regardless of added acids
or bases; often used for calibration.

In computer terms, a device used to store data temporarily, normally to compensate for
differences in speed between system components (for example, a high-speed data acquisition
board and main memory).

Byte: Eight related bits of information processed as a unit. Eight bits equal one byte.

Cavitation: Process in which small bubbles are formed and implode violently. This results in
aggressive cleaning action in ultrasonic cleaners.

Contacts: Elements used to mechanically make or break an electric circuit.

Continuous duty: A device able to operate continuously with no off or rest periods.

Convection: Transmission of energy or mass in a medium by movement of the medium itself.

Density: The mass of a given substance per unit volume, often expressed as pounds/ft 3 or
grams/cm3.

Direct current (DC): A current with a constant polarity.

Double-pole, double-throw (DPDT): A term used to describe a switch or relay output contact
form (form C). Two separate switches that operate simultaneously, each with a normally open
and normally closed contact and a common connection.

Explosion-proof (XPRF) motor: A totally enclosed motor that will withstand an explosion of a
specific vapor or gas within its housing, or will prevent sparks or flashes generated within its
housing from igniting surrounding vapor or gas.

Factory calibration: The tuning or altering of a control device by the manufacturer to bring it
into specification.

Gain: Ratio of output voltage, current, or power to input voltage, current, or power.

Gauge pressure (psig): A measure of the force per area exerted by a fluid using atmospheric
pressure as a zero reference.
Impedance: The opposition in an electric circuit to the flow of an alternating current. It
consists of ohmic resistance, inductive reactance, and capacitive reactance.

Inductive load: Electrical devices made of wound or coiled wire. Current passing through the
coil creates a magnetic field that in turn produces mechanical work.

LIMS (Laboratory Information Management System): A system that manages operations

of a testing laboratory.

Linearity: The degree to which performance or response approaches the condition of being
linear. Expressed in percent.

Normally closed (NC) switch: A switch in which the contacts are closed (contacting) without
any external force acting upon it.

Normally open (NO) switch: A switch in which the contacts are open (separated) when no
external forces act upon the switch.

On/off control: A simple control system in which the device being controlled is either full on or
full off, with no intermediate operating positions.

Open drip-proof (ODP) motor: An open motor with ventilator openings that will prevent
liquids and solids, dropped from an angle of 0° to 15° from vertical, from interfering with its
operation.

Parallel transmission: The transmission of data bits over different lines, usually
simultaneously; as opposed to serial transmission.

pH: An indication of the acidity or alkalinity of a solution. Units range from 0 (most acidic), to 7
(neutral), to 14 (most alkaline).

PID control (proportional, integral, derivative): Control in which the control signal is a
linear combination of the error signal, its integral, and its derivative.

Pressure: Force exerted per unit area.

Proportional control: Control in which the amount of corrective action is proportional to the
amount of error.

Range: The limits within which a device or circuit operates or the distance over which a
transmitter operates reliably.

Serial transmission: Sending one bit at a time on a single transmission line.

Series (Universal) motor: A non-induction type motor utilized for small equipment. Speed will
decrease as load increases.

Shaded-pole motor: A low-starting-torque motor that depends on induced current to create

the magnetic field necessary to start the motor.

Shunt: A conductor joining two points in an electrical circuit to form a parallel path. All or some
portion of the current may pass through the shunt.

Single-phase motor: Any motor energized by a single alternation voltage.

Single-pole, double-throw (SPDT) switch: A switch that in one position completes one of
two circuits. In the second position the switch completes a second circuit and breaking the first
circuit.

Single-pole, single-throw (SPST) switch: A switch that will open or complete a circuit.
Solid-state: Any element that controls current without moving parts, heated filaments, or
vacuum gaps.

Standard operating conditions, standard temperature and pressure (STP): Defined

temperature and pressure to which all values are referenced for comparison. Generally 760 mm
Hg (1 atm), 25°C.

Stop bit: A signal following a character or block that prepares the receiving device to receive
the next character or block.

Temperature compensation: Correction for the influence of temperature on a measurement.

Tolerance: The maximum allowable deviation from a specified standard, as the range of
variation permitted, expressed in actual values or more often as a percentage of the nominal
value.

Totally enclosed (TE) motor: Motors that prevent the free flow of air from the inside of the
motor enclosure to the outside.

Totally enclosed, nonventilated (TENV) motor: A motor in a totally enclosed housing that is
not equipped with an external cooling device.

Totally enclosed, fan-cooled (TEFC) motor: A motor in a totally enclosed housing that is
equipped with a separate external blower.

Transducer: Any device which generates an electrical signal from real world physical
measurements.

Transmitter: A device which translates the low-level output of a sensor or transducer to a

higher level signal suitable for transmission to a site where it can be further processed.

Three-phase motor: A relatively inexpensive, self-starting motor (no starting winding or

capacitor); can start heavy loads. The motor requires a three-phase AC power supply.

Viscosity: The resistance of a fluid to flow when subjected to shear stress.

Chlorinated polyvinyl chloride (CPVC) is a thermoplastic produced by chlorination of

polyvinyl chloride (PVC) resin. Uses include hot and cold water pipe, and industrial liquid
handling.

Contents
1 Production process
 2 Physical properties
 3 Uses
o 3.1 Pipe
 4 Comparison to polyvinyl chloride (PVC)
o 4.1 Chemical resistance
o 4.2 Heat resistance
o 4.3 Mechanical properties

5 Fire properties

Production process
CPVC is PVC (polyvinyl chloride) that has been chlorinated via a free radical chlorination
reaction. This reaction is typically initiated by application of thermal or UV energy utilizing
various approaches. In the process, chlorine gas is decomposed into free radical chlorine which
is then reacted with PVC in a post-production step, essentially replacing a portion of the
hydrogen in the PVC with chlorine.

Depending on the method, a varying amount of chlorine is introduced into the polymer allowing
for a measured way to fine tune the final properties. The mass based chlorine content may vary
from the base PVC 56.7% to as high as 74%, although most commercial resins have mass of
chlorine from 63% to 69%. As the chlorine content in CPVC is increased, its glass transition
temperature (Tg) increases significantly. Under normal operating conditions, CPVC becomes
unstable at 70% mass of chlorine.

Various additives are also introduced into the resin in order to make the material processible.
These additives may consist of stabilizers, impact modifiers, pigments and lubricants.

Physical properties
CPVC shares most of the features and properties of PVC. It is also readily workable, including
machining, welding, and forming. Because of its excellent corrosion resistance at elevated
temperatures, CPVC is ideally suited for self-supporting constructions where temperatures up to
200 °F (90 °C) are present. The ability to bend, shape, and weld CPVC enables its use in a wide
variety of process applications including tanks, scrubbers, and ventilation systems. It exhibits
excellent fire resistance, chemical resistance, and is readily available in sheets, rods, and
tubing.

Uses
CPVC is a popular engineering material due to its relatively low cost, high glass transition
temperature, high heat distortion temperature, chemical inertness, and flame and smoke
properties. CPVC is used in a variety of industrial applications where a high functional
temperature and resistance to corrosive chemicals are desirable. Besides pipe and fittings, it is
used in pumps, valves, strainers, filters, tower packing, and duct, as well as sheet for
fabrication into storage tanks, fume scrubbers, large diameter duct, and tank lining.

Pipe
In use as plumbing materials, CPVC exhibits comparatively high impact and tensile strength and
is non-toxic. In pressurized systems, it can be used with fluids up to 80°C and higher in low-
pressure systems. It does require specialized solvent cement for assembly. Depending on local
building codes, it can be used in hot and cold water systems as well as hot and cold chemical
distribution systems in conditions where metal pipe is not indicated.

Comparison to polyvinyl chloride (PVC)

Chemical resistance
CPVC as well as PVC exhibits a good resistance to acids and bases (depending on the
acid/base). There are several cases, where it is useful to stay with PVC (e.g. ammonia hydrous
solution, hydrofluoric acid). Additionally, it exhibits excellent resistance to salts and aliphatic
hydrocarbons. Being a non-conductive long chain polymer, CPVC is also immune to galvanic
corrosion.

Since the chemical properties of resins may vary according to the amount of chlorination and
the types and quantity of additives, manufacturers' recommendations should be consulted
before designing material handling systems using CPVC.
Heat resistance
CPVC can withstand corrosive water at temperatures 40 °C to 50 °C (70 °F to 90 °F) greater
than PVC, contributing to its popularity as a material for water piping systems in residential as
well as commercial construction.

Mechanical properties
The principal mechanical difference between CPVC and PVC is that CPVC is significantly more
ductile, allowing greater flexure and crush resistance. Additionally, the mechanical strength of
CPVC makes it a viable candidate to replace many types of metal pipe in conditions where
metal's susceptibility to corrosion limits its use.

Fire properties
CPVC is similar to PVC in resistance to fire. It is typically very difficult to ignite and tends to self-
extinguish when not in a directly applied flame.

Due to its chlorine content, the incineration of CPVC, either in a fire or in an industrial disposal
process, can result in the creation of dioxins

PVC (PolyVinyl Chloride) &

CPVC (Chlorinated PolyVinyl Chloride)
Specifications

POLYVINYL CHLORIDE (PVC) PROPERTIES

PVC is the most widely used member of the vinyl family. It is most commonly used
in pipe and fittings. PVC offers excellent corrosion and weather resistance. It has a
high strength-to-weight ratio and is a good electrical and thermal insulator. PVC is
also self-extinguishing per UL flammability tests. PVC may be used to temperatures
of 140°F (60°C) and is readily available in sheets, rods, and tubing. PVC may be
cemented, welded, machined, bent and shaped readily.

CHLORINATED POLYVINYL CHLORIDE (CPVC) PROPERTIES

CPVC shares most of the features and properties of its close relative, PVC. It is also
readily workable, including machining, welding, and forming. Because of its excellent
corrosion resistance at elevated temperatures, CPVC is ideally suited for self-
supporting constructions where temperatures up to 200°F (93°C) are present. The
ability to bend, shape, and weld CPVC enables its use in a wide variety of process
applications including tanks, scrubbers, and ventilation systems. It exhibits excellent
fire resistance, chemical resistance, and is readily available in sheets, rods, and tubing.

TYPICAL PROPERTIES of PVC and CPVC

ASTM or UL
Property PVC CPVC
test
PHYSICAL
Density (lb/in³) 0.051 0.055
D792
(g/cm³) 1.41 1.52
D570 Water Absorption, 24 hrs (%) 0 0.04
MECHANICAL
D638 Tensile Strength (psi) 7,500 8,200
D638 Tensile Modulus (psi) 411,000 430,000
D638 Tensile Elongation at Break (%) - 27
D790 Flexural Strength (psi) 12,800 15,000
D790 Flexural Modulus (psi) 481,000 410,000
115 (Rockwell 121 (Rockwell
D785 Hardness
R) R)
D256 IZOD Notched Impact (ft-lb/in) 1.0 1.6
THERMAL
Coefficient of Linear Thermal
D696 Expansion 6.1 3.7
(x 10-5 in./in./°F)
Heat Deflection Temp (°F / °C)
D648
at 264 psi 176 / 80 217 / 103
D3418 Melting Temp (°F / °C) n.a. n.a.
- Max Operating Temp (°F / °C) 140 / 60 200 / 93
Thermal Conductivity
C177 (BTU-in/ft²-hr-°F) 0.90 0.95
(x 10-4 cal/cm-sec-°C) 3.1 3.3
UL94 Flammability Rating V-O V-O
ELECTRICAL
Dielectric Strength (V/mil) short
D149 544 1250
time, 1/8" thick
D150 Dielectric Constant at 60 Hz 3.2 3.7
D150 Dissipation Factor at 60 Hz .0096 -
Volume Resistivity (ohm-cm)at 50%
D257 5.4 x 1015 3.4 x 1015
RH
 NOTE: The information contained herein are typical values intended for reference and comparison
purposes only. They should NOT be used as a basis for design specifications or quality control. Contact
us for manufacturers' complete material property datasheets.
All values at 73°F (23°C) unless otherwise noted.
