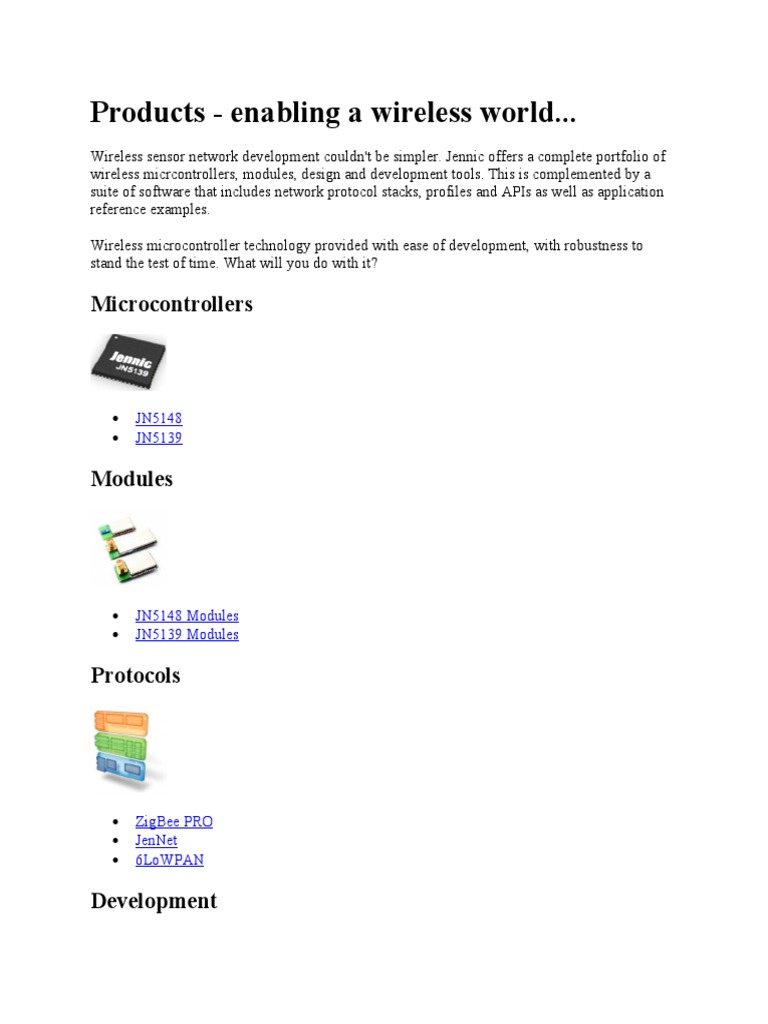

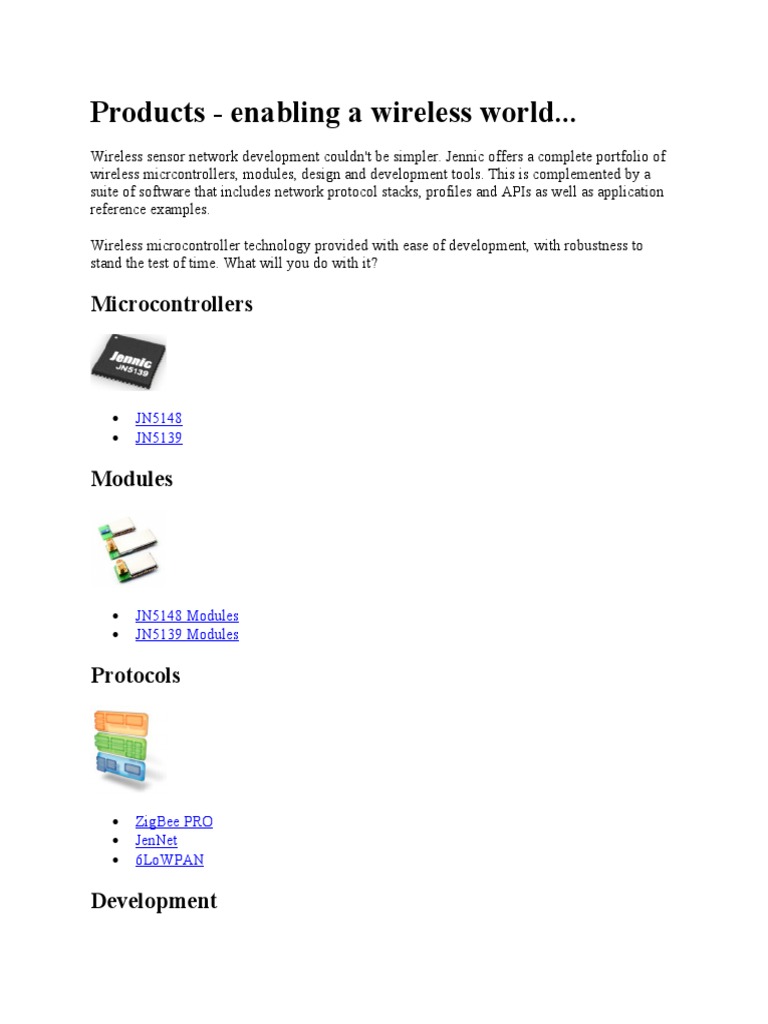

Products - enabling a wireless world...

Wireless sensor network development couldn't be simpler. Jennic offers a complete portfolio of
wireless micrcontrollers, modules, design and development tools. This is complemented by a
suite of software that includes network protocol stacks, profiles and APIs as well as application
reference examples.

Wireless microcontroller technology provided with ease of development, with robustness to

stand the test of time. What will you do with it?

Microcontrollers

 JN5148
 JN5139

Modules

 JN5148 Modules
 JN5139 Modules

Protocols

 ZigBee PRO
 JenNet
 6LoWPAN

Development
  JN5148 Evaluation Kit
 Software Development Kit

Documentation

 Application Notes
 Datasheets
 User Guides
 Reference Manuals
 Quality

Applications

 Overview
 Logistics
 Asset Tracking
 Intelligent Lighting
 Remote Control
 Telehealthcare

ZigBee PRO Protocol Stack

Jennic’s ZigBee PRO protocol stack provides a complete software solution, offering mesh
networking capability and product level interoperability, for applications in the areas of Smart
Energy (SE), Advanced Metering Infrastructure (AMI), Commercial Building Automation
(CBA) and Home Automation (HA) systems.

Supported on the JN5148 wireless microcontroller, Jennic's ZigBee PRO solution offers world
class performance. The lowest power consumption, the highest processing capability through the
32-bit RISC CPU at its core and the largest on-chip memory footprint of any single chip
implementation, enables the solution to support the most demanding of application.

The ZigBee PRO protocol stack on the JN5148 provides a ZigBee Compliant Platform (ZCP) as
certified by the ZigBee Alliance, enabling users to quickly and easily develop products that can
achieve ZigBee Certified Product status.

The solution can be configured to support either embedded or co-processor architectures, as

required by the end application.

Embedded Architecture Co-Processor Architecture

In this architecture the In this architecture the
JN5148 acts as a JN5148 acts as a co-
standalone processor, processor to an
running both the ZigBee existing system
wireless networking processor, managing
stack and the user all of the ZigBee
application. specific wireless
networking tasks.
Features and Benefits
Features and Benefits
 Single chip implementation
 Lowest cost solution for applications  Easiest method of adding ZigBee
- end points and routers PRO functionality to existing

 Full access to the on-chip user
peripherals
 Direct interface into the ZigBee PRO
stack
 Most flexible approach for
applications development

applications
 Co-processor manages all ZigBee
PRO and profile functionality,
placing zero overhead on the system
processor
 Simple serial interface between co-
processor and existing system
processor
 Approach provides rapid time to
market

Offered with the ever-popular Eclipse IDE, and with simple ‘C’ based Application Programming
Interfaces (APIs) for communicating to the ZigBee PRO protocol stack and to the JN5148 on-
chip peripherals, the solution enables developers to rapidly evaluate the technology and develop
products.

A series of reference designs, including a home automation system containing smart meter and
in-home display, are available.

For further details on Jennic’s ZigBee PRO solution email your requirements to
info@jennic.com

Terms of Use © Jennic Ltd 2010

JenNet Protocol Stack

JenNet is a network protocol stack designed to work with Jennic's

family of wireless microcontrollers and modules. JenNet allows wireless sensor networks to be
easily built, from simple point-to-point cable replacement to complex tree networks.

JenNet supports star, tree and linear network topologies, and provides self-healing functionality
for robust communication. Developed on the IEEE802.15.4 standard, which operates in the
globally unlicensed 2.4GHz band, JenNet co-exists with Wi-Fi and Bluetooth.

Interaction with JenNet is achieved via an easy-to-use 'C' programming interface.

This interface provides simplified access to all network and microcontroller functions, reducing
the need for designers to understand the complexities of wireless networks.

Features
 Available for JN5148 Jennic wireless microcontrollers and modules NEW
 Available for JN5139  Jennic wireless microcontrollers and modules
 Based on IEEE802.15.4 MAC and PHY
 Supports Star, Tree and Linear topologies
 Recommended network size up to 250 nodes
 Automatic route formation and repair
 Network load balancing to avoid data throughput congestion
 Network re-shaping to reduce network depth
 Sleeping End Devices for extended battery life
  Leave Request function supports moving nodes
 End-to-end message acknowledgment
 Over-the-air download
 Statistics for network maintenance


JenNet network layer
Manages: network formation, network discovery, network joining and repair, and sending
and receiving packets to/from neighbouring nodes

Benefits
 Easy-to-use and ideal for proprietary network topologies
 Small memory footprint
 Co-existence with Wi-Fi and Bluetooth
 Reliable and robust communication
 Secure communication (128-bit AES encryption)
 Low power operation for battery powered end devices (typical up to 2 years)

Applications
 Cable replacement Point-to-Point
 Street lighting applications
 Automatic Meter Reading (AMR)
 Remote control
 Building access control
 Security systems
 Active RF ID applications (e.g.asset tagging)

6LoWPAN Protocol Stack

Jennic's 6LoWPAN protocol stack provides a wireless connectivity solution based on the
IEEE802.15.4 standard at 2.4GHz, to enable embedded devices to communicate wirelessly using
the pervasive Internet Protocol (IP).  Designed to work with Jennic's feature rich JN5139
wireless microcontroller, the IP connectivity solution provides a low power single chip
implementation for the development of wireless networking products that offer multi-year
battery life, which can communicate with other IP devices in an existing network.

Whilst point-to-point and star connectivity are supported as standard in IEEE802.15.4,

developers can also choose to run 6LoWPAN over Jennic's JenNet networking stack, providing a
self-healing cluster tree solution that is highly stable and field proven.

Application development is made easy through a highly abstracted programming interface

(SNAP), reducing the need for designers to understand the complexities of wireless networks,
enabling them to focus on increased product functionality and quick time to market.

Features:
 IETF standard IP networking
 Based on IEEE802.15.4 MAC and PHY
 Works with Jennic wireless microcontrollers and modules
 Point-to-point, star and selfhealing tree networks
 Typical clusters of 100 nodes
 Automatic route formation and repair
 End-to-end message acknowledgment

SNAP API:
 Simple Network Access Protocol (similar to SNMP)
 Provides data interchange between devices in an IP oriented manner
 Based on MIBs (Management Information Bases)
 Enables remote control,diagnostics and configuration of 6LoWPAN wireless networks
JenNet network layer
 Self-healing cluster tree networking component
 Manages: network formation, discovery, join and repair
 Sending / receive packets

Benefits
 Leverage existing IP infrastructure
 Seamless integration of low power wireless into existing IP networks
 Standards based on IEEE802.15.4 in 2.4GHz ISM band - global adoption
 Co-existence with other 2.4GHz wireless - example Wi-Fi, Bluetooth, ZigBee
 Multi-year battery life expectancy in embedded applications
 Simple software development APIs

Applications
 Building Automation: HVAC, lighting control, access control, security, fire detection and
alarm
 Industrial Automation and Control: pressure, temperature, level sensing, flow control
 Home Control: remote security and surveillance, heating control, lighting control
 Medical: patient monitoring, asset tagging

JN5148 Single Chip JenNet, ZigBee PRO and

IEEE802.15.4 Solution
The JN5148 launches Jennic’s latest generation of ultra low
power, low cost wireless microcontrollers for wireless sensor
networking applications based on the IEEE802.15.4 standard,
including ZigBee PRO and JenNet.

It offers an enhanced 32-bit RISC processor featuring improved

coding efficiency and up to 32MIPs performance, a fully
compliant 2.4GHz IEEE802.15.4 transceiver, 128kB of ROM
and 128kB of RAM to support both the networking protocol stack and user application on-chip,
and a rich mix of user peripherals.

The 32-bit RISC CPU achieves world class performance through its variable instruction width,
multi-stage instruction pipeline and prioritised interrupt scheduler.

The highest levels of on-chip integration also means that the device offers many new and
innovative peripheral enhancements, such as:

 4-wire digital audio interface that will connect directly to mainstream audio CODECs
 Low power sleep counters designed for pulse counting in AMR applications

The JN5148 sets new benchmarks for the lowest power consumption, highest processing
capability and the highest levels of integration in a single chip wireless microcontroller.

Ultra Low Power Consumption

The integrated power management on the JN5148 efficiently controls the system power,
enabling it to support applications that require the use of a coin cell with a 20mA limited
discharge capability. With a system operating current consumption of 18mA when receiving, and
15mA when transmitting at +3dBm, the JN5148 consumes typically 35% less power than
existing solutions in these modes of operation.

ZigBee PRO Ready

The JN5148 is Jennic's ZigBee PRO platform. The combination of 128kB ROM, 128kB RAM
and the 32-bit RISC CPU ensure that it is able to cover the complete spectrum of ZigBee PRO
applications, with stack and application integrated in a single chip solution. Furthermore, with
support for co-processor configurations it enables the addition of ZigBee PRO functionality to
existing applications processors with complete ease and speed of implementation.

Together, the combination of Jennic's JN5148 wireless microcontroller with Jennic's ZigBee
PRO networking stack have been certified as a ZigBee Compliant Platform (ZCP).

For further information on Jennic’s JN5148 please send an email to info@jennic.com

For further information on Jennic’s ZigBee PRO solution please send an email to
info@jennic.com
JN5139 Wireless Microcontroller
(IEEE802.15.4 and JenNet)


The JN5139 is a low power, low

cost wireless microcontroller
suitable for IEEE802.15.4 and
JenNet applications. The device
integrates a 32-bit RISC processor,
with a fully compliant 2.4GHz
IEEE802.15.4 transceiver, 192kB of
ROM, 96kB of RAM, and a rich
mixture of analogue and digital
peripherals.

The cost sensitive ROM/RAM

architecture supports the storage of
system software, including protocol
stacks, routing tables and
application code/data. An external
flash memory is used to store application code that is bootloaded into internal RAM and
executed at runtime.

The device integrates hardware MAC and AES encryption accelerators, power saving and timed
sleep modes, and mechanisms for security key and program code encryption. These features all
make for a highly efficient, low power, single chip wireless microcontroller for battery-powered
applications.

Features: Transceiver
 2.4GHz IEEE802.15.4 compliant
 128-bit AES security processor
 MAC accelerator with packet formatting, CRCs, address check, auto-acks, timers
 Integrated power management and sleep oscillator for low power
 On-chip power regulation for 2.2V to 3.6V battery operation
 Deep sleep current 0.2µA
 Sleep current with active sleep timer 1.3µA
  Needs minimum of external components
(< US$1 cost)
 Rx current 34mA
 Tx current 34mA
 Receiver sensitivity -97dBm
 Transmit power +3dBm

Features: Microcontroller
 32-bit RISC processor sustains 16MIPs with low power
 192kB ROM stores system code, including protocol stack
 96kB RAM stores system data and optionally bootloaded program code
 48-byte OTP eFuse, stores MAC ID on-chip, offers AES based code encryption feature
 4-input 12-bit ADC, 2 11-bit DACs,
2 comparators
 2 Application timer/counters,
3 system timers
 2 UARTs (one for debug)
 SPI port with 5 selects
 2-wire serial interface
 Up to 21 GPIO

Benefits
 Single chip integrates transceiver and microcontroller for wireless sensor networks
 Cost sensitive ROM/RAM architecture, meets needs for volume application
 System BOM is low in component count and cost
 Hardware MAC ensures low power consumption and low processor overhead
 Extensive user peripherals

Applications
 Robust and secure low power wireless applications
 Wireless sensor networks, particularly IEEE802.15.4 and JenNet systems
 Home and commercial building automation
 Remote controls
 Toys and gaming peripherals
 Industrial systems
 Telemetry and utilities


Industrial temperature range

(-40 to +85°C)

8x8mm 56-lead QFN

Lead-free and RoHS compliant

JN5148 JenNet, ZigBee PRO and

IEEE802.15.4 Module

The JN5148-001-Myy family is a range of ultra low power, high performance surface mount
modules targeted at low power wireless networking applications, enabling users to realise
products with minimum time to market and at the lowest cost. They remove the need for
expensive and lengthy development of custom RF board designs and test suites. The modules use
Jennic's JN5148 wireless microcontroller to provide a comprehensive solution with large
memory, high CPU and radio performance and all RF components are included.  All that is
required to develop and manufacture wireless control or sensing products is to connect a power
supply and peripherals such as switches, actuators and sensors, considerably simplifying product
development.

Three module variants are available: JN5148-001-M00 with an integrated antenna, JN5148-001-
M03 with an antenna connector and JN5148-001-M04 with an antenna connector, power
amplifier and LNA for extended range.  All modules can run networking stacks such as JenNet
and ZigBee PRO as well as customer applications.


Features: Module
 2.4GHz IEEE802.15.4 and ZigBee PRO applications
 Sleep current (with active sleep timer) 2.6µA
 JN5148-001-M00/03
Up to 1km range (Ext antenna)
M00: integral antenna 18x32mm
M03: uFl connector 18x30mm
o TX power +2.5dBm
o Receiver sensitivity -95dBm
o TX current 15mA
o RX current 17.5mA
o 2.3-3.6V operation
 JN5148-001-M04
Up to 4km range (Ext antenna)
o 20dBm TX power
o Receiver sensitivity -98dBm
o uFl connector
o TX current 110mA
o RX current 23mA
o 18x41mm
o 2.7-3.6V operation

Features: Microcontroller
 32-bit RISC CPU, up to 32MIPs with low power
 128kB ROM stores system code
 128kB RAM stores system data and bootloaded program code
 4Mbit serial flash for program code and data
 On chip OTP efuse
 JTAG debug interface
 4-input 12-bit ADC, 2 12-bit DACs, 2 comparators
 3 Application timer/counters,
3 system timers
 2 UARTs
 SPI port with 5 selects
 2-wire serial interface
 4-wire digital audio interface
 Watchdog timer
 Up to 21 DIO

Benefits
 Microminiature module solutions
 Ready to use in products
 Minimises product development time
  No RF test required for systems
 Compliant with FCC part 15 rules, IC Canada RSS 210e, ETSI ETS 300-328 and Japan ARIB STD-T66
 Production volumes supplied pre-programmed with application software

   Applications
 Robust and secure low power wireless applications
 ZigBee PRO and JenNet networks
 Home and commercial building automation
 Utilities metering (e.g. AMR)
 Location Aware services (e.g. Asset Tracking)
 Toys and gaming peripherals
 Industrial systems
 Telemetry
 Remote Control

Industrial Temp (-40°C to +85°C)

Lead-free and RoHS compliant



JN5139 Wireless Modules (IEEE802.15.4 and

JenNet)

The JN5139-xxx-Myy family is a range of surface mount modules that enables users to
implement systems using Jennic's own JenNet networking stack or IEEE802.15.4 with minimum
time to market and at the lowest cost.  They remove the need for expensive and lengthy
development of custom RF board designs and test suites. The modules use Jennic's JN5139
wireless microcontroller to provide a comprehensive solution with high radio performance and
all RF components are included.  All that is required to develop and manufacture wireless control
or sensing products is to connect a power supply and peripherals such as switches, actuators and
sensors, considerably simplifying product development.

Three basic hardware module variants are available: JN5139-xxx-M00 with an integrated
antenna, JN5139-xxx-M01/M03 with an antenna connector and JN5139-xxx-M02/M04 with a
power amplifier and LNA for extended range.

Features: Module
 2.4GHz IEEE802.15.4 compliant
 2.7-3.6V operation
 Sleep current (with active sleep timer) 2.6µA
 JN5139-xxx-M00/01/03
up to 1km range
M00 has on board antenna
M01 has SMA connector
M03 has uFl connector
o Receiver sensitivity -96dBm
o TX power +2.5dBm
o TX current 37mA
o RX current 37mA
o 18x30mm
 JN5139-xxx-M02/04
up to4km range
M02 has SMA connector
M04 has uFl connector
o Receiver sensitivity -100dBm
o TX power +19dBm
o TX current 125mA
o RX current 45mA
o 18x41mm

Features: Microcontroller
 16MHz 32-bit RISC CPU
 96kB RAM, 192kB ROM
 4-input 12-bit ADC, 2 11-bit DACs, 2 comparators, temperature sensor
  2 Application timer/counters,
3 system timers
 2 UARTs (one for in-system debug)
 SPI port with 5 selects
 2-wire serial interface
 21 GPIO
 Evaluation kits available with full, unlimited, Software Development Kit

Benefits
 Microminiature module solutions
 Ready to use in products
 Minimises product development time
 No RF test required for systems
 Compliant with FCC part 15 rules, ETSI ETS 300-328 and Japan ARIB STD-T66
 Production volumes supplied pre-programmed with application software

   Applications
 Robust and secure low power wireless applications
 Wireless sensor networks, particularly IEEE802.15.4 / JenNet systems
 Home and commercial building automation
 Home networks
 Toys and gaming peripherals
 Industrial systems
 Telemetry and utilities
(e.g. AMR)

Temperature range (-20 to +70°C)

Lead-free and RoHS compliant



Terms of Use © Jennic Ltd 2010

JN5148 Evaluation Kit

 Jennic’s JN5148-EK010 evaluation
kit provides a complete environment
for the development of ZigBee PRO,
JenNet and IEEE802.15.4
applications based on the JN5148
wireless microcontroller. The kit
contains a complete package of
hardware and software, including five
wireless sensor nodes, an unrestricted
software developer kit (SDK), and
example code.

The SDK provides a complete set of

development tools, software libraries
and APIs (Application Programming
Interfaces) for programming and
controlling the on-chip peripherals of
the JN5148, for configuring and
managing the network and for data
communication.

Out of the box, the hardware nodes are pre-programmed and demonstrate an example home
sensor demo that monitors the state of sensors on the wireless nodes and presents this
information on the controller node’s LCD display.

Wireless Sensor Nodes (5 off)

 JN5148 modules
o 2 x standard power PCB antenna
o 3 x standard power uFl connector
 Onboard temperature, light level and humidity sensors
 JN5148 IO expansion port
 2 x USB cables for PC connection
 Battery or external power supply
 1 node with bitmapped LCD

High power modules (2 off)

 JN5148 high power uFl connector modules for extended range

Software development kit

 GNU-based toolchain
o C compiler
 o Debugger
o Flash programmer
 Eclipse IDE
 GNU Debugger (GDB) integrated into Eclipse
 Microcontroller and peripheral libraries
 JenNet and ZigBee PRO libraries

Application Support
 Datasheets
 User guides
 Reference manual

Benefits
 Complete SDK and network stacks
 JenNet stack for quick and easy development of proprietary systems
 ZigBee compliant platform
 Unrestricted development environment
 Rapid application development and demonstration
 Profile support with increasing number of clusters
 Elliptic Curve Cryptography (ECC) library for Smart Energy security support available
from Certicom

Applications
 Smart energy / smart grid: load control and demand response
 Building Automation: HVAC, lighting control, access control, security, fire detection and
alarm
 Industrial Automation and Control: pressure, temperature, level sensing, flow control,
machine monitoring
 Home Control: remote security and surveillance, heating control, lighting control, energy
management
 Medical: patient monitoring, asset tagging


Terms of Use © Jennic Ltd 2010
