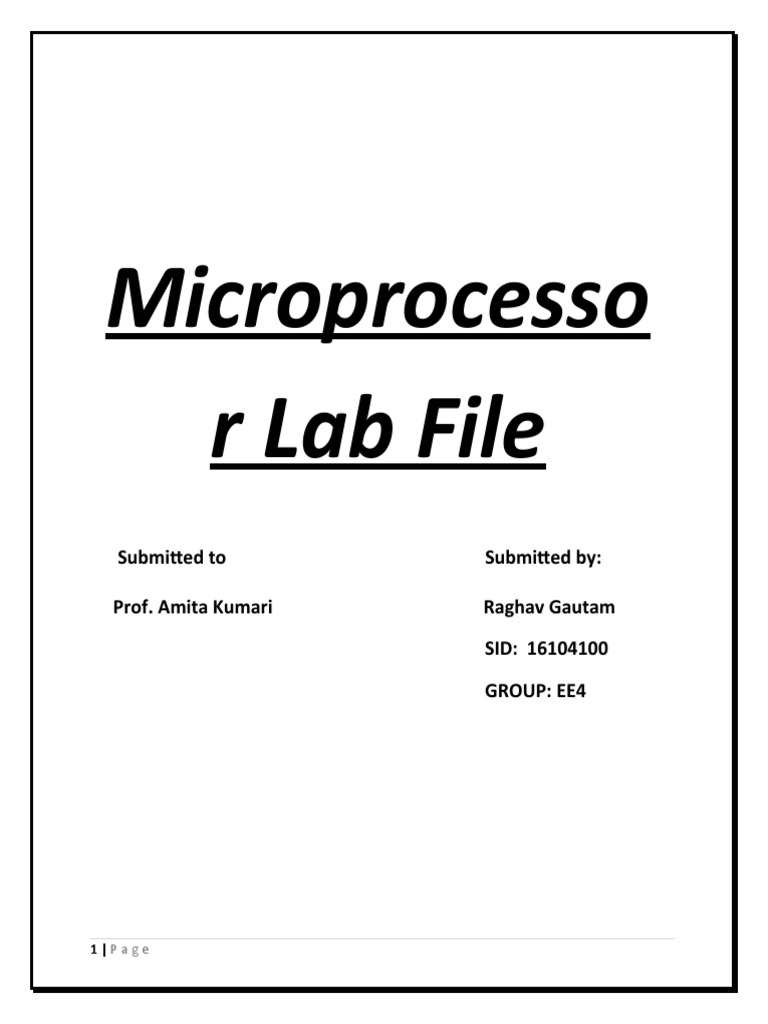

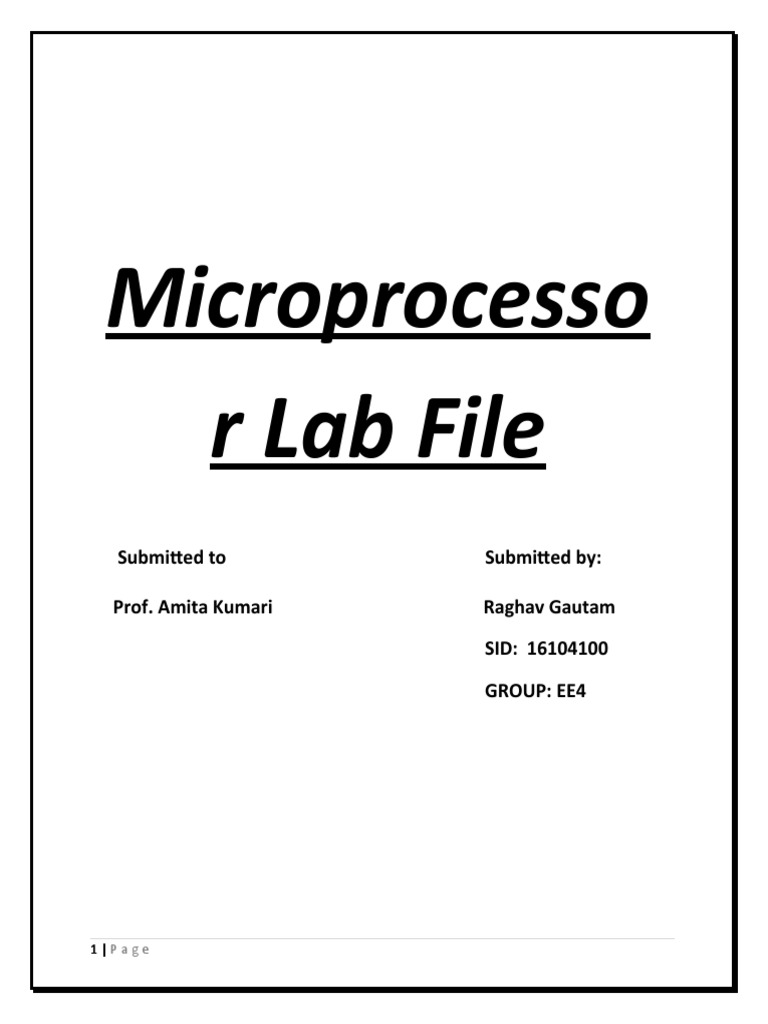

Microprocesso

r Lab File
Submitted to Submitted by:

Prof. Amita Kumari Raghav Gautam

SID: 16104100

GROUP: EE4

1|Page
 EXPERIMENT 1
AIM: To perform addition of 2 hexadecimal
numbers in 8086 microprocessor

 Press Reset button on the microprocessor, press Enter key and press A on
the keyboard.

ADDITION OF NUMBERS CODING

 A 0000:0400. Press Enter key

 MOV AL, C0. Press Enter key
 MOV BL, 05. Press Enter key
 ADD AL,BL. Press Enter key
 MOV[2000],AL. Press Enter key
 HLT. Press Enter key
 Press Reset button and G on the keyboard.
 G 0000:0400
 To see the result press Reset button and D on keyboard.
 D 0000:2000
 Result: C5
 Press Reset button on the microprocessor, press Enter key and press A on
the keyboard.

ADDITION OF NUMBERS CODING

2|Page
  A 0000:0400. Press Enter key
 MOV AX, EE00. Press Enter key
 MOV BX, 0055. Press Enter key
 ADD AX,BX. Press Enter key
 MOV [2000], AX. Press Enter key
 HLT. Press Enter key
 Press Reset button and G on the keyboard.
 G 0000:0400
 To see the result press Reset button and D on keyboard.
 D 0000:2000
 Result: EE55

Note: Sum comes as 55EE IN case (ii) because [2000] address is 8 bit only
therefore EE is stored at location [2001].

EXPERIMENT 2

3|Page
 AIM: To perform subtraction of 2 hexadecimal
numbers in 8086 microprocessor

 Press Reset button on the microprocessor, press Enter key and press A on
the keyboard.

SUBTRACTION OF NUMBERS CODING

 A 0000:0400. Press Enter key

 MOV AL,AB. Press Enter key
 MOV BL, 11. Press Enter key
 SUB AL,BL. Press Enter key
 MOV[2000],AL. Press Enter key
 HLT. Press Enter key
 Press Reset button and G on the keyboard.
 G 0000:0400
 To see the result press Reset button and D on keyboard.
 D 0000:2000
 Result: 9A
 Press Reset button on the microprocessor, press Enter key and press A on
the keyboard.

SUBTRACTION OF NUMBERS CODING

 A 0000:0400. Press Enter key

 MOV AX, ABCD. Press Enter key
 MOV BX, 1111. Press Enter key
 SUB AX,BX. Press Enter key
4|Page
  MOV[2000],AL. Press Enter key
 HLT. Press Enter key
 Press Reset button and G on the keyboard.
 G 0000:0400
 To see the result press Reset button and D on keyboard.
 D 0000:2000
 Result: 9ABC

Note: Difference comes as BC9A in case (ii) because [2000] address is 8-bit
therefore 9A is stored in location [2001].
