Technical Service Information

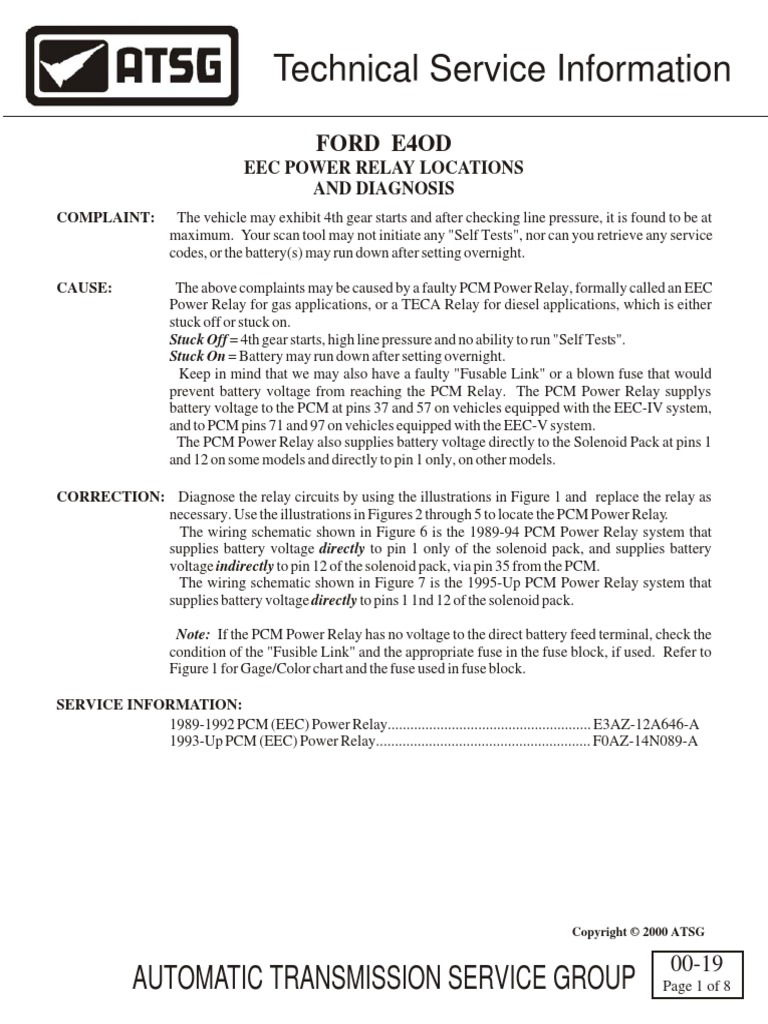

FORD E4OD
EEC POWER RELAY LOCATIONS
AND DIAGNOSIS
COMPLAINT: The vehicle may exhibit 4th gear starts and after checking line pressure, it is found to be at
maximum. Your scan tool may not initiate any "Self Tests", nor can you retrieve any service
codes, or the battery(s) may run down after setting overnight.

CAUSE: The above complaints may be caused by a faulty PCM Power Relay, formally called an EEC
Power Relay for gas applications, or a TECA Relay for diesel applications, which is either
stuck off or stuck on.
Stuck Off = 4th gear starts, high line pressure and no ability to run "Self Tests".
Stuck On = Battery may run down after setting overnight.
Keep in mind that we may also have a faulty "Fusable Link" or a blown fuse that would
prevent battery voltage from reaching the PCM Relay. The PCM Power Relay supplys
battery voltage to the PCM at pins 37 and 57 on vehicles equipped with the EEC-IV system,
and to PCM pins 71 and 97 on vehicles equipped with the EEC-V system.
The PCM Power Relay also supplies battery voltage directly to the Solenoid Pack at pins 1
and 12 on some models and directly to pin 1 only, on other models.

CORRECTION: Diagnose the relay circuits by using the illustrations in Figure 1 and replace the relay as
necessary. Use the illustrations in Figures 2 through 5 to locate the PCM Power Relay.
The wiring schematic shown in Figure 6 is the 1989-94 PCM Power Relay system that
supplies battery voltage directly to pin 1 only of the solenoid pack, and supplies battery
voltage indirectly to pin 12 of the solenoid pack, via pin 35 from the PCM.
The wiring schematic shown in Figure 7 is the 1995-Up PCM Power Relay system that
supplies battery voltage directly to pins 1 1nd 12 of the solenoid pack.

Note: If the PCM Power Relay has no voltage to the direct battery feed terminal, check the
condition of the "Fusible Link" and the appropriate fuse in the fuse block, if used. Refer to
Figure 1 for Gage/Color chart and the fuse used in fuse block.

SERVICE INFORMATION:
1989-1992 PCM (EEC) Power Relay...................................................... E3AZ-12A646-A
1993-Up PCM (EEC) Power Relay......................................................... F0AZ-14N089-A

Copyright © 2000 ATSG

00-19
AUTOMATIC TRANSMISSION SERVICE GROUP Page 1 of 8
 BACK
Technical Service Information

1989-92 PCM (EEC) RELAY 1993-UP PCM (EEC) RELAY

PART NUMBER E3AZ-12A646-A PART NUMBER F0AZ-14N089-A
Relay NOT USED Battery Voltage
Ground (All Times)
Relay
Ignition Ground Ignition
Switch Switch
Power Power

Relay Power To Relay Power To

Battery Voltage NOT USED
Solenoid Pack And Solenoid Pack And
(All Times)
PCM Pins 37 & 57 PCM Pins 37 & 57 Copyright © 2000 ATSG
FUSABLE LINK AND FUSE CHART
Model Gage/Color Fuse
1989-91 "E" Series Vans (All) 20 Blue None Shown
1989-91 "F" Series & Bronco (All) 20 Blue None Shown
1992-93 "E" Series Vans (All) None Shown "C"
1992-93 "F" Series & Bronco (Gas) 12 Dark Green "I"
1992-93 "F" Series & Bronco (Diesel) 12 Gray "I"
1994-95 "E" Series Vans (Gas) 14 Dark Green "C"
1994-95 "E" Series Vans (Diesel) 14 Dark Green None Shown
1995 "E" Series Vans (Diesel) (Ambulance Package) 20 Gray None Shown
1995 "E" Series Vans (4.9L California) 14 Dark Green "I"
1994-95 "F" Series & Bronco (All) 12 Gray "I"
1996 "E" Series Vans (Gas) 12 Gray "C"
1996 "E" Series Vans (Diesel) 20 Gray None Shown
1996-97 "F" Series & Bronco (All) 12 Gray "9"
1997 "E" Series Vans (All) 14 Dark Green "9"
1997 Expedition Series (All) Mega-Fuse 175A "24"

Figure 1
00-19
AUTOMATIC TRANSMISSION SERVICE GROUP Page 2 of 8
 BACK
Technical Service Information

1989-1991 "E" SERIES VANS

PASSENGER SIDE
INNER FENDER

PCM
POWER
RELAY

Copyright © 2000 ATSG

Figure 2

00-19
AUTOMATIC TRANSMISSION SERVICE GROUP Page 3 of 8
 BACK
Technical Service Information

1989-1991 "F" SERIES & BRONCO

PCM POWER
RELAY (DIESEL)
PCM POWER
RELAY (GAS)

DRIVER SIDE
INNER FENDER

Copyright © 2000 ATSG

Figure 3

00-19
AUTOMATIC TRANSMISSION SERVICE GROUP Page 4 of 8
 BLOWER
HORN RELAY RELAY

T/T & AUX BATT

RELAY 60A

S R

FUEL PUMP RELAY

I/P 60A
HORN
15A
K

P
TRAILER TOW 30A

RUNNING LIGHTS
J 15A
EEC OR TECA RELAY

Figure 4
TRAILER TOW 40A
N

D H
T/S 10A
ELECT BRAKE 20A FUEL PUMP 30A

M
C G

EEC 30A IGNITION SWITCH 50A T/S 10A

1992 AND LATER "E" SERIES VANS
Technical Service Information

AUTOMATIC TRANSMISSION SERVICE GROUP

B F

MODIFIED VEHICLE BLOWER CIGAR 50A

POWER 50A

A E

AUX HEATER A/C 50A POWER SEAT 50A DIODE

UNDERHOOD
POWER CENTER

Copyright © 2000 ATSG

BACK

00-19
Page 5 of 8
 BACK
Technical Service Information
1992 AND LATER "F" SERIES & BRONCO
UNDERHOOD
POWER CENTER

UNDERHOOD POWER CENTER

G
C

H
A

K
B

J
I
M

Q
N

U
P

S
L

T
POWER

MARKER
TRAILER
RELAY

LAMPS
HORN
PCM

RELAY

RELAY

RELAY

USED
NOT
IDM

Copyright © 2000 ATSG

Figure 5
00-19
AUTOMATIC TRANSMISSION SERVICE GROUP Page 6 of 8
 BACK
Technical Service Information
1989-94 PCM (EEC) POWER RELAY WIRE SCHEMATIC WITH
POWER SUPPLY TO PIN 1 "ONLY" OF SOLENOID BODY

Pin 1

Pin 12

1 20
21 40
41 60

VPWR Pin 57
VPWR Pin 37

Ground PCM Pin 40

Ground PCM Pin 60

_ PCM Ignition Switch

+ Power Power
Relay
BATTERY

KAPower PCM Pin 1

Fusable Link
(See Chart, Figure 1)

Copyright © 2000 ATSG

Figure 6
00-19
AUTOMATIC TRANSMISSION SERVICE GROUP Page 7 of 8
 BACK
Technical Service Information
1995-UP PCM (EEC) POWER RELAY WIRE SCHEMATIC WITH
POWER SUPPLY TO PINS 1 AND 12 OF SOLENOID BODY

Pin 1

Pin 12

1 20
21 40
41 60

VPWR Pin 57
VPWR Pin 37

Ground PCM Pin 40

Ground PCM Pin 60

_ PCM Ignition Switch

+ Power Power
Relay
BATTERY

KAPower PCM Pin 1

Fusable Link
(See Chart, Figure 1)

Copyright © 2000 ATSG

Figure 7
00-19
AUTOMATIC TRANSMISSION SERVICE GROUP Page 8 of 8
