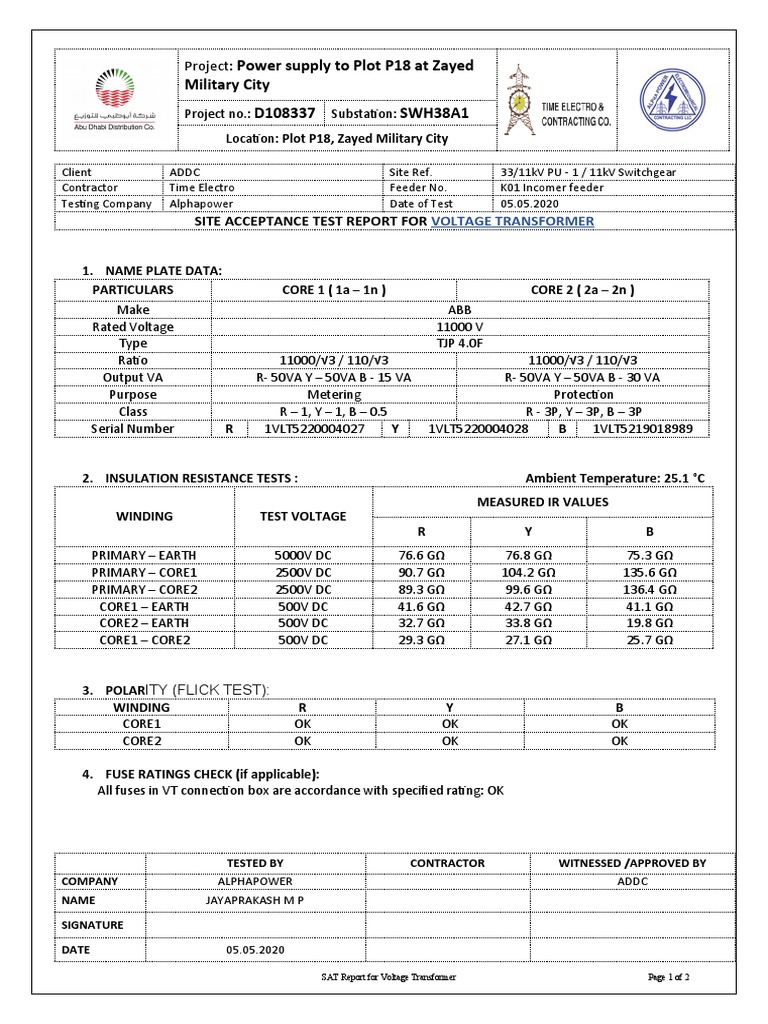

Project: Power supply to Plot P18 at Zayed

Military City
Project no.: D108337 Substation: SWH38A1
Location: Plot P18, Zayed Military City

Client ADDC Site Ref. 33/11kV PU - 1 / 11kV Switchgear

Contractor Time Electro Feeder No. K01 Incomer feeder
Testing Company Alphapower Date of Test 05.05.2020
SITE ACCEPTANCE TEST REPORT FOR VOLTAGE TRANSFORMER

1. NAME PLATE DATA:

PARTICULARS CORE 1 ( 1a – 1n ) CORE 2 ( 2a – 2n )
Make ABB
Rated Voltage 11000 V
Type TJP 4.0F
Ratio 11000/√3 / 110/√3 11000/√3 / 110/√3
Output VA R- 50VA Y – 50VA B - 15 VA R- 50VA Y – 50VA B - 30 VA
Purpose Metering Protection
Class R – 1, Y – 1, B – 0.5 R - 3P, Y – 3P, B – 3P
Serial Number R 1VLT5220004027 Y 1VLT5220004028 B 1VLT5219018989

2. INSULATION RESISTANCE TESTS : Ambient Temperature: 25.1 °C

MEASURED IR VALUES
WINDING TEST VOLTAGE
R Y B
PRIMARY – EARTH 5000V DC 76.6 GΩ 76.8 GΩ 75.3 GΩ
PRIMARY – CORE1 2500V DC 90.7 GΩ 104.2 GΩ 135.6 GΩ
PRIMARY – CORE2 2500V DC 89.3 GΩ 99.6 GΩ 136.4 GΩ
CORE1 – EARTH 500V DC 41.6 GΩ 42.7 GΩ 41.1 GΩ
CORE2 – EARTH 500V DC 32.7 GΩ 33.8 GΩ 19.8 GΩ
CORE1 – CORE2 500V DC 29.3 GΩ 27.1 GΩ 25.7 GΩ

3. POLARITY (FLICK TEST):

WINDING R Y B
CORE1 OK OK OK
CORE2 OK OK OK

4. FUSE RATINGS CHECK (if applicable):

All fuses in VT connection box are accordance with specified rating: OK

TESTED BY CONTRACTOR WITNESSED /APPROVED BY

COMPANY ALPHAPOWER ADDC
NAME JAYAPRAKASH M P

SIGNATURE

DATE 05.05.2020

SAT Report for Voltage Transformer Page 1 of 2

 Project: Power supply to Plot P18 at Zayed
Military City
Project no.: D108337 Substation: SWH38A1
Location: Plot P18, Zayed Military City

Client ADDC Site Ref. 33/11kV PU - 1 / 11kV Switchgear

Contractor Time Electro Feeder No. K01 Incomer feeder
Testing Company Alphapower Date of Test 05.05.2020
SITE ACCEPTANCE TEST REPORT FOR VOLTAGE TRANSFORMER

5.WINDING RESISTANCE CHECKS: Ambient Temperature: 25.1 °C

R-PHASE Y-PHASE B-PHASE
WINDING AT ROOM AT ROOM AT ROOM
At 75ºC At 75ºC At 75ºC
TEMP TEMP TEMP
PRIMARY (KΩ) 2.037 2.428 2.043 2.435 2.101 2.504
CORE-1 (mΩ) 526.62 627.65 529.60 631.20 535.37 638.08
CORE-2 (mΩ) 553.42 659.59 557.70 664.70 557.52 664.48

6.RATIO CHECK:
SECONDARY VOLTAGE MEASURED (V)
PRIMARY VOLTAGE CORE 1 ( 1a – 1n ) CORE 2 ( 2a – 2n )
APPLIED (V) PHASE Expected Measured Expected Measured
%Error %Error
Voltage(V) Voltage(V) Voltage(V) Voltage(V)
1000 10.0 10.033 0.55 10 10.078 0.93
R–N
2000 20.0 20.135 0.61 20 20.163 0.99
1000 10.0 10.039 0.55 10 10.067 0.90
Y–N
2000 20.0 20.120 0.61 20 20.225 0.96
1000 10.0 10.034 0.54 10 10.073 0.57
B–N
2000 20.0 20.128 0.61 20 20.144 0.64

7.VISUAL CHECKS: OK

8 REMARKS:

9 TEST EQUIPMENTS USED:

Instrument name Make / model Serial no. Cal due. Date
IR tester Megger / MIT515 101574096 18.03.2021
Digital multimeter Fluke/87V 36320038 25.01.2021
CPC100 Omicron/CPC100 RD_170Y 22.02.2021

TESTED BY CONTRACTOR WITNESSED /APPROVED BY

COMPANY ALPHAPOWER ADDC
NAME JAYAPRAKASH M P

SIGNATURE

DATE 05.05.2020

SAT Report for Voltage Transformer Page 2 of 2
