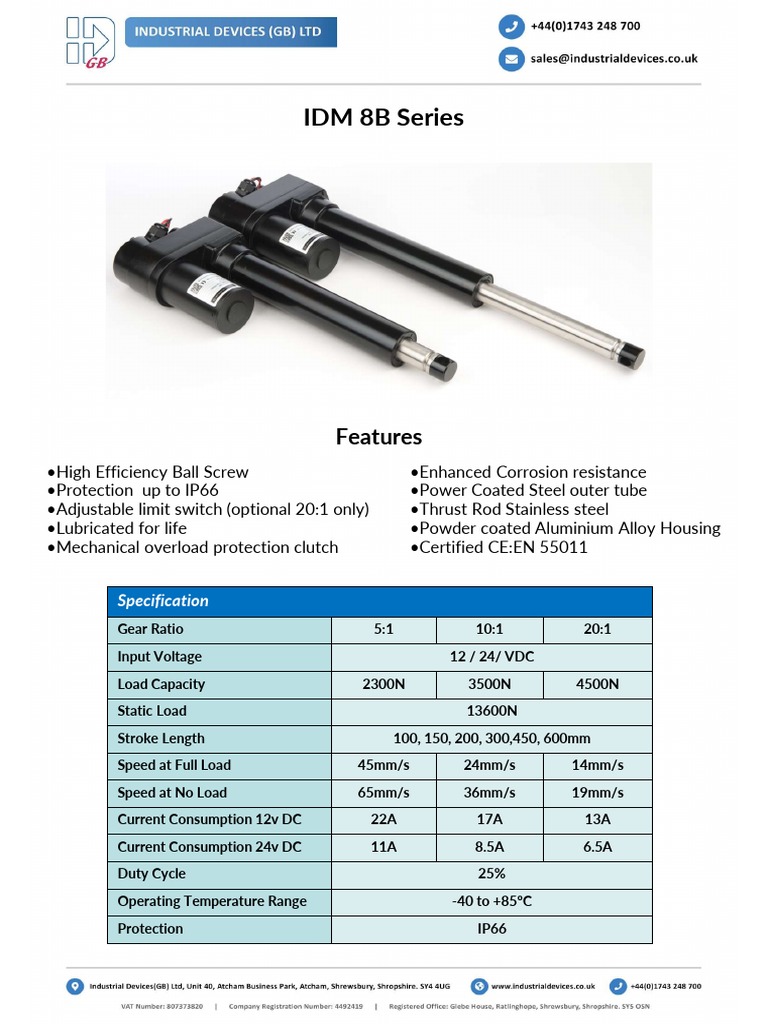

IDM 8B Series

Features
•High Efficiency Ball Screw •Enhanced Corrosion resistance
•Protection up to IP66 •Power Coated Steel outer tube
•Adjustable limit switch (optional 20:1 only) •Thrust Rod Stainless steel
•Lubricated for life •Powder coated Aluminium Alloy Housing
•Mechanical overload protection clutch •Certified CE:EN 55011

Specification
Gear Ratio 5:1 10:1 20:1

Input Voltage 12 / 24/ VDC

Load Capacity 2300N 3500N 4500N

Static Load 13600N

Stroke Length 100, 150, 200, 300,450, 600mm

Speed at Full Load 45mm/s 24mm/s 14mm/s

Speed at No Load 65mm/s 36mm/s 19mm/s

Current Consumption 12v DC 22A 17A 13A

Current Consumption 24v DC 11A 8.5A 6.5A

Duty Cycle 25%

Operating Temperature Range -40 to +85ºC

Protection IP66
 Dimensions

Stroke Length (S) (mm) 102 153 204 305 457 610

Retracted Length (L1) without Limit switch 317 368 419 521 735 888

Retracted Length (L1) with Limit switch 393 444 495 659 811 964

Retracted Length (L2) without Limit switch 355 406 457 559 773 926

Retracted Length (L2) with Limit switch 431 482 533 697 849 1002

With Limit Switch Tolerance S and L1 = ± 5mm (ifs≥305mm,S=±7.5mm

Without Limit Switch Tolerance S = ± 2.5mm and L1 = ±3.8mm

(53)* = Unit with Limit Switches

 Wiring Details

No limit switches
(Unit fitted with mechanical overload protection) Internal limit switches

Performance diagrams
