Download from "The Logistics and Supply Chain Toolkit" by Gwynne Richards and Susan Grinsted

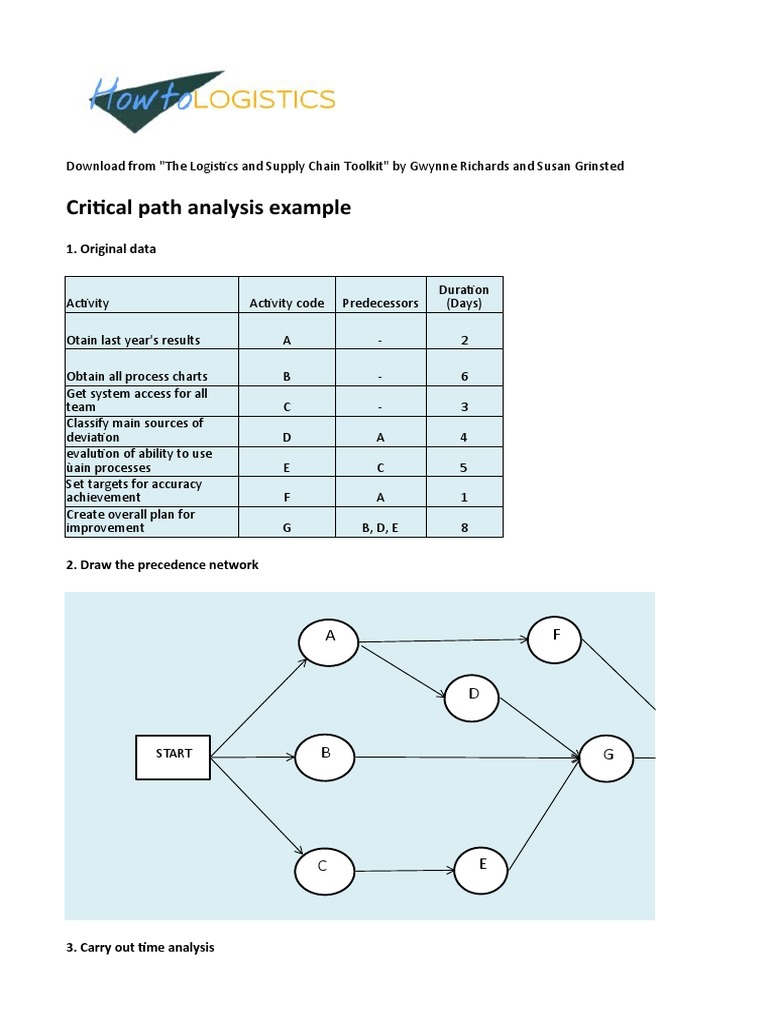

Critical path analysis example

1. Original data

Duration
Activity Activity code Predecessors (Days)

Otain last year's results A - 2

Obtain all process charts B - 6

Get system access for all
team C - 3
Classify main sources of
deviation
Team carries out elf- D A 4
evalution of ability to use
ùain processes E C 5
Set targets for accuracy
achievement F A 1
Create overall plan for
improvement G B, D, E 8

2. Draw the precedence network

A F

START B G

C E

3. Carry out time analysis

 Duration Earliest start Earliest
Activity Activity code Predecessors (Days) (ES) finish (EF)

Otain last year's results A - 2 0 2

Obtain all process charts B - 6 0 6

Get system access for all
team C - 3 0 3
Classify main sources of
deviation D A 4 2 6

Team carries out elf-

evalution of ability to use
ùain processes E C 5 3 8
Set targets for accuracy
achievement F A 1 2 3
Create overall plan for
improvement G B, D, E 8 8 16

4. Identify the critical path

We identify the critical path from the activities that have 0 slack, i.e. C, E, G.

It can be seen that these activities form a continuous path through the network from start to end.

More explanation about this method can be found in our book or by downloading the tool.
END
Latest start Latest finish
(LS) (LF) Slack

2 4 2

2 8 2

0 3 0

4 8 2

3 8 0

15 16 13

8 16 0
