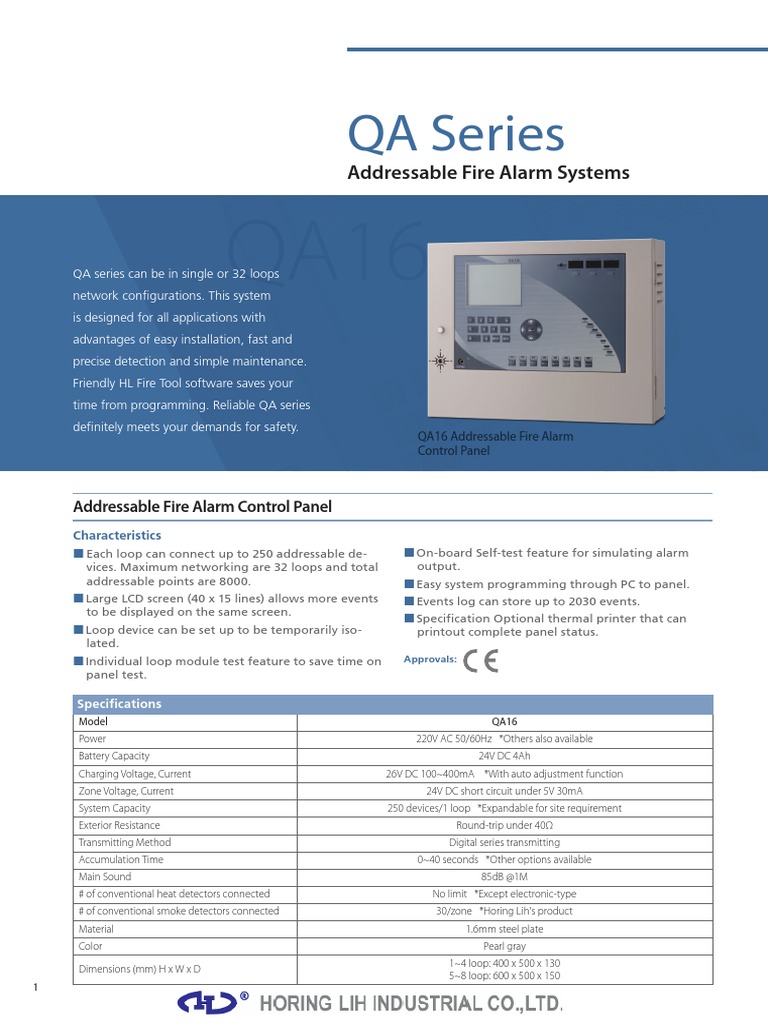

QA Series

Addressable Fire Alarm Systems

QA16
QA series can be in single or 32 loops
network configurations. This system
is designed for all applications with
advantages of easy installation, fast and
precise detection and simple maintenance.
Friendly HL Fire Tool software saves your
time from programming. Reliable QA series
definitely meets your demands for safety.
QA16 Addressable Fire Alarm
Control Panel

Addressable Fire Alarm Control Panel

Characteristics
n Each loop can connect up to 250 addressable de-
vices. Maximum networking are 32 loops and total
addressable points are 8000.
n Large LCD screen (40 x 15 lines) allows more events
to be displayed on the same screen.
n Loop device can be set up to be temporarily iso-
lated.
n Individual loop module test feature to save time on
panel test.
n On-board Self-test feature for simulating alarm
output.
n Easy system programming through PC to panel.
n Events log can store up to 2030 events.
n Specification Optional thermal printer that can
printout complete panel status.
Approvals:

Specifications
Model QA16
Power 220V AC 50/60Hz *Others also available
Battery Capacity 24V DC 4Ah
Charging Voltage, Current 26V DC 100~400mA *With auto adjustment function
Zone Voltage, Current 24V DC short circuit under 5V 30mA
System Capacity 250 devices/1 loop *Expandable for site requirement
Exterior Resistance Round-trip under 40Ω
Transmitting Method Digital series transmitting
Accumulation Time 0~40 seconds *Other options available
Main Sound 85dB @1M
# of conventional heat detectors connected No limit *Except electronic-type
# of conventional smoke detectors connected 30/zone *Horing Lih's product
Material 1.6mm steel plate
Color Pearl gray
1~4 loop: 400 x 500 x 130
Dimensions (mm) H x W x D
5~8 loop: 600 x 500 x 150
