𝑆𝑘𝑖𝑙𝑙𝑠𝑒𝑡 𝐸𝑛ℎ𝑎𝑛𝑐𝑒𝑚𝑒𝑛𝑡 𝑈𝑛𝑑𝑒𝑟𝑡𝑎𝑘𝑖𝑛𝑔 𝐴𝑛𝑎𝑙𝑦𝑠𝑒𝑠 # 2

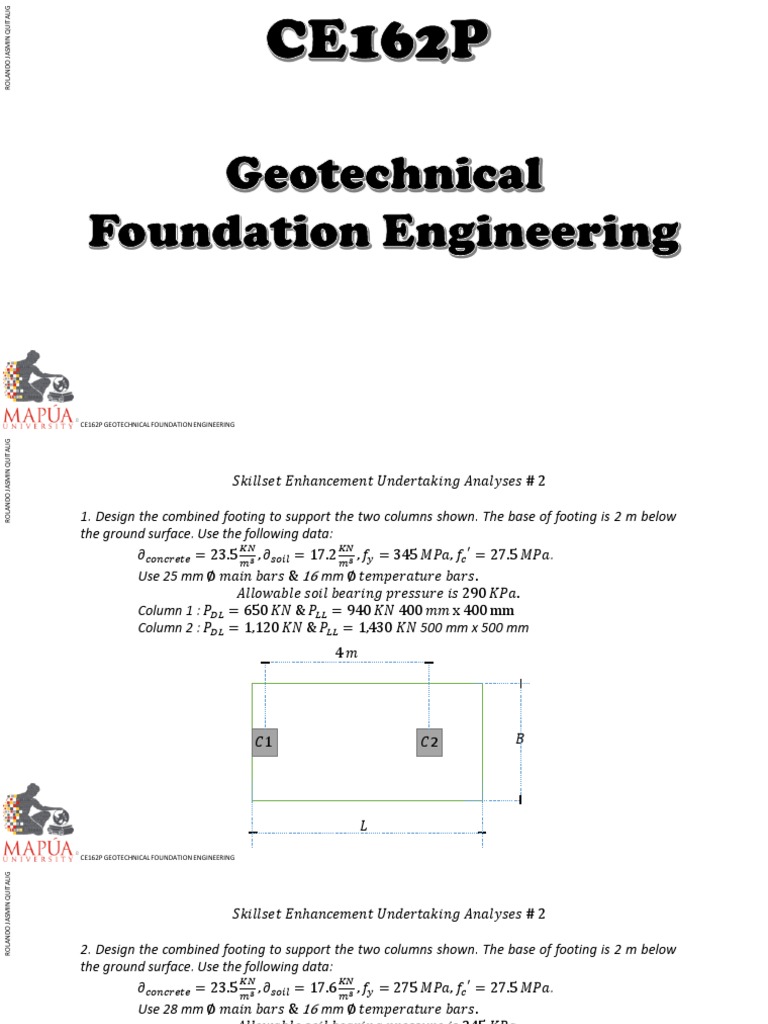

1. Design the combined footing to support the two columns shown. The base of footing is 2 m below
the ground surface. Use the following data:
𝐾𝑁 𝐾𝑁
𝜕𝑐𝑜𝑛𝑐𝑟𝑒𝑡𝑒 = 23.5 3 , 𝜕𝑠𝑜𝑖𝑙 = 17.2 3 , 𝑓𝑦 = 345 𝑀𝑃𝑎, 𝑓𝑐 ′ = 27.5 𝑀𝑃𝑎.
𝑚 𝑚
Use 25 mm ∅ 𝑚𝑎𝑖𝑛 𝑏𝑎𝑟𝑠 & 16 mm ∅ 𝑡𝑒𝑚𝑝𝑒𝑟𝑎𝑡𝑢𝑟𝑒 𝑏𝑎𝑟𝑠.
𝐴𝑙𝑙𝑜𝑤𝑎𝑏𝑙𝑒 𝑠𝑜𝑖𝑙 𝑏𝑒𝑎𝑟𝑖𝑛𝑔 𝑝𝑟𝑒𝑠𝑠𝑢𝑟𝑒 𝑖𝑠 290 𝐾𝑃𝑎.
Column 1 : 𝑃𝐷𝐿 = 650 𝐾𝑁 & 𝑃𝐿𝐿 = 940 𝐾𝑁 400 𝑚𝑚 x 400 mm
Column 2 : 𝑃𝐷𝐿 = 1,120 𝐾𝑁 & 𝑃𝐿𝐿 = 1,430 𝐾𝑁 500 mm x 500 mm
4𝑚

𝐶1 𝐶2 𝐵

𝐿
PUBLIC
For Public Use
CE162P GEOTECHNICAL FOUNDATION ENGINEERING
ROLANDO JASMIN QUITALIG

𝑆𝑘𝑖𝑙𝑙𝑠𝑒𝑡 𝐸𝑛ℎ𝑎𝑛𝑐𝑒𝑚𝑒𝑛𝑡 𝑈𝑛𝑑𝑒𝑟𝑡𝑎𝑘𝑖𝑛𝑔 𝐴𝑛𝑎𝑙𝑦𝑠𝑒𝑠 # 2

2. Design the combined footing to support the two columns shown. The base of footing is 2 m below
the ground surface. Use the following data:
𝐾𝑁 𝐾𝑁
𝜕𝑐𝑜𝑛𝑐𝑟𝑒𝑡𝑒 = 23.5 3 , 𝜕𝑠𝑜𝑖𝑙 = 17.6 3 , 𝑓𝑦 = 275 𝑀𝑃𝑎, 𝑓𝑐 ′ = 27.5 𝑀𝑃𝑎.
𝑚 𝑚
Use 28 mm ∅ 𝑚𝑎𝑖𝑛 𝑏𝑎𝑟𝑠 & 16 mm ∅ 𝑡𝑒𝑚𝑝𝑒𝑟𝑎𝑡𝑢𝑟𝑒 𝑏𝑎𝑟𝑠.
𝐴𝑙𝑙𝑜𝑤𝑎𝑏𝑙𝑒 𝑠𝑜𝑖𝑙 𝑏𝑒𝑎𝑟𝑖𝑛𝑔 𝑝𝑟𝑒𝑠𝑠𝑢𝑟𝑒 𝑖𝑠 245 𝐾𝑃𝑎.
Column 1 : 𝑃𝐷𝐿 = 550 𝐾𝑁 & 𝑃𝐿𝐿 = 860 𝐾𝑁 450 𝑚𝑚 x 450 mm
Column 2 : 𝑃𝐷𝐿 = 945 𝐾𝑁 & 𝑃𝐿𝐿 = 1,175 𝐾𝑁 480 𝑚𝑚 ∅

1𝑚 3𝑚

𝐶1 𝐶2
𝐶2 𝐵

𝐿
PUBLIC
For Public Use
CE162P GEOTECHNICAL FOUNDATION ENGINEERING
ROLANDO JASMIN QUITALIG

𝑆𝑘𝑖𝑙𝑙𝑠𝑒𝑡 𝐸𝑛ℎ𝑎𝑛𝑐𝑒𝑚𝑒𝑛𝑡 𝑈𝑛𝑑𝑒𝑟𝑡𝑎𝑘𝑖𝑛𝑔 𝐴𝑛𝑎𝑙𝑦𝑠𝑒𝑠 # 2

3. Design a suitable trapezoidal-shaped footing to support the two columns shown. Use the following data:
𝑓𝑦 = 414 𝑀𝑃𝑎, 𝑓𝑐 ′ = 21 𝑀𝑃𝑎.
Use 20 mm ∅ 𝑚𝑎𝑖𝑛 𝑏𝑎𝑟𝑠 & 16 mm ∅ 𝑡𝑒𝑚𝑝𝑒𝑟𝑎𝑡𝑢𝑟𝑒 𝑏𝑎𝑟𝑠 𝑤𝑖𝑡ℎ 𝑓𝑦 = 275 𝑀𝑃𝑎.
𝐸𝑓𝑓𝑒𝑐𝑡𝑖𝑣𝑒 𝑠𝑜𝑖𝑙 𝑏𝑒𝑎𝑟𝑖𝑛𝑔 𝑝𝑟𝑒𝑠𝑠𝑢𝑟𝑒 𝑖𝑠 160 𝐾𝑃𝑎.
Column 1 : 𝑃𝐷𝐿 = 425 𝐾𝑁 & 𝑃𝐿𝐿 = 340 𝐾𝑁 4-25 mm ∅ 𝑏𝑎𝑟𝑠 300 mm x 300 mm
Column 2 : 𝑃𝐷𝐿 = 535 𝐾𝑁 & 𝑃𝐿𝐿 = 490 𝐾𝑁 6-25 mm ∅ 𝑏𝑎𝑟𝑠 400 mm x 400 mm

𝑎 𝐶1 𝐶2 𝑏

𝐿 = 4.5 𝑚
