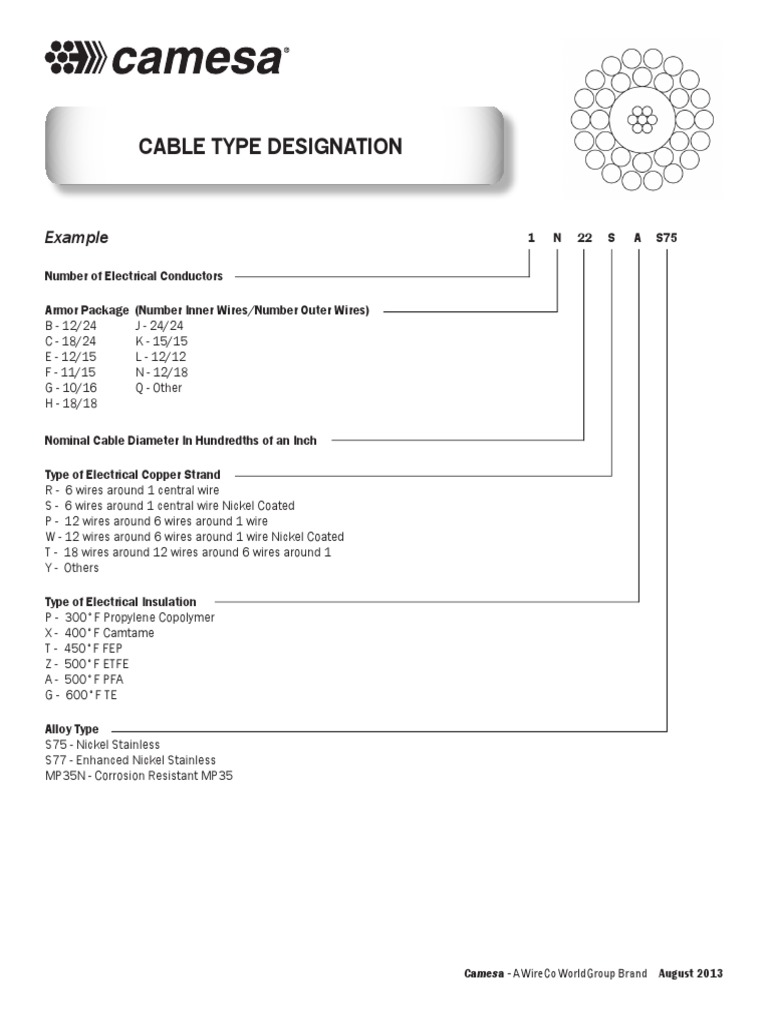

    CABLE TYPE DESIGNATION

    Example 1 N 22 S A S75

    Number of Electrical Conductors

    Armor Package (Number Inner Wires/Number Outer Wires)
    B - 12/24 J - 24/24
    C - 18/24 K - 15/15
    E - 12/15 L - 12/12
    F - 11/15 N - 12/18
    G - 10/16 Q - Other
    H - 18/18

    Nominal Cable Diameter In Hundredths of an Inch

    Type of Electrical Copper Strand
    R - 6 wires around 1 central wire
    S - 6 wires around 1 central wire Nickel Coated
    P - 12 wires around 6 wires around 1 wire
    W - 12 wires around 6 wires around 1 wire Nickel Coated
    T - 18 wires around 12 wires around 6 wires around 1
    Y - Others

    Type of Electrical Insulation
    P - 300°F Propylene Copolymer
    X - 400°F Camtame
    T - 450°F FEP
    Z - 500°F ETFE
    A - 500°F PFA
    G - 600°F TE

    Alloy Type
    S75 - Nickel Stainless
    S77 - Enhanced Nickel Stainless
    MP35N - Corrosion Resistant MP35

    For a cross reference to Wireline Works products, please see page 45.

    6 Camesa - A WireCo WorldGroup Brand August 2013
