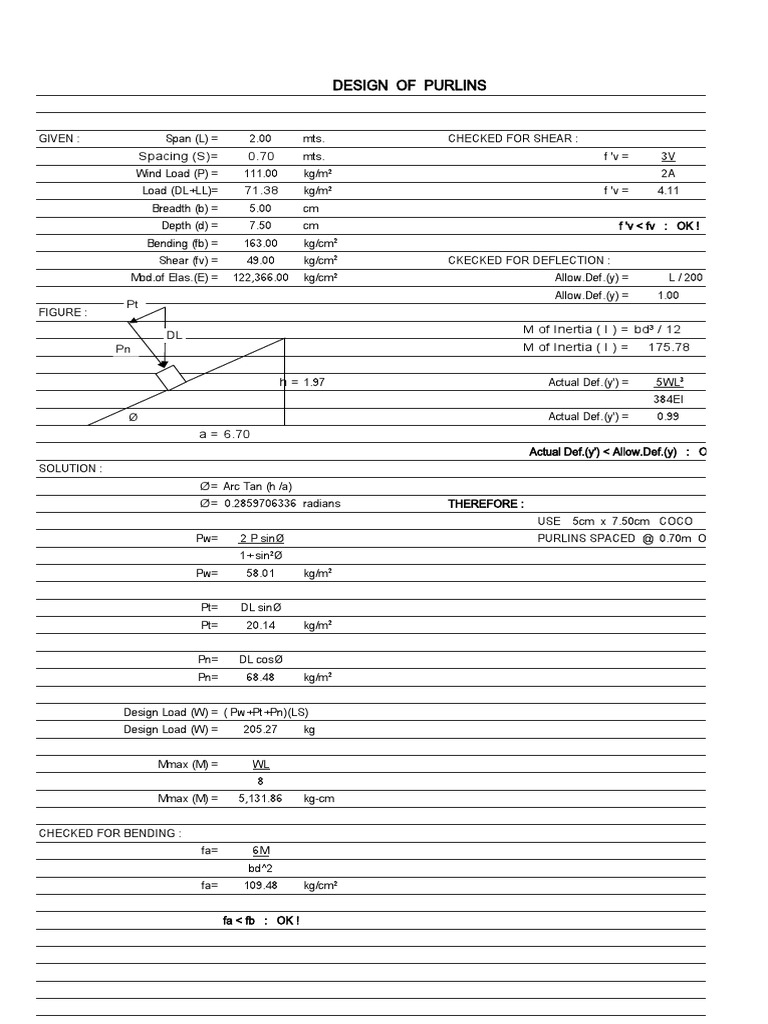

DESIGN OF PURLINS

GIVEN : Span (L) = 2.00 mts. CHECKED FOR SHEAR :

Spacing (S)= 0.70 mts. f 'v = 3V
Wind Load (P) = 111.00 kg/m 2
2A
Load (DL+LL)= 71.38 kg/m2 f 'v = 4.11
Breadth (b) = 5.00 cm
Depth (d) = 7.50 cm f 'v < fv : OK !
Bending (fb) = 163.00 kg/cm 2

Shear (fv) = 49.00 kg/cm2 CKECKED FOR DEFLECTION :

Mod.of Elas.(E) = 122,366.00 kg/cm 2
Allow.Def.(y) = L / 200
Allow.Def.(y) = 1.00
Pt
FIGURE :

DL
M of Inertia ( I ) = bd3 / 12
Pn M of Inertia ( I ) = 175.78

h = 1.97 Actual Def.(y') = 5WL3

384EI
Ø Actual Def.(y') = 0.99
a = 6.70
Actual Def.(y') < Allow.Def.(y) : OK !
SOLUTION :
Ø= Arc Tan (h /a)
Ø= 0.2859706336 radians THEREFORE :
USE 5cm x 7.50cm COCO
Pw= 2 P sinØ PURLINS SPACED @ 0.70m O.C.
1+ sin Ø
2

Pw= 58.01 kg/m2

Pt= DL sinØ
Pt= 20.14 kg/m2

Pn= DL cosØ
Pn= 68.48 kg/m2

Design Load (W) = ( Pw+Pt+Pn)(LS)

Design Load (W) = 205.27 kg

Mmax (M) = WL
8
Mmax (M) = 5,131.86 kg-cm

CHECKED FOR BENDING :

fa= 6M
bd^2
fa= 109.48 kg/cm2

fa < fb : OK !
