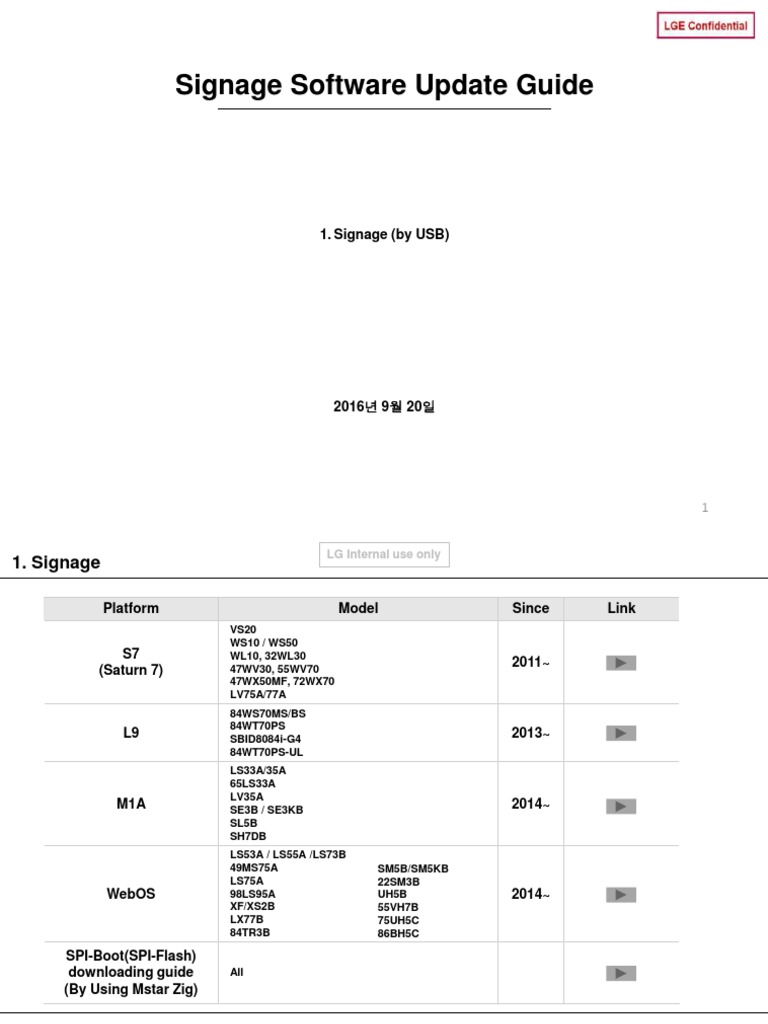

Signage Software Update Guide

1. Signage (by USB)

2016년 9월 20일

1
 LG Internal use only
1. Signage

Platform Model Since Link

VS20
WS10 / WS50
S7 WL10, 32WL30
47WV30, 55WV70 2011~
(Saturn 7)
47WX50MF, 72WX70
LV75A/77A
84WS70MS/BS
84WT70PS
L9 SBID8084i-G4 2013~
84WT70PS-UL
LS33A/35A
65LS33A
LV35A
M1A SE3B / SE3KB 2014~
SL5B
SH7DB
LS53A / LS55A /LS73B
49MS75A SM5B/SM5KB
LS75A 22SM3B
WebOS 98LS95A UH5B 2014~
XF/XS2B 55VH7B
LX77B 75UH5C
84TR3B 86BH5C

SPI-Boot(SPI-Flash)
downloading guide All
(By Using Mstar Zig)

2
 LG Internal use only

[ CAUTION ]

 Do not unplug power cable or USB during update software.

 After update, the monitor will be reset automatically.
 We strongly recommend to do “in stop” after updating.
 During updating, all inputs of remote control and local key are not
operated.
 If the download process is stopped, you'd better reduce software
file's length of name.(within 40 characters)
 If you can see normal on screen, update is success.
(If you see black screen, stop at LG logo, can not turn on power,
update was failed)

3
 LG Internal use only
1. Signage : Saturn7, L9

Saturn7,L9
Software updating guide
(By Using USB)
Applied Model

VS20
WS10
WS50
WL10
32WL30
47WV30, 55WV70
47WX50MF
72WX70, 32WL30
LV75A/77A

4
 LG Internal use only
1. Signage : Saturn7, L9

Step 1
- Make ‘LG_MONITOR’ folder in the USB drive.

5
 LG Internal use only
1. Signage : Saturn7, L9

Step 2
- Copy two software files to the folder(LG_MONITOR).
- The Monitor system searches only the ‘LG_MONITOR’ folder to find the download files.
- If there are many other files in the folder, it takes a long time to find the download file.
Update file naming rile

• Software update file(main IC) name(One of below files)

• Software update file(MICOM) name(One of below files)

6
 LG Internal use only
1. Signage : Saturn7, L9

Step 3
- Connect the USB device to the USB port on the Signage.

Step 4
- Auto update Pop up menu (Do not update in this menu)
- Select Cancel or press Exit button if it display
Monitor S/W update window automatically.

7
 LG Internal use only
1. Signage : Saturn7, L9

Step 5
- Enter a expert update menu.

8
 LG Internal use only
1. Signage : Saturn7, L9

Step 6
- Update the NAND flash file first.

9
 LG Internal use only
1. Signage : Saturn7, L9

Step 7
- Get into Software Update(Expert) menu again after NAND flash update.
- Press red button to select MICOM Update Option and Select MICOM update file.

10
 LG Internal use only
1. Signage : Saturn7, L9

Step 8
- Check S/W version.

11
 LG Internal use only
1. Signage : Saturn7, L9

Step 9
- Check MICOM version.

12
 LG Internal use only
1. Signage : Saturn7, L9

Step 10
- Set to factory reset(Select this option to return to the default factory settings.

13
 LG Internal use only
1. Signage : M1A

M1A
Software updating guide
(By Using USB)
Applied Model

LS33A/35A
65LS33A
LV35A
SE3B
SE3KB
SL5B
SH7DB

14
 LG Internal use only
1. Signage : M1A

Step 1
- Make ‘LG_MONITOR’ or ‘LG_DTV’ folder in the USB drive.
- LG_DTV : LS33A,LS35A,LV35A,VL5B
- LG_MONITOR : Except for LS33A,LS35A,LV35A,VL5B

15
 LG Internal use only
1. Signage : M1A

Step 2
- Copy the download file to the ‘LG_MONITOR’ or ‘LG_DTV’ folder of the USB device.
- The Monitor system searches only the ‘LG_MONITOR’ or ‘LG_DTV’ folder to find the
download files.
- If there are many other files in the folder, it takes a long time to find the download file.
Update file naming rule
• Software update file name

16
 LG Internal use only
1. Signage : M1A

Step 3 (User Mode)

- Connect the USB device to the USB port on the Signage.
- If the Monitor finds the same model name and new version file,
it will display this message and start the upgrade automatically.

Step 4 (User Mode)

- Running USB Software Update
- Select [Start] Button in “[Figure] Software Update” and press [OK] key.
Then the USB Software Update starts as below.
- Copying the update file from the USB memory stick to
the Monitor System memory
- The Monitor display this progressive message to update new S/W
to Flash memory

17
 LG Internal use only
1. Signage : M1A

Step 3 (Expert Mode)

- Connect the USB device to the USB port on the Signage.

18
 LG Internal use only
1. Signage : M1A

Step 4 (Expert Mode)

- Enter a expert update menu.

19
 LG Internal use only
1. Signage : M1A

Step 5 (Expert Mode)

- Select download filed that you want to update.

Forced update Option

Pressing color key (RED/GREEN) will update External MICOM and SPI Boot regardless of version.

 Caution
• When you update MICOM, the progress bar point 0%
until finish.
• MICOM update will be taken 2~3min(without any notice)

20
 LG Internal use only
1. Signage : M1A

Step 6 (Expert Mode)

- Select epk file and Press OK button.
- Copying the update file from the USB memory stick to the Monitor System memory.
- The Monitor display this progressive message to update new S/W to Flash memory.

21
 LG Internal use only
1. Signage : WebOS

WebOS
Software updating guide
(By Using USB)
Applied Model

LS53A
LS55A
LS73B
49MS75A
LS75A
98LS95A
XF/XS2B
 Caution LX77B
Do not use auto update given by USB when inserting USB. 84TR3B
Press the Exit button (In the remote control) SM5B/SM5KB
22SM3B
UH5B
If current version is 3.00.25 or earlier than 3.00.25, Software 55VH7B
upgrading should be done to between 3.00.26 and 3.00.41. 75UH5C
And then, Software upgrade should be done with the latest one. 86BH5C

22
 LG Internal use only
1. Signage : WebOS

Step 1
- Make ‘LG_MONITOR’ folder in the USB drive.

23
 LG Internal use only
1. Signage : WebOS

Step 2
- Copy the download file to the ‘LG_MONITOR’ folder of the USB device.
- The Monitor system searches only the ‘LG_MONITOR’ folder to find the download files.
- If there are many other files in the folder, it takes a long time to find the download file.

Update file naming rule

• Software update file name

24
 LG Internal use only
1. Signage : WebOS

Step 3
- Connect the USB device to the USB port on the Signage.

Step 4
- Push menu button, enter ‘Advanced’ menu.
- Go to ‘General’ menu.

25
 LG Internal use only
1. Signage : WebOS

Step 5
- Press number “7” seven times.

Step 6
- Enter Ext.Micom URSA
- Press ‘UPDATE’

Step 7
- Finish
