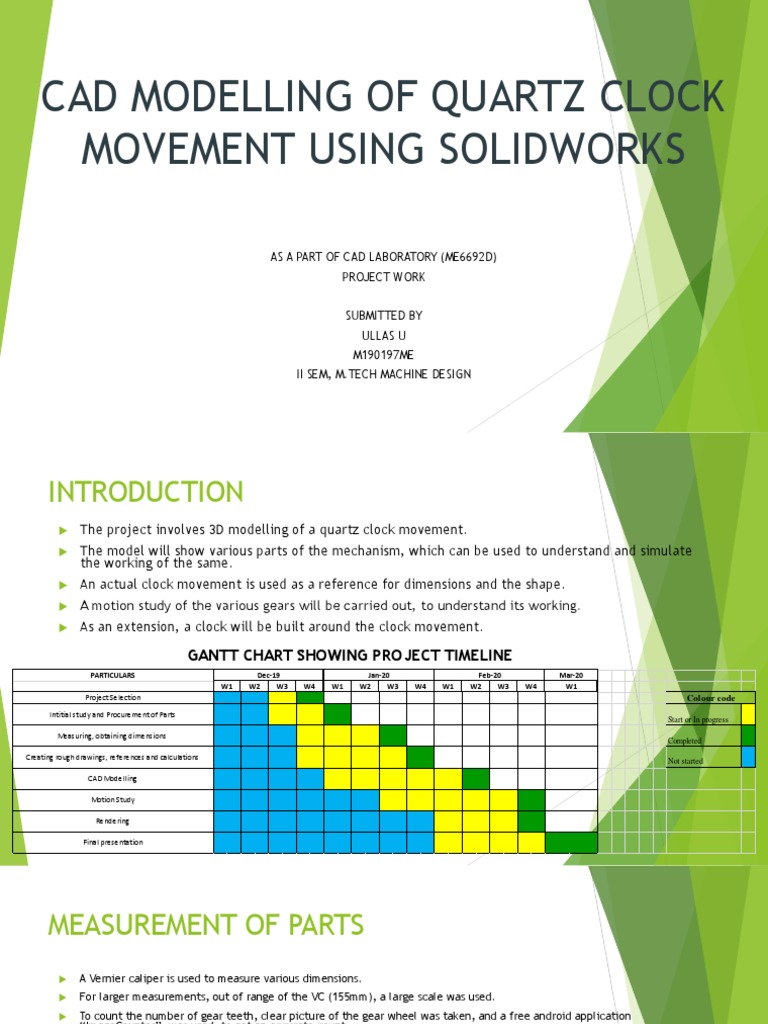

    CAD MODELLING OF QUARTZ CLOCK

    MOVEMENT USING SOLIDWORKS

    AS A PART OF CAD LABORATORY (ME6692D)


    PROJECT WORK

    SUBMITTED BY
    ULLAS U
    M190197ME
    II SEM, M.TECH MACHINE DESIGN
    INTRODUCTION
     The project involves 3D modelling of a quartz clock movement.
     The model will show various parts of the mechanism, which can be used to understand and simulate
    the working of the same.
     An actual clock movement is used as a reference for dimensions and the shape.
     A motion study of the various gears will be carried out, to understand its working.
     As an extension, a clock will be built around the clock movement.

    GANTT CHART SHOWING PROJECT TIMELINE


    PARTICULARS Dec-19 Jan-20 Feb-20 Mar-20
    W1 W2 W3 W4 W1 W2 W3 W4 W1 W2 W3 W4 W1
    Project Selection Colour code
    Intitial study and Procurement of Parts
    Start or In progress
    Measuring, obtaining dimensions
    Completed

    Creating rough drawings, references and calculations


    Not started

    CAD Modelling

    Motion Study

    Rendering

    Final presentation
    MEASUREMENT OF PARTS
     A Vernier caliper is used to measure various dimensions.
     For larger measurements, out of range of the VC (155mm), a large scale was used.
     To count the number of gear teeth, clear picture of the gear wheel was taken, and a free android application
    “ImageCounter”, was used, to get an accurate count.
     With the outer diameter (addendum diameter), of gear wheel, and the number of teeth, the rest of the parameters
    required for gear teeth construction was calculated.
     Bottom up and top down assembly approaches were used as and when required.
    𝐴𝐷 𝑋 𝑍
    FORMULAE: PCD =
    2+𝑍
    𝐴𝐷
    m =
    2+𝑍
    Dedendum = 1.157m
    SAMPLE CALCULATION:
    For Center second wheel
    Z = 60
    Addendum dia. = 15.3 mm
    Dedendum dia. = 14.2355 mm
    Pitch Circle Diameter = 14.8064 mm
    m = 0.2467
    360
    Angle = 60
    =6
    ROUGH REFERENCE SKETCHES WITH DIMENSIONS
    ROUGH REFERENCE SKETCHES WITH DIMENSIONS

    VERNIER CALIPER USED FOR MEASUREMENTS

    GEAR TEETH COUNTING


    PHOTOGRAPHS OF DIFFERENT PARTS
    DISASSEMBLY PHOTOGRAPHS
