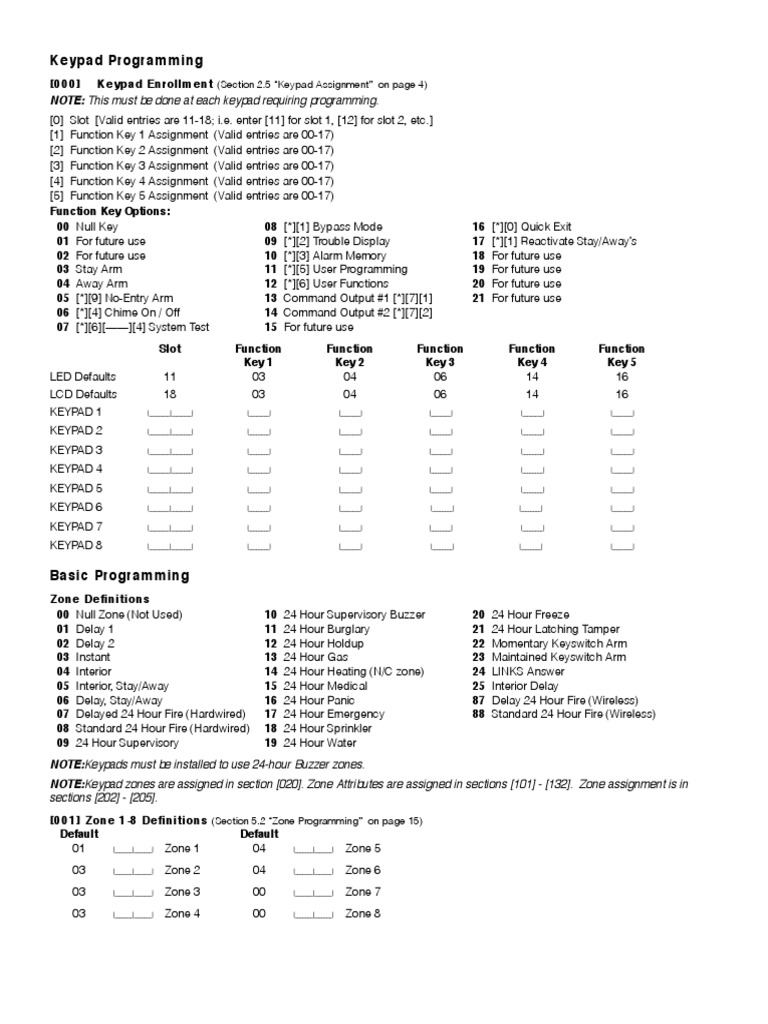

Keypadprogramming: (Section 2.5 "Keypad Assignment" On Page 4)
Keypadprogramming: (Section 2.5 "Keypad Assignment" On Page 4)
30
Pr o g r a m m i n g W o r k sh e e t s
[0 0 8 ] M a int e na nce Code (Section 5.1 “Programming Security Codes” on page 15)
Default
AAAA I_______I_______I_______I_______I
[0 0 9 ] PGM Out put Progra m m ing (PGM 1 and 2 ) (Section 5.11 “PGM Output Options” on page 20)
Programmable Output Options
01 Burglary and Fire Bell Output 14 Ground Start Pulse
02 For future use 15 Remote Operation (DLS-1 Support)
03 Sensor Reset 16 LINKS1000 Support (PGM1 only)
04 2-wire smoke 17 Away Armed Status
05 System Armed Status 18 Stay Armed Status
06 Ready To Arm 19 Command Output #1 ([*][7][1])
07 Keypad Buzzer Follow Mode 20 Command Output #2 ([*][7][2])
08 Courtesy Pulse 21 For future use
09 System Trouble Output (with Trouble options) 22 For future use
10 System Event [Strobe (with Event options)] 23 Silent 24 Hour (PGM2 Only)
11 System Tamper (all sources: zones, kpd, modules) 24 Audible 24 Hour (PGM2 Only)
12 TLM and Alarm
13 Kissoff Output
NOTE:Output types [03], [04] and [20] cannot be used together on the same system.
Default Default
19 I_______I_______I PGM 1 10 I_______I_______I PGM 2 Program PGM Option Attributes in sections [141] & [142].
31
[0 1 2] K e ypa d Loc k out Opt ions (Section 5.21 “Keypad Lockout Options” on page 25)
NOTE:If Keypad Lockout is active, the panel cannot be disarmed with a keyswitch.
Default
000 I_______I_______I_______I Number of Invalid Codes Before Lockout (001-255 codes)
000 I_______I_______I_______I Lockout Duration (001-255 minutes)
[0 1 3] First Syst em Opt ion Code
Default Option ON Off Section Page #
OFF I________I 1 Normally Closed Loops End-of-Line Resistors 2.8 5
OFF I________I 2 Double End-of-Line Resistors Single End-of-Line Resistors 2.8 5
ON* I________I 3 Panel shows all troubles when armed Panel shows only Fire troubles when armed 3.4 8
OFF I________I 4 Tampers/Faults do not show as open Tampers/Faults show as open 3.4 8
OFF I________I 5 For future use
ON I________I 6 Audible Exit Fault Enabled Audible Exit Fault Disabled 5.18 24
ON I________I 7 Event Buffer Follows Swinger Shutdown Event Buffer Logs Events Past shutdown 5.20 24
OFF I________I 8 Temporal Three Fire Signal Enabled** Standard Pulsed Fire Signal 5.13 23
* Option 3 must be OFF if LCD keypads older than v2.0 are used.
**The Temporal Three Fire Signal option must be used for UL Household Fire installations.
[0 1 4] Se c ond Syst e m Opt ion Code
Default Option ON Off Section Page #
OFF I________I 1 Arm / Disarm Bell Squawk enabled Arm / Disarm Bell Squawk disabled 5.17 23
OFF I________I 2 Bell Squawk During Auto Arm No Bell Squawk During Auto Arm 5.18 24
OFF I________I 3 Bell Squawk On Exit Delay No Bell Squawk On Exit Delay 5.18 24
OFF I________I 4 Bell Squawk On Entry Delay No Bell Squawk On Entry Delay 5.18 24
OFF I________I 5 Bell Squawk On Trouble No Bell Squawk On Trouble 3.4 8
ON I________I 6 Audible Exit with Urgency Silent Exit Delay 5.18 24
OFF I________I 7 Exit Delay Termination Enabled Exit Delay Termination Disabled 5.18 24
OFF I________I 8 Fire Bell is Continuous Fire Bell Follows Bell Cut-off 5.13 23
[0 1 5] T hird Syst e m Opt ion Code
Default Option ON Off Section Page #
ON I________I 1 Fire Keys Enabled Fire Keys Disabled 5.16 23
OFF I________I 2 Panic Keys Audible (Bell / Beeps) Panic Keys Silent 5.16 23
OFF I________I 3 Quick Exit Enabled Quick Exit Disabled 3.4 8
ON* I________I 4 Quick Arming Enabled Quick Arming Dis. / Function keys Req. Code 3.4 8
OFF I________I 5 Code Required For Bypassing No Code Required 3.4 8
OFF I________I 6 Master Code Not Changeable Master Code Changeable 5.1 15
ON I________I 7 TLM Enabled TLM Disabled 5.12 22
OFF I________I 8 TLM Audible (Bell) When Armed TLM Trouble Beeps When Armed 5.12 22
* When using a PC5132 version 2.1 or older with WLS909 Wireless Keys, option [4] must be ON for the Arm button to work.
[0 1 6] Fourt h Syst e m Opt ion Code
Default Option ON Off Section Page #
ON I________I 1 AC Trouble Displayed AC Trouble Not Displayed 3.4 8
OFF I________I 2 Trouble Light Flashes if AC Fails Trouble Light Does Not Follow AC Status 3.4 8
OFF I________I 3 Blank Keypad When Not Used Keypad Active Always 5.22 25
OFF I________I 4 Code Required to Remove Kypd BlankingNo Code Required 5.22 25
ON I________I 5 Keypad Backlighting is enabled Keypad Backlighting is disabled 5.23 25
OFF I________I 6 Power Save Mode enabled Power Save Mode disabled 5.22 25
OFF I________I 7 Bypass Status Displayed While Armed Bypass Status Not Displayed While Armed 5.17 23
OFF I________I 8 Keypad Tampers enabled Keypad Tampers disabled 5.25 25
32
Pr o g r a m m i n g W o r k sh e e t s
33
Adva nc e d Syst e m Progra m m ing
Z one At t ribut es (Section 5.3 “Zone Attributes” on page 16)
Zone Attribute Defaults (Y = Option ON; N = Option OFF):
Attribute: 1 2 3 4 5 6 7 8
ON Audible Steady Chime Bypass Force* Swing Tx. Delay Wireless Zn.
OFF Silent Pulsed No No No No No No
Zone Type:
00 Null Zone N N N N N N N N
01 Delay 1 Y Y Y Y N Y N N
02 Delay 2 Y Y Y Y N Y N N
03 Instant Y Y Y Y N Y N N
04 Interior Y Y N Y N Y N N
05 Int. Stay/Away Y Y N Y Y Y N N
06 Dly. Stay/Away Y Y N Y Y Y N N
07 Dly. 24hr Fire (Hardw.) Y N N N N N N N
08 Stand. 24hr Fire (Hardw.) Y N N N N N N N
09 24hr Superv. N Y N N Y N N N
10 24hr Superv. Buzzer N Y N Y N N N N
11 24hr Burglary Y Y N Y N N N N
12 24hr Holdup N Y N N N N N N
13 24hr Gas Y N N N N N N N
14 24hr Heating (N/C zone) Y N N N N N N N
15 24hr Medical Y Y N N N N N N
16 24hr Panic Y Y N N N N N N
17 24hr Emergency Y Y N N N N N N
18 24hr Sprinkler Y Y N N N N N N
19 24hr Water Y Y N N N N N N
20 24hr Freeze Y Y N N N N N N
21 24hr Latching Tamper Y Y N N N N N N
22 Momentary Keyswitch N N N N Y N N N
23 Maintained Keyswitch N N N N Y N N N
24 LINKS Answer N N N N Y N N N
25 Interior Delay Y Y N Y N Y N N
87 Dly. 24hr Fire (Wireless) Y N N N N N N Y
88 Stand. 24hr Fire (Wireless) Y N N N N N N Y
*NOTE: For UL installations, do not change attribute 5 (Force Arming) from the default setting.
Section Zone # Zone 1 2 3 4 5 6 7 8
Type*
[101] 1 ( ) I________I I________| I________| I________| I________| I________| I________| I________I
34
Pr o g r a m m i n g W o r k sh e e t s
PGM Out put At t ribut e s (Section 5.11 “PGM Output Options” on page 20)
Program only the following attributes for the PGM options listed. All others will be ignored. PGM options are programmed in [009].
PGM Attribute Defaults (Y = Attribute ON; N = Attribute OFF):
Attribute: 1 2 3 4 5
ON Output enabled — True Output Follows Timer Code Req.
Attribute: 1 2 3 4 5 6 7 8
PGM Option
ON Serv. req. AC Fail TLM Fault FTC Zone Fault Zone Tmp. Zn. Low Bat. Loss of Clock
OFF Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled
[09] System Trouble Y Y Y Y Y Y Y Y
ON Burg. Evnt. Fire Evnt. Panic Evnt. Med. Evnt. Supv. Evnt. Priority Evnt. Holdup Evnt. Follows Timer*
OFF Disabled Disabled Disabled Disabled Disabled Disabled Disabled Latched
[10] System Event Y Y Y Y Y Y Y N
*If attribute [8] is turned ON, attributes [1-7] must also be turned ON.
35
Section PGM Output 1 2 3 4 5 6 7 8
# Type*
[141] 1 ( ) I________I I________| I________| I________| I________| I________| I________| I________I
[3 0 2] Se c ond Te le phone N um be r (3 2 Digit s) (Section 5.7 “Communicator – Telephone Numbers” on page 17)
I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I
[3 0 3] T hird Te le phone N um be r (3 2 Digit s) (Section 5.7 “Communicator – Telephone Numbers” on page 17)
I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I
[3 1 0] First /T hird Te le phone N um be r Ac c ount Code (Section 5.6 “Communicator – Account Numbers” on page 17)
I_______I_______I_______I_______I
[3 1 1] Se c ond Te le phone N um be r Ac c ount Code (Section 5.6 “Communicator – Account Numbers” on page 17)
I_______I_______I_______I_______I
36
Pr o g r a m m i n g W o r k sh e e t s
Ala rm Re port ing Code s, Z one s 1 -32 (Section 5.8 “Communicator – Reporting Codes” on pg. 18, & Appendix A)
Section
[320] Zone 1 Zone 2 Zone 3 Zone 4 Zone 5 Zone 6 Zone 7 Zone 8
I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I
Ala rm Re st ora l Re port ing Code s, Z one s 1 -3 2 (Section 5.8 “Communicator – Reporting Codes” on pg. 18, & Appendix A)
Section
[324] Zone 1 Zone 2 Zone 3 Zone 4 Zone 5 Zone 6 Zone 7 Zone 8
I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I
[3 2 8 ] M isc e lla ne ous Ala rm Re port ing Code s (Section 5.8 “Communicator – Reporting Codes” on pg. 18, & Appendix A)
I_______I_______I 1. Duress Alarm I_______I_______I 4. Zone Expander Supervisory Alarm
I_______I_______I 2. Opening After Alarm I_______I_______I 5. Zone Expander Supervisory Restoral
I_______I_______I 3. Recent Closing I_______I_______I 6. Cross Zone Police Code Alarm
[3 2 9 ] Priorit y Ala rm a nd Re st ora l (Section 5.8 “Communicator – Reporting Codes” on pg. 18, & Appendix A)
I_______I_______I 1. Keypad Fire Alarm I_______I_______I 5. Keypad Fire Restoral
I_______I_______I 2. Keypad Auxiliary Alarm I_______I_______I 6. Keypad Auxiliary Restoral
I_______I_______I 3. Keypad Panic Alarm I_______I_______I 7. Keypad Panic Restoral
I_______I_______I 4. PGM2 Alarm I_______I_______I 8. PGM2 Restoral
Tam pe r Re port ing Code s, Z one s 1 -3 2 (Section 5.8 “Communicator – Reporting Codes” on pg. 18, & Appendix A)
Section
[330] Zone 1 Zone 2 Zone 3 Zone 4 Zone 5 Zone 6 Zone 7 Zone 8
I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I
Tam pe r Re st ora l Re port ing Code s, Z one s 1 -8 (Section 5.8 “Communicator – Reporting Codes” on pg. 18, & Appendix A)
Section
[334] Zone 1 Zone 2 Zone 3 Zone 4 Zone 5 Zone 6 Zone 7 Zone 8
I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I
37
[3 3 8] Misc e lla ne ous Ta m pe r Re port ing Code s (Section 5.8 “Communicator – Reporting Codes” on pg. 18, & Appendix A)
I_______I_______I 1. General System Tamper
[3 4 8] Misc e lla ne ous Ope ning (Disa rm ing) Re port ing Code s
(Section 5.8 “Communicator – Reporting Codes” on pg. 18, & Appendix A)
I_______I_______I 1. Opening by Duress Code 33 I_______I_______I 5. Opening by Supervisory Code 42
I_______I_______I 2. Opening by Duress Code 34 I_______I_______I 6. Auto Arm Cancellation
I_______I_______I 3. Opening by Master Code 40 I_______I_______I 7. Special Opening
I_______I_______I 4. Opening by Supervisory Code 41
[3 4 9] Ma int e na nc e Ala rm Re port ing Code s (Section 5.8 “Communicator – Reporting Codes” on pg. 18, & Appendix A)
I_______I_______I 1. Battery Trouble Alarm I_______I_______I 5. Auxiliary Power Supply Trouble Alarm
I_______I_______I 2. AC Failure Trouble Alarm I_______I_______I 6. TLM Trouble Code (via LINKS)
I_______I_______I 3. Bell Circuit Trouble Alarm I_______I_______I 7. For future use
I_______I_______I 4. Fire Trouble Alarm I_______I_______I 8. General System Supervisory
[3 5 0] Ma int e na nc e Re st oral Re port ing Code s (Section 5.8 “Communicator – Reporting Codes” on pg. 18, & Appendix A)
I_______I_______I 1. Battery Trouble Restoral I_______I_______I 5. Auxiliary Power Supply Trouble Restoral
I_______I_______I 2. AC Failure Trouble Restoral I_______I_______I 6. TLM Restoral
I_______I_______I 3. Bell Circuit Trouble Restoral I_______I_______I 7. For future use
I_______I_______I 4. Fire Trouble Restoral I_______I_______I 8. General System Supervisory Restore
38
Pr o g r a m m i n g W o r k sh e e t s
[3 5 1 ] M isc e lla ne ous M a int e na nc e Report ing Code s (Section 5.8 “Communicator – Reporting Codes” on pg. 18, & Appendix A)
I_______I_______I 1. Telephone Number 1 FTC Restore I_______I_______I 5. DLS Lead OUT
I_______I_______I 2. Telephone Number 2 FTC Restore I_______I_______I 6. Zone Fault Alarm
I_______I_______I 3. Event Buffer 75% Full Since Last Upload I_______I_______I 7. Zone Fault Restore
I_______I_______I 4. DLS Lead IN I_______I_______I 8. Delinquency Code
[3 5 2 ] Te st Tra nsm ission Re port ing Code s (Section 5.8 “Communicator – Reporting Codes” on pg. 18, & Appendix A)
I_______I_______I 1. Periodic Test Transmission I_______I_______I 3. LINKS1000 Test Transmission Code*
2. System Test
I_______I_______I
*The LINKS Test Transmission Code must be programmed as “00” for the LINKS Test Transmission to be disabled.
[3 5 3 ] Wire less M a int e na nc e Re port ing Code s (Section 5.8 “Communicator – Reporting Codes” on pg. 18, & Appendix A)
I_______I_______I 1. Wireless Device Low Battery Alarm I_______I_______I 2. Wireless Device Low Battery Restore
[3 6 0 ] Com m unic a t or Forma t Opt ions (Section 5.9 “Communicator – Reporting Formats” on page 19)
NOTE:The Third telephone number follows the format of the First telephone number.
Default
02 I_______I_______I 1st/3rd Telephone Number
02 I_______I_______I 2nd Telephone Number
01 20 BPS, 1400 HZ handshake 04 SIA FSK
02 20 BPS, 2300 HZ handshake 05 Pager
03 DTMF CONTACT ID
[3 6 1 ] Ala rm /Re st ore Comm unic a t or Ca ll Dire c t ions (Section 5.5 “Communicator – Dialing” on page 17)
Default Option ON OFF
ON I_______I 1 1st Telephone Number Disabled
OFF I_______I 2 2nd Telephone Number Disabled
OFF I_______I 3 1st Telephone Number (via LINKS) Disabled
OFF I_______I 4 2nd Telephone Number (via LINKS) Disabled
OFF I_______I 5-8 For future use
[3 6 3 ] Ta mpe r/Re st ore Com munic a t or Ca ll Dire c t ions (Section 5.5 “Communicator – Dialing” on page 17)
Default Option ON OFF
ON I________I 1 1st Telephone Number Disabled
OFF I________I 2 2nd Telephone Number Disabled
OFF I________I 3 1st Telephone Number (via LINKS) Disabled
OFF I________I 4 2nd Telephone Number (via LINKS) Disabled
OFF I________I 5-8 For future use
[3 6 5 ] Ope ning/Closing Com m unic a t or Ca ll Dire c t ions (Section 5.5 “Communicator – Dialing” on page 17)
Default Option ON OFF
ON I________I 1 1st Telephone Number Disabled
OFF I________I 2 2nd Telephone Number Disabled
OFF I________I 3 1st Telephone Number (via LINKS) Disabled
OFF I________I 4 2nd Telephone Number (via LINKS) Disabled
OFF I________I 5-8 For future use
[367] System Maintenance Alarm/Restore Communicator Call Directions (Section 5.5 “Communicator – Dialing” on page 17)
Default Option ON OFF
ON I________I 1 1st Telephone Number Disabled
OFF I________I 2 2nd Telephone Number Disabled
OFF I________I 3 1st Telephone Number (via LINKS) Disabled
OFF I________I 4 2nd Telephone Number (via LINKS) Disabled
OFF I________I 5-8 For future use
39
[3 6 8] Syst e m Te st Tra nsm issions Com m unic a t or Ca ll Dire c t ions (Section 5.5 “Communicator – Dialing” on page 17)
Default Option ON OFF
ON I________I 1 1st Telephone Number Disabled
OFF I________I 2 2nd Telephone Number Disabled
OFF I________I 3 1st Telephone Number (via LINKS) Disabled
OFF I________I 4 2nd Telephone Number (via LINKS) Disabled
OFF I________I 5-8 For future use
NOTE:The LINKS1000 backup call directions will only back up their respective telephone numbers.
[3 7 0] Com m unic a t ion Va ria ble s
Default Section Page #
003 I_______I_______I_______I Swinger Shutdown (Alarms and Rest) (001-014 Transmissions, 000=disabled) 5.19 24
003 I_______I_______I_______I Swinger Shutdown (Tampers and Rest)(001-014 Transmissions, 000=disabled) 5.19 24
003 I_______I_______I_______I Swinger Shutdown (Maint and Rest) (001-014 Transmissions, 000=disabled) 5.19 24
000 I_______I_______I_______I Transmission Delay (001-255 seconds) 5.15 23
030 I_______I_______I_______I AC Failure Communication Delay (001-255 minutes) 5.8 18
003 I_______I_______I_______I TLM Trouble Delay (No. of checks required - valid entries 003 - 255) 5.12 22
030 I_______I_______I_______I Test Transmission Cycle (land line) (001-255 days) 5.14 23
030 I_______I_______I_______I Test Transmission Cycle (LINKS) (001-255 days) 5.14 23
007 I_______I_______I_______I Zone Low Battery Transmission Delay (000-255 days) 5.8 18
030 I_______I_______I_______I Delinquency Transmission Cycle (000-255 days/hours) 5.8 18
NOTE: To disable the AC failure communications delay, program [000].
[3 7 1] Te st Tra nsm ission T ime of Da y (Section 5.14 “Test Transmission” on page 23)
Default
9999 I_______I_______I_______I_______I (Valid entries are 0000-2359, 9999 to disable)
[3 8 0] First Com m unic at or Opt ion Code
Default Option ON Off Section Page #
ON I_______I 1 Communications Enabled Communications Disabled 5.5 17
OFF I_______I 2 Restorals on Bell Time-out Restorals Follow Zones 5.8 18
OFF I_______I 3 Pulse Dialing DTMF Dialing 5.5 17
ON I_______I 4 Switch to Pulse Dialing on 5th Attempt DTMF Dial For All Attempts 5.5 17
OFF I_______I 5 3rd Telephone Number enabled 3rd Telephone Number disabled 5.7 17
OFF I_______I 6 Alternate Dial (1st and 3rd) Call 1st Number, Backup to 3rd 5.7 17
OFF I_______I 7 Call LINKS as well as Land Line LINKS is Backup of Land Line(s) 5.26 25
OFF I_______I 8 Delinquency Follows Zone Activity (Hours)Delinquency Follows Arming (Days) 5.8 18
[3 8 1] Se c ond Comm unic a t or Opt ion Code
Default Option ON Off Section Page #
OFF I_______I 1 Open After Alarm Kypd Ringback enabled Open After Alrm Kypd Ringback disabled 5.17 23
OFF I_______I 2 Open After Alarm Bell Ringback enabled Open After Alrm Bell Ringback disabled 5.17 23
OFF I_______I 3 SIA Sends Programmed Rep. Codes SIA Sends Automatic Rep. Codes 5.9 19
OFF I_______I 4 Closing Confirmation Enabled Closing Confirmation Disabled 5.17 23
OFF I_______I 5-6 For future use —
ON I_______I 7 Contact ID Uses Programmed Reporting CodesContact ID Uses Auto Reporting Codes 5.9 19
OFF I_______I 8 For future use —
[3 9 0] LI N K S Pre a m ble (First Te le phone N um be r) (Section 5.26 “LINKS1000 Cellular Communicator*” on page 25)
Default: FFFF I_______I_______I_______I_______I (Program all unused digits with Hex F)
[3 9 1] LI N K S Pre a m ble (Se c ond Te le phone N um ber) (Section 5.26 “LINKS1000 Cellular Communicator*” on page 25)
Default: FFFF I_______I_______I_______I_______I (Program all unused digits with Hex F)
40
Pr o g r a m m i n g W o r k sh e e t s
[3 9 2 ] LI N K S Pre a m ble (T hird Te le phone N um be r) (Section 5.26 “LINKS1000 Cellular Communicator*” on page 25)
Default: FFFF I_______I_______I_______I_______I (Program all unused digits with Hex F)
[3 9 3 ] LI N K S Spe c ia l Func t ion Pre a m ble (All Te le phone N um be rs) (Section 5.26 “LINKS1000 Cellular Communicator*” on
page 25)
Default: FFFFFF I_______I_______I_______I_______I_______I_______I (Program all unused digits with Hex F)
•Enter [*][2][*] (HEX B) to dial [*] • Enter [*][3][*] (HEX C) to dial [#]
[4 0 3 ] Dow nloa ding Ac c ess Code (Section 5.10 “Downloading” on page 20)
Default: 1555 I_______I_______I_______I_______I Enter 4 HEX digits
[4 0 4 ] Pa ne l I de nt ific a t ion Code (Section 5.10 “Downloading” on page 20)
Default: 1555 I_______I_______I_______I_______I Enter 4 HEX digits
[4 0 5 ] Answ e ring Ma c hine Double -c a ll T im e r (Section 5.10 “Downloading” on page 20)
Default: 060 I_______I_______I_______I (Valid entries are 001-255 seconds)
[4 0 6 ] N um be r of Rings t o Answ e r On (Section 5.10 “Downloading” on page 20)
Default: 000 I_______I_______I_______I (Valid entries are 000-255 rings)
[4 9 0 ] LI N K S Pre a m ble (Dow nloa ding Te le phone N um ber) (Section 5.10 “Downloading” on page 20)
Default: FFFF I_______I_______I_______I_______I (Program all unused digits with Hex F)
[4 9 9 ] [I nst a lle r’s Code ] [4 9 9 ] I nit ia t e PC-Link (Loc a l Dow nloa ding) (Section 5.10 “Downloading” on page 20)
41
Spe c ia l I nst a lle r Func t ions
[9 0 1] I nst a ller Wa lk Te st M ode Ena ble / Disa ble (Section 5.30 “Walk Test (Installer)” on page 26)
[9 0 2] Module Supe rvision Re se t (Section 2.7 “Removing Modules” on page 5)
[9 0 3] Module Supe rvision Fie ld (Section 2.6 “Supervision” on page 5)
[9 0 4] Wire le ss Module Pla c e m e nt Te st
For more information, please refer to your PC5132 Installation Manual
• Select the module / transmitter (Zones 01-32).
• Press [#] to Cancel.
Placement Led Keypad LCD Keypad Bell / Buzzer
Good Light 1 ON Steady “GOOD” 1 Beep / Squawk
Fair Light 2 ON Steady “FAIR” 2 Beeps / Squawks
Bad Light 3 ON Steady “BAD” 3 Beeps / Squawks
[9 9 0] I nst a ller Loc kout Ena ble (Section 5.29 “Installer’s Lockout” on page 26)
[9 9 1] I nst a ller Loc kout Disa ble (Section 5.29 “Installer’s Lockout” on page 26)
[9 9 3] Re st ore Alt e rna t ive Comm unic a t or t o Fa c t ory De fa ult Progra m ming
(Section 5.28 “Resetting Factory Defaults” on page 26)
[9 9 6] Re st ore PC5 1 3 2 t o Fa c t ory De fa ult Progra m m ing (Section 5.28 “Resetting Factory Defaults” on page 26)
[9 9 7] Re st ore PC5 4 0 0 t o Fa c t ory De fa ult Progra m m ing (Section 5.28 “Resetting Factory Defaults” on page 26)
[9 9 9] Re st ore PC1 5 5 5 t o Fa c t ory De fa ult Progra m m ing (Section 5.28 “Resetting Factory Defaults” on page 26)
42
