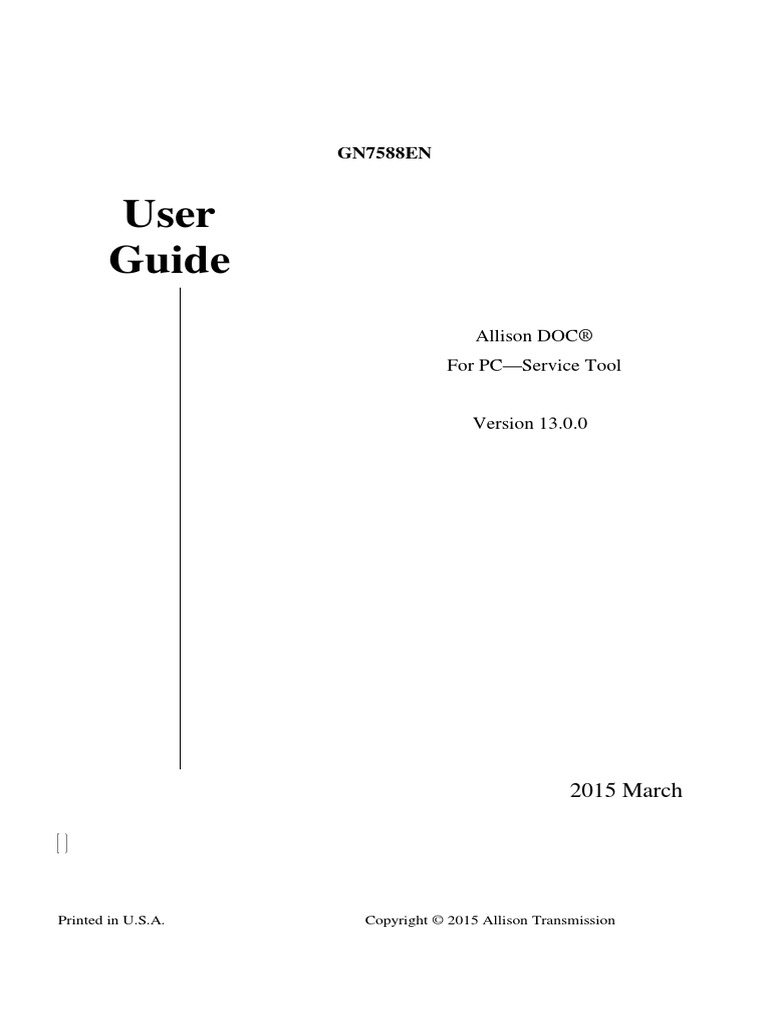

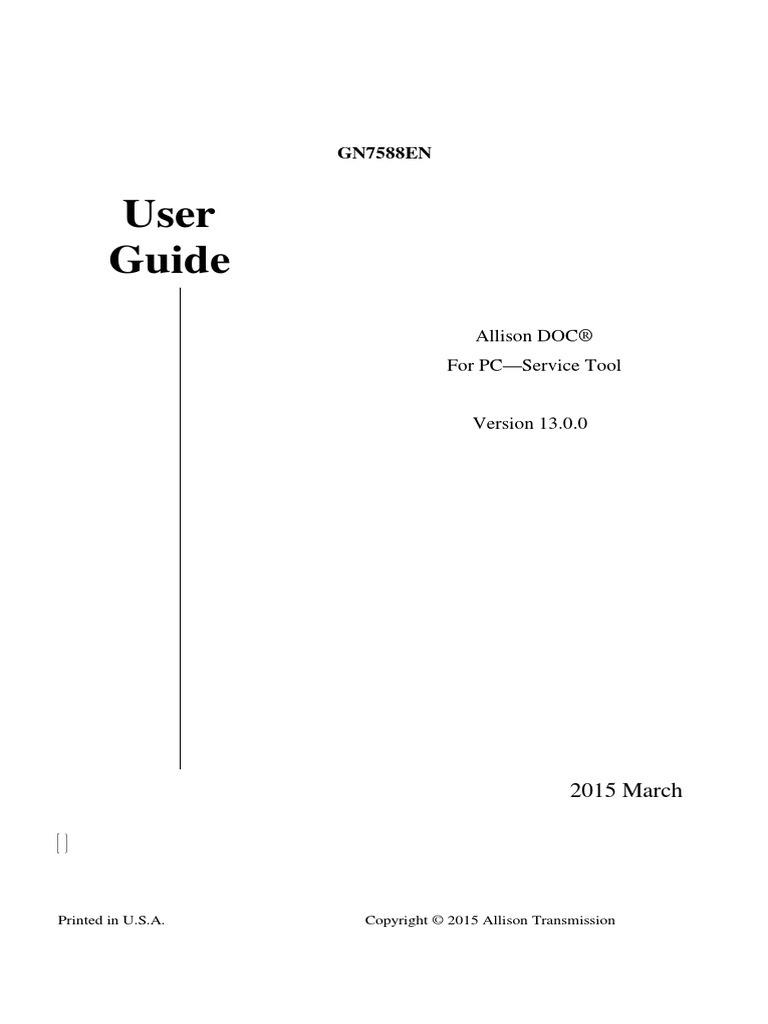

User
Guide
Allison DOC®
For PC—Service Tool
Version 13.0.0
2015 March
2
General Tab .......................................................................................................... 36
Reprogramming Tab ............................................................................................ 36
Update Application Tab ....................................................................................... 37
TAC Data Collection ............................................................................................ 38
1000/2000, 3000/4000 and TC10 Setup Tabs ...................................................... 40
Setting up a new data configuration: .................................................................... 45
Loading a saved configuration: ........................................................................ 45
Loading default configuration: ......................................................................... 46
Protected Parameters Tab (visible only if Reprogramming is enabled) ............... 46
Protected Parameter List .................................................................................. 50
4
Reset SEM Auto-Select (4th Gen TCMs Only) .................................................. 117
Reset Oil Life Monitor ....................................................................................... 118
Reset Filter Life Monitor.................................................................................... 118
Reset Transmission Health Monitor ................................................................... 119
Engineering Calculations ................................................................................... 121
Lamp Status Tests .............................................................................................. 122
Transmission Fault Lamp Test ........................................................................... 122
Reverse Warning Lamp Test .............................................................................. 123
Service Indicator Lamp Test .............................................................................. 124
Neutral Start Lamp Test ..................................................................................... 125
Shift Fork Position Test (TC10 TCMs Only) ..................................................... 126
Reset Accelerometer Learning Information (5 th Gen) ........................................ 127
Accelerometer Learning (5th Gen) ...................................................................... 128
Output Tests (5th Gen) ........................................................................................ 131
Upload Current TCM Configuration (5th Gen) ................................................... 132
Read Static Data ................................................................................................. 134
To Read Static Data: ...................................................................................... 135
5
6-3. Reprogramming TCM (5th Gen) ............................................................. 159
Accessing the Reprogramming Function ........................................................... 159
Protected Parameters ...................................................................................... 161
Reprogramming 5th Gen Customer Modifiable Constants or I/O Items ......... 161
Reprogramming Package Assignments .............................................................. 164
Initiating Reprogramming on a 5th Gen TCM ................................................ 164
6
WTEC II/III Reset Unadapted Shifts ................................................................. 195
WTEC II/III and CEC2 Reset Throttle Calibration ............................................ 195
WTEC II/III TAC Data Collection ..................................................................... 196
7
13-3. SEM/LRTP ........................................................................................... 294
WTEC III Control Systems specific parameters: ............................................... 306
1000/2000 (Allison Pre-4th Generation Controls) specific parameters: ............ 307
8
1. Allison DOC® For PC—Service Tool
1-1. Introduction
The Allison DOC® (Diagnostic Optimized Connection) For PC–Service Tool is a
diagnostic system designed for use with Allison’s 3000/4000 Product Families
transmissions, 1000/2000 Product Families transmissions, TC10 transmissions and
transmissions using CEC3/CEC2/CEC1 controls. This PC-based diagnostic program
is capable of communicating with Allison 5th Generation Control System Module
TCMs (1000/2000, 3000/4000, and TC10), 4th Generation Control System Module
TCMs (1000/2000, 3000/4000, and CEC3), WTEC II and WTEC III Electronic
Control Units (ECU), 1000/2000 (Allison Pre-4th Generation Controls) TCMs,
CEC2, and CEC1 Electronic Control Units (ECU).
Allison DOC® For PC–Service Tool performs the following:
· Monitors 3000/4000 Product Families Transmission Control Module (TCM)
data
· Monitors 1000/2000 Product Families Transmission Control Module (TCM)
data
· Monitors TC10 Transmission Control Module (TCM) data
· Monitors CEC3 Electronic Control Unit (ECU) data
· Monitors CEC2 Electronic Control Unit (ECU) data
· Monitors CEC Electronic Control Unit data, using a proprietary protocol
Displays multiple transmission parameters
· Reads engine faults
· Displays a graphical instrument panel with analog and digital gauges
· Displays a graphical strip chart
· Records and plays back diagnostic sessions
· Prints diagnostic reports
· Reprograms selected TCM parameters (requires completion of Allison
Transmission training). “Fleet Level” license holders do not have this ability.
Allison DOC® For PC—Service Tool provides the following features:
· A Microsoft Windows®/PC look and feel
· Security measures to control reprogramming TCM/ECU parameters
· Integrated Help with training videos
9
· Diagnostic Trouble Code information with a direct link to 3000/4000 Product
Families Troubleshooting Manuals
· Diagnostic Trouble Code information with a direct link to the 1000/2000
Product Families Troubleshooting Manual
· Diagnostic Trouble Code information with a direct link to CEC 2
Troubleshooting Manuals
· Diagnostic Trouble Code information with a direct link to TC10
Troubleshooting Manuals
· Diagnostic Trouble Code information with a direct link to CEC 3
Troubleshooting Manuals
· A demo mode using prerecorded data
· SmartConnect for detecting the PC-to-vehicle translation device and
communication link
· Communication troubleshooting wizard for those cases where the tool is
unable to connect to a control module
· Allison DOC® For PC—Service Tool is compliant with applicable TMC
Recommended Practices, SAE Standards, and CE Standards
· Allison DOC® For PC—Service Tool is RP1210A compliant.
10
1-2. Warnings and Notes
WARNING: Personnel other than the vehicle operator must use the
diagnostic tool.
Trademark Information
Windows Explorer®, Windows XP® Professional, Windows 7®, and Windows 8®
are registered trademarks of Microsoft Corporation.
Allison DOC® is a registered trademark of Allison Transmission.
11
1-3. User Guide Organization
This user guide for Allison DOC® For PC–Service Tool is organized with
information pertaining to the most current control system, Allison 4 th/5th Generation
Controls, appearing in the main body of the user guide. The functions and features
described are similar for all control systems except where indicated. Information
specific to an earlier control system is presented in a section devoted to that control
system.
12
DBV Data Bus Viewer
IT Information Technology
MY Model Year
PS Pressure Switch
13
PTO Power Takeoff
SA Source Address
SS Shift Solenoid
14
5th Gen Control Systems 1000/2000, 3000/4000, or TC10
15
For more information, see your network administrator.
To install the Allison DOC® For PC—Service Tool software on your PC:
1. Locate the installation media:
DVD: insert the Allison DOC® For PC—Service Tool DVD into
your DVD-ROM drive. If the installation process does not begin
momentarily, select Start -> Run from the task bar. Click
Browse, locate the Setup.exe file on the installation DVD, and
click OK.
USB: insert the Allison DOC® For PC—Service Tool USB stick
into an available USB port. If the installation process does not
begin momentarily, select Start -> Run from the task bar. Click
Browse, locate the Setup.exe file on the USB stick, and click OK.
Downloaded File: locate the Allison DOC® For PC—Service
Tool installation file that was downloaded and saved to your
computer. Double-click this file to begin the installation process.
16
NOTE: The Allison DOC® For PC — Service Tool install medium
includes the RP1210A drivers for the following adapters: (1) Noregon
Wireless/USB Translator, (2) Noregon Softing RP1210, and (3)
Dearborn DPA4/4 Plus USB Translator Device. When prompted, check
the box to have the corresponding drivers automatically installed
during setup.
The Nexiq usbLink and Dearborn DPA4PMA/DGDPA5MA drivers are
included on the install medium but cannot be automatically installed
with the application.
To use any other RP1210 translator device listed in the latest Allison
DOC® Service Information Letters (SIL), the corresponding device
drivers must be installed separately. Install the drivers before
attempting to use the translator device with Allison DOC® For PC–
Service Tool.
17
1-8. Allison DOC® For PC– Service Tool
Overview
Allison DOC® For PC–Service Tool has been designed to aid you, the technician,
in troubleshooting and maintaining Allison transmissions equipped with Allison
5th Generation Controls (including TC10), 4th Generation Controls, WTEC II,
WTEC III, CEC3, CEC2, CEC1, and 1000/2000 (Allison Pre-4th Generation
Controls) systems. Allison DOC® For PC–Service Tool can be used with a desktop
PC or with a laptop PC in the cab of a vehicle.
18
o Autodetect Information o Customer Modifiable Constants
(CMCs)
o Shift Inhibits
o Trouble Codes
o I/O Functions
o DTC Test
o TRANSHEALTH™ Report
o Prognostics
Status Bar
The status bar provides information about the connection between Allison DOC®
For PC–Service Tool and the controller. It is located in the upper portion of the
main Allison DOC® For PC–Service Tool window. The fields in the status bar are
not labeled, but their content adequately indicates their purpose.
Allison DOC® For PC–Service Tool Status Bar
Allison DOC® For PC–Service Tool Lamps (4th/5th Gen TCMs only)
19
Allison DOC® For PC–Service Tool Status Bar Fields:
Control System Information
Transmission Control System, Calibration Identification Number, and
software level
Example: 1K2K—120004A002K / D71
Application Status:
Connected—Allison DOC® For PC–Service Tool is actively connected to
a control system and receiving live data.
Off-Line—Allison DOC® For PC–Service Tool is not actively connected
to a control system and it’s not receiving live data.
Playback—Displayed data is part of a snapshot or Demo file previously
recorded.
Recording—Displayed data is live data and is being recorded.
Event Status (during a live connection):
Diagnostic—Diagnostic data is being displayed.
Shift Inhibit—Diagnostic data is being displayed, and a shift inhibit is
currently present.
Action Request—Diagnostic data is being displayed, and the user is
commanding an action request.
Reprogramming—the Reprogramming screen is being displayed.
Lamp Status (4th/5th Gen TCMs only): these reflect the current lamp status
Reverse Warning, Check Transmission, Neutral Start, Range Inhibit, Service
Indicator
Event Status (during Playback):
Diagnostic—Diagnostic data is being displayed. No action requests were
being performed at the time of the recording and no shift inhibits were
present.
Shift Inhibit—Diagnostic data is being displayed. A shift inhibit was
active at the time of the recording.
Action Request—Diagnostic data is being displayed which was recorded
while an action request was being performed
DTC Status:
Active Codes—One or more Active DTCs are present. Inactive DTCs
may also be present.
No Active Codes—No Active DTCs are present. Inactive DTCs may be
present.
20
Connect Display:
#Days – number of days left in trial period or reactivation period.
Connection Time – time of current transmission connection session in
hh:mm:ss, or “PLAYBACK” during playback session.
CAN Statistics – number of CAN error frames per second and total
number of CAN error frames since establishing a transmission connection.
This text will only be visible when the statistics are available. Not all
adapters support this functionality.
Menus
The menu bar at the top of the Allison DOC® For PC–Service Tool window,
immediately below the Status bar, displays the following drop-down menus:
File
TCM Reflash (PCCS) – opens up the TCM Reflash (PCCS) application, only if it’s
installed in the PC.
Data Bus Viewer—Opens up the Data Bus Traffic Viewer.
Reset CAN Statistics – Resets CAN statistics information; only valid when
connected using a vehicle adapter that supports these CAN statistics gathering.
Exit—exits the Allison DOC® For PC–Service Tool program.
Reprogram
When enabled, displays the TCM/ECU Reprogramming section. Users need special
training to enable this section of the tool.
Action Requests
Clutch Test Enabled—For Allison 5th Generation Control systems, 4th
Generation Control systems (excluding CEC3) and 1000/2000 (Allison
Pre-4th Generation Controls) systems, it displays the Clutch Test floating
tool bar. For all other control systems (i.e. WTECII, WTECIII, and
CEC2), it controls the Clutch Test mode.
Solenoid Test…—displays the Solenoid Test screen (not available for
WTEC II/III, CEC1, CEC2, and CEC3).
Reset Adaptive Shift Parameters— (not available for WTEC II/III, CEC1,
CEC2, and CEC3) displays the Reset Adaptive Shift Parameters window,
where transmission adaptive data can be reset to factory values per shift.
21
Reset Unadapted Shifts – (only available for WTECII and WTECIII)
resets all transmission adaptive data to factory values.
Reset Fast Adaptive—(not available for 1000/2000 Allison Pre-4th
Generation Controls, CEC2, CEC3, and 5th Generation Controls systems)
activates the Fast Adaptive logic in the TCM.
Clear All Shift Adaptive Data—(available for 5th Generation Controls
systems) activates the Fast Adaptive logic in the TCM.
Reset Full Throttle Calibrations (TPS only)—(not available for WTECII,
WTECII, CEC2 and CEC3 control systems) resets upper limit of the TPS
calibration.
Reset Closed Throttle Calibrations (TPS only)— (not available for
WTECII, WTECII, CEC2, and CEC3 control systems) resets the lower
limit of the TPS calibration.
Reset Throttle Calibration – (only available for WTECII, WTECIII, and
CEC2) resets the throttle position sensor calibration.
Transmission Fault Lamp Test—(only available for Allison 4th/5th
Generation Controls systems) enables the Transmission Fault Lamp Test.
Reverse Warning Lamp Test—(only available for Allison 4th/5th
Generation Controls systems) enables the Reverse Warning Lamp Test.
Service Indicator Lamp Test—(only available for Allison 4th/5th
Generation Controls systems with Prognostics) enables the Service
Indicator Lamp Test.
Neutral Start Lamp Test—(only available for Allison 5th Generation
Controls systems) enables the Neutral Start Lamp Test.
Reset Auto-Detect—(not available for the Allison 5th Generation,
1000/2000 Allison Pre-4th Generation controls systems) clears and resets
the TCM auto-detect information.
Reset Auto-Detect Retarder—(only available for 3000/4000 Allison 4 th/5th
Generation Controls systems) clears and resets auto-detection of
transmission retarder.
Reset Auto-Detect Oil Level Sensor—(only available for 3000/4000
Allison 5th Generation Controls systems) clears and resets auto-detection
of oil level sensor.
Reset SAE J1939 SA Information—(only available for Allison 5th
Generation Controls systems) clears and resets SAE J1939 receive
message source address information.
22
Reset SEM Auto-Select—(only available for Allison 4th Generation
Controls systems excluding CEC3) clears and resets auto-selection of
Shift Energy Management.
Reset Oil Life Monitor—(only available for Allison 4th/5th Generation
Controls systems with Prognostics) resets the Prognostics Oil Life
Monitor on the TCM.
Reset Filter Life Monitor—(only available for certain Allison 4th/5th
Generation Controls systems with Prognostics) resets the Prognostics
Filter Life Monitor on the TCM.
Reset Transmission Health Monitor…—(only available for Allison 4th/5th
Generation Controls systems with Prognostics excluding TC10) resets the
Prognostics Oil Life Monitor on the TCM.
Full Main Pressure Enable Test – (only available for Allison 4th
Generation Controls systems MY11+ excluding CEC3) performs Clutch
Test with optional Full Main Pressure control.
Engineering Calculations—provides means to calculate converter speed
ratio, vehicle speed, and acceleration in g’s.
Read Static Data—(only available for Allison 4th/5th Generation Controls
systems) allows power off data stored in the TCM to be extracted to a file
that can be used by Allison Engineers for diagnostic purposes.
Extract Transmission Data – (only available for CEC3 TCMs) allows
transmission data stored on the TCM to be extracted to a file.
Shift Fork Position – (only available for TC10 TCMs) tests
Reverse/Forward position of the Shift Fork.
Reset Accelerometer Learning Information—(only available for TC10
TCMs and ≥MY14 1K-4K TCMs) resets all accelerometer calculations
and TCM orientation detection stored values.
Accelerometer Learning – (only available for ≥MY14 1K-4K and ≥MY15
TC10 TCMs) resets accelerometer installation angle learning or freezes
accelerometer learning.
Output Tests – (only available for 5th Generation Controls systems)
temporarily turns on and off output wires.
Upload Current TCM Configuration – (only available for 5th Generation
Controls systems) reads current TCM configuration and uploads
information.
23
Snapshot
Record
Record Options—displays the recording options
window.
Stop Recording—halts recording.
Add Bookmark—adds a bookmark to the current
recording.
Playback
Open Playback File—displays the Open window and the
content of the Log folder.
Play—plays a recorded data file.
Rewind—starts the playback at the beginning.
Stop—stops a playback.
Fast forward—plays a recorded data file at four times
the normal speed.
Continuous—plays a recorded data file continuously, a
looped playback.
Email— displays the Compose Email window. This section requires the
user to fill out some networking information that might require the
assistance from the user’s IT department.
Export—(only available for Allison 4th Generation Controls system)
exports data from a playback file for inclusion into a spreadsheet.
Reports
Diagnostic Reports—displays the Report Sections window. Refer to
section 7-1 for more information.
TRANSHEALTH™ Report—when available, it displays the
TRANSHEALTH™ feature. Refer to section 7-2 for more information.
Software Configuration
Displays the Software Configuration dialog box.
Help
What’s New – displays new features in this release.
24
Allison DOC® User Guide – displays this User’s Guide in PDF format.
Allison DOC® Training Videos – displays the new/enhanced software
training videos.
Demo—displays the Choose Demo window.
DTC Lookup—displays the Trouble Code Lookup window for various
control systems.
Troubleshooting Manuals – displays selected Troubleshooting Manual.
Troubleshooting manuals are updated as they are released; it is important
to always run the latest version of Allison DOC®.
Technician’s Library – displays selected document in library.
Access to Allison Transmission Web Site - Connects to the
ALLISON TRANSMISSION web site,
www.allisontransmission.com.
Hydraulic Schematics
o 3000/4000 (4th/5th Gen)—displays the Allison 4th/5th
Generation Controls 3000/4000 hydraulic schematics.
o 1000/2000 (4th/5th Gen)—displays the Allison 4th/5th
Generation Controls 1000/2000 hydraulic schematics.
o 1000/2000 (Pre-4th Gen)—displays 1K2K (Allison Pre-
4th Generation Controls) hydraulic schematics
o WTECIII—displays WTEC hydraulic schematics.
Allison Transmission Calc – displays the Allison Transmission
Calculation application.
About Allison DOC® - displays information about this version of Allison
DOC® For PC – Service Tool.
Print Screen
Prints the displayed screen.
25
F2–TRANSHEALTH™
Displays the TRANSHEALTH™ feature. Refer to section 7-2 for more
detailed information.
F3–DTC Lookup
Displays the Trouble Code Lookup window for various control systems.
F4–Connect (or F4-Disconnect)
Connect (F4-Connect) to or disconnect (F4-Disconnect) from an ECU or
TCM.
F5–Trigger Recording (or F5-Bookmark #)
Triggers the recording session of a snapshot and also inserts a trigger point
in the data stream. This constitutes the faster way to initiate a snapshot
recording session.
If used during a recording session, inserts “bookmarks” in the data stream
of the log file. Bookmarks are sequentially numbered by the system when
F5–Bookmark # is used.
F6–Stop Recording
Stops a snapshot recording.
26
2. Connecting the PC to the Control
System
The diagram below illustrates the hardware connections between the PC hosting
Allison DOC® For PC–Service Tool, the data translator, and the vehicle control
system diagnostic connector.
27
For connections using a Dearborn Protocol Adaptor DPA4 USB or DPA4 Plus
USB adapter, please refer to the diagrams below:
28
29
30
A fully RP1210A (RP1210B needed for autobaud) compliant PC-to-vehicle
translator device is required to establish communication with the TCM/ECU.
Allison DOC® For PC–Service Tool currently supports the Dearborn Protocol
Adaptor DPA4 Plus USB (SPX P/N J47943-A) and other devices listed in the latest
Allison DOC® Service Information Letter (SIL), available on the Allison
Transmission Extranet.
In order to communicate with the CEC control system, Allison DOC® For PC–
Service Tool requires the Allison Transmission CEC Translator Device, a Noregon
Wireless/USB Translator – All Allison Products adapter or a Nexiq USBLink with
CEC support. Refer to the above diagrams for P/Ns and contact information. The
drivers must be installed from the Allison DOC® For PC–Service Tool install
medium or from the appropriate websites (www.jprofleetproducts.com or
www.nexiq.com).
To communicate with 1000/2000/2400 Series™ transmissions using the J1850
communication protocol (with OBDII trapezoidal diagnostic connector), Allison
DOC® For PC–Service Tool requires the Dearborn Protocol Adaptor DPA4 Plus
USB, Dearborn DPA5 Multi-Application, Noregon Wireless/USB Translator – All
Allison Products adapter or a Nexiq USBLink with 1850 support. Refer to the
above diagrams for P/Ns and contact information.
31
3. Starting Allison DOC® For PC–
Service Tool
32
Proxy Server
If internet connectivity is not established upon application launch, you will be
given an opportunity to establish internet connectivity, in the following dialog:
33
3-2. What’s New?
When you start Allison DOC® For PC–Service Tool for the first time following an
installation, the ‘What’s New’ document will automatically be launched and will
detail the changes since the previous release.
3-3. At Start-up
When you start Allison DOC® For PC–Service Tool, the Warning window
displays (if the activation information has been entered). The Warning window lists
basic transmission troubleshooting tasks and outlines basic safety considerations
(see Warnings and Notes). The F4-Connect button initiates the software
connection to a vehicle and the DEMO button starts Allison DOC® For PC–
Service Tool Demos. The F3-DTC LOOKUP button displays the Trouble Code
Lookup window for various control systems. The Allison DOC® For PC–Service
Tool version and build are displayed at the bottom of the Warning window.
34
4. Configuring and Updating Allison
DOC® For PC– Service Tool
35
Access configuration items by clicking on the corresponding tab in the Software
Configuration window.
General Tab
From the General tab you can:
Select a language
Select either English or Metric units of measure.
Language Selection
1. Click on the down arrow in the Language field.
2. Click on a Language.
3. Click the UPDATE button—all text in Allison DOC® For PC–Service
Tool is changed to the language selected. Phrases not translated will
appear in English.
Units of Measure Selection
1. Click on the down arrow in the Units of Measure field.
2. Click on either English or Metric.
3. Click the UPDATE button—measurements in Allison DOC® For PC–
Service Tool are changed to either English or Metric units.
Reprogramming Tab
TCM/ECU Reprogramming Authorization
You must obtain reprogramming authorization to reprogram TCM/ECU
information. Accessing the TCM/ECU reprogramming features of Allison DOC®
For PC–Service Tool requires an appropriate training certificate, a password, and
the Allison DOC® For PC–Service Tool product serial number. Contact Noregon
Systems (US and Canada: 877-659-6913 | International: 1-336-970-5534) for the
necessary password.
Technicians new to reprogramming should fax their Allison training certificate to
(310) 300-1821 prior to requesting a reprogramming password.
To enter Reprogramming authorization information:
1. Select Software Configuration menu item.
2. Click the Reprogramming tab—the Product Authorization window
displays.
36
3. Enter Password information as provided by Noregon Systems.
4. Click the APPLY button. Since this is a one-time enabling process, once
the TCM/Reprogramming section has been authorized, the “Authorize
Non-hybrid Reprogramming” group box on the Reprogramming tab
becomes disabled (grayed out).
Allison DOC® For PC–Service Tool updates are stored on Allison’s Service Tool
Update Server.
37
server, the newer minor version can be applied to your current Allison
DOC® For PC–Service Tool or downloaded to your hard drive. If a newer
version is not found on the server, Allison DOC® For PC–Service Tool
checks your hard drive for a newer version.
If an update is available, either from the server or your hard drive, the CHECK
FOR UPDATE button changes to APPLY UPDATE.
If your Allison DOC® For PC–Service Tool is up-to-date, a message displays
indicating you do not need to update.
If the update server is not available and an update is not stored on your PC hard
drive, a message displays providing the reason for an update not being available.
Applying An Allison DOC® For PC–Service Tool Update
Click the APPLY UPDATE button—the Update Processing window displays.
The latest version of Allison DOC® For PC–Service Tool is loaded, either from the
update server or from your PC hard drive.
38
2. After determining that you are required to use this feature in Allison
DOC®, an Allison TAC representative will contact you to enable this
section based upon the Authorization Key data.
3. Enter the password in the Authorization Password field.
4. Click the APPLY button—TAC Data collection may now be accessed
from the Action Request menu.
39
1000/2000, 3000/4000 and TC10 Setup Tabs
The 1000/2000 (4th Gen or 5th Gen) and 3000/4000 (4th Gen or 5th Gen) and
TC10 (5th Gen) Data Setup tabs allow you to individually select the 4th/5th
Generation transmission data parameters to be requested from an Allison 4 th/5th
Generation Controls system (excluding CEC3) and, consequently, be displayed on
Allison DOC®. The selected data is assigned to dynamic groups. A configuration
may be saved for future use. Limiting the amount of data to request from a TCM
greatly increases the rate of data refresh. In other words, the fewer transmission
data parameters you configure the tool to request, the faster the TCM will be able
to send those parameters to the tool. This is particularly important when the user
needs to closely monitor certain transmission parameters at higher rates.
On all 4th/5th Generation screens and reports, data that is not being requested by the
dynamic group configuration is displayed as “Not Available.” In the graphics
monitor, controls associated with unavailable data are disabled. In the selection
dialogs for the custom data monitor, Excel export and strip chart parameters that
are unavailable will not be displayed for selection.
Anatomy of a Dynamic Group
A Dynamic Group contains one or more transmission data parameters. The
parameter size indicates how many bytes the parameter uses. A Dynamic Group
can only hold up to seven bytes of data.
40
Required Parameters
Some parameters are assigned by default to a Dynamic Group. The pre-assigned
parameters must always be selected in order for certain Allison DOC® features to
work correctly. A message displays if the required parameters are not assigned to
Dynamic Group. The following table lists the required transmission data
parameters (with their size).
Turbine Speed 2
Input Speed 2
Output Speed 2
Current Gear 1
Gear Commanded 1
41
5th Gen Parameters
Attained Range 1
Commanded Range 1
42
Dynamic Group Configuration Section
Allows users to select the Dynamic Group in which they will include
43
NOTE: Regardless of the Dynamic Group frequency selected, the tool
refreshes the screen display 2 times per second.
44
Action Buttons
Contains the following command buttons:
45
3. Select one configuration from the Saved Data Configurations drop-down
list.
4. Click on the LOAD button.
5. Click on the APPLY button.
6. Close the Software Configuration dialog box.
NOTE: A Valid E-Learn User ID and password are required for this
feature.
46
Conditions for requesting/receiving protected password changes:
Reprogramming enabled for Allison DOC® (see
‘Reprogramming Tab’)
Completion of applicable training as determined by Allison
Transmission
On-Line access for Allison DOC®
Note: For users without online access, passwords are
available only from 8 am to 5 pm, Eastern Time (US).
Turnaround times are not predictable. Plan accordingly.
Valid E-Learn User ID and password
E-Mail Address
47
User requests a parameter change for three vehicles.
The following information is required: E-Learn User ID, pw, email and phone
number. A short reason for the change is also needed.
48
The user receives an email indicating that the password is available. When
Allison DOC® next connects to the Internet (Allison’s Servers), approved
requests will change from ‘Pending’ to ‘Ready’.
49
The user connects to the TCM to change the unlocked parameter.
50
Parameter ID Parameter Name
51
5. Using Allison DOC® For PC—
Service Tool
5-1. Connecting/Disconnecting
Connecting
53
4. Upon successful connection, the DTC and General Information window
for the selected transmission controller displays; for CEC1, the CEC1
Data Monitor window displays. If a connection cannot be established the
tool displays the Connection Help window with specific instructions on
how to troubleshoot the connection.
54
To select a translator device and communication protocol manually:
1. Deselect SmartConnect.
2. Select transmission type.
55
4. Select the Translator Device and Protocol from the drop-down
lists and Click the button. Upon successful
connection, the DTC and General Information window for the
selected transmission controller displays; for CEC1, the CEC1
Data Monitor window displays.
5. If the translator device and protocol does not appear on the list,
make sure that the driver software has been installed on your PC
6. Select the adapter vendor from the drop-down Vendor list. If the
translator device you are using is not in the Vendor list, verify
that the driver software has been installed on your PC.
7. Select Vendor, Protocol, and Device from the drop-down list.
Use the following table as a reference for Vendor, Protocol, and
Device menus.
VENDOR PROTOCOL DEVICE
J1939/GMLAN
CAN Noregon Wireless/USB
Noregon
NORWIR32 J1708 Translator – All Allison
Wireless/USB
J1850 Products
CEC
56
VENDOR PROTOCOL DEVICE
J1939/GMLAN
DPA4 USB DR121032 CAN DPA4, USB
J1708
J1939/GMLAN
CAN
DPA4 Plus USB DR121032 DPA4 Plus, USB
J1708
J1850
J1939
DPA4 Plus (MA) CAN
DPA4PMA DG DPA4 Plus (MA), USB
USB J1708
J1850
J1939/GMLAN
CAN DPA5 Multi-Application,
DPA5 MA DGDPA5MA
J1708 USB or Bluetooth
J1850
J1939/GMLAN N/A
CAN USB-Link CAN
Nexiq USB-Link NXULNK32 J1708 USB-Link J1708
J1850 USB-Link Allison J1850
CEC USB-Link
J1939
Softing CANCard Transmit
Softing CANcard2 SOFTRP32
on Channel x
CAN
BB Electronics J1708D15
B&B J1708D15 Adapter, COMx
Allison Shaw Box NSIRP32 J1708 Allison Shaw Box, COMx
Detroit Diesel Detroit Diesel, COMx
Dana Dana, COMx
57
VENDOR PROTOCOL DEVICE
Navistar Navistar, COMx
Kent Moore Kent Moore, COMx
Disconnecting
NOTE: Disconnecting breaks the Allison DOC® For PC–Service
Tool to controller connection; but does not close the Allison DOC®
For PC–Service Tool software.
To break the connection between Allison DOC® For PC–Service Tool and
transmission controller, click on the F4-Disconnect button, or press the F4 key.
58
NOTE: For more information on installation and troubleshooting
procedures when using the Dearborn DPA4 Plus USB adapter, please
refer to the “DPA4 Plus USB Translator Device (SPX P/N: J-47943-A)
Quick Reference Guide” document available at
www.allisontransmission.com | Service | Electronic tools | Translator
Devices.
59
The Allison 4th/5th Generation Control system Diagnostic Trouble Codes (DTCs)
consist of the letter “P”, “U”, or “C” followed by four numbers. A “P” indicates a
transmission internal problem, a “U” indicates a problem in a vehicle system or the
transmission-to-vehicle interface, and the “C” codes are reserved for retarder
request sensor problems.
60
DTC and General Information View
61
DTC Grid
Displays Diagnostic Trouble Code information:
Parameter Description
DTC The Allison 4th/5th Gen Control system uses a five character, a letter
and four numbers, diagnostic trouble code.
In addition to this five character DTC code, 5th Generation Control
systems use a symptom code. In Allison DOC®, the DTC and
symptom codes are separated by a ‘-’: e.g. P0712-00.
Historic A “Y” indicates a diagnostic code has been stored to TCM memory
as a valid fault. Different types of DTC exist. Each DTC type has
different requirements to be stored as Historic DTC.
Check A “Y” indicates that the DTC is significant enough to turn on the
Trans CHECK TRANS light. Not every DTC activates the CHECK
TRANS light. If any active DTC has a CHECK TRANS light on,
then the Check Transmission lamp will be displayed.
Failure A “Y” indicates that a failure record has been generated and stored
Record for the DTC.
62
63
Clearing DTC Information
1. In the DTC and General Information window, click the Clear DTC
Information button.
2. A window appears displaying the message, “Clear DTC Information
Request Completed Successfully!”
3. Click the OK button.
All Trouble Codes and associated information are cleared from the DTC and
General Information window. Shift Inhibits are also cleared with this command
button. If the cause of the Trouble Code is not corrected, the Trouble Code will
reappear.
NOTE: To clear all Trouble Codes, the vehicle must be stopped and
in Neutral. If these conditions are not met, a message “Request
Denied. Output Speed not less than maximum allowable value.” or
“Neutral not attained.” displays.
Performance Complaints
Use the Performance Complaints function when no DTCs are present to
troubleshoot a transmission performance symptom.
To use Performance Complaints:
1. Click on the Performance Complaints button on the DTC and General
Information—The Performance Complaints window displays.
64
Failure Records
A Failure Record stores operating condition information at the time a problem was
detected and the DTC logged. A Failure Record is always associated with a DTC.
A Failure Record is a very valuable source of information for the technician as it
can be used to determine the operating conditions that were present when a failure
occurred. Failure Records are only updated (refreshed) the first time the Diagnostic
Test (a test that the TCM runs to determine if a failure condition exists) fails during
each ignition cycle.
You can view the last five DTC failure records by double clicking on a DTC row in
the Failure Record column of the DTC grid or by selecting the Failure Records
button from the Diagnostic main menu. If more than five DTCs are stored, the
Failure Records are replaced on a “First-In-First-Out” basis.
Allison DOC® For PC – Service Tool automatically saves the last 20 Failure
Records “seen” by the tool. These files are stored in the following location as text
files: [AllUsersCommonDocuments]\Allison Transmission\Allison DOC For PC -
Service Tool\Failure Records.
65
66
DTC Test
The TCM performs a series of “diagnostic tests” to determine if a failure has
occurred. Diagnostic Tests are performed when specific transmission operating
conditions occur. The DTC Test Screen displays all application-supported DTCs
and indicates the failure status of the Diagnostic Test since clear code and since
power-up. The following table describes each state:
*: For example, the transmission hasn’t reached the necessary operating conditions
to run the Diagnostic Test.
The DTC Test screen allows the technician to determine the status of a DTC test.
For example, after fixing the problem causing a DTC, the technician must know the
status of a DTC test in order to make sure that the failure condition was effectively
corrected.
67
68
View TCM/Engine Faults (4th/5th Gen TCMs only)
This button toggles the DTC and General Information views. When selected, the
bottom half of the screen will display any active or inactive engine faults instead of
the default grids (TCM Information, Transmission Data, Shift Inhibit, Prognostics
Information). To return to the default DTC and General Information view, select
the button again. This option is only available when connected to 4 th/5th Gen
TCMs.
Prognostics Grid
Displays general prognostics information.
69
70
NOTE: In the Diagnostic Data and the Input/Output grids, any data
item row may be moved to a different location in the grid by
dragging the item to the desired location; the original order may be
restored by right-clicking and selecting the “Reset Data Order” pop-
up menu item.
Diagnostic Data
Diagnostic Data—A brief description of the diagnostic data being
measured.
Value—The value of the associated diagnostic data.
Units—units of measure for the value.
Input/Output Functions
Signal Source (Allison 4th/5th Generation Control systems)—the wire
circuit number assigned to the programmed function or the specific
databus from which the signal is being received. For 4th Generation
MY09 and later TCMs, the column to the left of the Signal Source column
shows the AND/OR relationship between the wire and databus for the
programmed function.
Wire/Databus (Allison Pre-4th Generation Control systems) —the wire
circuit number assigned to the programmed function. If “Databus” is
displayed, the function is not assigned to a wire but is being controlled
(turned On/Off) via the communication databus.
Signal State (Allison 4th/5th Generation Control systems) or Wire State
(Allison Pre-4th Generation Control systems)—displays the state of the
wire (On/Off) or if the wire is Disabled. The signal state is grayed-out
when the state cannot be determined.
Function Name—indicates if the function is an input or output and lists
the function name. Double-click on a Function Name to launch the
troubleshooting manual for that function.
Function State—displays the state of the function (On/Off) or if the
function is Disabled.
NOTE: Grayed rows indicate I/O functions and wires that cannot be
reprogrammed.
71
Shift Inhibits
Inhibit—displays the condition(s) that is or was causing the shift inhibit.
Current Active—indicates whether a particular condition is currently
inhibiting shifts.
History—indicates that, since the last DTC clear, a particular condition
has inhibited shifts.
72
J1939 Data
Lower left hand grid of Data Monitor View – optionally displayed for 4th
generation TCMs if “Collect J1939 Data” was chosen when connected to
a live session or if playing back a snapshot file with J1939 data.
73
5-5. Custom Data Monitor
You may select the information to be displayed in the Custom Data Monitor
window by adding or removing transmission parameters to the display. Each
control system has a unique list of transmission parameters. For 4 th/5th Generation
controllers, if default data configuration is not used, only the parameters configured
under the Data Configuration feature are displayed.
Transmission parameters are added or removed in the Custom Data Monitor data
selection window. The Custom Data Monitor window is the same as the Data
Monitor window, except that only the selected data is displayed.
74
To remove Customer Data Monitor transmission parameters:
1. Select the Custom Data Monitor button —the Custom Data Monitor data
selection window displays.
2. Select the desired transmission parameters from the right-hand column.
3. Click the button—the selected transmission parameters are
restored to the left-hand column.
4. Click the OK button—the deleted transmission parameters no longer
appear in the Custom Data Monitor window and the Custom Data Monitor
data selection window closes.
4. Type a unique name for the saved data list and click OK.
75
5-6. Graphical View
The Graphical View displays the default Transmission Data, from the DTC and
General Information View, using gauges, thermometers, indicator lights, and other
graphical components, along with a speeds strip chart and a mini-DTC grid.
76
Displaying the Graphical View
To display the Graphical View:
1. Select the Graphical View button —the Graphical View window displays.
77
5-7. Custom Graphics Monitor
You may select the information to be displayed in the Custom Graphics Monitor
window by adding or removing diagnostic data items to be displayed in a user-
friendly, graphical view. Each control system has a unique list of diagnostic data
items.
Diagnostic data items are added or removed in the Custom Graphics Monitor data
selection window in the same way that the Custom Data Monitor selection window
is used.
2. Select the desired diagnostic data item(s) from the left-hand column.
3. Click the button or double click the selection—the selected
diagnostic data item(s) appears in the right-hand column
78
4. Click the OK button—the selected data item(s) appears in the Custom
Graphics Monitor window.
79
To remove Customer Graphics Monitor transmission parameters:
1. Select the Custom Graphics Monitor button —the Custom Graphics
Monitor data selection window displays.
2. Select the desired diagnostic data item(s) from the right-hand column.
3. Click the button—the selected diagnostic data item(s) is
restored to the left-hand column.
4. Click the OK button—the deleted diagnostic data item(s) no longer
appears in the Custom Graphics Monitor window and the Custom
Graphics Monitor data selection window closes.
4. Type a unique name for the saved data list and click OK.
80
To use the saved data list:
1. Display the Custom Graphics Monitor data selection window.
2. Click on the Select One drop-down arrow in the Preconfigured Data Lists
section:
81
5-8. Strip Chart
The Strip Chart is a graph that tracks, over time, changes in selected data as the
changes occur. Up to fifteen transmission parameters may be selected. Each control
system has a unique list of selectable parameters. The data traces start at zero on
the X-axis.
The data-against-time data stream is continuous regardless of the Strip Chart mode
selected. If default data configuration is not used, only the data configured under
the Data Configuration feature is available for display in the Strip Chart.
82
NOTE: Contrasting colors are easier to see on the strip chart.
4. Click OK.
The selected transmission parameters appear in the Strip Chart window.
Type a unique name for the Strip Chart data selection, and click OK
83
4. Click either Load, to load the Saved Strip Chart, or Delete, to delete the
Saved Strip Chart.
84
NOTE: (Allison 4th/5th Generation Controls ONLY) To obtain
higher plotting resolution and better refreshing rates, the user can
configure the application to only request specific transmission
parameters from the TCM. Refer to Setting Up a New Data
Configuration in section 4-1 for more information.
Custom Scaling
To set a custom scale to be used in the Strip Chart:
1. Display the Select the Data to Graph on the Strip Chart window.
2. Click the Custom Scaling tab at the bottom of the window.
3. Choose whether to scale the Strip Chart based on one of the items in the
drop down box, a custom scale (enter minimum and maximum values in
the fields provided), or use default scaling.
85
Data Trace Identification
The selected data is assigned a color on the graph. The name of the data and its
corresponding color is displayed in a box on the Strip Chart display.
X-axis Scaling
The passage of time in seconds is indicated on the X-axis, horizontal bottom of the
graph. As time passes, data lines on the graph move to the right. The Strip Chart
displays about 10 seconds of data at a time. If playing back recorded data, the VCR
Control window displays the Total File Time and the Current File Time, in
minutes. Total File Time is the total length of the recording. Current File Time is
the time elapsed since you started the playback.
Y-axis Scaling
The Y-axis, vertical left side of the Strip Chart, displays a range of values based
upon the data selected for display. In most cases, the Y-axis begins at zero. If you
select data having different types of measurements such as input rpm and engine
cooling temperature, a divisor, preceded by a slash (/), displays next to the data that
requires calculation to determine the correct value. For example: input speed and
engine cooling temperature. RPM is displayed on the Y-axis, from 0 to 4000. To
determine the engine cooling temperature, divide the value of the engine cooling
temperature trace by 15.7. An easier method is to use the Strip Chart Cursor mode,
which calculates the adjustment and displays the correct value. Entering a value in
the Max Y-Axis field changes the maximum value displayed on the Y-axis. Click
the Plot button for the Max Y-Axis change to take effect.
Control Modes
The control modes are:
Plot
Plot is the default Strip Chart mode, where data lines move from left to right across
the Strip Chart graph.
86
Pause
Pauses the plot. Data continues to be collected, but not displayed in the graph.
Click the PLOT button to resume normal plotting. While in Pause mode, the
mouse cursor can be used to scroll the X-axis left or right.
Zoom Box
Zoom box allows you to zoom in on an area within the zoom box. Once the area to
zoom is selected, the plot is paused. Click the PLOT button to resume normal
plotting.
87
Cursor
88
Cursor mode allows you to place a yellow vertical line and two red vertical lines at
any point in the graph. With the yellow vertical line, the “Y” vertical values of the
selected trace are displayed in a floating window and the Strip Chart is paused.
With the two red vertical lines, the number of seconds between the two lines is
displayed. Data continues to be gathered in the background. The yellow vertical
line may be dragged along the Strip Chart and the value of the selected trace in the
floating window is updated based on the position of the vertical line; likewise, the
red vertical lines may be dragged along the Strip Chart and the number of seconds
between the lines is updated. Click the Plot button to resume the Strip Chart.
Print
Sends the Strip Chart data display to your printer.
Change Background button
For higher contrast, the Change Background button cycles among white, yellow,
and black. If printing the strip chart, it is suggested that white is chosen as the
background color to conserve printer ink.
Annotate button (playback only)
Allows the technician to add notes to a strip chart that will be printed and analyzed.
After a note is added, the technician can move it to any location on the stopped
strip chart. The technician may also save these annotations for future reference.
Once saved, the technician can use the Analog dialog to go to saved annotations.
Annotations are saved in a separate file using the original name of the playback file
and a file extension of “Annotations.xml”. When emailing playback files, you
should also email the corresponding Annotations.xml file. If you use the
SnapshotE-mail functionality to attach playback files, the corresponding
Annotations.xml file will automatically be attached if applicable.
89
5-9. Prognostics
The Prognostics screen shows information stored on the TCM related to oil life,
filter life, and data for use in predicting transmission health.
90
Displaying Prognostics
1. Select the Prognostics button —the Prognostics window displays.
91
NOTE: If Engineering Calculations have been performed (see
Engineering Calculations) then data related to distance will be available.
Click the Engineering Calculations button to be taken to the
Engineering Calculations screen.
92
5-10. Calibration Information
Current TCM calibration information (i.e. calibration settings) can be displayed
using the Calibration Information button.
NOTE: Data from the TCM Information grid may be copied to your
Windows clipboard and then pasted into another application such as
Notepad.
1. Select Calibration Information button—the Calibration
Information window for the transmission type displays.
2. In the TCM Information grid, hold down right button of the
mouse—the Copy All context-sensitive menu item displays.
93
Pre-5th Gen Calibration Information:
1. Select Calibration Information button—the Calibration Information
window for the transmission type displays.
94
Torque Converter Temperature—displays information related to
Torque Converter Temperature model information (only displayed for
1000/2000 Product Families with Allison 4th Generation Control systems,
MY10 and later).
Calibration—displays static data describing both software and hardware
installation.
SEM/LRTP and Autodetect Information—displays information related
to Shift Energy Management (SEM), Low Range Torque Protection
(LRTP), and Autodetect information.
Input/Output Functions and signal information—displays I/O
functions and signal states (refer to Data Monitor section).
95
5th Gen Calibration Information:
1. Select Calibration Information button—the Calibration Information
window for the transmission type displays.
96
Torque Converter Temperature—displays information related to
Torque Converter Temperature model information (only displayed for
1000/2000 Product Families with Allison 5th Generation Control systems).
Calibration—displays static data describing both software and hardware
installation.
Input/Output – displays I/Os that can be changed in reprogramming.
Input/Output Functions and Signal Information—displays I/O
functions and signal states (refer to Data Monitor section).
97
5-11. Data Bus Traffic View
The real-time data flowing on the vehicle’s databus (CAN, J1939, J1708, J1850,
GMLAN, or proprietary CEC1 protocol) is viewable in the Data Bus Traffic
Viewer. The Data Bus Traffic Viewer presents the data link stream data in raw
format and, when available, some J1939 TCM Received/Broadcasted messages in
engineering units.
Note: Data Bus Traffic View files are not captured or contained in regular Allison
DOC® snapshots.
In the Engineering Units display, which is only available when connected via
J1939, J1939 TCM-relevant data (messages sent and received by the TCM) are
displayed. The user can monitor the data exchange between the transmission
controller and other control modules by selecting specific SAE J1939
Messages/Parameters.
The data bus viewer can be used with or without Allison DOC® For PC–Service
Tool being in a connected state. When the service tool is connected (the tool is
receiving/requesting Messages from/to the TCM), the tool is said to be in ACTIVE
or diagnostic mode. Conversely, if the Data Bus Viewer is used without having the
service tool communicating with the TCM, the tool is said to be in PASSIVE mode
(the tool is physically connected to the vehicle/TCM, but it is only “listening” to all
the messages going through the selected data link without requesting data from the
TCM).
The following table contains all the data communication protocols that, depending
upon its availability at the diagnostic connector, could be used to connect Allison
DOC® For PC–Service Tool and to monitor data with the Data Bus Viewer in
either active or passive mode.
Allison 5th
Allison 4th
Generation
Generation WTEC II, WTEC 1K/2K (Pre-4th
Controls CEC
Controls (1K/2K, III and CEC2 Gen)
(1K/2K, 3K/4K,
3K/4K, CEC3)
TC10)
Data Bus J1939 CAN J1939 GML J1939 J1708 J1939 J1850 Propri
Data Bus
Viewer
Messages AN etary
Engineerin
g Units J1939 N/A J1939 N/A J1939 N/A J1939 N/A N/A
98
The Data Bus Viewer has the following sections:
99
Data Bus Messages
This section displays the numeric representation of every message that is going
through the selected communication link. The data is displayed in decimal (base
10) or hexadecimal (base 16) number systems. The decimal numeric system is the
defaulted option, while the hexadecimal system can be activated with the
Hexadecimal check box.
CAN statistics information appear when these statistics are available from
supported adapters. Not all adapters support this functionality.
CAN Bus Load (%) – displays current percent CAN bus load.
CAN Bus Load Peak (%) – displays the peak percent CAN bus load since
the data bus viewer was opened.
Engineering Units
NOTE: The Engineering Units DBV is available while connected to
any TCM family (e.g., 5th TCM), if you choose to use a new
connection with J1939 protocol in the DBV connection dialog. In
order to do this, you must be using a multi-client translator device.
Engineering Units (only available when connected via J1939) includes every SAE
J1939 Message and Parameter supported by the Allison Transmission controller.
This information consists of all Messages and Parameters the transmission control
module broadcasts and receives via J1939. Refer to the Allison Transmission
DATALINK COMMUNICATIONS technical document, available on the Allison
Transmission Extranet, for specific information for each of the displayed J1939
Messages/Parameters.
Parameter—displays SAE J1939 Messages the TCM can receive/send.
Each SAE J1939 Message can be expanded to display the corresponding
SAE J1939 parameter.
TOOL TIP: Each SAE J1939 Message is displayed in its acronym form.
In order to see the complete/long description of a Message, place the
cursor (do not click) over its acronym, and a tool tip is displayed.
100
Since each Message can be broadcasted from different Source Addresses
(SA), the tool displays every detected SA that can initiate a given
Message. Consequently, if the user is interested in finding a particular
J1939 parameter (for example, Percent Load at Current Speed), the first
step would be to find out which J1939 Message contains that parameter
(EEC2: Electronic Engine Controller # 2), and second to see if Data Bus
Viewer has detected that message in the data bus. If detected, the Data
Bus Viewer will display the SA of the controller sending that particular
message. At this point, the user can expand that message to display the
parameter of interest.
Value—the value/state of the parameter.
Units—the units of measure used for the value.
Source Addresses
Describes all Source Addresses (SA) that can be included/displayed in the Data
Bus Viewer.
MID/SA
(J1708 or J1850 only) Message Identifier/Source Addresses code—the message
type/source/destination.
Component ID
(J1708 or J1850 only) Manufacturer of a controller.
Model
(J1708 or J1850 only) A controller’s model number.
Software ID
(J1708 or J1850 only) Identifies the software used by the controller.
Command Buttons:
Pause—pauses and continues the Data Bus Message display.
Clear—clears all Data Bus Message data.
Save—displays the File Save dialog box and automatically saves the last 2
minutes of data displayed on the Data Bus Viewer, under the entered file
name or under a default file named, defined by date and time. If the Save
Data Continuously check box is selected, the tool will continuously save
data (as opposed to the last 2 minutes of data) until the user clicks on the
Save button.
101
WARNING: Having Save Data Continuously checked causes
the application to continuously save all the data bus traffic into the
PC, which could be detrimental for your computer. When this
function is enabled / checked, be aware that your hard drive could be
rapidly filled with Data Bus Viewer log files. It is recommended to
only use this function when strictly necessary.
To find the recorded file, use Windows Explorer and navigate to the user
data directory of Allison DOC® For PC–Service Tool (usually defaulted
to …\Documents and Settings\All Users\Documents\Allison
Transmission\Allison DOC For PC - Service Tool), then open the Saved
DataBusViewer Files folder. The raw data can be viewed with NotePad®
or WordPad™. Also, the user can playback these file using the Data Bus
Viewer feature in the service tool.
When receiving Data Bus Viewer files from the field, the user needs to
save these files in the same directory mentioned above
([AllUsersCommonDocuments]\Allison Transmission\Allison DOC For
PC - Service Tool\Saved DataBusViewer Files), in order to have them
listed on the Data Bus Viewer Session list.
Close—closes the Data Bus Viewer window.
NOTE: The Data Bus Viewer logs are not captured in the regular
Snapshot function.
102
.
2. Select “Connect to the data bus with a new connection.” option and
click OK—the Communication Adapter Setup window displays.
3. Refer to Section 5-1 for selecting a Vendor, Protocol, and Device for a
particular translator device
4. Click OK— the Data Bus Viewer is displayed. This function captures all
the data being sent through the communication link.
Active Mode
When Allison DOC® For PC–Service Tool is in Active mode, the Data Bus
Viewer can be accessed as follows:
1. Select Data Bus Viewer from the File menu—the Data Bus Viewer
Configuration window displays.
2. Select “Connect to data bus, reusing DOC® For PC’s connection.” and
click OK—the Data Bus Viewer screen displays.
NOTE: The “Connect to the data bus with a new connection.” option
should only be selected if the user wants to use the Data Bus Viewer
(monitor the data bus) with a different client, if the adapter supports
multiple clients.
103
Playing Back Data Bus Viewer files
The following steps describe how to playback the files saved with the Data Bus
Viewer:
1. Select Data Bus Viewer from the File menu, or the Transmission
Connect/Disconnect dialog box—the Data Bus Viewer Configuration window
displays.
2. Select “Playback Data Bus Viewer Files” and click OK. The Data Bus
Viewer window displays.
3. Click on the “Select One” pull-down menu, and select the file you want to
playback.
4. Once the file is highlighted/selected, click on Load, and the playback starts.
104
5-12. Action Requests
NOTE: Refer to Action Request menu item section for TCM-specific
requirements about desired Action Request.
Gear Selected
Range
Overall Gear Overall
Requested Requested Range
Gear Commanded
Commanded L 1 2 3 4 5 6
Range
Clutch Test
Diagnostic Trouble Codes
Shift Selector 1 2 3 4 5 6 7
To enable the Clutch Test function (preMY15 TC10 or preMY14 1000-4000):
1. Select the Action Request drop-down menu.
2. Click on the Clutch Test Enabled menu item—the Clutch Test window
displays.
105
3. Select Drive (for the 1000/2000 Product Families) or the highest range
(for the 3000/4000 or TC10 Product Families) from the shift selector. At
this point 1st range is attained and highlighted on the Clutch Test floating
window.
4. Click on the range you want the transmission to attain.
The current range attained is highlighted in the Clutch Test window. A
message displays if Allison DOC® For PC–Service Tool cannot conduct a
clutch test.
5. Before exiting Clutch Test, ensure that the vehicle is in Neutral range.
To enable the Clutch Test function (≥MY15 TC10 or ≥MY14 1000-4000):
1. Select the Action Request drop-down menu.
2. Click on the Clutch Test Enabled menu item—a warning message,
similar to the following, displays.
106
4. The Clutch Test window, similar to following, displays:
5. Select Drive (for the 1000/2000 Product Families) or the highest range
(for the 3000/4000 or TC10 Product Families) from the shift selector. At
this point 1st range is attained.
6. If desired, click on the range you want the transmission to attain.
The current range attained is highlighted in the Clutch Test window. A
message displays if Allison DOC® For PC–Service Tool cannot conduct a
clutch test.
7. If desired, click the Full Main Pressure button to turn on Main Mod
solenoid.
The Full Main Pressure button is highlighted in the Clutch Test window
and the value of “TEST” is displayed for Main Mod Solenoid
Commanded Pressure in the Data Monitor.
107
NOTE: For 4th generation 3000/4000 Product Families, a Transfer Case
Neutral shift inhibit occurs from exiting out of the Clutch Test without re-
selecting Neutral first.
Any selected range in the Clutch Test window will be maintained as long as the
following remain true:
Vehicle speed remains less than approximately 124 mph
Engine speed is less than 2,750 rpm
If either of these cases is exceeded, the TCM will automatically command an up or
down shift as needed to avoid any damage to the transmission hardware. When
both of these criteria have once again been met:
For 1000/2000 product families, a gear must be reselected in the Clutch
Test window
For 3000/4000 or TC10 product families, the gear prior to automatic TCM
intervention will be selected
NOTE: The transmission will maintain the selected range until the TCM
determines that the operational conditions constitute a risk to the
transmission hardware. At this point the TCM will command an up or
downshift to eliminate that condition of risk. The service tool command
(i.e. clutch test) cannot force the transmission to stay in a specific range
under these circumstances.
NOTE: If automatic TCM intervention was initiated and a low range gear
(e.g. 1st, 2nd, 3rd) is in use, selecting a high range gear (e.g. 4 th, 5th, 6th, etc.)
in the Clutch Test window will only be allowed if engine speed is below
1,400 rpm.
All sequential up and down shifts are performed automatically by Allison DOC®
For PC–Service Tool. For example, if 2nd gear is currently in use and 6th gear is
selected in the Clutch Test window, Allison DOC® For PC–Service Tool will
automatically command 3rd, then 4th, then 5th, and finally 6th.
108
NOTE: Commanding 2nd gear from 3rd gear in the Clutch Test window
will only be allowed if the vehicle speed is less than approximately 13
mph. Commanding 1st gear from 2nd gear in the Clutch Test window will
only be allowed if the vehicle speed is less than approximately 7 mph.
While a specific gear is being selected and maintained by the Clutch Test mode, the
TCM will command the TCC ON and OFF, depending on the transmission
operational conditions (i.e. being in Clutch Test mode does not guarantee the
constant application of the TCC). The TCM is always in control of the TCC
application.
NOTE: The Main Mod Solenoid Commanded Pressure data value in the
Data Monitor view shall display “TEST” while full main pressure is
commanded.
5. Click on the Full Main Pressure button again to release full main pressure
control.
Main pressure state is reverted back to previous state and the Full Main
Pressure button is de-selected.
6. Before exiting Full Main Pressure Enable Test, ensure that the vehicle is
in Neutral range.
Solenoid Test
The Solenoid Test provides a means of troubleshooting complaints involving the
transmission solenoids. The Solenoid Test does not test the electrical condition of a
solenoid (solenoid internal resistance, circuit continuity, etc.). Instead, the Solenoid
Test determines the TCM’s ability to command signals to a particular solenoid.
Consequently, depending on the particular test, the user may need to use a
voltmeter to complement the purpose of this feature.
In order to use the solenoid test, the engine speed must be zero. The TCM will not
honor the solenoid test command from the service tool if the engine speed is greater
than zero.
To enable the Solenoid Test function:
1. Select the Action Request drop-down menu.
2. Click on the Solenoid Test menu item—the Solenoid Test dialog box
displays.
110
1000 and 2000, 4th Generation Product Families Solenoid Test
111
To activate the Reset Autodetect function:
1. Select the Action Request drop-down menu.
2. Click the Reset Auto-Detect menu item—the Reset Autodetect Successful
window displays
3. Click OK.
Autodetect will run again after the next normal TCM power-down (i.e. an ignition
cycle is required to complete autodetect reset).
112
Reset SAE J1939 Rx Source Address Information
Reset SAE J1939 SA Information commands the TCM to re-initialize the SAE
J1939 Receive Message Source Address Information.
The SAE J1939 source address information is located in the Read Only Calibration
Information/Constants grid which can be accessed from the Calibration
InformationAdditional Calibration Information button. A source address value of
254 indicates that the source address for this parameter is autodetected. View Data
Bus Viewer to see the autodetected source addresses.
To reset Autodetect SAE J1939 Receive Message Source Address Information:
1. Display the Action Request Menu.
2. Click on the Reset SAE J1939 SA Information menu item—A message
displays indicating that the SAE J1939 SA Information has been reset.
3. Click OK.
113
difference between a real shift and the ideal pattern is significant, the Fast Adaptive
logic is used. This allows the TCM to use drastic changes to the shift parameters in
order to quickly converge the patterns. Once the two patterns meet a convergence
criterion, the TCM switches to slow adaptive, which allows the TCM to fine-tune
the up/down shifts.
The Clear All Shift Adaptive Data forces the TCM to use the Fast Adaptive
algorithm.
To Clear All Shift Adaptive Data:
1. Select the Action Request drop-down menu.
2. Click on the Clear All Shift Adaptive Data menu item—the message
“Clear All Shift Adaptive Data Successful.” displays indicating that the
TCM has been reset to use fast adaptive parameters.
3. Click OK.
NOTE:
The adaptive values displayed in this section are refreshed only
at connection time and after resetting adaptive information. In
order to read current adaptive information, disconnect the
service tool, reconnect it, and then read the values.
For 4th generation controls, the Garage Shift Adaptive
Parameters (Garage tab) resets only the N-2, R-2, and 2-R
adaptive parameters. Consequently, if a given situation requires
resetting all garage shifts, reset the following adaptive
parameters: Garage, R-1, D-R, N-R, and N-1 (tabs).
4. Select the appropriate tab and click on the Reset “x” Shift Adaptive
Parameters button, where “x” is the selected shift.
The Reset Fast Adapt window contains up to eighteen tabs; one for each up/down
shift (in addition to Garage and All shifts) that can be reset to factory values.
The following information displays in the Reset Adaptive Shift Parameters
window:
115
Item Name
The name of the adaptive shift or clutch control parameter.
Value
The numerical value of the parameter.
Units
Unit Of Measure for the parameter value.
The adaptive shift parameters are reset when you click on the RESET SHIFT
ADAPTIVE PARAMETERS button—the message “The adaptive clutch control
parameters have been successfully reset to its factory calibration values and to Fast
Adapt.” displays in the Rest Shift Adaptive Parameters Successful window.
NOTE: Reset Adaptive Shift Parameters does not reset the autodetect
information. If required, use Reset Autodetect Information.
116
4. Fully depress the throttle.
5. Click OK—The Reset Full Throttle Calibration Successful window
displays.
117
Reset Oil Life Monitor
Reset Oil Life Monitor causes the TCM to reset the Prognostics Oil Life Monitor.
To reset the Oil Life Monitor on the TCM:
1. Display the Action Request menu.
2. Click the Reset Prognostics Information menu item.
3. Click the Reset Oil Life Monitor menu item.
4. A dialog box is displayed asking if you are sure you want to reset the Oil
Life Monitor.
118
4. Click the YES button.
5. A confirmation window displays stating that the Filter Life Monitor was
reset successfully.
NOTE: On the 3000/4000 and TC10 product families, the Filter Life
Monitor resets automatically based on the pressure switch reading in the
transmission valve body.
119
4. A window is displayed asking which clutch should be reset.
th
5 Generation
4th Generation
5. Click the number of the clutch to be reset, or click the ALL button to reset
all clutches.
If the ALL button was pressed, a dialog displays asking if the
transmission was overhauled and if the Oil Life Monitor should also be
reset.
120
Engineering Calculations
After the user enters specific vehicle information, the Engineering Calculations
function allows the service tool to calculate and display Converter Speed Ratio,
Vehicle Speed, and Vehicle Acceleration in g’s. The engineering calculation values
are displayed in the Diagnostic Data grid of the Data Monitor and Custom Data
Monitor screens, and are a selectable data parameter for the Strip Chart. The
Engineering Calculation values are lost when Allison DOC® For PC–Service Tool
is disconnected from the transmission.
121
Note: The N/V ratio also calculates Prognostics mileage data. See the
Prognostics section for more details.
Note: Output Speed Acceleration is a value obtained from the TCM and
the divisor is:
Metric Divisor = 35.28
English Divisor =21.96
Enter the required data and press the OK button. The calculated data is added to the
transmission information available for display in the Data Monitor, Custom Data
Monitor, and Strip Chart windows.
122
If the lamp is illuminated and the word “ON” is displayed, the Transmission Fault
Lamp is on. If the lamp is not illuminated and the word “OFF” is displayed, the
Transmission Fault Lamp is off.
Change the status of the fault lamp by clicking the ON or OFF button.
If the lamp is illuminated and the word “ON” is displayed the Reverse
Warning is activated. If the lamp is not illuminated and the word “OFF” is
displayed the Reverse Warning is not activated.
123
4. Change the status of the fault lamp by clicking on the ON or OFF button.
124
If the lamp is illuminated and the word “ON” is displayed the Service indicator is
activated. If the lamp cycles between illuminated and not illuminated and the word
“FLASHING” is displayed, the Service indicator is flashing. If the lamp is not
illuminated and the word “OFF” is displayed the Service indicator is not activated.
4. Change the status of the Service indicator lamp by clicking on the ON or
OFF button.
125
If the lamp is illuminated and the word “ON” is displayed the Reverse
Warning is activated. If the lamp is not illuminated and the word “OFF” is
displayed the Reverse Warning is not activated.
4. Change the status of the fault lamp by clicking on the ON or OFF button.
126
Reset Accelerometer Learning Information (5th Gen)
Reset Accelerometer Learning Information commands the TCM to reset all
accelerometer calculations and TCM orientation detection stored values.
This action request is available for 5th Generation TC10 and ≥MY14 1K-4K TCMs.
127
Accelerometer Learning (5th Gen)
The Accelerometer Learning action request allows the technician to reset
accelerometer installation angle learning or to freeze (lock) accelerometer learning.
This action request is available for 5th Generation ≥MY14 1K-4K and ≥MY15
TC10 TCMs.
128
3. To reset accelerometer installation angle learning:
a. Click on the desired radio button: “Disabled”, “Stopped, Begin”, or
“Forward, Begin”.
NOTE: For Forward Learn, the vehicle will need to complete 3 forward
accelerations during one key cycle
- Ideal conditions are flat, level ground
- Vehicle will need to be able to accelerate in a straight line for at least 3
seconds at full pedal
- After 3 second acceleration, vehicle can be stopped at any rate and
driven normally back to the starting location
Recommend not going to full pedal at any time between
accelerations.
129
NOTE: Necessary conditions before accelerating:
- Engine Running
- Transmission in Forward Range
- Vehicle is stopped for a minimum of 3 seconds
Once these conditions are met (Accelerometer Force Learning State
changes to “Forward, Ready for Launch”), quickly transition to
accelerating the vehicle at full pedal for a minimum of 3 seconds. The
driver must achieve a full pedal acceleration within 1 second of releasing
the brakes. This is necessary to maximize the acceleration for the
vehicle, which will provide the best data for the Force Learn algorithm.
Vehicle must meet the conditions (including the 3 second stop time)
before a subsequent acceleration.
NOTE: Recommendations:
Normal – for most On-Highway and On/Off-Highway vocations.
Slow – for most Off-Highway vocations. If customer is complaining
about fuel economy and it is noticed that the HangingTCM detection
is setting (requires Datalogging the vehicle), first corrective action
should be to change learning rate to Slow AND perform an
Accelerometer Reset.
Frozen – for vehicles that will be in extreme environments (e.g.
mining). If vehicle is to be used in extreme environments or if
changing learning rate to Slow has not alleviated nuisance
HangingTCM detections, change learning rate to Frozen AND
THEN perform a Force Learn.
130
Output Tests (5th Gen)
The Output Tests action request allows the technician to temporarily toggle the
selected output wire’s signal state on and off.
This action request is available for 5th Generation TCMs.
131
3. Click Accept to accept responsibility—the Output Tests window displays:
4. From the Current Output dropdown list, select an output wire to test.
5. Click the On or Off button to test the output wire—the Signal State and
lamp should change accordingly.
NOTE: Continue selecting output wires and On/Off to test wire signal
states as necessary. Select Cancel Test to return all output wires to their
normal state. Select Close to return all output wires to their normal state
and exit out of Output Tests window.
132
To initiate Upload Current TCM Configuration action request:
1. Display the Action Request menu.
2. Click on the Upload Current TCM Configuration menu item—the
Upload TCM Current Configuration window displays.
133
3. Click Upload—the Status box updates with progress information:
134
Read Static Data, the vehicle ignition must be in the “ON” position and Allison
DOC® For PC must be disconnected.
4. Refer to Section 5-1 for selecting a Vendor, Protocol, and Device for a
particular translator device.
5. Click the OK button— a progress window is displayed. This function
captures the data from the TCM.
135
6. When finished, the Enter Comments dialog box displays.
136
driven), or triggered by the user (Trigger button driven). With the default settings,
the tool will automatically trigger the recording of a snapshot when any DTC
becomes active. Snapshot log files have the following characteristics:
Contain all data the Allison DOC® For PC–Service Tool requests.
Regardless of the screens selected/used during the recording session, the
snapshot captures all data the TCM reports to the Allison DOC® For PC–
Service Tool.
Snapshots can be played back only with the Allison DOC® For PC–
Service Tool.
Allison DOC® For PC–Service Tool automatically saves the snapshot
files as .ad/.ad4 files.
Users can playback snapshots by double-clicking on the .ad4 files as long
as Allison DOC® is installed on the PC.
Snapshot files are saved at [AllUsersCommonDocuments]\Allison
Transmission\Allison DOC For PC - Service Tool\Logs.
The length of snapshot files is limited by the amount of available RAM in the PC
and the available storage space on the disk drive.
137
When this Trouble Code appears, remember this session. You must enter a
Trouble Code or select one from the drop-down list. If the Trouble Code
entered occurs, the session is recorded.
When any Trouble Code appears, remember this session. (Default option)
The session is recorded if any Trouble Code occurs.
Remember this session. A Trigger Point gets inserted immediately after
you click OK.
Do not remember this session. Allows starting a recording session when
commanded by the user (i.e. via F5-TRIGGER RECORDING).
5. Click OK.
138
Saving a recording by selecting STOP RECORDING
1. Click the F6 - Stop Recording button or press the F6 key. The Save As
dialog box appears:
2. Enter a name for the snapshot without the extension file. For example,
vehicle123 (do not type vehicle123.zip, or vehicle123.ad, or any other
extension file). The application will automatically assign the file
extension. In this case, the .ad4 extension file.
3. Click SAVE.
139
Saving a recording if Allison DOC® For PC–Service Tool gets closed
If you close the Allison DOC® For PC–Service Tool during a recording session the
following window displays:
NOTE: Annotations can be added and saved with the playback file
through the Strip Chart functionality. Please refer to “Strip Chart
Annotations.”
To playback a snapshot:
1. Select the Snapshot drop-down menu.
2. Select Playback.
3. Select Open Playback File.
NOTE: The VCR control box moves to the lower-right corner of the
screen when the playback file has completed loading and the VCR
controls can be used.
141
Rewind to beginning of file.
Play.
Stop.
Loop—continuous play.
142
Email Playback as Attachment—displays the Compose E-mail window.
NOTE: A playback file that is not loaded can also be e-mailed. Click on
the e-mail menu item in the snapshot menu.
143
If you have not configured your PC for sending Email, click the
CONFIGURATION button—The Email Configuration window displays.
Contact your E-mail Administrator for the correct values to enter for your
configuration.
144
5-16. Exporting
Data contained within a playback file can be exported in a comma-delimited format
to allow for inclusion of that data into an Excel or other spreadsheet. The playback
data can be incorporated into a spreadsheet on the host PC or emailed.
To export data:
NOTE: The export file (.csv) will be saved in the same directory as the
snapshot file.
145
6. Reprogramming TCM
146
6-2. Reprogramming TCM (pre-5th Gen)
NOTE: You must have obtained and entered the proper authorization
code to access this feature and reprogram the TCM/ECU.
147
Accessing the Reprogramming Function
1. Select Reprogram from the main menu bar
NOTES:
1. You must be connected to a transmission in order to display the
Reprogramming screen. If you are playing back snapshots or using a
DEMO file, the reprogramming menu is disabled.
2. If you are connected to a transmission and the Reprogramming menu
option is disabled (grayed-out), it means that you have not enabled or
authorized this section in the tool or that the TCM/ECU is not capable of
being reprogrammed. Refer to section 4-1 for more information on how
to enabled this section in the tool.
3. In addition to #2, the Reprogramming menu option may also be
disabled if connected to a WTEC III or CEC2 transmission using any of
these translator devices without a USB connection:
Noregon Wireless/USB Translator, Wireless
NEXIQ USB-Link, Bluetooth
Dearborn DPA5 Multi-Application (Bluetooth)
148
2. The Reprogram TCM window displays.
149
Print—command button used to print a report that contains current Calibration,
I/O, and CMC information.
Save—saves current configuration. This includes current I/O, CMC, Active
Package and TCM Password selection. Enter a unique name for the saved
configuration. This function is particularly useful when reprogramming multiple
vehicles with the exact same calibration.
Select One—allows the user to select a previously saved configuration from the
drop-down menu.
Delete—deletes a configuration selected from the Select One drop-down menu.
Load—loads a configuration from the Select One drop-down menu.
150
NOTES:
1. If the user disables a wire that is assigned to an enabled function, the
function will only remain enabled if its signal can be received via
communication link. Otherwise, both the wire and function will be
disabled.
2. If the user disables a function, the calibration will cease using that
function regardless of the signals (wire or Databus) being received for
that particular function.
NOTE: Each CMC has a maximum and a minimum limit to which the
value can be changed. This range is displayed in a tool tip. In order to
see that range, place the cursor (do not click) on the Value to modify.
151
Reprogramming Package Assignments
Each calibration group contains several I/O packages. The current Active Package
number is displayed near the center of the Reprogramming window. Available
alternate package numbers are displayed immediately below the current package.
To reprogram the Current Vocation Package number:
1. Click on the pull-down menu.
152
3. If you want to continue, click YES.
4. The tool starts reprogramming the wires. A red status bar is displayed at
the bottom of the TCM Reprogramming window.
5. A window is displayed indicating the wires were successfully
reprogrammed.
6. Click OK.
7. The tool continues the process of reprogramming the CMCs. A red status
bar is displayed at the bottom of the TCM Reprogramming window.
NOTE: If the service tool receives an error message from the TCM (for
example a CMC value is out-of-range), a window (describing the
problem) will be displayed, and the service tool re-displays the
reprogramming screen.
153
8. A window displays indicating the CMCs were successfully
reprogrammed.
9. Click OK.
Reprogramming Status for WTEC II, WTEC III, and CEC2
During the reprogramming function, a status line displays at the bottom of the
reprogramming window.
NOTE: The reprogramming of WTEC II, WTEC III, and CEC2 might
take several minutes. Please be patient and make sure ignition and power
are always provided during this process.
154
The following status messages are displayed for a WTEC III or CEC2
ECU:
Calculating calibration length.
Entering programming mode.
Reading calibration data.
Saving old calibration data.
Calculating CMC checksum.
Erasing calibration data.
Writing calibration data.
Exiting programming mode.
Sending re-initialize auto-detect action request.
Reprogramming Prognostics
Allison 4th/5th Generation Controls allow enabling or disabling Prognostics,
selecting whether to allow the resetting of Prognostics by Allison DOC® only, and
setting the Oil Life Remaining Offset on the TCM.
Enabling or Disabling Prognostics
1. Select Reprogram from the main menu bar.
2. The Reprogram TCM window displays.
3. In the Customer Modifiable Constants section, scroll down to Allison
Prognostic Package.
155
4. Select the value for the Prognostics Package and use the drop down box to
select the desired value.
5. Click the Reprogram TCM button.
6. A Warning dialog displays indicating that the TCM is about to
reprogrammed.
156
7. Click the YES button.
8. A dialog box displays stating that the TCM was reprogrammed
successfully.
9. Click the OK button on any remaining dialog boxes.
10. Click the CLOSE button to exit the Reprogramming TCM function.
157
1. Select Reprogram from the main menu bar.
2. The Reprogram TCM window displays.
3. In the Customer Modifiable Constants section, scroll down to Setting Oil
Life Remaining Offset.
4. Select the value for the Setting Oil Life Remaining Offset and enter the
desired value.
5. Click the Reprogram TCM button.
158
6-3. Reprogramming TCM (5th Gen)
Reprogramming 5th Gen TCMs is similar to reprogramming earlier TCMs.
NOTE: You must have obtained and entered the proper authorization
code to access this feature and reprogram the TCM/ECU.
NOTES:
1. You must be connected to a transmission in order to display the
Reprogramming screen. If you are playing back snapshots or using a
DEMO file, the reprogramming menu is disabled.
2. If you are connected to a transmission and the Reprogramming menu
option is disabled (grayed-out), it means that you have not enabled or
authorized this section in the tool or that the translator device is not
connected with a usb cable. Refer to section 4-1 for more information on
how to enable this section in the tool.
159
2. The Reprogram TCM window displays.
160
Save—saves current configuration. Protected parameters cannot be saved since
they are password protected.
Select One—allows the user to select a previously saved configuration from the
drop-down menu.
Delete—deletes a configuration selected from the Select One drop-down menu.
Load—loads a configuration from the Select One drop-down menu. Note that the
configuration loaded must be compatible with the current vocational model.
Protected Parameters
Unlike earlier models of TCMs, 5th Gen TCMs have protected parameters.
Protected or locked CMCs are those that should only be changed in special
circumstances. These CMCs are programmable from Allison DOC® For PC, but
they require permission from Allison to be updated. Protected parameters are
marked as in the grid either as “locked,” if a password must be entered, or
“unlocked,” if a password has already been entered for it. If the Locked column is
blank, the parameter is not protected and may be reprogrammed at any time. For
more information on protected parameters, see the “Protected Parameters Tab”
description in 4-1.
NOTE: Each CMC has a maximum and a minimum limit to which the
value can be changed. This range is displayed in a tool tip. In order to
see that range, place the cursor (do not click) on the Value to modify.
161
NOTE: Some CMCs have additional restrictions. When such a CMC’s
value is modified, a dialog, similar to the following, will be displayed
describing said restrictions. Please read the information and comply as
necessary.
162
3. The Protected parameters window displays.
163
5. Once the parameter is unlocked, the value will become enabled and the
value changed.
164
2. A warning window displays
165
4. The tool starts reprogramming the parameters.
6. After the connection attempt is complete, the tool will inform you of the
success or failure of the reprogramming attempt.
166
7. Reports
The Allison DOC® For PC–Service Tool Report function allows you to generate
TCM/Transmission information reports. There are two types of reports: The
Diagnostic Reports and the TRANSHEALTH™ Reports. The Diagnostic Reports
data can come from saved Diagnostic Reports, snapshots, or from a real-time
connection. Conversely, the TRANSHEALTH™ Report data comes from saved
TRANSHEALTH™ Reports or from real-time connections. The following table
lists the report sections available for the various transmission control systems.
Controls (1000/2000,
3000/4000, TC10)
CEC2 Controls
4th Generation
1000 and 2000
Controls)
SEM/LRTP & Engine Torque
Information
Auto Detect Information
Shift Inhibits
I/O Wires and Functions
I/O Wires
Customer Modifiable Constants
(includes SEM)
Diagnostic Data
167
3000/4000, and CEC3)
Controls (1000/2000,
3000/4000, TC10)
CEC2 Controls
4th Generation
1000 and 2000
Controls)
Failure Records
Adaptive Shifts
DTC Information
DTC Test
Adaptive Information
Shift Solenoids
Prognostics
TRANSHEALTH™ Report
(excludin (excludin
g TC10) g CEC2)
168
7-1. Diagnostic Reports
The Diagnostic Reports contain the transmission information displayed in Allison
DOC® For PC–Service Tool. The user can select the data to save or print in these
reports.
3. Type a Customer Name and any relevant comments you might want to
add as references.
4. Select any or all of the available Report Sections to save.
5. Click the SAVE button—the Report Name Dialog Box displays.
169
6. Type a unique name for the report.
7. Click the OK button—the report is saved under the name typed in the
Report Name dialog box.
170
3. Select a report from the drop-down list of Saved Reports.
4. Click the LOAD button—the selected report displays in WordPad® or
Notepad®.
171
7-2. TRANSHEALTH™
TRANSHEALTH™ is a special feature that describes the transmission condition at
the time of service. Please refer to the Allison Transmission Extranet for Service
Policy Letter #21 and SIL 1-TR-06 information associated with this feature.
The TRANSHEALTH™ feature is available for the following control systems
only:
WTEC II
WTEC III
1000/2000 Product Families (Pre-4th Generation Controls)
Allison 4th Generation Controls (except CEC3)
Allison 5th Generation Controls (except TC10)
172
Accessing the TRANSHEALTH™ feature
1. Select the TRANSHEALTH™ Report option from the Reports drop-
down menu, or click the F2-TRANSHEALTH™ button, or press the
F2 key.
2. If the user does not have the Reprogramming section enabled, the
TRANSHEALTH™ Monitor is initiated (see the TRANSHEALTH™
Monitor section for more information).
3. If the user has Reprogramming enabled and Prognostics is enabled,
the TRANSHEALTH™ Report feature is initiated (see the
TRANSHEALTH™ Reports section for more information).
4. If the user has Reprogramming enabled and Prognostics is not
enabled, the tool prompts the user to select the TRANSHEALTH™
Monitor or TRANSHEALTH™ Report.
TRANSHEALTH™ Monitor
The TRANSHEALTH™ Monitor is initiated automatically by choosing to run
TRANSHEALTH™ and the user does not have the Reprogramming section
enabled, or by choosing TRANSHEALTH™ Monitor from the prompt if the
Reprogramming section is enabled.
Upon launching the TRANSHEALTH™ Monitor, the following window is
displayed (questions may vary depending on the transmission type):
173
Answer all questions (required) displayed in the Service Checklist, and click the
OK button. The TRANSHEALTH™ Monitor is displayed with the current
transmission condition.
Three transmission conditions are possible in the TRANSHEALTH™ Monitor:
1. If no problems were detected, a window is displayed showing a green
transmission icon and a message stating that no problems were
detected.
174
3. If problems were detected, a window is displayed showing a red
transmission icon and instructions to perform a full
TRANSHEALTH™ report are provided.
TRANSHEALTH™ Reports
1. Select TRANSHEALTH™ Reports. The following window appears,
and the TRANSHEALTH™ General tab is displayed.
175
NOTE: The first time this feature is accessed, you will have to type in
most of the information displayed in the General tab. This initial
information is saved for subsequent uses of this feature. The tool
automatically populates the Date and Tool S/N.
176
2. Select the Vehicle/Transmission tab.
177
4. Select the Service tab.
178
179
TRANSHEALTH™ Report Screen Buttons
Open TRANSHEALTH™ Report—loads and displays a saved report.
180
2. Click the Open TRANSHEALTH™ Report button.
3. Browse to and select the saved TRANSHEALTH™ report file and click
the Open button.
4. The saved TRANSHEALTH™ report is displayed.
181
Three colors denote the “health” of the various parts of the transmission:
Green items indicate no problems were detected
Gray items indicate adaptive shifts have not converged
Red items indicate a potential problem
182
Saving TRANSHEALTH™ Reports
To save a TRANSHEALTH™ Report:
1. Load the saved report to the TRANSHEALTH™ Report screen.
2. Click the Save button—the application automatically assigns the filename
as TransHealth_[timestamp]_[S/N]. dat, where [S/N] is the ECU/TCM
serial number, and [timestamp] is the current time, in
YYYYMMDD_hhmmss format. The filename can be changed. The
application saves the report to [AllUsersCommonDocuments]\Allison
Transmission\Allison DOC For PC - Service
Tool\Reports\TransHealth\[filename].
3. When a report is saved, the application automatically creates a Summary
Report. The Summary Report is saved in the following directory
[AllUsersCommonDocuments]\Allison Transmission\Allison DOC For
PC - Service Tool \Reports\TransHealth\Summary Report.csv.
The Summary report contains all the data from saved TRANSHEALTH™ reports
and can be opened with a spreadsheet application such a Microsoft Excel®. When
a TRANSHEALTH™ report is saved, the application appends an entry (a row) to
the spreadsheet. The data in each row of the spreadsheet is formatted as follows:
Timestamp, File Name, TCM/ECU Serial Number, C1, C2, C3, C4, C5, and C6.
The timestamp is in the “YYYY/MM/DD hh:mm:ss” format. Colors are one of the
following strings, as appropriate: “Red”, “Green”, “Gray”, or “Not Displayed”.
183
7-3. Printing Screens
The Print Screen function of Allison DOC® For PC–Service Tool allows you to
print the screen being displayed.
To print a screen:
Select Print Screen from the Main Menu. The Allison DOC® For PC–Service
Tool screen being displayed prints at the default printer.
184
8. WTEC II/III, CEC2, and CEC1
Control Systems
The WTEC II/III, CEC2, and CEC1 Control Systems section describes Allison
DOC® For PC–Service Tool features and functions that apply to only the WTEC
II/III, CEC2, and CEC1 Control System previous to Allison 4th Generation
Controls.
185
WTEC II/III and CEC2 DTC and General Info View
186
Trouble Code: The DTC related to the information being displayed, “Please call 1-
800-252-5283 for assistance.” is displayed in the Description field for any code that
is unknown to the controller.
Active: Yes or No indicates if the Trouble Code is active or not. When a code is
logged by the ECU and the condition causing the code still exists, that code is said
to be active; otherwise the trouble code is inactive.
Ignition Cycles: The number of times the engine ignition has been turned on since
the problem first occurred.
Events: The number of times the transmission experienced the same problem
indicated by the Trouble Code since the last time codes were cleared from the
ECU.
Description: Describes the Diagnostic Trouble Code and Fault Code.
187
WTEC II/III and CEC2 Diagnostic Data Monitor
188
The WTEC II/III and CEC2 Data Monitor display data in three sections:
Diagnostic Data
Input and Output Wires/Functions
Shift Inhibits.
Diagnostic Data
Diagnostic Data—A brief description of the diagnostic data being
measured.
Value—The value of the associated diagnostic data.
Shift Inhibits
Shift Inhibit Factor—A brief description of the Shift Inhibit Factor being
measured.
Value—The value of the associated Shift Inhibit Factor.
189
CEC1 Diagnostic Data Monitor
For CEC1, the Diagnostic Data Monitor and the Graphic Data Monitor are
combined.
190
WTEC II/III and CEC2 Custom Data Monitor
You may select the information to be displayed in the Custom Data Monitor
window by adding or removing data types to the display.
Data types are added or removed in the Custom Data Monitor data selection
window. The Custom Data Monitor window is the same as the Data Monitor
window, except that only the selected data is displayed.
191
WEC II/III Graphical View
192
ECU Calibration Information
To display current ECU and Calibration information, select the Calibration
Information button.
WTEC II/III and CEC2 ECU Calibration Information
193
WTEC II/III and CEC2 Clutch Test
Enabling Clutch Tests allows clutch pressure testing, stall testing, and other
diagnostic procedures. With Clutch Test enabled, you can use the shift selector to
command reverse, neutral, and any available forward range. Once a range is
commanded, the transmission can be operated in that range, but no shifts will be
commanded unless output speed is less than about 57 rpm. Automatic shifts into
and out of lockup are commanded according to normal calibration parameters.
To enable or disable Clutch Tests:
1. Select the Action Request drop-down menu.
2. Select Clutch Test Enabled—the Request Completed window displays.
3. Click OK.
4. Select the desired range with the shift selector.
When enabled, a check mark appears next to this item in the Action Request menu.
194
WTEC II/III Reset Unadapted Shifts
This action request commands the ECU to replace all adaptive clutch control
parameters in memory with the factory calibration values. At the same time, the
command of this function causes the ECU to:
(1) Use fast adaptive algorithms to adapt clutch control parameters.
(2) Reset all Autodetect parameters
To reset Unadapted Shifts:
1. Select the Action Request drop-down menu.
2. Select Reset Unadapted Shifts—the Caution window displays.
195
WTEC II/III TAC Data Collection
TAC Data collection creates a file with TCM/Transmission information for the
Service Engineering group to interpret. Do not to enable or activate TAC Data
Collection unless requested by an Allison Transmission representative. When
enabled, this function can be used for a limited number of times.
NOTE: The VIN will display if the VIN has been received from the
database. A message displays if an invalid data format is entered.
196
3. Click the OK button. The message “TAC data successfully collected.”
displays when TAC data is collected.
197
9. 1000/2000 (Allison Pre-4th
Generation Controls) Control System
This section describes the Allison DOC® For PC–Service Tool features and
functions that only apply to the 1000/2000/2400 Series™ Allison Pre-4th
Generation Controls system.
3. Click YES and the Reset Adaptive Shift Parameters dialog box displays.
198
The Reset Fast Adapt window contains 10 tabs; one for each shift that can reset
adaptive shift parameters.
The following information displays in the Reset Adaptive Shift Parameters
window:
Item Name
The name of a parameter.
Value
The numerical value of the parameter.
Units
Unit Of Measure for the parameter value—cc (cubic centimeter), kPa (kilopascal),
sec (second).
The adaptive shift parameters are reset when you click on the RESET SHIFT
ADAPTIVE PARAMETERS button—the Reset Shift Adaptive Parameters
Successful window displays. Click the OK button.
199
1000/2000 Throttle Calibration
Throttle Calibration re-initializes the values of throttle sensor input that indicates
closed throttle and full (wide open) throttle. Reset throttle calibration if the throttle
sensor experienced over-travel or under-travel outside of normal operational limits
and within failure limits. The resetting action does not have any effect on throttle
information when such signal is received via J1939 or any other digital
communication link.
To reset full throttle calibration:
1. Select the Action Request drop-down menu.
2. Select Reset Open Throttle Calibration—the Throttle Action window
display
200
Clutch Test
The Clutch Test uses a software tool bar to command a particular range. Fourth and
Fifth range are inhibited if the engine speed is above 1400 rpm and Output Speed is
0 rpm. Enable a Clutch Test by:
1. Selecting Drive (D) on the transmission shift selector.
2. Selecting the Action Request drop-down menu.
3. Selecting Clutch Test—the Clutch Test Tool Bar displays with the current
range highlighted.
4. To select a range from the Clutch Test Tool Bar, click on the desired
range. When the shift or range change is accomplished, the selected
number is highlighted.
5. Disable the Clutch Test by closing the Clutch Test window.
201
10.CEC Control System
202
· Select the When This Malfunction Code appears
remember this session radio button.
· Select a Malfunction Code from the drop-down box.
3. Check the Hard and/or Soft check boxes.
4. Click the OK button.
Reports
Select reports for a CEC controller
NOTE: “Data Monitor” and “Data Bus Viewer” are the only menu
items or screens available for the CEC1 control system.
203
11.Using Allison DOC® For PC–
Service Tool Demos
Allison DOC® For PC–Service Tool Demos allows you to observe and explore
Allison DOC® For PC–Service Tool functions without the service tool being
connected to an ECU/TCM. The initial Demo display is the Trouble Code window
and the Playback Control window. Entering Demo mode breaks any active
connection to an ECU/TCM.
To use the Allison DOC® For PC–Service Tool Demos:
From the horizontal toolbar section, click the button. Demo is also
available in the Help menu—the Choose Demo window displays.
204
Select the demo you would like to view. The selections are:
1000/2000 (5th Gen)
Data from a prerecorded 1000/2000 Allison 5th Generation Controls snapshot
displays, with playback controls.
3000/4000 (5th Gen)
Data from a prerecorded 3000/4000 Allison 5th Generation Controls snapshot
displays, with playback controls.
205
1000/2000 (4th Gen)
Data from a prerecorded 1000/2000 Allison 4th Generation Controls snapshot
displays, with playback controls.
3000/4000 (4th Gen)
Data from a prerecorded 3000/4000 Allison 4th Generation Controls snapshot
displays, with playback controls.
WTEC II
Data from a prerecorded WTEC II snapshot displays, with playback controls.
WTEC III
Data from a prerecorded WTEC III snapshot displays, with playback controls.
CEC2
Data from a prerecorded CEC2 Off-Highway snapshot displays, with the playback
controls.
CEC
Data from a prerecorded CEC1 snapshot displays, with the playback controls.
TC10
Data from a prerecorded TC10 snapshot displays, with the playback controls.
End Demo execution by clicking on the Close File “X” in the playback control
window.
206
12.HELP System
Allison DOC® For PC–Service Tool contains an extensive multi-media help
system. Access the help system by clicking on Help in the main tool bar or by
pressing ALT then H keyboard keys—the Help Topics menu displays.
What’s New
Displays the What’s New document which details the changes in Allison DOC®
For PC–Service Tool since the previous release.
User Guides
Displays a list of available Allison DOC® For PC–Service Tool User Guides
which contain extensive and detailed information about every section and feature in
the service tool. Select the desired User Guide to launch it.
207
Allison DOC® Training Videos
Launches the Allison DOC® For PC–Service Tool Advanced Help. These Training
Videos are multimedia videos that run in a window on your PC and provide an
excellent reference of how to navigate and use Allison DOC® For PC–Service
Tool.
Download language specific videos and application updates from within this
separate application.
Demo
Allison DOC® For PC–Service Tool provides data display demonstrations for
Allison 4th/5th Generation Controls 1000/2000 and 3000/4000 systems, WTEC II,
WTEC III, CEC2, CEC1, and TC10 control systems. The Demos allow you to
practice the various methods of data display without requiring connection to an
active ECU/TCM. Refer to Section 11 for more information.
DTC Lookup
Displays the Trouble Code Lookup window for various transmission control
systems.
Troubleshooting Manuals
Allows the user to open the Troubleshooting Manual of every control system
supported by the Allison DOC® For PC Service Tool.
208
Technician’s Library
Allows the user to open a document from the Technician’s Library.
209
Access To Allison Transmission Web Site (requires an
Internet connection)
Connects, via the Internet, to the Allison Transmission web site at
www.allisontransmission.com.
Hydraulic Schematics
Displays hydraulic schematics for the following control systems:
Allison 4th/5th Generation Controls 1000/2000 Product Families—1000/2000 Hydro
Schematics (4th/5th Generation)
Allison 4th/5th Generation Controls 3000/4000 Product Families—3000/4000 Hydro
Schematics (4th/5th Generation)
WTEC Control system—WTEC Hydro Schematics
1000/2000/2400 Series™ Product Families—1K2K Hydro Schematics.
A hydraulic schematic for each range can be displayed, selecting the desired range
on the range bar. Hydraulic and electrical failures can also be simulated, by
clicking on a solenoid or hydraulic valve. Menus are also available to change
transmission models, highlight hydraulic paths, print schemes, and more.
210
3000/4000 4th/5th Generation Hydraulic Schematic
211
Allison Transmission Calc
Displays the Allison Transmission Calculation application.
212
Configure Internet Connection
Displays the Internet Connection Configuration settings.
By default, Allison DOC® For PC will attempt to use your system’s Internet
Explorer settings for accessing the Internet. If your organization uses a proxy
server, uncheck the “Use Internet Explorer Settings” checkbox and enter your
proxy information in the available boxes.
Consult your network administrator for questions regarding proxy settings.
213
Display Activation License Information
Displays the activation code and all licenses currently activated on the system.
214
Adding Licenses
To add additional licenses and capabilities to Allison DOC® For PC, click the Add
New License Key button.
If necessary, enter in the Certificate ID, which is included with License Key
information.
Enter the new license key in the New License Key box and click the Add New
License Key button.
Click the Activate Licenses button to activate the new license key and associated
capabilities.
215
After successfully activation, new packages may need to be downloaded to keep
your system up-to-date.
216
Reactivate Immediately
Attempts to reactivate the Allison DOC® For PC application immediately using
the license key(s) currently in use on the system.
This function can be useful if the PC has been disconnected from the Internet and is
nearing the end of the reactivation period as noted in the status bar.
217
13.Diagnostic Data Definitions
This section contains definitions for some parameters displayed in Allison DOC®
For PC–Service Tool. The list of definitions is grouped in sections as displayed on
the tool.
Indicates the maximum engine speed that the TCM will allow the PTO to
engage. If the engine speed is greater than this value, the TCM will not
allow PTO engagement. PTO must be interfaced with TCM.
218
Max Engine Speed for PTO Operation
Indicates the maximum engine speed that the TCM will allow the PTO to
operate. If the engine speed is greater than this value, the TCM will
deactivate the PTO operation. PTO must be interfaced with TCM.
Indicates the maximum transmission output speed that the TCM will allow
the PTO to engage. If the transmission output speed is greater than this
value, the TCM will not allow PTO engagement. PTO must be interfaced
with TCM.
Indicates the maximum transmission output speed that the TCM will allow
the PTO to operate. If the transmission output speed is greater than this
value, the TCM will deactivate the PTO operation. PTO must be interfaced
with TCM.
219
TCC Engagement (Turbine) Speed
Indicates the transmission turbine speed at which the TCM will engage the
torque converter clutch during PTO operation. If the transmission turbine
speed is lower than this value, the transmission will operate the PTO in
torque converter mode. PTO must be interfaced with TCM and PTO Enable
function must be enabled.
The transmission output speed above which the TCM will not allow
automatic neutral (TCM single Input function) engagement. PTO must be
interfaced with TCM.
NOTE: This CMC only affects (consequently, it is only applicable to) the
Automatic Neutral Single Input function, as opposed to Automatic Neutral
Dual Input function (Automatic Neutral Refuse Packer). For the CMC that
manages the Auto Neutral Dual Input, refer to Auto Neutral for Refuse
Packer—Output Speed For Auto Neutral for Refuse Packer CMC.
220
Engine Speed to Turn Output ON
Indicates the engine speed above which the PTO Overspeed Indicator
(TCM Output function) will be activated (turned ON). The TCM will
maintain the PTO Overspeed Indicator ON until the engine speed is
reduced to a value that turns it Off (PTO Overspeed Indicator—Engine
Speed to Turn it OFF). PTO must be interfaced with TCM.
Indicates the range that the TCM will try to attain using elevated downshifts
points during an Engine Brake operation.
221
Engine Brk Pre-Select Option
Indicates the preselect shift schedule that the TCM uses when the Engine
Brake and Preselect Request (TCM Input function) is activated. There are
two possible options: Standard and Alternate Engine Brake/Retarder.
Standard: Downshifts will occur at the speed values specified in the
“Preselect” (or “Low Preselect”) section of the calibration shift schedule
reports (TCM Reflashing–PCCS).
Alt E-Brk/Retarder: (Low or Alternate) downshifts will occur at
approximately half-way between normal closed throttle downshifts and the
preselect shift points described above. For exact values, refer to the
calibration shift schedule reports (TCM Reflashing–PCCS).
Selected Ranges
Group Product Family Units
Range Indicator 1000/2000 and 3000/4000 Ranges
Contains the range (or group of ranges) that once commanded by the TCM
and attained by the transmission—the Range Indicator (TCM output
function) becomes active (turned ON). This function remains active (ON)
until a shift to a range not specified in this CMC is commanded.
222
Speed to Turn Output ON
223
Speed to Turn Output ON
224
Engine Speed to Turn it ON
Indicates the engine speed above which the Engine Overspeed Indicator
(TCM Output Function) will be activated (turned ON). The Engine
Overspeed Indicator will remain active until the engine speed is reduced to
a value that turns it Off (Engine Overspeed Indicator—Speed to Turn it
OFF).
225
Flash when Hot Oil Capacity Reduction Active
226
Flash when Eng. Coolant Capacity Reduction Active
227
Engine Temp to Flash Output —Reduction Active
228
Engine Temp difference to Flash Output—Hysteresis
When the engine coolant temperature is less than the associated Engine
Temp to Flash Output—Reduction active CMC or Engine Temp to Flash
Output—Preselect active CMC minus this hysteresis value, a request is
made to stop flashing the Sump Temperature Indicator (TCM Output
function) On/Off, because the engine coolant temperature is no longer
forcing the TCM to activate the Retarder Capacity Reduction or the
Preselect shift schedule.
When the transmission is operating in primary mode, this CMC defines the
forward range that the TCM will command after the vehicle operator selects
any forward range and activates D1 Selection (TCM Input function).
229
Secondary Fwd. Shift Selector Position
Indicates how the TCM is setup to receive the signal source for the throttle.
If set to Autodetect, the TCM activates logic that automatically selects the
best source for the Throttle signal. Conversely, any of the other options
forces the TCM to only accept throttle from the selected source.
230
Override Engine Coolant Source
Indicates how the TCM is setup to receive the signal source for engine
coolant temperature. If set to Autodetect, the TCM activates logic that
automatically selects the best source for the engine coolant signal. Any of
the other options forces the TCM to only accept engine coolant from the
selected source.
NOTE: In some calibrations, this parameter is set by the TCM calibration
only and may not be changed by the service tool. In these cases, the
calibration value is presented in the list of CMCs for informational
purposes only.
231
Override Retarder Autodetect
Indicates the engine coolant temperature above which the TCM activates
the Retarder Capacity Reduction (a special condition in which the TCM
modifies the retarder solenoid command to compensate for either high oil
temperature or high engine temperature). The applicability of this CMC
depends on the enable/disable status of the Retarder Parameters—Retarder
Capacity Reduction Enable for Hot Coolant CMC.
232
Eng. Coolant Temp to invoke Retarder Auto Preselect
Group Product Family Units
Retarder Parameters 3000/4000 °F / °C
Indicates the engine coolant temperature above which the TCM activates
the Preselect Downshift schedule, as opposed to the normal Retarder
schedule. The applicability of this CMC depends on the enable/disable
status of the Retarder Parameters—Preselect Shift Points Enable for Hot
Coolant CMC.
Retarder Accumulator
Group Product Family Units
Retarder Parameters 3000/4000 Used, Not
Used
233
Retarder Capacity Level
Indicates the retardation capacity level (Low, Medium, or High) that the
TCM is set up to use on the installed retarder.
NOTE: This parameter is set by the TCM calibration and may not be
changed by the service tool. The calibration value is presented in the list of
CMCs for informational purposes only.
234
Engine Speed Neutral To Range Inhibit
Indicates the maximum engine speed above which Neutral to Range shifts
will be inhibited.
NOTE: This parameter is set by the TCM calibration and may not be
changed by the service tool. The calibration value is presented in the list of
CMCs for informational purposes only.
Indicates the maximum engine speed above which the TCM will prevent
the Neutral Indicator for PTO (a TCM Output function) from coming On.
NOTE: This parameter is set by the TCM calibration and may not be
changed by the service tool. The calibration value is presented in the list of
CMCs for informational purposes only.
235
Output Speed for Neutral Indicator for PTO
Indicates the maximum transmission output speed above which the TCM
will prevent the Neutral Indicator for PTO (a TCM Output function) from
coming On.
The transmission output speed above which the TCM will not allow
automatic neutral (TCM dual Input function) engagement.
NOTE: This CMC only affects the Automatic Neutral Dual Input function
(Automatic Neutral Refuse Packer), as opposed to Automatic Neutral
Single Input function. For the CMC that manages the Auto Neutral Single
Input refer to Auto Neutral Engage—Max Output Speed For Neutral
Engage CMC.
236
Brake Based Automatic Neutral Preselect Range
The TCM will limit the transmission to a maximum of this CMC range
when the TCM receives the operator request for Brake Based Auto Neutral,
but the transmission is not yet in the Auto Neutral State.
When the transmission is operating in primary mode, this CMC defines the
preselected forward drive range that the TCM commands the transmission
to downshift to when the Preselect Request function is activated. The
transmission lockup clutch must be engaged for this function to be enabled.
237
Allison Prognostic Package
Indicates whether the service tool is the only means to reset prognostics.
238
Oil Life Remaining Offset
This value will be added to the Oil Life Remaining value reported by the
TCM; use this when installing a new TCM.
This value will be added to the Filter Life Remaining value reported by the
TCM; use this when installing a new TCM.
Specifies whether the TES oil type can be reset outside of Allison DOC®
For PC.
239
TES Oil Type
Select calibrations will provide customers with Load Based Shift Schedule
information.
240
LBSS Store Schedule at Powerdown
241
13-2. Customer Modifiable Constants (CMC) – 5th
Gen
The following tables contain general definitions for the Allison 5th Generation
Controls Customer Modifiable Constants (CMC). Not all the CMCs defined in this
section will be available in every calibration. Depending upon the calibration (I/O
package and vocation), some of these CMCs will not be available.
Indicates the maximum engine speed that the TCM will allow the PTO to
engage. If the engine speed is greater than this value, the TCM will not
allow PTO engagement. PTO must be interfaced with TCM.
NOTE: Maximum Engine Speed for Engagement must be set to
less than or equal to Operation. If this rule is violated,
Reprogram TCM is not allowed.
242
PTO Drive Interface 1: Max Engine Speed for PTO Operation
Indicates the maximum engine speed that the TCM will allow the PTO to
operate. If the engine speed is greater than this value, the TCM will
deactivate the PTO operation. PTO must be interfaced with TCM.
NOTE: Maximum Engine Speed for Engagement must be set to
less than or equal to Operation. If this rule is violated,
Reprogram TCM is not allowed.
Indicates the maximum transmission output speed that the TCM will allow
the PTO to engage. If the transmission output speed is greater than this
value, the TCM will not allow PTO engagement. PTO must be interfaced
with TCM.
NOTE: Maximum Output Speed for Engagement must be set to
less than or equal to Operation. If this rule is violated,
Reprogram TCM is not allowed.
243
PTO Drive Interface 1: Max Output Speed for PTO Operation
Indicates the maximum transmission output speed that the TCM will allow
the PTO to operate. If the transmission output speed is greater than this
value, the TCM will deactivate the PTO operation. PTO must be interfaced
with TCM.
NOTE: Maximum Output Speed for Engagement must be set to
less than or equal to Operation. If this rule is violated,
Reprogram TCM is not allowed.
244
PTO Drive Interface 1: Torque Limit
Group Product Family
PTO Enable 1000/2000, 3000/4000, TC10
245
PTO Drive Interface 2: Max Engine Speed for PTO Engage
Indicates the maximum engine speed that the TCM will allow the PTO to
engage. If the engine speed is greater than this value, the TCM will not
allow PTO engagement. PTO must be interfaced with TCM.
NOTE: Maximum Engine Speed for Engagement must be set to
less than or equal to Operation. If this rule is violated,
Reprogram TCM is not allowed.
Indicates the maximum engine speed that the TCM will allow the PTO to
operate. If the engine speed is greater than this value, the TCM will
deactivate the PTO operation. PTO must be interfaced with TCM.
NOTE: Maximum Engine Speed for Engagement must be set to
less than or equal to Operation. If this rule is violated,
Reprogram TCM is not allowed.
246
PTO Drive Interface 2: Max Output Speed for PTO Engage
Indicates the maximum transmission output speed that the TCM will allow
the PTO to engage. If the transmission output speed is greater than this
value, the TCM will not allow PTO engagement. PTO must be interfaced
with TCM.
NOTE: Maximum Output Speed for Engagement must be set to
less than or equal to Operation. If this rule is violated,
Reprogram TCM is not allowed.
Indicates the maximum transmission output speed that the TCM will allow
the PTO to operate. If the transmission output speed is greater than this
value, the TCM will deactivate the PTO operation. PTO must be interfaced
with TCM.
NOTE: Maximum Output Speed for Engagement must be set to
less than or equal to Operation. If this rule is violated,
Reprogram TCM is not allowed.
247
PTO Drive Interface 2: Lockup Engagement Speed
248
PTO Drive Interface 2: Drive Ratio
249
Automatic Neutral – Brake-Based Automatic Neutral (BBAN)
Preselect Range
Group Product Family
Automatic Neutral Engage 1000/2000, 3000/4000, TC10
250
Automatic Neutral – Dual Input with Automatic Return-to-Range
251
Engine Overspeed Indicator: Turn On Speed
Indicates the engine speed above which the Engine Overspeed Indicator
(TCM Output function) will be activated (turned ON). The TCM will
maintain the Engine Overspeed Indicator ON until the engine speed is
reduced to a value that turns it Off (Engine Overspeed Indicator—Engine
Speed to Turn it OFF).
NOTE: Turn Off Speed must be set to less than Turn On Speed.
If this rule is violated, Reprogram TCM is not allowed.
Indicates the engine speed below which the Engine Overspeed Indicator
(TCM Output Function) will be turned OFF. The TCM will maintain the
Engine Overspeed Indicator OFF until the engine speed is increased to the
value that turns it ON (Engine Overspeed Indicator—Engine Speed to Turn
it On).
NOTE: Turn Off Speed must be set to less than Turn On Speed.
If this rule is violated, Reprogram TCM is not allowed.
252
Engine Brake Interface: Engine Brake Preselect Range
Indicates the range that the TCM will try to attain using elevated downshifts
points during an Engine Brake operation.
Sets the preselect range to be invoked when the engine brake is active.
Downshifts to the preselect range will occur at higher than normal engine
speeds.
253
Engine Brake Interface: Alt Engine Brake Preselect Range
Range Indicator
Contains the range (or group of ranges) that once commanded by the TCM
and attained by the transmission—the Range Indicator (TCM output
function) becomes active (turned ON). This function remains active (ON)
until a shift to a range not specified in this CMC is commanded.
254
Output Speed Indicator A: Turn On Speed
Group Product Family
Output Speed Indicator A 1000/2000, 3000/4000, TC10
255
Retarder Interface
Sets the inputs that may be used to activate the retarder. Indicates if the
inputs are enabled.
Allows the TCM to make preselect shifts in order to increase fan speed and
coolant flow when engine coolant temperature is hot. Indicates if the engine
coolant temperature based preselects are enabled.
256
Retarder: Engine Coolant Temperature (ECT) Based Preselect Range
257
Retarder: Engine Coolant Temperature (ECT) Based Capacity
Reduction
Group Product Family
Retarder Parameters 3000/4000
Allows the TCM to reduce retarder output when engine coolant temperature
is hot. Indicates if the retarder engine coolant temperature based capacity
reduction is enabled.
Retarder
258
Two-Speed Axle Interface: Maximum Output Speed Allowed for
Shifting
Group Product Family
Two-Speed Axle Enabled 1000/2000 and 3000/4000
Indicates if the neutral indicator for PTO and PTO request is enabled.
259
Prognostics
260
Prognostics: Allow Reset via Shift Selector Mode Button
This value will be added to the Oil Life Remaining value reported by the
TCM; use this when installing a new TCM.
Ignition must be cycled after modifying this value.
261
Transmission Filter Life Remaining Offset
This value will be added to the Filter Life Remaining value reported by the
TCM; use this when installing a new TCM.
Ignition must be cycled after modifying this value.
Sets how available the lower shift speed schedule will be: 'LOW',
'MEDIUM', or 'HIGH'. Low means that a very light load or grade will put
the transmission into the Performance mode. High availability of Economy
mode means that a much higher payload or grade would be required before
switching to the Performance mode.
262
Lower Shift Speed Schedule Shift Schedule Designation
Sets how available the Economy shift schedule will be: 'LOW', 'MEDIUM',
or 'HIGH'. Low means that a very light load or grade will put the
transmission into the Performance mode. High availability of Economy
mode means that a much higher payload or grade would be required before
switching to the Performance mode.
263
LBSS Economy Shift Schedule Designation
264
Secondary Mode Indicator
265
Shift Selectors: Shift Selector 2
266
Oil Level Sensor
Preselect Strategy
Indicate the requested range for primary mode for preselect request 1 input.
267
Preselect Request 1 Input: Request Range for Secondary Mode
Indicate the requested range for secondary mode for preselect request 1
input.
Sets the accelerator pedal conditions under which a preselect request will be
honored, at all accelerator pedal positions or only at near zero accelerator
pedal positions.
268
Preselect Request 2 Input: Request Range for Primary Mode
Indicate the requested range for primary mode for preselect request 2 input.
Indicate the requested range for secondary mode for preselect request 2
input.
Sets the accelerator pedal conditions under which a preselect request will be
honored, at all accelerator pedal positions or only at near zero accelerator
pedal positions.
269
Automatic Level of Preselect Range during Engine Brake
Determines the amount of automatic range selection when the service brake
is active during exhaust brake operation.
Grade Braking utilizes the engine to slow a vehicle in order to reduce wear
on the traditional braking system by overriding the shift selector position,
effectively preselecting the next lower gear automatically.
270
Grade Braking Level
271
Alternate Gear Start – Automatic Selection Bias
Indicates the automatic selection bias for the alternate gear start.
272
Reverse Inhibit with Preselect Request: Preselect Range
Indicates the preselect range for reverse inhibit with preselect request.
273
The following are read-only calibration information. They cannot be modified by
the customer. Like the CMCs, depending upon the calibration (I/O package and
vocation) some of this information will not be available.
If '4 CYLINDER ENGINE' is selected, there are rules that apply to Neutral
Lockup for PTO (if applicable) to limit engine torsional vibrations.
'OTHER' is selected if the engine has 6 or 8 cylinders or 3000/4000.
274
Neutral-To-Range Assist (NRA)
275
Secondary Mode: Shift Schedule
276
Engine Coolant Temperature (ECT) Source
Sets the value used to calculate engine torque limit that the engine should
use if datalink communication is ever lost with the TCM.
277
Output Torque Limiting Reverse Output Torque
Sets the limit invoked by the TCM for all operations except those limited to
a lower limit by T-Case Low Output Torque Limit or Reverse Output
Torque Limit.
Torque Converter
Group Product Family
Read Only 1000/2000, 3000/4000, TC10
278
OFS Pump Mode Throttle Input
279
Power Divider Input
280
Range Inhibit Indicator: Enable Bulb Check On GPO AD
281
J1939 SA: CCVS1 Cruise Control Active
282
J1939 SA: CCVS1 Parking Brake Switch
283
J1939 SA: DPFC1 Diesel Particulate Filter Active Regeneration Status
284
J1939 SA: EBC1 Engine Retarder Selection
285
J1939 SA: EBC2 Accelerator Pedal Position 1
286
J1939 SA: EEC2 DPF Thermal Management
287
J1939 SA: EEC2 SCR Thermal Management
288
J1939 SA: PTODE Enable Switch – Transmission Input Shaft PTO 1
289
J1939 SA: PTODE Enable Switch – Transmission Output Shaft PTO 1
290
J1939 SA: TC1 Transmission Mode 3
291
J1939 SA: TC1 Transmission Reverse Gear Shift Inhibit Request
292
DC-to-DC CONVERTERS: Number Installed
FuelSense
293
13-3. SEM/LRTP
Depending on the TCM’s SEM/LRTP configuration (indicated by Auto
Select Configuration), the transmission controller conducts a series of tests
to determine the SEM/LRTP enabling status. These tests are only
performed when new TCM software is loaded into a TCM and/or when the
tool resets SEM Autoselect (refer to Reset SEM Auto-Select action
request).
In order to “pass” the SEM/LRTP Autoselect tests, the TCM must detect an
Allison-validated/certified engine, and the engine must support—and react
correctly—to all J1939 messages and parameters required by SEM/LRTP.
Otherwise, the SEM/LRTP Autoselect tests would “fail.”
294
SEM Required—Indicates that the
TCM is calibrated to use SEM. In
this configuration, if any of the
SEM Autoselect tests fails, the
TCM will log DTCs. The LRTP,
however, would only be enabled if
the engine meets the requirements
to activate LRTP.
SEM and LRTP Required—
indicates that the TCM is calibrated
to use both SEM and LRTP. In this
configuration, if any of the
SEM/LRTP Autoselect tests fails,
the TCM will log DTCs.
LRTP Required—Indicates that the
TCM is calibrated to use LRTP. In
this configuration, if any of the
LRTP Autoselect tests fails, the
TCM will log DTCs. The SEM,
however, would only be enabled if
the engine meets the requirements
to activate SEM.
Description:
Indicates how the calibration is set up with respect to enabling or requiring
SEM/LRTP.
295
Engine Hardware Status
296
SEM Enabled Status
Description:
Indicates the SEM enable/disable status in the TCM calibration.
297
LRTP Enabled Status
Description:
Indicates the LRTP enable/disable status in the TCM calibration.
298
SEM/LRTP Compatibility
Description:
Indicates whether the TCM calibration has determined that the engine calibration is
compatible (or not) with the SEM/LRTP requests.
Note: If the TCM Calibration is configured to never use SEM/LRTP (indicated by
Auto Select Configuration = Force SEM/LRTP Off), this parameter is not
applicable at all. Consequently, when such configuration exists, the value of this
parameter (i.e. Compatible or Not Compatible) is completely irrelevant.
299
SEM Validated
Description: Indicates whether the TCM has determined that the engine controller
supports (or not) SEM.
300
LRTP Validated
Description: Indicates whether the TCM has determined that the engine controller
supports (or not) LRTP.
301
SEM Torque Reduction Status
Description:
Reflects current status of the SEM request/response activity between the TCM and
the engine controller.
302
Unapproved SEM Torque Reducing Device
303
LRTP Torque Reduction Status
Description:
Reflects current status of the LRTP request/response activity between the TCM and
the engine controller.
304
Unapproved LRTP Torque Reducing Device
305
Maximum Engine Torque Allowed during loss of J1939 ECM/TCM
Communication
Description:
Indicates the maximum torque the engine would be allowed to produce when the
J1939 communication is interrupted between the TCM and the engine controller.
306
9 (Complete, no SEM)—Indicates
that the Autodetect process has
been completed, and conditions
are not the required to enable
SEM.
13 (Complete, SEM active)—
Indicates that the Autodetect
process has been completed, and
SEM is enabled/active.
X (Unknown)—Indicates that
currently the ECU does not
know the status of SEM
information. “X” could be any
number different from 1, 3, 9,
and 13.
Description:
Indicates current status of SEM in the ECU calibration.
307
13-4. Accelerometer
Accelerometer State
Description:
Used to help determine current conditions for accelerometer algorithm.
308
Accelerometer Force Learning State
Description:
Used to quickly learn the installation orientation of the accelerometer.
There are two parts to the force learn algorithm: learning at a stop, learning
while moving. These parts can be done in any order and it is NOT
necessary to complete both parts either during one key cycle or at all. That
is, the two parts can be learned on separate key cycles (including days
apart, with interim driving) or just one of the parts can be completed. As
long as Accelerometer Force Learning Rate is not set to Frozen, the
accelerometer algorithm will continue to learn. The purpose of the Force
Learn process is use controlled conditions to allow for faster accelerometer
learning. Typical driving is less controlled, thus it is a slower process.
Note that most vehicles will complete their initial learning during the first 6
hours of use.
309
Accelerometer Force Learning Rate
310
Accelerometer Filtered Percent Grade
Description:
Current grade measurement by the accelerometer algorithm. Used to help
determine if a learning reset is necessary (should be within 1% of actual).
Description:
Current cross slope measurement by the accelerometer algorithm. Used to
help determine if a learning reset is necessary (should be within 1% of
actual).
311
