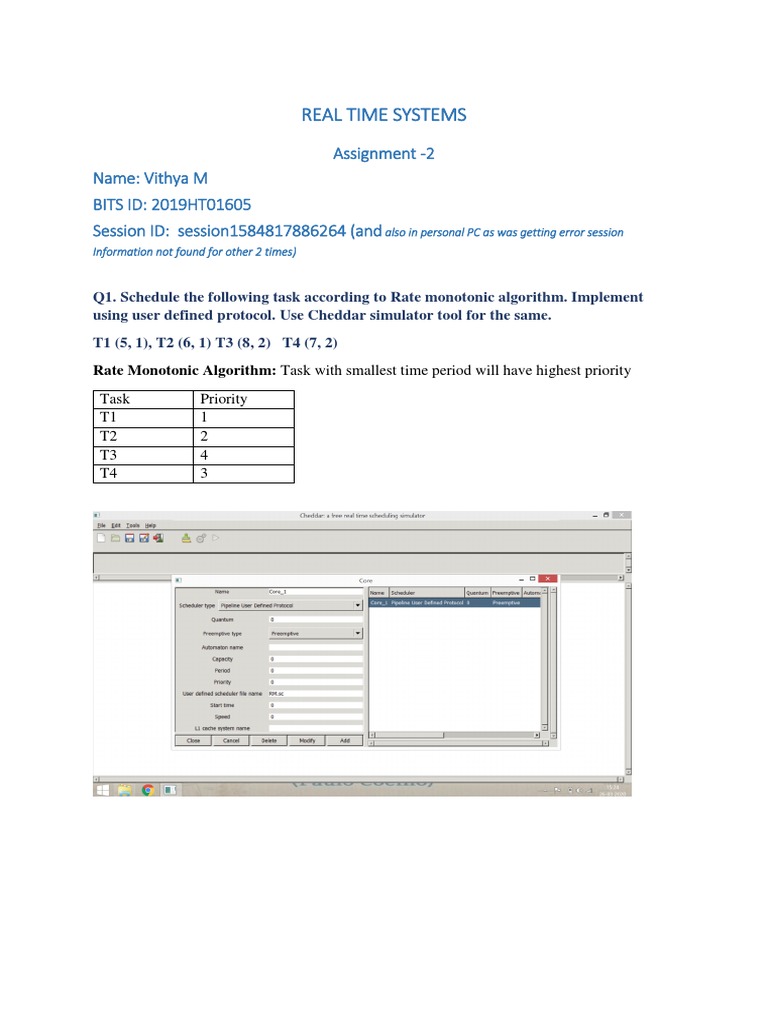

REAL TIME SYSTEMS

Assignment -2
Name: Vithya M
BITS ID: 2019HT01605
Session ID: session1584817886264 (and also in personal PC as was getting error session
Information not found for other 2 times)

Q1. Schedule the following task according to Rate monotonic algorithm. Implement
using user defined protocol. Use Cheddar simulator tool for the same.
T1 (5, 1), T2 (6, 1) T3 (8, 2) T4 (7, 2)
Rate Monotonic Algorithm: Task with smallest time period will have highest priority
Task Priority
T1 1
T2 2
T3 4
T4 3
Non-Pre-emptive:

The tasks are schedulable using Non pre-emptive Rate Monotonic Algorithm, but not
schedulable using Pre-emptive Rate monotonic algorithm.
Q2. (Use Cheddar simulator)Consider three periodic tasks, synchronous and with
deadlines on request: tasks T1, T2 and T3. They are defined as follow:

 Task T1 : Period=Deadline=6, Capacity=2, Start time = 0

 Task T2 : Period=Deadline=8, Capacity=2, Start time = 0
 Task T3 : Period=Deadline=12, Capacity=5, Start time = 0

Assume a pre-emptive fixed priority scheduling policy and apply Rate Monotonic to
assign priorities. Assume that tasks T1 and T3 share a resource named S. T1 and T3
access to S in mutual exclusion:

 T3 needs S during all its capacity.

 T1 needs S during the 2nd unit of time of its capacity only.
 First keep the resource protocol as No protocol.

a)In this time line, find when tasks T1 and T2 lock and unlock S. From this time line,
can we see priority inversions? Where?

Priority inversion occurs at time t=7; as T1 wants resource but the resource is already locked
by T3, So a low priority task is executed with high priority task waiting.

TASK LOCK UNLOCK

T1 t=1 t=2
T2
T3 t=4 t=12

At time, t = 6 :T1 is released and executes for 1 unit time, at t=7 T1 requests for resource but
it is locked with T3 so T1 is pre-empted by T3. High priority job waits for low priority job to
execute (priority Inversion).
B) Identify the critical sections for the various tasks.

Critical section: Time the resource is locked

JOBS CRITICAL SECTION

Task 1 [S;1]
Task 2
Task 3 [S;5]

C) Change S protocol by Priority Inheritance Protocol (or PIP), and compute again the
scheduling simulation. With PIP, find task which blocks another with a higher priority,
runs its critical section with the blocked task priority. What can we see in this new
scheduling simulation about the shared resource? Say at which time the priorities of the
tasks change due to PIP.

At time t=7, priority inherited

Time t0: T1 executes

Time t1: T1 requests for resource and locks resource

Time t2: T1 completes execution and releases resource. T2 starts execution

Time t4: T2 completes execution and T3 starts and locks resource S

Time t6: T1 is released and starts execution

Time t7: T1 requests for resource and is blocked, so T3 inherits the priority

Similarly at time t=19 priority is inherited

Q3. There are 3 tasks J1, J2 and J3 scheduled according to Rate monotonic algorithm.
The feasible interval of these tasks are (6,10], (2,12], (0, 14] respectively. The critical
sections [R; 3], [R; 2.5], [R; 2.5] for jobs 1, 2, 3. Execution times of these jobs are 4, 6
and 5 times slots respectively. Draw the scheduling diagram and find the time instants
where the priorty inversion occurs. The jobs require resources after 1 time slot after
start of the execution.

Rate Monotonic Algorithm: Task with smallest time period will have highest priority
TASK FEASIBLE EXECUTION PRIORITY CRITICAL
INTERVAL TIME SECTION
J1 (6,10] 4 1 [R;3]
J2 (2,12] 6 2 [R;2.5]
J3 (0,14] 5 3 [R,2.5]

Note: Several tasks misses deadline

T0: J3 is release and starts executing

T1: J3 requests for resource and locks resource

T2: J2 is released and starts executing

T3: J2 requests for resource but as it is locked with J3, J2 gets pre-empted and J3 continues
execution till completion. (High priority job pre-empted by low priority job – Priority
Inversion)

T4.5: J3 completes execution and execution of J2 starts

T6: J1 is released and starts execution

T7: J1 requests for resource but gets pre-empted as the resource is locked with J2 (priority
Inversion Point)

T8: J1 locks resource and continues execution

T11: J1 completes execution and now J2 resumes the remaining execution

T13.5: J2 completes execution and J3 resumes the remaining execution

T14: J2 is released so J3 is pre-empted by J2

T15: J2 locks the resource

T16: J1 is released and starts execution

T17: J1 requests for resource but locked with J2, so gets pre-empted by J2 (priority
inversion)
