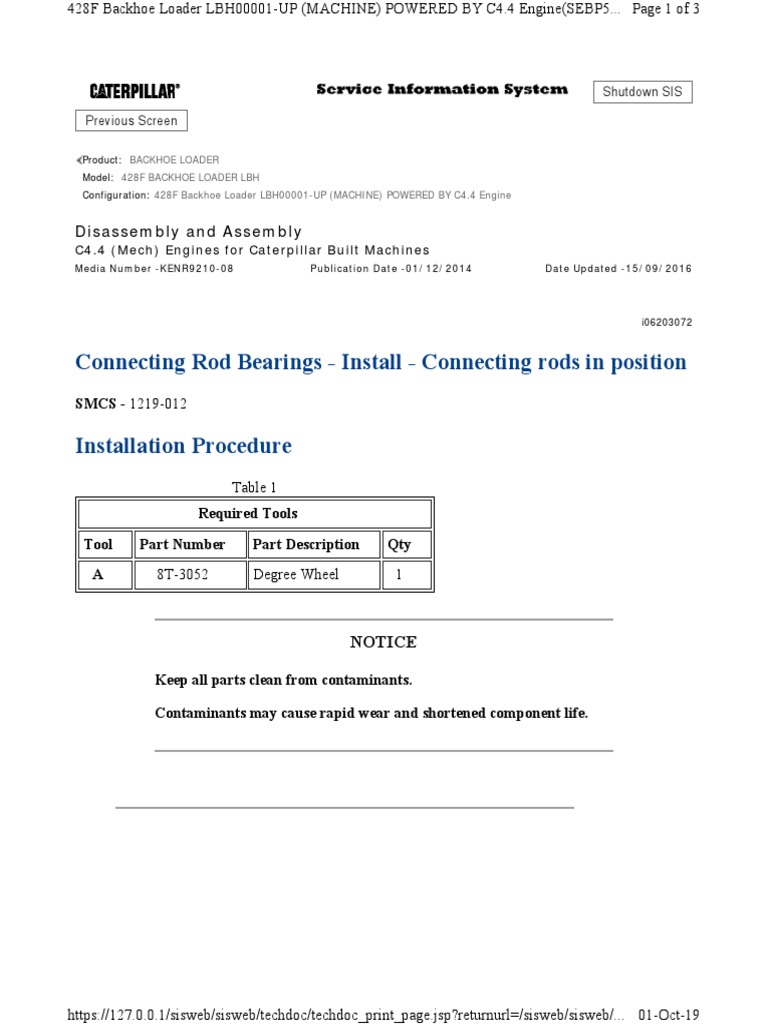

428F Backhoe Loader LBH00001-UP (MACHINE) POWERED BY C4.4 Engine(SEBP5...

Page 1 of 3

Shutdown SIS

Previous Screen

Product: BACKHOE LOADER


Model: 428F BACKHOE LOADER LBH
Configuration: 428F Backhoe Loader LBH00001-UP (MACHINE) POWERED BY C4.4 Engine

Disassembly and Assembly


C4.4 (Mech) Engines for Caterpillar Built Machines
Media Number -KENR9210-08 Publication Date -01/12/2014 Date Updated -15/09/2016

i06203072

Connecting Rod Bearings - Install - Connecting rods in position


SMCS - 1219-012

Installation Procedure
Table 1
Required Tools
Tool Part Number Part Description Qty
A 8T-3052 Degree Wheel 1

NOTICE

Keep all parts clean from contaminants.

Contaminants may cause rapid wear and shortened component life.

https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/sisweb/... 01-Oct-19
428F Backhoe Loader LBH00001-UP (MACHINE) POWERED BY C4.4 Engine(SEBP5... Page 2 of 3

Illustration 1 g00974873

1. Install the upper connecting rod bearing (4) in the connecting rod. The upper connecting rod
bearing must be centered in the connecting rod. Lubricate the bearing face with clean engine
oil.

2. Pull the connecting rod into position against the crankshaft.

Note: Do not allow the connecting rod to contact the piston cooling jet.

3. Clean the connecting rod cap (2) and the lower connecting rod bearing (3) . Lubricate the
bearing face with clean engine oil.

4. Install the lower connecting rod bearing (3) in the connecting rod cap (2) . The lower
connecting rod bearing must be centered in the connecting rod cap. Lubricate the bearing face
with clean engine oil.

Note: The connecting rod is a forging. The connecting rod has been hydraulically split in order
to separate the connecting rod cap and the connecting rod. This process provides accurately
matched surfaces. Do Not mix the connecting rod cap and the connecting rod.

Note: Ensure that the etched number on connecting rod bearing cap (2) matches the etched
number on the connecting rod (5) . Ensure that the numbers (Y) are on the same side.

https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/sisweb/... 01-Oct-19
428F Backhoe Loader LBH00001-UP (MACHINE) POWERED BY C4.4 Engine(SEBP5... Page 3 of 3

Illustration 2 g00974602

5. Install the connecting rod cap (2) .

6. Install new setscrews (1) in the connecting rod.

Note: Do not reuse the old setscrews in order to secure the connecting rod cap.

7. Tighten the setscrews evenly to a torque of 18 N·m (13 lb ft).

8. Tighten the setscrews evenly to a torque of 70 N·m (52 lb ft).

9. Use the Tooling (A) to achieve the correct final torque.

Note: If the Tooling (A) is not used, place an index mark on each setscrew.

10. Turn the setscrews for an additional 120 degrees.

11. Rotate the crankshaft in order to ensure that there is no binding.

12. Repeat Steps 1 through 11 for the remaining connecting rod bearings.

End By:

a. Install the engine oil pump. Refer to Disassembly and Assembly, "Engine Oil Pump - Install".
b. Install the engine oil pan. Refer to Disassembly and Assembly, "Engine Oil Pan - Remove and
Install".

Copyright 1993 - 2019 Caterpillar Inc. Tue Oct 1 15:54:20 UTC+0200 2019
All Rights Reserved.
Private Network For SIS Licensees.
