928G Wheel Loader and IT28G Integrated Toolcarrier DJD00001-UP (MACHINE) PO...

Página 1 de 2

Cerrar SIS

Pantalla anterior

Producto: WHEEL LOADER

Modelo: 928G WHEEL LOADER DJD
Configuración: 928G Wheel Loader and IT28G Integrated Toolcarrier
DJD00001-UP (MACHINE) POWERED BY 3056E Engine

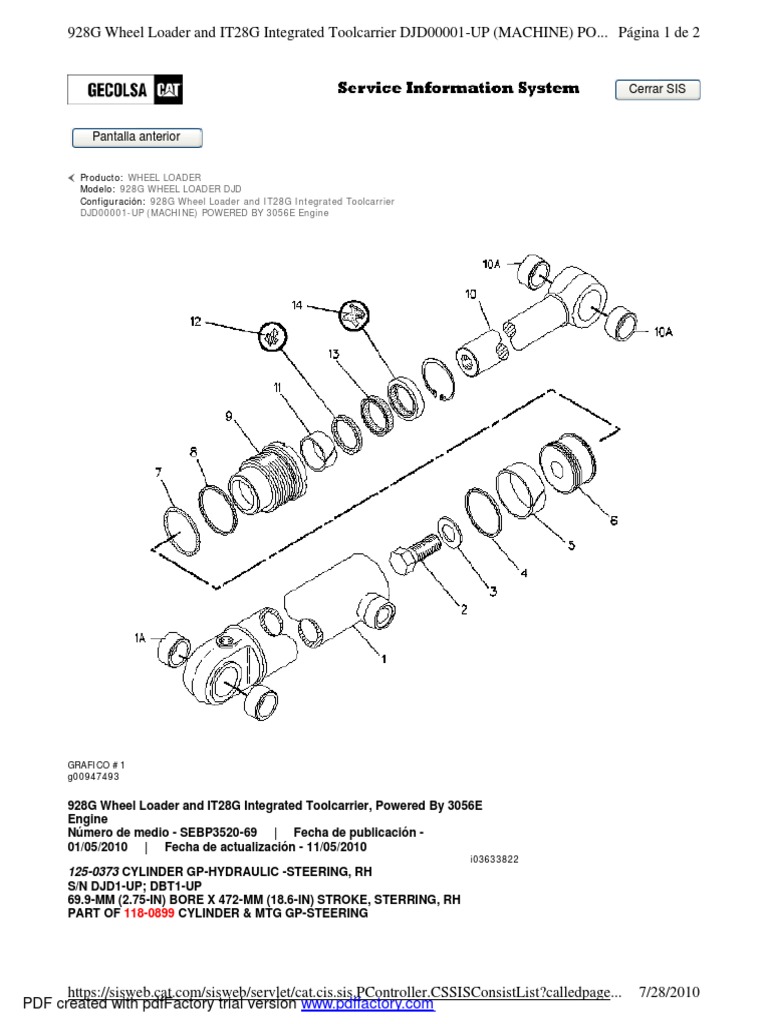

GRAFICO #1
g00947493

928G Wheel Loader and IT28G Integrated Toolcarrier, Powered By 3056E

Engine
Número de medio - SEBP3520-69 | Fecha de publicación -
01/05/2010 | Fecha de actualización - 11/05/2010
i03633822
125-0373 CYLINDER GP-HYDRAULIC -STEERING, RH
S/N DJD1-UP; DBT1-UP
69.9-MM (2.75-IN) BORE X 472-MM (18.6-IN) STROKE, STERRING, RH
PART OF 118-0899 CYLINDER & MTG GP-STEERING

https://sisweb.cat.com/sisweb/servlet/cat.cis.sis.PController.CSSISConsistList?calledpage... 7/28/2010
PDF created with pdfFactory trial version www.pdffactory.com
 928G Wheel Loader and IT28G Integrated Toolcarrier DJD00001-UP (MACHINE) PO... Página 2 de 2

GRUPO ENTERO
Ref. Cant. NPR Nota No. de pieza Nombre de la pieza
CYLINDER GP-HYDRAULIC -
Grp NPR 125-0373
STEERING, RH

PIEZAS INDIVIDUALES
Cant.
Ref. Cant. NPR Nota No. de pieza Nombre de la pieza
req.
1 NPR 125-0375 1 CYLINDER AS (RH)

1A NPR 4D-4431 1 BEARING-ALIGNING

2 NPR M 173-9685 1 BOLT (M20X2.5X70-MM)

WASHER-HARD (22X35X3.5-MM
3 NPR 8T-3282 1
THK)
4 NPR 5J-7010 1 SEAL AS

5 NPR 8J-0112 1 RING-WEAR

6 NPR 9T-2457 1 PISTON

7 NPR 175-7895 1 SEAL-O-RING

8 NPR 4J-9225 1 RING-BACKUP

9 NPR 6E-4940 1 HEAD

10 NPR 9T-6672 1 ROD AS

10A NPR 4D-4431 1 BEARING-ALIGNING

11 NPR 4T-6780 1 RING-WEAR

12 NPR 167-2186 1 SEAL AS-BUFFER

13 NPR 167-2294 1 SEAL-U-CUP

14 NPR 226-8202 1 SEAL-WIPER

AVAILABLE REPAIR KIT(S):

NPR 185-6596 1 KIT-SEAL

(INCLUDES RINGS & SEALS)

Abreviaturas:

M - METRIC PART

SMCS Codes
4303
