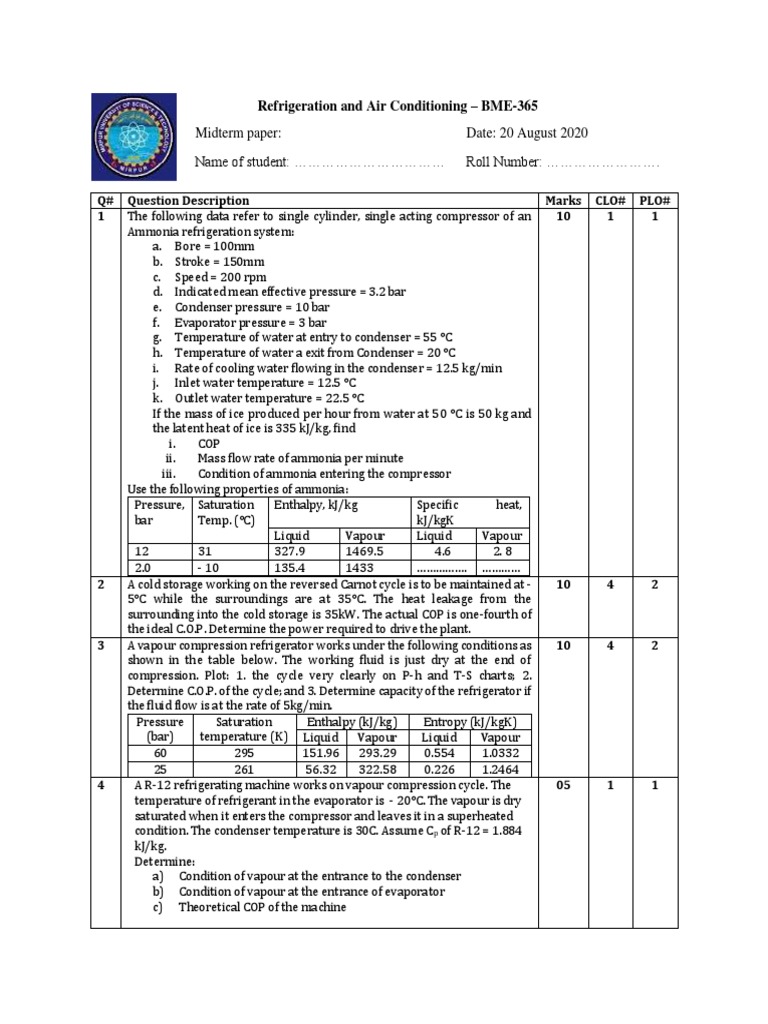

Name of student: …………………………… Roll Number: …………………….
Q# Question Description Marks CLO# PLO#
1 The following data refer to single cylinder, single acting compressor of an 10 1 1 Ammonia refrigeration system: a. Bore = 100mm b. Stroke = 150mm c. Speed = 200 rpm d. Indicated mean effective pressure = 3.2 bar e. Condenser pressure = 10 bar f. Evaporator pressure = 3 bar g. Temperature of water at entry to condenser = 55 °C h. Temperature of water a exit from Condenser = 20 °C i. Rate of cooling water flowing in the condenser = 12.5 kg/min j. Inlet water temperature = 12.5 °C k. Outlet water temperature = 22.5 °C If the mass of ice produced per hour from water at 50 °C is 50 kg and the latent heat of ice is 335 kJ/kg, find i. COP ii. Mass flow rate of ammonia per minute iii. Condition of ammonia entering the compressor Use the following properties of ammonia: Pressure, Saturation Enthalpy, kJ/kg Specific heat, bar Temp. (°C) kJ/kgK Liquid Vapour Liquid Vapour 12 31 327.9 1469.5 4.6 2. 8 2.0 - 10 135.4 1433 ……………. ………… 2 A cold storage working on the reversed Carnot cycle is to be maintained at - 10 4 2 5°C while the surroundings are at 35°C. The heat leakage from the surrounding into the cold storage is 35kW. The actual COP is one-fourth of the ideal C.O.P. Determine the power required to drive the plant. 3 A vapour compression refrigerator works under the following conditions as 10 4 2 shown in the table below. The working fluid is just dry at the end of compression. Plot: 1. the cycle very clearly on P-h and T-S charts; 2. Determine C.O.P. of the cycle; and 3. Determine capacity of the refrigerator if the fluid flow is at the rate of 5kg/min. Pressure Saturation Enthalpy (kJ/kg) Entropy (kJ/kgK) (bar) temperature (K) Liquid Vapour Liquid Vapour 60 295 151.96 293.29 0.554 1.0332 25 261 56.32 322.58 0.226 1.2464 4 A R-12 refrigerating machine works on vapour compression cycle. The 05 1 1 temperature of refrigerant in the evaporator is - 20°C. The vapour is dry saturated when it enters the compressor and leaves it in a superheated condition. The condenser temperature is 30C. Assume Cp of R-12 = 1.884 kJ/kg. Determine: a) Condition of vapour at the entrance to the condenser b) Condition of vapour at the entrance of evaporator c) Theoretical COP of the machine Saturation Enthalpy (kJ/kg) Entropy (kJ/kgK) temperature Liquid Vapour Liquid Vapour (°C) - 20 17.82 178.73 0.0731 0.7087 30 64.59 199.62 0.2400 0.6843 5 In a vapour absorption system, the heat is supplied to the generator by 05 1 1 condensing steam at 3 bar and 85% dry. The temperature in the evaporator is to be maintained at – 10C. if the cooling water rejects heat at 30°C in the condenser, find the maximum COP of the system. When the refrigeration load is 10 tonnes and actual COP is 40% of the maximum COP, find the mass of steam required per hour. 6 An ammonia vapour compression refrigerator works under the following 10 4 2 conditions as shown in the table below. The vapour is wet at the entry of compressor and is 95% dry at the end of compression whereas the fluid leaving the condenser is at 30°C. Assuming actual C.O.P as 60% of the theoretical, Plot: 1. the cycle very clearly on P-h and T-S charts; 2. Determine actual and theoretical C.O.P. of the cycle; Temperature Liquid Latent Liquid Total entropy of (°C) Heat heat entropy dry saturated kJ/kg kJ/kg vapour 30 323.08 1145.80 1.2037 4.9842 -10 135.37 1297.68 0.5443 5.4770
