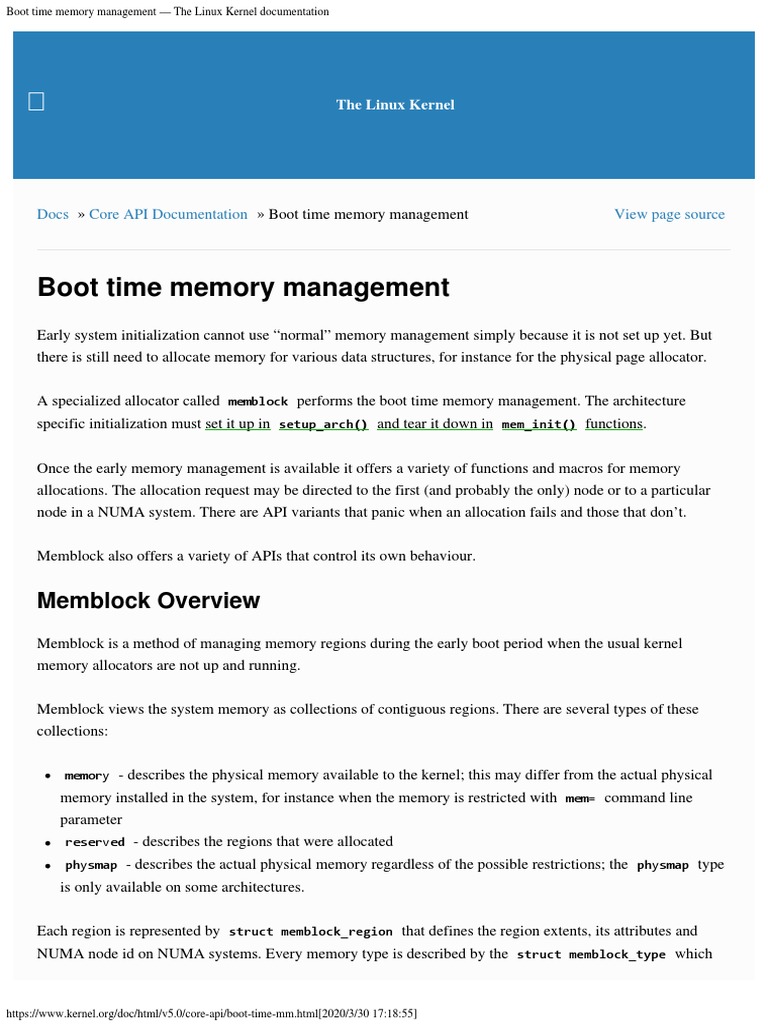

Boot time memory management

Early system initialization cannot use “normal” memory management
simply because it is not set up yet. But
there is still need to
allocate memory for various data structures, for instance for the
physical page allocator.
A specialized allocator called memblock performs the

boot time memory management. The architecture
specific initialization
must set it up in setup_arch() and tear it down in
mem_init() functions.
Once the early memory management is available it offers a variety of

functions and macros for memory
allocations. The allocation request
may be directed to the first (and probably the only) node or to a
particular
node in a NUMA system. There are API variants that panic
when an allocation fails and those that don’t.
Memblock also offers a variety of APIs that control its own behaviour.
Memblock Overview
Memblock is a method of managing memory regions during the early
boot period when the usual kernel
memory allocators are not up and
running.
Memblock views the system memory as collections of contiguous

regions. There are several types of these
collections:
memory - describes the physical memory available to the

kernel; this may differ from the actual physical
memory installed
in the system, for instance when the memory is restricted with
mem= command line
parameter
reserved - describes the regions that were allocated
physmap - describes the actual physical memory regardless of
the possible restrictions; the physmap type
is only available
on some architectures.
Each region is represented by struct memblock_region that

defines the region extents, its attributes and
NUMA node id on NUMA
systems. Every memory type is described by the struct
memblock_type which
https://www.kernel.org/doc/html/v5.0/core-api/boot-time-mm.html[2020/3/30 17:18:55]
contains an array of memory regions along with

the allocator metadata. The memory types are nicely wrapped
with
struct memblock . This structure is statically initialzed
at build time. The region arrays for the
“memory” and “reserved”
types are initially sized to INIT_MEMBLOCK_REGIONS and for the
“physmap” type to
INIT_PHYSMEM_REGIONS .
The memblock_allow_resize() enables automatic resizing of
the region arrays
during addition of new regions. This feature
should be used with care so that memory allocated for the region
array will not overlap with areas that should be reserved, for
example initrd.
The early architecture setup should tell memblock what the physical
memory layout is by using
memblock_add() or
memblock_add_node() functions. The first function does not
assign the region to a
NUMA node and it is appropriate for UMA
systems. Yet, it is possible to use it on NUMA systems as well and
assign the region to a NUMA node later in the setup process using
memblock_set_node() . The
memblock_add_node()
performs such an assignment directly.
Once memblock is setup the memory can be allocated using either

memblock or bootmem APIs.
As the system boot progresses, the architecture specific

mem_init() function frees all the memory to the
buddy page
allocator.
If an architecure enables CONFIG_ARCH_DISCARD_MEMBLOCK , the

memblock data structures will be discarded
after the system
initialization compltes.
Functions and structures

Here is the description of memblock data structures, functions and
macros. Some of them are actually internal,
but since they are
documented it would be silly to omit them. Besides, reading the
descriptions for the internal
functions can help to understand what
really happens under the hood.
enum memblock_flags
definition of memory region attributes
Constants
MEMBLOCK_NONE
no special request
MEMBLOCK_HOTPLUG
hotpluggable region
MEMBLOCK_MIRROR
mirrored region
MEMBLOCK_NOMAP
don’t add to kernel direct mapping
struct memblock_region
represents a memory region
Definition
struct memblock_region {
phys_addr_t base;
phys_addr_t size;
enum memblock_flags flags;
#ifdef CONFIG_HAVE_MEMBLOCK_NODE_MAP;
int nid;
#endif;
};
Members
base
physical address of the region
size
size of the region
flags
memory region attributes
nid
NUMA node id
struct memblock_type
collection of memory regions of certain type
Definition
struct memblock_type {
unsigned long cnt;
unsigned long max;
phys_addr_t total_size;
struct memblock_region *regions;
char *name;
};
Members
cnt
number of regions
max
size of the allocated array
total_size
size of all regions
regions
array of regions
name
the memory type symbolic name
struct memblock
memblock allocator metadata
Definition
struct memblock {
bool bottom_up;
phys_addr_t current_limit;
struct memblock_type memory;
struct memblock_type reserved;
#ifdef CONFIG_HAVE_MEMBLOCK_PHYS_MAP;
struct memblock_type physmem;
#endif;
};
Members
bottom_up
is bottom up direction?
current_limit
physical address of the current allocation limit
memory
usabe memory regions
reserved
reserved memory regions
physmem
all physical memory
for_each_mem_range(i, type_a, type_b, nid, flags, p_start, p_end, p_nid)
iterate through memblock areas from type_a and not included in type_b. Or just type_a if type_b is NULL.
Parameters
i
u64 used as loop variable
type_a
ptr to memblock_type to iterate
type_b
ptr to memblock_type which excludes from the iteration
nid
node selector, NUMA_NO_NODE for all nodes
flags
pick from blocks based on memory attributes
p_start
ptr to phys_addr_t for start address of the range, can be NULL

p_end
ptr to phys_addr_t for end address of the range, can be NULL
p_nid
ptr to int for nid of the range, can be NULL
for_each_mem_range_rev(i, type_a, type_b, nid, flags, p_start, p_end, p_nid)
reverse iterate through memblock areas from type_a and not included in type_b. Or just type_a if type_b is
NULL.
Parameters
i
type_a
ptr to memblock_type to iterate
type_b
ptr to memblock_type which excludes from the iteration
nid
flags
p_start
p_end
p_nid
for_each_reserved_mem_region(i, p_start, p_end)
iterate over all reserved memblock areas
Parameters
i
p_start
p_end
Description
Walks over reserved areas of memblock. Available as soon as memblock

is initialized.
for_each_mem_pfn_range(i, nid, p_start, p_end, p_nid)
early memory pfn range iterator
Parameters
i
an integer used as loop variable
nid
node selector, MAX_NUMNODES for all nodes
p_start
ptr to ulong for start pfn of the range, can be NULL
p_end
ptr to ulong for end pfn of the range, can be NULL
p_nid
Description
Walks over configured memory ranges.
for_each_free_mem_range(i, nid, flags, p_start, p_end, p_nid)
iterate through free memblock areas
Parameters
i
nid
flags
p_start
p_end
p_nid
Description
Walks over free (memory && !reserved) areas of memblock. Available as

soon as memblock is initialized.
for_each_free_mem_range_reverse(i, nid, flags, p_start, p_end, p_nid)
rev-iterate through free memblock areas
Parameters
i
nid
flags
p_start
p_end
p_nid
Description
Walks over free (memory && !reserved) areas of memblock in reverse

order. Available as soon as memblock
is initialized.
void memblock_set_current_limit(phys_addr_t limit)
Set the current allocation limit to allow limiting allocations to what is currently accessible during boot
Parameters
phys_addr_t limit
New limit value (physical address)
unsigned long memblock_region_memory_base_pfn(const struct memblock_region * reg)
get the lowest pfn of the memory region
Parameters
const struct memblock_region * reg

memblock_region structure
Return
the lowest pfn intersecting with the memory region
unsigned long memblock_region_memory_end_pfn(const struct memblock_region * reg)
get the end pfn of the memory region
Parameters

Return
the end_pfn of the reserved region
unsigned long memblock_region_reserved_base_pfn(const struct memblock_region * reg)
get the lowest pfn of the reserved region
Parameters

Return
the lowest pfn intersecting with the reserved region
unsigned long memblock_region_reserved_end_pfn(const struct memblock_region * reg)
get the end pfn of the reserved region
Parameters

Return
the end_pfn of the reserved region
phys_addr_t __init_memblock __memblock_find_range_bottom_up(phys_addr_t start, phys_addr_t end,

phys_addr_t size, phys_addr_t align, int nid, enum memblock_flags flags)
find free area utility in bottom-up
Parameters
phys_addr_t start
start of candidate range
phys_addr_t end
end of candidate range, can be MEMBLOCK_ALLOC_ANYWHERE or
MEMBLOCK_ALLOC_ACCESSIBLE
phys_addr_t size
size of free area to find
phys_addr_t align
alignment of free area to find
int nid
nid of the free area to find, NUMA_NO_NODE for any node
enum memblock_flags flags
Description
Utility called from memblock_find_in_range_node() , find free area bottom-up.
Return
Found address on success, 0 on failure.
phys_addr_t __init_memblock __memblock_find_range_top_down(phys_addr_t start, phys_addr_t end,

phys_addr_t size, phys_addr_t align, int nid, enum memblock_flags flags)
find free area utility, in top-down
Parameters
phys_addr_t start
phys_addr_t end
phys_addr_t size
phys_addr_t align
int nid
Description
Utility called from memblock_find_in_range_node() , find free area top-down.
Return
phys_addr_t __init_memblock memblock_find_in_range_node(phys_addr_t size, phys_addr_t align,

phys_addr_t start, phys_addr_t end, int nid, enum memblock_flags flags)
find free area in given range and node
Parameters
phys_addr_t size
phys_addr_t align
phys_addr_t start
phys_addr_t end
int nid
Description
Find size free area aligned to align in the specified range and node.
When allocation direction is bottom-up, the start should be greater

than the end of the kernel image.
Otherwise, it will be trimmed. The
reason is that we want the bottom-up allocation just near the kernel
so it is highly likely that the allocated memory and the kernel
will reside in the same node.
If bottom-up allocation failed, will try to allocate memory top-down.
Return
phys_addr_t __init_memblock memblock_find_in_range(phys_addr_t start, phys_addr_t end, phys_addr_t size,

phys_addr_t align)
find free area in given range
Parameters
phys_addr_t start
phys_addr_t end
phys_addr_t size
phys_addr_t align
Description
Find size free area aligned to align in the specified range.
Return
void memblock_discard(void)
discard memory and reserved arrays if they were allocated
Parameters
void
no arguments
int __init_memblock memblock_double_array(struct memblock_type * type, phys_addr_t new_area_start,

phys_addr_t new_area_size)
double the size of the memblock regions array
Parameters
struct memblock_type * type

memblock type of the regions array being doubled
phys_addr_t new_area_start
starting address of memory range to avoid overlap with
phys_addr_t new_area_size
size of memory range to avoid overlap with
Description
Double the size of the type regions array. If memblock is being used to
allocate memory for a new reserved
regions array and there is a previously
allocated memory range [new_area_start, new_area_start +
new_area_size]
waiting to be reserved, ensure the memory used by the new array does
not overlap.
Return
0 on success, -1 on failure.
void __init_memblock memblock_merge_regions(struct memblock_type * type)
merge neighboring compatible regions
Parameters

memblock type to scan
Description
Scan type and merge neighboring compatible regions.
void __init_memblock memblock_insert_region(struct memblock_type * type, int idx, phys_addr_t base,

phys_addr_t size, int nid, enum memblock_flags flags)
insert new memblock region
Parameters

memblock type to insert into
int idx
index for the insertion point
phys_addr_t base
base address of the new region
phys_addr_t size
size of the new region
int nid
node id of the new region
flags of the new region
Description
Insert new memblock region [base, base + size) into type at idx.
type must already have extra room to
accommodate the new region.
int __init_memblock memblock_add_range(struct memblock_type * type, phys_addr_t base, phys_addr_t size,

int nid, enum memblock_flags flags)
add new memblock region
Parameters

memblock type to add new region into
phys_addr_t base
phys_addr_t size
int nid
nid of the new region
flags of the new region
Description
Add new memblock region [base, base + size) into type. The new region
is allowed to overlap with existing
ones - overlaps don’t affect already
existing regions. type is guaranteed to be minimal (all neighbouring
compatible regions are merged) after the addition.
Return
0 on success, -errno on failure.
int __init_memblock memblock_add_node(phys_addr_t base, phys_addr_t size, int nid)
add new memblock region within a NUMA node
Parameters
phys_addr_t base
phys_addr_t size
int nid
nid of the new region
Description
Add new memblock region [base, base + size) to the “memory”

type. See memblock_add_range()
description for mode details
Return
int __init_memblock memblock_add(phys_addr_t base, phys_addr_t size)
add new memblock region
Parameters
phys_addr_t base
phys_addr_t size
Description
Add new memblock region [base, base + size) to the “memory”

type. See memblock_add_range()
description for mode details
Return
int __init_memblock memblock_isolate_range(struct memblock_type * type, phys_addr_t base, phys_addr_t size,

int * start_rgn, int * end_rgn)
isolate given range into disjoint memblocks
Parameters

memblock type to isolate range for
phys_addr_t base
base of range to isolate
phys_addr_t size
size of range to isolate
int * start_rgn
out parameter for the start of isolated region
int * end_rgn
out parameter for the end of isolated region
Description
Walk type and ensure that regions don’t cross the boundaries defined by
[base, base + size). Crossing regions
are split at the boundaries,
which may create at most two more regions. The index of the first
region inside the
range is returned in *start_rgn and end in *end_rgn.
Return
int __init_memblock memblock_free(phys_addr_t base, phys_addr_t size)
free boot memory block
Parameters
phys_addr_t base
phys starting address of the boot memory block
phys_addr_t size
size of the boot memory block in bytes
Description
Free boot memory block previously allocated by memblock_alloc_xx() API.

The freeing memory will not be
released to the buddy allocator.
int __init_memblock memblock_setclr_flag(phys_addr_t base, phys_addr_t size, int set, int flag)
set or clear flag for a memory region
Parameters
phys_addr_t base
base address of the region
phys_addr_t size
size of the region
int set
set or clear the flag
int flag
the flag to udpate
Description
This function isolates region [base, base + size), and sets/clears flag
Return
int __init_memblock memblock_mark_hotplug(phys_addr_t base, phys_addr_t size)
Mark hotpluggable memory with flag MEMBLOCK_HOTPLUG.
Parameters
phys_addr_t base
the base phys addr of the region
phys_addr_t size
the size of the region
Return
int __init_memblock memblock_clear_hotplug(phys_addr_t base, phys_addr_t size)
Clear flag MEMBLOCK_HOTPLUG for a specified region.
Parameters
phys_addr_t base
phys_addr_t size
Return
int __init_memblock memblock_mark_mirror(phys_addr_t base, phys_addr_t size)
Mark mirrored memory with flag MEMBLOCK_MIRROR.
Parameters
phys_addr_t base
phys_addr_t size
Return
int __init_memblock memblock_mark_nomap(phys_addr_t base, phys_addr_t size)
Mark a memory region with flag MEMBLOCK_NOMAP.
Parameters
phys_addr_t base
phys_addr_t size
Return
int __init_memblock memblock_clear_nomap(phys_addr_t base, phys_addr_t size)
Clear flag MEMBLOCK_NOMAP for a specified region.
Parameters
phys_addr_t base
phys_addr_t size
Return
void __init_memblock __next_reserved_mem_region(u64 * idx, phys_addr_t * out_start, phys_addr_t * out_end)
next function for for_each_reserved_region()
Parameters
u64 * idx
pointer to u64 loop variable
phys_addr_t * out_start
ptr to phys_addr_t for start address of the region, can be NULL
phys_addr_t * out_end
ptr to phys_addr_t for end address of the region, can be NULL
Description
Iterate over all reserved memory regions.
void __init_memblock __next_mem_range(u64 * idx, int nid, enum memblock_flags flags, struct memblock_type

* type_a, struct memblock_type * type_b, phys_addr_t * out_start, phys_addr_t * out_end, int * out_nid)
next function for for_each_free_mem_range() etc.
Parameters
u64 * idx
int nid
struct memblock_type * type_a
pointer to memblock_type from where the range is taken
struct memblock_type * type_b
pointer to memblock_type which excludes memory from being taken
int * out_nid
Description
Find the first area from *idx which matches nid, fill the out
parameters, and update *idx for the next iteration.
The lower 32bit of
*idx contains index into type_a and the upper 32bit indexes the
areas before each region in
type_b. For example, if type_b regions
look like the following,
0:[0-16), 1:[32-48), 2:[128-130)
The upper 32bit indexes the following regions.
0:[0-0), 1:[16-32), 2:[48-128), 3:[130-MAX)
As both region arrays are sorted, the function advances the two indices
in lockstep and returns each
intersection.
void __init_memblock __next_mem_range_rev(u64 * idx, int nid, enum memblock_flags flags, struct
memblock_type * type_a, struct memblock_type * type_b, phys_addr_t * out_start, phys_addr_t * out_end, int
* out_nid)
generic next function for for_each_*:c:func:_range_rev()
Parameters
u64 * idx
int nid
struct memblock_type * type_a
pointer to memblock_type from where the range is taken
struct memblock_type * type_b
pointer to memblock_type which excludes memory from being taken
int * out_nid
Description
Finds the next range from type_a which is not marked as unsuitable
in type_b.
Reverse of __next_mem_range() .
int __init_memblock memblock_set_node(phys_addr_t base, phys_addr_t size, struct memblock_type * type, int nid)
set node ID on memblock regions
Parameters
phys_addr_t base
base of area to set node ID for
phys_addr_t size
size of area to set node ID for
memblock type to set node ID for
int nid
node ID to set
Description
Set the nid of memblock type regions in [base, base + size) to nid.
Regions which cross the area boundaries
are split as necessary.
Return
void * memblock_alloc_internal(phys_addr_t size, phys_addr_t align, phys_addr_t min_addr,

phys_addr_t max_addr, int nid)
allocate boot memory block
Parameters
phys_addr_t size
size of memory block to be allocated in bytes
phys_addr_t align
alignment of the region and block’s size
phys_addr_t min_addr
the lower bound of the memory region to allocate (phys address)
phys_addr_t max_addr
the upper bound of the memory region to allocate (phys address)
int nid
Description
The min_addr limit is dropped if it can not be satisfied and the allocation
will fall back to memory below
min_addr. Also, allocation may fall back
to any node in the system if the specified node can not
hold the
requested memory.
The allocation is performed from memory region limited by

memblock.current_limit if max_addr ==
MEMBLOCK_ALLOC_ACCESSIBLE .
The phys address of allocated boot memory block is converted to virtual and
allocated memory is reset to 0.
In addition, function sets the min_count to 0 using kmemleak_alloc for

allocated boot memory block, so that it
is never reported as leaks.
Return
Virtual address of allocated memory block on success, NULL on failure.
void * memblock_alloc_try_nid_raw(phys_addr_t size, phys_addr_t align, phys_addr_t min_addr,

allocate boot memory block without zeroing memory and without panicking
Parameters
phys_addr_t size
phys_addr_t align
the lower bound of the memory region from where the allocation
is preferred (phys address)
the upper bound of the memory region from where the allocation
is preferred (phys address), or
MEMBLOCK_ALLOC_ACCESSIBLE to
allocate only from memory limited by memblock.current_limit value
int nid
Description
Public function, provides additional debug information (including caller

info), if enabled. Does not zero
allocated memory, does not panic if request
cannot be satisfied.
Return
void * memblock_alloc_try_nid_nopanic(phys_addr_t size, phys_addr_t align, phys_addr_t min_addr,

allocate boot memory block
Parameters
phys_addr_t size
phys_addr_t align
int nid
Description
Public function, provides additional debug information (including caller

info), if enabled. This function zeroes
the allocated memory.
Return
void * memblock_alloc_try_nid(phys_addr_t size, phys_addr_t align, phys_addr_t min_addr,

allocate boot memory block with panicking
Parameters
phys_addr_t size
phys_addr_t align
int nid
Description
Public panicking version of memblock_alloc_try_nid_nopanic()

which provides debug information
(including caller info), if enabled,
and panics if the request can not be satisfied.
Return
void __memblock_free_late(phys_addr_t base, phys_addr_t size)
free bootmem block pages directly to buddy allocator
Parameters
phys_addr_t base
phys starting address of the boot memory block
phys_addr_t size
size of the boot memory block in bytes
Description
This is only useful when the bootmem allocator has already been torn
down, but we are still initializing the
system. Pages are released directly
to the buddy allocator, no bootmem metadata is updated because it is gone.
bool __init_memblock memblock_is_region_memory(phys_addr_t base, phys_addr_t size)
check if a region is a subset of memory
Parameters
phys_addr_t base
base of region to check
phys_addr_t size
size of region to check
Description
Check if the region [base, base + size) is a subset of a memory block.
Return
0 if false, non-zero if true
bool __init_memblock memblock_is_region_reserved(phys_addr_t base, phys_addr_t size)
check if a region intersects reserved memory
Parameters
phys_addr_t base
base of region to check
phys_addr_t size
size of region to check
Description
Check if the region [base, base + size) intersects a reserved

memory block.
Return
True if they intersect, false if not.
unsigned long memblock_free_all(void)
release free pages to the buddy allocator
Parameters
void
no arguments
Return
the number of pages actually released.
 Previous Next 
© Copyright The kernel development community.
Built with Sphinx using a theme provided by Read the Docs.

Boot Time Memory Management - The Linux Kernel Documentation

Uploaded by

Copyright:

Available Formats

You might also like

Boot Time Memory Management - The Linux Kernel Documentation

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Boot Time Memory Management - The Linux Kernel Documentation

Uploaded by

Copyright:

Available Formats

Boot time memory management — The Linux Kernel documentation

 The Linux Kernel

A specialized allocator called memblock performs the

Once the early memory management is available it offers a variety of

Memblock views the system memory as collections of contiguous

memory - describes the physical memory available to the

Each region is represented by struct memblock_region that

contains an array of memory regions along with

Once memblock is setup the memory can be allocated using either

As the system boot progresses, the architecture specific

If an architecure enables CONFIG_ARCH_DISCARD_MEMBLOCK , the

Functions and structures

definition of memory region attributes

represents a memory region

collection of memory regions of certain type

the memory type symbolic name

memblock allocator metadata

for_each_mem_range(i, type_a, type_b, nid, flags, p_start, p_end, p_nid)

ptr to phys_addr_t for start address of the range, can be NULL

for_each_mem_range_rev(i, type_a, type_b, nid, flags, p_start, p_end, p_nid)

for_each_reserved_mem_region(i, p_start, p_end)

iterate over all reserved memblock areas

Walks over reserved areas of memblock. Available as soon as memblock

for_each_mem_pfn_range(i, nid, p_start, p_end, p_nid)

early memory pfn range iterator

Walks over configured memory ranges.

for_each_free_mem_range(i, nid, flags, p_start, p_end, p_nid)

iterate through free memblock areas

Walks over free (memory && !reserved) areas of memblock. Available as

for_each_free_mem_range_reverse(i, nid, flags, p_start, p_end, p_nid)

rev-iterate through free memblock areas

Walks over free (memory && !reserved) areas of memblock in reverse

unsigned long memblock_region_memory_base_pfn(const struct memblock_region * reg)

get the lowest pfn of the memory region

const struct memblock_region * reg

the lowest pfn intersecting with the memory region

unsigned long memblock_region_memory_end_pfn(const struct memblock_region * reg)

get the end pfn of the memory region

const struct memblock_region * reg

the end_pfn of the reserved region

unsigned long memblock_region_reserved_base_pfn(const struct memblock_region * reg)

get the lowest pfn of the reserved region

const struct memblock_region * reg

the lowest pfn intersecting with the reserved region

unsigned long memblock_region_reserved_end_pfn(const struct memblock_region * reg)

get the end pfn of the reserved region

const struct memblock_region * reg

the end_pfn of the reserved region

phys_addr_t __init_memblock __memblock_find_range_bottom_up(phys_addr_t start, phys_addr_t end,

find free area utility in bottom-up

Utility called from memblock_find_in_range_node() , find free area bottom-up.

Found address on success, 0 on failure.

phys_addr_t __init_memblock __memblock_find_range_top_down(phys_addr_t start, phys_addr_t end,

find free area utility, in top-down

Utility called from memblock_find_in_range_node() , find free area top-down.

Found address on success, 0 on failure.

phys_addr_t __init_memblock memblock_find_in_range_node(phys_addr_t size, phys_addr_t align,
