Manual de Partes Rhino PDF

PARTS MANUAL
CRAWLER DRILL
RD10 SERIES
SERIESS
Document No.: A001-0001 Revision Date: 2010-01-15

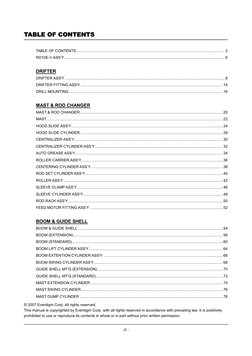

TABLE OF CONTENTS
TABLE OF CONTENTS ........................................................................................................................................... 2

RD10E-V ASS’Y....................................................................................................................................................... 6
DRIFTER
DRIFTER ASS'Y ...................................................................................................................................................... 8
DRIFTER FITTING ASS'Y ..................................................................................................................................... 14
DRILL MOUNTING ................................................................................................................................................ 16
MAST & ROD CHANGER

MAST & ROD CHANGER...................................................................................................................................... 20
MAST ..................................................................................................................................................................... 22
HOOD SLIDE ASS’Y.............................................................................................................................................. 24
HOOD SLIDE CYLINDER...................................................................................................................................... 28
CENTRALIZER ASS’Y ........................................................................................................................................... 30
CENTRALIZER CYLINDER ASS’Y........................................................................................................................ 32
AUTO GREASE ASS’Y .......................................................................................................................................... 34
ROLLER CARRIER ASS’Y .................................................................................................................................... 36
CENTERING CYLINDER ASS’Y............................................................................................................................ 38
ROD SET CYLINDER ASS’Y................................................................................................................................. 40
ROLLER ASS’Y ..................................................................................................................................................... 42
SLEEVE CLAMP ASS’Y......................................................................................................................................... 46
SLEEVE CYLINDER ASS’Y................................................................................................................................... 48
ROD RACK ASS’Y................................................................................................................................................. 50
FEED MOTOR FITTING ASS’Y ............................................................................................................................. 52
BOOM & GUIDE SHELL

BOOM & GUIDE SHELL ........................................................................................................................................ 54
BOOM (EXTENSION) ............................................................................................................................................ 56
BOOM (STANDARD) ............................................................................................................................................. 60
BOOM LIFT CYLINDER ASS'Y.............................................................................................................................. 64
BOOM EXTENTION CYLINDER ASS'Y ................................................................................................................ 66
BOOM SWING CYLINDER ASS'Y......................................................................................................................... 68
GUIDE SHELL MT’G (EXTENSION)...................................................................................................................... 70
GUIDE SHELL MT’G (STANDARD)....................................................................................................................... 72
MAST EXTENSION CYLINDER ............................................................................................................................ 74
MAST SWING CYLINDER..................................................................................................................................... 76
MAST DUMP CYLINDER ...................................................................................................................................... 78
© 2007 Everdigm Corp. All rights reserved.

This manual is copyrighted by Everdigm Corp. with all rights reserved in accordance with prevailing law. It is positively
prohibited to use or reproduce its contents in whole or in part without prior written permission.
-2 -

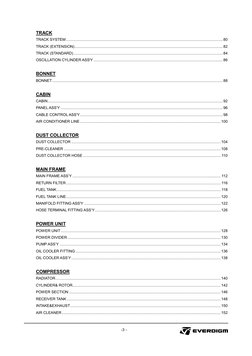

TRACK
TRACK SYSTEM ................................................................................................................................................... 80
TRACK (EXTENSION)........................................................................................................................................... 82
TRACK (STANDARD) ............................................................................................................................................ 84
OSCILLATION CYLINDER ASS'Y ......................................................................................................................... 86
BONNET
BONNET ................................................................................................................................................................ 88
CABIN
CABIN .................................................................................................................................................................... 92
PANEL ASS’Y ........................................................................................................................................................ 96
CABLE CONTROL ASS'Y...................................................................................................................................... 98
AIR CONDITIONER LINE .................................................................................................................................... 100
DUST COLLECTOR
DUST COLLECTOR ............................................................................................................................................ 104
PRE-CLEANER ................................................................................................................................................... 108
DUST COLLECTOR HOSE ................................................................................................................................. 110
MAIN FRAME
MAIN FRAME ASS’Y ........................................................................................................................................... 112
RETURN FILTER ................................................................................................................................................. 116
FUEL TANK.......................................................................................................................................................... 118
FUEL TANK LINE................................................................................................................................................. 120
MANIFOLD FITTING ASS'Y ................................................................................................................................ 122
HOSE TERMINAL FITTING ASS’Y...................................................................................................................... 126
POWER UNIT
POWER UNIT ...................................................................................................................................................... 128
POWER DIVIDER................................................................................................................................................ 130
PUMP ASS’Y ....................................................................................................................................................... 134
OIL COOLER FITTING ........................................................................................................................................ 136
OIL COOLER ASS’Y ............................................................................................................................................ 138
COMPRESSOR
RADIATOR........................................................................................................................................................... 140
CYLINDER& ROTOR........................................................................................................................................... 142
POWER SECTION .............................................................................................................................................. 146
RECEIVER TANK ................................................................................................................................................ 148
INTAKE&EXHAUST ............................................................................................................................................. 150
AIR CLEANER ..................................................................................................................................................... 152
-3 -

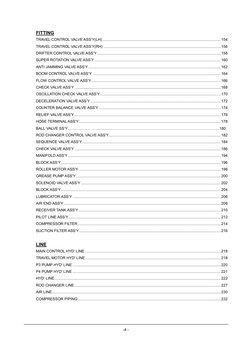

FITTING
TRAVEL CONTROL VALVE ASS’Y(LH) ............................................................................................................... 154
TRAVEL CONTROL VALVE ASS’Y(RH) .............................................................................................................. 156
DRIFTER CONTROL VALVE ASS’Y .................................................................................................................... 158
SUPER ROTATION VALVE ASS’Y ...................................................................................................................... 160
ANTI JAMMING VALVE ASS’Y ............................................................................................................................ 162
BOOM CONTROL VALVE ASS’Y ........................................................................................................................ 164
FLOW CONTROL VALVE ASS’Y ......................................................................................................................... 166
CHECK VALVE ASS’Y ......................................................................................................................................... 168
OSCILLATION CHECK VALVE ASS’Y................................................................................................................. 170
DECELERATION VALVE ASS’Y .......................................................................................................................... 172
COUNTER BALANCE VALVE ASS’Y .................................................................................................................. 174
RELIEF VALVE ASS’Y ......................................................................................................................................... 176
HOSE TERMINAL ASS’Y..................................................................................................................................... 178
BALL VALVE SS’Y……………… ……………………………………………………………………………………..…180.
ROD CHANGER CONTROL VALVE ASS’Y......................................................................................................... 182
SEQUENCE VALVE ASS’Y.................................................................................................................................. 184
CHECK VALVE ASS’Y ......................................................................................................................................... 186
MANIFOLD ASS’Y ............................................................................................................................................... 194
BLOCK ASS’Y...................................................................................................................................................... 196
ROLLER MOTOR ASS’Y ..................................................................................................................................... 198
GREASE PUMP ASS’Y........................................................................................................................................ 200
SOLENOID VALVE ASS’Y ................................................................................................................................... 202
BLOCK ASS’Y...................................................................................................................................................... 204
LUBRICATOR ASS’Y ........................................................................................................................................... 206
AIR END ASS’Y ................................................................................................................................................... 208
RECEIVER TANK ASS’Y ..................................................................................................................................... 210
PILOT LINE ASS’Y............................................................................................................................................... 212
COMPRESSOR FILTER ...................................................................................................................................... 214
SUCTION FILTER ASS’Y..................................................................................................................................... 216
LINE
MAIN CONTROL HYD' LINE ............................................................................................................................... 218
TRAVEL MOTOR HYD' LINE ............................................................................................................................... 218
P3 PUMP HYD' LINE ........................................................................................................................................... 220
P4 PUMP HYD' LINE ........................................................................................................................................... 221
HYD’ LINE............................................................................................................................................................ 222
ROD CHANGER LINE ......................................................................................................................................... 227
AIR LINE .............................................................................................................................................................. 230
COMPRESSOR PIPING ...................................................................................................................................... 232
-4 -
DECAL
DECAL ................................................................................................................................................................. 234
OPTION
ANGLE GAUGE................................................................................................................................................... 237
Notes ................................................................................................................................................................... 240
-5 -
RD10E-V ASS’Y
5
1
6
3
8
-6 -

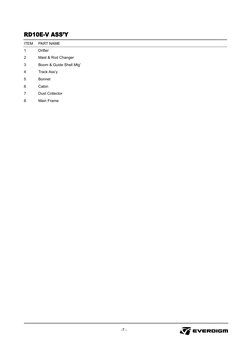

RD10E-V ASS’Y
ITEM PART NAME
1 Drifter
2 Mast & Rod Changer
3 Boom & Guide Shell Mtg’
4 Track Ass’y
5 Bonnet
6 Cabin
7 Dust Collector
8 Main Frame
-7 -

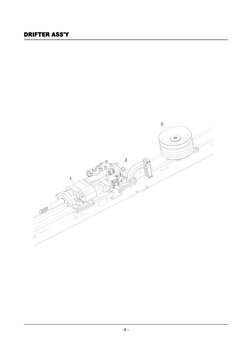

DRIFTER ASS'Y
-8 -

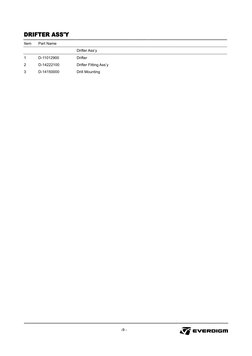

DRIFTER ASS'Y
Item Part Name
Drifter Ass’y
1 D-11012900 Drifter
2 D-14222100 Drifter Fitting Ass’y
3 D-14150000 Drill Mounting
-9 -
DRIFTER ASS'Y
46 47 46
57
60 53
61 58
37 13
36
35 19
48
34 12
50 33
44 64 48
61 15 18 20
75 60 18
70 51
57 24
71 49
58 21
22
16
55 69
54
19
65
12
40 41 46
29 23
66 48 14
13 54
56
13
12 76 74
73 53
44 43
62 63 72 50
38 38 61
59
75 31
17 52
30
42 32
29
39
9 7
67 11 39 28
6 4
54
56
8 1, 68
10
2
5
27
26
3
25
-10 -
DRIFTER ASS'Y
ITEM PART NO. PART NAME QTY S/N REMARKS
D-11012900 Drifter Ass'y
1 D-45086500 Shank Rod 1 T38 TYPE
2 D-45086600 Bush 1
3 D-45086700 Cap 1
4 D-45086800 Chuck End 1
5 D-45086900 Spline Chuck 1
6 D-45087000 Chuck Driver Bush 1
7 D-45087100 Liner(Large) 1
8 D-45087200 Chuck Driver 1
9 D-45087300 Drive Gear 1
10 D-45087400 Liner(Small) 1
11 D-45087500 Thrust Plate 1
12 D-45087600 Piston(Hammer) 1
13 D-45087700 Cylinder 1
14 D-42049800 Flange 1
15 D-44035200 Step Seal 2
16 D-45087800 Cover 1
17 D-45087900 Side Rod 4
18 D-45088000 Side Rod Nut 4
19 D-45088100 Cover Bush 1
20 D-44035300 Adapter 1
21 D-40186500 Tube Washer 1
22 D-21032400 Tube Gasket 1
23 D-40186600 Blow Tube 1
24 D-45088200 Cover 1
25 D-45088300 Cap Bolt 2
26 D-45088400 Cap Nut 2
27 D-45088500 Cap Nut 2
28 D-45088600 Side Rod Nut 4
29 D-45088700 Rotation Body 1
30 D-23024200 Gasket 1
31 D-42049900 Flange 1
32 D-45088800 Bolt 2
33 D-44035400 Cap(L) 1
34 D-44035500 Valve 1
35 D-44035600 Valve Body 1
36 D-44035700 Pin 1
-11 -
DRIFTER ASS'Y
Item Part No. Part Name Qty S/N Remarks
37 D-44035800 Cap(R) 1
38 D-45088900 Packing 2
39 D-D1120900 Bearing 2 6209
40 D-F1A02100 Dust Seal 1 FQ0049D0
41 D-F5A01300 U-Packing 1 FU0746K0
42 D-F0102110 O-Ring 2 1BP-18
43 D-F0102814 O-Ring 2 1BP-24
44 D-91110510 Screw 2 LP,HP
45 D-F0123114 O-Ring 1 1BG-55
46 D-F0123510 O-Ring 3 1BG-75
47 D-F0A03800 O-Ring 2 1BP-58
48 D-F0122717 O-Ring 6 1BG-35
49 D-F0103318 O-Ring 1 1BP-29
50 D-59001104 Cap 2 MD210-350A
51 D-F0122610 O-Ring 4 1BG-30
52 D-52001000 Orbit Motor 1 2-200AB6-E
53 D-I0A03500 Hollow Hex Plug 9 PT 1/4"
54 D-C6121018 Spring Washer 14 SW-10
55 D-B6165379 Socket Head Bolt 4 M12×P1.75-L35
57 D-B6A00030 Head Bolt 8 M20×P1.5-L110
58 D-C5A00011 Lock Washer 8 # 20
59 D-B1169377 Bolt 4 M14×P2-L85
60 D-B1168478 Bolt 8 M14×P2-L40
61 D-C6121413 Spring Washer 12
62 D-B6105460 Socket Head Bolt 1
63 D-B6104860 Socket Head Bolt 1
64 D-I0A03500 Hollow Hex Plug 1
67 D-21032500 Rubber Seal 1 D23×D16×L15
68 D-45089700 Shank Rod 1 T45 TYPE
69 D-59001001 Shell 1 HIGH TYPE
70 D-59001002 Shell 1 LOW TYPE
71 D-59001003 Diaphragm 1 HP
72 D-59001101 Shell 1 LP
-12 -
DRIFTER ASS'Y
73 D-59001102 Shell 1 LP
74 D-59001103 Diaphragm 1 LP
75 D-26032100 U-Seal 2
76 D-1006006 Bolt 2 M8
* D-55030000 Seal Kit 1
-13 -
DRIFTER FITTING ASS'Y
1
3
2
2
4
-14 -
DRIFTER FITTING ASS'Y
D-14222100 Drifter Fitting Ass'y
1 D-I6B00028 Nipple 1 PT1“×PF1”
2 D-I6B00012 Nipple 1 PT1“×PF1”
3 D-I6000024 Elbow 2 PF3/4“(O-RING)
4 D-I6000052 Elbow 1 PT1/4“×PF1/4“
-15 -
DRILL MOUNTING
42 7 43 30,37 10
6 13
11
47 48 49
DETAIL "A"
26
20
12 22
28,36,40
24,25
17 16 21
23
44 14 15 43 9 8
SECTION.B-B
28,40 1
27,36,40 5 4 29,35,37
34,39 20
33,41 3
B
22 23 24,25 31,38 19 21 18 32,36,40 2
-16 -
DRILL MOUNTING
D-14150000 Drill System
1 D-14150100 Hose Reel 1
2 D-14150200 Slide Base 1
3 D-14150300 Clamp Base 1
4 D-14150400 Plate 1 T6×230×50
5 D-14150500 Clamp 1
6 D-14150600 Shaft 1 Ø50×199
7 D-14150700 Plate 1 Ø120×T11
8 D-14150800 Guide Plate 2
9 D-14150900 Plate 2
10 D-14151000 Hose Coupling 1 1
14 D-14151400 Bush 2
15 D-14151500 Roller 2
16 D-14151600 Lock Plate 4 □9×30
17 D-14151700 Pin 2 Ø35×107
18 D-14151800 Drill Mounting 1
19 D-14151900 Joint 1
20 D-14152000 Clamp 4
21 D-14152100 Bracket 1
22 D-14152200 Guide Plate 4 T30×250×101
23 D-14152300 Plate 4 T15×250×60
24 D-14152400 Shim 8 T=1
25 D-14152500 Shim 8 T=0.5
26 D-14152600 Bracket 1
27 D-B1122370 Hex Bolt 2 M16×P2-L85
28 D-B1121973 Hex Bolt 6 M16×P2-L65
29 D-B1110471 Hex Bolt 4 M8×P1.25-L90
30 D-B1108876 Hex Bolt 4 M8×P1.25-L20
31 D-B1A00034 Hex Bolt 2 M24×P2-L50
32 D-B1122178 Hex Bolt 12 M16×P2-L75
33 D-B1114879 Hex Bolt 2 M12×P1.75-L20
35 D-C1110815 Hex Nut 4 M8×P1.25
36 D-C1111664 Hex Nut 20 M16×P2
-17 -
DRILL MOUNTING
D-14150000 Drill System
42 D-D1121055 Bearing 2 6210D
43 D-D6107020 Grease Nipple 3 A-PT1/8"
44 D-D5103211 Snap Ring 2 SRA-35
45 D-14152700 Shim 6 T=1
46 D-14152800 Shim 8 T=0.5
47 D-14152900 Shim 1 T=9
48 D-14153000 Shim 1 T=2
49 D-14153100 Shim 1 T=4
50 D-S800162 O-Ring 1 P16
-18 -
-19 -
MAST & ROD CHANGER
8
9
12,13
14
11
10 6
1
2,3
4,5
-20 -
MAST & ROD CHANGER
Item Part Name
D-14070000 Mast Ass'y
1 D-14070100 Mast
2 D-14080000 Slide Foot
3 D-58002200 Hood Slide Cylinder
4 D-14090000 Centralizer
5 D-58001200 Centralizer Cylinder
6 D-14200000 Auto Grease
7 D-14222200 Feed Motor Ass’y
8 D-14380000 Roller Carrier
9 D-58001500 Rod Set Cylinder
10 D-58001600 Centering Cylinder
11 D-14100000 Roller
12 D-14120000 Sleeve Clamp
13 D-58002000 Sleeve Cylinder
14 D-14130000 Rod Rack
-21 -
MAST
10
26
29
2
24
6 5 13
36 46
30
11
19
51
41 44
18 48
20
32
9
50
34 48 50 38 49
17
33 48 55
1
37
50
4 40 15
16 51
3448
14 21,22 21,23
62
36 4 54
7
28
8
43
47 25
45 35
31 52
27
-22 -
MAST
D-14070000 Mast
1 D-14070100 Mast 1
2 D-14070200 Shaft 1 Ø40.3×277
3 D-14070300 Sprocket 1
4 D-14070400 Adjusting Bolt 2
5 D-14070500 Bush 1 Ø55×53
6 D-14070600 Collar 2 Ø75×27
7 D-14070700 Link 2
8 D-14070800 Pin 2 Ø20×156
9 D-14070900 Stopper 1
10 D-14071000 Lock Plate 1 □12×35
11 D-14071100 Motor Bracket 1
12 D-14071200 Plate 1 Ø95×T11
13 D-14071300 Sprocket 1
14 D-14071400 Bracket 1
15 D-14071500 Bracket 1
16 D-14071600 Cover 1
17 D-14071700 Support Bracket 1
18 D-14071800 Bracket 1
19 D-57024300 Counter Balance Valve 1 C70-175
20 D-57024200 Deceleration Valve 1 ZCT-06-T-22
21 D-96011200 Chain 306 RS120
LINK
22 D-96011300 Roller 76 RS120
LINK
23 D-96011400 Joint Link 2 RS120×1
24 D-F1127119 Oil Seal 2 Ø40×Ø58-T8
25 D-D5206419 Bush 4 MB2020
26 D-A3119015 Split Pin 1 Ø10×L80
27 D-A3113215 Split Pin 2 Ø6.3×L40
28 D-A1215214 Knock Pin 2 Ø16×35
29 D-D6307028 Grease Nipple 1 C-PT 1/8"
30 D-52000900 Motor 1 CS05A-00-37-24-2
31 D-B1124873 Hex Bolt 6 M8×P2.5-L60
32 D-B1121674 Hex Bolt 6 M16×P2-L50
33 D-B1121076 Hex Bolt 8 M16×P2-L25
34 D-B1121279 Hex Bolt 16 M16×P2-L30
35 D-B1165471 Hex Bolt 4 M12×P1.75-L40
36 D-B1127570 Hex Bolt 8 M20×P2.5-L45
-23 -
MAST
D-14070000 Mast
37 D-B1111872 Bolt 6 M10×P1.5-L20
39 D-B1162379 Bolt 4 M10×P1.5-L35
40 D-B1108577 Bolt 9 M8×P1.5-L14
42 D-C1122461 Nut 4 M24×P3
43 D-C1121861 Nut 6 M18×P2.5
44 D-C1121669 Nut 6 M16×P2
45 D-C1121263 Nut 2 M12×P1.75
52 D-14072000 Plate 1
53 D-B1114861 Bolt 4 M12×P1.75-L20
54 D-14071900 Protection Arch 1 A3
55 D-14072400 Protection Arch 1 A3
56 D-14072500 Plate 1 A3
-24 -
-25 -
HOOD SLIDE ASS’Y
20
18
19
3
18
7
10
10
14
5
5
6
12
15
11
8
2
13
1
16
18
17
-26 -
HOOD SLIDE ASS’Y
D-14080000 Slide Foot Ass'y
1 D-14080100 Hood Point 1
2 D-14080200 Slide Plate 1
3 D-14080300 Hood Ass'y 1
4 D-14080400 Cover 1 T9
5 D-14080500 Shim 2 T1×125×85
6 D-14080600 Shim 2 T0.5×125×85
7 D-14080700 Spacer 2 Ø30×T7
8 D-14080800 Pin 1 Ø32×85L
9 D-14080900 Pin 1 Ø32×105L
10 D-14081000 Seal Rubber 2 Ø200
11 D-14081100 Skirt 1 Ø365
12 D-58002200 Slide Cylinder 2 Ø50.4×Ø25×300ST
13 D-A3115312 Split Pin 2 Ø8×45L #0845
14 D-14081200 Clamp 1
15 D-95017500 Cam Follower 2 KRV40LL
16 D-B1121770 Hex Bolt 6 M6×P2-L55
17 D-C1111664 Hex Nut 8 M16×P2
19 D-B1121375 Hex Bolt 3 M16×P2-L35
20 D-B1162475 Hex Bolt 5 M10×P1.5-L40
-27 -
HOOD SLIDE CYLINDER
-28 -
HOOD SLIDE CYLINDER
D-58002200 Slide Cylinder Ass’y
1 D-58002201 Tube 1
2 D-58002202 Rod 1
3 D-58002203 Piston 1
4 D-58002204 Rod Cover 1
5 D-58002205 Rod Head 1
6 D-58002206 Head Cover 1
7 1
8 D-58002208 Block 1
9 D-58002209 Pipe A 1
10 D-58002210 Pipe B 1
11 D-58002211 Bush 2
12 D-58002212 Dust Seal 1
13 D-58002213 Rod Seal 1
14 D-58002214 Du Bush 1 DU2520
15 D-58002215 O-Ring 1 1BG35
16 D-58002216 Back-Up Ring 1 T3G35
17 D-58002217 O-Ring 1 1BP16
18 D-58002218 Compact Seal 1
19 D-58002219 Set Screw 1 M6 X 10L
20 D-58002220 Grease Nipple 2 PT 1 / 8
21 D-58002221 Plug 2 PT 1 / 4
* D-58002222 Seal Kit 1
-29 -
CENTRALIZER ASS’Y
14
22
12
6 3
9
10
5,20
18 13 4,21
2
13
11
19 12
22
14
11 6
1 9 17
10
8
19
8
7
-30 -
CENTRALIZER ASS’Y
D-14090000 Centralizer Ass'y
1 D-14090100 Centralizer 1
2 D-14090200 Arm(Rh) 1
3 D-14090300 Arm(Lh) 1
4 D-14090400 Liner(T45) 1
5 D-14090500 Liner(T38) 1
6 D-14090600 Bracket 2
7 D-14090700 Pin 2 Ø30× Ø38×L218
8 D-14090800 Pin 2 Ø35× Ø50×L235
9 D-14090900 Pin 2 Ø30× Ø38×L112
10 D-14091000 Lock Plate 4 D9×D9
11 D-14091100 Bush 4 Ø45×Ø35×60
12 D-14091200 Hex Slot Nut 2 M30×P1.5
13 S3072203 Bolt 4 M16×P2-L75
14 D-C111618 Hard Lock Nut 8 M16×P2
15 D-A2119813 Spring Pin 4 Ø50×L50
16 D-A3113610 Cotter Pin 2 Ø6×60L CP-0660
17 D-D6307028 Grease Nipple 2 CPT1/8"
18 D-D6107020 Grease Nipple 4 APT1'8
19 D-58001200 Centralizer Cylinder 2 D60×D40-ST52
20 D-17091300 Liner( T51) 1 Ø110×L170
21 D-17091400 MF Rod Liner(T45) 1 Ø110×L170
22 D-C5A00011 Lock Washer 4 # 20
Internet Explorer.lnk
-31 -
CENTRALIZER CYLINDER ASS’Y
-32 -
CENTRALIZER CYLINDER ASS’Y
D-58001200 Centralizer Cylinder Ass’y
1 D-58001201 Tube 1
2 D-58001202 Rod 1
3 D-58001203 Piston 1
4 D-58001204 Rod Cover 1
5 D-58001205 Cover 1
6 D-58001206 Plate 1
7 D-58001207 Rod Head 1
8 D-58001208 Port 2
9 D-58001209 Bush 2
10 D-58001210 DU Bush 1 DU4030
11 D-58001211 Rod Seal 1
13 D-58001213 O-Ring 1 1BG30
14 D-58001214 Dust Wiper 1
15 D-58001215 O-Ring 1 1BG55
16 D-58001216 Back-Up Ring 1 T3G55
17 D-58001217 Set Screw 1 M8 X 10L
18 D-58001218 Plug 2 PT 1 / 4”
19 D-58001219 Grease Nipple 2 PT 1 / 8” – A
* D-58001220 Seal Kit
-33 -
AUTO GREASE ASS’Y
3
2
13
15
14
5 4
8
12 11
7 6
-34 -
AUTO GREASE ASS’Y
D-14200000 Auto Grease Ass'y
1 D-14200100 Bracket 1 65×70×50
2 D-14200200 Plate 1 D20×D15-L52.5
3 D-14200300 Nozzle 1 D15×D10-L52.5
4 D-14200400 Pin 1
5 D-14200500 Pin 1 TCM2E32-40S
6 D-14200600 Boss 2 M-Y-30
7 D-58021100 Air Cylinder 1
8 D-29005000 Clevis 1
9 D-I6000052 Elbow 2
10 D-I6000941 Plug 1
11 D-A3108816 Split Pin 1 M8×P1.25-L30
12 D-A3108613 Split Pin 1 M8×P1.25
13 D-B1109266 Hex Bolt 2
14 D-C1A01900 Lock Nut 2
15 D-C6120813 Washer 1
-35 -
ROLLER CARRIER ASS’Y
12
21
28
35
15
14
9
14
29
11 1
29
10
13
27
3
19
7
34
27
19
-36 -
ROLLER CARRIER ASS’Y
D-14380000 Roller Carrier Ass'y
1 D-14380100 Arm(F) 1
2 D-14380200 Arm(R) 1
3 D-14380300 Arm Bracket 1
4 D-14380400 Arm Bracket(Front) 1
5 D-14380500 Arm Bracket(Rear) 1
6 D-14380600 Shaft 1
7 D-14380700 Shaft(Front) 1
8 D-14380800 Shaft(Rear) 1
9 D-14380900 Cover 2 Ø89×25
10 D-14381000 Pin 2 Ø36×152
11 D-14381100 Pin 2 Ø65×152
12 D-14381200 Pin 2 Ø36×83
13 D-14381300 Bracket 2 Ø100×66
14 D-14381400 Bush 4 Ø65.3×35
15 D-14381500 Lock Washer 2 Ø65×10T
16 D-B1127677 Hex Bolt 2 M20×P2.5-L50
17 D-B1122071 Hex Bolt 2 M16×P2-L70
18 D-B1121279 Hex Bolt 5 M16×P2-L30
19 D-B1115575 Hex Bolt 16 M12×P1.75-L45
20 D-B1115073 Hex Bolt 6 M12×P1.75-L25
21 D-B1109476 Hex Bolt 8 M8×P1.25-L40
22 D-C1111664 Hex Nut 2 M16×P2
23 D-C1111269 Hex Nut 16 M12×P1.75
24 D-45014100 U-Nut 2 M40×P1.5
29 D-26009800 Bearing 4 HR-32908J
30 D-F0105625 O-Ring 2 1BP-55
31 D-A2117610 Spring Pin 4 SP-0840
32 D-D6307010 Grease Nipple 4 C-PT1/8"
33 D-D3207916 Bush 8 MB2520D
34 D-58001500 Rod Set Cylinder 2 D50.4×D25-ST190
35 D-58001600 Centering Cylinder 2 D65×D25-ST80
-37 -
CENTERING CYLINDER ASS’Y
-38 -
CENTERING CYLINDER ASS’Y
D-58001600 Centering Cylinder Ass'y D65×d25-ST80
1 D-58001601 Tube Ass‘y 1
2 D-58001602 Rod Ass‘y 1
3 D-58001603 Piston 1
4 D-58001604 Rod Cover 1
5 D-58001605 Bush 2 Ø25×Ø33×35L
6 D-58001606 Set Screw 1 M6×6L
7 D-58001607 Plug 2 PT 1/4“
8 D-58001608 Grease Nipple 2 PT 1/8“-A
9 D-58001609 U-Packing 2 OSI 50(FU0613L0)
10 D-58001610 Backup Ring 2 D50×D40×3T
11 D-58001611 Wear Ring 1 D50×D45×8W
12 D-58001612 O-Ring 1 1B P18
13 D-58001613 U-Packing 1 ISI 25(FU0276K0)
14 D-58001614 Backup Ring 1 D25×D33×2T
15 D-58001615 Wear Ring 1 D25×D29×10W
16 D-58001616 Dust Wiper 1 KDD 25 KDD-0250045A
17 D-58001617 O-Ring 1 1B G45
18 D-58001618 O-Ring 1 1B G50
* D-58001619 Seal Kit
-39 -
ROD SET CYLINDER ASS’Y
-40 -
ROD SET CYLINDER ASS’Y
D-58001500 Rod Set Cylinder
1 D-58001501 Tube A 1
2 D-58001502 Tube B 1
3 D-58001503 Rod 1
4 D-58001504 Piston 2
5 D-58001505 Rod Cover 2
7 D-58001507 Trunnion A 1
8 D-58001508 Trunnion B 1
9 D-58001509 Port A 1
10 D-58001510 Port B 1
11 D-58001511 Dust Seal 2
12 D-58001512 Rod Seal 2
13 D-58001513 Du Bush 2 DU2520
14 D-58001514 O-Ring 2 1BG35
15 D-58001515 Back-Up Ring 2 T3G35
16 D-58001516 O- Ring 2 1BP16
18 D-58001518 Set Screw 2 M8X10L
19 D-58001519 Plug 4 PT 1/4
* D-58001520 Seal Kit
-41 -
ROLLER ASS’Y
41
55
62
9
11
29
2
29
11
9
55
-42 -
ROLLER ASS’Y
D-14100000 Roller Ass'y
1 D-14100100 Roller Bracket 1
2 D-14100200 Arm 1
3 D-14100300 Slide Base(1) 1
4 D-14100400 Slide Base(2) 1
5 D-14100500 Motor Bracket 1
6 D-14100600 Shaft 2
7 D-14100700 Shaft 1
8 D-14100800 Shaft 1
9 D-14100900 Drive Roller 6 T38
10 D-14101000 Sprocket 1
11 D-14-101100 Sprocket 5
12 D-14101200 Pin 1 Φ48.6*468
13 D-14101300 Chain Cover 1
14 D-14101400 Idler Roller 3 Φ47*50.5
15 D-14101500 Spacer 3 Φ38.1*T10
16 D-14101600 Collar 1 Φ52*T10
17 D-14101700 Key 5 35*7*T17
18 D-14101800 Stopper 1 Φ50*T8
19 D-14101900 Shim 2SET T=1.0, T=0.5
20 D-14102000 Shim 2SET T=1.0, T=0.5
21 D-14102100 Bush 2 Ø52×50
22 D-14102200 Collar 1 Ø60×30
23 D-14102300 Spacer 2 T3×476×22
24 D-14102400 Spacer 1 T6×476×22
25 D-14102500 Bracket 1
26 D-14102600 Collar 1 Ø38×136
27 D-14102700 Collar 2 Ø38×50
28 D-14102800 Collar 3 Ø38×46
29 D-14102900 Collar 3 Ø38×12
30 D-14103000 Collar 2 Ø38×63
31 D-14103100 Collar 1 Ø38.1×20
32 D-14103200 Pin 1 Ø20×40
33 D-14103300 Pin 1 Ø20×77
34 D-14103400 Pin 1 Ø20×178
35 D-14103500 Pin 1 Ø20×90
36 D-14103600 Pin 2 Ø16×57
-43 -
ROLLER ASS’Y
D-14100000 Roller Ass'y
37 D-14103700 Shaft 1 Ø20×158
38 D-14103800 Shaft 2 Ø20×95
39 D-14103900 Joint 1
40 D-14104000 Rod 1
41 D-14104100 Joint 2
42 D-14104200 Stud Bolt 2
43 D-14104300 Washer 2 Ø32×T6
44 D-14104400 Pin 2 Ø25×75
45 D-14104500 Key Plate 5 25×30×T4.5
46 D-14104600 Key Plate 1 56×25×T4.5
47 D-14104700 Key Plate 1 76×25×T4.5
48 D-B1A03000 Hex Bolt 1 3/8”-16UNC
49 D-B1112376 Hex Bolt 12 M10×P1.5-L35
50 D-B1108673 Hex Bolt 12 M8×P1.25-L15
51 D-B1113371 Hex Bolt 1 M10×P1.5-L85
52 D-B1111010 Hex Nut 2 M10×P1.5
53 D-C1122212 Hex Nut 1 M22×P2.5
54 D-C1121612 Hex Nut 10 M16×P2
55 D-C1122010 Double Nut 8 M20×P2.5
56 D-D1A01100 Bearing 20 60/28 D
57 D-D3206419 Bush 6 MB2020
58 D-D5205210 Bush 2 MB1625
59 D-26010800 Chain 2 RS50×W×97 LINK
60 D-26018100 Spring 2 TL35-125
61 D-26018500 Chain 2 RS50×26 LINK
65 D-C5111010 Plain Washer 12 PW-10
66 D-52016100 Rotation Motor 1 2-200AD6-E
67 D-58002200 Slide Cylinder 1 D50.4×D25-ST300
68 D-58002000 Sleeve Cylinder 1 D50.4×D25-ST50
69 D-D6307010 Grease Nipple 5 C-PT1/8"
70 D-14104800 Chain Cover 1
71 D-14104900 Key Plate 1 36×70×9T
72 D-B1108577 Hex Bolt 2 M8×P1.25-L14
-44 -
-45 -
SLEEVE CLAMP ASS’Y
15 10
22
34
19
9
22
23 31
17 25
26 7,8
28 2 16
35 11
37
23
20
37
36
7,8
23 32
13 23 12,21
35 14
33 11
30
22 18
31 4
26
6
5
27
5 32
6
3
3
-46 -
SLEEVE CLAMP ASS’Y
D-14120000 Sleeve Clamp Ass'y
1 D-14120100 Arm 1
2 D-14120200 Bracket 1
3 D-14120300 Clamp 1
4 D-14120400 Shim 8 T1×220×130
5 D-14120500 Spacer 2 T4×220×31
6 D-14120600 Shim 4 T1×220×31
7 D-14120700 Liner 2 Ø135(T38)
8 D-14120800 Liner 2 Ø135(T45)
9 D-14120900 Link A(Rh) 1
10 D-14121000 Link A(Lh) 1
11 D-14121100 Link B 2
12 D-14121200 Clamp(T45) 1 Ø45,38
13 D-14121300 Pin 2 Ø20×57
14 D-14121400 Pin 2 Ø25×32
15 D-14121500 Pin 1 Ø20×165
16 D-14121600 Pin 1 Ø20×168
17 D-14121700 Pin 1 Ø25×104
18 D-14121800 Pin 1 Ø25×128
19 D-14121900 Spacer 1 Ø40×25
20 D-14122000 Spacer 1 Ø21.7×100
21 D-14122100 Clamp(T38) 1 Ø38,32H
22 D-14104500 Key Plate 2 25×30×T4.5
23 D-D5206419 Bush 8 MB2020
24 D-D5206312 Bush 4 MB2015
25 D-D5102110 Snap Ring 4 SRA20
26 D-B1108673 Hex Bolt 2 M8×P1.25-L15
27 D-B1112270 Hex Bolt 8 M10×P1.5-L30
28 D-B1112472 Hex Bolt 6 M10×P1.5-L30
29 D-B1A03100 Hex Bolt 1 M10×P1.5-L180
34 D-58001900 Sleeve Cylinder 1 D50.4×D25-ST50
35 D-C1111066 Hex Nut 8 M10×P1.5
36 D-96011600 Hex Bolt
37 D-14123600 Bush
-47 -
SLEEVE CYLINDER ASS’Y
-48 -
SLEEVE CYLINDER ASS’Y
D-58002000 Sleeve Cylinder
1 D-58002001 Tube 1
2 D-58002002 Rod 1
3 D-58002003 Piston 1
4 D-58002004 Rod Cover 1
5 D-58002005 Rod Head 1
7 D-58002007 Trunnion 1
8 D-58002008 Port 1
9 D-58002009 Head Bush 1
10 D-58002010 Bush 2
11 D-58002011 Dust Seal 1
12 D-58002012 Rod Seal 1
13 D-58002013 Du Bush 1 DU2520
14 D-58002014 O-Ring 1 1BG35
15 D-58002015 Back-Up Ring 1 T3G35
16 D-58002016 O-Ring 1 1BP16
18 D-58002018 Set Screw 1 M8X10L
19 D-58002019 Grease Nipple 1 M6
20 D-58002020 Plug 2 PT1/4
21 D-58002021 Grease Nipple 1 PT 1/8-45°
* D-58002022 Seal Kit 1
-49 -
ROD RACK ASS’Y
B-B'
1
A-A'
17 3 4 18
14 4
5
17
3
A-A' 16
16
2
15
8
11
B-B' 10
6 7
12
13 5
9
5,6
6
13
-50 -
ROD RACK ASS’Y
D-14130000 Rod Rack Ass'y
1 D-14130100 Rod Rack 2
4 D-14130400 Shaft 10
5 D-14130500 Rotary Latch(1) 8 T45
D-14430200 Rotary Latch(1) 8 T38
6 D-14130600 Rotary Latch(2) 2 T45
D-14430300 Rotary Latch(2) 2 T38
7 D-14130700 Stop Disk 5SET Ø49.5×33
8 D-14130800 Cap 10 Ø50×10
9 D-14130900 Spacer 10 Ø42×3
10 D-14131000 Spring 10
11 D-14131100 Sleeve 10 Ø60.5×75
12 D-59013200 Ball 40 Ø10
13 D-D1A01120 Bearing 20 6004DDU
14 D-10907100 Grease Nipple 10 C-PT1/8"
15 D-F0104822 O-Ring 10 P45
16 D-C1121263 Double Nut 20 M12×P1.75
17 D-B1108472 Hex Bolt 20 M8×P1.25-L12
18 D-14131200 Bracket 1
-51 -
FEED MOTOR FITTING ASS’Y
-52 -
FEED MOTOR FITTING ASS’Y
D-14130000 Feed Motor Fitting Ass'y
1 D-14130100 Adapter 2 PT3/4"×PF3/4"
2 D-C6121210 Elbow(45°) 2 PT1/2"×PF1/2"
3 D-C6120813 Adapter 1 PT1/4"×PF1/4"
4 D-14130400 Reducing Nipple 1 PT1/4"×PF3/8"
5 D-14130500 Elbow 1 PT3/8"
6 D-14130600 Elbow 1 PT3/8"×PF3/8"
7 D-14130700 Elbow 1 PT3/8"×PF1/4"
8 D-14130800 Bush 2 PT3/4"×PF1/2"
-53 -
BOOM & GUIDE SHELL
8
5
4 2
-54 -
BOOM & GUIDE SHELL
Item Part No Part Name
Boom & Guide Shell
1 D-14050000 Boom Extension
D-13065900 Boom Standard
2 D-58010600 Boom Lift Cylinder
3 D-58010800 Boom Extension Cylinder
4 D-58021300 Boom Swing Cylinder
5 D-14060000 Guide Shell Mtg’
D-13066000 Guide Shell Standard
6 D-58001000 Mast Extension Cylinder
7 D-58010900 Mast Swing Cylinder
8 D-58010700 Mast Dump Cylinder
-55 -
BOOM (EXTENSION)
35
6
10 14
31
20
39 40
7 25
11
5
10 7 1
31 37
21 50
21 31 23
41
59
9
17 15
19 18
19
30 8
16 32 4
3
34
10 38
62
49 2 18
22
45 30 33
50 5243
42
32
13
26
27
27 26
24
36
29 33
28
12
52 58
48
-56 -
BOOM (EXTENSION)
D-14050000 Boom Ass'y
1 D-14050100 Front Boom Ass‘y 1
2 D-14050200 Rear Boom Ass‘y 1
3 D-14050300 Dump Clevis 1
4 D-14050400 Pedestal 1
5 D-14050500 Link A(Rh) 1 T32
6 D-14050600 Link A(Lh) 1 T32
7 D-14050700 Link B 1
8 D-14050800 Pin 1 Ø70×405
9 D-14051000 Pin 1 Ø70×385
10 D-14051100 Pin 2 Ø60×358
11 D-14051200 Pin 1 Ø60×357
12 D-14051300 Pin 1 Ø65×249
13 D-14051400 Pin 1 Ø65×202
14 D-14051500 Pin 2 Ø70×100
15 D-14051600 Pin 1 Ø55×127
16 D-14051700 Pin 1 Ø40×258
17 D-14051800 Pin 1 Ø40×270
18 D-14051900 Bush 2 Ø95×Ø80×100
19 D-14052000 Bush 4 Ø85×Ø70×70
20 D-14052100 Bush 4 Ø75×Ø60×89
21 D-14052200 Bush 2 Ø75×Ø60×65
22 D-C1112061 Hex Nut 2 M20×P2.5
23 D-C1111664 Hex Nut 4 M16×P2
24 D-14052500 Shim 3 T13×140×510
25 D-14052600 Shim 4 T14×76×140
26 D-14052700 Hex Bolt 9 M56×P3-L72
27 D-14052800 Hex Nut 9 M56×P3
28 D-14052900 Cover Plate 2 T16×141×282
29 D-14053000 Rubber 2 T9×141×282
30 D-14053100 Stop Pin 1 Ø95×Ø70×50
31 D-14053200 Stop Pin 2 Ø85×Ø60×40
32 D-14053300 Key Plate 1 T9×110×44
33 D-14053400 Key Plate 5 T9×90×37
34 D-14053500 Cover 1 T3.2×124×174
35 D-58010700 Mast Dump Cylinder 1 D172×D70×ST550
36 D-58010600 Boom Lift Cylinder 1 D172×D90×ST51
-57 -
BOOM (EXTENSION)
D-14050000 Boom Ass'y
37 D-58021300 Boom Swing Cylinder 1 D140×D60×ST365
38 D-58010800 Boom Extension Cylinder 1 D95×D45×ST1200
39 D-D6307010 Grease Nipple 1 CPT 1/8"
40 D-D6107013 Grease Nipple 23 APT 1/8"
41 D-B1123077 Hex Bolt 2 M16×P2-L120
42 D-B1118475 Hex Bolt 2 M14×P2-L40
43 D-B1115276 Hex Bolt 10 M12×P1.75-L30
44 D-B1104479 Hex Bolt 4 M6×P1-L12
45 D-B1129379 Hex Bolt 1 M20×P2.5-L140
46 D-B1109070 Hex Bolt 4 M8×P1.25-L25
47 D-B6A00013 Socket Head Bolt 10 M10×P1.25-L25
56 D-14052400 Plate 4
57 D-B1109273 Bolt 10 M8×P1.25-L30
58 D-14055800 Shim 1
59 D-41077500 Lift Pivot Pin 1
60 D-14056000 Boom Swing Pin 1
61 D-B1115372 Bolt 2 M12×P1.75-L35
62 D-14053600 Plate 1 T9×90×37
63 D-S0121463 Bolt 8 M16×P2-L40
-58 -
-59 -
BOOM (STANDARD)
-60 -
BOOM (STANDARD)
D-13065900 Boom 1
1 D-13073600 Boom 1
2 D-48001500 Dump Clevis 1
3 D-48001600 Pedestal 1
4 D-63001300 Link(A) Right 1
5 D-63001400 Link (A) Left 1
6 D-13073700 Link(B) 1
7 D-41077900 Pin 1
8 D-41078000 Pin 1
9 D-41078100 Pin 1
10 D-41078200 Pin 2
11 D-41078300 Pin 1
12 D-41078400 Pin 2
13 D-41078500 Pin 1
14 D-41078600 Pin 1
15 D-41078700 Pin 1
16 D-45007700 Bush 2
17 D-45007800 Bush 4
18 D-45007900 Bush 2
19 D-45008000 Bush 4
20 D-63001500 Key Plate 1
21 D-63001600 Key Plate 4
22 D-45008100 Stop Pin 1
23 D-45008200 Stop Pin 2
24 D-01000621 Stop Pin 1
25 D-45013900 Castle Nut 1 CNL-52
26 D-B1129379 Bolt 1 M20×P2.5-L140
27 D-B1133077 Bolt 2 M16×P2-L120
28 D-B1118475 Bolt 2 M14×P2-L40
29 D-B1115276 Bolt 12 M12×P1.75-L30
30 D-C1112061 Nut 2 M20×P2.5

31 D-C1111664 Nut 4 M16×P2
36 D-A3116211 Cotter Pin 1 CP-0890
-61 -
BOOM (STANDARD)
D-13065900 Boom 1
37 D-D6107013 Grease Nipple 12
38 D-D6107010 Grease Nipple 2
39 D-58000700 Boom Lift Cylinder 1 D152×d60-ST550
40 D-58000800 Mast Dump Cylinder 1 D152×d60-ST550
41 D-58000900 Boom Swing Cylinder 1 D120×d50-ST365
-62 -
-63 -
BOOM LIFT CYLINDER ASS'Y
-64 -
BOOM LIFT CYLINDER ASS'Y
D-58010600 Boom Lift Cylinder Ass’y
1 D-58010601 Tube 1
2 D-58010602 Rod 1
3 D-58010603 Piston 1
4 D-58010604 Rod Cover 1
5 D-58010605 Rod Head 1
6 D-58010606 Cover 1
7 D-58010607 Joint Tube 1
8 D-58010608 Clevis 1
9 D-58010609 Block 1
10 D-58010610 Pipe A 1
11 D-58010611 Pipe B 1
12
13 D-58010613 Bush 2
14 D-58010614 Plate 1
15 D-58010615 Dust Seal 1
16 D-58010616 Wear Ring 1
17 D-58010617 Rod Seal 1
18 D-58010618 Du Bush 1 DU9040
19 D-58010619 O-Ring 1 1BG145
20 D-58010620 Back-Up Ring 1 T3G145
21 D-58010621 O-Ring 1 1BG90
23 D-58010623 Set Screw 1 M8 X 10L
24 D-58010624 Grease Nipple 2 PT 1/ 8
25 D-58010625 Bolt 4 M10 X 10L
* D-58010825 Seal Kit 1
-65 -
BOOM EXTENTION CYLINDER ASS'Y
-66 -
BOOM EXTENSION CYLINDER ASS'Y
D-58010800 Boom Extension Cylinder Ass’y
1 D-58010801 Tube 1
2 D-58010802 Rod 1
3 D-58010803 Piston 1
4 D-58010804 Rod Cover 1
5 D-58010805 Cover 1
6 D-58010806 Joint Tube 1
7 D-58010807 Clevis 1
8 D-58010808 Block 1
9 D-58010809 Port 1
10 D-58010810 Pipe 1
11 D-58010811 Plate 1
12 D-58010812 Dust Seal 1
13 D-58010813 Rod Seal 1
14 D-58010814 Du Bush 1 DU4530
15 D-58010815 O-Ring 1 1BG75
16 D-58010816 Back-Up Ring 1 T3G75
17 D-58010817 O-Ring 1 1BG45
19 D-58010819 Sph’ Bearing 1 SB40A
20 D-58010820 Stop Ring 1 H-62
21 D-58010821 Set Screw 1 M8 X 10L
23 D-58010823 Bolt 4 M10 X 10L
24 D-58010824 Plug0 0 1 PT 1 / 4
-67 -
BOOM SWING CYLINDER ASS'Y
-68 -
BOOM SWING CYLINDER ASS'Y
D-58021300 Boom Swing Cylinder Ass’y
1 D-58021301 Tube 1
2 D-58021302 Rod 1
3 D-58021303 Piston 1
4 D-58021304 Rod Cover 1
5 D-58021305 Cover 1
6 D-58021306 Rod Head 1
7 D-58021307 Clevis 1
8
9 D-58021309 Block 1
10 D-58021310 Pipe A 1
11 D-58021311 Pipe B 1
12 D-58021312 Bush 2
13 D-58021313 Plate 1
14 D-58021314 Dust Seal 1
15 D-58021315 Rod Seal 1
16 D-58021316 Step Seal 1
17 D-58021317 Du Bush 1 DU6040
18 D-58021318 O-Ring 1 1BG115
19 D-58021319 Back-Up Ring 1 T3G115
20 D-58021320 O-Ring 1 1BG60
22 D-58021322 Set Screw 1 M8 X 10L
24 D-58021324 Bolt 4 M10 X 10L
* D-58021325 Seal Kit
-69 -
GUIDE SHELL MT’G (EXTENSION)
2
6 22
24
19
18 23 21
14
9
8
10
5
7 16
24
7 4 1
21
21
18 23
3
15
11
23 17
-70 -
GUIDE SHELL MT’G(EXTENSION)
D-14060000 Guide Shell Ass'y
1 D-14060100 Guide Shell Ass‘y 1
2 D-14060200 Cylinder Bracket Ass‘y 1
3 D-14060300 Pin 1
4 D-14060400 Nut 1
5 D-14060500 Pin 1
6 D-14060600 Pin 1
7 D-14152300 Plate 4 T15×250×60
8 D-14152400 Shim 8
9 D-14152500 Shim 8
10 D-14061000 Guide Plate 4 T30×250×101
11 D-14061100 Pin 2
13 D-14061300 Plate 2
14 D-58001000 Mast Extension Cylinder 1 D82×D45×ST1500
15 D-58010900 Mast Swing Cylinder 1 D152×D60×ST168
16 D-B1121471 Hex Bolt 4 M16×P2.0-L40
17 D-B1115372 Hex Bolt 4 M12×P1.75-L35
18 D-B1116474 Hex Bolt 2 M12×P1.75-L90
19 D-B1121674 Hex Bolt 2 M16×P2.0-L50
20 D-B1122071 Hex Bolt 16 M16×P2.0-L70
21 D-C1111269 Hex Nut 4 M12×P1.75
22 D-C1111664 Hex Nut 20 M16×P2.0
25 D-D6107020 Grease Nipple 1 A-PT1×8
26 D3-256016 Bush 2 Ø95×Ø80×100
28 C6-120418 Spring Washer 4 SW-4
-71 -
GUIDE SHELL MT’G (STANDARD)
-72 -
GUIDE SHELL MT’G (STANDARD)
D-13066000 Guide Shell MT’G Ass’y
1 D-13075300 Mounting Bracket. 1
2 D-13075400 Bracket 1
3 D-41080300 Pin 1 Ø40×233
4 D-41080400 Pin 1 Ø40×151
5 D-14080500 Pin 1
6 D-42002800 Guide Plate 4 T17×250×90
7 D-42002900 Plate 4 T15×250×60
8 D-41080600 Spacer 1 Ø84.5×Ø71×40
9 D-41080700 Stop Pin 1 Ø60.5×Ø40×30
10 D-63002700 Shim 8 T=1
11 D-63002800 Shim 8 T=0.5
12 D-45007800 Bush 2 Ø85×Ø70×70
13 D-B1122071 Hex Bolt 16 M16×P2-L70
14 D-B1116474 Hex Bolt 2 M12×P1.75-L90
15 D-95016900 Hex Bolt 2 M12×P1.5-L30
16 D-C1111664 Hex Nut 20 M16×P2
17 D-C1111269 Hex Nut 4 M12×P1.75
20 D-D6307028 Grease Nipple 1 CPT 1/8"
21 D-58001000 Mast Extension Cylinder 1
22 D-58001100 Mast Swing Cylinder 1
23 D-B1121973 Hex Bolt 4 M16×P2-L65
24 D-63006500 Cover 1 Ø165.2×T3.2
25 D-B1103174 Hex Bolt 4 M5×P0.8-L16
-73 -
MAST EXTENSION CYLINDER
-74 -
MAST EXTENSION CYLINDER
D-58001000 MAST EXTENSION CYL ASS’Y
1 D-58010001 TUBE 1
2 D-58010002 ROD 1
3 D-58010003 PISTON 1
4 D-58010004 ROD COVER 1
5 D-58010005 ROD HEAD 1
6 D-58010006 HEAD COVER 1
7 D-58010007 PORT 2
8 D-58010008 BUSH 1
9 D-58010009 DUST SEAL 1
10 D-58010010 ROD SEAL 1
11 D-58010011 DU BUSH 1 DU4530
12 D-58010012 O-RING 1 1BG65
13 D-58010013 BACK-UP RING 1 T3G65
14 D-58010014 O-RING 1 1BG45
15 D-58010015 COMPACT SEAL 1
16 D-58010016 SPH’ BEARING 1 SB 40A
17 D-58010017 STOP RING 1 H – 62
18 D-58010018 PLUG 2 PT 1 / 4
19 D-58010019 SET SCREW 1 M8 X 8L
20 D-58010020 GREASE NIPPLE 2 PT 1 / 8
* D-58001021 Seal Kit
-75 -
MAST SWING CYLINDER
-76 -
MAST SWING CYLINDER
D-58010900 MAST SWING CYLINDER
1 D-58010900 TUBE 1
2 D-58010902 ROD 1
3 D-58010903 PISTON 1
4 D-58010904 ROD COVER 1
5 D-58010905 COVER 1
6 D-58010906 ROD HEAD 1
7 D-58010907 CLEVIS 1
8 D-58010908 BLOCK 1
10 D-58010910 PIPE A 1
11 D-58010911 PIPE B 1
12 D-58010912 BUSH 2
13 D-58010913 PLATE 1
14 D-58010914 DUST SEAL 1
15 D-58010915 ROD SEAL 1
16 D-58010916 DU BUSH 1 DU6050
17 D-58010917 O-RING 1 1BG125
18 D-58010918 BACK-UP RING 1 T3G125
19 D-58010919 O-RING 1 1BG60
21 D-58010921 SET SCREW 1 M8X10L
22 D-58010922 GREASE NIPPLE 3 PT 1/8
23 D-58010923 BOLT 4 M10X10L
* D-58010924 Seal Kit
-77 -
MAST DUMP CYLINDER
-78 -
MAST DUMP CYLINDER
D-58010700 MAST DUMP CYL ASS’Y
1 D-58010701 TUBE 1
2 D-58010702 ROD 1
3 D-58010703 PISTON 1
4 D-58010704 ROD COVER 1
5 D-58010705 COVER 1
6 D-58010706 ROD HEAD 1
7 D-58010707 TRUNNION 1
8 D-58010708 BLOCK 1
9 D-58010709 PORT 2
10 D-58010710 PIPE A 1
11 D-58010711 PIPE B 1
12 D-58010712 HEAD BUSH 1
13 D-58010713 BUSH 2
14 D-58010714 PLATE 1
15 D-58010715 DUST SEAL 1
16 D-58010716 ROD SEAL 1
17 D-58010717 DU BUSH DU7050
18 D-58010718 O-RING 1 1BG145
19 D-58010719 BACK-UP RING 1 T3G145
20 D-58010720 O-RING 1 1BG70
22 D-58010722 SET SCREW 1 M8 X 10L
23 D-58010723 GREASE NIPPLE 1 PT 1 / 8
24 D-58010724 BOLT 4 M10 X 10L
* D-58010725 Seal Kit
-79 -
TRACK SYSTEM
-80 -
TRACK SYSTEM
Track System
1 D-1A020000 Track Ass’y
D-1C020000 Track Ass’y Standard
2 D-58021200 Oscillation Cylinder Ass’y
-81 -
TRACK (EXTENSION)
15
3 24
22
16
1
22
16
7
14
19
22
13
14
23 11
4
21
10 20
21
2217 18
9 21
20
15
21
20
22 5
17
21
16
-82 -
TRACK (EXTENSION)
D-1A020000 Side Frame
1 D-1A020100 Side Frame(Lh) 1
2 D-1A020200 Side Frame(Rh) 1
3 D-14020300 Recoil Spring Ass'y 2
4 D-14020400 Sprocket 2
5 D-14020500 Lower Roller 14
6 D-14020600 Shoe Ass‘y 2 44LINK×2
7 D-14020700 Upper Roller 2
8 D-14020800 Idler 2
9 D-14020900 Track Guard(Lh) 2
10 D-14021000 Track Guard(Rh) 2
11 D-14021100 Sprocket Guard(Lh) 1
12 D-14021200 Sprocket Guard(Rh) 1
13 D-14021300 Motor Cover 2
14 D-14021400 Bushing 4
15 D-14021500 Round Bar 12
16 D-B1121578 Hex Bolt 60 M16×P2-L45
17 D-B1121489 Hex Bolt 24 M16×P2-L40
18 D-B1121681 Hex Bolt 30 M16×P2-L50
19 D-B1115073 Hex Bolt 10 M12×P1.75-L25
20 D-B6121571 Socket Head Bolt 38 M16×P2-L45
21 D-C6121623 Spring Washer 152 M16
23 D-52026300 Travel Motor 1 TM10VC-FW
24 D-14021600 Plate 1
25 D-1A021700 Bracket 4
26 D-S0133664 Hex Bolt 16
27 D-S5001332 Lock Washer 16
28 D-58021200 Traction Cylinder Ass'y 1 D140×d60-ST140
-83 -
TRACK (STANDARD)
-84 -
TRACK (STANDARD)
D-1C020000 Side Frame
1 D-1C020100 Side Frame(Lh) 1
2 D-1C020200 Side Frame(Rh) 1
3 D-14020300 Recoil Spring Ass'y 2
4 D-14020400 Sprocket 2
5 D-14020500 Lower Roller 12
6 D-1C020600 Shoe Ass‘y 2 42LINK×2
7 D-14020700 Upper Roller 2
8 D-14020800 Idler 2
9 D-1C020900 Track Guard(Lh) 2
10 D-1C021000 Track Guard(Rh) 2
11 D-14021100 Sprocket Guard(Lh) 1
12 D-14021200 Sprocket Guard(Rh) 1
13 D-14021300 Motor Cover 2
14 D-14021400 Bushing 4
15 D-14021500 Round Bar 12
16 D-B1121578 Hex Bolt 60 M16×P2-L45
17 D-B1121489 Hex Bolt 24 M16×P2-L40
18 D-B1121681 Hex Bolt 30 M16×P2-L50
19 D-B1115073 Hex Bolt 10 M12×P1.75-L25
23 D-52026300 Travel Motor 1 TM10VC-FW
-85 -
OSCILLATION CYLINDER ASS'Y
-86 -
OSCILLATION CYLINDER ASS'Y
D-58021200 Oscillation Cylinder Ass'y 1 D140×d60-ST140
1 D-58021201 Tube 1
2 D-58021202 Rod 1
3 D-58021203 Piston 1
4 D-58021204 Rod Cover 1
5 D-58021205 Cover 1
6 D-58021206 Rod Head 1
7 D-58021207 Clevis 1
8 D-58021208 Port Block 1
9 D-58021209 Pipe 2
10 D-58021210 Bush 1
11 D-58021211 Dust Seal 1
12 D-58021212 Rod Seal 1
13 D-58021213 Step Seal 1
14 D-58021214 Du Bush 1 DU6030
15 D-58021215 O-Ring 1 1BG115
16 D-58021216 Back-Up Ring 1 T3G115
17 D-58021217 O-Ring 1 1BG60
19 D-58021219 Bearing 1 SB60A
20 D-58021220 Stop Ring 1
21 D-58021221 Set Screw 1 M8X10L
22 D-58021222 Grease Nipple 2 PT 1/8”
* D-58021223 Seal Kit
-87 -
BONNET
28 28
32 47 32 47
6 8
37
27 44
36 37
29 29
33 40
17 33
40 41
40 41 25 18 19
46 20
41
21 12
15
24
26
13
28 23
11 32
39 7
40 21
41
42 14
22 3
46
4
28 1
32 9
47 37
16
33 29
37
29 33 38
37
10
37
29 33 2
51 42
41
41 40
40 22
47
5 14
33
29
-88 -
BONNET
D-17350000 Bonnet
1 D-17350100 Bonnet 1
2 D-17350200 Cover(1) 1
3 D-17350300 Cover(2) 1
4 D-17350400 Door(1) 1
5 D-17350500 Door(2) 1
6 D-17040600 Door(3) 1
7 D-17350700 Door(4) 1
8 D-17040800 Door(5) 1
9 D-17350900 Door(6) 1
10 D-17351000 Cover(3) 1
11 D-17041100 Cover(4) 1
12 D-17041200 Cover(5) 1
13 D-17351300 Cover(6) 1
14 D-17041400 Cover(7) 1
15 D-17041500 Cover(8) 1
16 D-17041600 Frame 1
17 D-17041700 Plate 2
18 D-17031500 Muffler Bracket 2
19 D-17042700 Bracket 1
20 D-26012900 Stopper 6
21 D-29005800 Hinge 6
22 D-17042800 Joint 2
23 D-17353800 Mirror Bracket 1
24 D-37000100 Working Lamp 2
25 D-17042500 Plate 1
26 D-59021200 Back Mirror 1
27 D-C1A02300 Nylon Nut 10
28 D-B1104874 Hex Bolt 56
29 D-B1108673 Hex Bolt 12
30 D-B1109070 Hex Bolt 103
31 D-B1114570 Hex Bolt 8
35 D-C1120663 Hex Nut 56
36 D-C1120866 Hex Nut 42
-89 -
BONNET
D-17350000 Bonnet
37 D-59040500 Gas Damper 10
38 D-17351400 Pipe 1
39 D-17041800 Fuel Door 1
40 D-B1111872 Hex Bolt 36
42 D-C1111066 Hex Nut 16 M10×P1.5
43 D-17041900 Plate 1
44 D-29030100 Bracket 4
45 D-29005900 Knob Handle 1 KC103-1
46 D-14042600 Terminal 1
47 D-29003200 Door Catch 8
48 D-17354800 Latch 8 M10×P1.5
49 D-17350600 Cover9 1
50 D-17351500 Plate 1
51 D-17351600 Bracket 1 KC103-1
52 D-17351700 Bracket 1
53 D-17352400 Plate 8
-90 -
-91 -
CABIN
4,5
2
-92 -
CABIN
D-17110000 Cabin Mounting
1 D-17110100 Cabin Ass’y
2 D-17170000 Panel
3 D-17240000 Cable Control
4 D-17370000 Air Conditioner Line
5 D-29050000 Air Conditioner Ass’y
-93 -
CABIN
10
15
2
3
27 20
12 7
6 28 13
"B" 5
VIEW "B"
19
23,24,25
8
VIEW "D"
22 23,24,25
14
26
16
VIEW "E"
VIEW "A" 9 23,24,25

VIEW "C"
16 17
VIEW "F"
-94 -
CABIN
D-17110000 Cabin Mounting Ass’Y
1 D-17430000 Cabin 1
2 D-17110200 Control Panel No.1 1
4 D-17114500 Plate 1
5 D-17110500 Plate 1
6 D-17110600 Seat MT'G 1
7 D-17110700 Door 1
8 D-17110800 Plate(Cp1) 1
9 D-17110900 Plate(Cp1) 1
10 D-17114400 Protector Ass’Y 1
11 D-17114600 Plate 1
12 D-29050000 Air Conditioner 1
14 D-17112600 Duct No.1 1
15 D-17111400 Duct No.2 1
16 D-17113600 Duct Cover 1
17 D-17113700 Duct Cover 1
18 D-59041100 Gas Damper 2 Ø15 x L205 x 20K
19 D-14116600 Water Tank 1 24V
20 D-29006000 KNOB 2 M10XL25
21 D-17114405 BOSS 4
22 D-17112800 Plate(Cp1) 1
23 D-B2406410 Screw, Machine(R/H) 32 M6×P1.0-L16
24 D-C5110613 Plain Washer 32 M6
26 D-14117600 A/C GRILL 5 Ø82 x W40
27 D-14117200 SUS BAND 2 Ø102
28 D-17113900 PLATE(CP2) 1
29 D5-102419 SNAP-RING 2 Ø24
-95 -
PANEL ASS’Y
-96 -
PANEL ASS’Y
D-17170000 Panel Ass'y
1 D-17170100 Control Panel No1 1 A2
4 D-17170400 Air Pressure Gauge 1 A2
5 D-59024200 Drifter Rotation Pressure Gauge 1 25BAR(WIKA)
6 D-59024300 Feed Pressure Gauge 2 250BAR(WIKA)
7 D-59024400 Impact Press 1 350BAR(WIKA)
8 D-51078500 Drifter Impact Pressure Relief Valve 2 RD1-02T-C
9 D-B6105080 Feed Pressure Relief Valve 2 M6×P1.0-L25
10 D-B1108869 Hex Bolt 24 M8×P1.25-L20
11 D-C5110816 Plain Washer 24 WP-8
13 D-B1104867 Hex Bolt 8 M6×P1.0-L20
14 D-C5110816 Plain Washer 8 WP-6
-97 -
CABLE CONTROL ASS'Y
-98 -
CABLE CONTROL ASS'Y
D-17240000 Cable Control Ass'y
1 D-17240100 Lever 1
2 D-14240900 Cable 1
3 D-26018800 Rod End 2 PHS8
4 D-14244600 Ball Valve 1 64022334
5 D-BIA01900 Hex Bolt 2 M8×P1.25-L30
6 D-C1110815 Hex Nut 2 M8×P1.25
8 D-B1108673 Hex Bolt 2 M8×P1.25-L16
9 D-59001300 Grip 1 KD-10B-BLOCK
-99 -
AIR CONDITIONER LINE
10
13
12
5
11
6
4
-100 -
AIR CONDITIONER LINE
D-17370000 Air Conditioner Line
1 D-29050000 Air Condenser Ass’y 1
2 D-17370001 Discharge Hose 1
3 D-17370002 Suction Hose 1
4 D-17370003 Heater Hose(Hot) 1
5 D-17370004 Heater Hose(Cold) 1
6 D-17370005 Hose Discharge 1
7 D-29040007 Hose Liquid(A) 1
8 D-29040008 Hose Liquid(B) 1
9 D-29040005 Receiver Drier Ass‘y 1
10 D-29040003 Compressor Ass‘y 1
11 D-29040004 Condenser Ass‘y 1
12 D-29040012 V-Belt 1
13 D-29040010 Plate Compressor. Joint 1
-101 -
AIR CONDITIONER ASS’Y
6 1
7
2
3
4
-102 -
AIR CONDITIONER ASS’Y
D-29050000 Air Conditioner Ass’y
1 D-29050001 Case Ass’y 1
2 D-29050002 Blower 1
3 D-29050003 Evaporator & Expansion Valve 1
Ass’y
4 D-29050004 Cover Panel 1
5 D-29050005 Thermostat 1
6 D-29050006 Resistor 1
7 D-29050007 Relay 1
8 D-29050008 Air Filter 1
-103 -
DUST COLLECTOR
-104 -
DUST COLLECTOR
Item Part Name
Dust Collector
1 Dust Collector
2 Pre Cleaner
3 Hose
-105 -
DUST COLLECTOR
2 18 25 2812 7 13 21 30 2
22 11 39
4
20
8
26
37 6
16
38 24
36
15 3
19
1 43
17 42
41
10
40
35
14
23
34
33,32, 31
29
-106 -
DUST COLLECTOR
D-17190000 Dust Collector
1 D-17190001 Filter Housing 1 T=2.3
2 D-17190002 Filter Plate 1 T=4.5
3 D-17190003 Body Support 2
4 D-17190004 Fan Base Angle 1
5 D-17190005 Main Door 1 T=3.2
6 D-17190006 Inlet Pipe 1
7 D-17190007 Air Pulse Nozzle 1 25A
8 D-17190008 Air Tank 1
9 D-17190009 Pulse Valve Cover 1 T=2.3
10 D-17190010 Dust Outlet 1 T=3.2
11 D-17190011 Impeller 1
12 D-17190012 Pan Cover 1 T=6
13 D-17190013 Fan Casing 1 T=4.5
14 D-17190014 Damper & Air Cylinder 1 Ø32 STR. 40
15 D-17190015 Filter Support & Ventri 6
16 D-17190016 Tank Support 1
17 D-17190017 Hopper Grating 1
18 D-52031600 Fan Motor 1
19 D-13306700 Filter Element 6
20 D-57024800 Pulse Valve 3 DC 24 V
21 D-B1115372 Bolt 8 M12×P1.75-L35
22 D-B1112077 Bolt 16 M10×PI.5-L25
23 D-B1111872 Bolt 2 M10×P1.5-L20
24 D-B1109070 Bolt 6 M8×P1.25-L25
25 D-B6111869 Wrench Bolt 2 M10×P1.5-L20
26 D-57052200 Air Drain Socket 1 1/4" BALL VALVE
27 D-17190018 Air Inlet Socket 1 1/2"
28 D-17190019 Socket & Plug 1 1 1/2"
29 D-17190020 Air Cylinder. Socket 1 1/8"
30 D-17190021 Air Cylinder Cover 1
31 D-57052300 Air Sol. Valve 1 1/8"
32 D-17190022 Sol. Valve Support 1 25×25-L3
33 D-17190023 Sol. Valve Bolt 2 M4×P0.7-L40
34 D-17190024 Hose Nipple 4 1/8" 2TOUCH "STR"
35 D-17190025 Hose Nipple 2 1/8" 2TOUCH "L"
36 D-17190026 Door Cushion 20×25
37 D-17190027 Drain Valve 1 1/4" BALL VALVE
38 D-17190028 Air Inlet Socket 1 1/2"
39 D-17190029 Pad Nut 5 M8×P1.25
40 D-21007110 Cover Rubber 1
41 D-14190022 Valve. Dump 1
42 D-G8111710 Clamp Hose 1
43 D-G8A05400 Clamp Hose 1
-107 -
PRE-CLEANER
14 4
15
1
10
14 15
16
13
9
11
18
16 20
19
-108 -
PRE-CLEANER
D-14140000 Pre-Cleaner Ass'y
1 D-14140101 Pre-Cleaner Weld‘ Ass’y 1
2 D-14140200 INLET Pipe 1
3 D-14140300 Outlet Pipe 1
4 D-14140400 Plate 1
5 D-14140500 Plate 1
6 D-14140600 Rubber 1
7 D-14140700 Rubber 1
8 D-14140800 Rubber 1 T3
9 D-14140900 Rubber 1 T3
10 D-14141000 Bracket 1
11 D-B1104778 Plate 18 M6×P1-L18
12 D-C1120670 Plate 12 M6×P1
13 D-C6120610 Plate 18 SW-6
14 D-B1108876 Hex Head Bolt 25 M8×P1.25-L20
16 D-B1162468 Hex Head Bolt 2 M10×P1.5-L40
17 D-C1121060 Hex Nut 2 M10×P1.5
19 D-14141100 Rubber Dump Valve 1
20 D-G8111614 Clamp 1 #165
-109 -
DUST COLLECTOR HOSE
BONNET
3
5 7
-110 -
DUST COLLECTOR HOSE
D-17460000 Hose, Dust Collector
1 D-G2B10400 Hose, Dust Collector 1 4"×L7000
2 D-G2B10401 Hose, Dust Collector 1 4"×L2000
3 D-G2B10402 Hose, Dust Collector 1 4"×1650
4 D-G8A02004 Band, High Pressure 12 D125
5 D-53025910 Carabiner 4 D8×100×50
6 D-26011000 Chain, Hose 4 D6×L1000
7 D-26011010 Chain, Hose 4 D26×L1000
-111 -
MAIN FRAME ASS’Y
53
50 61
5
3
29
30
24
44
25
16 26
4
2
21
17
22
43
15
41
32
35 27 44 53
18
46
33 57
8 34 51
58
33 58
7 34 30 3334 15
29
14
18
36
35
19
20
1 14 52
19
20 A 32
31
3 29 30
3 9
37
10
11
12
13
-112 -
MAIN FRAME ASS’Y
D-17010000 Main Frame
1 D-17010100 Main Frame Ass‘y 1
2 D-17011000 Frame Ass‘y 1
3 D-17011400 Step Ass‘y 1
4 D-17011200 Step Ass‘y 1
5 D-17011700 Bracket 2
7 D-17011500 Cooler Bracket 1
8 D-17011600 Cooler Bracket 1
9 D-14011700 Under Cover(1) 1
10 D-14011800 Under Cover(2) 1
11 D-14011900 Under Cover(3) 1
12 D-14012000 Under Cover(4) 1
13 D-14012100 Under Cover(5) 1
14 D-14012200 Hose Terminal 2
15 D-14012300 Pin 4
16 D-17012400 Cover 1
17 D-14012500 Gasket 1
18 D-14012600 End Cover 2
19 D-17280200 Shim 4
20 D-17280300 Shim 4
21 D-17013300 Manifold 1
22 D-17013400 Manifold 1
24 D-59050400 Return Filter Ass’y 1
25 D-51017000 Packing 1
26 D-59001700 Air Breather 1
27 D-59001800 Level Gauge 1
29 D-B1112077 Hex Bolt 57 M10×P1.5-L25
31 D-B1108673 Hex Bolt 11 M8×P1.25-L15
33 D-B1115073 Hex Bolt 35 M12×P1.75-L25
35 D-B6127873 Hex Bolt 8 M20×P2.5-L60
-113 -
MAIN FRAME ASS’Y
D-17010000 Main Frame
37 D-B1118272 Hex Bolt 2 M14×P2-L30
39 D-C1110676 Hex Nut 2 M6×P1
40 D-29003100 Toggle Clamp 1 KJF-032-41F(B)
41 D-B1105079 Hex Bolt 4 M6×P1-L25
43 D-17013200 Step Ass’Y 2
44 D-A0150008d016 Nylon nut 1
46 D-17013600 Hose Terminal
51 D-17014000 Hose Cover 1
52 D-17014100 Suction Bracket 1
53 D-17014200 Square Pipe 1
54 B1-171570 Hex Bolt 1 M16XP2-L40
55 C6-121616 Spring Washer 8 M16
56 B1-172470 Hex Bolt 8 M16XP2-L90
57 D-17014200 Plate 2
58 D-17014300 Plate 1
59 D-17014400 Pin 1
61 D-A0150009d006 Snap-Pin 1
62 D-17014500 Bracket 1
63 B1-114879 Bolt 2 M12XP1.75-L20
64 D-17014600 Plate 2
65 D-17014700 Pin 2
66 D-17014800 Key Plate 2
68 D-17016000 Bracket 1
-114 -
-115 -
RETURN FILTER
-116 -
RETURN FILTER
D-59050400 Return Filter Ass‘y 1 HF502
1 D-59050401 Element 1 HEK02
2 D-59050402 Housing 1
3 D-59050403 Valve 1
4 D-59050404 Spring 2
5 D-59050405 O-Ring 2
6 D-59050406 Cover 1
-117 -
FUEL TANK
29
9
9
89
3
2
1
5
2
-118 -
FUEL TANK
D-14180000 Fuel Tank Ass'y 1
1 D-14180100 Tank Ass'y 1
2 D-59015300 Fuel Gauge 1 4C
3 D-59031200 Cap 1 3"
4 D-G2a10270 Level Gauge Hose 1 1/8"×L885
5 Bend 1
6 D-G8110117 Clamp 1 Ø12
7 Bolt 4
8 D-B2403616 Hex Bolt 5 M4×8L
-119 -
FUEL TANK LINE
3 7
4
1
9
DETAIL "B"
5 6 2
"B"
-120 -
FUEL TANK LINE
D-17340000 Fuel Tank Line
1 D-25020013 Fuel Filter 1
2 D-25020014 Separator 1
3 D-I6B00007 Nipple 1 PT1/2"×UNF7/8"-14
4 D-I6B00009 Elbow(90°) 1 PT1/2"×UNF7/8"-14
5 D-25003800 Band, SUS 4 3/8"
6 D-G2B10321 Hose 1 3/8"-L450
7 D-G2B10320 Hose 1 3/8"-L3300
8 D-G2B10322 Hose 1 3/8"-L2100
9 D-G2B10319 Hose, Hyd' 1 UNF7/8"×7/8"-L550(70K)
-121 -
MANIFOLD FITTING ASS'Y
4
2
8
4
8
13
6
9
5
11
10
12
12
6
7
1
-122 -
D-17013400 Manifold Fitting Ass'y
1 D-14013401 MANIFOLD 1
2 D-I6000934 Plug 3 PT 3/8”
3 D-I6B00003 Nipple 1 PT 3/8” * UNF 3/4”-16
4 D-I6000936 Plug 1 PT 3/4”
5 D-I6000943 Plug 1 PT 1/2”
6 D-I6B00013 Nipple 2 PT 1” * UNF 1 5/16”-12
7 D-I6B00054 Nipple 1 PT 3/4” * UNF 7/8”-14
8 D-I6B00002 Elbow(90°) 4 PT 1/4” * UNF1/2”-20
9 D-I6B00943 Plug 1 PT 1/2”
10 D-I6B00083 Elbow(90°) 2 PT 1” * UNF1 5/16”-12
11 FLANGE 1 HOSEØ38
-123 -
9
10
3 10
9 2
10
9
10
6
7
11
1
4 5
-124 -
1 D-14013300 Manifold 1
2 D- I6B00007 Nipple 1 PT1/2"×UNF7/8"-14
3 D- I6B00005 Elbow(90°) 5 PT3/8"×UNF3/4"-12
4 D- I6B00002 Elbow(90°) 4 PT1/4"×UNF1/2"-20
5 D- I6B00011 Nipple 1 PT3/4"×UNF1 1/16"-12
6 D- I6000934 Plug 1 PT3/8"
-125 -
HOSE TERMINAL FITTING ASS’Y
2 9 10 2
11
2
2
11
2 9
4 6 7 8
-126 -
HOSE TERMINAL FITTING ASS’Y
1 D-14013600 Manifold 1
2 D-I6b00000 Nipple 21 PT1/4“×UNF1/2-20
3 D-I6b00003 Nipple 14 PT3/8“×UNF3/4-16
4 D-I6b00007 Nipple 8 PT1/2“×UNF7/8-14
5 D-I6b00011 Nipple 4 PT3/4“×UNF1 1/16-12
6 D-I6000086 Elbow(45°) 1
7 D-I6001009 Socket 1
8 D-I6b00011 Nipple 2 PT3/4“×UNF 1 1/16-12
9 D-I6000861 Nipple 2 PT1/4“
10 D-I6000807 Tee 2 PT1/4“
11 D-I6b00002 Elbow 2 PF1/4“×UNF1/2-20
-127 -
POWER UNIT
-128 -
POWER UNIT
D-17300000 Engine Mount
1 D-25020000 Engine 1
2 D-26011100 Power Divider 1
3 D-52022700 Compressor 1
4 D-52022701 Gear Drive Ass’y 1
5 D-25005500 Rubber 4 EA4011
6 D-25005600 Centaflex 1 CF-H-050-01
7 D-17300100 Bracket 1
8 D-17300200 Bracket 1
9 D-13072800 Bracket 1
10 D-13072900 Bracket 1
11 D-B8110577 Stud Bolt 12 M10×P1.5-L30
12 D-42004600 Coupling 1
13 D-B1115372 Hex Bolt 8 M12×P1.75-L35
14 D-B1112675 Hex Bolt 12 M10×P1.5-L50
15 D-B6171670 Hex Socket Head Bolt 8 M16×P2-L50
17 D-C1111269 Hex Nut 16 M12×P1.75
18 D-C1111066 Hex Nut 25 M10×P1.5
22 45-0138-00 Knock Pin 3 Ø 10×50
23 IB-600053 Nipple 1 UNF3/4"×UNF3/4"
24 C6-121616 Spring Washer 1 M18
25 B1-121279 Hex Bolt 2
26 G2B-10323 Hose 1
27 G2B-10324 Hose 1
28 52-0295-00 Pump Hyd’ Piston 1
29 F0-124515 O-Ring 1 1BG-125
30 C1-111664 Hex Nut 4 M16×P2
32 A2-110515 Spring 12 D5-L10
33 D-17360000 Bracket 1
-129 -
POWER DIVIDER
62 61
72
71,73
74
66
70
65
75
-130 -
POWER DIVIDER
67
36
69
21 22 23
68
35
19
18 30
33
34
14 32
15 31
60 16
63,64 8,9,10 20
52 11,12,13 24,25,26
59 7 27,28,29
57 58 2
55 17
56 38
5
54 4 41
6 39
3
40 53
37
42
43
44
45
46
47,48,49
50,51
-131 -
POWER DIVIDER
D-26011100 Power Divider 1 PP60AT00A
1 D-26011101 Case 1
2 D-26011102 Gear A 1
3 D-26011103 Taper Roller Bearing 2 #3012
4 D-26011104 Cover A 1
5 D-F1A02800 Oil Seal 1 D55×78×12
6 D-F0124127 O-Ring 1 G105
7 D-B1112270 Bolt, 6
8 D-26011108 Shim Kit A 1
9 D-26011109 Shim A 1
10 D-26011110 Shim A 1
11 D-26011111 Shim A 2 D110×D60×T23
12 D-26011112 Shim A 2
13 D-26011113 Shim A 2
14 D-26011114 Gear B 1
15 D-26011115 Shaft B 1
16 D-26011116 Ball Bearing 2 NJ307JR
17 D-F0122820 O-Ring 1 G40
18 D-26011118 Gear, C 1
19 D-26011119 Taper Roller Bearing 2 32013JR
20 D-26011120 Cover C 1
21 D-F1A02900 Oil Seal 1 D62×85×12
22 D-F0124522 O-Ring 1 G125
23 D-B1112270 Bolt 6
24 D-26011124 Shim Kit C 1
25 D-26011125 Shim 1
26 D-26011126 Shim 1
27 D-26011127 Shim 2
28 D-26011128 Shim 2
29 D-26011129 Shim 2
30 D-26011130 Flange 1
31 D-26011131 Key 2 15×10×L55
32 D-26011132 End Plate 1
33 D-B1A04900 Bolt 2
34 D-26011134 Washer 1
35 D-26011135 Adapter C 1
36 D-B1115479 Bolt 8
37 D-26011137 Dowel Pin 2
38 D-26011138 Gear D 1
39 D-26011139 Shaft D 1
40 D-26011140 Ball Bearing 2 NJ309
-132 -
POWER DIVIDER
D-26011100 Power Divider 1 PP60AT00A
41 D-F0123025 O-Ring 1 G50
42 D-26011142 Gear E 1
43 D-26011143 Bearing, Taper Roller 2 #30211
44 D-26011144 Adapter E 1
45 D-F0124821 O-Ring 1 G140
46 D-B1112270 Bolt, 6
47 D-26011147 Shim Kit E 1
48 D-26011148 Shim E 1
49 D-26011149 Shim E 1
50 D-26011150 Shim E 2
51 D-26011151 Shim E 2
52 D-26011152 Shim E 2
53 D-26011153 Stud Bolt 4
54 D-26011154 Gear F 1
55 D-26011155 Ball Bearing 2 #6201
56 D-26011156 Snap Ring 1
57 D-26011157 Snap Ring 1
58 D-26011158 Adapter E 1
59 D-F0123922 O-Ring 1 G95
60 D-F0122628 O-Ring 1 G30
61 D-B1112270 Bolt 4
62 D-26011162 Pump 1
63 D-B1104671 Wrench Bolt 3
64 D-C5110638 Plain Washer 3
65 D-26011165 Tube 1
66 D-26011166 Connector 1
67 D-26011167 Nipple 1
68 D-26011168 Screen 1
69 D-26011169 Filter Cover 1
70 D-B1109070 Bolt 3
71 D-26011171 Plug 1
72 D-26011172 Air Breather 1
73 D-26011173 Gasket 1
74 D-26011174 Oil Level Gauge 1
75 D-26011175 Magnet Plug 1 PT3/4
76 D-13000900 Seal Set
-133 -
PUMP ASS’Y
-134 -
PUMP ASS’Y
D-17220100 Pump Fitting Ass'y
1 D-52029500 Main Pump 1 T5V63DP
2 D-17230100 Suction Pipe 1
3 D-17230200 Suction Pipe 1
4 D-14230300 Block 1
5 D-I6B00009 Elbow 1 PF1/2"×UNF7/8''
8 D-B6115287 Socket Head Bolt 4 M12P1.75-L30
10 D-52030800 Pump Gear 1 PLD20, 20/16GD
-135 -
OIL COOLER FITTING
-136 -
OIL COOLER FITTING
D-17220900 Oil Cooler Fitting Ass‘y
1 D-59040301 Cooler Motor 1
2 D-57015900 Check Valve 1
3 D-I6B00003 Nipple 1 PT3/8“×UNF3/4"-16
4 D-I6B00005 Elbow(90°) 4 PT3/8“×UNF3/4"-16
5 D-I6000872 Nipple 1 PT1/2"×PT3/8"
6 D-I6B00010 Elbow(90°) 2 PT1/2"×UNF3/4"-16
7 D-I6B00023 Nipple 2 G3/4"×UNF7/8"-14
8 D-I6B00024 Nipple 1 G3/4"×UNF1 1/16"-12
9 D-I6B00025 Nipple 1 G1×UNF1 1/16"-12
10 D-I6B00027 Nipple 1 G1"×UNF1 5/16"-12
11 D-I6B00028 Nipple 1 G1 1/2"×UNF1 7/8"-12"
12 D-I6B00033 Swivel 2 UNF7/8"PT1/2"
13 D-I6B00050 Nipple 1 PT1/2"×UNF3/4“-16
14 D-I6000766 Tee 2 PT1/2"
-137 -
OIL COOLER ASS’Y
-138 -
OIL COOLER ASS’Y
D-17290000 Oil Cooler 1
1 D-59040300 Radiator 1
2 D-59040301 Hydraulic Motor 1 M212DZXA
3 D-59040302 Fan 1 A0A-H1062A-AB49
4 D-B1166872 Hex Bolt 6 M12×P1.75-L110
5 D-C1111276 Hex Nut 3 M12×P1.75
7 D-25044600 Washer 1 Ø43×Ø16.5×2.3
8 D-C0001019 Eye Bolt 2 M10×P1.5-L35
9 D-B1121375 Hex Bolt 4 M16×P2-L35
10 D-C6121623 Spring Washer 4 SW16
11 D-B1115276 Hex Bolt 4 M12×P1.75-L30
12 D-59021100 Power Divider Oil Cooler 1 47234-77010
13 D-29003401 Air Conditioner Radiator 1 MANOO(HVAC)
14 D-14290100 Bracket 1
15 D-14290200 Bracket 1
16 D-14043200 Bracket 1
17 D-B1109070 Hex Bolt 4 M8×P1.25-L25
18 D-C1110861 Hex Nut 4 M8×P1.25
-139 -
RADIATOR
-140 -
RADIATOR
D-17280000 Radiator
1 D-25020300 Radiator 1
2 D-25020400 Radiator Hose 1
3 D-25020500 Radiator Hose 1
4 D-25006700 Band 4
5 D-25006900 Clip 1
6 D-25006800 Hose 1
7 D-B1115066 Hex Bolt 12 M12×P1.75-L25
-141 -
CYLINDER& ROTOR
-142 -
CYLINDER& ROTOR
D-52022800 Cylinder & Rotor
1 D-52022801 Rotor, Male 1
2 D-52022802 Spacer, Rotor 1
3 D-52022803 Bearing 1
4 D-52022804 Bearing 1
5 D-52022805 Bearing 1
6 D-52022806 Rotor, Female 1
7 D-52022807 Spacer, Rotor 1
8 D-52022808 Bearing 1
9 D-52022809 Bearing 1
10 D-52022810 Bearing 1
11 D-52022811 Snap Ring 1
12 D-52022812 Cylinder 1
13 D-52022813 Gasket 1
14 D-52022814 Cover Cylinder 1
15 D-52022815 Spring Washer 14 M10
16 D-52022816 Socket Bolt 6 M10×P1.5-L75
17 D-52022817 Snap Ring 1
18 D-52022818 Snap Ring 1
19 D-52022819 Thermo Switch 1
20 D-52022820 Pin 4
21 D-52022821 Casing 1
22 D-52022822 Socket Bolt 16 M10×1.5-L30
23 D-52022823 Plate 1
25 D-52022825 Socket Bolt 14 M8×1.25-L30
26 D-52022826 Plate 1
27 D-52022827 O-Ring 1 G95
28 D-52022828 End Cover 1
29 D-52022829 O-Ring 1 G80
30 D-52022830 End Cover 1
31 D-52022831 Key 1
32 D-52022832 Gear, Drive 1
33 D-52022833 Plate 1
34 D-52022834 Gasket 1
36 D-52022836 Gasket, End Cover 1
-143 -
CYLINDER& ROTOR
D-52022800 Cylinder & Rotor
38 D-52022838 Plug 1 PT3/4"
39 D-52022839 Plug 1 PT3/8"
40 D-52022840 Manifold, Oil 1
42 D-52022842 Hex Bolt 4 M16×P2-L60
43 D-52022843 Unloading Valve Ass’y 1
44 D-52022844 Gasket 1
45 D-52022845 Hex Bolt 2 M16×P2-L45
46 D-52022848 Plain Washer 4 M16
47 D-52022849 Male Connector 2 PT1/4"×Ø6
48 D-52022850 Tube 1 Ø6
49 D-52022851 Male Elbow 2 PT1/8"×Ø6
50 D-52022852 Male Elbow 6 PT1/4"×Ø6
51 D-52022853 Tube 1 Ø6
52 D-52022854 Tube 1 Ø6
53 D-52022855 Tube 1 Ø6
54 D-52022856 Tube 1 Ø6
55 D-52022857 Bushing 2 PT3/8"×PT1/4"
-144 -
-145 -
POWER SECTION
-146 -
POWER SECTION
D-52022900 Power Section
1 D-52022901 Shaft 1
2 D-52022902 Bearing 1
3 D-52022903 Casing, Power Side 1
4 D-52022904 Cover, Oil Seal 1
5 D-52022905 Oil Seal 1
6 D-52022906 O-Ring 1 D145
7 D-52022907 Cover, Oil Seal 1
9 D-52022909 Socket Bolt 10 M10×P1.5-L45
10 D-52022910 Bearing 1
11 D-52022911 Casing Bearing 1
12 D-52022912 Key 1
13 D-52022913 Gear, Drive 1
14 D-52022914 Plate 1
15 D-52022915 Copper Gasket 1
16 D-52022916 Nozzle 1
17 D-52022918 Coupling 1
19 D-52022920 Socket Bolt 2 M8×1.25-L30
20 D-52022921 Plug 1 PT3/8"
-147 -
RECEIVER TANK
-148 -
RECEIVER TANK
D-52023000 Receiver Tank &Separator
1 D-52023001 Receiver Tank 1
2 D-52023002 Gasket 1
3 D-52023003 Oil Separator 1
4 D-52023004 Safety Valve 1
5 D-52023005 Oil Recovery Viewer 1
6 D-52023006 Nipple 1 PT1/8"
7 D-52023007 Nipple 2 PT1/4"×Ø6
8 D-52023008 Cu-pipe 1 Ø6
9 D-52023009 Main Pressure Control Valve 1
10 D-52023010 Gasket 1
11 D-52023011 Hex Nut 2 M10
12 D-52023012 Hex Bolt 8 M16×P2-L50
13 D-52023013 Plain Washer 8 M16
14 D-52023014 Oil Level Gauge 1
15 D-52023015 Plate(Oil Port) 1
16 D-52023016 Name Plate(Caution) 1
17 D-52023017 Name Plate (Ser. No) 1
-149 -
INTAKE&EXHAUST
-150 -
INTAKE&EXHAUST
D-17380000 Intake & Exhaust
1 D-17031700 Pipe 1
2 D-17380200 Pipe 1
3 D-25047800 Muffler 1
4 D-17380400 Hose, Silicon 1
5 D-17380500 Muffler Pipe 1
6 D-17380600 PIPE 1
7 D-17030900 Pipe 2
8 D-17030800 Elbow Hose 1
9 D-25020016 PRE-CLEANER 2
10 D-53007400 Hose, Silicon 2
11 D-53007500 Comp. Hose 1
12 D-17380700 Pipe 1
13 D-25020008 HUMP Hose 3
14 D-25020009 HUMP Hose 1
15 D-25020010 Clamp T-Bolt 4
16 D-25020011 Clamp T-Bolt 2
17 D-14031600 Band 2
18 D-25004700 Hose Clamp 8
19 D-25004800 Hose Clamp 2
20 D-25022000 Air Cleaner 7 M8×P1.25-L30
21 D-C1110861 Hex Nut 13 M8×P1.25
22 D-C6120813 Spring Washer 13 Sw8
23 D-B1114879 Hex Bolt 4 M12×P1.75-L20
24 D-C1111269 Hex Nut 4 M12×P17.5
25 D-C6121210 Spring Washer 4 Sw12
26 D-B1109273 Hex Bolt 7 M8×P1.25-L30
27 D-17031600 Gasket
28 D-53007600 Hose
-151 -
AIR CLEANER
-152 -
AIR CLEANER
D-25022000 Air Cleaner 2 FHG12-8023
1 D-25022001 Body Ass’y 1
2 D-25022002 Element Ass’y, Inner 1
3 D-25022003 Element Ass’y, Outer 1
4 D-25022004 Cover Ass’y 1
5 D-25022005 Vacuator Valve
6 D-25022006 O-Ring
-153 -
TRAVEL CONTROL VALVE ASS’Y(LH)
6
7
-154 -
TRAVEL CONTROL VALVE ASS’Y(LH)
D-17220200 Travel Control Valve
Fitting Ass'y
1 D-115111150 Travel Control Valve 1 1D08T1MW8LGS/320
2 D-I6B00017 Nipple 2 G1/4"×UNF1/2-20
3 D-I6B00026 Nipple 1 G1"×UNF1 5/16"-12
4 D-I6B00027 Nipple 1 G1"×UNF1/ 1/16"-12
5 D-I6B00024 Nipple 3 G3/4"×UNF1 1/16"-12
6 D-I5000793 Tee 1 UNF1/2"
7 D-I6B00049 Swivel 2 UNF1/2"-20×PT1/4"
8 D-I600889 Adapter 1 PT1/4"×PT1/4"
-155 -
TRAVEL CONTROL VALVE ASS’Y(RH)
1
9
6
7
-156 -
TRAVEL CONTROL VALVE ASS’Y(RH)
D-17220300 Travel Control Valve Fitting Ass'y
1 D-115111150 Travel Control Valve 1 1D08T1MW8LGS/320
PT1"×PF1"
2 D-I6B00017 Nipple 2 G1/4"×UNF1/2"-20
3 D-I6B00024 Nipple 3 G1"×UNF1 1/16"-12
4 D-I6B00025 Nipple 1 G1"×UNF1 1/16"-12
5 D-I6B00026 Nipple 1 G1"×UNF1 5/16"-12
6 D-15000793 Tee (Swivel) 1 UNF1/2" (SWIVEL)
7 D-I6B00049 Swivel 2 UNF1/2"-20×PT1/4"
8 D-I600889 Adapter 1 PT1/4"×PT1/4"
9 D-I6B00034 Swivel (90°) 1 UNF1 1/16"×1 1/16"
-157 -
DRIFTER CONTROL VALVE ASS’Y
7 1
5
10
12
11
3 2 6
-158 -
DRIFTER CONTROL VALVE ASS’Y
D-17220400 Drifter Control Valve Fitting Ass'y
1 D-113300034 Drifter Control Valve 1
2 D-57012800 Relief Valve 1 JRB-TO6-3-13
3 D-I6B00012 Elbow (90°) 1 PT3/4"×UNF1 1/16"-12
4 D-I6B00014 Elbow (90°) 1 PT1"×UNF1 5/16"-12
5 D-I6B00048 Elbow (90°) 1 PT3/8"×UNF1/2"-20
6 D-I6B00017 Nipple 6 G1/4"×UNF1/2"-20
7 D-I6B00019 Nipple 1 G3/4"×UNF1/2"-20
8 D-I6B00022 Nipple 5 G1/2"×UNF7/8"-14
9 D-I6B00025 Nipple 1 G1"×UNF1 1/16"-12
10 D-I6B00027 Nipple 1 G1"×UNF1 5/16"-12
11 D-I6B00046 Plug 1 G1/2"
12 D-I6001004 Socket 1 G1/2"×PT3/4"
-159 -
SUPER ROTATION VALVE ASS’Y
2
4
3
1
-160 -
SUPER ROTATION VALVE ASS’Y
D-17220500 Super Rotation Valve Fitting
Ass'y
1 D-57013600 Solenoid Valve 1 KSO-G03-2AP-1
2 D-51015700 Block 1
3 D-I6b00005 Elbow 1 PT3/8"×UNF3/4"-16
4 D-I6b00002 Elbow 2 PT1/4"×UNF1/2"-20
5 D-I6b00007 Nipple 1 PT1/2"×UNF7/8"-14
6 D-I6b00012 Elbow 1 PT3/4"×UNF1 1/16"-12
-161 -
ANTI JAMMING VALVE ASS’Y
10
15,16
7
19 1
13,14
6
11,12
3
7 4 7
17,18
8
-162 -
ANTI JAMMING VALVE ASS’Y
D-17221300 ANTI JANNING ASS’Y
1 D-44000100 MANIFOLD 1
2 D-57011500 REDUCING VALVE 1
3 D-57012600 RELIEF VALVE 1
4 D-57012700 RELIEF VALVE 1
5 D-57013000 SOLENOID VALVE 1
6 D-57013100 SOLENOID VALVE 1
7 D-I6B00002 ELBOW(90°) 6 PT1/4"× UNF1/2"-20
8 D-I6B001005 ADAPTER 2 PT1/4" × PT1/4"
9 D-I6B00009 ELBOW(90°) 2 PT1/2" × UNF7/8"-14
10 D-I6B00008 ELBOW(45°) 2 PT1/2" × UNF7/8"-14
11 D-C6120125 SPRING WASHER 4
12 D-B6163378 SOCKET HEAD BOLT 4
19 D-I6B00000 NIPPLE 1 PT1/4" × UNF1/2"-20
-163 -
BOOM CONTROL VALVE ASS’Y
4
1
6
-164 -
BOOM CONTROL VALVE ASS'Y
D-17220600 Boom Control Valve Fitting Ass'y
1 D-112700052 Boom Control Valve 1
2 D-I6B00018 Nipple 8 G3/8"×UNF1/2"-20
3 D-I6B00020 Nipple 7 G3/8"×UNF3/4"-16
4 D-I6B00021 Nipple 1 G1/2"×UNF3/4"-16
5 D-I6B00022 Nipple 1 G1/2"×UNF7/8"-14
6 D-I6B00030 Swivel(90°) 2 UNF3/4"16×3/4"-16
-165 -
FLOW CONTROL VALVE ASS’Y
-166 -
FLOW CONTROL VALVE ASS’Y
D-17220700 Flow Control Valve Fitting Assy
1 D-57025600 Flow Control Valve 1
2 D-I6B00017 Nipple 3 G1/4"×UNF1/2"-20
3 D-B1109266 Hex Nut 2 M8×P1.25-L30
-167 -
CHECK VALVE ASS’Y
-168 -
CHECK VALVE ASS’Y
D-17220800 Check Valve Fitting Ass'y
1 D-57050700 Check Valve 1 NWPC2C 1/4
2 D-I6000861 Nipple 2 PT1/4"×PT1/4"
3 D-I6000807 Tee 2 PT1/4"
4 D-I6B00002 Elbow 2 PT1/4"×UNF1/2"-20
5 D-I6000016 Nipple 2 PT1/4"×PF1/4"
6 D-I6B00001 Elbow 45˚ 1 PT1/4"×UNF1/2"-20
7 D-I6000941 Plug 1 PT1/4"
8 D-B1155670 Hex Bolt 3 M6×P1-L50
-169 -
OSCILLATION CHECK VALVE ASS’Y
3 1
-170 -
OSCILLATION CHECK VALVE ASS’Y
D-17221400 Oscillation Check Valve
1 D-57050700 Check V/V 1 NWPC2C 1/4
2 D-57032600 Check V/V 1 SHC 3/8
3 D-I6001013 Adapter 4 G1/4" x PT1/4"
4 D-I6B00001 Elbow(45°) 2 PT1/4" x UNF1/2"-20
5 D-I6000861 Nipple 3 PT1/4" x PT1/4"
6 D-I6000807 Tee 2 PT1/4"
7 D-I6B00002 Elbow 4 PT1/4 "x UNF1/2"-20
-171 -
DECELERATION VALVE ASS’Y
-172 -
DECELERATION VALVE ASS’Y
D-14221600 DECELERATION VALVE ASS’Y
1 D-57024200 DECELERATION VALVE 1 ZCT-06-T-22
2 D-I6000973 ADAPTER 2 PT3/4" × PT1/2"
3 D-I6B00009 ELBOW 2 PT1/2" × UNF7/8"-14
4 D-I6B00002 ELBOW 1 PT1/4" × UNF1/2"-20
-173 -
COUNTER BALANCE VALVE ASS’Y
1
2
-174 -
COUNTER BALANCE VALVE ASS’Y
D-14221700 Counter Balance Valve Fitting
Ass'y
1 D-57024300 Counter Balance Valve 1 C70-175
2 D-I6001004 Adapter 1 G3/4”×PT1/2"(L86)
3 D-I6001016 Adapter 1 G3/4"×PT1/2"(L45)
4 D-I6B00009 Elbow(90°) 2 PT1/2” ×UNF7/8”
5 D-I6B00007 Nipple 2 PT1/2” ×UNF7/8”
-175 -
RELIEF VALVE ASS’Y
7
4
-176 -
RELIEF VALVE ASS’Y
D-17221900 Relief Valve Fitting Ass'y
1 D-57057500 Relief Valve 1 BOSCH(250bar)
2 D-I6B00068 Nipple 2 PF1/2" × UNF 3/4"-16
3 D-I6001026 Adapter 1 PT 3/8" × PT1/2"
4 D-I6000863 Nipple 1 PT 1/2" × PT1/2"
5 D-I6000549 Tee 1 PT 1/2”
6 D-I6001024 Adapter 1 PT 1/2" × PT 1/4"
7 D-I6B00002 Elbow(90°) 1 PT 1/4" × UNF 1/2"-20
8 D-I6B00009 Elbow(90°) 1 PT 1/2" × UNF 3/4"-16
-177 -
HOSE TERMINAL ASS’Y
3 3
2 2
3 3
-178 -
HOSE TERMINAL ASS’Y
D-17222600 Hose Terminal Fitting Ass'y
1 D-14042800 Hose Terminal 2
2 D-I6B00003 Nipple 2 PT3/8"×UNF3/4"-16
3 D-I6B00011 Nipple 4 PT3/4"×UNF1 1/16"-12
-179 -
BALL VALVE ASS’Y
5
3
-180 -
BALL VALVE ASS’Y
D-17244600 Ball Valve ASS’Y
1 D-57200800 Ball Valve 1 PT1"
2 D-I6B00092 Elbow(90°) 1 PT3/4" × UNF1 5/16"-12
3 D-I6B00004 Elbow(90°) 1 PT3/4" × UNF1 5/16"-12
4 D-I6B000933 Plug 1 PT1/4"
5 D-I6B00002 Elbow(90°) 1 PT1/4" × UNF1/2"-20
-181 -
ROD CHANGER CONTROL VALVE ASS’Y
-182 -
ROD CHANGER CONTROL VALVE ASS’Y
D-17310100 Rod Changer Control Valve
Fitting Ass’y
1 D-57054300 Arc Control Valve 1
2 D-I6B00018 Nipple 14 G3/8"UNF 1/2"-20
3 D-I6B00021 Nipple 1 G1/2"UNF 3/4"-16
4 D-I6B00022 Nipple 2 G1/2×UNF 7/8"-14
-183 -
SEQUENCE VALVE ASS’Y
5 3
6 1
5
7,8
-184 -
SEQUENCE VALVE ASS’Y
D-17310200 Sequence Valve Fitting Ass‘y
1 D-57051000 Sequence Valve 1 JQC-G03-2E-12
2 D-45200200 Block 1
3 D-57032600 Check Valve 3 SHC 3/8(D0.2)
4 D-I6B00000 Nipple 1 PT1/4"×UNF1/2”-20
5 D-I6B00002 Elbow 3 PT1/4"×UNF1/2”-20
6 D-I6000889 Elbow 2 PT3/8"×PT1/4"
7 D-B6163677 Hex Bolt 8 M10×P1.5-L100
-185 -
CHECK VALVE ASS’Y
-186 -
CHECK VALVE ASS’Y
-187 -
CHECK VALVE ASS’Y
-188 -
CHECK VALVE ASS’Y
-189 -
CHECK VALVE ASS’Y
-190 -
CHECK VALVE ASS’Y
-191 -
CHECK VALVE ASS’Y
-192 -
CHECK VALVE ASS’Y
D-14310400 Check Valve Fitting Ass'y
1 D-57050700 Double Pilot Check Valve 3 NWPC-2C 1/4“
2 D-57033800 Pilot Check Valve 2 NSPC-2C
3 D-41087400 Block 1
4 D-41087200 Manifold 1
5 D-41087300 Sub Plate 1
7 D-B1108666 Hex Bolt 14 M8×P1.25-L15
11 D-B1104671 Hex Bolt 4 M6×P1-L15
12 D-I6000861 Nipple 8 PT1/4"×PT1/4"
13 D-I6000807 Tee 5 PT1/4"
14 D-I6000052 Elbow 15 PT1/4"×PF1/4"
15 D-I6000016 Nipple 10 PT1/4"×PF1/4"
16 D-I6000889 Hex Socket 3 PT1/4"×PT1/4"
-193 -
MANIFOLD ASS’Y
-194 -
MANIFOLD ASS’Y
1 D-41087000 Block 1
2 D-41087000 Block 1
3 D-57015900 Check Valve 1 PT3/8”
4 D-I6000052 Elbow 4 PT1/4"×PF1/4"
5 D-I6000016 Nipple 13 PT1/4"×PF1/4"
6 D-I6000861 Nipple 2 PT1/4"
7 D-I6000807 Tee 1 PT1/4"
8 D-B1109864 Hex Bolt 3 M8-L60
-195 -
BLOCK ASS’Y
19-65
-196 -
BLOCK ASS’Y
D-14310600 Block Fitting Ass'y
1 D-45049600 Block 2
2 D-I6000016 Nipple 4 PF1/4“×PT1/4”
3 D-I6000052 Elbow 2 PF1/4“×PT1/4“
4 D-B1155872 Hex Bolt 4 M6×P1-L60
-197 -
ROLLER MOTOR ASS’Y
-198 -
ROLLER MOTOR ASS’Y
D-14311400 Roller Motor Fitting Ass'y
1 D-52016100 Motor 1 2-200AD6-E
2 D-I6001015 Socket 2 PF1/2“×PT1/2”
3 D-I6000872 Nipple 1 PT1/2"×PT3/8“
4 D-I6000890 Socket 1 PF3/8"×PT3/8“
5 D-I6000053 Elbow 2 PT3/8"×PF1/4“
6 D-B1112084 Hex Bolt 4 M12×P1.75-L25
-199 -
GREASE PUMP ASS’Y
-200 -
GREASE PUMP ASS’Y
D-17320100 Grease Fitting Ass'y
1 D-52018600 Power Lubricator 1 SJ-848-8940
2 D-63003200 Belt 1 CKD:2001-4C
3 D-57011900 Reducing Valve 1 PT1/4"
4 D-I6000861 Nipple 1 PT3/8"×PT1/4"
5 D-I6000968 Bush 2 PT1/4"×UNF1/2"-20
6 D-I6B00002 Elbow 2
-201 -
SOLENOID VALVE ASS’Y
6 3 4 5
-202 -
SOLENOID VALVE ASS’Y
D-17320200 Solenoid Valve fitting Ass'y
1 D-57054400 Solenoid valve 1 MFH3-1/4”-D24
2 D-I6B00002 Elbow 2 PT1/4"×UNF1/2"-20
3 D-I6000861 Nipple 1 PT1/4"
4 D-I6000807 Tee 1 PT1/4"'
5 D-I6B00000 Nipple 1 PT1/4"×UNF1/2"-20
6 D-B1103879 Socket head bolt 2 M5×P0.8-L35
-203 -
BLOCK ASS’Y
5
2
-204 -
BLOCK ASS’Y
D-17320300 Block Fitting Ass'y
1 D-14320301 Block 1
2 D-I6B00002 Adapter 1 PT1/4"×UNF1/2"-20
3 D-I6B00003 Nipple 1 PT3/8"×UNF3/4"-16
4 D-33044802 Air Rpm Max 1 3BAR
5 D-33044801 Air 1 9.5BAR
6 D-B16000433 Plug 2 PT1/4"
-205 -
LUBRICATOR ASS’Y
-206 -
LUBRICATOR ASS’Y
D-14320400 Lubricator fitting Ass'y
1 D-59015800 Lubricator 1 3003E-6-CMG2 (2ℓ)
2 D-14320401 Lubricator cover 1
3 D-14320402 Lubricator cover 1
4 D-14320403 Rod 2 T6×230×50
5 D-C1A04000 Wing nut 2 M10×P1.5
6 D-B1108869 Socket head bolt 4 M8×P1.25-L20
7 D-C6120813 Spring washer 4 SW-8
8 D-I6000052 Elbow 2 PF1/4"×PT1/4"
9 D-I6000971 Bush 2 PT1/4"×PT3/4"
-207 -
AIR END ASS’Y
10
9
9
8 3 5,6
4
7
-208 -
AIR END ASS’Y
D-17330100 Air end part fitting Ass'y
1 D-52022800 Cylinder & Rotor 1
2 D-52023000 Unloading valve 1
3 D-42009700 Flange 1 PT1 1/2“
4 D-21004900 Gasket 1 PDS265
5 D-B1121471 Hex bolt 4 M16×P2-L40
6 D-C6121616 Spring washer 4 SW-16
7 D-I6B00014 Elbow(90°) 1 PT1"×UNF1 5/16"
8 D-I6B00016 Elbow(90°) 1 PT1 1/2"×UNF1 7/8"
9 D-I6A00902 Elbow(90°) 2 PT1/4"×LIN1/4"
10 D-16A00908 Connector 1 C1N1/4"×PT1/4"
-209 -
RECEIVER TANK ASS’Y
17 16 15 3
14 13 12
18 2
19 4
11
10
9
8
21
23
24
6 25
20
22
-210 -
RECEIVER TANK ASS’Y
D-17330200 Receiver Tank Fitting Ass'y
1 D-52022800 Receiver Tank 1
2 D-57013800 Regulator Valve 1
3 D-59015900 Separator 1 11372CG
4 D-I6000983 Hex Bushing 1 PT1 1/2"×PT1/2"
5 D-I6B00093 Nipple 1 PT1“×PT1“
6 D-I6000542 Tee 2 PT1“
7 D-I6B00083 Elbow(90°) 1 PT1“×UNF1 5/16-12
8 D-I6B00094 Service Elbow(90°) 1 PT1“×PT1“
9 D-I6000976 Hex Bushing 1 PT1"×PT1/2"
10 D-I6B00007 Nipple 2 PT1/2“×UNF7/8-14”
11 D-I6B00033 Swivel 1 PT1/2“×UNF7/8-14”
12 D-I6B00095 Elbow(90°) 1 PT1 1/2"×PT1/2"
13 D-I6000891 Hex Socket 1 PT1 1/2"×PT1/2"
14 D-I6B00096 Nipple 2 PT1 1/2"×PT1/2"
15 D-I6B00097 Nipple 1 PT1 1/2"×PT3/8”
16 D-I6000539 Tee 1 PT3/8"
17 D-I6B00047 Nipple 3 PT3/8"×UNF7/8-14”
18 D-I6B00032 Swivel(90°) 2 UNF7/8×UNF7/8-14”
19 D-I6B00006 Nipple 1 PT3/8” ×UNF1/2”-20
20 D-I6B00012 Elbow(90°) 1 PT3/4“×UNF1 1/16"-12
21 D-I6B00016 Elbow(90°) 1 PT1 1/2“×UNF1 7/8-12"
22 D-I6B00101 Long Adapter 1 PT1/2"×PT1/2"
23 D-B1114879 Hex Bolt 4 M12×P1.75-L20
25 D-C1121263 Hex Nut 4 M12×1.75
-211 -
PILOT LINE ASS’Y
-212 -
PILOT LINE ASS’Y
D-1A220800 Pilot line Assy
1 D-59050800 High pressure filter 1
2 D-I6B00020 Nipple 1 G3/8"×UNF 3/4"
3 D-I6B00030 Swivel 1 UNF3/4"×UNF3/4"
4 D-I6000055 Tee 1 PT3/8"
5 D-I6B00005 Elbow(90°) 1 PT3/8"xUNF3/4"
6 D-I6B00003 Nipple 1 PT3/8"xUNF3/4"
7 D-I6B00018 Nipple 1 G3/8"xUNF1/2"
8 D-I6B00029 Swivel 1 UNF1/2"XUNF1/2"
9 D-00000000 Pilot unit body 1
10 D-I6B00049 Tee(swivel) 1 UNF1/2"
11 D-I6B00017 Nipple 3 G1/4xUNF1/2"
12 D-59050700 Accumulator 1
-213 -
COMPRESSOR FILTER
3 4
"A"
3 VIEW "A" 2
3
-214 -
COMPRESSOR FILTER
D-17330400 Filter Fitting Ass'y
1 D-52023100 Thermostatic Valve 1
2 D-59040800 Comp' Filter 1
3 D-I6B00024 Nipple 3 G 3/4"×UNF1 1/16-12
4 D-I6B00026 Nipple 1 G 3/4"×UNF1 5/16-12
-215 -
SUCTION FILTER ASS’Y
-216 -
SUCTION FILTER ASS’Y
D-17221200 Suction filter Ass‘y
1 D-17014100 Bracket 1 1
2 D-59050500 Suction filter 1 2
3 D-59050600 Suction filter 1 3
4 D-14014500 Gasket 1 4
-217 -
MAIN CONTROL HYD' LINE
-218 -
TRAVEL MOTOR HYD' LINE
-219 -
P3 PUMP HYD' LINE
-220 -
P4 PUMP HYD' LINE
-221 -
HYD’ LINE
D-17220000 Hyd' Line
1 D-G2B10000 Hose, Hyd' 1 UNF1 1/16"×SAE 3/4" (45°FLANGE #62)-L690
2 D-G2B10001 Hose, Hyd' 1 UNF1 1/16"×SAE 3/4" (45°FLANGE #62)-L650
3 D-G2B10002 Hose, Hyd' 1 UNF 7/8"× 7/8"-L600 (210K)
4 D-G2B10003 Hose, Hyd' 1 UNF 3/4"(90°)×SAE 3/8"(45°FLANGE #62)-L2300
5 D-G2B10004 Hose, Hyd' 2 UNF1 1/16"(90°LONG) ×1 1/16"-L1830 (210K)
6 D-G2B10005 Hose, Hyd' 1 UNF1 1/16"(90°) ×1 1/16"-L1750 (210K)
8 D-G2B10007 Hose, Hyd' 1 UNF1 1/16"(90°LONG) ×1 1/16"-L1330 (210K)
9 D-G2B10008 Hose, Hyd' 2 UNF1 1/16"(90°)×1 1/16" -L950 (210K)
10 D-G2B10009 Hose, Hyd' 1 UNF1 1/16"(90°)×1 1/16" -L570 (210K)
11 D-G2B10010 Hose, Hyd' 1 UNF 1/2"×UNF 1/2"-L1700(210K)
13 D-G2B10012 Hose, Hyd' 1 UNF 7/8"(45°)×7/8"-L2600 (210K)
14 D-G2B10013 Hose, Hyd' 1 UNF 7/8"(90°) × 7/8"-L2400 (210K)
17 D-G2B10016 Hose, Hyd' 1 UNF1 1/16"(90°) ×1 1/16"(90°)-L850 (210K)
19 D-G2B10018 Hose, Hyd' 1 UNF1 1/16" ×1 1/16"-L900 (210K)
21 D-G2B10020 Hose, Hyd' 2 UNF 1/2"× 1/2"-L2300(210K)
23 D-G2B10022 Hose, Hyd' 1 UNF 7/8"×7/8"-L1270(210K)
26 D-G2B10025 Hose, Hyd' 1 UNF 1/2"(90°)×1/2"-L1200(70K)
27 D-G2B10026 Hose, Hyd' 2 UNF 1/2"(90°)× 1/2"-L3100 (210K)
29 D-G2B10028 Hose, Hyd' 2 UNF 1/2"× 1/2"-L2100 (70K)
32 D-G2B10031 Hose, Hyd' 1 UNF 3/4"× L12-L1100(210K)
- 222 -
HYD’ LINE
41 D-G2B10040 Hose, Hyd' 2 UNF 3/4"(45°)× 3/4"-L3100(210K)
45 D-G2B10061 Hose, Hyd' 1 UNF1 1/16"×1 1/16"-L1300(70K)
60 D-G2B10057 Hose, Hyd' 1 UNF1 5/16"(90°)×1 5/16"-L2120(70K)
64 D-G2A70039 Hose, Hyd' 1 PF 1/4"×1/4"-L500(210K)
65 D-G2B10062 Hose, Hyd' 1 UNF1 5/16"(90°)×1 5/16"-L1420(70K)
73 D-G2A70072 Hose, Hyd' 1 1 1/2"-L250
- 223 -
HYD’ LINE
75 D-G2A70074 Hose Suction 1 1 1/2"-L250
76 D-G2A70075 Hose Suction 1 2 1/2"-L490
77 D-G2A70076 Hose, Hyd' 2 UNF3/4”×3/4”-L1600(250K)
78 D-G2A70077 Hose, Hyd' 2 UNF1/2”×1/2”(90°)-L1500(250K)
84 D-G2A70083 Hose Gauge 2 UNF7/8”×7/8”-L4150(250K)
85 D-G2A70084 Hose, Hyd' 1 UNF1 1/16”×1 1/16”-L4250(210K)
87 D-G2B10070 Hose, Hyd' 1 UNF 1/2”×UNF 1/2”-L2200(210K)
91 D-G2A70092 Hose, Hyd' 1 PF 3/4"×3/4"-L3770(250K)
97 D-G2A70102 Hose 1 1 1/2"-L340
104 D-G2B10072 Hose, Hyd' 1 UNF 1/2"(90°)× 1/2" -L380(210K)
- 224 -
HYD’ LINE
112 VG2B10080 Hose, Hyd' 1 UNF 1/2"(90°)× 1/2" -L2500(70K)
114 D-17220500 Super Rotation Valve Ass’y 1
115 D-17220600 Boom Control Ass’y 1
116 D-17220700 Flow Control Ass’y 1
117 D-17220800 Check Valve Ass’y 1
118 D-17220900 Oil Cooler Ass’y 1
119 D-17221000 Manifold Ass’y (L/H) 1
120 D-17221100 Manifold Ass’y (R/H) 1
121 D-17221200 Suction Filter Ass’y 1
122 D-17221300 Valve Block Ass’y 1
123 D-17221400 Check Valve Ass’y 1
124 D-17221500 Ball Valve Ass’y 1
125 D-17221600 Deceleration Valve Ass’y 1
126 D-17221700 Counter Balance Valve Ass’y 1
127 D-17221800 Sol' Valve Ass’y 1
128 D-17221900 Relief Valve Ass’y 1
129 D-17222000 Flow Divider Ass’y 1
130 D-17220100 Pump Ass’y 1
131 D-17220200 (L/H)Trabel Valve Ass'y 1
132 D-17220300 (R/H)Trabel Valve Ass'y 1
133 D-17220400 Drilling Valve Ass’y 1
134 D-I6A00921 Split Flange Coupling 4 SAE 3/4" FLANGE #62 TYPE
135 D-I6A00920 Split Flange Coupling 2 SAE 3/8" FLANGE #62 TYPE
136 D-B6112273 Bolt, Socket Head 12 M10×P1.5-L30
138 D-B6109277 Bolt, Socket Head 4 M8×P1.25-L30
140 D-I6000003 Nipple 8 PF 1/2"×1/2”
141 D-I6000004 Nipple 4 PF3/4"×3/4"
142 D-I6000002 Nipple 4 PF3/8"×3/8"
143 D-I6000001 Nipple 8 PF1/4"×1/4"
144 D-G8A02001 Band, High Pressure 2 3"
145 D-G8A02002 Band, High Pressure 8 1 1/2"
146 D-14223600 Terminal Nipple Ass'y 1
147 D-14222100 Drifter Nipple Ass'y 1
- 225 -
HYD’ LINE
148 D-14222200 Feed Motor Nipple Ass'y 1
149 D-14222300 Manifold Nipple Ass'y 1
150 D-14222400 Traction Motor Nipple Ass'y 1
151 D-14222500 Dust Collector Fittling Ass'y 1
154 D-14222800 Cylinder Nipple Ass'y 1
161 D-G2B10082 Hose, Hyd' 1 UNF 3/4"(90°)×L12-L1100(210K)
162 D-G2B10083 Hose, Hyd' 1 L12×L12-L1100(70K)
163 D-G2B10084 Hose, Hyd' 1 UNF 3/4"×L12-L3000(70K)
165 D-G2B10086 Hose, Hyd' 3 PF 1/4"×M16×P2-L1600(210K)
166 D-17222000 Return Filter Ass'y 1
- 226 -
ROD CHANGER LINE
- 227 -
ROD CHANGER LINE
D-17310000 Rod Changer Line
11 D-G2B10209 Hose, Hyd' 1 UNF 1/2”(90°) ×1/2”-L1100(210K)
- 228 -
ROD CHANGER LINE
37 D-G2A70230 Hose Hyd' 1 UNF1/2”×1/2”-L2700(250K)
40 D-17310100 A.R.C Control Valve Ass'y 1
41 D-17310200 Sequence Valve Ass'y 1
42 D-I6B00077 Nipple 42 UNF1/2”×UNF1/2”
43 D-14310400 Check Valve Ass'y 1
44 D-14310500 Block Ass'y 1
45 D-14310600 Block Ass'y 1
46 D-14310700 Check Valve Ass'y 1
47 D-G2B10218 Hose, Hyd' 2 UNF 1/2”×1/2”-L550(250K)
48 D-G2B10218 Hose, Hyd' 1 UNF 1/2”(45°) ×1/2”-L1100(210K)
49 D-14310800 S(H) Nipple Ass'y 2
50 D-14310900 Ce Nipple Ass'y 2
51 D-14311000 Rc1 Nipple Ass'y 2
52 D-14311100 Rs1 Nipple Ass'y 1
53 D-14311200 Cl1 Nipple Ass'y 1
54 D-14311300 Rm Nipple Ass'y 1
56 D-14311300 Hose, Hyd' 1 UNF1/2”×1/2”-L2730(250K)
- 229 -
AIR LINE
- 230 -
AIR LINE
D-17320000 Air Line
1 D-G2B10300 Hose, Hyd’ 1 UNF1 5/16“×1 5/16-L3700(70K)
2 D-G2B10301 Hose, Hyd’ 1 UNF1 5/16“×1 5/16-L3150(70K)
3 D-G2B10302 Hose, Hyd’ 1 UNF1/2”×1/2”-L1600(70K)
4 D-G2B10303 Hose, Hyd’ 1 UNF3/4"×3/4”-L700(70K)
14 D-G2A70246 Hose, Hyd’ 1 UNF1 5/16×1 5/16-L4200(70K)
15 D-G2A70247 Hose, Hyd’ 1 UNF1/2”×1/2”-L4500(210K)
26 D-I6B00077 Nipple 6 UNF1/2”×1/2”
27 D-I6B00078 Nipple 2 UNF1 5/16× 1 5/16
28 D-G2A70257 N2 Tube 1 N2-1-1/4”(WHITE)-L600
29 D-G2A70258 N2 Tube 1 N2-1-1/4”(WHITE)-L1200
30 D-17320100 Grease Ass’y 1
31 D-17320200 Solenoid Valve Ass’y 1
32 D-17320300 Block Ass’y 1
33 D-17320400 Lubricator Ass’y 1
34 D-17222500 Dust Collector Ass’y 1
35 D-14320700 Auto Grease Fitting Ass’y 1
- 231 -
COMPRESSOR PIPING
- 232 -
COMPRESSOR PIPING
D-17330000 Compressor Piping
1 D-G2B10313 Hose, Hyd’ 1 UNF1 7/8” ×1 7/8”-L1400(70K)
2 D-G2B10314 Hose, Hyd’ 1 UNF1 1/16”(90°) ×1 1/16”-L2600(70K)
3 D-G2B10315 Hose, Hyd’ 1 UNF1 1/16” ×1 1/16”-L2000(70K)
6 D-G2B10318 Hose, Hyd’ 1 UNF7/8” ×7/8”-L850(70K)
7 D-G2B10326 N2tube 1 N2-1-1/2”(GREEN)-L1800
8 D-G2B10327 N2tube 1 N2-1-3/8”(WHITE)-L650
9 D-G2B10328 N2tube 1 N2-1-3/8”(WHITE)-L550
10 D-17330100 Air End Fitting Ass’y 1
11 D-17330200 Receiver Tank Ass’y 1
12 D-17330400 Filter Ass’y 1
- 233 -
DECAL
E AR P ROTE CTION S AFETY HE LMET H AN D PR OTEC TION FOOT PR OTEC TION

S HA LL B E WORN S HA LL B E WORN S HA LL B E WORN S HA LL B E WORN
RISK
FOR
SQUEEZING
DANGER
RISK FOR SQUEEZING
CAUTION CAUTION
84
CAUTION CAUTION
WARNING WARNING
CAUTION CAUTION
84
CAUTION CAUTION
WARNING
WARNING
RISK FOR SQUEEZING
- 234 -
DECAL
D-24031800 Decal
1 D-24031801 Decal 1
2 D-24031802 Decal 1
3 D-24031803 Decal 2
4 D-24031804 Decal 1
5 D-24031805 Decal 1
6 D-24031806 Decal 2
7 D-24031807 Decal 1
8 D-24031808 Decal 1
9 D-24031809 Decal 1
10 D-24031810 Decal 3
11 D-24030313 Decal 1 Fuel
12 D-24031012 Decal 1 Cooling Water
13 D-24030311 Decal 1 Warning
16 D-24031016 Decal 1 Caution
22 D-24031022 Decal 1
23 D-24031013 Decal 2 Separator Receiver
24 D-24030308 Decal 1
25 D-24030319 Decal 1
26 D-24030324 Decal 1
27 D-24031031 Decal 1
28 D-24030314 Decal 1 Compressor Oil
29 D-24030315 Decal 1 Fuel
30 D-24030316 Decal 1 Engine Oil
31 D-24030318 Decal 1 Power Divider Oil
32 D-24030326 Decal 1 Hyd' Oil
33 D-24030310 Decal 1
34 D-24031034 Decal 2
36 D-24033003 Decal 2
- 235 -
DECAL
D-24031800 Decal
37 D-24033004 Decal 1
38 D-24033001 Decal 1
39 D-24031809 Decal 1
40 D-24033107 Decal 1
41 D-24031033 Decal 1
42 D-24031036 Decal 1
43 D-24031037 Decal 1
44 D-24031038 Decal 1
45 D-24031039 Decal 1
46 D-24031040 Decal 1
- 236 -
- 237 -
ANGLE GAUGE
10
8 10
11
12,13
4
8
11
10 15
7
2
1
- 238 -
ANGLE GAUGE
D-14250000 Angle Gauge Ass'y
1 D-14250100 Gauge Plate 1
2 D-14250200 Plate 1
3 D-14250300 Gauge Plate 1
4 D-14250400 Plate 1
5 D-14250500 Plate 1
6 D-14250600 Bracket 1
7 D-14250700 Needle 2 Ø30
8 D-14250800 Spacer 2
9 D-D5102910 Snap Ring 2 RS030, SHAFT C-TYPE
10 D-C1110612 Hex Nut 2 M6×P1
12 D-B1115176 Hex Bolt 2 M12×P1.75-L30
14 D-B1101561 Hex Bolt 6 M4×P0.8-L10
- 239 -
RD10 – RECOMMENDED SPARE PARTS LIST
DRIFTER
1 D-B6128879 Head Bolt 8
2 D-45086700 Cap 1
3 D-45086800 Chuck End 1
4 D-45086600 Bush 1
5 D-45086900 Spline Chuck 1
6 D-45087000 Chuck Driver Bush 1
7 D-45087100 Liner(Large) 1
8 D-45087200 Chuck Driver(H) 1
9 D-45087300 Driver Gear(L) 1
10 D-45087400 Liner(Small) 1
11 D-45087500 Thrust Plate 1
12 D-45087600 Piston(Hammer) 1
13 D-45087900 Side Rod 4
14 D-45088000 Side Rod Nut 4
15 D-45088600 Side Rod Nut 4
16 D-45088300 Cap Bolt 2
17 D-45088400 Cap Nut 2
18 D-45088500 Cap Nut 2
19 D-40186600 Blow Tube 1
20 D-59001003 Diaphragm(H/P) 1
21 D-59001103 Diaphragm(L/P) 1
22 D-45089700 Shank Adaptor(T-45) 5
23 D-45026000 Sleeve(T-45) 5
24 D-59021600 Rod(T-45) - 3660mm 5
25 D-59023000 Button Bit(T-45 *76) 5
26 D-59032510 Button Bit(T-45 *89) 5
27 D-44035600 Valve Body 1
28 D-44035400 Cap(Right) 1
29 D-44035800 Cap(Left) 1
30 D-44035500 Valve 1
31 D-44035700 Pin 1
- 240 -
MAST
1 D-14070200 Shaft 1
2 D-14070300 Sprocket 1
3 D-14070500 Bush 1
4 D-14070600 Collar 2
5 D-F1127119 Oil Seal 2
HOOD SLIDE
1 D-14081100 Skirt 3
2 D-58021100 Air Cylinder 1
3 D-26006100 Camfoller 2
CENTERIZER
1 D-14090400 Liner(T-45) 2
ROLLER
1 D-41125000 Drive Roller 6
DRILLING SYSTEM
1 D-14152200 Guide Plate 8
2 D-14152300 Plate 8
ENGINE ACC"
1 D-25005600 Centaflex 2
2 D-42004600 Coupling 1
DUST COLLECTOR
1 D-17190011 Impeller 1
2 D-38018700 Pulse Timer 1
3 D-57024800 Pulse Control Valve 3
- 241 -
FILTER
1 D-25030400 Engine Oil Filter 1
2 D-25030100 Engine Fuel Filter 1
3 D-25030200 Engine Separrator 1
4 D-25030300 Crank Case Filter 1
5 D-25020014 Engine Air Cleaner 2
6 D-25020015 Engine Air Cleaner 2
7 D-59050401 Hyd Return Filter 1
8 D-52006520 Comp Separator 1
9 D-59040800 Comp Oil Filter 1
10 D-59033500 Filter Element 6
SEAL SET
1 D-13014600 Orbit Motor Seal Set 1
2 D-55030000 Drifter Seal Set 1
ELECTRIC
1 D-33039200 Emergency Relay 1
2 D-33032800 Relay(2a2b,8PIN) 1
3 D-33031600 Toggle S/W 1
4 D-35017501 Sensor(Water Temp,Eng") 1
5 D-33044801 Pressure S/W(9.5bar) 1
6 D-33044802 Pressure S/W(3.0bar) 1
7 D-33045200 Sensor(E/G Oil Temp) 1
8 D-33042700 Relay Engine Start 1
9 D-33035700 Mono Lever S/W (Hood,Collaring) 1
10 D-33035800 Mono Lever S/W(Centralizer) 1
- 242 -
RD10 – FREE OF CHARGE ACCESSORY
1 D-70001100 Tool Box Set 1
2 D-45089700 Shank Rod 1
3 D-59032510 Bit, Button(T-45 *89) 1
4 D-59021600 Rod (T45) - 3660mm 1
5 D-45026000 Sleeve (T45) 1
6 D-87000400 Working Clothes 2
7 D-13826200 Charging Kit 1
8 D-25030400 Oil Filter 1
9 D-25030100 Fuel Filter 2
10 D-25030200 Separator Filter 1
11 D-25030300 Crank Case Filter 1
12 D-25020014 Air F(In) 2
13 D-25020015 Air F(Out) 2
14 D-59050401 Filter, Return 1
15 D-59040800 Filter, Comp Oil 1
16 D-18000300 Part Book 1
- 243 -
RD10 – ADDITIONAL SPARE PARTS LIST (One year)
DRIFTER(T-45)
1 D-45026000 Sleeve(T-45) 10
2 D-59021600 Rod(T-45) 10
3 D-59023000 Button Bit(T-45 *76) 5
4 D-59032510 Button Bit(T-45 *89) 10
5 D-59031300 Button Bit(T-45 *102) 1
6 D-59025200 Retrac Bit(T-45 *102) 1
DRIFTER(T-38)
1 D59031-00 Button Bit(T-38 *76) 1
2 D-59021400 Sleeve(T-38) 1
3 D-45019800 Rod(T-38) 1
4 D-45086500 Shank Adaptor(T-38) 1
5 D-59031400 Button Bit(T-38 *89) 1
- 244 -
RD10 – ADDITIONAL SPARE PARTS LIST (tree year)
HYD" CIRCUIT
1 D-26042400 Power, Divider 1
2 D-52022700 Compressor, Air 1
3 D-52029500 Pump, Main 1
HOSE(동진)
1 D-G2A70246 Hose, 1*4140 1
2 D-G2A70081 Hose, 1*4250 1
3 D-G2A70084 Hose, 1*3060 2
4 D-G2A70085 Hose, 3/4*4150 2
5 D-G2A70249 Hose, 3/4*3750 2
6 D-G2A70270 Hose, 3/4*3180 2
7 D-G2A70271 Hose, 1*3700 2
HOSE
1 D-G2A70251 Hose, 3/4*3750 2
2 D-G2A70252 Hose, 1"*3700 2
3 D-G2A70255 Hose, 1"*4200 1
4 D-G2A70254 Hose,1/4*4150 1
- 245 -
RD10 – Maintenance Tool Kit
2
1
4, 5, 6, 7 8
3
9 10 11, 12
13
14 15
- 246 -
RD10 – Maintenance Tool Kit
ITEM PART NAME QTY S/N REMARKS
+ Tool Kit 1
1 Tool Box 1
2 Grease Gun 1 500CC
3 Hammer 1 2.5LBS
4 Spanner 1 36MM
5 Spanner 1 41MM
6 Spanner 1 46MM
7 Spanner 1 50MM
8 Hex-Wrench 1 14MM
9 Hex-Wrench Set 1 8PCS
10 Spanner Set 1 14PCS
11 Screwdriver 1 6*100+
12 Screwdriver 1 6*100-
13 Pliers 1 10”
14 Spanner 1 12”
15 Chain Wrench 1 KS-550
- 247 -
Notes
- 248 -
EVERDIGM Corp.
Sales Office: Room #1203, Woolim Lion's Valley Ⅱ, 680,
Gasan-Dong, Geumcheon-Gu, Seoul, Korea 153-803
Tel: +82-2-801-0800 / Fax: +82-2-801-0899
Head Office: 332-3, Janggwan-ri, Jincheon-eub, Jincheon-gun,

& Factory Chungcheongbuk-do, Korea 365-802
Tel: +82-43-530-3300 / Fax: +82-43-530-3318
www.everdigm.com

Manual de Partes Rhino PDF

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Manual de Partes Rhino PDF

Uploaded by

Copyright:

Available Formats

PARTS MANUAL

Document No.: A001-0001 Revision Date: 2010-01-15

TABLE OF CONTENTS ........................................................................................................................................... 2

MAST & ROD CHANGER

BOOM & GUIDE SHELL

© 2007 Everdigm Corp. All rights reserved.

Notes ................................................................................................................................................................... 240

22 23 24,25 31,38 19 21 18 32,36,40 2

29 D-B1115276 Bolt 12 M12×P1.75-L30

30 D-C1112061 Nut 2 M20×P2.5

VIEW "A" 9 23,24,25

E AR P ROTE CTION S AFETY HE LMET H AN D PR OTEC TION FOOT PR OTEC TION

RISK FOR SQUEEZING

ITEM PART NO. PART NAME QTY S/N REMARKS

Head Office: 332-3, Janggwan-ri, Jincheon-eub, Jincheon-gun,

You might also like
