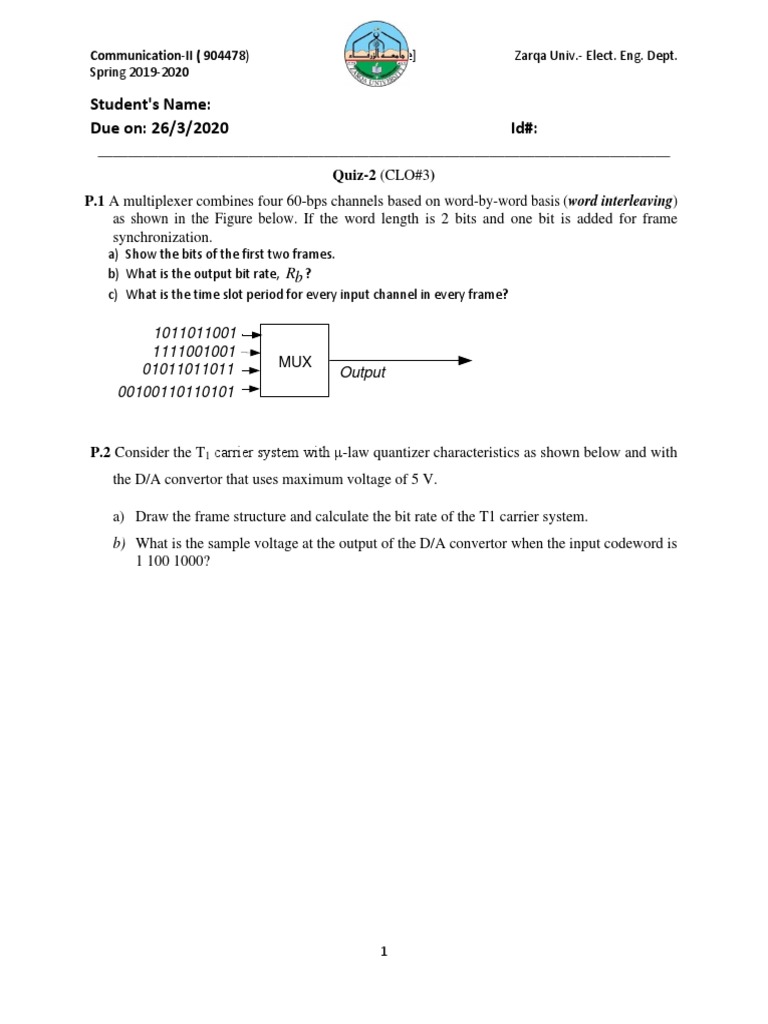

    Communication-II ( 904478) [Type here] Zarqa Univ.- Elect. Eng. Dept.

    Spring 2019-2020

    Student's Name:
    Due on: 26/3/2020 Id#:
    ____________________________________________________________________________
    Quiz-2 (CLO#3)
    P.1 A multiplexer combines four 60-bps channels based on word-by-word basis (word interleaving)
    as shown in the Figure below. If the word length is 2 bits and one bit is added for frame
    synchronization.
    a) Show the bits of the first two frames.
    b) What is the output bit rate, Rb ?
    c) What is the time slot period for every input channel in every frame?

    1011011001
    1111001001
    MUX
    01011011011 Output
    00100110110101

    P.2 Consider the T1 carrier system with μ-law quantizer characteristics as shown below and with
    the D/A convertor that uses maximum voltage of 5 V.

    a) Draw the frame structure and calculate the bit rate of the T1 carrier system.
    b) What is the sample voltage at the output of the D/A convertor when the input codeword is
    1 100 1000?
